OWL EC-105 User manual

Electrophoresis Power Supply
EC-105
Operation and Maintenance Manual 7218471 Rev. 0
Visit us online to register your warranty
www.thermoscientific.com/warranty

Thermo Scientific
MANUAL NUMBER 7218471
0 -- 5/2/12 Transfer to Marietta (was 157-3000-00-E) ccs
REV ECR/ECN DATE DESCRIPTION By
Preface
EC-105 i

Thermo Scientificii EC-105
Preface
Important Read this instruction manual. Failure to read, understand and follow the instructions in this manual
may result in damage to the unit, injury to operating personnel, and poor equipment performance. s
Caution All internal adjustments and maintenance must be performed by qualified service personnel. s
Material in this manual is for information purposes only. The contents and the product it describes are subject to
change without notice. Thermo Fisher Scientific makes no representations or warranties with respect to this
manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to
the use of this manual.
©2011 Thermo Fisher Scientific. All rights reserved.

Thermo Scientific EC-105 iii
Preface
Important operating and/or maintenance instructions. Read the accompanying text carefully.
Potential electrical hazards. Only qualified persons should perform procedures associated with this
symbol.
Equipment being maintained or serviced must be turned off and locked off to prevent possible injury.
Hot surface(s) present which may cause burns to unprotected skin, or to materials which may be
damaged by elevated temperatures.
Marking of electrical and electronic equipment, which applies to electrical and electronic equipment
falling under the Directive 2002/96/EC (WEEE) and the equipment that has been put on the market
after 13 August 2005.
This product is required to comply with the European Union’s Waste Electrical & Electronic
Equipment (WEEE) Directive 2002/96/EC. It is marked with the WEEE symbol. Thermo Fisher
Scientific has contracted with one or more recycling/disposal companies in each EU Member State
European Country, and this product should be disposed of or recycled through them. Further
information on Thermo’s compliance with this directive, the recyclers in your country and
information on Thermo products will be available at www.thermofisher.com.
4Always use the proper protective equipment (clothing, gloves, goggles, etc.)
4Always dissipate extreme cold or heat and wear protective clothing.
4Always follow good hygiene practices.
4Each individual is responsible for his or her own safety.

Thermo Scientificiv EC-105
Preface
Do You Need Information or Assistance on
Thermo Scientific Products?
If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:
1-740-373-4763 Direct
1-800-438-4851 Toll Free, U.S. and Canada
1-877-213-8051 FAX
http://www.thermoscientific.com Internet Worldwide Web Home Page
[e-mail] Tech Support Email Address
Certified Service Web Page
Thermo Fisher Scientific
401 Millcreek Road, Box 649
Marietta, OH 45750
Our staff can provide information on pricing and give you quotations. We can
take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our staff can supply technical information about proper setup, operation or
troubleshooting of your equipment. We can fill your needs for spare or replacement parts or
provide you with on-site service. We can also provide you with a quotation on our Extended
Warranty for your Thermo Scientific products.
Whatever Thermo Scientific products you need or use, we will be happy to discuss your
applications. If you are experiencing technical problems, working together, we will help you
locate the problem and, chances are, correct it yourself...over the telephone without a service
call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist you
Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by
telephone or fax. If you wish to write, our mailing address is:
International customers, please contact your local Thermo Scientific distributor.
Sales Support
Service Support
www.unitylabservices.com

EC-105 vThermo Scientific
Table of Contents
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Intended Use and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Precautions and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Section 1
Section 2
Section 3
Section 4

EC-105 1-1Thermo Scientific
Section 1 General Information

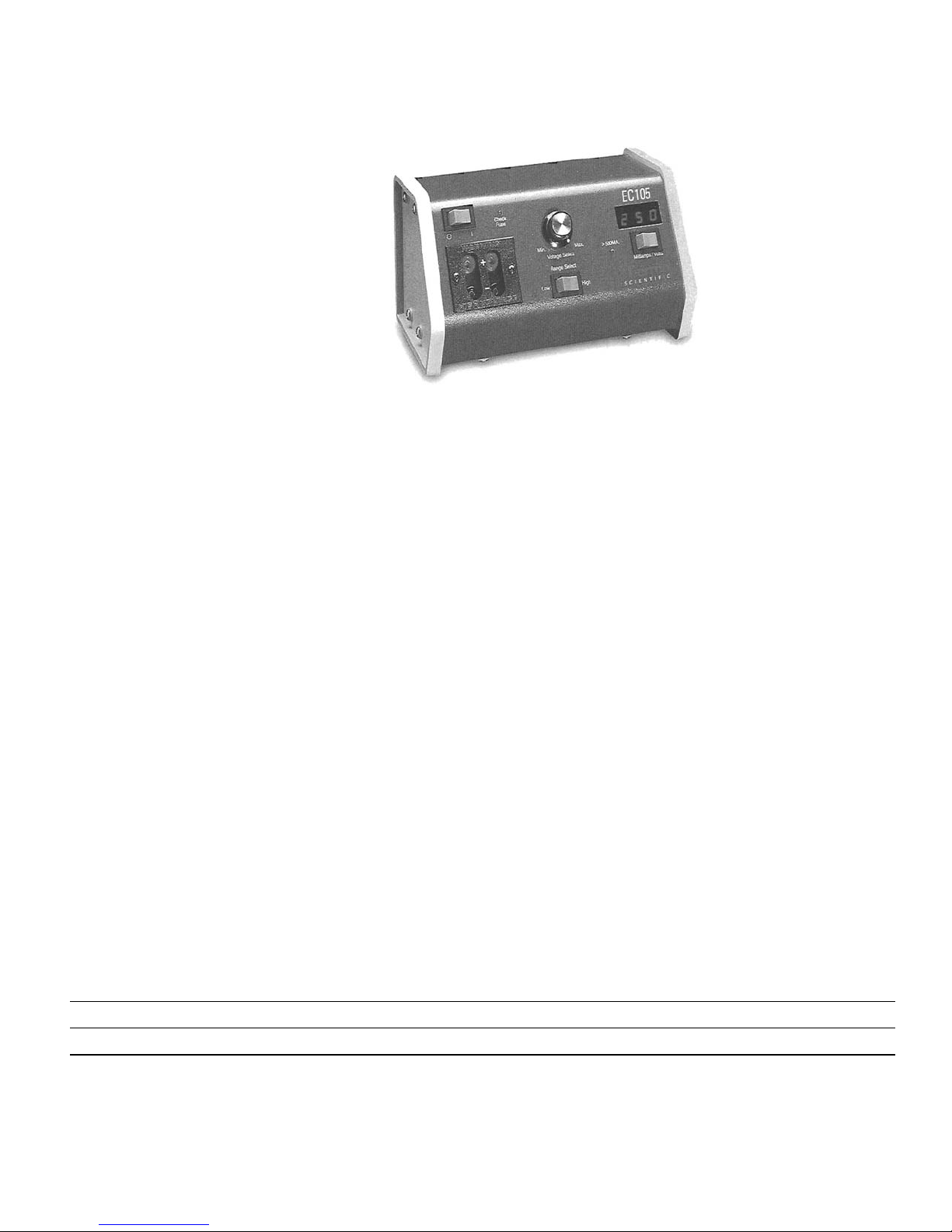

Figure 1-1. EC-105 Components
1. Main Power Switch
2. Check Fuse LED
3. Voltage Selec Control
4. Low / High Range Switch
5. Overcurrent LED
6. Volts / Milliamp Display
123
456

1-2 EC-105 Thermo Scientific
Section 1
General Information
• The EC-I05 Power Supply is intended for use with any
electrophoretic device designed to operate below 250 Volts and 500
milliAmps DC.
• Two sets of outputs operate in parallel to provide between 20 and 250
volts, up to 500 milliamps, and up to 75 watts in the constant voltage
mode.
• A single LED display provides output voltage or current readings.
• Overcurrent protection is provided by audible and visual alarms and a
single 1 amp slo blow fuse on the main circuit.
Intended Use and
Specifications

EC-105 2-1Thermo Scientific
Section 2 Set-Up
Unpack and Check
Unpack and carefully examine the power supply. Report any damage to
the distributor. Do not attempt to operate this device if physical damage
is present. Save all packing material if damage is found.
Electricity Supply
Before connecting this device to the electricity supply, check the infor-
mation given on the power supply rating label and confirm the follow-
ing:
- Your electricity supply is single phase A.C. (alternating current) of
the stated frequency with neutral nominally at earth potential.
- Your supply voltage is within the stated range.
- The current rating is within the capacity of your supply outlet.
Warning This equipment must be earthed. s
The wires in the electrical lead are colored in accordance with the
following code:
Green Earth (Ground) White Neutral (Common) Black Live (Phase)
Connect the wires to a non-reversible plug as follows:
Green wire to the terminal marked E (Earth), G (Ground), or colored
Green.
White wire to the terminal marked N (Neutral) or Common.
Black wire to the terminal marked L (Live) or Phase.
Important Electrical Safety Notes Consult a qualified electrician if any
doubt or if your electricity supply system has any of the following:
- No Earth
- A Color Code different from the above
- Reversible plugs
- Supply and Return Leads that are both above Earth potential

2-2 EC-105 Thermo Scientific
Section 2
Section title
Locate
Place the power supply in proximity to the electrophoretic cell(s) with
which it is to be connected. Be sure to place the power supply in a safe,
dry location with all the controls accessible.
Connect to Cell and Mains
Connect power supply to electrophoretic cell, then to the AC receptacle.

EC-105 3-1Thermo Scientific
Section 3 Operation
Power On
After the power supply is properly connected to the electrophoretic
cell(s), select the 10 range and set Voltage Select to the fully counter-
clockwise (minimum) position. Set the display switch to Volts and tum
on power using the Power switch. When "On," the red LED is illumi-
nated.
Select Voltage
Adjust the Voltage Select control to the desired output voltage. The
Select Control will increase the output voltage approximately 10 volts for
every incremental adjustment. The Lo/Hi range switch is set to the Hi
position whenever operating voltages above 140 volts are required.
Note The overcurrent alarm will sound whenever maximum output
current (500mA) is exceeded. Should this occur, reduce the operating
voltage until the overcurrent alarm goes off.
The volts/milliamps display switch will display either volts to nearest volt
or milliamps to the nearest milliamp, depending on the switch setting.
This switch may be changed at any time without affecting the output.
Disconnection
When disconnecting the power supply from the electrophoretic cell, for
any reason, first turn off the power switch and confirm that the red LED
is no longer illuminated.

EC-105 4-1Thermo Scientific
Section 4 Precautions and Service
Use the same precautions as with any electrical device. Do not operate
without the cover in place or with any possible short circuit. Do not
operate in a damp, humid environment where condensing moisture may
short out internal electrical components. When moving to or from a cold
room, allow at least eight (8) hours for the unit to temperature-equilibrate.
This power supply is equipped with a slo blow 1 amp fuse in the mains
circuit. Should this fuse open, the check fuse LED on the front panel will
illuminate.
Caution Use only 1 amp (3/4 amp for 240VAC mains) slo blow fuses in
this equipment. s
Should this product become excessively warm, smoke, or display erratic
information during operation, discontinue use immediately and contact a
qualified service representative.
Use only mild, non-abrasive detergents. DO NOT use solvents or immerse
in water, as this may cause permanent damage.
Cleaning

4-2 EC-105 Thermo Scientific
Section 4
Section title
EC-I05 Minicell Power Supply (115V/60Hz or 230V/50Hz)
Output mode: Constant Voltage
Voltage Steps:
Lo Range: 20,30,40,50,60,70,80,90, I00, 110,120, 130
Hi Range: 140,150,160,170,180,190,200,210,220,230,240,250
Maximum Voltage: 250 Volts
Maximum Current: 300 milliAmps @ 150-250 Volts
500 milliAmps below 150 Volts
Maximum Power: 75 Watts
Number of Outputs: 2
Fuse Replacement: 1 Amp slo blow
Temperature Range: 0°C -40°C (non-condensing atmosphere)
Dimensions: 8" W x 6" D x 4.5" H (20.3 cm x 13.3 cm x 11.4 cm )
Weight: (net) 5 lbs (2.3 kg)
Weight: (shipping) 7 lbs. (3.2 kg)
Technical Specifications
