OwlTech OWL–SDI–HVA01 User manual

1/ 8

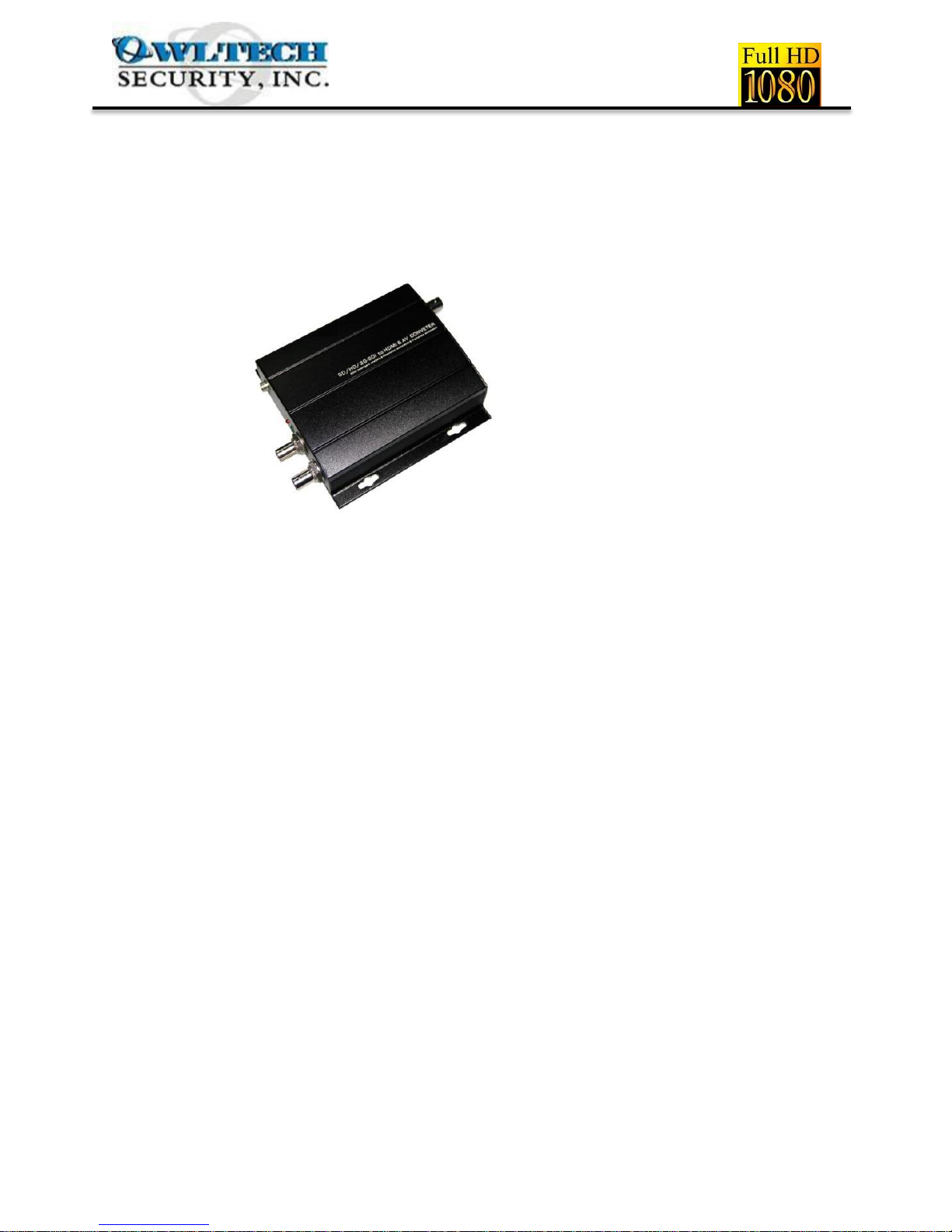

OWL–SDI–HVA01 User Manual
SD/HD/3G-SDI to HDMI & CVBS Converter
NOTE: The casing design is subject to
Change without notice
This device converts a single channel SDI signal to different kinds of HD Multimedia HDMI signals and
CVBS signals .It integrates SDI Cable equalizer and relocked to enhance video performance and stability.
Simultaneously, it also separates and converts the audio signals of SDI, embedding it to HDMI signal or output
to analog audio DACs.
Features
Support SDI input format: All SDI Formats
SD: 525i @ 59.94Hz, 625i@ 50Hz
HD: 720p @ 23.98H z /24Hz /25Hz /29.97Hz /30Hz
720p @ 50Hz /59.94Hz /60Hz
1080i @ 50Hz I 59.94Hz I 60Hz
1080p @ 23.98Hz /24Hz I 25Hz I 29.97Hz I 30Hz
3G: 1080p@ 50Hz /59.94Hz /60Hz
Support SMPTE 425M ( A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.
Carry 1 channel SDl signal loop out.
Max. Cable length (Belden1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI 140m/450ft
Automatically embed SDI audio signal to HDMIsignal.
User selectable output format (HDMI and CVBS)
5V 24V DC

2/ 8
Please read the Manual before attempting to use this product
Specifications and appearance are subject to change without notice.

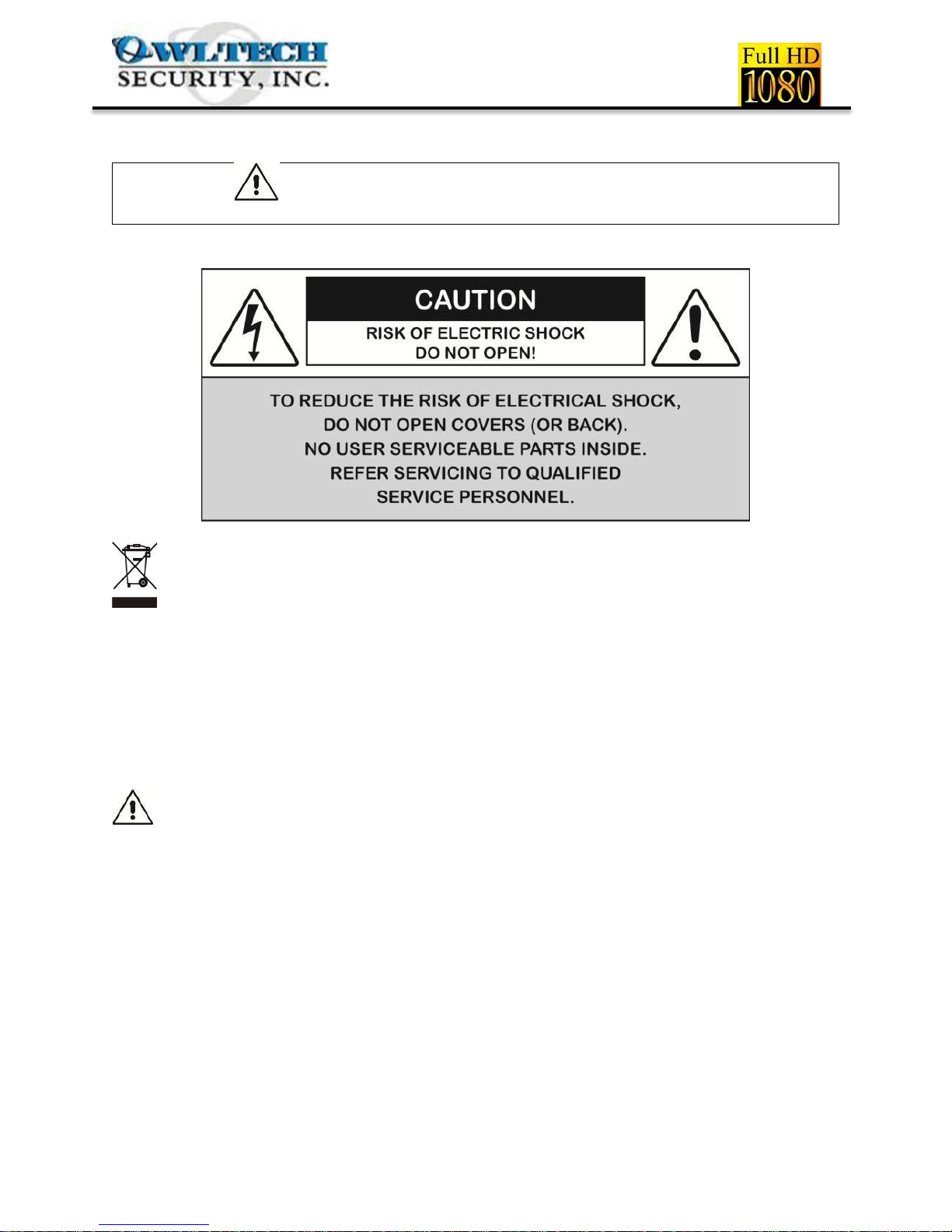

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and
other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be
treated ashousehold waste.Instead it shall be handed over to the applicable collection point for
the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negati ve consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of this product. The
recycling of materials will help to conserve natural resources.For more detailed information
about recycling of this product, please contact your local city office,your household waste
disposal service or the shop where you purchased the product.
Caution
1 . Handle this product wit h care
Avoid any shock or bumping of the product.Improper handling could damage the product.
Do not handle the unit with wet hands. Provide proper ventilation and air circulation and do
not use near water.
2.Requires a proper operatin g environment
This product is not waterproof and is designed for indoor use. The allowable temperature
rangefor operation of this product is between 0°C"40°C I 32"F-104 "F.
3.Check the power source voltage
The power source voltage should be withi n the specified range. (Product must meet the
specifications).
4. Objects and liquid entry

3/ 8
Never pushobjects of any kind into this product as this may touch dangerous voltage points of
short out parts that could result in a fire or electric shock. Never spill any kind of liquid on the
product.
5. Cleaning
Do not useliquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
6. Servicing
Do not attempt to servicethis product by yourself as opening or removing coversmay expose
you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel.

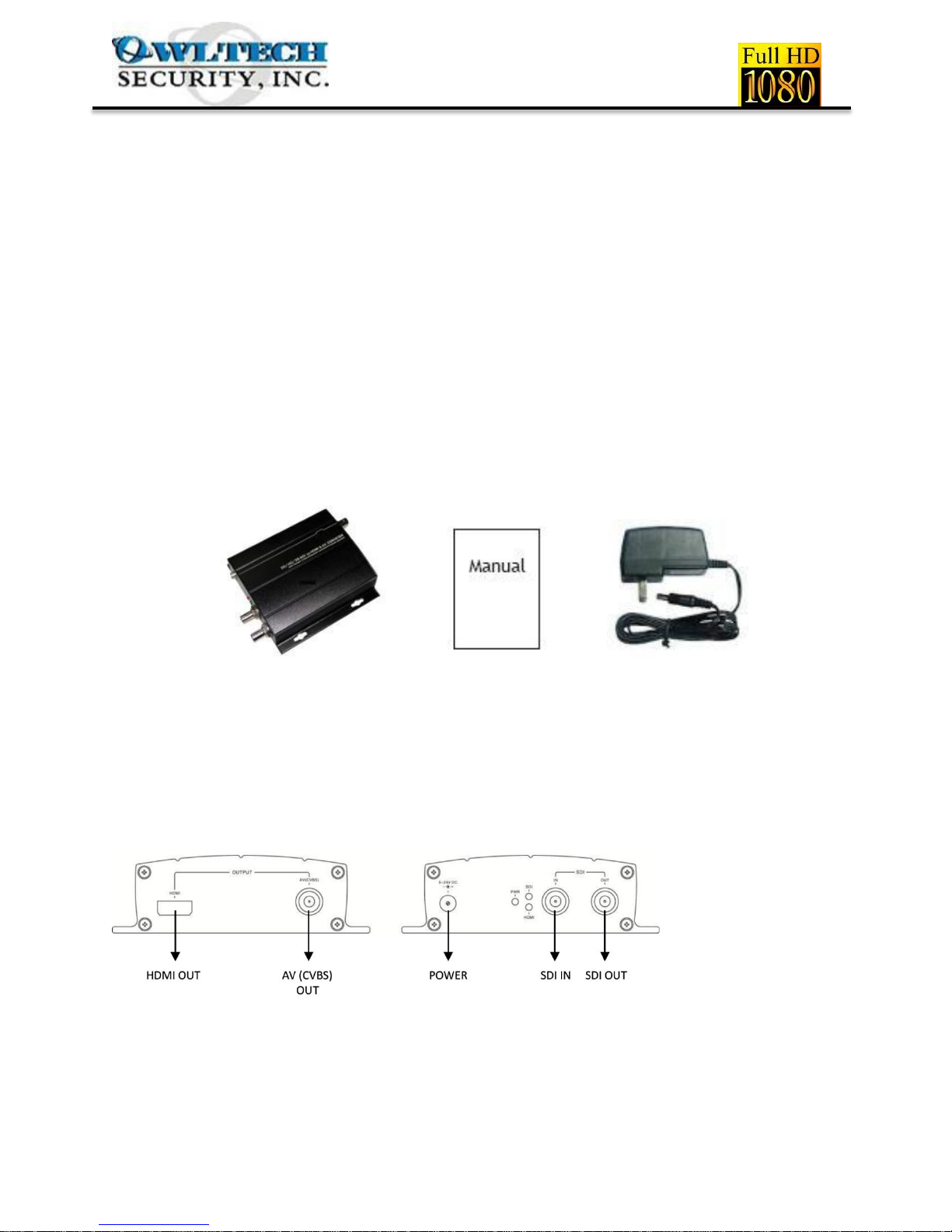

Package Contents
1. One (1) SDI to HDMI& CVBS Converter
2. One (1) User Manual
3. One (1) AC Adapter
1. 2. 3.
For any returns, please include all components listed above with original packaging in Resalable
Condition. Absolutely No Returns will be accepted if any component is missing/damaged.
Parts & Functions
Left Side View Right Side View
Application diagram
The distance depends on the quality of the SDI signal from the HD camera source
and also the Coax Cable & Connector

4/ 8
Technical Specifications:
Model
OWL-SDI-HVA01
Input Interface
1x BNC SDI
Input Signal Type
SD-SDI (270Mbps), HD-SDI (1.485Gbps),
3G-SDI (2.97Gbps)
Support Input Format
SD: 525i @ 59.94Hz, 625i @5 0Hz
HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
720p @ 50Hz / 59.94Hz / 60Hz
1080i @ 50Hz / 59.94Hz / 60Hz
1080p @2 3.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
3G:1080p @50Hz / 59.94Hz / 60Hz
SDI signal Range
0.8V p-p
SDI Impedance
75 ohms
SDI Coupling Type
AC Coupling
Max. Input Coax Length
Belden 1694A
SD-SDI 400m / 1300ft; HD-SDI 200m / 600ft
SDI Loop Out Interface
1x BNC SDI
HDMI/DVI Out Interface
1x HDMI
Frequency Bandwidth
165MHz/up to standard with HDCP: HDMI 1.3
AV（CVBS）Output Interface
CVBS: PAL/NTSC
Power Supply
5V~24V DC
Power Consumption
6 Watts (max)
Operating Temperature
32°F~104°F / 0°C~40°C
Storage Temperature
-4°F~140°F / -20°C~60°C
Relative Humidity
20-90% RH (Non-condensation)
Dimension
6.14"x4.72"x1.42" / 156 x 120 x 36mm
*Specifications are subject to change without notice

5/ 8
Key Components
Components Made in USA for this product:
Name of Component
Manufacturer
Multi-Rate SDI Adaptive Cable Equalizer
Gennum
Multi-Rate SDI Automatic Reclocker
Gennum
Multi-Rate Dual Slew-Rate Cable Driver
Mindspeed & Gennum
SDI SPD
Bourns
HDMI ESD Protection
Semtech
Micro Controller Unit
Texas Instruments
Components Made in Taiwan for this product:
Name of Component
Manufacturer
DC/DC Converter
Richtek
*Key components are listed by the manufacturer and are subject to change without notice
Eve Diagram
SD MODE

6/ 8

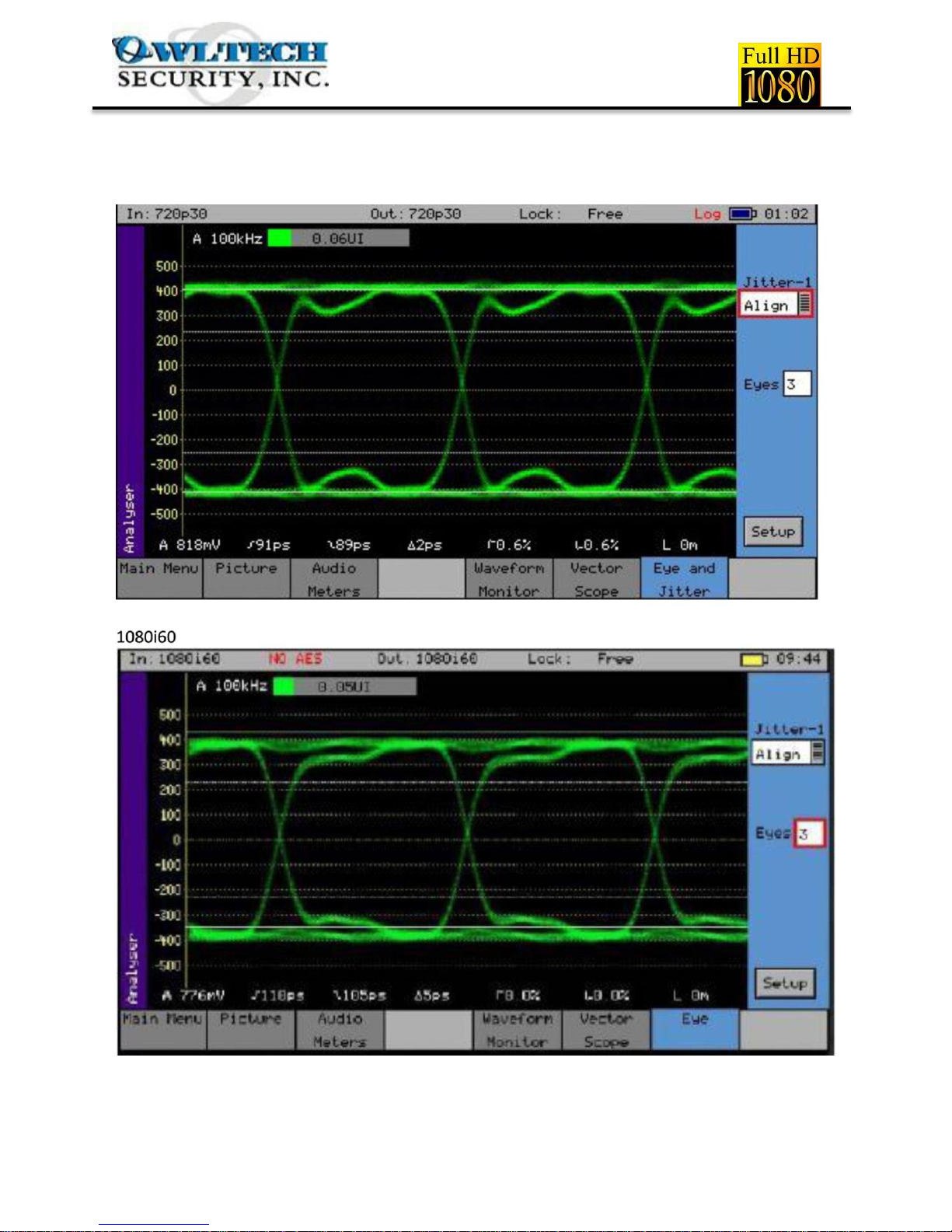

HD MODE
720P30

7/ 8

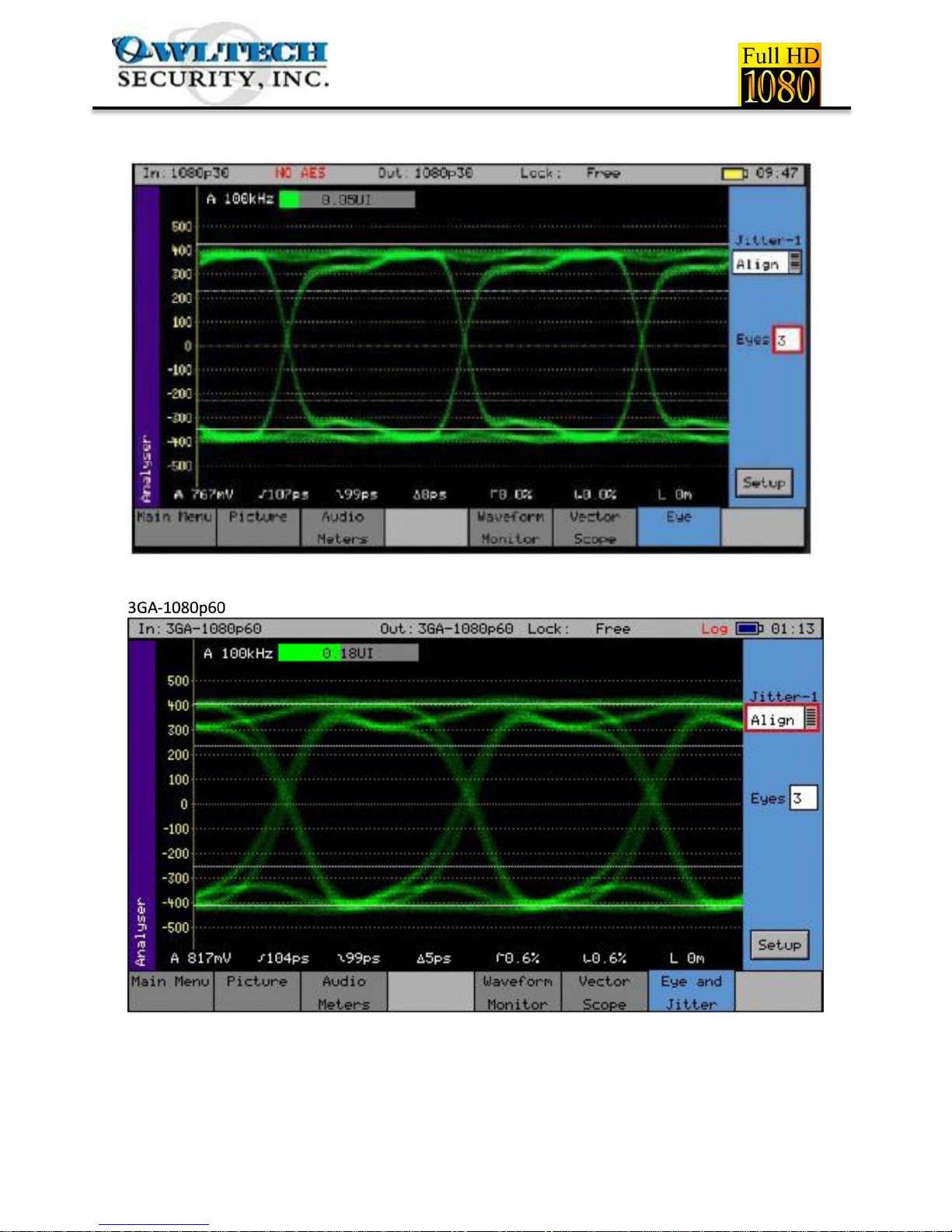

1080P30

8/ 8
IMPORTANT NOTE: Cable & Connector for SDI HD Camera
In order to achieve the Best Quality and Long Range coax cable run of up to 200m / 600ft,
you will need:
1. Good Quality Cable: We suggest using RGG Belden 1694A Low loss Serial Digital
coax cable because RGG cables have better grounding than RG59 cables. RGG is
for Digital Signal and RG59 is for Analog Signal.
3. Good Quality installation: Do not over cut the braid because it will affect the
grounding. The image will have lines and noise.
Limited Warranty
OWL-SDI-HVA01
LIMITED ONE (1) YEAR WARRANTY AND EXCLUSIONS
Manufacturer warrants to the original consumer purchaser and not for the benefit of anyone else that
this product at the time of its sale by Manufacturer is free of defects in materials and workmanship
under normal and proper use for one (1) year from the purchase date. Manufacturer's only obligation
is to correct such defects by repair or replacement, at its option, if within such one (1) year period the
product is returned prepaid, with proof of purchase date, and a description of the problem. This
warrant excludes and there is disclaimed liability for labor for removal of this product or reinstallation.
This warranty is voided if this product is installed improperly or in an improper environment,
overloaded, misused, opened, abused, or altered in any manner, or is not used under Normal
operating conditions or not in accordance with any labels or instructions. There are no other implied
warranties of any kind, including merchantability and fitness or a particular purpose, but if any
implied warranty is required by the applicable jurisdiction, the duration of any such implied warrant,
including merchantability and fitness of or a particular purpose, is limited to one(1)year.
Manufacturer is not liable for incidental, indirect, special, or consequential damages, including
without limitation, damage to, or loss of use of, any equipment, loss sales or profits or delay or
failure to perform this warranty obligation. the remedies, provided therein are the exclusive
remedies under this warranty, whether based on contract, tort or otherwise.
