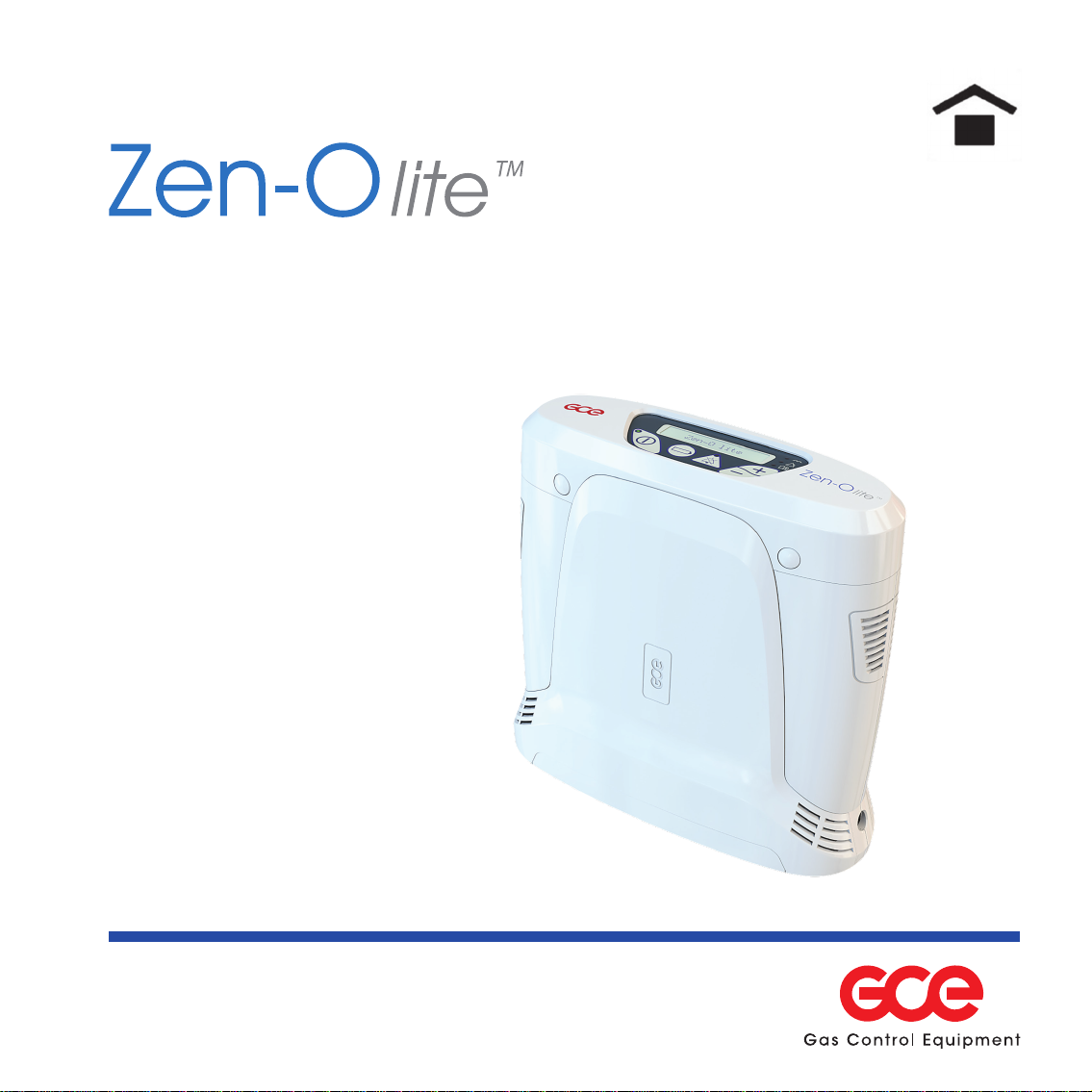

User Manual
Portable Oxygen Concentrator
Model: RS - 00600
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
2/292
English
User manual: Zen-O lite™ Portable Oxygen Concentrator (Model: RS-00600)
CONTENT
1. Foreword ..............................................................................4
1.1. General Information .................................................................4
1.2. Classication........................................................................4
1.3. Typographical Conventions ..........................................................5
2. Intended Use...........................................................................5
3. Safety Instructions .....................................................................6
3.1. Warnings Overview..................................................................6
3.2. Cautions Overview ..................................................................7
3.3. Overview of Important Information:..................................................9
4. Instructions and Training ...............................................................9
5. Product Description ....................................................................10
5.1. Schematic Description...............................................................10
6. General Instructions Before Use .........................................................11
6.1. Accessories List......................................................................11
6.2. Battery .............................................................................11
6.3. Nasal Cannula.......................................................................13
7. Operating Zen-Olite™ ..................................................................14
7.1. Connecting a Nasal Cannula .........................................................14
7.2. Turning On..........................................................................15
7.3. Choosing a Preferred Language ......................................................15
7.4. Adjusting Setting ...................................................................15
7.5. Battery Button ......................................................................16
7.6. Responding to Alarms ...............................................................16
7.7. Turning O..........................................................................16
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
3/292
2/292
English
User manual: Zen-O lite™ Portable Oxygen Concentrator (Model: RS-00600)
8. Traveling with the Zen-Olite™ POC by Air ...............................................17
8.1. Passenger Pre-ight Preparation .....................................................17
8.2. Boarding and In-ight Information ...................................................19
8.3. Transportation Security Administration (TSA) Requirements...........................20
9. Alarm Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
9.1. Alarms..............................................................................22
10. Troubleshooting ......................................................................25
11. Maintenance and Cleaning ............................................................26
11.1. Routine Maintenance...............................................................26
11.2. Cleaning...........................................................................26
11.3. Service Life ........................................................................26
11.4. Service Connector..................................................................26
12. Device Repair and Disposal ............................................................27
12.1. Repair .............................................................................27
12.2. Sieve Modules Replacement Instructions: ...........................................27
12.3. Disposal ...........................................................................28
13. Warranty .............................................................................28
14. Trademarks and Disclaimer ............................................................28
14.1. Trademark .........................................................................28
14.2. Disclaimer .........................................................................28
15. Technical Description..................................................................29
15.1. Electromagnetic Compatibility (EMC) Information ...................................31
16. Glossary - Explanation of Packaging and Labelling Symbols .............................34
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
4/292
Foreword
Please refer to this manual for detailed instructions on warnings, cautions, specications, and ad-
ditional information.
Important: Users should read this entire manual before operating the Zen-Olite™ Portable Oxy-
gen Concentrator. Failure to do so could result in personal injury and/or death. If you have ques-
tions about the information in this user manual or about the safe operation of this system, contact
your distributor.
1.1. General Information
This user manual provides information for users of the Zen-Olite™ Portable Oxygen Concen-
trator. For the sake of brevity, the terms“concentrator,”"POC",“unit,” or“device”are sometimes
used in this document to refer to the Zen-Olite™ Portable Oxygen Concentrator. "Patient"
and "User" are used interchangeably.
1.2. Classication
This device is listed with an internationally recognised testing laboratory and classied with
respect to electric shock, re, and mechanical hazards in accordance with the following stand-
ards:
• IEC/EN 60601-1:2012, Medical Electrical Equipment – Part 1: General Requirements for Basic
Safety and Essential Performance.
• IEC/EN 60601-1-2:2014, Part 1-2: General Requirements for Safety – Collateral Standard:
Electromagnetic Compatibility – Requirements and Tests.
• IEC/EN 60601-1-6:2010+A1:2013 Medical Electrical Equipment – Part 1-6: General
Requirements for Basic Safety and Essential Performance – Collateral Standard: Usability.
• IEC/60601-1-8:2006 Medical Electrical Equipment – Part 1-8: General Requirements for
Safety – Collateral Standard: General Requirements, Tests and Guidance for Alarm Systems
in Medical Electrical Equipment and Medical Electrical Systems.
• IEC/60601-1-11:2011 Medical Electrical Equipment - Part 1-11: General Requirements for
Safety - Collateral Standard: Requirements for Medical Electrical Equipment and Medical
Electrical Systems Used in the Home Healthcare Environment.
• ISO 80601-2-67:2014, Medical Electrical Equipment - Part 2-67: Particular Requirements for
Basic Safety and Essential Performance of Oxygen Conserving Equipment.
• ISO 80601-2-69:2014, Medical Electrical Equipment - Part 2-69: Particular Requirements for
Basic Safety and Essential Performance of Oxygen Concentrator Equipment.
• CAN/CSA C22.2 No. 60601-1:14, Canadian Standard, Medical Electrical Equipment - Part 1:
General Requirements for Basic Safety and Essential Performance.
• RTCA DO-160G:12/8/2010 Environmental Conditions and Test Procedures for Airborne
Equipment.
1.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
5/292
4/292
• ISO 7637-2:2011 Road Vehicles - Electrical disturbances from conduction and coupling- Part
2: Electrical transient conduction along supply lines only.
• Medical Device Directive 93/42/EEC.
This equipment is classied as:
• Class II
• Class IIa according to the MDD 93/42/EEC
• Type BF
• IP22 with the carry bag
1.3. Typographical Conventions
This user manual contains warnings, cautions, and notes to help call attention to the most im-
portant safety and operational aspects of the device. To help identify these items when they
occur in the text, they are shown using the following typographical conventions:
WARNING: Statements that describe serious adverse reactions and potential safety haz-
ards.
CAUTION: Statements that call attention to information regarding any special care to be ex-
ercised by the practitioner and/ or patient for the safe and eective use of the device.
IMPORTANT: Statements calling attention to additional signicant information about the device
or a procedure.
Intended Use
Zen-Olite™ portable oxygen concentrator is intended to provide supplemental oxygen to
patients with chronic pulmonary diseases and any patient requiring supplemental oxygen.
The device is portable, enabling patients who need an oxygen device to be treated at home
according to a clinician’s prescription or direction.
Zen-Olite™ is not intended for use in life supporting or life sustaining situations, and is pro-
vided non-sterile. It is a prescription only device, and designed for indoor and outdoor use.
For correct operational conditions see Chapter 15. Technical Description.
Zen-Olite™ Portable Oxygen Concentrator is not intended to be used:
• in life-supporting or life-sustaining situations
• in an operating or surgical environment
• with a non-adult population
• in conjunction with ammable anaesthetic or ammable materials
2.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
6/292
Safety Instructions
3.1. Warnings Overview
1. The device must be used in the carry bag to provide protection from liquid intrusion
from rain and/or spills.
2. There is a risk of re associated with oxygen equipment and therapy. Do not use near
sparks or open ames.
3. The settings of Zen-Olite™ Portable Oxygen Concentrator RS-00600 might not corre-
spond with continuous ow oxygen.
4. The settings of other models or brands of portable oxygen concentrators do not cor-
respond with the settings of Zen-Olite™ Portable Oxygen Concentrator RS-00600.
5. Wind or strong drafts can adversely aect accurate delivery of oxygen therapy.
6. Geriatrics or any other patient unable to communicate discomfort can require addi-
tional monitoring to avoid harm.
7. Smoking (including e-cigarettes) during oxygen therapy is dangerous and is likely to
result in facial burns, serious injury or death of the patient and others from re. Do
not allow smoking or open ames within the same room as the portable oxygen con-
centrator or any oxygen carrying accessories. If you smoke, you must always turn the
oxygen concentrator o, remove the cannula and leave the room where either the
cannula or the concentrator is located. If unable to leave the room, you must wait 10
minutes after the ow of oxygen has been stopped.
8. Use only water based lotions that are oxygen compatible, before and during oxygen
therapy. Never use petroleum or oil based lotions or salves when operating the device
to avoid the risk of re and burns.
9. Open ames during oxygen therapy are dangerous and are likely to result in re or
death. Do not allow open ames within 3 metres (10 feet) of the oxygen concentrator
or any oxygen carrying accessory.
10. Oxygen makes it easier for a re to start and spread. Do not leave the nasal cannula
on bed coverings or chair cushions with the concentrator on, but not in use; the oxy-
gen will make the materials ammable. Turn the concentrator o when not in use to
prevent oxygen enrichment.
11. Explosion hazard. Do not use in the presence of ammable anaesthetics!
12. Do not use this device in the presence of pollutants or fumes.
13. Do not submerge this device in liquid. Do not expose to water or precipitation. Do not
expose to dusty conditions.
14. Do not use a device or any accessory that shows any sign of damage.
3.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
7/292
6/292
15. Do not use lubricants on this device or any of its accessories.
16. Use of this device at an altitude above 4,000 m (13,000 feet), or outside the tempera-
ture range of 5°C (41°F) to 40°C (104°F), or outside the humidity range of 5% to 93%
may adversely aect the owrate and percentage of oxygen and consequently the
quality of therapy. When not in use, the device should be stored in a clean, dry en-
vironment between -20°C and 60°C (-4°F and 140°F). Use and/or storage outside of
the valid conditions may damage the product. For more technical details see Chapter
1515. Technical Description.
17. Always ensure the battery is inserted before using this device.
18. If feeling ill or experiencing discomfort while using this device, contact your clinician
or seek medical assistance immediately to avoid harm.
19. Your home oxygen provider must verify the compatibility of the device and all acces-
sories used prior to use. To ensure you are receiving the therapeutic amount of oxy-
gen for your medical condition, the device and accessories must only be used after
one of more settings have been determined or prescribed for you at your specic ac-
tivity levels by a healthcare professional.
20. The electrical cord and tubing could present a tripping or strangulation hazard. Keep
away from children and pets.
21. Do not disassemble or modify this device or any of its accessories. Do not attempt any
maintenance other than tasks described in Chapter 10 -Troubleshooting. Disassembly
can create an electric shock hazard and will void the warranty. Contact your distribu-
tor for servicing by authorised personnel.
22. Use only spare parts recommended by the manufacturer to ensure proper function
and to avoid the risk of re and burns.
23. Do not repair or perform service work while the device is in use by the patient.
3.2. Cautions Overview
1. Keep away from heat sources (replaces, radiant heaters, etc.) that could cause the oper-
ating temperature at or near the device to exceed 40°C (104°F).
2. The display may be dicult to read under bright lighting conditions (sunlight, interior
lights, etc.), move away from direct light for viewing the display.
3. Keep away from lint or other loose material that could block the air intake vents.
4. Some countries restrict this device to be sold by or on an order of a prescribing clinician.
Please ensure you comply with relevant local laws.
5. Non-prescribed oxygen therapy can be hazardous under certain circumstances. Use this
device only when prescribed by a clinician.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
8/292
6. Patients with a fast breathing rate requiring a higher oxygen setting may require more
oxygen than this device can produce - see Chapter 15 - Technical Description. This device
may not be appropriate in that case. Consult your clinician for alternative treatment.
7. Always operate the device at the setting prescribed by a clinician. Do not alter the set-
ting unless prescribed by a clinician. Periodic reassessment of the ow settings should be
done by a clinician.
8. Do not use this device while sleeping unless prescribed by your clinician.
9. It is recommended for an alternate source of oxygen to be made available in the event of
power outage or mechanical failure. Consult your home oxygen provider or clinician for
an appropriate backup system.
10. This device may not reach specied oxygen concentration purity until it has been in use
for up to 2 minutes at set owrate.
11. This device is designed for use by one patient at a time.
12. If you are unable to hear or see alarms, do not have normal tactile sensitivity, or cannot
communicate discomfort, consult a clinician before using this device.
13. If oxygen concentration drops below the specied level, an alarm will indicate this condi-
tion. If alarm persists, stop using this device, switch to an alternate source of oxygen, and
contact your home oxygen provider.
14. Only use approved accessories with this device. See approved accessories list in section
6.1 and cannula approved for use with this device. Using unapproved accessories or can-
nula may impair the performance of this device.
15. This device is not designed for use with a humidier or nebuliser. If a humidier or nebu-
liser is used with this device, performance may be diminished and the device may be
damaged.
16. Always follow the cannula manufacturer’s instructions for proper use.
17. Replace the cannula on a regular basis. Check with your home oxygen provider or clini-
cian to determine how often the cannula should be replaced.
18. Check that this device operates on battery after disconnecting from the power source.
19. Only charge battery in this device or in an approved charger. (See approved accessories
list.)
20. Remove battery if this device is not going to be used for more than seven days. Store bat-
tery in a cool, dry place.
21. Do not use cleaning agents other than those specied in this manual. Allow the cleaning
solution to dry from the cleaned surface before use.
22. Always turn o this device when not in use.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
9/292
8/292
23. Always disconnect power and turn o this device before cleaning, see Chapter 11 - Main-
tenance and Cleaning
24. Do not obstruct air intake or exhaust vents when operating this device. Blockage can
cause buildup of internal heat and shut down or damage this device.
25. Do not place objects on top of this device.
26. Keep away from children and pets to prevent damage to the device and accessories and/
or inadvertent setting changes.
27. Keep the device away from pets and pests.
28. This device is rated IP22 while used in the carry bag. Do not use in dusty or wet conditions.
29. Always use in a well ventilated location.
30. Always follow the maintenance schedule as specied in section 11.1 - Routine Mainte-
nance.
31. If this device indicates an abnormal condition, see Chapter 10 - Troubleshooting.
32. Use caution when touching this device in high ambient temperatures.
33. The device can be re-used by a new patient. The device should be cleaned as indicated
in section 11.2 of this user manual and, according to local laws and prescriptions prior to
delivering to a new patient.
34. The device can be isolated from power by disconnecting the power supply from the input
connector, see g. 1, position the device for easy access to the power supply input con-
nector.
3.3. Overview of Important Information:
1. If an extension cord is necessary, use a UL listed 15 amp or higher cord. Do not connect any
other devices on the same extension cord. Do not use a multisocketed extension cord.
2. Inhale through the nose for the concentrator to work most eectively. Inhaling through the
mouth may result in less eective oxygen therapy.
Instructions and Training
The Medical Devices Directive 93/42/EEC states that the product provider must ensure that
all users of the device are provided with the User Manual. The User Manual for this device has
been written to account for training and knowledge of the patient population in order to
operate the device appropriately.
WARNING: Do not use the product without rst reading the user manual. Do not operate
this device if unsure of its operation or function. Contact your home oxygen provider for
assistance or further information.
4.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
10/292
Product Description
5.1. Schematic Description
Green LED - power ON
Power button
Display screen
Battery indicator Alarm mute button
Alarm mute indicator
Red LED - warning
Yellow LED - warning
Pulse setting
selection buttons
Breath detect LED
Air intake
Battery cover
Battery
Fig. 1
Power
input
Exhaust vent
Battery release
button
Nasal
cannula port
5.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
11/292
10/292
General Instructions Before Use
A variety of accessories can enhance the portability and use of the Zen-Olite™ Portable Oxy-
gen Concentrator. In addition to the device, the package contains accessories to get started
and a user manual. Contact your home oxygen provider for a complete list of available acces-
sories.
Always inspect the device and its accessories for any sign of damage before use.
Important: While the box or packaging may exhibit some damage, e.g., tears or dents, the device
may still be in a usable condition. If the device or any accessory shows any sign of damage, con-
tact your home oxygen provider.
Before you get started, check to make sure you have the following:
• Concentrator
• Battery
• Carry bag
• AC power supply
• DC power supply
6.1. Accessories List
Only use power supplies/adapters or accessories specied in this manual. Using accessories
that are not specied may create a hazard and/or negatively aect the performance of the
device.
• Rechargeable battery (RS-00601)
• AC power supply – European cord
(RS-00602)
• AC power supply – United Kingdom cord
(RS-00603)
• AC power supply – North America cord
(RS-00604)
• DC power supply (RS-00605)
• Carry bag (RS-00606)
• European power cord (RS-00504)
• United Kingdom cord (RS- 00506)
• North America cord (RS-00503)
• External battery charger
- European (RS-00516)
• External battery charger
- North America (RS-00515)
• External battery charger
- United Kingdom (RS-00517)
WARNING: Do not use the device or any accessory that shows any sign of damage.
6.2. Battery
Zen-Olite™ Portable Oxygen Concentrator can always be used when directly connected to
a power source. However, to enhance its portability, the concentrator is equipped with a re-
chargeable lithium-ion internal battery.
WARNING: Always ensure the battery is inserted before using this device.
IMPORTANT: Optional power cords are available for various global use and travel (see Section 6.1
- 6.1. Accessories List).
6.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
12/292

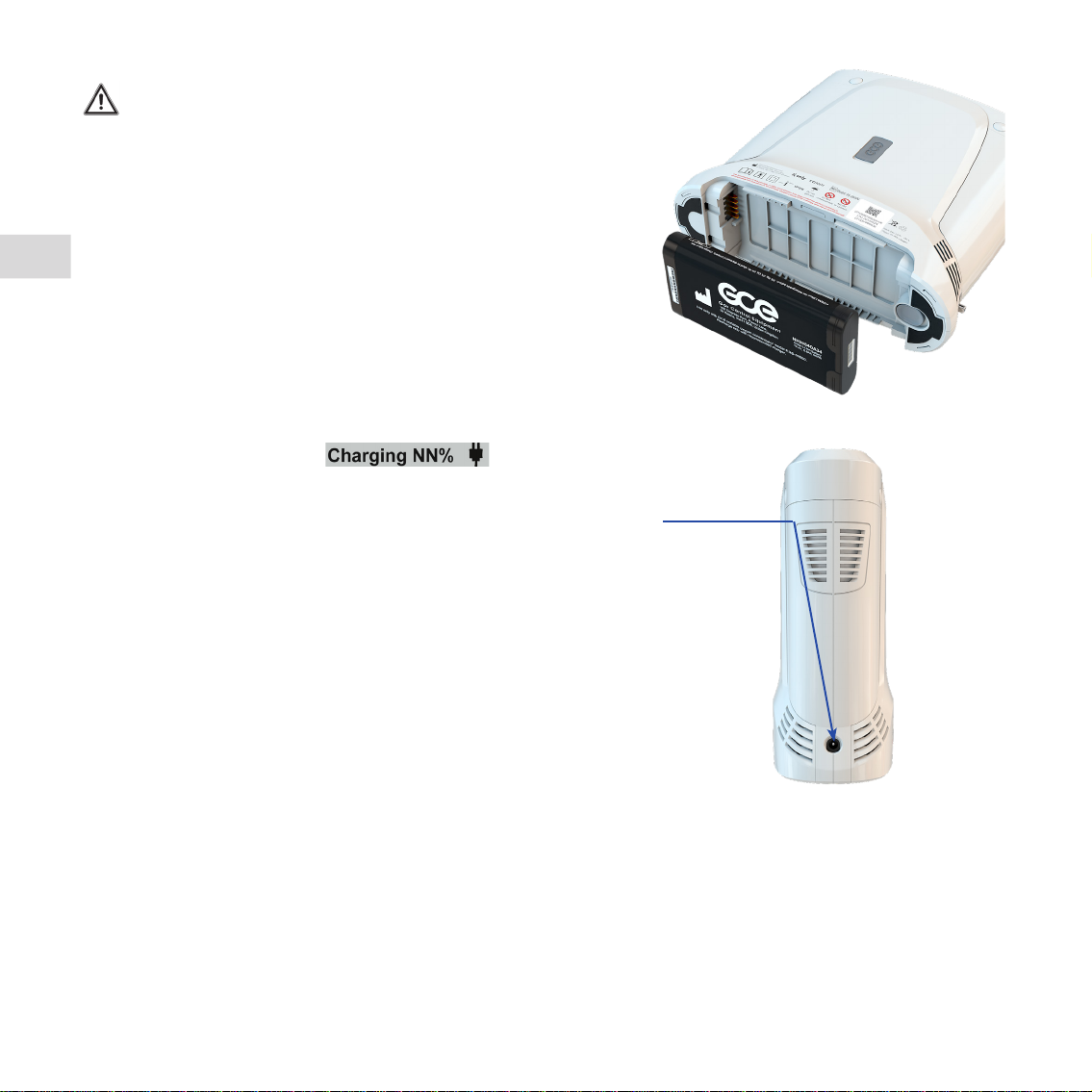

6.2.1. Charging the Battery
CAUTION: Only charge the battery in this device or
in an approved charger section 6.1 - 6.1. Accessories
List.).
• Prior to using the device for the rst time, install
the battery as shown in Fig. 2. the battery will latch
when fully seated.
• Close the battery compartment ensuring the cover
latches to the device.
• Connect the AC/DC power supply by plugging the
round connector into the power input on the side
of the concentrator Fig. 3.
• Plug the other end of the AC/DC power supply into
a power outlet. Always use caution when inserting
the power supply to a wall outlet.
• The display shows .
The charger is universal and supports a wide variety
of international markets, so it can be plugged into an
outlet with 100-240V AC, 50-60 Hz.
Allow the battery to charge for a minimum of three
hours before use. Once completely charged, the de-
vice can run for up to 4 hours on battery power, at
setting 2 and 18 breaths per minute.
IMPORTANT: Battery run time may vary based on
breathing rate, age of battery, and environmental con-
ditions. See displayed text on device for battery charge
status.
IMPORTANT: Ensure power status icon (see Fig. 7) in-
dicates power is connected. If not, check that cord is
plugged in completely (see Chapter 10 - Trouble shooting for more information)
To maximise battery life and run time, avoid letting the battery deplete and use while con-
nected to a power source whenever possible. The internal battery will automatically charge
whenever the concentrator is connected to a power source. You can use the device while the
battery is charging. The LCD panel will indicate whether the device is operating on battery or
external AC power.
The fully charged battery will retain some level of charge for up to thirty days in this device
when not in use - see Caution below for battery removal/storage recommendation.
Fig. 2
Fig. 3
Power
input
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
13/292
12/292
IMPORTANT:Battery damage may result if the concentrator’s battery is allowed to discharge com-
pletely.
IMPORTANT: After 300 charge/discharge cycles, the battery capacity will be at least 80% of its
original capacity. Replace the battery when the reduced battery life is aecting your mobility.
IMPORTANT: The DC power supply should be utilised on vehicles with the proper power output
rating.
IMPORTANT: The vehicle should be running while utilising the DC adapter to power the Zen-Olite™
Portable Oxygen Concentrator.
CAUTION: Remove battery if this device is not going to be used for more than seven days.
Store battery in a cool, dry place.
CAUTION: Check that this device operates on battery after disconnecting from the power
source.
IMPORTANT: When not using the battery inside the unit, be sure to store it in the protective sleeve
that was provided with the original package. If the battery will not be utilised for long durations,
charge the battery fully at a minimum of once per year.
6.3. Nasal Cannula
Only use a nasal cannula with the following specications:
• 2.1 m (7ft) or 7.6m (25ft) long
• High ow
• Crush resistant
• Large internal diameter bore
• Straight non-tapered tips
• Suitable for up to 15 litres per minute (lpm) at a max. pressure of 3.6 psi
• Meets substance compatibility of IEC/EN 60601-1
CAUTION: Only use approved accessories with this device. Refer to the approved accessories
guide for a complete list of accessories and cannula approved for use with this device. Us-
ing unapproved accessories or cannula may impair the performance of this device, including
ow rate or oxygen purity.
Contact your distributor for updated information and accessories or if additional, optional, or
replacement accessories are needed.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
14/292
Operating Zen-Olite™
IMPORTANT: Read Chapter 3. Safety Instructions before using this device.
Zen-Olite™ Portable Oxygen Concentrator is designed for ease of use, with all functions ac-
cessed through just a few buttons on the control panel.
The device should be carried in its carry bag and used when positioned upright on a at sur-
face or on the oor while in the carry bag. The patient should be within the recommended
cannula length during use.
IMPORTANT: Except during startup and shutdown sequences, the backlight on the display screen
will remain o. Pressing any button will turn the backlight on briey. The backlight will also re-
main activated during an un-muted alarm condition.
7.1. Connecting a Nasal Cannula
CAUTION: Replace the cannula on a regular basis. Check with
your home oxygen provider or clinician to determine how of-
ten the cannula should be replaced.
CAUTION: Always follow the cannula manufacturer’s instruc-
tions for proper use.
Connect the tubing to the cannula port as shown in Fig. 5.
To connect the cannula to the patient, position the cannula tips
in patient’s nostrils and pass tubing over both ears and under
chin. Follow manufacturer’s instructions.
Slide adapter up tubing to adjust for comfort and t.
Once the cannula is secured, breathe normally through the nose.
Zen-Olite™ will detect a breath and deliver the oxygen during
inhalation.
IMPORTANT: Improper cannula placement may result in the device
being unable to detect all respiratory eorts of the patient. Ensure
cannula is connected securely and it has been fully inserted.
7.
Cannula
port
Fig. 5
Fig. 6
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
15/292
14/292
7.2. Turning On
• To turn the device on, press the power button .
• The concentrator will chirp and the green, yellow, and red LEDs will ash once, while the
screen displays the device name.
Red LED - indicates a warning danger and/or a need for urgent action
Yellow LED - indicates caution or attention required
Flashing green LED - indicates oxygen is being delivered.
IMPORTANT: No adjustments can be made until the startup sequence is completed.
7.3. Choosing a Preferred Language
• While the device is on, hold down the plus and mute buttons together for approxi-
mately four seconds until it says“Language:”.
• Next cycle through the available languages using the plus or minus buttons.
• When the desired language is shown, press the battery button to select. The device will
change the language and go back to the normal ow screen.
7.4. Adjusting Setting
IMPORTANT: After powering on Zen-Olite™, the startup sequence will take approximately 35 sec-
onds. Specied oxygen level will be reached within 2 minutes of use.
• The device starts working in the previous setting.
• The device will deliver a pulse of oxygen at the beginning of each of your inhalation.
• Pulse mode of operation can be adjusted from 1.0 to 5.0 in 0.5 increments with the and
buttons.
IMPORTANT: If an air leak is suspected, leaks can be detected with a solution of soap and water
applied to the cannula-concentrator connection point and looking for bubbles.
The current setting and power source (external power or battery; battery icon also shows
approximate level of charge remaining) are shown on the display screen as shown in Fig. 7.
Fig. 7
Zen-Olite™ operating
on battery power. Zen-Olite™ running on external power.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019

EN
16/292
7.5. Battery Button
The battery button allows you to check the status of the battery. Repeatedly pushing the
button will cycle through all the information.
• First, the gauge information will be shown or .
• Next the number of charge cycles will be shown or
.
After the third push of the battery button, the display will alternate back to the main screen
showing the current ow setting. It will also automatically exit the battery status menu and
go back to the main ow setting display after approximately 15 seconds of no buttons being
pushed.
7.6. Responding to Alarms
CAUTION:If you are unable to hear or see alarms, do not have normal tactile sensitivity, or
cannot communicate discomfort, consult your clinician before using this device.
Pressing the alarm mute button at any time will silence the buzzer. The length of the
mute period depends on the severity of the alarm (see Chapter 9 - Alarm Indicators). During
this mute period, the mute LED will remain illuminated, indicating the alarm buzzer is muted.
Push the mute button again to un-mute alarms. Pressing the mute button when there is no
active alarm will mute any future medium or low priority alarms for eight hours. See Chapter
9 - Alarm Indicators and Chapter 10 - Troubleshooting for additional information on alarms.
IMPORTANT: The alarm system is tested during the startup sequence. You should see all alarm
lights briey turn on and the audible alarm indicator chirp. If alarms are suspected of mis-operat-
ing, contact your distributor for verication that alarms are working correctly.
7.7. Turning O
CAUTION: Always turn o this device when not in use.
To turn the Zen-Olite™ Portable Oxygen Concentrator o, press and hold the power button.
The device will chirp and the screen will display a shutdown message for ap-
proximately ve seconds, then go into low-power mode.
IMPORTANT: Do not disconnect the AC power supply and remove the battery at the same time
while the unit is running. Always use the power button to turn the device o. Wait until the device
has completely shut down before disconnecting from power and removing the battery.
D.SPEC.26.4 Zen-O lite - Mode d'emploi_EN
v. 28/06/2019
