Installation Instructions,
3/4" OWT Thru-Bolt Timber Fasteners
1
Installation Instructions, .75 OWT Thru-Bolt
Timber Fasteners
Optimum Size Selection Table
width range Timber Bolt
1.5-4" 56673
4.25-6" 56649
6.25-8" 56650
8.25-10" 56651
10.25-12" 56652
Timber Bolts may be
installed as a standalone
fastener or with many
OZCO connector options
Timber Bolts are usable .25" past•documented range, however use
table for best selection
Timber Bolts can accomodate 2•#56680 washers in MAX range
Recommended MAX tightening•torque: 10in/lbs
Width range tolerance: +.25"/-.0•Timber Bolts with 2 connectors:•custom widths are possible when
eliminating 1 connector & stud
for lighter duty applicatons,
see 1/2" OWT Thru-Bolt Timber Fasteners

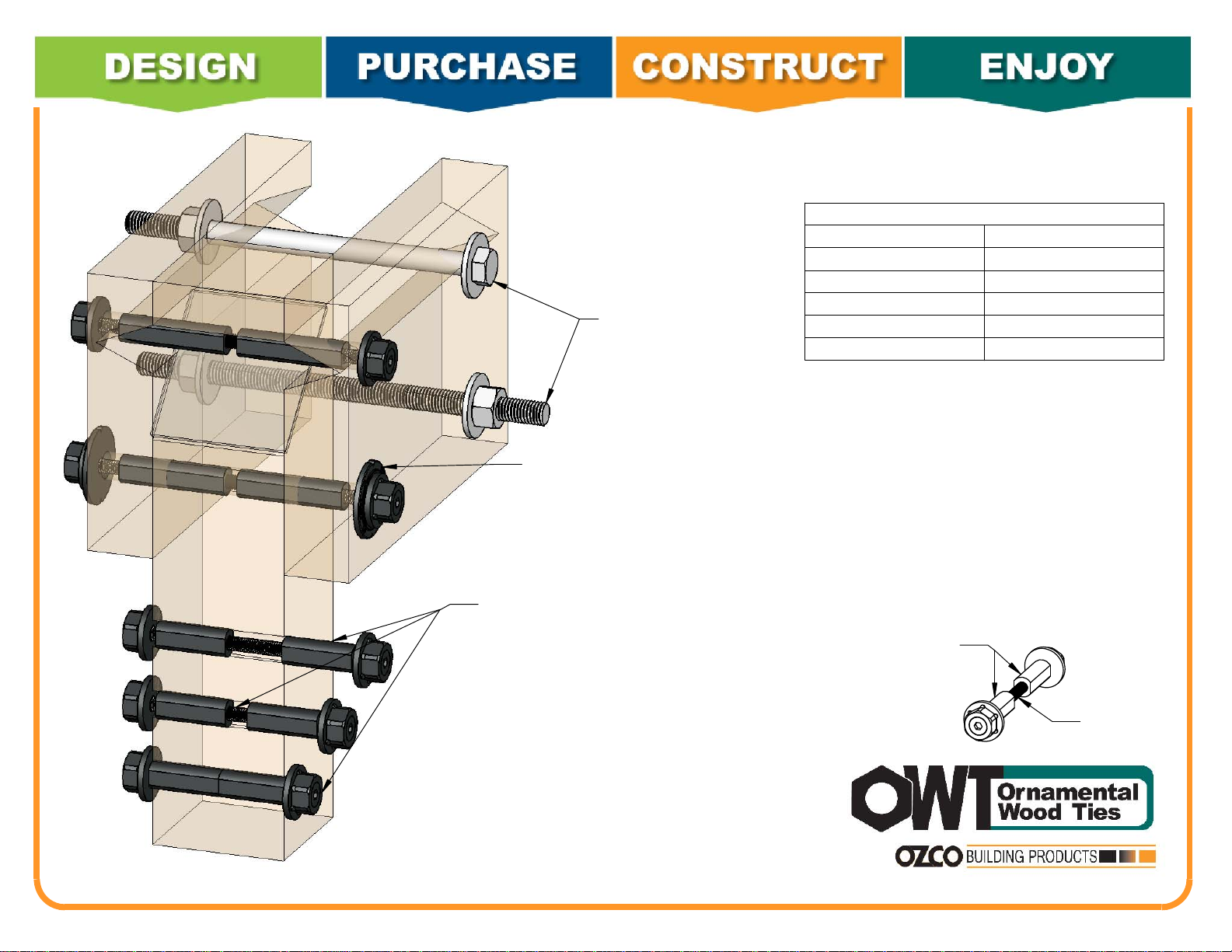

How does it work?
power
optional Washer (#56680)
excess threads are concealed
•
•
for additional holding
carriage bolts
5 width ranges to choose from
• no exposed dangerous edges
compare to
tightens from the inside•
stud
connectors

V2.00 - Installation Instructions, Specifications and Project Plans are effective 4/21/2016 . This information is updated periodically
and should not be relied upon after 2 years from 4/21/2016 . Please visit OZCOBP.com to get current information.

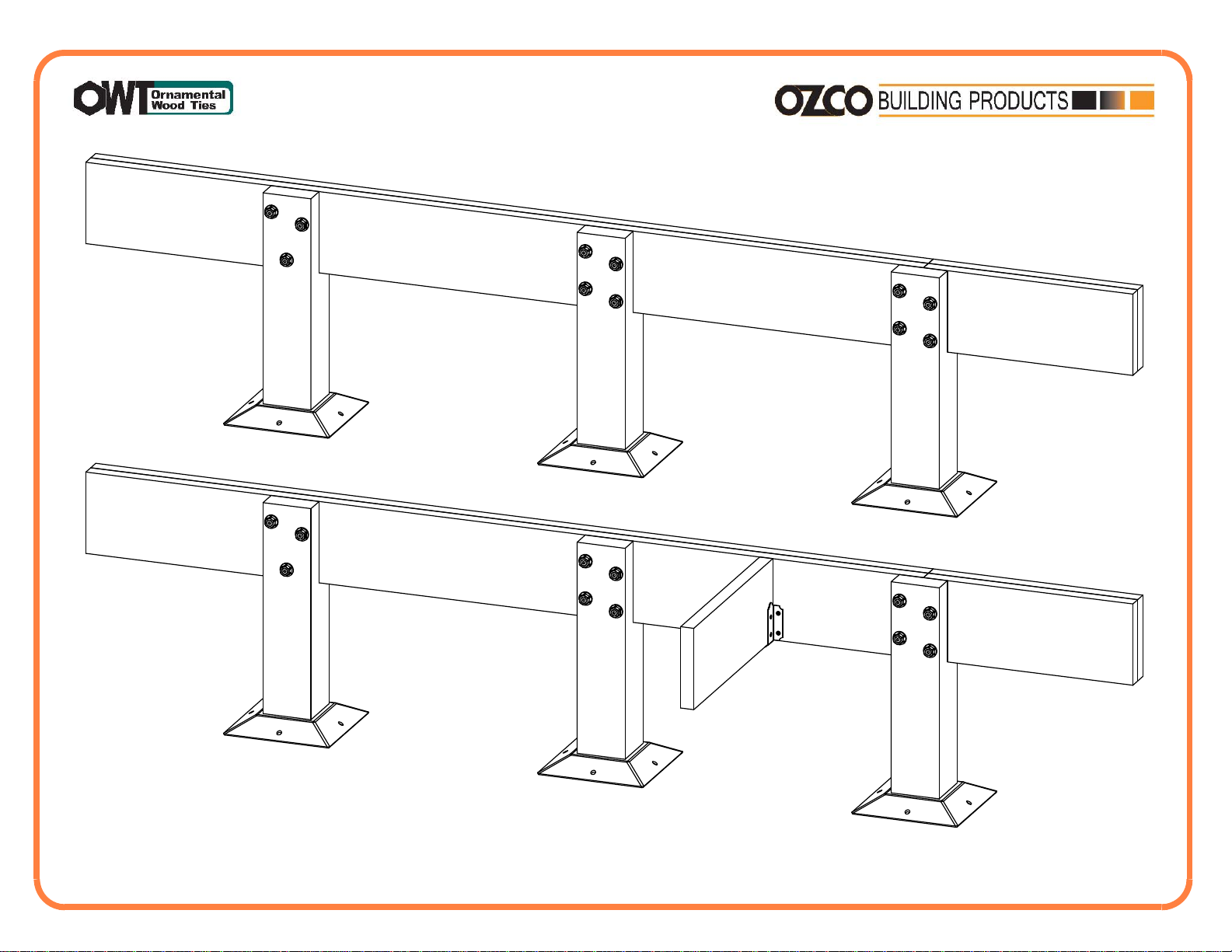

Applications
