Ozito PXPRSS-018 User manual

STANDARD EQUIPMENT
PXPRSS-018
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 18V
No Load Speed: 0-2600spm
Stroke Length: 20mm
Cutting Diameter:
80mm max. (with clamping jaw)
100mm max. (w/o clamping jaw)
Saw Blade Length: 150mm max.
Weight: 1.3kg
ozito.com.au
0822
Cordless Pruning Saw
150mm Wood Cutting Blade
CORDLESS
PRUNING SAW
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty and are excluded from the warranty extension. Warranty excludes
consumable parts.

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
3.
3.
3.
3.
3.
3.
Installing and Removing a Blade
The pruning saw can be fitted with standard
reciprocating saw blades, therefore can be used to cut
various materials. The included blade is for timber only.
1. Press both sides of the
protective cover and
open it.
2. Rotate and hold the
blade holder clockwise.
3. Insert the blade fully into
the blade holder then
release the blade holder.
Note: The blade holder will
snap back to lock the blade
in the holder.
4. Ensure the blade is secure by gently pulling on the
blade.
5. To remove the
blade, rotate and
hold the blade
holder clockwise,
then pull out the
blade.
6. Carefully close the
protective cover.
1. Blade Holder
2. Locking Sleeve
3. Blade
4. Clamping Jaw
5. Clamp Lock
6. Protective Cover
7. Safety Switch
8. Variable Speed Trigger
9. Sure Grip Handle
10. Belt Clip
11. Battery Seating
This tool is compatible with all batteries and
chargers from the Ozito PXC range.
CORDLESS PRUNING SAW
BATTERY & CHARGER
KNOW YOUR PRODUCT
1. SAW BLADE
SETUP & PREPARATION
1 2
3 4 5 6 7 8 9 10
WARNING! ENSURE THE PRUNING SAW IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
WARNING! DO NOT HANDLE BLADES WITHOUT GLOVES
AS THEY ARE SHARP AND CAN BECOME HOT AFTER
USE, POTENTIALLY CAUSING PERSONAL INJURY.
WARNING! ALWAYS ENSURE THE BLADE IS REMOVED
WHEN NOT IN USE.
11
WARNING! A MAXIMUM LENGTH OF 150MM (6”)
BLADES SHOULD BE USED WITH THIS MACHINE.

Support
Support
Support
Support
Installing and Removing the Battery
1. Align the ribs of the battery with the recess at the
back of the handle.
2. Slide the battery in so that it clicks into place.
3. To remove, press and hold the battery release tab
to release the battery, then slide the battery out.
Run Time
The operating time of the PXC battery (the number
of cuts that can be completed with a single battery
charge) is largely dependent on the material, battery
charge, blade condition and the rate of work.
Frequently turning the equipment on and off while
pruning will also reduce the amount of operating
time. If the operating time of the PXC battery is still
unsatisfactory in spite of the above measures, you can
remedy the problem by using PXC battery with a larger
capacity (Ah).
2. CLAMPING JAW 3. BATTERY
WARNING! ENSURE THE PRUNING SAW IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
Installing and Removing the Clamping Jaw
The clamping jaw allows branches to be gripped up to
Ø80mm, providing cutting of unsupported branches
easier. When cutting wider branches or timber, the
clamping jaw can be removed and the pruning saw can
be used as a standard reciprocating saw.
Note: For convenience and ease of use the clamping
jaw can be removed and fitted with a blade fitted to the
pruning saw.

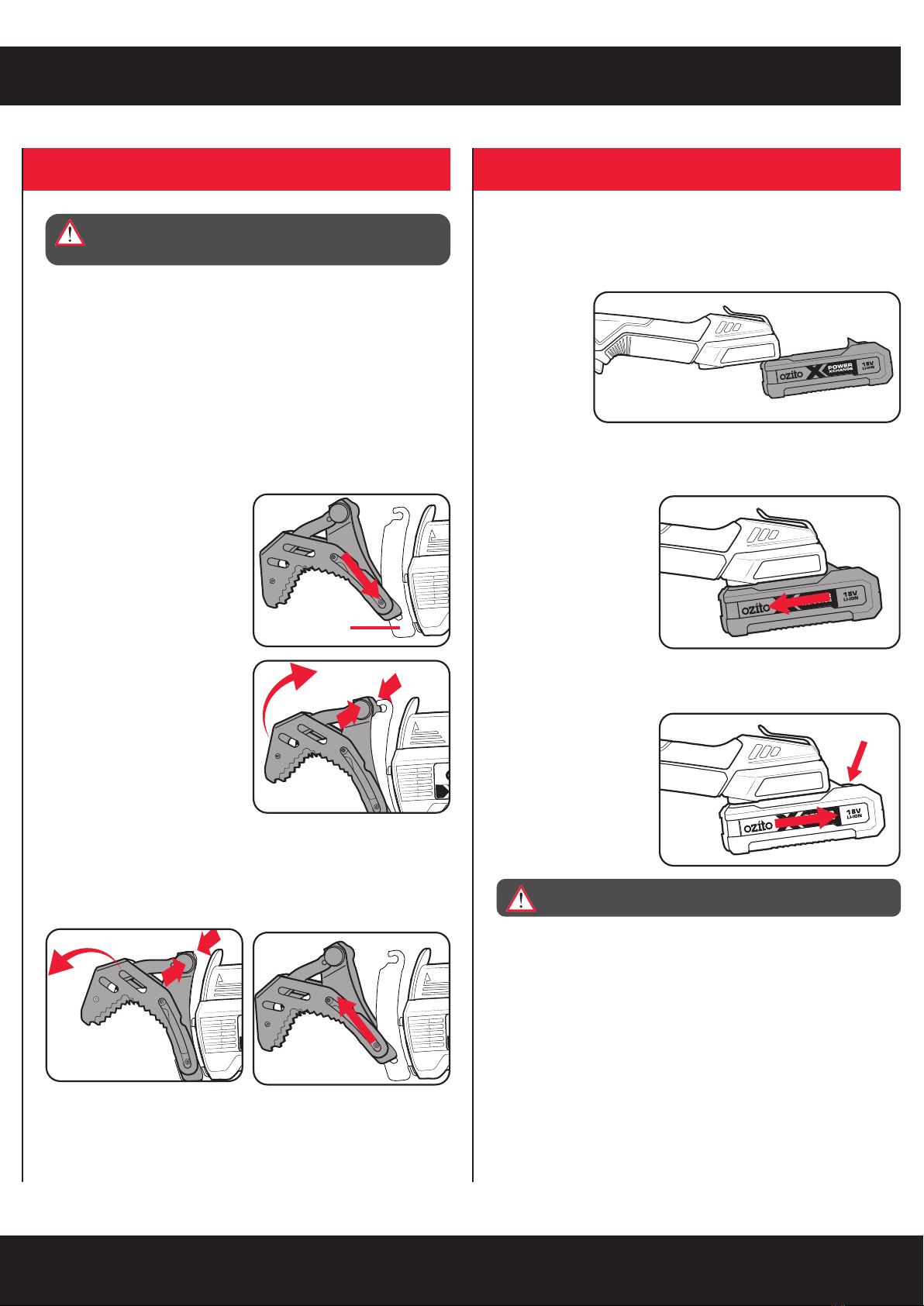

1. First, align then slide the
clamping jaw onto the
support.
2. Slide the clamping jaw
into place while pressing
the clamp lock on both
sides of the clamping
jaw. When in position
release the clamp lock
to hold it in place.
Note: The clamp lock is
spring loaded so will snap
back to lock the clamping jaw to the support when
released.
3. To remove the clamping jaw, press and hold the
clamp lock as you pull the clamping jaw out then up
away from the support.
WARNING! ALWAYS ENSURE THE BATTERY IS REMOVED
WHEN NOT IN USE.

4. USING THE PRUNING SAW
OPERATION
PXPRSS-018
Switch the Pruning Saw On and Off
1. Push the safety
switch in from
either side and
then squeeze the
variable speed
trigger to start.
Motor will start
after a short
delay.
Note: Control the speed by adjusting the amount of
pressure applied to the variable speed trigger.
2. Release the variable
speed trigger to stop
the pruning saw.
Cutting a Branch using the Clamping Jaw
1. Ensure the blade and the clamping jaw is secured
correctly and hold the saw firmly.
2. Place the
branch in
between the
clamping jaws
and then lower
to perform the
cut.
Note: The
clamping jaw
helps to guide the
saw when cutting
round branches up to Ø80mm.
Proper Use
The Pruning Saw is supplied with a 150mm blade
suitable for cutting wood, and can also be used to cut
other materials such as metal and PVC pipe using the
correct blade. Reciprocating saw blades up to 150mm
long should only be used. The equipment is intended
for private use i.e. for use in home and gardening
environments.
Always hold the pruning saw firmly and only use light
pressure while cutting, let the machine do the cutting,
forcing the pruning saw can result in high vibration and
there is a chance of pull-in or kick-back.
WARNING! ALWAYS WEAR STURDY, NON-SLIP
FOOTWEAR, LONG TROUSERS, HEARING PROTECTION,
SAFETY GLASSES AND PROTECTIVE GLOVES. NEVER
USE THE EQUIPMENT BAREFOOT OR IN SANDALS.
Cutting without using the Clamping Jaw
When cutting thicker branches (up to Ø100mm) or
sawing wood the clamping jaws can be removed to
prevent them getting in the way of the cut.
1. Position the
pruning saw
support onto the
material to be cut
for stability and
then perform the
cut holding the
saw firmly.
Note: Do not apply
excessive pressure, allow the blade to do the work.
WARNING! DO NOT ALLOW THE PRUNING SAW TO
BOUNCE. IF THE SUPPORT IS HELD AWAY FROM THE
WORK PIECE DURING OPERATING, STRONG VIBRATION
AND/OR TWISTING MAY OCCUR CAUSING THE BLADE
TO SNAP DANGEROUSLY.
WARNING! KEEP HANDS AWAY FROM THE BLADE AND
THE PROTECTIVE COVER DURING OPERATION.
WARNING! NEVER REACH UNDER THE WORKPIECE
WHEN MAKING A CUT, RISK OF SERIOUS INJURY.

Direct current Diameter
Milliamperes Amp hour
Warning
Regulatory Compliance Mark
(RCM)
Keep Bystanders away. Do not operate whilst people especially children
or pets are in the area
Do not operate in rain or leave
the pruner outdoors while raining
VVolts Hz
W
Hertz
a.c./~
n0
/min
Alternating Current Watts
No load speed
Revolutions or reciprocations
per minute
Read Instruction Manual to reduce the risk of injury
dc/
mA Ah
Ø
spm Strokes per minute
Wear hearing, eye and
breathing protection Wear protective gloves
mm Millimetres
Keep hands away from blades
MAINTENANCE DESCRIPTION OF SYMBOLS
Power tools and garden machinery that are no longer usable
should not be disposed of with household waste but in an
environmentally friendly way. Please recycle where facilities
exist. Check with your local council authority for recycling
advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders
Desk at your local Bunnings Warehouse.
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer
Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
WARNING! ENSURE THE MACHINE IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
WARNING! STORE THE PRUNING SAW IN A SAFE
AND DRY PLACE OUT OF THE REACH OF CHILDREN.
Cleaning
• Keep air intake clean and air vents free of debris to avoid
overheating the motor.
• After each use, blow air through the pruning saw housing
to ensure it is free from all dust, dirt, etc. Build up of dust
or dirt particles may cause the pruning saw to overheat
and shorten the life of the machine.
• If the enclosure of the pruning saw requires cleaning do
not use solvents but a moist soft cloth or soft brush only.
• Never allow any liquid to get inside the pruning saw, never
immerse any part of the machine into liquid or clean the
pruning saw with running water, particularly with high-
pressure water.
Storage
• When not in use, the machine should be stored in a dry,
frost free location, keep out of children’s reach.
• Store the equipment and its accessories in a dark and dry
place at above freezing temperature. The ideal storage
temperature is between 5 and 30°C.
• Remove the battery and blade from the pruning saw when
in storage.
• Allow the motor to cool before you put the equipment in an
enclosed area.
Note: Ozito Industries will not be responsible for any damage
or injuries caused by the repair of the Pruning Saw by an
unauthorised person or by mishandling of the Pruning saw.
This machine is designed for DIY use - use in commercial or
industrial environments will void the warranty.

ELECTRICAL SAFETY
WARNING! When using electric machines, basic safety precautions, including
the following, should always be followed to reduce risk of fire, electric shock, personal
injury and material damage.
-Read the whole manual carefully and make sure you know how to switch the machine off in an
emergency, before operating the machine. Save these instructions and other documents supplied
with this machine for future reference.
-This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
-This appliance is compatible and only to be used with all batteries & chargers from the Ozito PXC
range. Refer to the PXC battery and charger manuals for information regarding charging, use and
storage.
-Remove the batteries from the appliance before being charged.
-Do not combine different types of batteries or new and used batteries.
-If the appliance is to be stored unused for a long period, the batteries should be removed.
-Do not use modified or damaged batteries.
GENERAL MACHINE SAFETY WARNINGS
PRUNING SAW SAFETY WARNINGS
WARNING! This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
• Hold the machine by insulated gripping surfaces, when performing an operation where the
cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may
make exposed metal parts of the machine “live” and could give the operator an electric shock.
• Use clamps or another practical way to secure and support the workpiece to a stable
platform. Holding the workpiece by hand or against your body leaves it unstable and may lead
to loss of control.
• Keep all parts of the body away from the saw blade when the saw is operating. Before you
start the pruning saw, make sure the saw blade is not contacting anything. A moment of
inattention while operating saws may cause entanglement of your clothing or body with the saw
blade.
• Wear safety glasses and hearing protection. Further protective equipment for head, hands,
legs and feet is recommended. Adequate protective clothing will reduce personal injury by
flying debris or accidental contact with the saw blade.
• Do not operate a pruning saw in a tree. Operation of a pruning saw while up in a tree may
result in personal injury.
• Always keep proper footing and operate the pruning saw only when standing on fixed,
secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of
balance or control of the saw.
• When cutting a limb that is under tension be alert for spring back. When the tension in
the wood fibres is released the spring loaded limb may strike the operator and/or throw the
pruning saw out of control.
• Use extreme caution when cutting brush and saplings. The slender material may catch the
saw blade and be whipped toward you or pull you off balance.
• Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery
causing loss of control.
• Do not touch the blade or the work piece immediately after operation; they may be extremely
hot and could potentially burn your skin.
• If you withdraw the blade from the work piece during operation, a strong reaction could be
produced, which could cause the blade to snap or cause you to lose your grip and/or control
of the saw. Always switch off the machine and wait until the blade has come to a complete stop
before with drawing the blade from the work piece.
• Maintain a firm grip, with thumbs and fingers encircling the pruning saw handles, with both
hands on the saw and position your body and arm to allow you to resist kickback forces.
Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let
go of the pruning saw.
• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip
contact and enables better control of the pruning saw in unexpected situations.
• Only use replacement blades specified by the manufacturer. Incorrect blades may cause blade
breakage and/or kickback.
• Avoid using power tools and machines for long periods of time without breaks. Vibration from
tools and machines can be transmitted into your hands and arms.
Danger! Always remove the battery from the pruning saw:
• when the equipment is left unattended,
• when the equipment is being checked, cleaned, or having maintenance work done,
• or if the equipment vibrates abnormally.
WARNING! Read all safety warnings, instructions, illustrations and specifications
provided with this machine. Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “machine” in the warnings refers to your mains-operated (corded) machine or battery-
operated (cordless) machine.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate machines in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a machine. Distractions can cause you to
lose control.
2) Electrical safety
a) Machine plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) machines. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose machines to rain or wet conditions. Water entering a machine will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the machine.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a machine in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a machine. Do
not use a machine while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating machines may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the machine. Carrying machines
with your finger on the switch or energising machines that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the machine on. A wrench or a key left
attached to a rotating part of the machine may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of
the machine in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related
hazards.
h) Do not let familiarity gained from frequent use of machines allow you to become complacent
and ignore machine safety principles. A careless action can cause severe injury within a
fraction of a second.
4) Machine use and care
a) Do not force the machine. Use the correct machine for your application. The correct machine
will do the job better and safer at the rate for which it was designed.
b) Do not use the machine if the switch does not turn it on and off. Any machine that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable,
from the machine before making any adjustments, changing accessories, or storing
machines. Such preventive safety measures reduce the risk of starting the machine accidentally.
d) Store idle machines out of the reach of children and do not allow persons unfamiliar with the
machine or these instructions to operate the machine. Machines are dangerous in the hands
of untrained users.
e) Maintain machines and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the machine’s operation. If
damaged, have the machine repaired before use. Many accidents are caused by poorly
maintained machines.
f) Keep cutting machines sharp and clean. Properly maintained cutting machines with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the machine, accessories and machine bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the machine
for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling and control of the machine in unexpected
situations.
5) Battery machine use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire when used with another battery pack.
b) Use machines only with specifically designated battery packs. Use of any other battery packs
may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or machine that is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or machine to fire or excessive temperature. Exposure to fire or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or machine outside the
temperature range specified in the instructions. Charging improperly or at temperatures
outside the specified range may damage the battery and increase the risk of fire.
6) Service
a) Have your machine serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the machine is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by
the manufacturer or authorized service providers.
