Ozito PXCLTK-218 User manual
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE
WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING
YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Ofce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benets provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer service helpline
above.
0316
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other
than that specied on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty. Warranty excludes consumable parts, for example: cutting blades.
CORDLESS GRASS
TRIMMER KIT
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage: 18V
Battery: 2.0Ah Li-ion
Charge Time: 2.5 Hours
No Load Speed: 8,500/min
Cutting Diameter: 240mm
Weight: 2.2kg
PXCLTK-218
WHAT’S IN THE BOX
Grass Trimmer
ozito.com.au
Blades x 10
2.0Ah Battery & Eco Charger
ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online
manual.
Fitting the Adjustable Handle
1. Fit the handle mounting bracket
onto the upper section of the shaft.
Note: You will need to carefully ex
the mounting bracket just enough to
slip over the shaft. Do not over ex as
this can damage or break the mounting
bracket.
2. Place the adjustable handle on
the mounting bracket, then pass
the screw with washer through
the mounting bracket and onto the
adjustable handle lever.
14 15 16 17 18

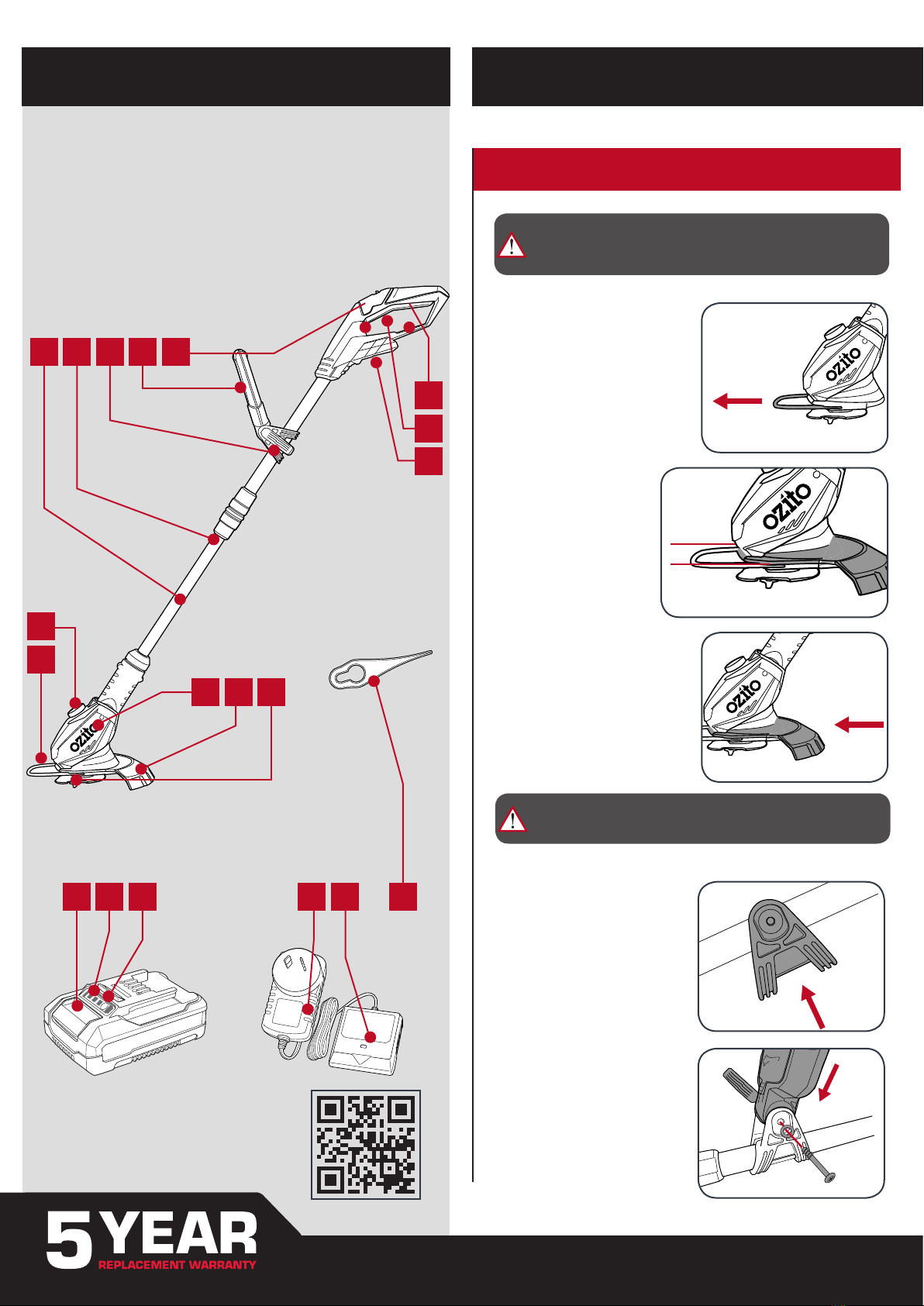

KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
1. Extend the edging guide to allow
the safety guard to go over the
spindle.
3. Slide in until it clicks into place.
2. Align the tabs of the
safety guard with the
recess in the back of the
cutter head.
Fitting the Safety Guard
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND BATTERY DISCONNECTED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
WARNING! NEVER USE THE GRASS TRIMMER
UNLESS THE SAFETY GUARD IS PROPERLY FITTED.
CORDLESS GRASS TRIMMER
1
10
2
11
3
12
4
13
5
6
7
8
9
1. Telescopic Shaft
2. Shaft Adjustment Collar
3. Adjustable Handle Lever
4. Adjustable Handle
5. Lock-off Switch
6. Rear Handle
7. On/Off Trigger
8. Battery Seating
9. Head Tilt Button
10. Edging Guide
11. Cutter Head
12. Safety Guard
13. Cutting Blade
ACCESSORIES
19
14. Battery Release Tab
15. Battery Charge LED’s
16. Battery Charge Indicator Button
17. Charger
18. Charger LED
19. Blades x 10

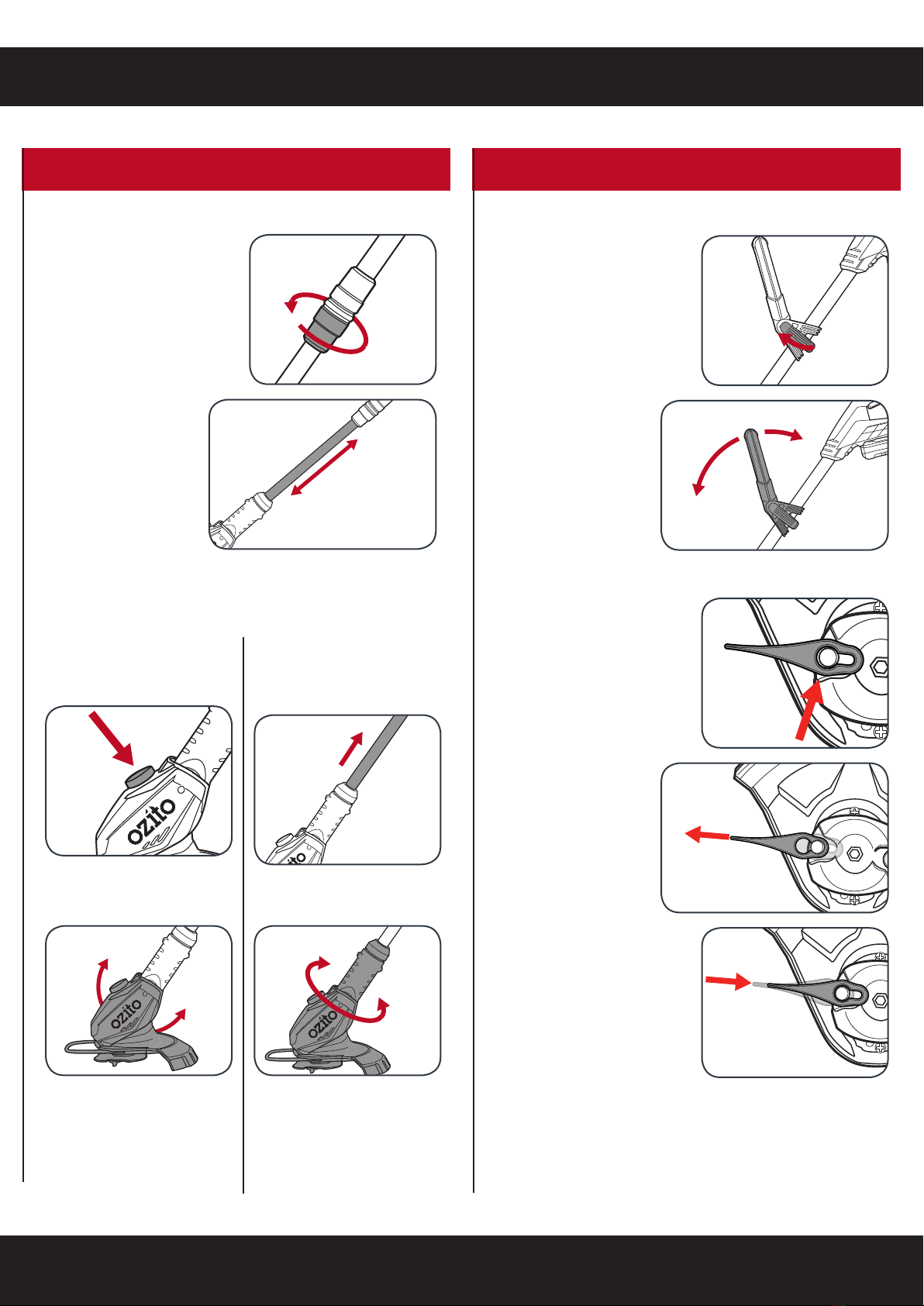

2. ADJUSTING THE TRIMMER
1. Release the adjustable handle
lever.
1. Place the big hole in the blade
onto the blade mount on the
bottom of the spindle plate.
3. To remove the blade push the
blade towards the centre of the
spindle and then slide off.
1. Press and hold the head tilt
button.
2. Tilt the cutter head to the desired
angle.
2. Rotate the head into the desired
position.
3. Ensure the head has clicked
into a secure position before
operating.
3. Ensure the head has clicked
into a secure position before
operating.
1. Pull the telescopic shaft away
from the cutter head.
The grass trimmer head has 2 adjustments to allow for the optimal angle and
position for grass trimming or edging.
1. Loosen the shaft adjustment
collar.
2. Rotate the handle into
the desired position and
then lock in place with
the lever.
2. Pull the blade outwards
so that the small hole is
tted into the mount.
2. Extend to the desired
height and then
retighten the shaft
adjustment collar to
secure in place.
Adjusting the Handle
Adjusting the Cutter Head
Head Tilt Head Angle
Adjusting the Height
Attaching a Blade
Battery protection system
The tool is equipped with the battery protection system, which helps to ensure a long
service life.
The output power automatically cuts off during operation when the tool and/or battery
are placed under the following situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload, then pull
the switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use or
immediately after using the tool.
Note: Always use 2 batteries of same capacity and same charge state with the
mower

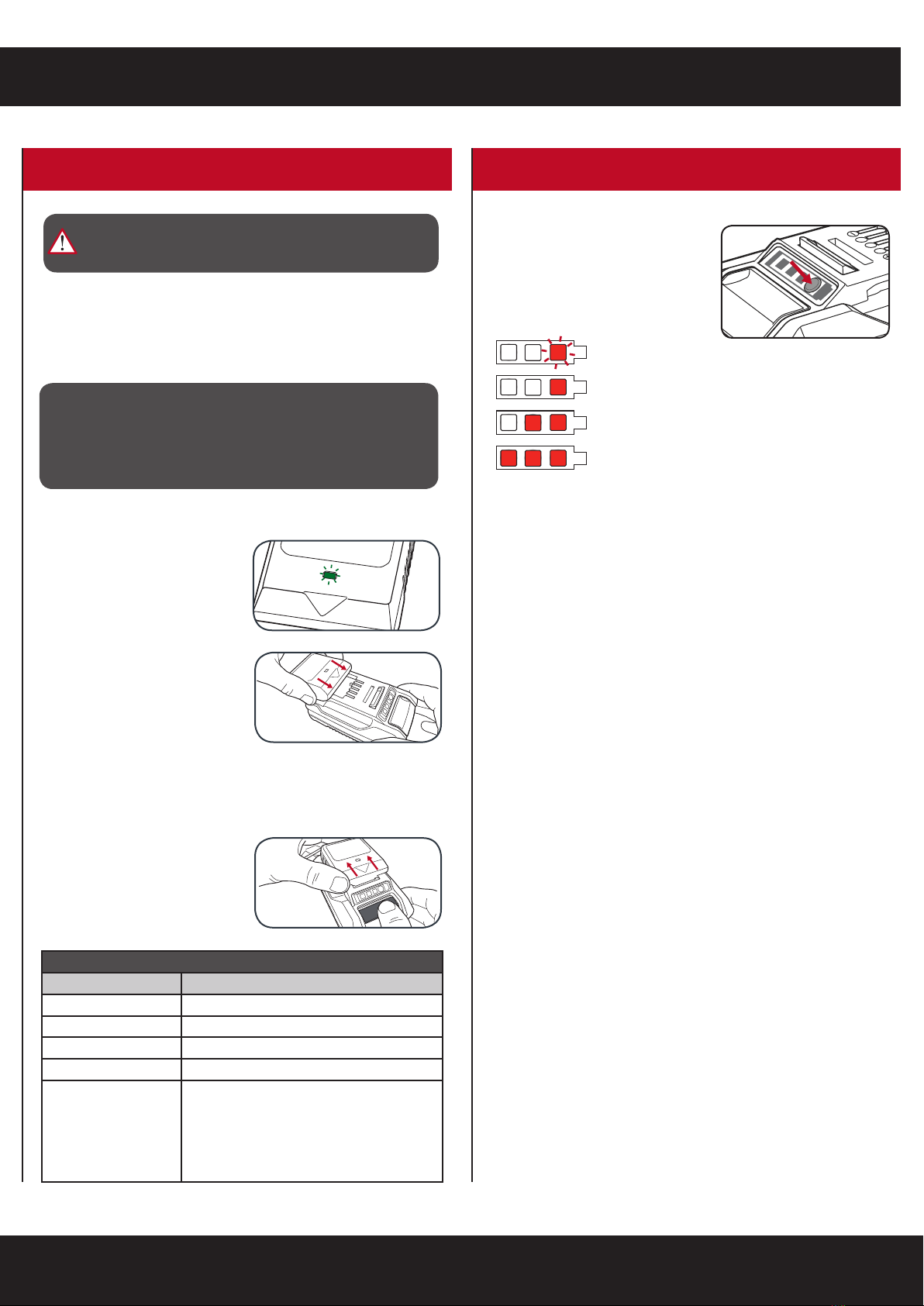

3. BATTERY & CHARGING
CAUTION: THE CHARGER FOR THIS PRODUCT
SHOULD BE PROTECTED BY A RESIDUAL CURRENT
DEVICE (RATED AT 30MA OR LESS).
Battery Charge Indicator
The purchased battery is equipped with a
battery charge indicator to show the state of
the battery charge.
Press the charge indicator button and look to
see which LED lights.
Battery requires
immediate charging
Low state of charge, requires charging soon.
Mid state of charge
Full state of charge.
Note: The battery needs to be removed from the tool to check the state of charge.
Charging your lithium ion battery - Eco Charger
The tools battery has been shipped in a low charge condition, and requires
charging prior to use. Allow several cycles of charging and discharging
(through use of the tool) for the battery to reach its optimum performance /
runtime.
1. Connect the charger into a mains power outlet.
4. The charger LED will illuminate red signifying that the battery is
charging.
3. With the battery sitting on a at
surface, align the raised ribs on the
battery with the recess in the charger
and slide onto the battery ensuring a
rm connection.
2. The charger LED will ash green
showing power is being supplied
to the charger.
5. When removing the charger from the
battery, rst press the battery release
tab, then slide the charger from its
position.
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Illuminated) Battery is charging (low charge)
GREEN (Illuminated) Battery is fully charged
RED (Flashing) Battery or Charger fault
RED & GREEN (Flashing) Battery pack is too hot or too cold (remove battery from
charger and store at room temperature 20ºC. Insert
battery again when at correct charging temperature). If
this happens again, the battery is defective and needs
to be replaced.
Note: The battery will not develop a memory, it does not have to be fully
discharged before recharging.
CAUTION! IF THE BATTERY IS TOO HOT OR TOO
COLD WHEN INSERTED INTO THE CHARGER,
THE LED WILL FLASH RED AND GREEN. REMOVE
BATTERY FROM CHARGER AND STORE AT ROOM
TEMPERATURE 20ºC BEFORE CHARGING.
4. CONTROLS & OPERATION
OPERATION
1. Press and hold the lock-
off switch forward.
Switching On and Off
CAUTION! BEFORE YOU START THE UNIT, MAKE SURE
THAT THE GRASS TRIMMER IS NOT MAKING CONTACT
WITH ANY OBJECTS.
WARNING! INSPECT THE AREA TO BE TRIMMED
AND REMOVE ANY WIRE, CORD OR STRING-LIKE
OBJECTS WHICH COULD BECOME ENTANGLED IN
THE ROTATING BLADE.
WARNING! DO NOT OPERATE THE TRIMMER ON A
TREE, ON A LADDER, OR ON A SCAFFOLD, THIS IS
EXTREMELY DANGEROUS.
CAUTION! BYSTANDERS MUST KEEP A MINIMUM SAFE
DISTANCE OF 10M AWAY FROM THE TRIMMER WHILE IT
IS OPERATING.
WARNING! STONES, PIECES OF METAL AND OTHER
OBJECTS CAN BE THROWN OUT AT HIGH SPEED BY
THE BLADE.
2. Squeeze the on/off trigger to
start the trimmer.
3. To stop the trimmer,
release the On/Off
trigger.
NOTE: DO NOT CUT GRASS WHEN WET. (THE BEST
RESULTS ARE ACHIEVED ON DRY GRASS.)
1. Extend the edging guide to
prevent the cutting head from
getting too close to an object
such as a tree trunk or wall.
2. Hold the trimmer with both
handles for best control and
balance.
3 To turn on squeeze the on/off
trigger whilst holding the lock-off
button down.
4. Move the grass trimmer into the
grass to allow it to cut.
6. Release the on/off trigger and
allow the motor to come to a
complete standstill.
5. Several passes will be required
to cut long grass.
Using the Grass Trimmer
1. Align the ribs of the battery with
the recess in below the handle
and slide in until it clicks into
place.
2. To remove, press and hold the
battery release tab and then slide
out.
Inserting & Removing the Battery
30°
PXCLTK-218
MAINTENANCE
•Keep ventilation slots of the trimmer clean at all times. Periodically clean out the grass from the
cutting head and the rim of the blade guard to ensure efcient operation at all times.
•After each use, blow air through the tool housing to ensure it is free from all dust, dirt, etc. Build
up of dust, dirt particles may cause the tool to overheat and shorten the life of the tool.
•If the housing of the trimmer requires cleaning, do not use solvents but a moist soft cloth or soft
brush only.
•Never let any liquid get inside the tool, never immerse any part of the tool into liquid.
•Nolubricationisnecessaryasthetoolhassealedbearings.
•When not in use, the grass trimmer should be stored in a dry, frost free location not within the
reach of children.
WARNING! ALWAYS ENSURE THE TOOL HAS
COMPLETELY STOPPED AND THE BATTERY IS
REMOVED PRIOR TO ANY MAINTENANCE.
Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of
the grass trimmer by an unauthorised person or by mishandling of the grass trimmer. This tool is
designed for DIY use - use in commercial or industrial environments will void the warranty.
5. TRIMMING & EDGING
OPERATION
Trimming
Edging
Move the grass trimmer from side to side as
you walk forward, holding it at an angle of
approx. 30° (Light cuts are better than heavy
cuts as they allow the cut grass to fall away
from the cutting head).
Place the edging guide along the ground
and slide the grass trimmer along the edge
of the path.
Battery protection system
The tool is equipped with the battery protection system, which helps to ensure a long service
life.
The output power automatically cuts off during operation when the tool and/or battery are
placed under the following situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload, then pull the
switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use or immediately
after using the tool.
30°
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of with household
waste but in an environmentally friendly way. Please recycle where facilities exist.
Check with your local council authority for recycling advice.
Recycling packaging reduces the need for landll and raw materials. Reuse of
recycled material decreases pollution in the environment. Please recycle packaging
where facilities exist. Check with your local council authority for recycling advice.
Spare Part Part No.
Blades PXCLTA-020
Battery pack 2.0Ah PXBP-200
Eco charger PXCG-120 or PXCSCH-120
Spare parts can be ordered from the Special Orders
Desk at your local Bunnings Warehouse.
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer
Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger, battery pack
and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable batteries. Any other use
may result in risk of re, electric shock or electrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface that may result in
excessive internal heat. Place the charger in a position away from any heat source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when
disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected
to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord
could result in the risk of re, electric shock or electrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any
way. Have it checked by an electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair is
required. Incorrect reassembly may result in a risk of electric shock, electrocution or re.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning.
Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed
40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240 volts). Do not attempt
to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instructions and then
follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is charged when the air
temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below 10ºC or
above 40ºC. This is important and will prevent damage to the battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The battery
can explode in a re.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or
cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
BATTERY AND CHARGER SAFETY WARNINGS
Problem Cause Remedy
Trimmer is not
starting
Possible clogging Clean the cutter head of any grass.
Battery is low in charge Charge battery
Battery not inserted
properly
Insert battery pack correctly
Trimmer is not
operating at
full capacity
Possible clogging Clean the cutter head of any grass.
Cutting tall grass at
ground level.
Make several passes from top down.
Motor
stops while
operating
Battery has no power Charge battery
Grass wraps
around the
shaft and
trimmer head.
Cutting tall grass at
ground level.
Make several passes from top down.
Wear safety glasses
Read instruction manual
Do not expose to rain.
Keep bystanders away. Do not operate whilst people especially
children or pets are in the area.
Regulator compliance mark
GRASS TRIMMER SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of fire, electric shock, personal
injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating
plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tools charger is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for
added protection against injury resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for signs of
damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power
input of the tool or which is damaged or defective may result in a risk of re and electric shock.
The power supply for this products charger should be protected by a residual current device (rated at 30mA
or less). A residual current device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Hold power tool by insulated gripping surfaces, when performing an
operation where the cutting accessory may contact hidden wiring. Cutting
accessory contacting a “live” wire may make exposed metal parts of the power tool “live“ and could give
the operator an electric shock.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Neverallowchildrenorpeopleunfamiliarwiththeseinstructionstousethegrasstrimmer.
• Avoidusingthegrasstrimmer,whilepeople,especiallychildrenorpets,arenearby.
• Usethegrasstrimmeronlyindaylightorgoodarticiallight.
• Neveroperatethegrasstrimmerwithdamagedguardsorwithoutguardsinplace.
• Switchonthegrasstrimmeronlywhenthehandsandfeetareawayfromthecuttinghead.
• Nevertmetalcuttingblades.
• Useonlythemanufacturer’srecommendedreplacementpartsandaccessories.
• Alwaysremovethebatteryfromthegrasstrimmerwhenleavingthegrasstrimmerunattended.
• Alwaysremovethebatteryfromthegrasstrimmerbeforecarryingoutmaintenanceorcleaning
work.
• Inspectandmaintainthegrasstrimmerregularly.Havethegrasstrimmerrepairedonlybyan
authorized repairer.
• Whennotinuse,storethegrasstrimmeroutofthereachofchildren.
• Facethecuttingheadawayfromyourself,otherpeopleandanimalswhilethepowerisconnectedto
the grass trimmer (especially during operation).
• Removethebatterywhenchangingspoolsorclearinggrassfromundertheguard.
• Removethebatteryfromthegrasstrimmerbeforemakinganyadjustments.
• Usebothhandlesatalltimes
• Keepventilationopeningsclearofdebris.Keephandlesdry,cleanandfreeofoilandgrease.
• Neverreachunderneaththegrasstrimmer(thecuttingbladearea)untilithascompletelystopped
and the battery has been removed.
WARNING! When servicing, use only identical replacement parts. Use of any other parts
may create a hazard or cause product damage. To ensure safety and reliability, all repairs
should be performed by a qualied service technician.
WARNING! This appliance is not intended for use by young or inrm persons unless
supervised by a responsible person to ensure that they can use the appliance safely. Children
should be supervised to ensure that they do not play with the appliance.
Table of contents
Other Ozito Grass Trimmer manuals
