Ozito PXCLTS-018 User manual

CORDLESS
GRASS TRIMMER
18V Lithium Ion
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage: 18V
No Load Speed: 8,500/min
Cutting Diameter: 240mm
Weight: 1.8kg
PXCLTS-018
WHAT’S IN THE BOX
Grass Trimmer
Blades x 10
ozito.com.au
Battery & Charger
sold separately

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
Fitting the Adjustable Handle
1 Fit the handle mounting
bracket onto the upper
section of the shaft.
Note: You will need to carefully
ex the mounting bracket just
enough to slip over the shaft.
Do not over ex as this can
damage or break the mounting
bracket.
2 Place the adjustable handle
on the mounting bracket,
then pass the screw
with washer through the
mounting bracket and onto
the adjustable handle lever.

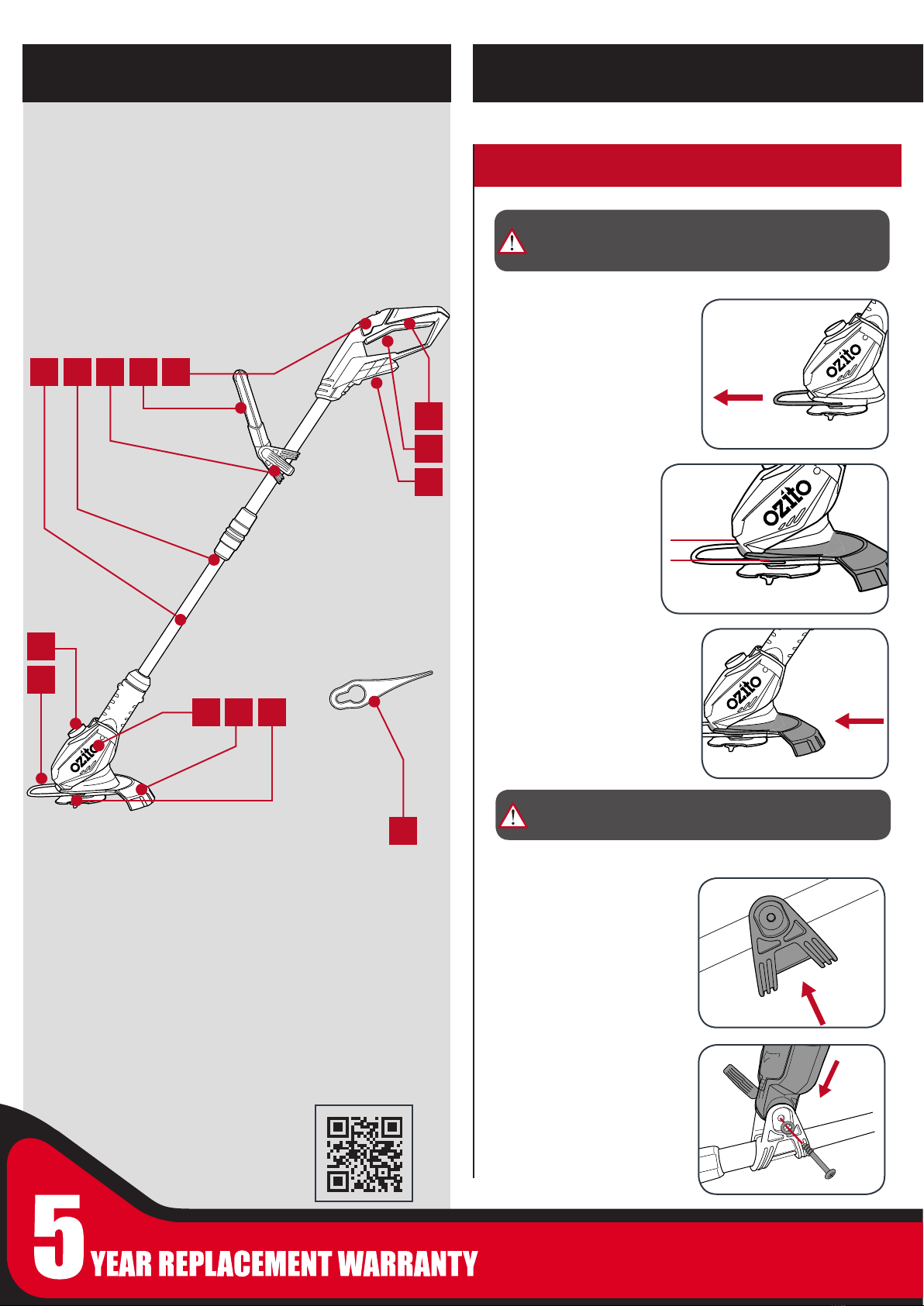

KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
1 Extend the edging guide to
allow the safety guard to
go over the spindle.
3 Slide in until it clicks into
place.
2 Align the tabs of the
safety guard with
the recess in the
back of the cutter
head.
Fitting the Safety Guard
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
BATTERY DISCONNECTED BEFORE PERFORMING ANY
OF THE FOLLOWING TASKS.
WARNING! NEVER USE THE GRASS TRIMMER UNLESS
THE SAFETY GUARD IS PROPERLY FITTED.
CORDLESS GRASS TRIMMER
1
10
2
11
3
12
4
13
5
6
7
8
9
1 Telescopic Shaft
2 Shaft Adjustment Collar
3 Adjustable Handle Lever
4 Adjustable Handle
5 Lock-off Switch
6 Rear Handle
7 On/Off Trigger
8 Battery Seating
9 Head Tilt Button
10 Edging Guide
11 Cutter Head
12 Safety Guard
13 Cutting Blade
ACCESSORIES 14
14 Blades
BATTERY & CHARGER (sold separately)
Compatible chargers
Eco charger PXCSCH-120
“ “ PXCG-120
Fast charger PXCFCH-030
“ “ PXCG-030
Compatible battery packs
1.5Ah PXCBAT-015
“ PXBP-150
3.0Ah PXCBAT-030
“ PXBP-300
5.2Ah PXCBAT-052
“ PXBP-520

2. ADJUSTING THE TRIMMER
1 Release the adjustable
handle lever.
1 Place the big hole in the
blade onto the blade mount
on the bottom of the
spindle plate.
3 To remove the blade push
the blade towards the
centre of the spindle and
then slide off.
1 Press and hold the head tilt
button.
2 Tilt the cutter head to the
desired angle.
2 Rotate the head into the
desired position.
3 Ensure the head has
clicked into a secure
position before operating.
3 Ensure the head has
clicked into a secure
position before operating.
1 Pull the telescopic shaft
away from the cutter head.
The grass trimmer head has 2 adjustments to allow for the
optimal angle and position for grass trimming or edging.
1 Loosen the shaft
adjustment collar.
2 Rotate the handle
into the desired
position and then
lock in place with
the lever.
2 Pull the blade
outwards so that the
small hole is tted
into the mount.
2 Extend to the
desired height and
then retighten the
shaft adjustment
collar to secure in
place.
Adjusting the Handle
Adjusting the Cutter Head
Head Tilt Head Angle
Adjusting the Height
Attaching a Blade

3. BATTERY & CHARGING (sold separately)
The purchased battery will be shipped in a low charge condition, and
requires charging prior to use. Allow several cycles of charging and
discharging (through use of the tool) for the battery to reach its optimum
performance / runtime.
CAUTION: THE CHARGER FOR THIS PRODUCT SHOULD
BE PROTECTED BY A RESIDUAL CURRENT DEVICE
(RATED AT 30MA OR LESS).
1 Connect the charger into a mains power outlet.
4 The charger LED will
illuminate red signifying that
the battery is charging.
3 With the charger sitting on a
at surface, align the raised
ribs on the battery with
the recess in the charger
and slide onto the charger
ensuring a rm connection.
2 The charger LED will ash
green showing power
is being supplied to the
charger.
5 The charger LED will
illuminate green once the
battery is fully charged.
Charging your lithium ion battery - Fast Charger
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Flashing) Battery is charging (low charge)
RED (Illuminated) Battery is charging (mid charge)
GREEN (Illuminated) Battery is fully charged
BOTH(Illuminated) Battery pack is too hot or too cold (charging
will begin automatically when battery reaches
correct charging temperature).
BOTH (Flashing) Defective battery. Never charge a defective
battery pack!
Remove battery pack from charger.
Battery Charge Indicator
The purchased battery is equipped
with a battery charge indicator to
show the state of the battery charge.
Press the charge indicator button and
look to see which LED lights.
Battery requires
immediate charging
Low state of charge, requires charging soon.
Mid state of charge
Full state of charge.
Note: The battery needs to be removed from the tool to check the state
of charge.
1 Connect the charger into a mains power outlet.
4 The charger LED will illuminate red signifying that the battery
is charging.
3 With the battery sitting on a at
surface, align the raised ribs
on the battery with the recess
in the charger and slide onto
the battery ensuring a rm
connection.
2 The charger LED will ash
green showing power
is being supplied to the
charger.
5 When removing the charger
from the battery, rst press the
battery release tab, then slide
the charger from its position.
Charging your lithium ion battery - Eco Charger
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Illuminated) Battery is charging (low charge)
GREEN (Illuminated) Battery is fully charged
RED (Flashing) Battery or Charger fault
RED & GREEN
(Flashing)
Battery pack is too hot or too cold (remove
battery from charger and store at room
temperature 20ºC. Insert battery again when
at correct charging temperature). If this
happens again, the battery is defective and
needs to be replaced.

4. CONTROLS & OPERATION
OPERATION
1 Press and hold
the lock-off switch
forward.
Switching On and Off
PXCLTS-018
CAUTION! BEFORE YOU START THE UNIT, MAKE SURE THAT
THE GRASS TRIMMER IS NOT MAKING CONTACT WITH ANY
OBJECTS.
WARNING! INSPECT THE AREA TO BE TRIMMED AND
REMOVE ANY WIRE, CORD OR STRING-LIKE OBJECTS
WHICH COULD BECOME ENTANGLED IN THE ROTATING
BLADE.
WARNING! DO NOT OPERATE THE TRIMMER ON A TREE,
ON A LADDER, OR ON A SCAFFOLD, THIS IS EXTREMELY
DANGEROUS.
CAUTION! BYSTANDERS MUST KEEP A MINIMUM SAFE
DISTANCE OF 10M AWAY FROM THE TRIMMER WHILE IT IS
OPERATING.
WARNING! STONES, PIECES OF METAL AND OTHER
OBJECTS CAN BE THROWN OUT AT HIGH SPEED BY THE
BLADE.
2 Squeeze the on/off trigger
to start the trimmer.
3 To stop the trimmer,
release the on.off
trigger.
NOTE: DO NOT CUT GRASS WHEN WET. (THE BEST RESULTS
ARE ACHIEVED ON DRY GRASS.)
1 Extend the edging guide
to prevent the cutting head
from getting too close to an
object such as a tree trunk
or wall.
2 Hold the trimmer with both
handles for best control
and balance.
3 To turn on squeeze the on/
off trigger whilst holding the
lock-off button down.
4 Move the grass trimmer
into the grass to allow it to
cut.
6 Release the on/off trigger
and allow the motor
to come to a complete
standstill.
5 Several passes will be
required to cut long grass.
Using the Grass Trimmer
1 Align the ribs of the battery
with the recess in below
the handle and slide in until
it clicks into place.
2 To remove, press and hold
the battery release tab and
then slide out.
Inserting & Removing the Battery (not included)
30°

MAINTENANCE
• Keep ventilation slots of the trimmer clean at all times. Periodically clean out the
grass from the cutting head and the rim of the blade guard to ensure efcient
operation at all times.
• After each use, blow air through the tool housing to ensure it is free from all
dust, dirt, etc. Build up of dust, dirt particles may cause the tool to overheat and
shorten the life of the tool.
• If the housing of the trimmer requires cleaning, do not use solvents but a moist
soft cloth or soft brush only.
• Never let any liquid get inside the tool, never immerse any part of the tool into
liquid.
• No lubrication is necessary as the tool has sealed bearings.
• When not in use, the grass trimmer should be stored in a dry, frost free location
not within the reach of children.
WARNING! ALWAYS ENSURE THE TOOL HAS
COMPLETELY STOPPED AND THE BATTERY IS REMOVED
PRIOR TO ANY MAINTENANCE.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the grass trimmer by an unauthorised person or by mishandling
of the grass trimmer. This tool is designed for DIY use - use in commercial or
industrial environments will void the warranty.
TRIMMING & EDGING
OPERATION
Trimming
Edging
Move the grass trimmer from side
to side as you walk forward, holding
it at an angle of approx. 30° (Light
cuts are better than heavy cuts as
they allow the cut grass to fall away
from the cutting head).
Place the edging guide along the
ground and slide the grass trimmer
along the edge of the path.
Battery protection system
The tool is equipped with the battery protection system, which helps to
ensure a long service life.
The output power automatically cuts off during operation when the tool and/
or battery are placed under the following situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload,
then pull the switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use
or immediately after using the tool.
30°

DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
Spare Part Part No.
Blades PXCLTA-020
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING IN-
STRUCTIONS FOR YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the
charger, battery pack and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable batter-
ies. Any other use may result in risk of re, electric shock or electrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface
that may result in excessive internal heat. Place the charger in a position away
from any heat source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than
the cord when disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an im-
proper extension cord could result in the risk of re, electric shock or electrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or other-
wise damaged in any way. Have it checked by an electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when
service or repair is required. Incorrect reassembly may result in a risk of electric
shock, electrocution or re.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempt-
ing any cleaning. Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may
reach or exceed 40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240
volts). Do not attempt to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instruc-
tions and then follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is
charged when the air temperature is between 18 - 24ºC. Do not charge the battery
pack in an air temperature below 10ºC or above 40ºC. This is important and will
prevent damage to the battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely
worn out. The battery can explode in a re.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the bat-
tery pack breaks or cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
BATTERY AND CHARGER SAFETY WARNINGS
Problem Cause Remedy
Trimmer is
not starting
Possible clogging Clean the cutter head of any grass.
Battery is low in
charge
Charge battery
Battery not inserted
properly
Insert battery pack correctly
Trimmer
is not
operating
at full
capacity
Possible clogging Clean the cutter head of any grass.
Cutting tall grass at
ground level.
Make several passes from top down.
Motor
stops while
operating
Battery has no power Charge battery
Grass
wraps
around the
shaft and
trimmer
head.
Cutting tall grass at
ground level.
Make several passes from top down.
Wear safety glasses
Read instruction manual
Do not expose to rain.
Keep bystanders away. Do not operate whilst people especially
children or pets are in the area.

GRASS TRIMMER SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tools charger is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
The power supply for this products charger should be protected by a residual current device (rated at 30mA
or less). A residual current device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specically designated battery packs. Use of any other battery packs
may create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal
to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring. Cutting accessory
contacting a “live” wire may make exposed metal parts of the power tool “live“ and
could give the operator an electric shock.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Never allow children or people unfamiliar with these instructions to use the grass
trimmer.
• Avoid using the grass trimmer, while people, especially children or pets, are
nearby.
• Use the grass trimmer only in daylight or good articial light.
• Never operate the grass trimmer with damaged guards or without guards in place.
• Switch on the grass trimmer only when the hands and feet are away from the
cutting head.
• Never t metal cutting blades.
• Use only the manufacturer’s recommended replacement parts and accessories.
• Always remove the battery from the grass trimmer when leaving the grass trimmer
unattended.
• Always remove the battery from the grass trimmer before carrying out
maintenance or cleaning work.
• Inspect and maintain the grass trimmer regularly. Have the grass trimmer repaired
only by an authorized repairer.
• When not in use, store the grass trimmer out of the reach of children.
• Face the cutting head away from yourself, other people and animals while the
power is connected to the grass trimmer (especially during operation).
• Remove the battery when changing spools or clearing grass from under the
guard.
• Remove the battery from the grass trimmer before making any adjustments.
• Use both handles at all times
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of oil
and grease.
• Never reach underneath the grass trimmer (the cutting blade area) until it has
completely stopped and the battery has been removed.
WARNING! When servicing, use only identical replacement parts. Use of
any other parts may create a hazard or cause product damage. To ensure
safety and reliability, all repairs should be performed by a qualied service
technician.
WARNING! This appliance is not intended for use by young or inrm persons
unless supervised by a responsible person to ensure that they can use the
appliance safely. Children should be supervised to ensure that they do not
play with the appliance.

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0814
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
3 YEAR REPLACEMENT WARRANTY WITH
2 YEAR EXTENSION UPON REGISTRATION
Your Product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself) use
only. If a product is defective it will be replaced in accordance with
the terms of this warranty. You have the option to register your
product with Ozito on www.ozito.com.au/registrations for an
extended warranty of 2 years within four weeks of purchase. The
registration confirmation, which is sent out by e-mail, and the
original receipt showing the date of purchase will serve as proof of
the extended warranty. Lithium Ion batteries and chargers are
covered by a 36 month warranty and are excluded from the
warranty extension. Warranty excludes consumable parts, for
example: cutting blades.
