Cub Cadet CC5075 User manual

Operator’s Manual
4-Cycle Gasoline Trimmer
CC5075
SAVE THESE INSTRUCTIONS
For service call 1-877-282-8684 to obtain a list of authorized
service dealers near you. For more details about your unit, visit
our website at www.cubcadet.com.
DO NOT RETURN THE UNIT TO THE RETAILER. PROOF OF
PURCHASE WILL BE REQUIRED FOR WARRANTY
SERVICE.
THIS PRODUCT IS COVERED BY ONE OR MORE U.S.
PATENTS. OTHER PATENTS PENDING.
Service on this unit both within and after the warranty period
should be performed only by an authorized and approved
service dealer.
All information, illustrations, and specifications in this manual
are based on the latest product information available at the
time of printing. We reserve the right to make changes at any
time without notice.
Copyright© 2005 MTD SOUTHWEST INC, All Rights Reserved.
WARNING: When using the unit, you must follow
the safety rules. Please read these instructions
before operating the unit in order to ensure the
safety of the operator and any bystanders. Please
keep these instructions for later use.
SPARK ARRESTOR NOTE
NOTE: For users on U.S. Forest Land and in the states of
California, Maine, Oregon and Washington. All U.S. Forest
Land and the state of California (Public Resources Codes 4442
and 4443), Oregon and Washington require, by law that certain
internal combustion engines operated on forest brush and/or
grass-covered areas be equipped with a spark arrestor,
maintained in effective working order, or the engine be
constructed, equipped and maintained for the prevention of
fire. Check with your state or local authorities for regulations
pertaining to these requirements. Failure to follow these
requirements could subject you to liability or a fine. This unit is
factory equipped with a spark arrestor. If it requires
replacement, ask your LOCAL SERVICE DEALER to install the
Accessory Part #753-05297 Spark Arrestor Kit.
CALIFORNIA PROPOSITION 65 WARNING
P/N 769-02157 (11/05)
TABLE OF CONTENTS
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . .2
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Starting/Stopping Instructions . . . . . . . . . . . . . . . . . . . . . .5
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Maintenance and Repair Instructions . . . . . . . . . . . . . . . .8
Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
WARNING
THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO
CAUSE CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM.

2
READ ALL INSTRUCTIONS BEFORE OPERATING
• Read the instructions carefully. Be familiar with the controls
and proper use of the unit.
• Do not operate this unit when tired, ill, or under the influence
of alcohol, drugs, or medication.
• Children and teens under the age of 15 must not use the
unit, except for teens guided by an adult.
• All guards and safety attachments must be installed properly
before operating the unit.
• Inspect the unit before use. Replace damaged parts. Check
for fuel leaks. Make sure all fasteners are in place and secure.
Replace parts that are cracked, chipped, or damaged in any
way. Do not operate the unit with loose or damaged parts.
• Carefully inspect the area before starting the unit. Remove
all debris and hard or sharp objects such as glass, wire, etc.
• Be aware of the risk of injury to the head, hands and feet.
• Clear the area of children, bystanders, and pets. At a minimum,
keep all children, bystanders, and pets outside a 50 feet (15
m.) radius; there still may be a risk to bystanders from thrown
objects. Bystanders should be encouraged to wear eye
protection. If you are approached, stop the unit immediately.
•U
se only 0.105 inch, 2.67 mm diameter original equipment
manufacturer replace-ment line. Never use metal-reinforced line, wire
or rope. These can break off and become dangerous projectiles.
• Squeeze the throttle control and check that it returns
automatically to the idle position. Make all adjustments or
repairs before using unit.
SAFETY WARNINGS FOR GAS UNITS
• Store fuel only in containers specifically designed and
approved for the storage of such materials.
• Avoid creating a source of ignition for spilled fuel. Do not
start the engine until fuel vapors dissipate.
• Always stop the engine and allow it to cool before filling the
fuel tank. Never remove the fuel tank cap or add fuel when
the engine is hot. Never operate the unit without the fuel cap
securely in place. Loosen the fuel tank cap slowly to relieve
any pressure in the tank.
• Add fuel in a clean, well-ventilated outdoor area where there
are no sparks or flames. Remove the fuel cap slowly, and
only after the engine stops. Do not smoke while fueling.
Wipe up any spilled fuel from the unit immediately.
• Avoid creating a source of ignition for spilled fuel. Do not
start the engine until fuel vapors dissipate.
•M
ove the unit at least 30 feet (9.1 m) from the fueling
source and site before starting the engine. Do not smoke.
Keep sparks and open flames away from the area while
adding fuel or operating the unit.
WHILE OPERATING
• Never start or run the unit inside a closed room or building.
Breathing exhaust fumes can be fatal. Operate this unit only
in a well-ventilated outdoor area.
• Wear safety glasses or goggles that meet ANSI Z87.1
standards and are marked as such. Wear ear/hearing
protection when operating this unit. Wear a face or dust
mask if the operation is dusty.
• Wear heavy long pants, boots, gloves and a long sleeve
shirt. Do not wear loose clothing, jewelry, short pants,
sandals or go barefoot. Secure hair above shoulder level.
• The cutting attachment shield must always be in place while
operating the unit as a trimmer. Do not operate unit without
both trimming lines extended, and the proper line installed. Do
not extend the trimming line beyond the length of the shield.
• This unit has a clutch. The cutting attachment remains
stationary when the engine is idling. If it does not, have the
unit adjusted by an authorized service technician.
• Adjust the handle to your size in order to provide the best grip.
• Be sure the cutting attachment is not in contact with
anything before starting the unit.
• Use the unit only in daylight or good artificial light.
• Avoid accidental starting. Be in the starting position
whenever pulling the starter rope. The operator and unit
must be in a stable position while starting. Refer to
Starting/Stopping Instructions.
• Use the right tool. Only use this tool for its intended purpose.
• Do not overreach. Always keep proper footing and balance.
• Always hold the unit with both hands when operating. Keep
a firm grip on both handles or grips.
•K
eep hands, face, and feet at a distance from all moving parts.
Do not touch or try to stop the cutting attachment when it rotates.
• Do not touch the engine, gear housing or muffler. These
parts get extremely hot from operation, even after the unit is
turned off.
• Do not operate the engine faster than the speed needed to
cut, trim or edge. Do not run the engine at high speed when
not cutting.
• Always stop the engine when cutting is delayed or when
walking from one cutting location to another.
• If you strike or become entangled with a foreign object, stop
the engine immediately and check for damage. Do not
operate before repairing damage. Do not operate the unit
with loose or damaged parts.
• Stop the unit, switch the engine to off, and disconnect the
spark plug for maintenance or repair.
• Use only original equipment manufacturer replacement parts
and accessories for this unit. These are available from your
authorized service dealer. Use of any unauthorized parts or
accessories could lead to serious injury to the user, or damage
to the unit, and void your warranty.
• Keep unit clean of vegetation and other materials. They may
become lodged between the cutting attachment and shield.
• To reduce fire hazard, replace a faulty muffler and spark
arrestor. Keep the engine and muffler free from grass,
leaves, excessive grease or carbon build up.
OTHER SAFETY WARNINGS
• Never store a fueled unit inside a building where fumes may
reach an open flame or spark.
• Allow the engine to cool before storing or transporting. Be
sure to secure the unit while transporting.
• Store the unit in a dry area, locked up or up high to prevent
unauthorized use or damage, out of the reach of children.
• Never douse or squirt the unit with water or any other liquid.
Keep handles dry, clean and free from debris. Clean after
each use, see Cleaning and Storage instructions.
• Keep these instructions. Refer to them often and use them
to instruct other users. If you loan someone this unit, also
loan them these instructions.
SAVE THESE INSTRUCTIONS
RULES FOR SAFE OPERATION
• IMPORTANT SAFETY INSTRUCTIONS •
WARNING: Gasoline is highly flammable, and its
vapors can explode if ignited. Take the following
precautions:

3
RULES FOR SAFE OPERATION
SYMBOL MEANING
• WARNING - READ OPERATOR'S MANUAL
Read the operator’s manual(s) and follow all warnings
and safety instructions. Failure to do so can result in
serious injury to the operator and/or bystanders.
SAFETY AND INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the
operator's manual for complete safety, assembly, operating and maintenance and repair information.
• ON/OFF STOP CONTROL
OFF or STOP
SYMBOL MEANING
• WEAR EYE AND HEARING PROTECTION
WARNING: Thrown objects and loud noise can
cause severe eye injury and hearing loss. Wear eye
protection meeting ANSI Z87.1 standards and ear
protection when operating this unit. Use a full face
shield when needed.
• KEEP BYSTANDERS AWAY
WARNING: Keep all bystanders, especially
children and pets, at least 50 feet (15 m) from the
operating area.
• THROWN OBJECTS AND ROTATING CUTTER
CAN CAUSE SEVERE INJURY
WARNING: Do not operate without the cutting
attachment shield in place. Keep away from the
rotating cutting attachment.
• HOT SURFACE WARNING
Do not touch a hot muffler, gear housing or cylinder.
You may get burned. These parts get extremely hot
from operation. They remain hot for a short time after
the unit is turned off.
• UNLEADED FUEL
Always use clean, fresh unleaded fuel
• OIL
Refer to operator’s manual for the proper type of
oil.
• SHARP BLADE
WARNING: Sharp blade on cutting attachment
shield. To prevent serious injury, do not touch the
line cutting blade.
• CHOKE CONTROL
1. • FULL choke position
2. • PARTIAL choke position
3. • RUN choke position
• ON/OFF STOP CONTROL
ON / START / RUN
• SAFETY ALERT SYMBOL
Indicates danger, warning or caution. May be used
in conjunction with other symbols or pictographs.
Fuel
Cap
Throttle
Control
Cub Handle
Cutting
Attachment
Shaft Grip
Primer
Bulb
Oil Fill Plug
Choke
Lever
Spark
Plug
Shaft
Starter
Rope
Grip
Line
Cutting
Blade
Muffler
Click Link
On/Off Stop
Control
KNOW YOUR UNIT
Air Filter
Cover
ASSEMBLY INSTRUCTIONS
INSTALL AND ADJUST THE D-HANDLE
1. Remove the screws and
bottom clamp piece that
were installed on the Cub
Handle for shipping.
2. Place Cub Handle over
the shaft housing and
onto the bottom clamp
(Fig. 1). Place it a
minimum of 6 inches
(15.24 cm) from the end
of the shaft grip.
3. Start screws with a large
Flat-head or T-25 Torx screwdriver. Do not tighten until
you make the handle adjustment.
4. If it was pre-installed, loosen the screws on the Cub
Handle just enough to move the Cub Handle.
5. While holding the unit in the operating position (Fig. 12),
move the Cub Handle to the location that provides you the
best grip.
6. Tighten the clamp screws evenly, until the Cub Handle is
secure.
(4) Screws D-Handle
Bottom
Clamp
Fig. 1
Minimum
6 inches
(15.24 cm)

RECOMMENDED OIL TYPE
Using the proper type and weight of oil in the crankcase is
extremely important. Check the oil before each use and change
the oil regularly. Failure to use the correct oil, or using dirty oil,
can cause premature engine wear and failure.
Use a high-quality SAE 30 weight oil of API (American Petroleum
Institute) service class SF, SG, SH.
ADDING OIL TO CRANKCASE: INITIAL USE
NOTE: This unit is shipped
without oil. In order to avoid
damage to the unit, put oil in
the crankcase before you
attempt to start the unit.
Your unit is supplied with one 3.04
fluid oz. (90 ml.) bottle of SAE 30
SF, SG, SH oil (Fig. 2).
NOTE: Save the bottle of oil. It can
be used to measure the correct amount during future oil
changes. See Changing the Oil.
1. Unscrew the top of the
bottle of oil and remove the
paper seal covering the
opening. Replace the top.
Next, cut the tip off the
funnel spout (Fig. 2).
2. Tip unit so that the back of
the engine is facing up in a
vertical position.
3. Remove the oil fill plug from the crankcase (Fig. 3).
4. P
our the entire bottle of oil
into the oil fill hole (Fig. 4).
NOTE: Never add oil to the fuel
or fuel tank.
5. Wipe up any oil that may
have spilled and reinstall the
oil fill plug.
Check oil before each use and
change as needed. Refer to
Checking the Oil Level.
WARNING: OVERFILLING OIL CRANKCASE MAY
CAUSE SERIOUS PERSONAL INJURY. Check and
maintain the proper oil level in the crank case; it is
important and cannot be overemphasized. Check
the oil before each use and change it as needed.
See Changing the Oil.
Fig. 2
Funnel
Spout
RECOMMENDED FUEL TYPE
Old fuel is the primary reason for improper unit performance.
Be sure to use fresh, clean, unleaded gasoline.
NOTE: This is a four cycle engine. In order to avoid damage to
the unit, do not mix oil with gasoline.
Definition of Blended Fuels
Today's fuels are often a blend of gasoline and oxygenates
such as ethanol, methanol or MTBE (ether). Alcohol-blended
fuel absorbs water. As little as 1% water in the fuel can make
fuel and oil separate or form acids when stored. Use fresh fuel
(less than 60 days old), when using alcohol-blended fuel.
Using Blended Fuels
If you choose to use a blended fuel, or its use is unavoidable,
follow recommended precautions:
• Always use fresh unleaded gasoline
• Use the fuel additive STA-BIL® or an equivalent
• Drain tank and run the engine dry before storing unit
Using Fuel Additives
The use of fuel additives, such as STA-BIL® Gas Stabilizer or
an equivalent, will inhibit corrosion and minimize the formation
of gum deposits. Using a fuel additive can keep fuel from
forming harmful deposits in the carburetor for up to six (6)
months. Add 0.8 oz. (23 ml.) of fuel additive per gallon of fuel
according to the instructions on the container. NEVER add fuel
additives directly to the unit's gas tank.
FUELING THE UNIT
1. Remove the fuel cap (Fig. 5).
2. Place the gas container’s spout into the fill hole on the fuel
tank (Fig. 5) and fill the tank.
NOTE: Do not overfill the tank.
3. Wipe up any gasoline that may have spilled.
4. Reinstall the fuel cap.
5. Move the unit at least 30 ft. (9.1 m) from the fueling source
and site before starting the engine.
NOTE: Dispose of the old gasoline in accordance to Federal,
State and Local regulations.
Oil Fill Plug
Oil Fill Hole
O-Ring
WARNING: Add fuel in a clean, well ventilated
outdoor area. Wipe up any spilled fuel immediately.
Avoid creating a source of ignition for spilt fuel. Do
not start the engine until fuel vapors dissipate.
WARNING: Gasoline is extremely flammable.
Ignited vapors may explode. Always stop the engine
and allow it to cool before filling the fuel tank. Do
not smoke while filling the tank. Keep sparks and
open flames at a distance from the area.
WARNING: Remove fuel cap slowly to avoid injury
from fuel spray. Never operate the unit without the
fuel cap securely in place.
Fig. 5
Fuel Cap
Fuel Tank
Gas Can Spout
WARNING: To avoid serious personal injury, the
cutting attachment shield MUST be in place at all
times while operating the unit as a trimmer.
Fig. 4
Fig. 3
4
OIL AND FUEL INFORMATION

5
STARTING INSTRUCTIONS
STOPPING INSTRUCTIONS
1. Release your hand from the throttle control. Allow the
engine to cool down by idling.
2. Press the On/Off Stop Control switch in the OFF (O)
position.
1. Check the oil level in the crankcase. Refer to
Checking the Oil Level.
2. Fill the fuel tank with fresh, clean unleaded gasoline.
Refer to Fueling the Unit.
3. Make sure the On/Off Stop Control in the ON ( I )
position (Fig. 6).
4. Fully press and release the primer bulb 10 times,
slowly. Some amount of fuel should be visible in
the primer bulb and fuel lines (Fig. 7). If you can’t
see fuel in the bulb, press and release the bulb as
many times as it takes before you can see fuel in it.
5. Place the choke lever in Position 1 (Fig. 7).

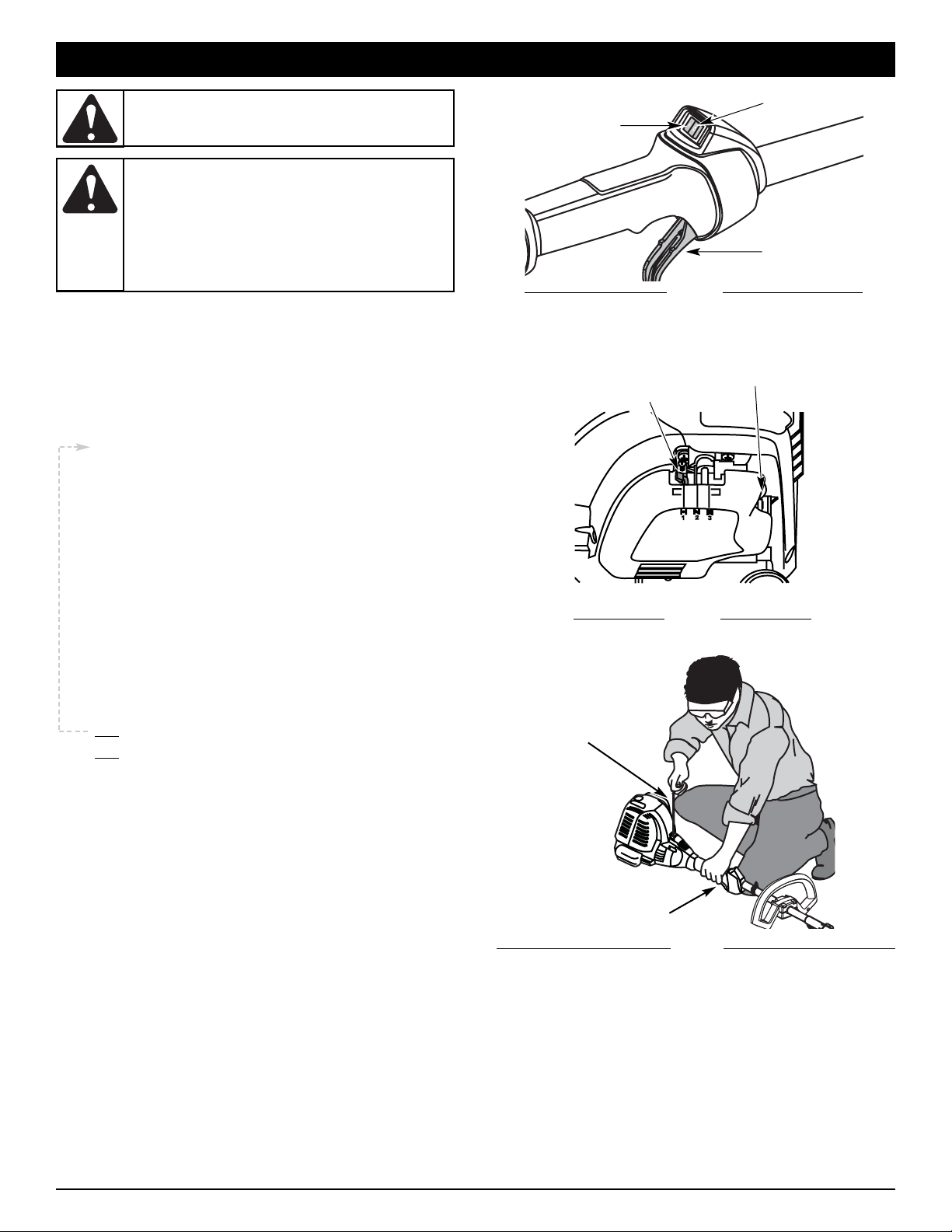

6. Crouch in the starting position (Fig. 8). Squeeze the
throttle control lever. Pull the starter rope briskly 5
times.
7. Place the choke lever in Position 2 (Fig. 7).
8. While squeezing the throttle control , pull the starter
rope briskly 1 to 4 times to start the engine.
9. Keep the throttle squeezed and allow the engine to
warm up for 15 to 30 seconds.
10. Place the choke lever in Position 3 (Fig. 7). The unit
is ready for use.
IF... The engine does not start, go back to step 4.
IF... The engine fails to start after a few attempts, place
the choke lever in Position 3 and squeeze the
throttle control. Pull the starter rope briskly 3 to 8
times. The engine should start. If not, repeat.
WARNING: Avoid accidental starting. Make sure
you are in the starting position when pulling the
starter rope (Fig. 8). To avoid serious injury, the
operator and unit must be in a stable position while
starting.
To avoid serious personal injury, ensure any Add-
On being used is installed correctly and secure
before starting the unit.
WARNING: Operate this unit only in a well-
ventilated outdoor area. Carbon monoxide exhaust
fumes can be lethal in a confined area.
Starter Rope
Throttle Control
Fig. 8
Primer Bulb
Fig. 7
Choke Lever
APPLICATIONS
As a trimmer:
• Cutting grass and light weeds
• Edging
• Decorative trimming around trees, fences, etc.
STARTING/STOPPING INSTRUCTIONS
Start/On ( I )
Stop/Off (O)
Throttle
Control
Fig. 19

6
For edging (when using the line head cutting attachment with
EZ-Link™ models), lock the release button of the cutting
attachment into the 90° edging hole (Fig. 11).
OPERATING THE EZ-LINK™ SYSTEM
The EZ-Link™ system enables the use of these optional Add-
Ons:
Cultivator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBGC
Edger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBLE
Hedge Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBAH
Straight Shaft Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . TBSS
Turbo Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBTB
Pole Saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBPS
Brushcutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TBBC*
*Do NOT use this attachment with an electric powered unit.
Removing the Cutting Attachment or Add-On
1. Turn the knob counterclockwise to loosen (Fig. 9).
2. Press and hold the release button (Fig. 9).
3. While firmly holding the upper shaft housing, pull the
cutting attachment or add-on straight out of the EZ-Link™
coupler (Fig. 10).
Installing the Cutting Attachment or Add-On
NOTE: Place the unit on the ground or on a work bench to
make add-on installation or removal easier.
1. Turn knob counterclockwise to loosen (Fig. 9).
Fig. 9
EZ-Link™ Coupler Release Button
Guide Recess
Knob
Primary Hole
Upper Shaft Housing
EZ-Link™ Coupler
2. While firmly holding the add-on, push it straight into the
EZ-Link™ coupler (Fig. 10).
NOTE: Aligning the release button with the guide recess will
help installation (Fig. 9).
3. Turn the knob clockwise to tighten (Fig. 11).
Fig. 10
Fig. 11
Knob
Lower Shaft Housing
Release Button
90˚ Edging Hole
(Trimmer Only)
OPERATING INSTRUCTIONS
WARNING: Before you begin using any
attachment, read and understand the manual that
came with the attachment. Follow all safety
information contained within.
WARNING: To avoid serious personal injury and
damage to the unit, shut the unit off before
removing or installing add-ons.
CAUTION: Lock the release button in the primary
hole and securely tighten the knob before operating
this unit.
CAUTION: Add-ons are to be used in the primary
hole only. Using the wrong hole could lead to
personal injury or damage to the unit.

7
OPERATING INSTRUCTIONS

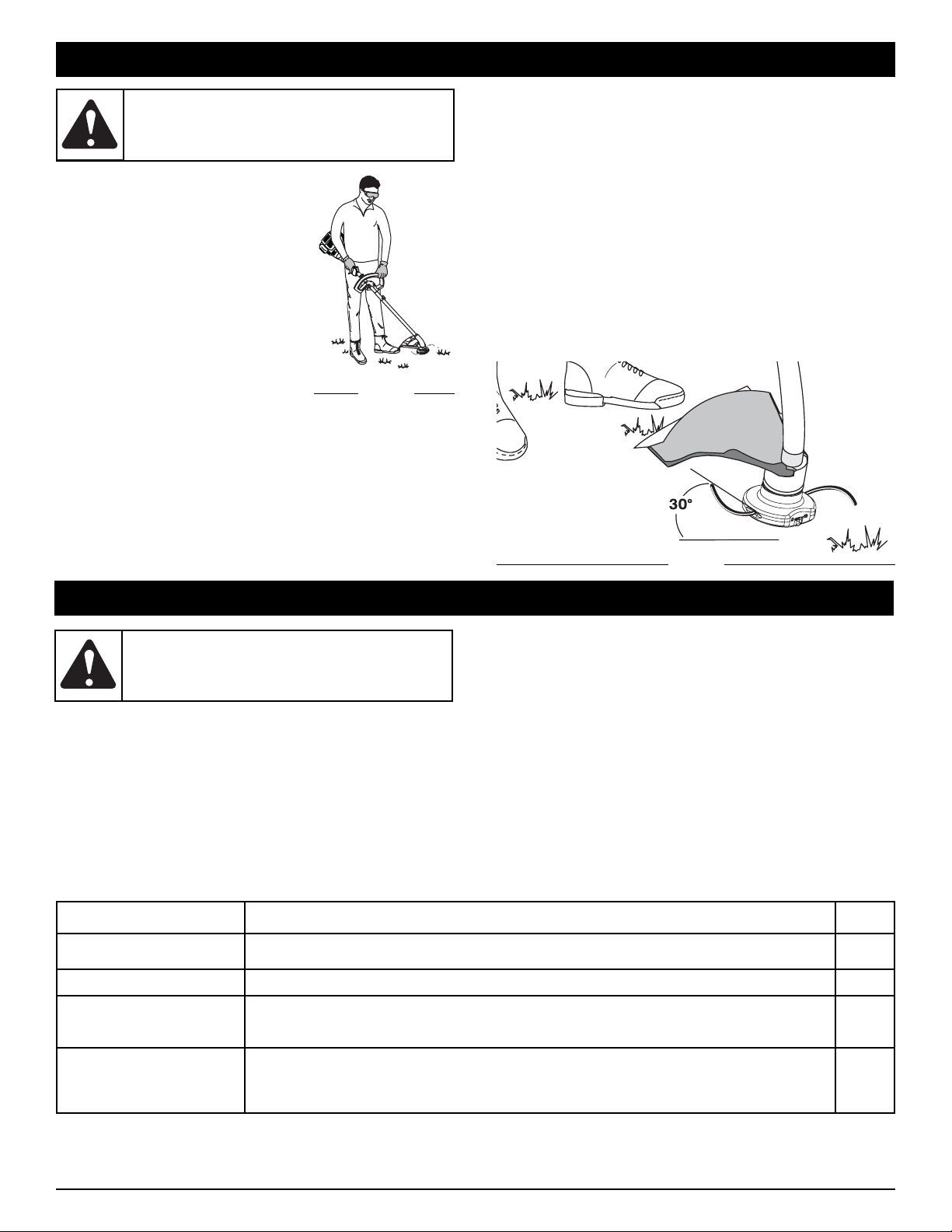

HOLDING THE TRIMMER
Before operating the unit, stand in the
operating position (Fig. 12). Check for the
following:
•T
he operator is wearing eye protection and
proper clothing
• With a slightly-bent right arm, the
operator’s right hand is holding the shaft
grip
• The operator’s left arm is straight, the left
hand holding the handle
• The unit is at waist level
• The cutting attachment is parallel to the
ground and easily contacts the grass
without the need to bend over
TIPS FOR BEST TRIMMING RESULTS
• For best trimming results, operate unit at full throttle.
• Keep the cutting attachment parallel to the ground.
• Do not force the cutting attachment. Allow the tip of the line to do
the cutting, especially along walls. Cutting with more than the tip will
reduce cutting efficiency and may overload the engine.
• Cut grass over 8 inches (200 mm) by working from top to bottom in
small increments to avoid premature line wear or engine drag.
• Cut from right to left.
• Slowly move the trimmer into and out of the cutting area at the
WARNING: Always wear eye, hearing, foot and body
protection to reduce the risk of injury when operating this
unit.
Fig. 12
desired height. Move either in a forward-backward or side-to-side
motion. Cutting shorter lengths produces the best results.
• Trim only when grass and weeds are dry.
• The life of your cutting line is dependent upon:
- Proper adherence of explained trimming techniques
- What vegetation is cut
- Where vegetation is cut
For example, the line will wear faster when trimming against a foundation
wall as opposed to trimming around a tree. It is normal for some line
breakage to occur from regular use.
DECORATIVE TRIMMING
Decorative trimming is accomplished by removing all vegetation around
trees, posts, fences and more.
Rotate the whole unit so that the cutting attachment is at a 30° angle to
the ground (Fig. 13).
Fig. 13
WARNING: To prevent serious injury, never
perform maintenance or repairs with unit running.
Always service and repair a cool unit. Disconnect the
spark plug wire to ensure that the unit cannot start.
FREQUENCY MAINTENANCE REQUIRED SEE
Before starting engine Fill fuel tank with fresh fuel
Check oil p. 4 p. 8
Every 10 hours Clean and re-oil air filter p. 9
1st change at 10 hours
2nd change at 25 hours
Every 25 hours after
Change oil
Change oil
Clean spark arrestor
p. 9
p. 9
p. 12
10 hours on new engine
Every 25 hours
Every 25 hours
Check rocker arm to valve clearance and adjust
Check rocker arm to valve clearance and adjust
Check spark plug condition and gap
p. 10
p. 10
p. 11
MAINTENANCE AND REPAIR INSTRUCTIONS
MAINTENANCE SCHEDULE
Perform these required maintenance procedures at the
frequency stated in the table. These procedures should also be
a part of any seasonal tune-up.
NOTE: Some maintenance procedures may require special
tools or skills. If you are unsure about these
procedures take your unit to any non-road engine
repair establishment, individual or authorized service
dealer.
NOTE: Maintenance, replacement, or repair of the emission
control devices and system may be performed by any
non-road engine repair establishment, individual or
authorized service dealer.
In order to assure peak performance of your engine, inspection
of the engine exhaust port may be necessary after 50 hours of
operation. If you notice lost RPM, poor performance or general
lack of acceleration, this service may be required. If you feel
your engine is in need of this inspection, refer service to any
non-road engine repair establishment, individual or authorized
service dealer for repair. DO NOT attempt to perform this
process yourself as engine damage may result from
contaminants involved in the cleaning process for the port.

8
CHECKING THE OIL LEVEL
The importance of checking and maintaining the proper oil level
in the crankcase cannot be overemphasized. Check oil before
each use:
1. Stop the engine and allow oil to drain into the crankcase.
2. Place the engine on a flat, level surface with the cutting
head shield hanging off a work bench or table to get a
proper oil level reading (Fig. 18).
3. Keep dirt, grass clippings and other debris out of the engine.
Clean the area around the dipstick before removing it.
4. Remove the oil fill plug.
5. Look into the oil fill hole, use a flashlight if needed. The oil
should be just touching the inner most thread (Fig. 19).
6. If the oil level is not touching the inner most thread on the
oil fill hole, add a small amount of oil to the oil fill hole and
recheck (Fig. 19). Repeat this procedure until the oil level
reaches the inner most thread on the oil fill hole.
NOTE: Do not overfill the unit.
NOTE: Make sure the O-ring is in place on the oil fill plug when
checking and changing the oil (Fig. 20).
Fig. 18
Oil Fill Plug
Oil Fill Hole
O-Ring
MaxOil Fill Line
Fig. 20
Fig. 19
MAINTENANCE AND REPAIR INSTRUCTIONS
LINE INSTALLATION
Always use original equipment
manufacturer 0.105 inch (2.667 mm)
replacement line. Lines other than
those specified may make the engine
overheat or fail.
To install the trimming line:
1. Insert each end of the replacement
line into the holes on either side of
retention hook (Fig. 14).
2. Push the ends through until they
stick out of the sides of the head
(Fig. 15).
3. Pull the ends through making sure
that the ends are of equal length
and the middle of the line is
centered between the insertion
holes (Fig. 16).
4. If the ends are not of equal length,
push the longer end back through
the head part way and pull the
shorter end to compensate.
Repeat until both ends are the
same length.
5. Push the trimmer line behind the
hook to secure it from coming
loose while running (Fig. 17).
WARNING: Never use metal-reinforced line, wire,
chain, or rope. These can break off and become
dangerous projectiles.
WARNING: Always use the correct line length when
installing trimming line on the unit.
Fig. 14
Fig. 16
Fig. 15
Fig. 17

9
MAINTENANCE AND REPAIR INSTRUCTIONS
CHANGING THE OIL
For a new engine, change the oil after the first 10 hours of
operation. Change the oil while the engine is still warm. The oil will
flow freely and carry away more impurities.
1. Unplug spark plug boot to prevent accidental starting.
2. Remove the oil fill plug.
3. Pour the oil out of the
oil fill hole and into a
container by tipping the
unit to a vertical
position (Fig. 21). Allow
ample time for
complete drainage.
4. Wipe up any oil residue
on the unit and clean
up any oil that may
have spilled. Dispose of
the oil according to
Federal, State and local
regulations.
5. Refill the crankcase
with 3.04 fluid ounce
(90 ml) of SAE 30 SF, SG, SH oil.
NOTE: Use the bottle and spout saved from initial use to measure
the correct amount of oil. The top of the label on the bottle
measures approximately 3.04 ounces (90 ml) (Fig. 22). Check
the level, See Checking the Oil Level. If the level is low, add a
small amount of oil and recheck. Do not overfill (Fig. 22).
6. Replace the oil fill plug.
7. Reconnect the spark plug boot.
AIR FILTER MAINTENANCE
Cleaning the Air Filter
Clean and re-oil the air filter every 10 hours of operation. It is
an important item to maintain. Failure to maintain your air filter
properly can result in poor performance or can cause
permanent damage to your engine.
1. Open the air filter cover. Push the tab on the under side of
the cover inward. Then pull the air filter cover out and up.
(Fig. 23).
WARNING: Wear gloves to prevent injury when
handling unit.
Fig. 21
Fill Level
Fig. 22
2. Remove the air filter (Fig. 23).
3. Wash the filter in detergent and
water (Fig. 24). Rinse the filter
thoroughly and allow it to dry.
4. Apply enough clean SAE 30
motor oil to lightly coat the filter
(Fig. 25).
5. Squeeze the filter to spread and
remove excess oil (Fig. 26).
6. Replace the filter (Fig. 23).
NOTE: If the unit is operated
without the air filter, you will
VOID the warranty.
7. Reinstall the air filter cover. Position the slots on the top of
the air filter cover onto the tabs at the top of the back plate
(Fig. 27).
8. Swing the cover down until the tab on the air filter backplate
snaps into place in the slot on the air filter cover (Fig. 28).
WARNING: To avoid serious personal injury,
always turn the unit off and allow it to cool before
you clean or service it.
Fig. 24
Air Filter Cover
Air Filter
Tab
Fig. 23
Fig. 25
Fig. 26
Fig. 27
Locking Tab
Tabs
Back Plate
Air Filter

10
Checking the fuel, cleaning the air filter, and adjusting the idle
speed should solve most engine problems. If not and all of the
following are true:
• the engine will not idle
• the engine hesitates or stalls on acceleration
• there is a loss of engine power
Have the carburetor adjusted by an authorized service dealer.
ROCKER ARM CLEARANCE
This requires disassembly of the engine. If you feel unsure or
unqualified to perform this, take the unit to an authorized
service center.
NOTE: Inspect the valve to rocker arm clearance with a feeler
gauge after the first 10 hours of operation and every 25
hours of operation.
• The engine must be cold when checking or adjusting the
valve clearance.
• This task should be performed inside, in a clean, dust free
area.
1. Remove the six (6) screws on the back of the engine cover
with a Flat-head or T-25 Torx screwdriver (Fig. 30).
2. Disconnect the spark plug wire.
3. Clean dirt from around the spark plug. Remove the spark
plug from the cylinder head by turning a 5/8 in. socket
counterclockwise.
4. Remove the engine cover (Fig. 30).
5. Clean dirt from around the rocker arm cover. Remove the
screw holding the rocker arm cover with a large flat blade
screwdriver or Torx T-25 bit (Fig. 31). Remove the rocker
arm cover and gasket.
6. Pull the starter rope slowly to
bring the piston to the top of its
travel, (known as top dead
center). Check that:
• The piston is at the top of its
travel while looking in the
spark plug hole (Fig. 32)
• Both rocker arms move
freely, and both valves are
closed
CARBURETOR ADJUSTMENT
The idle speed of the engine is adjustable. An idle adjustment
screw is between the air filter cover and the engine starter
housing (Fig. 29).
NOTE: Careless
adjustments can
seriously damage your
unit. An authorized
service dealer should
make carburetor
adjustments.
Check Fuel
Old fuel is usually the
reason for improper unit
performance. Drain and
refill the tank with fresh fuel
prior to making any adjustments. Refer to Oil and Fuel
Information.
Clean Air Filter
The condition of the air filter is important to the operation of the
unit. A dirty air filter will restrict air flow. This is often mistaken
for an out of adjustment carburetor. Check the condition of the
air filter before adjusting the idle speed screw. Refer to Air
Filter Maintenance.
Adjust Idle Speed Screw
If, after checking the fuel and cleaning the air filter, the engine
still will not idle, adjust the idle speed screw as follows:
1. Start the engine and let it run at a high idle for a minute to
warm up. Refer to Starting/Stopping Instructions.
2. Release the throttle trigger and let the engine idle. If the
engine stops, insert a small phillips in between the Air Filter
Cover and the Engine Cover (Fig. 29). Turn the idle speed
screw in, clockwise, 1/8 of a turn at a time (as needed) until
the engine idles smoothly.
NOTE: The cutting attachment should not rotate when the
engine idles.
3. If the cutting attachment rotates when the engine idles, turn
the idle speed screw counterclockwise 1/8 of a turn at a
time (as needed), to reduce idle speed.
MAINTENANCE AND REPAIR INSTRUCTIONS
WARNING: The cutting attachment may spin during
idle speed adjustments. Wear protective clothing and
observe all safety instructions to prevent serious
personal injury.
WARNING: To prevent serious personal injury,
make sure the cutting attachment has stopped
rotating before you turn it off and set it down.
Idle Adjustment Screw
Fig. 29
Remove
Screws
Fig. 30
View Of The Rear Engine Cover
Rocker
Arm
Cover
Fig. 31
Spark
Plug
Hole
Air Filter Cover
Air Filter
Tab
Fig. 28
Remove
Screws

11
If these statements are not true, repeat this step.

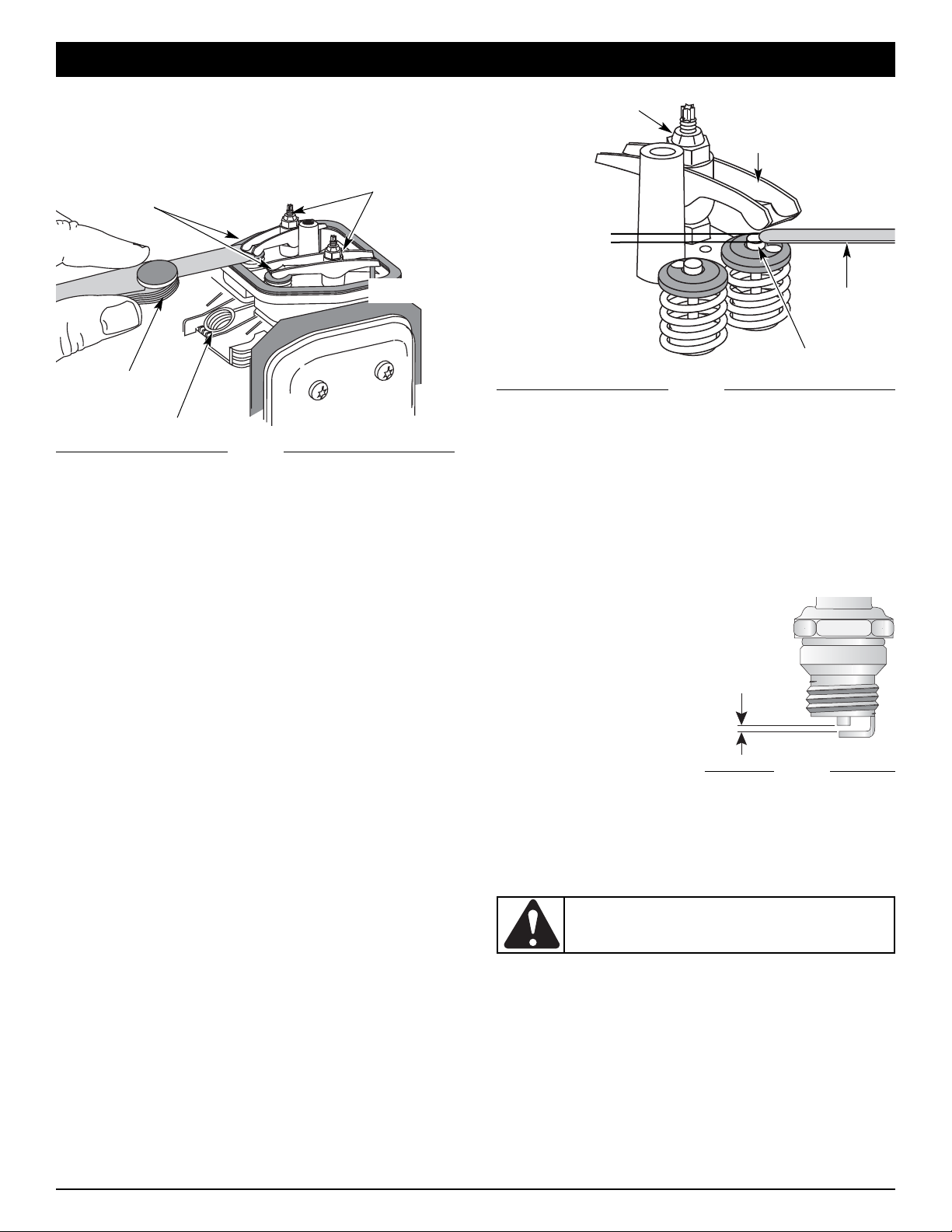

7. Slide the feeler gauge between the rocker arm and the
valve return spring. Measure the clearance between the
valve stem and rocker arm (Fig. 32). Measure both the
intake and exhaust valves.
The recommended clearance for both intake and exhaust is
.003 – .006 in. (.076 – 0.152 mm). Use a standard automotive
.005 in. (0.127 mm) feeler gauge. The feeler gauge should slide
between the rocker arm and valve stem with a slight amount of
resistance, without binding. See Figures 32 and 33.
8. If the clearance is not within specification:
a. Turn the adjusting nut using a 5/16 inch (8 mm) wrench or
nut driver (Fig. 32).
• To increase clearance, turn the adjusting nut
counterclockwise.
• To decrease clearance, turn the adjusting nut
clockwise.
b. Recheck both clearances, and adjust as necessary.
9. Reinstall the rocker arm cover using a new gasket. Torque
the screw to 20–30 in•lb (2.2–3.4 N•m).
10. Check the spark plug and reinstall. See Replacing the
Spark Plug.
11. Replace the spark plug wire.
12. Reinstall the engine cover. Check alignment of the cover
before tightening the screws. Tighten screws.
MAINTENANCE AND REPAIR INSTRUCTIONS
Fig. 33
REPLACING THE SPARK PLUG
Use a replacement part number 753-05255 spark plug. The
correct air gap is 0.025 in. (0.655 mm.). Remove the plug after
every 25 hours of operation and check its condition.
1. Stop the engine and allow it to cool. Remove the six (6)
screws on the back of the engine cover with a Flat-head or
T-25 Torx screwdriver (Fig. 34).
2. Grasp the plug wire firmly and pull the cap from the spark
plug.
3. Clean dirt from around the spark plug. Remove the spark
plug from the cylinder head
by turning a 5/8 in. socket
counterclockwise.
4. Replace cracked, fouled or
dirty spark plug. Set the air
gap at 0.025 in. (0.655 mm.)
using a feeler gauge (Fig. 34).
5. Install a correctly-gapped
spark plug in the cylinder
head. Turn the 5/8 in.
socket clockwise until snug.
If using a torque wrench torque to:
110-120 in.•lb. (12.3-13.5 N•m)
Do not over tighten.
Feeler Gauge
Adjusting Nut
Rocker Arm
.003–.006 in.
(.076–.152 mm)
Valve Stem
Adjusting Nuts
Feeler Gauge
Rocker Arms
Fig. 32
INTAKE
EXHAUST
0.025 in.
(0.655 mm.)
Fig. 34
WARNING: Do not sand blast, scrape or clean
electrodes. Grit in the engine could damage the
cylinder.
Spark Plug
Hole

12

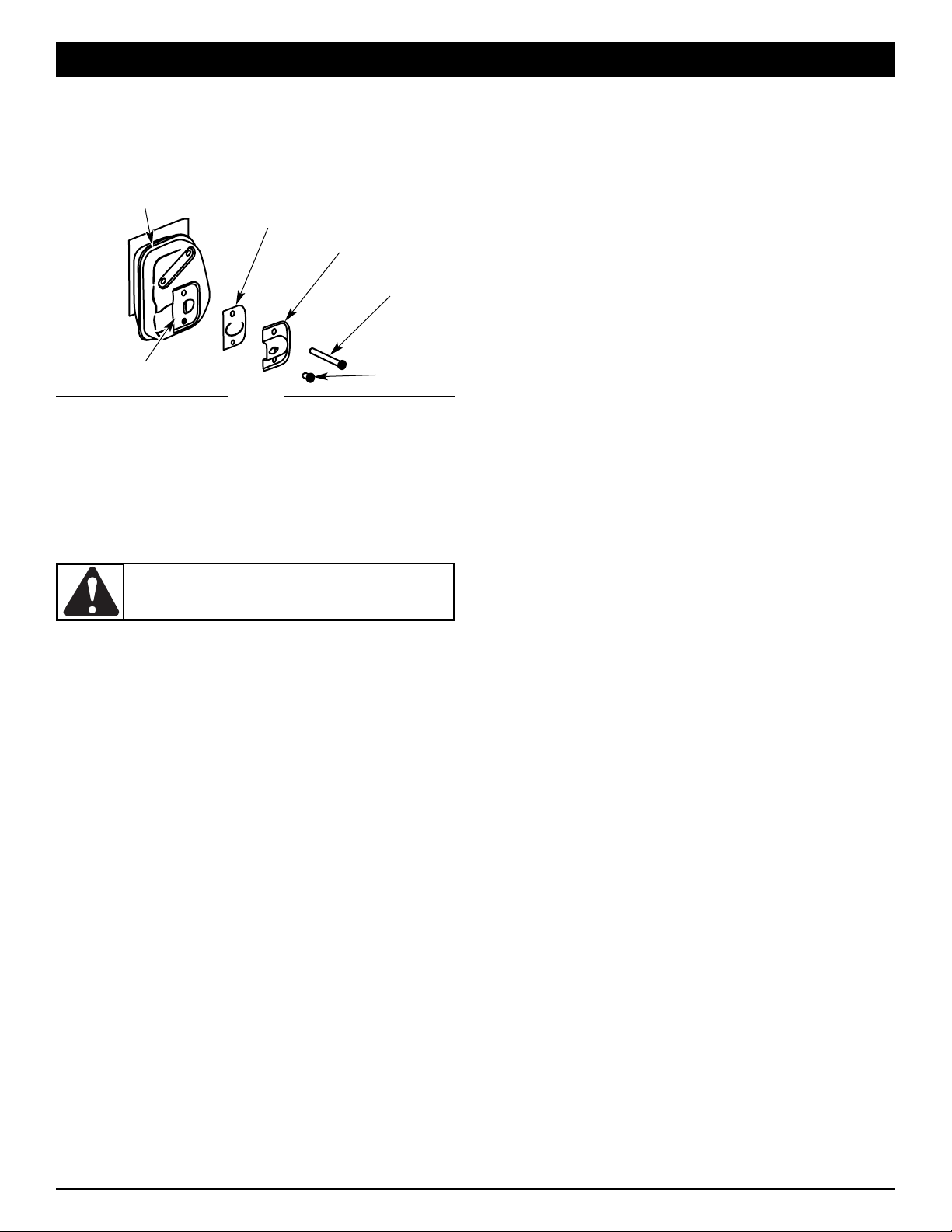

SPARK ARRESTOR MAINTENANCE
1. Remove the rear engine cover. See Rocker Arm Clearance.
2. With a flat blade screwdriver or Torx T-20 bit and a T-25
bit, remove the screws attaching the spark arrestor cover
to the muffler (Fig. 35).
3. Pull the tab on the spark arrestor cover out of the muffler.
Remove the spark arrestor cover.
4. Remove the spark arrestor screen from the spark arrestor
cover.
5. Clean the spark arrestor screen with a wire brush or
replace it.
6. Reinstall the spark arrestor screen, spark arrestor cover
and screws.
CLEANING
Use a small brush to clean off the outside of the unit. Do not
use strong detergents. Household cleaners that contain
aromatic oils such as pine and lemon, and solvents such as
kerosene, can damage plastic housing or handle. Wipe off any
moisture with a soft cloth.
STORAGE
• Never store the unit with fuel in the tank where fumes may
reach an open flame or spark.
• Allow the engine to cool before storing.
• Lock up the unit to prevent unauthorized use or damage.
• Store the unit in a dry, well-ventilated area.
• Store the unit out of the reach of children.
LONG TERM STORAGE
1. Drain all gasoline from the gas tank into a container. Do
not use gas that has been stored for more than 60 days.
Dispose of the old gasoline in accordance to Federal,
State, and Local regulations.
2. Start the engine and allow it to run until it stalls. This
ensures that all gasoline has been drained from the
carburetor.
3. Allow the engine to cool. Remove the spark plug and put 1
oz. (30 ml) of high quality motor oil into the cylinder. Pull
the starter rope slowly to distribute the oil. Reinstall the
spark plug.
NOTE: Remove the spark plug and drain all of the oil from the
cylinder before attempting to start the trimmer after
storage.
4. Change the oil, referring to Changing the Oil. Dispose of
the old oil in accordance to Federal, State and Local
regulations.
5. Thoroughly clean the unit and inspect for any loose or
damaged parts. Repair or replace damaged parts and
tighten loose screws, nuts or bolts. The unit is ready for
storage.
TRANSPORTING
• Allow the engine to cool before transporting.
• Secure the unit while transporting.
• Drain the gas tank before transporting.
• Tighten gas cap before transporting.
MAINTENANCE AND REPAIR INSTRUCTIONS
WARNING: To avoid serious personal injury,
always turn your unit off and allow it to cool before
you clean or service it.
Fig. 35
Muffler
Spark Arrestor Screen
Diverter
T-20 Screw
Slot
T-25 Screw

13
TROUBLESHOOTING
If further assistance is required, contact your authorized service dealer.
CAUSE ACTION
Cutting attachment bound with grass Stop the engine and clean cutting attachment
Cutting attachment out of line Refill with new line
Cutting head dirty Clean spool
CAUSE ACTION
Old fuel Drain gas tank and add fresh fuel
Improper carburetor adjustment Take to an authorized service dealer for adjustment
Fouled spark plug Replace or clean the spark plug
Plugged spark arrestor Clean or replace spark arrestor
CAUSE ACTION
On/Off control in the STOP position Turn On/Off control to ON
Empty fuel tank Fill fuel tank with new fuel
Primer bulb wasn't pressed enough Press primer bulb fully and slowly 10 times
Old fuel Drain gas tank and add fresh fuel
Fouled spark plug Replace or clean the spark plug
Plugged spark arrestor Clean or replace spark arrestor
ENGINE WILL NOT START
ENGINE WILL NOT IDLE
ENGINE WILL NOT ACCELERATE
ENGINE LACKS POWER OR STALLS WHEN CUTTING
CAUSE ACTION
Air filter is plugged Replace or clean the air filter
Old fuel Drain gas tank and add fresh fuel
Improper carburetor adjustment Adjust carburetor
CAUSE ACTION
Old fuel Drain gas tank and add fresh fuel
Improper carburetor adjustment Take to an authorized service dealer for adjustment
Cutting attachment bound with grass Stop the engine and clean the cutting attachment
Dirty air filter Clean or replace the air filter
Plugged spark arrestor Clean or replace spark arrestor
CUTTING ATTACHMENT WILL NOT ADVANCE LINE

14
SPECIFICATIONS
ENGINE*
DRIVE SHAFT AND CUTTING ATTACHMENT*
*All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes
at any time without notice.
Engine Type ......................................................................................................................................................................................... Air-Cooled, 4-Cycle
Displacement............................................................................................................................................................................................ 1.8 cu. in. (29 cc)
Operating RPM................................................................................................................................................................................................... 6,800+ rpm
Idle Speed RPM ...................................................................................................................................................................................... 2,800 - 3,600 rpm
Ignition Type ......................................................................................................................................................................................................... Electronic
Ignition Switch ............................................................................................................................................................................................... Rocker Switch
Valve clearance.............................................................................................................................................................. 0.003–0.006 in. (0.076–0.152 mm)
Spark Plug Gap ................................................................................................................................................................................ 0.025 inch (0.655 mm)
Lubrication ........................................................................................................................................................................................................... SAE 30 Oil
Crankcase Oil Capacity................................................................................................................................................................................ 3.04 oz (90 ml)
Fuel....................................................................................................................................................................................................................... Unleaded
Carburetor....................................................................................................................................................................................... Diaphragm, All-Position
Starter............................................................................................................................................................................................................... Auto Rewind
Muffler..................................................................................................................................................................................................... Baffled with Guard
Throttle............................................................................................................................................................................................... Manual Spring Return
Fuel Tank Capacity......................................................................................................................................................................................... 14 oz (414 ml)
Drive Shaft Housing .......................................................................................................................................................................... Steel Tube (EZ-Link™)
Throttle Control ........................................................................................................................................................................................ Finger-Tip Trigger
Approximate Unit Weight (No fuel, with handle, cutting attachment and shield)........................................................................ 11.5-13.0 lbs (5.2-5.9 kg)
Cutting Mechanism..................................................................................................................................................................................... Fixed Line Head
Line Spool Diameter ............................................................................................................................................................................ 4 inches (101.6 mm)
Trimming Line Diameter ................................................................................................................................................................... .105 inches (2.67 mm)
Cutting Path Diameter, Trimmer Head ................................................................................................................................................. 16 inches (40.6 cm)

15
California / EPA Emission Control Warranty Statement
Your Warranty Rights and Obligations
The California Air Resources Board, the Environmental Protection Agency and Cub Cadet LLC (Cub Cadet) are pleased to explain the
emission control system warranty on your 2005 and later small off-road engine. New small off-road engines must be designed, built
and equipped to meet stringent anti-smog standards. Cub Cadet must warrant the emission control system on your small off-road
engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road
engine.
Your emission control system may include parts such as the carburetor or fuel-injected system, the ignition system, and catalytic
converter. Also included may be hoses, belts, connectors and other emission-related assemblies.
Where a warrantable condition exists, Cub Cadet will repair your small off-road engine at no cost to you including diagnosis, parts
and labor.
The 2005 and later small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the
part will be repaired or replaced by Cub Cadet.
Owners Warranty Responsibilities
• As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your operator’s
manual. Cub Cadet recommends that you retain all receipts covering maintenance on your small off-road engine, but Cub Cadet
cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
• As the small off-road engine owner, you however should be aware that Cub Cadet may deny you warranty coverage if your small
off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
• You are responsible for presenting your small off-road engine to a Cub Cadet Authorized Service Center as soon as a problem
exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should call 1-877-282-8684 .
Manufacturer’s Warranty Coverage
• The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.
• The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in material and
workmanship which cause the failure of a warranted part for a period of two years.
• Repair or replacement of warranted part will be performed at no charge to the owner at an Authorized Cub Cadet Service Center.
For the nearest location please contact Cub Cadet at: 1-877-282-8684 .
• Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled for only for regular
inspection to the effect of “Repair or Replace as Necessary” is warranted for the warranty period. Any warranted part which is
scheduled for replacement as required maintenance will be warranted for the period of time up to the first scheduled replacement
point for that part.
• The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective, if the
diagnostic work is performed at an Authorized Cub Cadet Service Center.
• The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still under warranty.
• Failures caused by abuse, neglect or improper maintenance are not covered under warranty.
• The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to cover failures
of warranted parts caused by the use of add-on or modified parts.
• In order to file a claim, go to your nearest Authorized Cub Cadet Service Center. Warranty services or repairs will be provided at all
Authorized Cub Cadet Service Centers.
• Any manufacturer approved replacement part may be used in the performance of any warranty maintenance or repair of emission
related parts and will be provided without charge to the owner. Any replacement part that is equivalent in performance or durability
may be used in non-warranty maintenance or repair and will not reduce the warranty obligations of the manufacturer
• The following components are included in the emission related warranty of the engine, air filter, carburetor, primer, fuel lines, fuel
pick up/ fuel filter, ignition module, spark plug and muffler.

16
MANUFACTURER’S LIMITED WARRANTY FOR:
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty or guaranty, whether written or oral,
except as mentioned above, given by any person or
entity, including a dealer or retailer, with respect to any
product shall bind Cub Cadet LLC During the period of
the Warranty, the exclusive remedy is repair or
replacement of the product as set forth above. (Some
states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to
you.)
The provisions as set forth in this Warranty provide the
sole and exclusive remedy arising from the sales. Cub
Cadet LLC shall not be liable for incidental or
consequential loss or damages including, without
limitation, expenses incurred for substitute or
replacement lawn care services, for transportation or
for related expenses, or for rental expenses to
temporarily replace a warranted product. (Some states
do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.)
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold.
Alteration of the safety features of the product shall void
this Warranty. You assume the risk and liability for loss,
damage, or injury to you and your property and/or to
others and their property arising out of the use or misuse
or inability to use the product.
This limited warranty shall not extend to anyone other than
the original purchaser, original lessee or the person for
whom it was purchased as a gift.
How State Law Relates to this Warranty: This warranty
gives you specific legal rights, and you may also have
other rights which vary from state to state.
To locate your nearest service dealer dial 1-877-282-8684.
Cub Cadet LLC
P.O. Box 361131
Cleveland, OH 44136-0019
The limited warranty set forth below is given by Cub Cadet
LLC with respect to new merchandise purchased and used
in the United States, its possessions and territories.
Cub Cadet LLC warrants this product against defects in
material and workmanship for a period of two (2) years
commencing on the date of original purchase and will, at its
option, repair or replace, free of charge, any part found to
be defective in material or workmanship. This limited
warranty shall only apply if this product has been operated
and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to
misuse, abuse, commercial use, neglect, accident,
improper maintenance, alteration, vandalism, theft, fire,
water or damage because of other peril or natural disaster.
Damage resulting from the installation or use of any
accessory or attachment not approved by Cub Cadet LLC
for use with the product(s) covered by this manual will void
your warranty as to any resulting damage. This warranty is
limited to ninety (90) days from the date of original retail
purchase for any Cub Cadet product that is used for rental
or commercial purposes, or any other income-producing
purpose.
HOW TO OBTAIN SERVICE: Warranty service is
available, WITH PROOF OF PURCHASE THROUGH
YOUR LOCAL AUTHORIZED SERVICE DEALER. To
locate the dealer in your area, visit our website at
www.cubcadet.com, check for a listing in the Yellow
Pages, call 1-877-282-8684 or write to P.O. Box 361131,
Cleveland, OH 44136-0019 .
This limited warranty does not provide coverage in
the following cases:
A. Tune-ups - Spark Plugs, Carburetor Adjustments,
Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting Line,
Inner Reels, Starter Pulley, Starter Ropes, Drive Belts
C. Cub Cadet LLC does not extend any warranty for
products sold or exported outside of the United
States of America, its possessions and territories,
except those sold through Cub Cadet’s authorized
channels of export distribution.
Cub Cadet LLC reserves the right to change or improve the
design of any Cub Cadet Product without assuming any
obligation to modify any product previously manufactured.

Manuel de L’utilisateur
Désherbeuse à gaz à 4-temps
CC5075
CONSERVEZ CES INSTRUCTIONS
Obtenez la liste des concessionnaires agréés appelez le 1-877-
282-8684 . Pour de plus amples informations à propos de votre
appareil, visitez www.cubcadet.com.
NE RETOURNEZ PAS L'APPAREIL AU DÉTAILLANT CHEZ QUI
VOUS L'AVEZ ACHETÉ. TOUT SERVICE SOUS GARANTIE
NÉCESSITE UNE PREUVE D'ACHAT.
CE PRODUIT EST COUVERT PAR UN OU PLUSIEURS
BREVETS AMÉRICAINS, ET D’AUTRES SONT EN INSTANCE.
L’entretien de cette machine pendant et passé la période de
garantie devrait être réalisé exclusivement par un
concessionnaire agréé.
Toutes les informations, illustrations et spécifications
contenues dans ce manuel tiennent compte des dernières
informations techniques disponibles au moment de mettre sous
presse. Nous nous réservons le droit d'y apporter des
modifications à tout moment, sans préavis.
Copyright© 2005 MTD SOUTHWEST INC., Tous droits réservés.
AVERTISSEMENT : Lorsque vous utilisez la
machine, vous devez suivre les consignes de
sécurité. Veuillez lire ces instructions avant d’opérer
la machine pour vous assurer de la sécurité de
l’opérateur et de tout spectateur. Veuillez conserver
ces instructions pour un usage ultérieur.
PARE-ÉTINCELLES
REMARQUE : à l'intention des utilisateurs opérant dans les
terres forestières des États-Unis et dans les états de
Californie, du Maine, de l'Orégon et de Washington. Toutes
les terres forestières des États-Unis et de l'état de Californie
(Codes sur les ressources publiques 4442 et 4443), de l'Orégon
et de Washington exigent de par la loi que certains moteurs à
combustion interne utilisés dans des zones couvertes de taillis
ou d'herbe soient équipés d'un pare-étincelles en parfait état de
fonctionnement, ou qu'ils soient conçus, équipés et entretenus
pour la prévention des incendies. Renseignez-vous auprès des
autorités de votre province ou de votre municipalité concernant
la réglementation en vigueur. Vous pourriez être passible d'une
amende ou être tenu responsable si vous ne respectez pas cette
réglementation. Cet appareil est équipé d'un pare-étincelles en
usine. Si l'écran pare-étincelles, réf. 753-05297, doit être
remplacé, communiquez avec le service technique.
AVERTISSEMENT DE LA PROPOSITION 65 DE CALIFORNIE
P/N 769-02157 (11/05)
TABLE DES MATIÈRES
Service technique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F1
Consignes de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . .F2
Informations sur l'huile et le carburant . . . . . . . . . . . . . .F3
Instructions de montage . . . . . . . . . . . . . . . . . . . . . . . . .F4
Familiarisez-vous avec votre appareil . . . . . . . . . . . . . . .F4
Instructions de démarrage et d'arrêt . . . . . . . . . . . . . . . .F5
Mode d'emploi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F6
Entretien et réparations . . . . . . . . . . . . . . . . . . . . . . . . . .F7
Nettoyage et entreposage . . . . . . . . . . . . . . . . . . . . . . .F11
Tableau de dépannage . . . . . . . . . . . . . . . . . . . . . . . . .F12
Caractéristiques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F13
Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F16
AVERTISSEMENT
LES GAZ D'ÉCHAPPEMENT DU MOTEUR DE CET APPAREIL
CONTIENNENT DES PRODUITS CHIMIQUES CONSIDÉRÉS PAR
L'ÉTAT DE CALIFORNIE COMME POUVANT CAUSER LE
CANCER, DES MALFORMATIONS CONGÉNITALES OU D'AUTRES
EFFETS NOCIFS SUR L'APPAREIL DE REPRODUCTION.

F2
• IMPORTANTES CONSIGNES DE SÉCURITÉ •
LIRE TOUTES LES INSTRUCTIONS AVANT UTILISATION
• Veuillez lire les instructions avec soin. Familiarisez-vous avec les
commandes et l'utilisation correcte de cet appareil.
• N'utilisez pas l'appareil si vous êtes fatigué, malade ou sous l'effet
de l'alcool, de drogues ou de médicaments.
• Les enfants et adolescents de moins de 15 ans ne doivent pas
utiliser l'appareil exceptés les adolescents assistés d'un adulte.
• Inspectez l'appareil avant utilisation. Remplacez les pièces
endommagées. Regardez s'il y a des fuites de carburant. Assurez-
vous que les fixations sont solidement en place. Remplacez les
pièces de l'accessoire de coupe qui sont fendillées, ébréchées ou
endommagées. Assurez-vous que l'accessoire de coupe est
correctement installé et solidement fixé. Assurez-vous que le
protecteur d'accessoire de coupe est correctement fixé et
positionné comme recommandé. Vous risquez sinon de causer des
blessures à l'opérateur et aux spectateurs, et d'endommager
l'appareil.
• N'utilisez que du fil de remplacement d’origine du fabricant de 2,03
mm, 0,080 po de diamètre. N'utilisez jamais de fil, de chaîne ou de
cordon à renfort métallique car ils peuvent se briser et se
transformer en projectile dangereux.
• Soyez conscient des risques de blessure à la tête, aux mains et aux
pieds.
• Dégagez la zone de coupe avant chaque usage. Enlevez tous les
objets pouvant être projetés ou happés par l'accessoire de coupe :
cailloux, verre brisé, clous, fil ou ficelle. Éloignez enfants,
spectateurs et animaux de la zone de coupe. Tenez-les à au moins
15 m (50 pi) de là mais sachez que les spectateurs risquent quand
même d'être atteints par des objets projetés. Les spectateurs
doivent porter des protections oculaires. Arrêtez immédiatement le
moteur et l'accessoire de coupe si quelqu'un s'approche de vous.
• Appuyez sur la manette des gaz et assurez-vous qu'elle revient
automatiquement en position de ralenti. Procédez à tous les
réglages ou réparations avant d'utiliser l'appareil.
AVERTISSEMENTS DE SÉCURITÉ CONCERNANT LES
DÉSHERBEUSES À GAZ
• Ne stockez le carburant que dans des contenants spécialement
conçus et homologués pour le stockage de ce type de matières.
• Arrêtez toujours le moteur et laissez-le refroidir avant de remplir le
réservoir de carburant. N'enlevez jamais le bouchon du réservoir et
n'ajoutez jamais de carburant pendant que le moteur est chaud. Ne
faites jamais fonctionner l'appareil sans que le bouchon de
carburant soit bien mis. Desserrez lentement le bouchon afin de
réduire la pression du réservoir.
• Évitez de créer une source d'allumage pour le carburant déversé. Ne
démarrez pas le moteur avant que les vapeurs de carburant ne se
soient dissipées.
• Ajoutez le carburant dans un endroit bien aéré et propre en plein air
à l'abri des étincelles ou des flammes. N'enlevez lentement le
bouchon du réservoir d'essence qu'après avoir arrêté le moteur. Ne
fumez pas pendant le remplissage de carburant. Essuyez
immédiatement tout déversement de carburant de l'appareil.
• Éloignez l'appareil d'au moins 9.1 m (30 pi) de la source de
ravitaillement en carburant avant de démarrer le moteur. Ne fumez
pas et éloignez toute source d'étincelles ou de flammes vives du lieu
de ravitaillement ou de fonctionnement de l'appareil.
PENDANT L'UTILISATION DE L'APPAREIL
• Évitez de démarrer ou de faire marcher l'appareil à l'intérieur d'une
pièce ou d'un bâtiment fermé. La respiration de fumées
d'échappement peut tuer. Ne faites fonctionner cet appareil qu'à
l'extérieur dans un endroit bien aéré.
• Portez des lunettes de sécurité conformes aux normes ANSI Z87.1
ainsi que des protège-oreilles durant l'utilisation de l'appareil. Portez
un masque facial ou antipoussières si vous travaillez dans un lieu
poussiéreux.
• Portez des pantalons épais et longs, des bottes, des gants et une
chemise à manches longues. Ne marchez pas pieds nus et évitez
les vêtements lâches, bijoux, pantalons courts et sandales. Relevez
les cheveux au-dessus des épaules.
• Le protecteur d'accessoire de coupe doit toujours être en place lors
de l'utilisation de l'appareil. Ne faites pas marcher l'appareil sans
que les deux fils soient bien déployés, en supposant qu'un fil
approprié a été installé. Assurez-vous que le fil ne dépasse pas le
protecteur de sécurité.
• Cet appareil est muni d'un embrayage. L'accessoire de coupe reste
stationnaire lorsque le moteur est au ralenti. Si ce n'est pas le cas,
faites régler l'appareil par un technicien agréé.
• Ajustez la poignée selon votre taille pour mieux l'agripper.
• N'utilisez l'appareil qu'en plein jour ou avec un bon éclairage
artificiel.
• Évitez tout démarrage accidentel. Mettez-vous en position de
démarrage chaque fois que vous tirez sur la corde de démarrage.
L'opérateur et l'appareil doivent tous deux être en position stable à
ce moment-là. Voir les Instructions de démarrage et d'arrêt.
• Ne vous étirez pas. Tenez-vous toujours bien sur vos pieds en
position d'équilibre.
• Tenez toujours l'appareil des deux mains lorsque vous le faites
marcher. Agrippez fermement les poignées avant et arrière.
• Gardez les mains, le visage et les pieds éloignés des pièces
mobiles. Ne touchez pas et n'essayez pas d'arrêter l'accessoire de
coupe en rotation.
• Ne touchez pas le moteur, le boîtier d'engrenages ni le silencieux.
Ces pièces deviennent très chaudes à l'utilisation. Elles restent
chaudes brièvement après l'arrêt.
• Servez-vous des outils appropriés. N'utilisez cet outil que pour son
usage prévu.
• Ne faites pas fonctionner le moteur à un régime plus élevé que
nécessaire pour couper, tailler ou faire les bordures. Ne faites pas
tourner le moteur à haut régime si vous ne vous faites pas de coupe.
• Arrêtez toujours le moteur lorsque vous suspendez la coupe ou
lorsque vous vous déplacez d'un lieu de travail vers un autre.
• Si vous heurtez un corps étranger ou que celui-ci est happé, arrêtez
le moteur immédiatement et vérifiez que rien n'a été endommagé.
Ne faites pas fonctionner avant réparation des dommages. Ne faites
pas marcher l'appareil si les pièces sont desserrées ou
endommagées.
• Arrêtez et éteignez le moteur dans les cas suivants:
entretien, réparation ou changement d'accessoires ou autres.
• N'utilisez que des pièces de équipement original rechange et
accessoires d’origine du fabricant pour cet appareil. Elles sont
disponibles auprès de votre concessionnaire agréé. L'utilisation de
pièces ou accessoires autres que ceux de éqiupement original peut
causer des blessures graves, endommager l’appareil et annuler sa
garantie.
• Gardez l'appareil exempt d'accumulation de végétation ou autres
matières. Celles-ci peuvent rester logées entre l'accessoire de
coupe et le protecteur.
• Afin de diminuer les risques d'incendie, remplacez tout
silencieux ou pare-étincelles défectueux et conservez le moteur et le
silencieux exempts d'herbe, de feuilles et d'accumulation excessive
de graisse ou de carbone.
AUTRES AVERTISSEMENTS DE SÉCURITÉ
• N'entreposez jamais l'appareil rempli de carburant dans un édifice
où les vapeurs peuvent atteindre une source de flammes vives ou
d'étincelles.
• Laissez le moteur se refroidir avant de l'entreposer ou de le
transporter. Attachez bien l'appareil pendant le transport.
• Rangez l'appareil dans un endroit verrouillé et sec, ou élevé et sec,
hors de portée des enfants, pour éviter une utilisation indésirable ou
un accident.
• Ne trempez et n'arrosez jamais l'appareil avec de l'eau ou tout autre
liquide. Gardez les poignées sèches, propres et exemptes de débris.
Nettoyez après chaque usage. Voir les sections Nettoyage et
Entreposage.
• Conservez ces instructions. Consultez-les souvent et
servez-vous en pour instruire d'autres usagers. Si vous prêtez
l'appareil à quelqu'un, prêtez-lui également ces instructions.
CONSERVER CES INSTRUCTIONS
CONSIGNES DE SÉCURITÉ
AVERTISSEMENT: l'essence est extrêmement
inflammable et ses vapeurs peuvent exploser si on y
met le feu. Veuillez prendre les précautions suivantes.

F3
CONSIGNES DE SÉCURITÉ
SYMBOLES DE SÉCURITÉ ET INTERNATIONAUX
Ce manuel de l'utilisateur décrit les symboles et pictogrammes de sécurité et internationaux pouvant apparaître sur ce produit. Consultez
le manuel de l'utilisateur pour les informations concernant la sécurité, le montage, le fonctionnement, l'entretien et les réparations.
SYMBOLE SIGNIFICATION
• LISEZ LE MANUEL DE L'UTILISATEUR
AVERTISSEMENT - Lisez le manuel de l'utilisateur
et suivez tous les avertissements et consignes de
sécurité. Vous pourriez à défaut entraîner des
blessures graves pour vous ou d'autres personnes.
• COMMANDE MARCHE/ARRÊT
ARRÊT ou STOP
• PORTEZ DES PROTECTIONS (YEUX ET
OREILLES)
AVERTISSEMENT: les objets projetés et les bruits
forts peuvent endommager la vue et l’ouïe. Portez
une visière de norme ANSI Z87.1-1989 et des
protège-oreilles pendant l'utilisation.
• AVERTISSEMENT SURFACE CHAUDE
Ne touchez pas un silencieux ou un cylindre
chaud. Vous pourriez vous brûler. Ces pièces
deviennent très chaudes à l'utilisation. Elles restes
chaudes brièvement après l'arrêt.
• CARBURANT SANS PLOMB
Utilisez toujours du carburant sans plomb frais et
propre.
• NIVEAU D'HUILE
Voir le manuel de l'utilisateur pour le type d'huile
approprié.
• COMMANDE MARCHE/ARRÊT
ALLUMAGE / DÉMARRAGE / MARCHE
• SYMBOLE ALERTE DE SÉCURITÉ
Indique un danger, un avertissement ou une mise
en garde. Ce symbole peut être combiné à
d'autres symboles ou pictogrammes.
SYMBOLE SIGNIFICATION
• ÉLOIGNEZ LES SPECTATEURS
AVERTISSEMENT: éloignez tout spectateur, les
enfants et les animaux domestiques en particulier,
d'au moins 15 m (50 pi) de la zone de coupe.
• LES OBJETS PROJETÉS ET LA TÊTE ROTATIVE
PEUVENT CAUSER DES BLESSURES GRAVES
AVERTISSEMENT: ne faites pas fonctionner sans
protecteur de sécurité en plastique. Tenez-vous à
l'écart de l'accessoire de coupe rotatif.
• LAME AIGUISÉE
AVERTISSEMENT: le protecteur d'accessoire de
coupe comporte une lame aiguisée. Ne touchez
pas la lame pour éviter des blessures graves.
• CONTRÔLE DE L'ÉTRANGLEUR
1. Position d’ÉTRANGLEMENT MAXIMUM
2. Position d’ÉTRANGLEMENT PARTIEL
3. Position MARCHE.
Protecteur
d'accessoire
de coupe
Bouchon du
carburant
Manette
des gaz
Poignée en D
Accessoire
de coupe
Prise de l'arbre
Poire
d'amorçage
Bouchon de
remplissage
Levier
d'étrangleur
Bougie
Corps de
l'arbre
Poignée de
la corde de
démarrage
Lame
coupante
Silencieux
EZ-LinkMC
Commande
Marche/Arrêt
Stop
FAMILIARISEZ-VOUS AVEC L’APPAREIL
Couvercle du
filtre à air
INSTRUCTIONS DE MONTAGE
INSTALLATION ET RÉGLAGE DE LA POIGNÉE EN D
1. Retirez les vis et la pièce
de fixation du bas qui ont
été installées sur la
poignée en “D” pour
l’envoi.
2. Placez la poignée en « D »
sur le logement de l’arbre
et sur la fixation
inférieure (Fig.1). Placez-
la à un minimum de
15,24 cm (6 pouces) de
l’extrémité de la poignée
de l’arbre.
3. Commencez à visser les vis avec un gros tournevis plat ou
un tournevis T-25 Torx. Ne pas serrer à fond avant d’avoir
ajusté la poignée.
4. Si la poignée a été installée d’avance, desserrez les vis sur
la poignée en « D » juste assez pour bouger cette dernière.
5. Tout en tenant la machine en position de fonctionnement
(Fig. 12), mettez la poignée en « D » dans la position qui
vous donne le plus de prise.
6. Serrez les vis de fixation uniformément jusqu’à ce que la
poignée en « D » soit bien en place.
(4) Vis Poignée
en « D »
Bride
inférieure
Fig. 1
15,24 cm
(6 po)
minimum

Définition des carburants mélangés
Les carburants d'aujourd'hui sont souvent un mélange d'essence
et d'oxygénés comme l'éthanol, le méthanol ou l'éther MTBE. Un
carburant mélangé à l'alcool absorbe l'eau. Il suffit de 1% d'eau
pour séparer le carburant et l'huile, ce qui forme de l'acide
pendant l'entreposage. Si vous devez utiliser ce type de
carburant, servez-vous de carburant frais (moins de 60 jours).
Usage de carburants mélangés
Si vous choisissez d'utiliser ou ne pouvez éviter d'utiliser un
carburant mélangé, suivez les conseils suivants :
• Utilisez toujours un mélange de carburant frais selon le
manuel de l'utilisateur.
• Utilisez l'additif STA-BILMD ou un produit équivalent.
• Videz le réservoir et faites marcher le moteur jusqu'à ce qu'il
soit à sec avant d'entreposer l'appareil.
Utilisation d’additifs de carburant
L'utilisation d'additifs de carburant tel que le stabilisant
d’essence STA-BILMD ou un produit équivalent permet
d'empêcher la corrosion et de minimiser la formation de résidus
de gomme. L'usage d'additifs peut empêcher le carburant de
former des dépôts nocifs dans le carburateur pendant six (6)
mois maximum. Ajoutez 23 ml (0,8 oz) d'additif par 4 litres (1
gallon) de carburant selon les instructions du récipient. N'ajoutez
JAMAIS d'additifs directement dans le réservoir de l'appareil.
AJOUT DE CARBURANT
1. Déposez le bouchon à essence (Fig. 5).
2. Placez le bec du récipient d’essence dans l’orifice du
réservoir (Fig. 5) et remplissez celui-ci.
REMARQUE : Ne remplissez pas trop le réservoir.
3. Essuyez tout déversement d’essence.
4. Remettez le bouchon du réservoir.
5. Éloignez l'appareil d'au moins 9,1 m (30 pi) de la source et
du site de ravitaillement en carburant avant de démarrer le
moteur.
REMARQUE : Éliminez le vieux carburant conformément aux
règlements fédéral, provincial et municipal en vigueur.
F4
AVERTISSEMENT: A joutez du carburant dans un lieu
propre et bien aéré en plein air. Essuyez immédiatement
tout déversement de carburant. Évitez de mettre le feu
au carburant déversé. Ne démarrez pas le moteur avant
dissipation des vapeurs de carburant.
AVERTISSEMENT: L'essence est extrêmement
inflammable et les vapeurs qui s'en dégagent peuvent
exploser si on y met le feu. Arrêtez toujours le moteur
et laissez-le refroidir avant de remplir le réservoir. Ne
fumez pas en remplissant le réservoir. Éloignez toute
source d'étincelles ou de flammes vives de la zone.
AVERTISSEMENT: Enlevez le bouchon du
réservoir lentement pour ne pas être blessé par
les jets d'essence. Ne faites pas marcher
l'appareil sans que le bouchon soit bien mis.
Fig. 5
Bouchon du
carburant
Réservoir
Bec du récipient
d'essence
INFORMATIONS SUR L’HUILE ET LE CARBURANT
TYPE D'HUILE RECOMMANDÉ
Il est extrêmement important d'utiliser les bons type et indice
d'huile dans le carter-moteur. Vérifiez l'huile avant chaque
utilisation et changez-la périodiquement. Le fait de ne pas
utiliser la bonne huile ou d'utiliser une huile sale peut entraîner
une usure et une défaillance prématurées du moteur. Utilisez
une huile de haute qualité à indice SAE 30 API (American
Petroleum Institute) de type SG, SF, SH.
AJOUT D'HUILE AU CARTER: MISE EN SERVICE
REMARQUE: cet appareil est livré sans huile. Pour éviter
d’endommager l’appareil, mettez de l’huile dans le
carter moteur avant le démarrage.
Votre appareil est livré avec une bouteille d'huile SAE 30 SF,
SG, SH de 90 ml (3,04 oz) (Fig. 2).
REMARQUE : conservez la bouteille pour mesurer
correctement la quantité
nécessaire d’huile plus
tard. Voir Changement
d'huile.
1. Dévisser le bouchon de la
bouteille d’huile et retirez le
papier couvrant l’ouverture.
Replacez le bouchon. Coupez
la pointe de la buse de
l’entonnoir (Fig. 2).
2. Placez l'appareil sur une surface horizontale plane.
3. Retirez le bouchon / la
jauge d'huile du carter-
moteur. Versez tout le
contenu de la bouteille
d'huile dans le carter-
moteur (Fig. 3).
4. Versez tout le contenu
de la bouteille d'huile
dans le carter-moteur
(Fig. 4).
REMARQUE: n’ajoutez jamais d'huile au carburant ni au réservoir de
carburant.
5. Essuyez toute trace d'huile
déversée et replacez le
bouchon de remplissage / la
jauge.
Nous ne saurions trop insister
sur l'importance de la
vérification du niveau d'huile du
carter-moteur et de son
maintien. Vérifiez l'huile avant
chaque utilisation et changez-la
au besoin tel qu'indiqué dans la
section Changment d'Huile.
TYPE DE CARBURANT RECOMMANDÉ
En général, si l'appareil ne fonctionne pas correctement, c'est
que le carburant est vieux ou mal mélangé. Prenez soin
d'utiliser du carburant sans plomb frais et propre.
REMARQUE : ceci est un moteur à quatre temps. Pour éviter
d’endommager l’appareil, ne mélangez pas l’huile
avec l’essence.
AVERTISSEMENT: LE REMPLISSAGE EXCESSIF
DU CARTER-MOTEUR PEUT ANTRAÎNER DES
BLESSURES GRAVES. Nous ne saurions trop insister
sur l'importance de la vérification du niveau d'huile du
carter-moteur et de son maintien. Vérifiez l'huile avant
chaque utilisation et changez-la au besoin tel
qu'indiqué dans la section Changment d'Huile.
Fig. 2
Buse
d'entonnoir
Bouchon de
remplissage
Orifice de
remplissage
d’huile Fig. 3
Joint
torique
Fig. 4
