Husqvarna 333J SERIES User manual

EE
EEnn nngg ggll llii iiss sshh hh
333RJ 335RJ
X-series
Oper ator ′ s manual
Please r ead the operator’s manual carefully and make sure you understand the instructions
before using the machine.

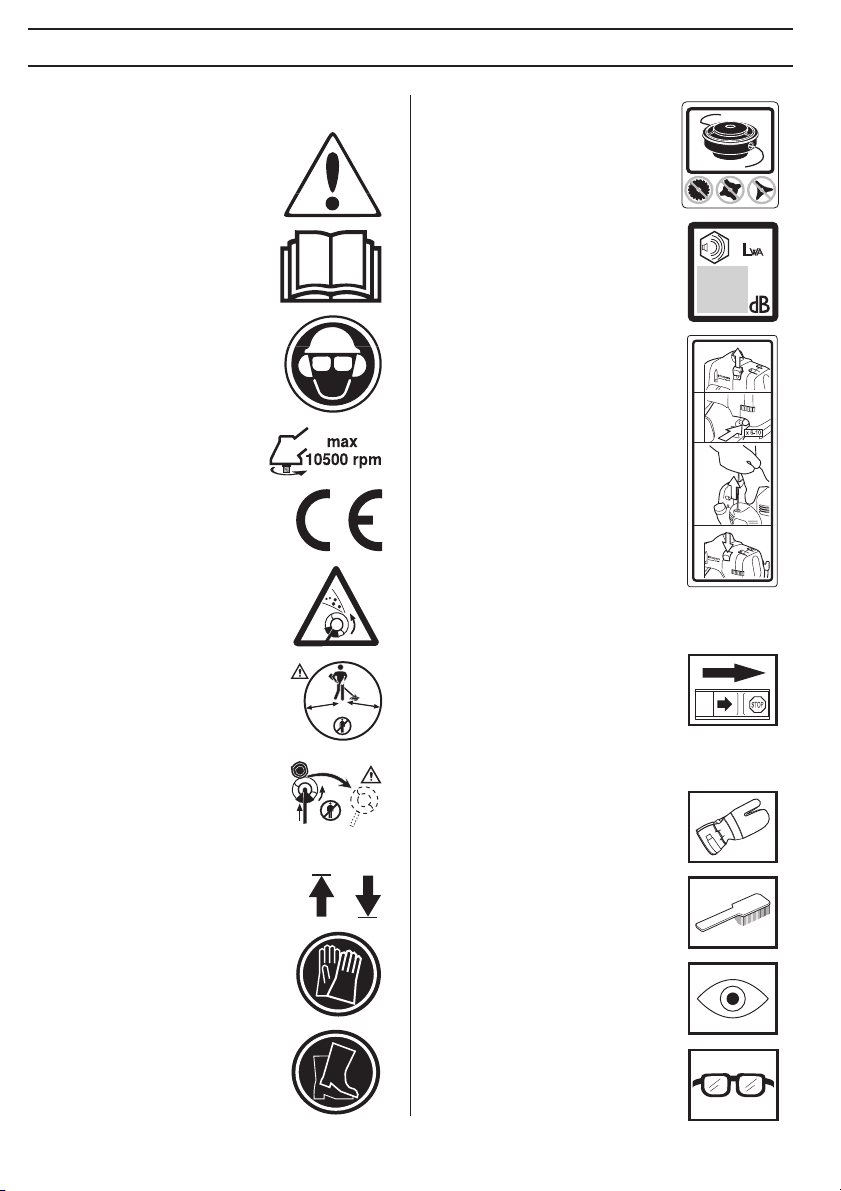

KEY T O SYMBOLS
2 – English
Symbols
W ARNING! Clearing saws,
brushcutters and trimmers can be
dangerous! Careless or incorrect use
can result in serious or fatal injury to
the operator or others.
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear:
• A protective helmet where there is
a risk of falling objects
• Approved hearing protection
• Approved eye protection
Max. speed of output shaft, rpm
This product is in accordance with
applicable EC directives.
Watch out for thrown objects and
ricochets.
The operator of the machine must
ensure, while working, that no persons
or animals come closer than 15 metres.
Machines fitted with saw blades or
grass blades can be thrown violently to
the side when the blade comes into
contact with a fixed object. The blade is
capable of amputating an arm or leg.
Always keep people and animals at
least 15 metres from the machine.
Arrows which show limits for handle
positioning.
Always wear approved protective gloves.
Wear sturdy, non-slip boots.
Only use non-metallic, flexible cutting
attachments, i.e. trimmer heads with
trimmer cord.
Noise emission to the environment
according to the European Community’s
Directive. The machine’s emission is
specified in chapter Technical data and
on label.
Starting instructions
Other symbols/decals on the mac hine refer to
special certification requirements for certain markets.
The engine is s witched off by moving
the stop switch to the stop position.
CAUTION! The stop switch
automatically returns to the start
position. In order to prevent
unintentional starting, the spark plug
cap must be removed from the spark plug when assembling,
checking and/or performing maintenance.
Always wear approved protective
gloves.
Regular cleaning is required.
Visual check.
Approved eye protection must always
be used.
50FT
15 m
50FT
15m
1.
2.
3.
4.

CONTENTS
English – 3
Contents Note the f ollowing before starting:
Please read the oper ator’s manual carefully.
KEY TO SYMBOLS
Symbols .................................................................... 2
CONTENTS
Contents .................................................................... 3
Note the following before starting: ............................. 3
INTR ODUCTION
Dear Customer , ......................................................... 4
WHA T IS WHAT?
What is what on the clear ing saw? ............................ 5
GENERAL SAFETY PRECA UTIONS
Impor tant ................................................................... 6
Personal protective equipment .................................. 6
Machine ′ s safety equipment ...................................... 7
Cutting equipment ..................................................... 9
ASSEMBL Y
Fitting the J-handle ................................................... 11
Assembling the cutting equipment ............................ 11
Fitting the guard extension ........................................ 11
Fitting a blade guard, grass blade and grass cutter .. 12
Fitting other guards and cutting attachments ............ 12
FUEL HANDLING
Fuel saf ety ................................................................. 13
Fuel ........................................................................... 13
Fuelling ...................................................................... 14
ST ARTING AND STOPPING
Chec k before starting ................................................ 15
Starting and stopping ................................................ 15
W ORKING TECHNIQUES
Gener al working instructions ..................................... 17
MAINTENANCE
Carb urettor ................................................................ 20
Muffler ....................................................................... 21
Cooling system .......................................................... 22
Bevel gear ................................................................. 22
Air filter ...................................................................... 22
Spark plug ................................................................. 23
Maintenance schedule .............................................. 24
TECHNICAL D ATA
T echnical data ........................................................... 25
EC-declaration of conformity ..................................... 26
!
W ARNING! Long-term exposure to noise
can result in permanent hearing
impairment. So always use approved
hearing protection.
!
W ARNING! Under no circumstances may
the design of the machine be modified
without the permission of the manufacturer.
Always use genuine accessories. Non-
authorized modifications and/or
accessories can result in serious personal
injury or the death of the operator or others.
!
W ARNING! A clearing saw, brushcutter or
trimmer can be dangerous if used
incorrectly or carelessly, and can cause
serious or fatal injury to the operator or
others. It is extremely important that you
read and understand the contents of this
operator’s manual.

4 – English
INTR ODUCTION
Dear Customer ,
Cong ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when
the Swedish King Karl XI ordered the construction of a factory on the banks of the Husqvarna River, for production of muskets.
The location was logical, since water power was harnessed from the Huskvarna River to create the water-powered plant.
During the more than 300 years of beeing, the Husqvarna factory has produced a lot of different products, from wood stoves
to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers
appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest
priority. The business concept is to develop, manufacture and market motor driven products for forestry and gardening as well
as for building and construction industry. Husqvarna
′ s aim is also to be in the front edge according to ergonomics, usability,
security and environmental protection. That is the reason why we have developed many different features to provide our
products within these areas.
We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very long
time to come. The purchase of one of our products gives you access to professional help with repairs and service whenever
this may be necessary. If the retailer who sells your machine is not one of our authorised dealers, ask for the address of your
nearest service workshop.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this
operator
′ s manual as a valuable document. By following its ′ content (using, service, maintenance etc) the life span and the
second-hand value of the machine can be extended. If you will sell this machine, make sure that the buyer will get the
operator
′ s manual.
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.

English – 5
WHA T IS WHA T?

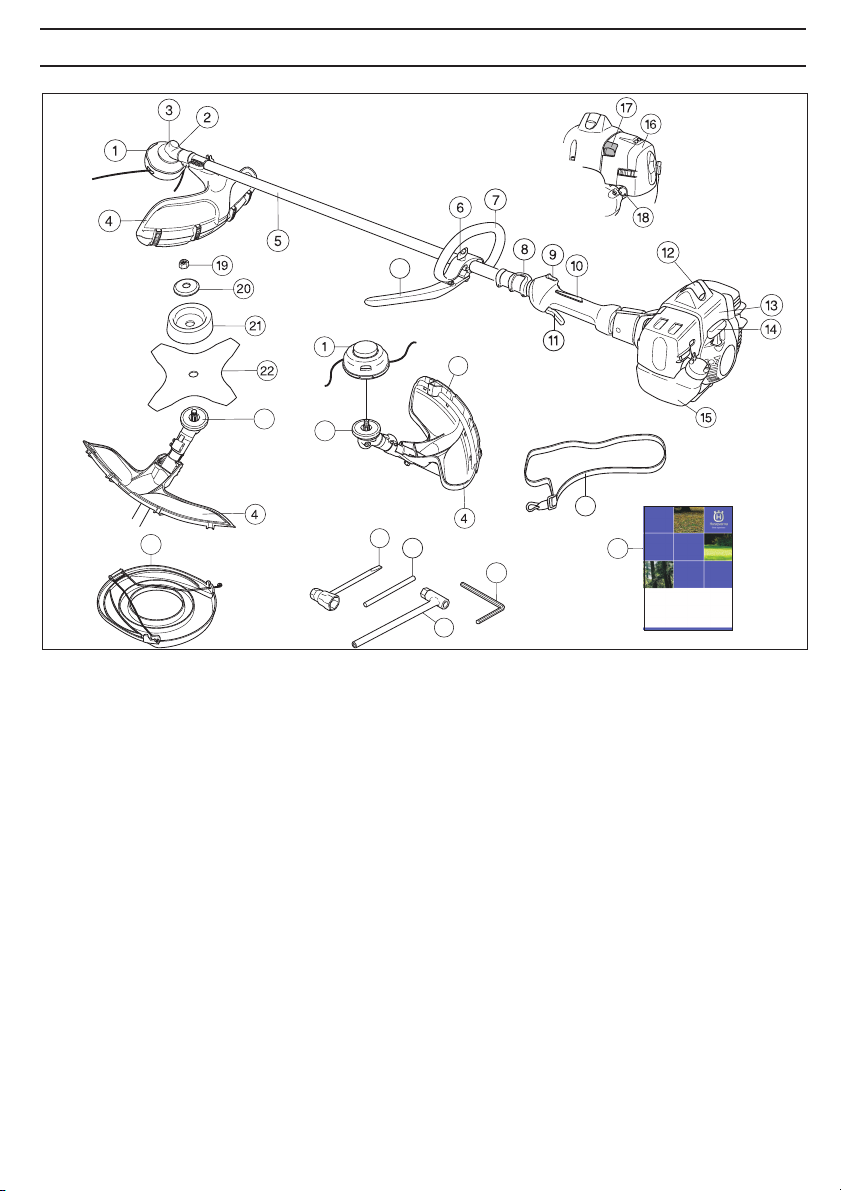

What is what on the c learing saw?
32
30
31
23
24
23
29
25 26
27
28
1 Trimmer head
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Handle adjustment
7 Loop handle
8 Suspension ring
9 Stop switch
10 Throttle lockout
11 Throttle control
12 Spark plug cap and spark plug
13 Cylinder cover
14 Starter handle
15 Fuel tank
16 Air filter cover
17 Choke control
18 Air purge
19 Locking nut
20 Support flange
21 Support cup
22 Blade
23 Drive disc
24 Transport guard
25 Spark plug spanner
26 Locking pin
27 Socket spanner
28 Allen key
29 Guard extension
30 Harness
31 Operator ′ s manual

GENERAL SAFETY PRECA UTIONS
6 – English
Impor tant Personal protective equipment
HELMET
A protectiv e helmet where there is a risk of falling objects
HEARING PROTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Always wear approved eye protection. If you use a visor then
you must also wear approved protective goggles. Approved
protective goggles must comply with standard ANSI Z87.1 in
the USA or EN 166 in EU countries.
GLOVES
Gloves should be worn when necessary, e.g., when fitting
cutting attachments.
BOOTS
Wear boots with steel toe-caps and non-slip sole.
IMPORTANT!
The machine is only designed for trimming grass.
The only accessories you can operate with this engine unit
are the cutting attachments we recommend in the chapter
on Technical data.
Never use the machine if you are tired, if you have drunk
alcohol, or if you are taking medication that could affect
your vision, your judgement or your co-ordination.
Wear personal protective equipment. See instructions
under the heading Personal protective equipment.
Never use a machine that has been modified in any way
from its original specification.
Never use a machine that is faulty. Carry out the checks,
maintenance and service instructions described in this
manual. Some maintenance and service measures must
be carried out by trained and qualified specialists. See
instructions under the heading Maintenance.
All covers, guards and handles must be fitted before
starting. Ensure that the spark plug cap and ignition lead
are undamaged to avoid the risk of electric shock.
The machine operator must ensure that no people or
animals come closer than 15 metres while working. When
several operators are working in the same area the safety
distance should be at least twice the tree height and no
less than 15 metres.
!
W ARNING! The ignition system of this
machine produces an electromagnetic field
during operation. This field may under
some circumstances interfere with
pacemakers. To reduce the risk of serious
or fatal injury, we recommend persons with
pacemakers to consult their physician and
the pacemaker manufacturer before
operating this machine.
!
W ARNING! Running an engine in a confined
or badly ventilated area can result in death
due to asphyxiation or carbon monoxide
poisoning.
!
W ARNING! Never allow children to use or
be in the vicinity of the machine. As the
machine is equipped with a spring-loaded
stop switch and can be started by low
speed and force on the starter handle, even
small children under some circumstances
can produce the force necessary to start
the machine. This can mean a risk of
serious personal injury. Therefore remove
the spark plug cap when the machine is not
under close supervision.
IMPOR TANT!
A clearing saw, brushcutter or trimmer can be dangerous if
used incorrectly or carelessly, and can cause serious or
fatal injury to the operator or others. It is extremely
important that you read and understand the contents of this
operator’s manual.
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen.
Ask your dealer for help in choosing the right equipment.
!
W ARNING! Listen out for warning signals
or shouts when you are wearing hearing
protection. Always remove your hearing
protection as soon as the engine stops.

GENERAL SAFETY PRECA UTIONS
English – 7
CLO THING
Wear clothes made of a strong fabric and avoid loose
clothing that can catch on twigs and branches. Always wear
heavy, long pants. Do not wear jewellery, shorts sandals or
go barefoot. Secure hair so it is above shoulder level.
FIRST AID KIT
Always have a first aid kit nearby.
Mac hine ′ s safety equipment
This section descr ibes the machine ′ s safety equipment, its
purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly. See the ”What
is what?” section to locate where this equipment is
positioned on your machine.
The life span of the machine can be reduced and the risk of
accidents can increase if machine maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact your nearest service workshop.

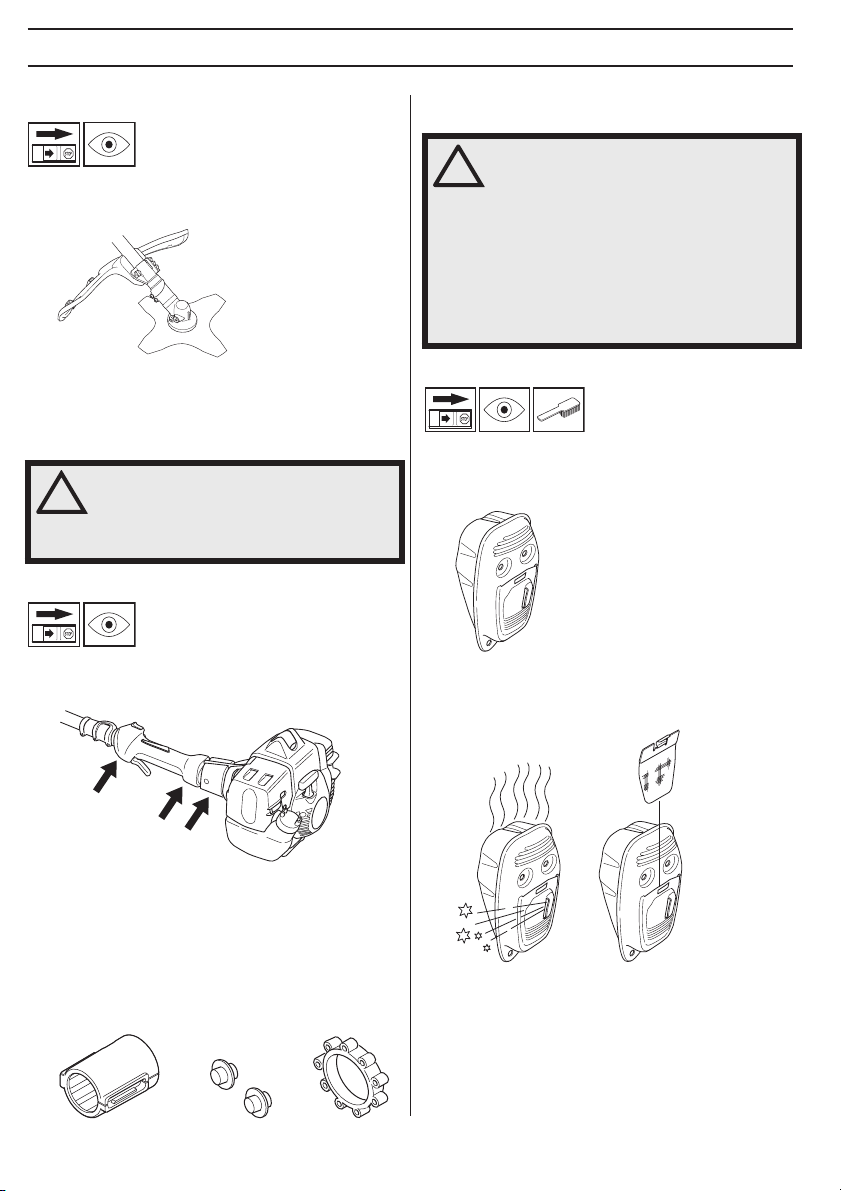

Thr ottle lockout
The throttle loc kout is designed to prevent accidental
operation of the throttle control. When you press the lock (A)
(i.e. when you grasp the handle) it releases the throttle
control (B). When you release the handle the throttle control
and the throttle lockout both move back to their original
positions. This movement is controlled by two independent
return springs. This arrangement means that the throttle
control is automatically locked at the idle setting.
Make sure the throttle control is locked at the idle setting
when the throttle lockout is released.
Press the throttle lockout and make sure it returns to its
original position when you release it.
Check that the throttle control and throttle lockout move
freely and that the return springs work properly.
See instructions under the heading Start. Start the machine
and apply full throttle. Release the throttle and check that the
cutting attachment stops and remains at a standstill. If the
cutting attachment rotates with the throttle in the idle position
then the carburettor idle setting must be checked. See
instructions under the heading Maintenance.
Stop s witch
Use the stop s witch to switch off the engine.
Start the engine and make sure the engine stops when you
move the stop switch to the stop setting.
IMPORTANT! All servicing and repair work on the machine
requires special training. This is especially true of the
machine
′ s safety equipment. If your machine fails any of
the checks described below you must contact your service
agent.When you buy any of our products we guarantee the
availability of professional repairs and service. If the
retailer who sells your machine is not a servicing dealer,
ask him for the address of your nearest service agent.
!
W ARNING! Never use a machine with faulty
safety equipment. The machine’s safety
equipment must be checked and
maintained as described in this section. If
your machine fails any of these checks
contact your service agent to get it
repaired.
A
B

GENERAL SAFETY PRECA UTIONS
8 – English
Cutting attac hment guard
This guard is intended to pre vent loose objects from being
thrown towards the operator. The guard also protects the
operator from accidental contact with the cutting attachment.
Check that the guard is undamaged and not cracked.
Replace the guard if it has been exposed to impact or is
cracked.
Always use the recommended guard for the cutting
attachment you are using. See chapter on Technical data.
Vibration damping system
Your machine is equipped with a vibration damping system
that is designed to minimize vibration and make operation
easier.
Using incorrectly wound cord or a blunt or incorrect cutting
attachment (wrong type or incorrectly filed, see instructions
under the heading Filing the blade) increases the level of
vibration.
The machine′s vibration damping system reduces the
transfer of vibration between the engine unit/cutting
equipment and the machine′s handle unit.
Regularly check the vibration damping units for cracks or
deformation.
Check that the vibration damping element is undamaged
and securely attached.
Muffler
The muffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user. A muffler
fitted with a catalytic converter is also designed to reduce
harmful exhaust gases.
In countries that have a warm and dry climate there is a
significant risk of fire. We therefore fit certain mufflers with a
spark arrestor mesh. Check whether the muffler on your
machine is fitted with this kind of mesh.
For mufflers it is very important that you follow the
instructions on checking, maintaining and servicing your
machine.
!
WARNING! Never use a cutting attachment
without an approved guard. See the chapter
on Technical data. If an incorrect or faulty
guard is fitted this can cause serious
personal injury.
!
WARNING! Overexposure to vibration can
lead to circulatory damage or nerve
damage in people who have impaired
circulation. Contact your doctor if you
experience symptoms of overexposure to
vibration. Such symptoms include
numbness, loss of feeling, tingling,
pricking, pain, loss of strength, changes in
skin colour or condition. These symptoms
normally appear in the fingers, hands or
wrists. The risk increases at low
temperatures.

GENERAL SAFETY PRECAUTIONS
English – 9
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to the
machine.
If the muffler on your machine is fitted with a spark arrestor
mesh this must be cleaned regularly. A blocked mesh will
cause the engine to overheat and may lead to serious
damage.
Locking nut
A locking nut is used to secure some types of cutting
attachment.
When fitting, tighten the nut in the opposite direction to the
direction of rotation of the cutting attachment. To remove it,
undo the nut in the same direction as the cutting attachment
rotates. (CAUTION! The nut has a left-hand thread.) Tighten
the nut using the socket spanner.
The nylon lining inside the locking nut must not be so worn
that you can turn it by hand. The lining should offer a
resistance of at least 1.5 Nm. The nut should be replaced
after it has been put on approx. 10 times.
Cutting equipment
This section describes how to choose and maintain your
cutting equipment in order to:
• Reduce the risk of blade thrust.
• Obtain maximum cutting performance.
• Extend the life of cutting equipment.
!
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
remain so for some time after stopping.
This also applies at idle speed. Contact can
result in burns to the skin. Remember the
risk of fire!
!
WARNING! The inside of the muffler contain
chemicals that may be carcinogenic. Avoid
contact with these elements in the event of
a damaged muffler.
!
WARNING! Bear in mind that:
The exhaust fumes from the engine are hot
and may contain sparks which can start a
fire. Never start the machine indoors or
near combustible material!
IMPORTANT!
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Refer to the instructions for the cutting attachment to check
the correct way to load the cord and the correct cord
diameter.
Keep the teeth of the blade correctly sharpened! Follow our
recommendations. Also refer to the instructions on the
blade packaging.

GENERAL SAFETY PRECAUTIONS
10 – English
Cutting equipment

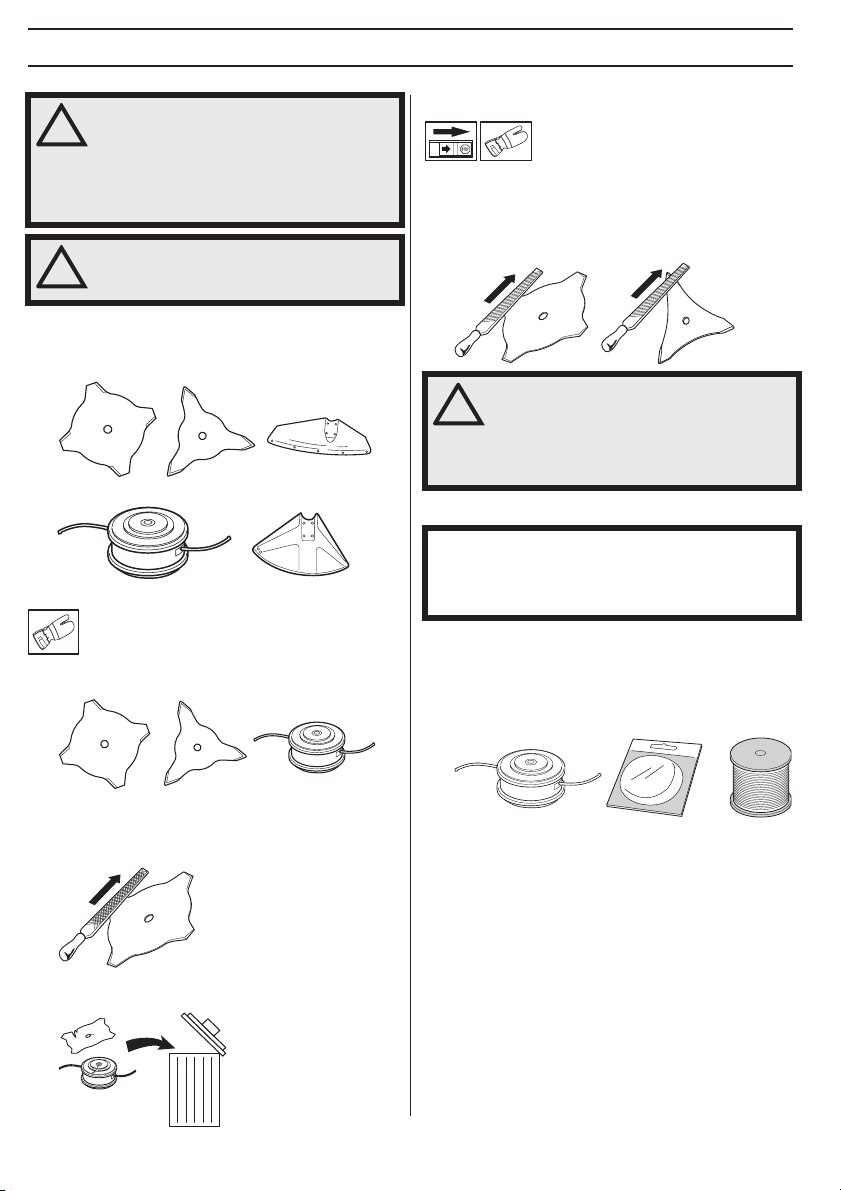

Grass blades and grass cutters are intended for cutting
coarse grass.
A trimmer head is intended for trimming grass.
General rules
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Keep the teeth of the blade correctly sharpened! Follow our
instructions and use the recommended file gauge. An
incorrectly sharpened or damaged blade increases the risk
of accidents.
Check the cutting attachment for damage or cracks. A
damaged cutting attachment should always be replaced.
Sharpening grass cutters and grass blades
• See the cutting attachment packaging for correct
sharpening instructions. Sharpen blades and cutters
using a single-cut flat file.
• Sharpen all edges equally to maintain the balance of the
blade.
Trimmer head
•Only use the recommended trimmer heads and trimmer
cords. These have been tested by the manufacturer to
suit a particular engine size.This is especially important
when a fully automatic trimmer head is used. Only use
the recommended cutting attachment. See the chapter
on Technical data.
• Smaller machines generally require small trimmer heads
and vice versa. This is because when clearing using a
cord the engine must throw out the cord radially from the
trimmer head and overcome the resistance of the grass
being cleared.
• The length of the cord is also important. A longer cord
requires greater engine power than a shorter cord of the
same diameter.
• Make sure that the cutter on the trimmer guard is intact.
This is used to cut the cord to the correct length.
• To increase the life of the cord it can be soaked in water
for a couple of days. This will make the line tougher so
that it lasts longer.
!
WARNING! Always stop the engine before
doing any work on the cutting attachment.
This continues to rotate even after the
throttle has been released. Ensure that the
cutting attachment has stopped completely
and disconnect the HT lead from the spark
plug before you start to work on it.
!
WARNING! Using an incorrect cutting
attachment or an incorrectly sharpened
blade increases the risk of blade thrust.
!
WARNING! Always discard a blade that is
bent, twisted, cracked, broken or damaged
in any other way. Never attempt to
straighten a twisted blade so that it can be
reused. Only use original blades of the
specified type.
IMPORTANT!
Always ensure the trimmer cord is wound tightly and evenly
around the drum, otherwise the machine will generate
harmful vibration.

ASSEMBLY
English – 11

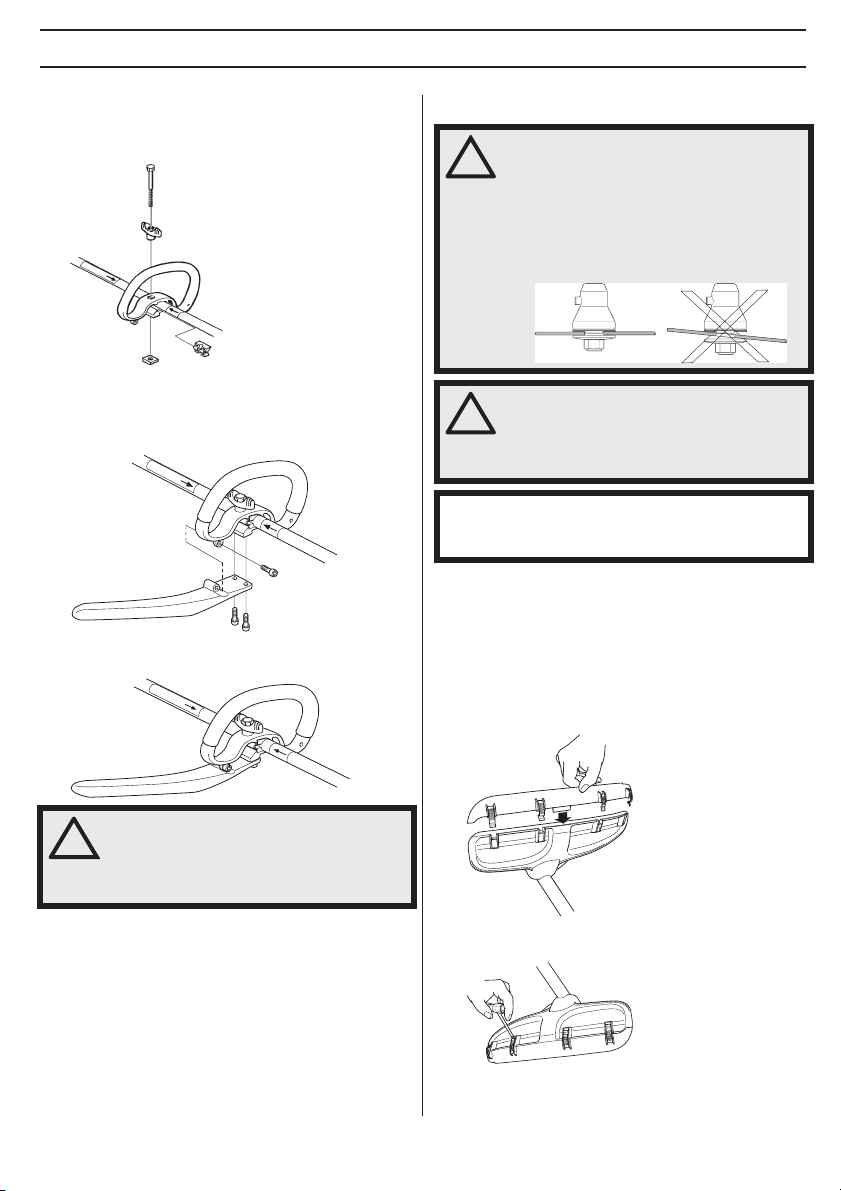

Fitting the J-handle
• Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Slide the spacer into the slot in the loop handle.
• Fit the nut, knob and screw. Do not overtighten.
• Attach the J-handle to the loop handle using the three
screws, as shown.
• Now adjust the trimmer to give a comfortable working
position. Tighten the bolt/knob.

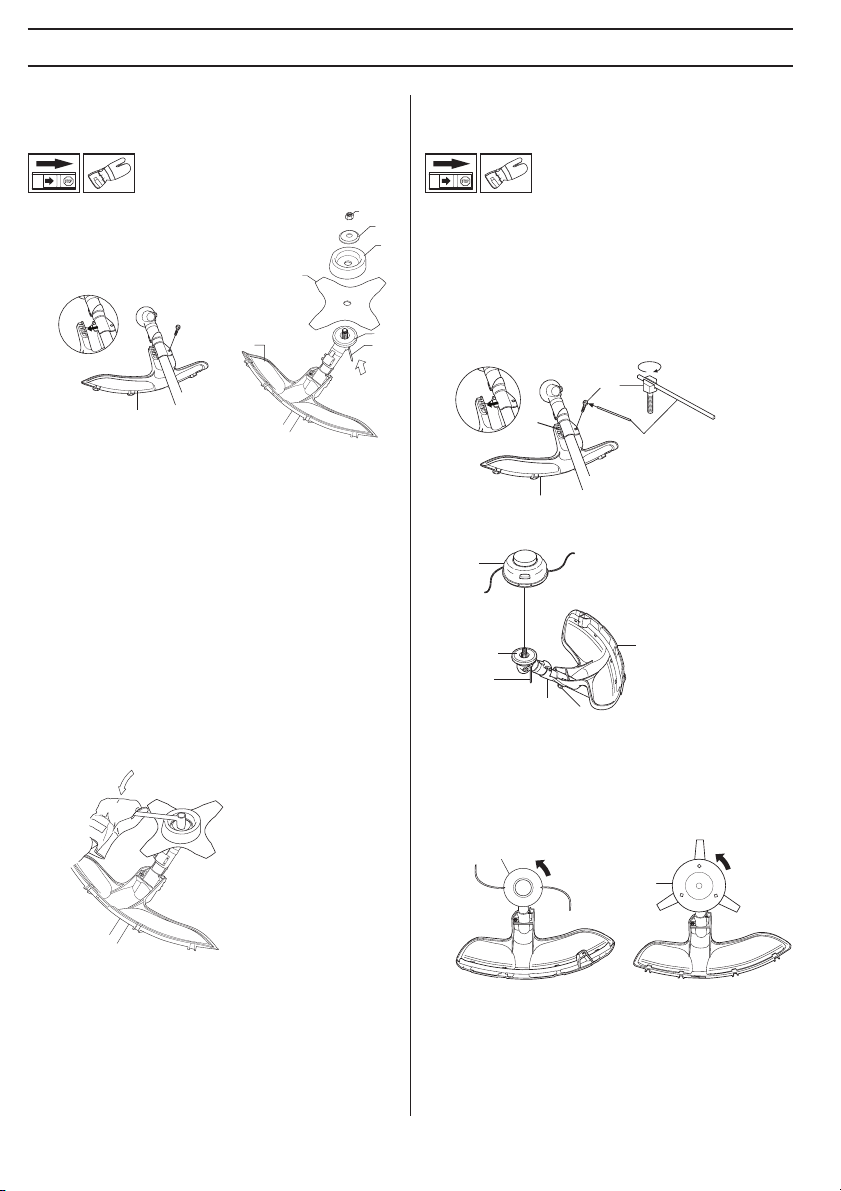

Assembling the cutting equipment
Fitting the guard extension
CAUTION! The guard extension shall always be fitted when
using the trimmer head/plastic blades and combination
guard. The guard extension shall always be removed when
using the grass blade and combination guard.
Enter the guard extension guide in the slot of the
combination guard. Then click the guard extension into
position on the guard with the four quick-fasteners.
The guard extension is removed easily using the spark plug
spanner, see illustration.
!
WARNING! Only grass blades/grass cutters
or trimmer heads/plastic blades may be
used when the J-handle is fitted. Saw
blades must never be used with the J-
handle.
!
WARNING!
When fitting the cutting attachment it is
extremely important that the raised section
on the drive disc/support flange engages
correctly in the centre hole of the cutting
attachment. If the cutting attachment is
fitted incorrectly it can result in serious
and/or fatal personal injury.
!
WARNING! Never use a cutting attachment
without an approved guard. See the chapter
on Technical data. If an incorrect or faulty
guard is fitted this can cause serious
personal injury.
IMPORTANT! If a saw blade or grass blade are to be used
the machine must be equipped with the correct handlebar,
blade guard and harness.

ASSEMBLY
12 – English
Fitting a blade guard, grass blade
and grass cutter
• Hook the blade guard/combination guard (A) onto the
fitting on the shaft and secure with the bolt. CAUTION!
Ensure that the guard extension is removed.
Use the recommended blade guard. See the Technical
data section.
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D), support cup (E) and support flange
(F) on the output shaft.
• Fit the nut (G). The nut must be tightened to a torque of
35-50 Nm (3.5-5 kpm). Use the socket spanner in the
tool kit. Hold the shaft of the spanner as close to the
blade guard as possible. To tighten the nut, turn the
spanner in the opposite direction to the direction of
rotation (Caution! left-hand thread).
Fitting other guards and cutting
attachments
•Fit the trimmer guard/combination guard (A) intended for
use with the trimmer head/plastic blades. CAUTION!
Ensure that the guard extension is fitted.
Hang the trimmer guard/combination guard (A) on the
two hooks on the plate holder (M). Bend the guard
around the shaft and tighten it with the bolt (L) on the
opposite side of the shaft. Use the locking pin (C). Place
the locking pin in the groove on the screw head and
tighten. See diagram.
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
• To dismantle, follow the instructions in the reverse order.
G
F
D
B
C
A
E
A
A
L
C
M
BA
ML
C
H
H
H

FUEL HANDLING
English – 13
Fuel safety
Never start the machine:
1 If you have spilt fuel on it. Wipe off the spillage and allow
remaining fuel to evaporate.
2 If you have spilt fuel on yourself or your clothes, change
your clothes. Wash any part of your body that has come
in contact with fuel. Use soap and water.
3 If the machine is leaking fuel. Check regularly for leaks
from the fuel cap and fuel lines.
Transport and storage
•Store and transport the machine and fuel so that there is
no risk of any leakage or fumes coming into contact with
sparks or naked flames, for example, from electrical
machinery, electric motors, electrical relays/switches or
boilers.
• When storing and transporting fuel always use approved
containers intended for this purpose.
• When storing the machine for long periods the fuel tank
must be emptied. Contact your local petrol station to find
out where to dispose of excess fuel.
• Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
• The transport guard must always be fitted to the cutting
attachment when the machine is being transported or in
storage.
• In order to prevent unintentional starting of the engine,
the spark plug cap must always be removed during long-
term storage, if the machine is not under close
supervision and when performing all service measures.
Fuel
CAUTION! The machine is equipped with a two-stroke
engine and must always been run using a mixture of petrol
and two-stroke engine oil. It is important to accurately
measure the amount of oil to be mixed to ensure that the
correct mixture is obtained. When mixing small amounts of
fuel, even small inaccuracies can drastically affect the ratio
of the mixture.
Petrol
CAUTION! Always use a quality petrol/oil mixture at least 90
octane (RON). If your machine is equipped with a catalytic
converter (see chapter on Technical data) always use a good
quality unleaded petrol/oil mixture. Leaded petrol will destroy
the catalytic converter.
Use low-emission petrol, also known as alkylate petrol, if it is
available.
• The lowest octane recommended is 90 (RON). If you run
the engine on a lower octane grade than 90 so-called
knocking can occur. This gives rise to a high engine
temperature, which can result in serious engine damage.
• When working at continuous high revs a higher octane
rating is recommended.
Two-stroke oil
• For best results and performance use HUSQVARNA
two-stroke engine oil, which is specially formulated for
our air-cooled two-stroke engines.
• Never use two-stroke oil intended for water-cooled
engines, sometimes referred to as outboard oil (rated
TCW).
• Never use oil intended for four-stroke engines.
• A poor oil quality and/or too high oil/fuel ratio may
jeopardise function and decrease the life time of catalytic
converters.
• Mixing ratio
1:50 (2%) with HUSQVARNA two-stroke oil.
1:33 (3%) with oils class JASO FB or ISO EGB
formulated for air-cooled, two-stroke engines.
!
WARNING! Take care when handling fuel.
Bear in mind the risk of fire, explosion and
inhaling fumes.
!
WARNING! Fuel and fuel fumes are highly
inflammable and can cause serious injury
when inhaled or allowed to come in contact
with the skin. For this reason observe
caution when handling fuel and make sure
there is adequate ventilation.
Petrol, litre Two-stroke oil, litre
2% (1:50) 3% (1:33)
50,10 0,15
10 0,20 0,30
15 0,30 0,45
20 0,40 0,60

FUEL HANDLING
14 – English

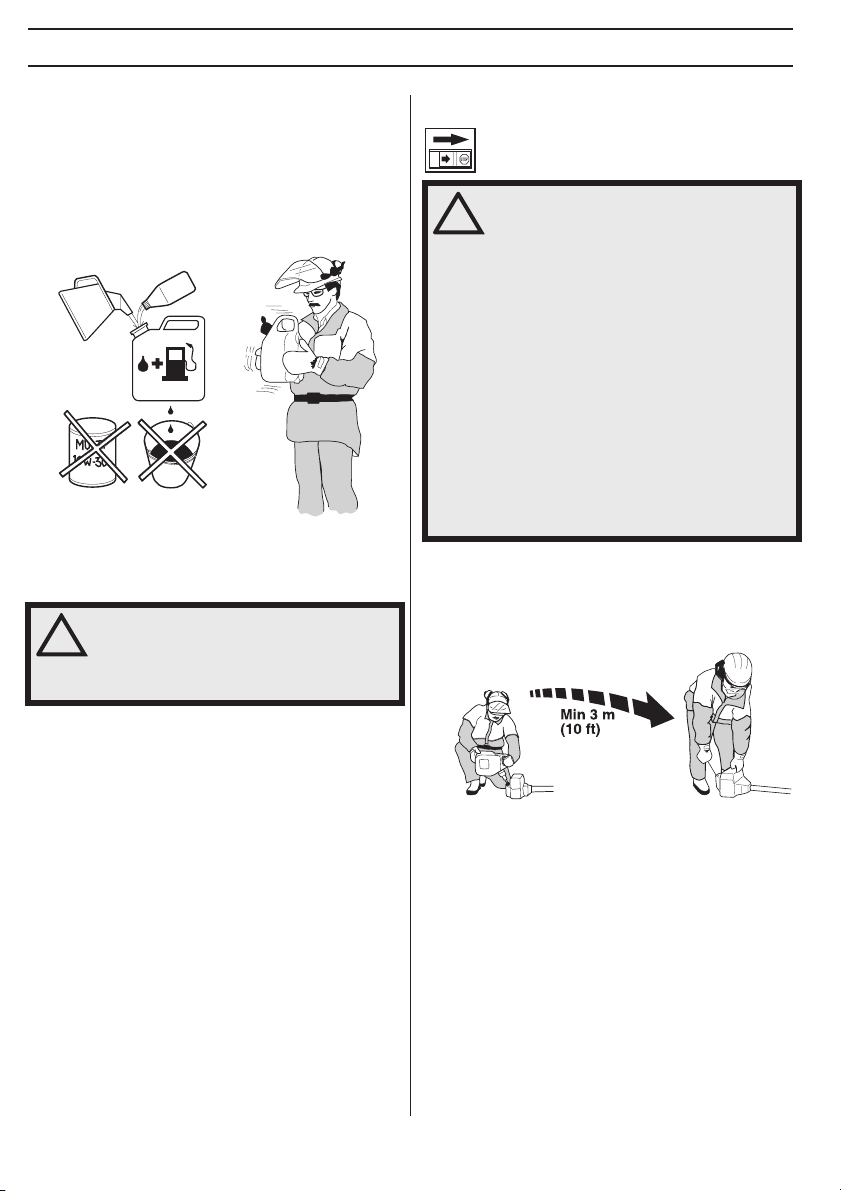

Mixing
• Always mix the petrol and oil in a clean container
intended for fuel.
• Always start by filling half the amount of the petrol to be
used. Then add the entire amount of oil. Mix (shake) the
fuel mixture. Add the remaining amount of petrol.
• Mix (shake) the fuel mixture thoroughly before filling the
machine’s fuel tank.
• Do not mix more than one month’s supply of fuel at a
time.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Fuelling
• Always use a fuel container with an anti-spill valve.
• Clean the area around the fuel cap. Contamination in the
tank can cause operating problems.
• Ensure that the fuel is well mixed by shaking the
container before filling the tank.
!
WARNING! The catalytic converter muffler
gets very hot during and after use.This also
applies during idling. Be aware of the fire
hazard, especially when working near
flammable substances and/or vapours.
!
WARNING! Taking the following
precautions, will lessen the risk of fire:
Do not smoke or place hot objects near
fuel.
Always shut off the engine before
refuelling.
Always stop the engine and let it cool for a
few minutes before refuelling.
When refuelling, open the fuel cap slowly
so that any excess pressure is released
gently.
Tighten the fuel cap carefully after
refuelling.
Always move the machine away from the
refuelling area before starting.

STARTING AND STOPPING
English – 15
Check before starting
•Check the blade to ensure that no cracks have formed at
the bottom of the teeth or by the centre hole. The most
common reason why cracks are formed is that sharp
corners have been formed at the bottom of the teeth
while sharpening or that the blade has been used with
dull teeth. Discard a blade if cracks are found.
• Check that the support flange is not cracked due to
fatigue or due to being tightened too much. Discard the
support flange if it is cracked.
• Ensure the locking nut has not lost its captive force. The
nut lock should have a locking force of at least 1.5 Nm.
The tightening torque of the locking nut should be 35-50
Nm.
• Check that the blade guard is not damaged or cracked.
Replace the blade guard if it is exposed to impact or is
cracked.
• Check that the trimmer head and trimmer guard are not
damaged or cracked. Replace the trimmer head or
trimmer guard if they have been exposed to impact or are
cracked.
• Never use the machine without a guard nor with a
defective guard.
• All covers must be correctly fitted and undamaged before
you start the machine.
Starting and stopping
Starting
Choke: Set the choke control in the choke position.
!
WARNING! The complete clutch cover and
shaft must be fitted before the machine is
started, otherwise the clutch can come
loose and cause personal injury.
Always move the machine away from the
refuelling area before starting. Place the
machine on a flat surface. Ensure the
cutting attachment cannot come into
contact with any object.
Make sure no unauthorised persons are in
the working area, otherwise there is a risk
of serious personal injury. The safety
distance is 15 metres.

STARTING AND STOPPING
16 – English
Primer bulb: Press the air purge repeatedly until fuel begins
to fill the bulb. The bulb need not be completely filled.
Hold the body of the machine on the ground using your left
hand (CAUTION! Not with your foot!). Grip the starter
handle, slowly pull out the cord with your right hand until you
feel some resistance (the starter pawls grip), now quickly
and powerfully pull the cord. Never twist the starter cord
around your hand.
Repeat pulling the cord until the engine starts. When the
engine starts. return choke control to run position and apply
full throttle; the throttle will automatically disengage from the
start setting.
CAUTION! Do not pull the starter cord all the way out and
do not let go of the starter handle when the cord is fully
extended. This can damage the machine.
CAUTION! Do not put any part of your body in marked area.
Contact can result in burns to the skin, or electrical shock if
the spark plug cap has been damaged. Always use gloves.
Do not use a machine with damaged spark plug cap.
Stopping
Stop the engine by switching off the ignition.
CAUTION! The stop switch automatically returns to the start
position. In order to prevent unintentional starting, the spark
plug cap must be removed from the spark plug when
assembling, checking and/or performing maintenance.
!
WARNING! When the engine is started with
the choke in either the choke or start
throttle positions the cutting attachment
will start to rotate immediately.

WORKING TECHNIQUES
English – 17
General working instructions
Basic safety rules
1 Look around you:
• To ensure that people, animals or other things cannot
affect your control of the machine.
• To ensure that people, animals, etc., do not come into
contact with the cutting attachment or loose objects that
are thrown out by the cutting attachment.
• CAUTION! Do not use the machine unless you are able
to call for help in the event of an accident.
2 Inspect the working area. Remove all loose objects, such
as stones, broken glass, nails, steel wire, string, etc. that
could be thrown out or become wrapped around the
cutting attachment.
3 Do not use the machine in bad weather, such as dense
fog, heavy rain, strong wind, intense cold, etc.Working in
bad weather is tiring and often brings added risks, such
as icy ground, unpredictable felling direction, etc.
4 Make sure you can move and stand safely. Check the
area around you for possible obstacles (roots, rocks,
branches, ditches, etc.) in case you have to move
suddenly. Take great care when working on sloping
ground.
5 Keep a good balance and a firm foothold.
6 Always hold the machine with both hands. Hold the
machine on the right side of your body.
7 Keep the cutting attachment below waist level.
8 Switch off the engine before moving to another area. Fit
the transport guard before carrying or transporting the
equipment any distance.
9 Never put the machine down with the engine running
unless you have it in clear sight.
IMPORTANT!
This section describes the basic safety precautions for
working with clearing saws and trimmers.
If you encounter a situation where you are uncertain how
to proceed you should ask an expert. Contact your dealer
or your service workshop.
Avoid all usage which you consider to be beyond your
capability.
You must understand the difference between forestry
clearing, grass clearing and grass trimming before use.
!
WARNING! Neither the operator of the
machine nor anyone else may attempt to
remove the cut material while the engine is
running or the cutting equipment is
rotating, as this can result in serious injury.
Stop the engine and cutting equipment
before you remove material that has wound
around the blade shaft as otherwise there is
a risk of injury. The bevel gear can get hot
during use and may remain so for a while
afterwards.You could get burnt if you touch
it.
!
WARNING! Watch out for thrown objects.
Always wear approved eye protection.
Never lean over the cutting attachment
guard. Stones, rubbish, etc. can be thrown
up into the eyes causing blindness or
serious injury.
Keep unauthorised persons at a distance.
Children, animals, onlookers and helpers
should be kept outside the safety zone of
15 m. Stop the machine immediately if
anyone approaches. Never swing the
machine around without first checking
behind you to make sure no-one is within
the safety zone.

WORKING TECHNIQUES
18 – English
Basic working techniques
Always slow the engine to idle speed after each working
operation. Long periods at full throttle without any load on
the engine can lead to serious engine damage.

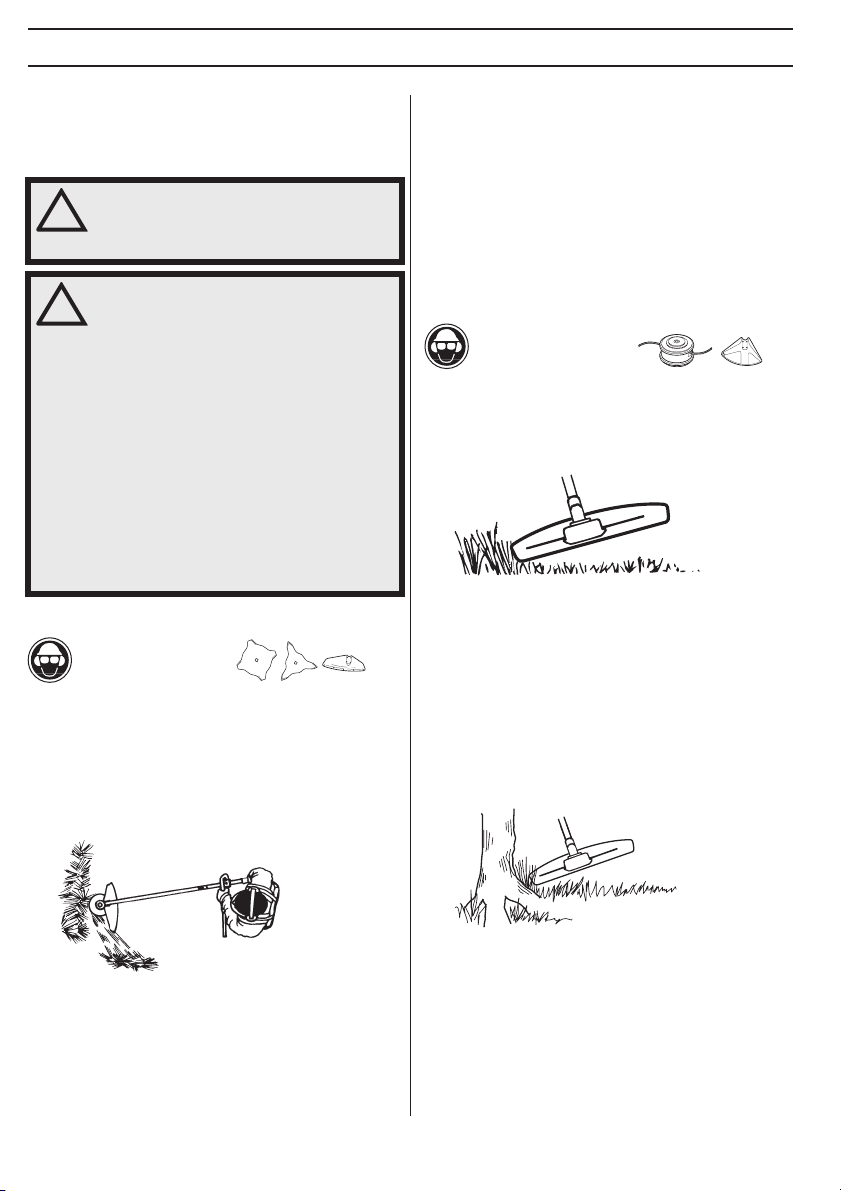

Grass clearing using a grass blade
• Grass blades and grass cutters must not be used on
woody stems.
• A grass blade is used for all types of tall or coarse grass.
• The grass is cut down with a sideways, swinging
movement, where the movement from right-to-left is the
clearing stroke and the movement from left-to-right is the
return stroke. Let the left-hand side of the blade
(between 8 and 12 o’clock) do the cutting.
• If the blade is angled to the left when clearing grass, the
grass will collect in a line, which makes it easier to
collect, e.g. by raking.
• Try to work rhythmically. Stand firmly with your feet apart.
Move forward after the return stroke and stand firmly
again.
• Let the support cup rest lightly against the ground. It is
used to protect the blade from hitting the ground.
• Reduce the risk of material wrapping around the blade
by following these instructions:
1Always work at full throttle.
2Avoid the previously cut material during the return
stroke.
• Stop the engine, unclip the harness and place the
machine on the ground before you start to collect the cut
material.
Grass trimming with a trimmer head
Trimming
•Hold the trimmer head just above the ground at an angle.
It is the end of the cord that does the work. Let the cord
work at its own pace. Never press the cord into the area
to be cut.
• The cord can easily remove grass and weeds up against
walls, fences, trees and borders, however it can also
damage sensitive bark on trees and bushes, and
damage fence posts.
• Reduce the risk of damaging plants by shortening the
cord to 10-12 cm and reducing the engine speed.
Clearing
• The clearing technique removes all unwanted
vegetation. Keep the trimmer head just above the ground
and tilt it. Let the end of the cord strike the ground around
trees, posts, statues and the like. CAUTION! This
technique increases the wear on the cord.
• The cord wears quicker and must be fed forward more
often when working against stones, brick, concrete,
metal fences, etc., than when coming into contact with
trees and wooden fences.
• When trimming and clearing you should use less than full
throttle so that the cord lasts longer and to reduce the
wear on the trimmer head.
!
WARNING! Sometimes branches or grass
get caught between the guard and cutting
attachment. Always stop the engine before
cleaning.
!
WARNING! Machines fitted with saw blades
or grass blades can be thrown violently to
the side when the blade comes into contact
with a fixed object. This is called blade
thrust. A blade thrust can be violent enough
to cause the machine and/or operator to be
propelled in any direction, and possibly
lose control of the machine. Blade thrust
can occur without warning if the machine
snags, stalls or binds. Blade thrust is more
likely to occur in areas where it is difficult
to see the material being cut.
Avoid cutting with the area of the blade
between the 12 o'clock and 3 o'clock
positions. Because of the speed of rotation
of the blade, blade thrust can occur if you
attempt to cut thick stems with this area of
the blade.

WORKING TECHNIQUES
English – 19
Cutting

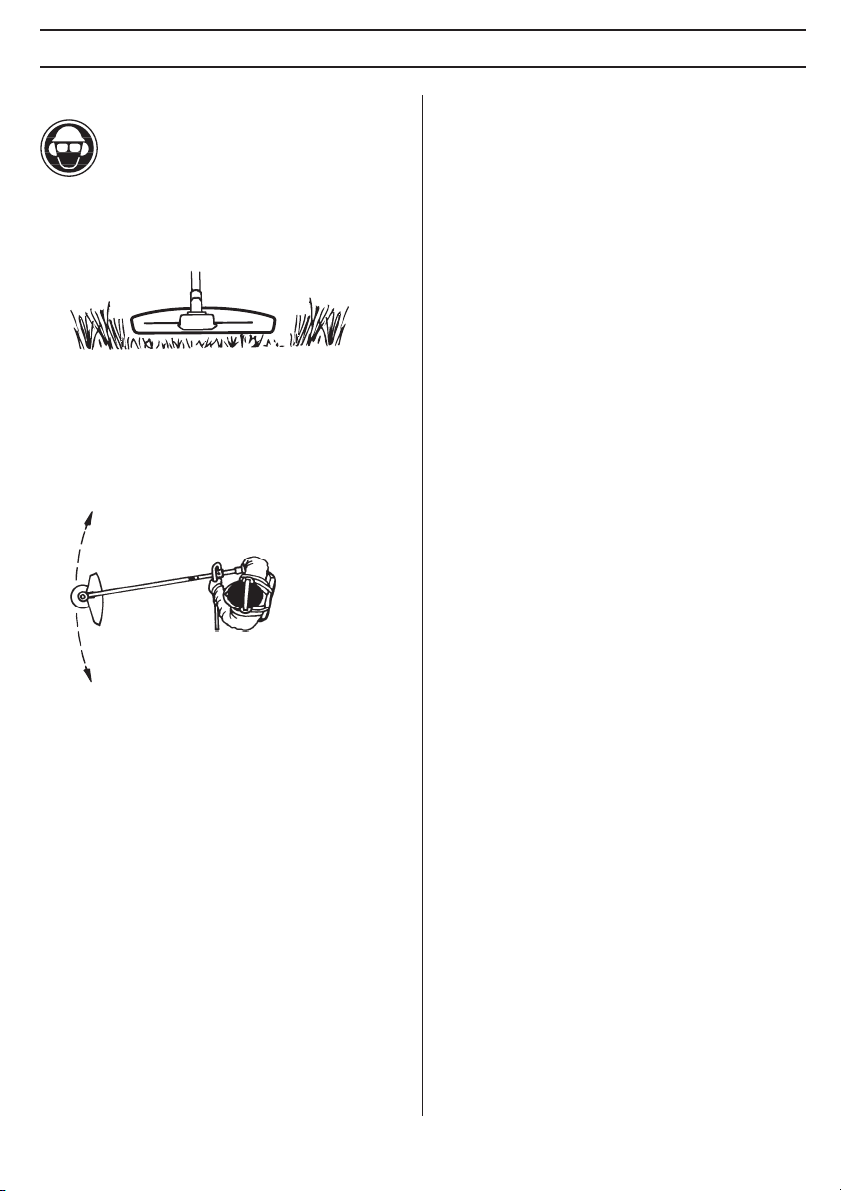

• The trimmer is ideal for cutting grass that is difficult to
reach using a normal lawn mower. Keep the cord parallel
to the ground when cutting. Avoid pressing the trimmer
head against the ground as this can ruin the lawn and
damage the tool.
• Do not allow the trimmer head to constantly come into
contact with the ground during normal cutting. Constant
contact of this type can cause damage and wear to the
trimmer head.
Sweeping
• The fan effect of the rotating cord can be used for quick
and easy clearing up. Hold the cord parallel to and above
the area to be swept and move the tool to and fro.
• When cutting and sweeping you should use full throttle to
obtain the best results.

MAINTENANCE
20 – English
Carburettor
Your Husqvarna product has been designed and
manufactured to specifications that reduce harmful
emissions. After the engine has used 8-10 tanks of fuel the
engine will be run-in. To ensure that it continues to run at
peak performance and to minimise harmful exhaust
emissions after the running-in period, ask your dealer/
service workshop (who will have a rev counter at their
disposal) to adjust your carburettor.
Function
• The carburettor governs the engine’s speed via the
throttle control. Air and fuel are mixed in the carburettor.
The air/fuel mixture is adjustable. Correct adjustment is
essential to get the best performance from the machine.
• Adjusting the carburettor means that the engine is
adapted to local operating conditions, e.g. climate,
altitude, petrol and the type of 2-stroke oil.
• The carburettor has three adjustment controls:
L = Low speed jet
H = High speed jet
T = Idle adjustment screw
• The L and H-jets are used to adjust the supply of fuel to
match the rate that air is admitted, which is controlled
with the throttle. If they are screwed clockwise the air/fuel
ratio becomes leaner (less fuel) and if they are turned
anti-clockwise the ratio becomes richer (more fuel). A
lean mixture gives a higher engine speed and a rich
mixture gives a lower engine speed.
• The T-screw regulates the throttle setting at idle speed. If
the T-screw is turned clockwise this gives a higher idle
speed; turning it anti-clockwise gives a lower idle speed.
Basic setting
• The basic carburettor settings are adjusted during
testing at the factory. The basic setting is richer than the
optimal setting and should be maintained for the first few
hours the machine is in use.The carburettor should then
be finely adjusted. Fine adjustment should be carried out
by a skilled technician.
CAUTION! If the cutting attachment rotates when the
engine is idling the idle adjustment screw T should be turned
anti-clockwise until the cutting attachment stops.
Rec. idle speed: See the Technical data section.
Recommended max. speed: See the Technical data
section.
Fine adjustment
• When the machine has been ”run-in” the carburettor
should be finely adjusted. The fine adjustment should be
carried out by a qualified person. First adjust the L-jet,
then the idling screw T and then the H-jet.
Conditions
•Before any adjustments are made, make sure that the air
filter is clean and the air filter cover is fitted. If you adjust
the carburettor when the air filter is dirty it will result in a
leaner mixture when the filter is finally cleaned. This can
lead to serious engine damage.
• Carefully turn both jets, L and H, so that they are midway
between fully screwed in and fully screwed out.
• Do not attempt to adjust the L and H jets beyond either
stop as this could cause damage.
• Now start the machine according to the starting
instructions and let it warm up for 10 minutes.
CAUTION! If the cutting attachment rotates when the
engine is idling the idle adjustment screw T should be
turned anti-clockwise until the cutting attachment stops.
Low speed jet L
Try to find the highest idle speed by turning the low speed jet
L clockwise then anti-clockwise. When the highest speed
has been found, turn the low speed jet L 1/4 turn anti-
clockwise.
CAUTION! If the cutting attachment rotates when the
engine is idling the idle adjustment screw T should be turned
anti-clockwise until the cutting attachment stops.
!
WARNING! The complete clutch cover and
shaft must be fitted before the machine is
started, otherwise the clutch can come
loose and cause personal injury.
H
L
T
!
WARNING! If the idle speed cannot be
adjusted so that the cutting attachment
stops, contact your dealer/service
workshop. Do not use the machine until it
has been correctly adjusted or repaired.
L
