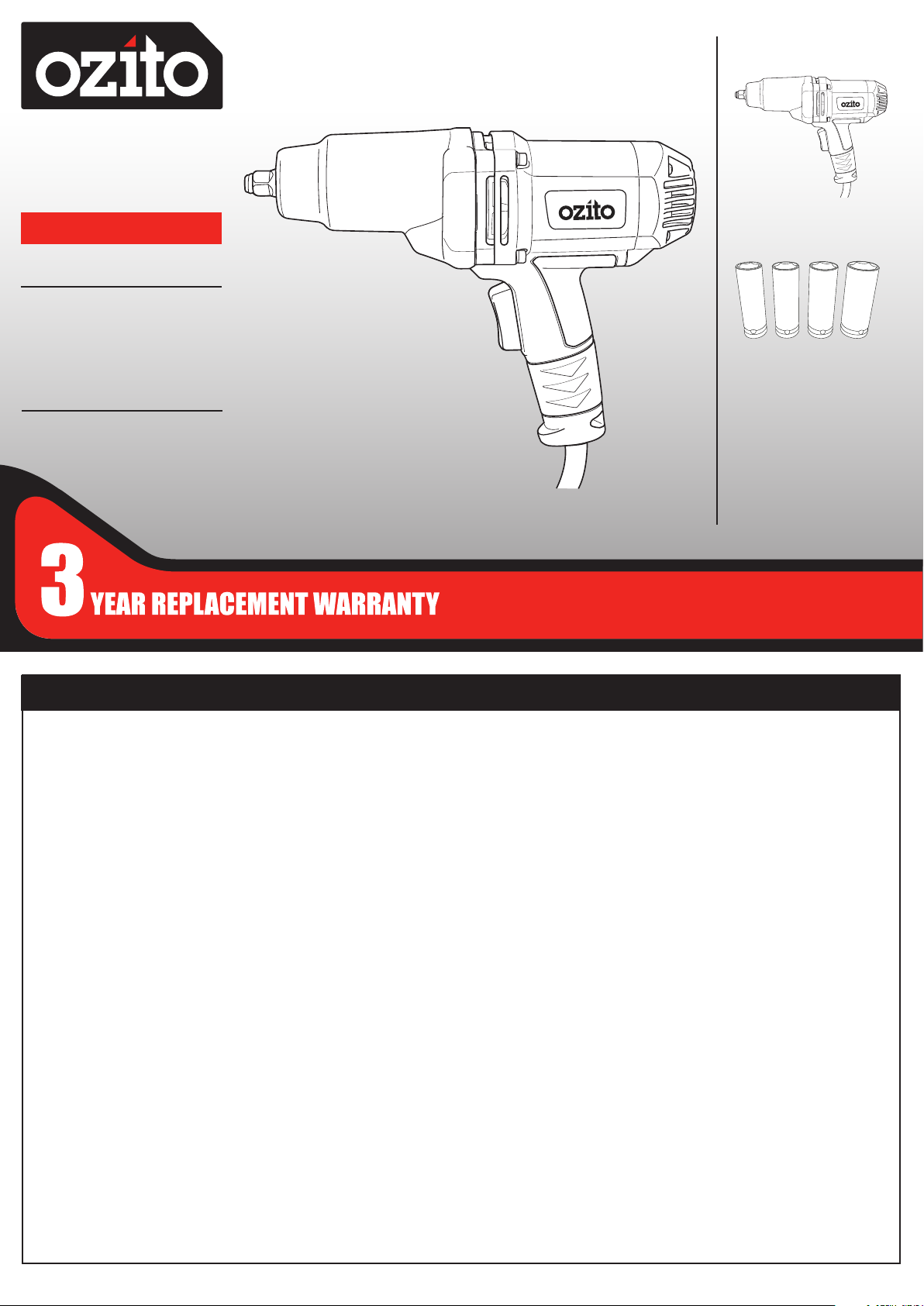

Ozito IWK-950 User manual

IMPACT
WRENCH
950W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: 950W
Input: 230-240V ~50Hz
No Load Speed: 2300/min
Max Torque: 450Nm
Drive Shaft: 1/2” (12.7mm)
Rotation: Forward & Reverse
Weight: 4.4kg
IWK-950
WHAT’S IN THE BOX
Impact Wrench
4 x Impact Sockets
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: accessories, etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
0617

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1 1/2” Drive Shaft
2 Forward/Reverse Trigger
3 Sure Grip Handle
IMPACT WRENCH
KNOW YOUR PRODUCT
1. ATTACHING ACCESSORIES
4 17mm Socket
5 19mm Socket
6 21mm Socket
7 22mm Socket
ACCESSORIES
SETUP & PREPARATION
1
4 5 6 7
2 3
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING ASSEMBLY.

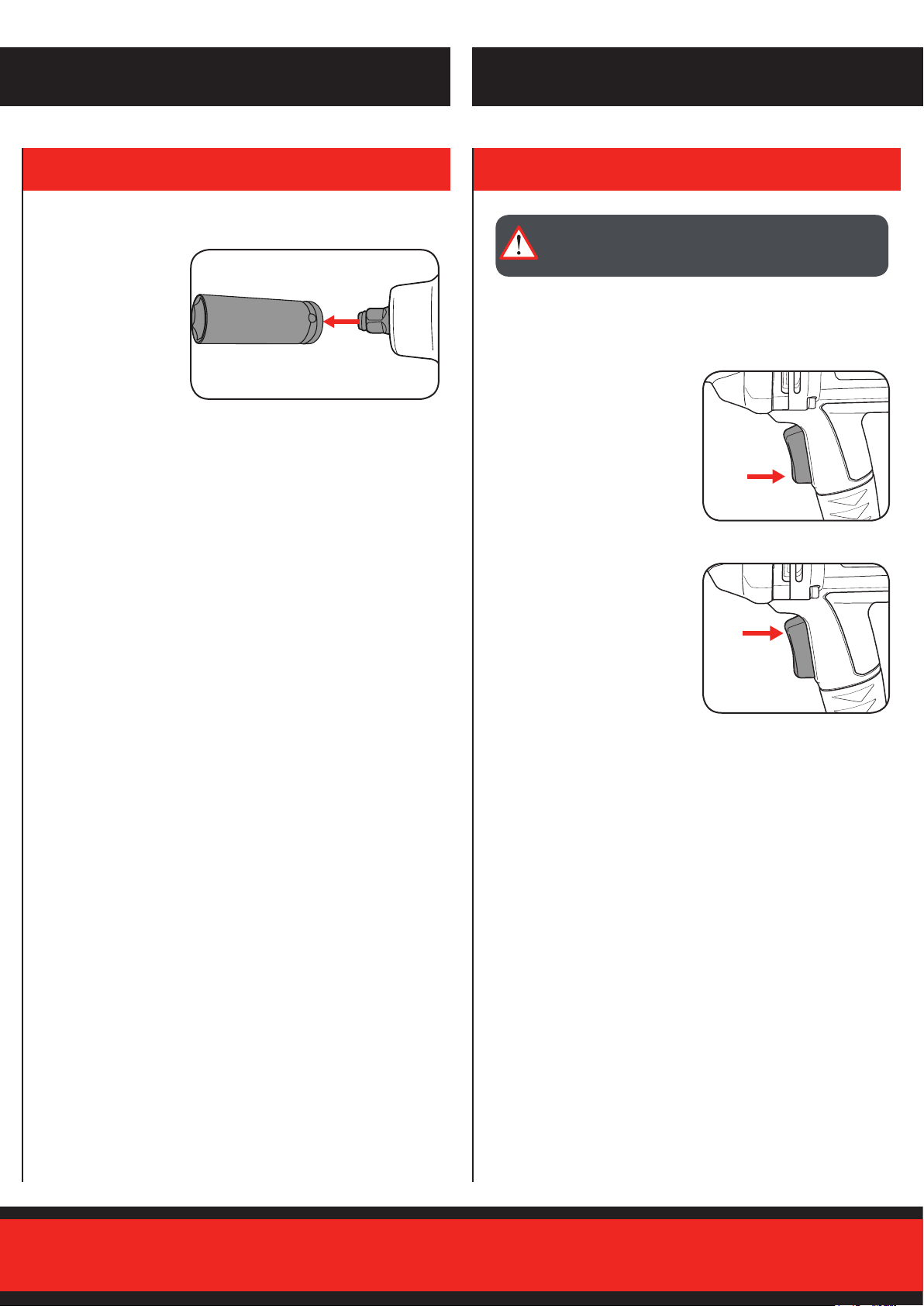

Attaching Accessories
2 Push the socket onto
the shaft until it clicks
into place.
1 Align the socket with
the drive shaft.

2. REMOVING ACCESSORIES 3. CONTROLS
OPERATION
Forward/Reverse Trigger
Removing Accessories
2 To loosen bolts squeeze the
top of the forward/reverse
trigger.
1 To tighten bolts squeeze the
bottom of the forward/reverse
trigger.
The impact wrench features a forward/reverse trigger which allows for
loosening and tightening bolts.
1 Pull the socket away
from the drive shaft
to remove.
CAUTION! TO REDUCE THE RISK OF ELECTRICAL
SHOCK, THE USE OF A RESIDUAL CURRENT DEVICE
(RATED 30mA OR LESS) IS RECOMMENDED.

IWK-950
4. OPERATING THE IMPACT WRENCH
2 Place the socket over the
bolt needing tightening or
loosening.
4 Select the desired forward/
reverse setting for the job by
squeezing the upper or lower
of the forward/reverse trigger.
1 Attach the correct
socket to the drive
shaft.
3 Hold the impact
wrench rmly with 2
hands.
5 Release the on/off
trigger to stop the
impact wrench.
NOTE: WHEN USING THE IMPACT WRENCH FOR
TIGHTENING, FIRST TIGHTEN THE BOLT OR NUT BY HAND
TO PREVENT DAMAGING THE THREAD.

Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
• Keep the ventilation vents of the impact wrench clean at all times, if possible,
prevent foreign matter from entering the vents.
• After each use, blow air through the impact wrench housing to ensure it is
free from all dust particles which may build up. Build up of dust particles may
cause the impact wrench to overheat and fail.
• If the enclosure of the impact wrench requires cleaning, do not use solvents
but a moist soft cloth only. Never let any liquid get inside the impact wrench;
never immerse any part of the impact wrench into a liquid.
•If the replacement of the supply cord is necessary, this has to be done by the
manufacturer or his agent in order to avoid a safety hazard.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
Problem Cause Solution
Sparking visible
through the housing
vents
Small amounts of
sparking is normal
Not a problem
The impact wrench
does not start
Impact wrench not
connected to the power
Connect the power
cord to an outlet
Insufcient supply
voltage
Try another power
outlet
The impact wrench is
damaging the thread
or bolt head
Nut or bolt not pre
tightened
When tightening
nuts or bolts, rst
tighten by hand
Socket not placed over
the bolt head properly
Ensure the correct
size socket is being
used and is place
over the bolt head
V Hz
~ W
/min
Volts
Alternating current
Revolutions or
reciprocation per minute
Warning
Hertz
Watts
No load speed
n0
Regulator compliance mark
Read instruction manual
Wear eye protection
Wear ear protection
Double insulated

Keep the cord clear of the accessory being used, do not wrap the cord around your arm or wrist.
Hold the tool by the insulated gripping surfaces when performing an operation where the accessory
may contact hidden wiring or its own cord.
Wear ear protectors with impact wrenches. Exposure to noise can cause hearing loss.
Bits, sockets and tools get hot during operation, it’s recommended to wear gloves when handling
them.
Do not overreach while operating the tool. Maintain a balanced working stance at all times.
Do not use this tool for prolonged periods of time. Take regular breaks. Use gloves to provide extra
cushioning in order to avoid any injury from the vibrations of the tool.
Always use safety glasses. Everyday glasses are not Safety Glasses.
Warning! Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contain chemicals known to cause cancer, birth defects or other
reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated timber
Your risk from exposure to these chemicals varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area and work with approved
safety equipment, such as dust masks that are specially designed to lter out microscopic particles.
This appliance is not intended for use by young or inrm persons unless supervised by a
responsible person to ensure that they can use the appliance safely. Young children should be
supervised to ensure that they do not play with the appliance.
IMPACT WRENCH SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury and
material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The manufacturer cannot accept any liability for damage or accidents which arise due to a failure to follow these
instructions and the safety information.
This product has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V is interchangeable for Australia and New Zealand.
This tool is double insulated therefore no earth wire is required.
The power supply for this product should be protected by a residual current device (rated at 30mA or less). A
residual current device reduces the risk of electric shock.
If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available
through the service organization.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
