Ozito ZLIDS-012 User manual

IMPACT
DRIVER
12V Lithium Ion
INSTRUCTION MANUAL
SPECIFICATIONS
Input Voltage: 12V
Chuck: 6.35mm Hex Quick Connect
No Load Speed: 0-2,200/min
Impact Rate: 3,000bpm
Max Torque 110Nm
Tool Weight: 0.88kg
ZLIDS-012
WHAT’S IN THE BOX
Cordless
Impact Driver
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Lithium Ion batteries and chargers
are covered by a 12 month warranty. Warranty excludes
consumable parts, for example: carbon brushes etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
1017

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

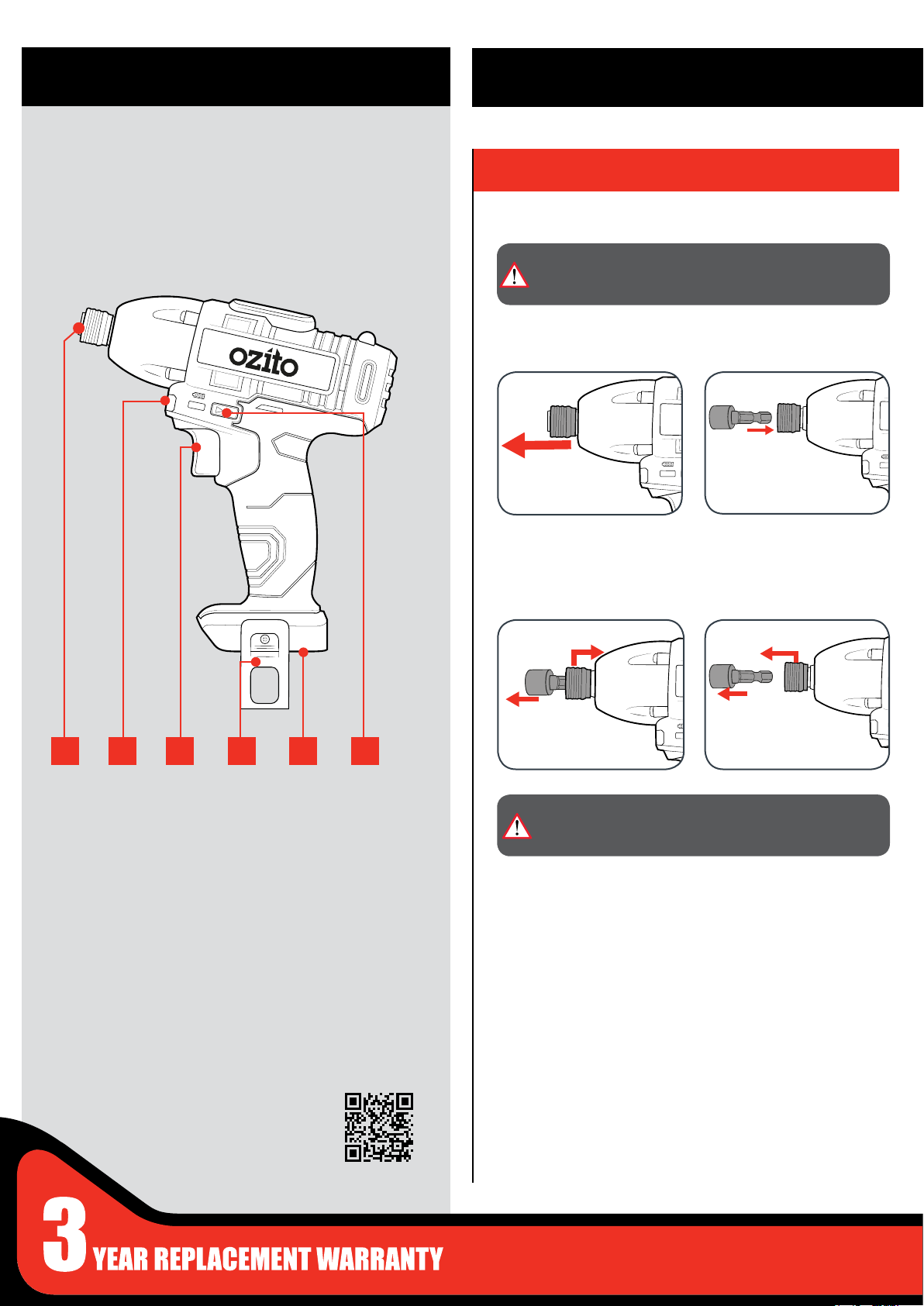

1 Drive Bit Retaining Ring
2 LED Light
3 Variable Speed Trigger
4 Belt Hook
5 Battery Seating
6 Forward/Reverse Lever
CORDLESS IMPACT DRIVER
KNOW YOUR PRODUCT
BATTERY & CHARGER
This tool is compatible with all batteries and chargers from the
Ozito Home-12volt range.
1. ACCESSORY FITMENT
SETUP & PREPARATION
1 2 5 64
1. Pull the drive retaining ring
forward.
3. Release the drive bit retaining
ring then pull on the bit to
ensure it is rmly in place.
4. To remove, pull the drive
retaining ring forward &
remove the driving bit.
2. Insert the hex shank of the
appropriate (1/4”) driver bit.
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
THE BATTERY IS REMOVED BEFORE PERFORMING ANY
OF THE FOLLOWING TASKS.
CAUTION! DO NOT HANDLE ACCESSORIES WITHOUT
GLOVES AS THEY ARE SHARP AND CAN BECOME HOT
AFTER USE, POTENTIALLY CAUSING PERSONAL INJURY.
Inserting & Removing Accessories
3

2. FITTING THE BATTERY 3. CONTROLS
2. To remove, press
and hold the battery
release tab and then
slide out
OPERATION
1. Align the ribs of the
battery with the recess
at the base of the of
the tool and push in
until it clicks into place.
Inserting and Removing the Battery Variable Speed Trigger
Forward/Reverse Lever
3. Control the speed by
adjusting the amount of
pressure applied to the
trigger.
2. To remove screws and
bolts, push the fwd/rev
lever hard right.
1. To start the driver,
squeeze the variable
speed trigger.
2. Release the variable
speed trigger to stop the
driver.
1. To drive screws and
bolts, push the fwd/rev
lever hard left.
REV
FWD
Slower Faster

ZLIDS-012

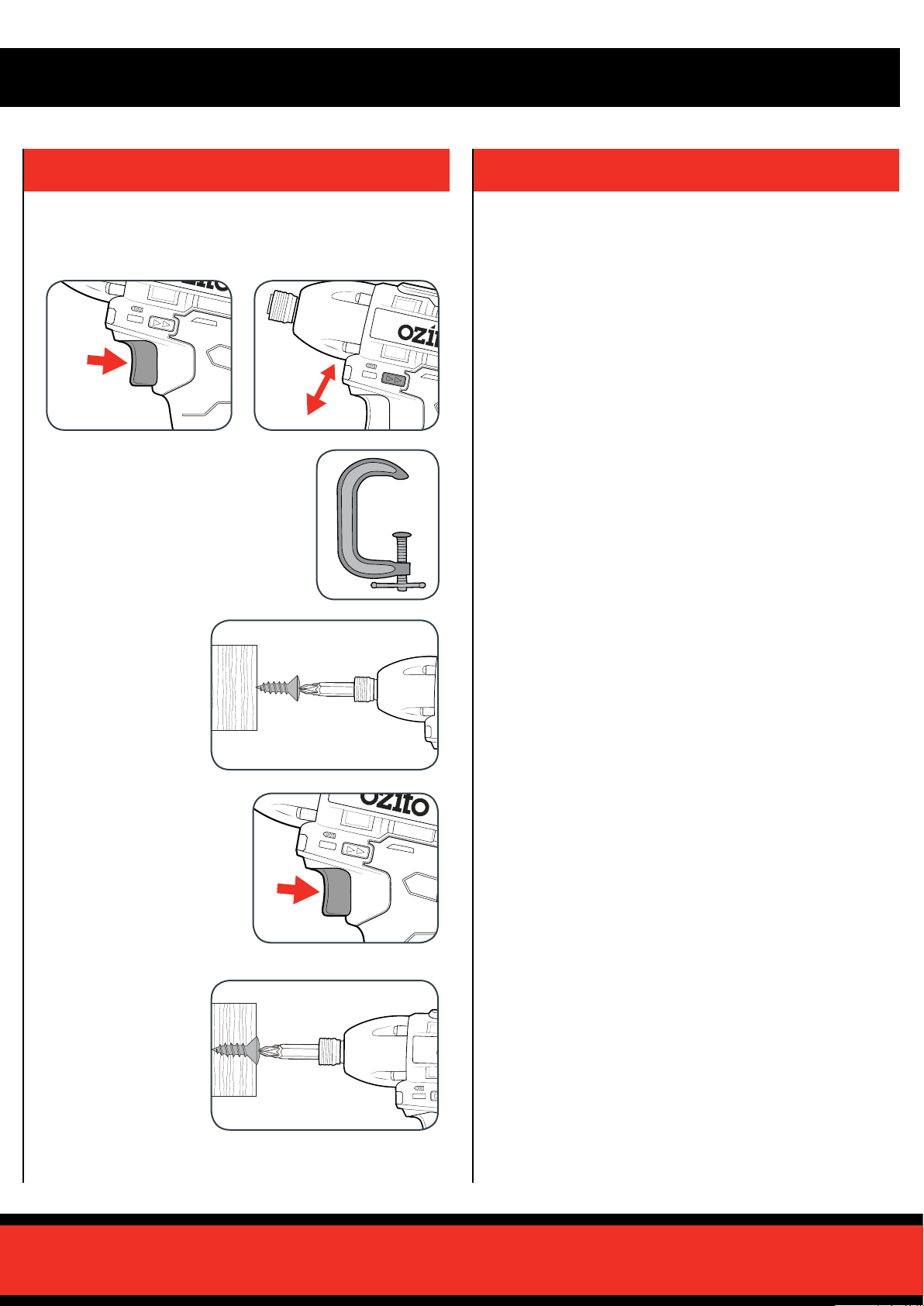

4. DRIV ING PROCEDURE
Note: Do not force the driver or apply side pressure to elongate
the hole. Let the impact driver do the work.
2. Check the forward/reverse
lever is on desired setting.
5. Lightly squeeze the
variable speed trigger to
start the driver.
1. Depress and release the
on/off trigger to ensure it is
not locked.
4. Hold the driver
rmly against the
fastener to stop it
slipping.
3. Ensure the work piece is
secured to stop it turning
whilst driving.
6. Slowly increase
pressure on trigger
to appropriate
torque for
circumstances until
screw or bolt is
tightened.
REV
FWD

DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way.
Please recycle where facilities exist. Check with your local council
authority for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
The tool loses power during use
• Battery could be low and requires charging.
• The tool could have overloaded due to excessive pressure. Turn the product
back on and reduce load.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
WARNING! When using mains-powered tools, basic safety precautions,
including the following, should always be followed to reduce risk of
re, electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off
in an emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future
reference.
The charger has been designed for 230V and 240V only. Always check that the
power supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia
and New Zealand.
This tools charger is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool
repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when
operating this tool. The insulation system is for added protection against injury
resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing.
Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of
an extension lead not suitable for the power input of the tool or which is damaged or
defective may result in a risk of re and electric shock.
ELECTRICAL SAFETY
Warning
Wear eye protection
Read instruction manual
Ah
n0
Amp hour
Regulator compliance
mark (RCM)r
No load speed
VVolts Hz Hertz
ac/~ Alternating current
Direct current
dc/
/min
Diameter
Revolutions or
reciprocation per minute
MAINTENANCE
1. When not in use, the impact driver should be stored in a dry,
frost free location, keep out of children’s reach.
2. Keep ventilation slots of the impact driver clean at all times and
prevent anything from entering.
3. If the housing of the impact driver requires cleaning, do not use
solvents. Use of a cloth only is recommended.
4. Blow out the ventilation slots with compressed air periodically .
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the impact driver by an unauthorised
person or by mishandling.

GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
IMPACT DRIVER SAFETY WARNINGS
WARNING! Wear ear protectors when impact drilling Exposure to noise
can cause hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause
personal injury.
Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.
Before drilling into walls, ceilings etc, ensure that there are no concealed power
cables or pipes in the cavity.
WARNING! Some dust created by power sanding, sawing, grinding,
drilling and other construction activities contain chemicals known to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated timber
Your risk from exposure to these chemicals varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals: work in a well
ventilated area and work with approved safety equipment, such as dust masks that
are specially designed to lter out microscopic particles.
This appliance is not intended for use by young or inrm persons
unless supervised by a responsible person to ensure that they can use the
appliance safely. Young children should be supervised to ensure that they do not
play with the appliance.
