Ozito PXDDS-200 User manual

PXDDS-200
18V Lithium Ion
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 18V
Chuck Size: 10mm Keyless
No Load Speed: 0-320 / 0-1,350/min
Torque Setting: 23
Max. Torque: 48Nm
Weight: 1.1kg
WHAT’S IN THE BOX
Cordless Drill Driver
ozito.com.au
CORDLESS
DRILL DRIVER
PXDDS-200

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
KNOW YOUR PRODUCT SETUP & PREPARATION
1. BATTERY & CHARGING
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Flashing) Battery is charging (low charge)
RED (Illuminated) Battery is charging (mid charge)
GREEN (Illuminated) Battery is fully charged
BOTH(Illuminated) Battery pack is too hot or too cold (charging
will begin automatically when battery reaches
correct charging temperature).
BOTH (Flashing) The battery is defective, charging is no
longer possible. Do not charge. Contact
Ozito Customer Service.

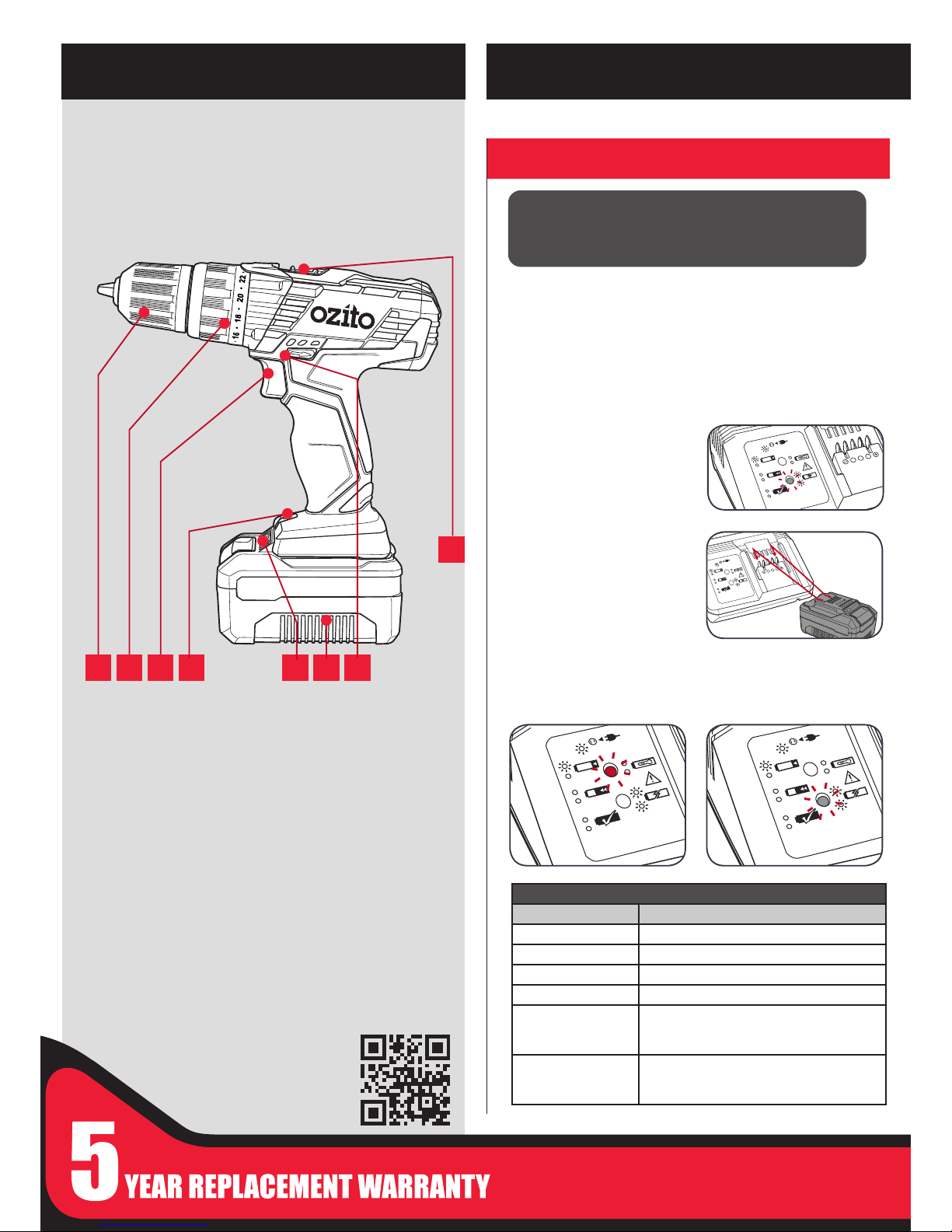

1 Keyless Chuck
2 Torque Adjustment Collar
3 Variable Speed Trigger
4 LED Light
5 Battery Release Button
6 Battery 18V (not included)
7 Forward/ Reverse Lever
8 Gearbox speed selector
CORDLESS DRILL DRIVER
1234 567
8
BATTERY & CHARGER (sold separately)
Compatible chargers
Eco charger PXCSCH-120
“ “ PXCG-120
Fast charger PXCFCH-030
“ “ PXCG-030
Compatible battery packs
1.5Ah PXCBAT-015
“ PXBP-150
3.0Ah PXCBAT-030
“ PXBP-300
5.2Ah PXCBAT-052
“ PXBP-520
Charging
WARNING! THE POWER SUPPLY FOR THIS CHARGER
SHOULD BE PROTECTED BY A RESIDUAL CURRENT
DEVICE (RATED AT 30MA OR LESS). A RESIDUAL CURRENT
DEVICE REDUCES THE RISK OF ELECTRIC SHOCK.
The purchased battery will be shipped in a low charge condition, and
requires charging prior to use. Allow several cycles of charging and
discharging (through use of the tool) for the battery to reach its optimum
performance / runtime.
1 Connect the charger into a mains power outlet.
4 The charger LED will
illuminate red signifying that
the battery is charging.
3 With the charger sitting on a
at surface, align the raised
ribs on the battery with
the recess in the charger
and slide onto the charger
ensuring a rm connection.
2 The charger LED will ash
green showing power
is being supplied to the
charger.
5 The charger LED will
illuminate green once the
battery is fully charged.
Charging your lithium ion battery - Fast Charger

2. BATTERY INSTALLATION
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Illuminated) Battery is charging (low charge)
GREEN (Illuminated) Battery is fully charged
RED (Flashing) Battery or Charger fault
RED & GREEN
(Flashing)
Battery pack is too hot or too cold (remove
battery from charger and store at room
temperature 20ºC. Insert battery again when
at correct charging temperature). If this
happens again, the battery is defective and
needs to be replaced.
Installing the Battery Pack
1 Slide the battery into the drill base until it clicks into place.
Removing the Battery Pack
1 Hold down the battery release button.
2 Slide the battery out.
Battery Charge Indicator
The purchased battery is equipped
with a battery charge indicator to
show the state of the battery charge.
Press the charge indicator button and
look to see which LED lights.
Battery requires
immediate charging
Low state of charge, requires charging soon.
Mid state of charge
Full state of charge.
Note: The battery needs to be removed from the tool to check the state
of charge.
1 Connect the charger into a mains power outlet.
4 The charger LED will illuminate red signifying that the battery
is charging.
3 With the battery sitting on a at
surface, align the raised ribs
on the battery with the recess
in the charger and slide onto
the battery ensuring a rm
connection.
2 The charger LED will ash
green showing power
is being supplied to the
charger.
5 When removing the charger
from the battery, rst press the
battery release tab, then slide
the charger from its position.
Charging your lithium ion battery - Eco Charger

FWD
3. KEYLESS CHUCK 4. CONTROLS
OPERATION
Speed Control
1. Slide the switch backward
to select rst gear.
2. Slide the switch forward to
select second gear.
The gear selector controls the speed of the drill. First gear allows
slower drilling with more torque, while second gear is suitable when
less torque but higher speed is required.
Forward/ Reverse Lever
Variable Speed Trigger
1 For forward rotation, push the fwd/rev lever towards the left side of
the drill. For reverse rotation push fwd/rev lever to the right. The LED
at the rear of the drill will also indicate direction.
1 To start drilling squeeze the
variable speed trigger.
2 To stop drilling release the
trigger.
Note: The more the variable speed trigger is depressed, the faster the
drill bit will rotate.
Adjusting Torque
1 Rotate the torque collar to the desired setting.
Note: Selecting a higher torque setting will allow the drill to use more
torque to drive the screw in or out. To prevent damaging the
screw head, it is recommended to start at a low torque setting
and increase when necessary.
Installing a Drill Bit
Removing a Drill Bit
1 Open the chuck by
rotating the chuck collar
and remove the frill bit.
2 Insert the drill
bit, making sure
it is centred in
the chuck.
4 Pull on the bit
to ensure it is
rmly secured.
CAUTION: TO REDUCE THE RISK OF INJURY WE
RECOMMEND THE USE OF GLOVES WHEN HANDLING
DRILL BITS.
1 Rotate the chuck collar
anti-clockwise to open the
chuck
3 Tighten the chuck by
turning clockwise.
WARNING! Ensure the tool is turned off & disconnected
from the power supply before performing any of the following
operations.

PXDDS-200
5. DRILLING 6.
HELPFUL TIPS
FWD

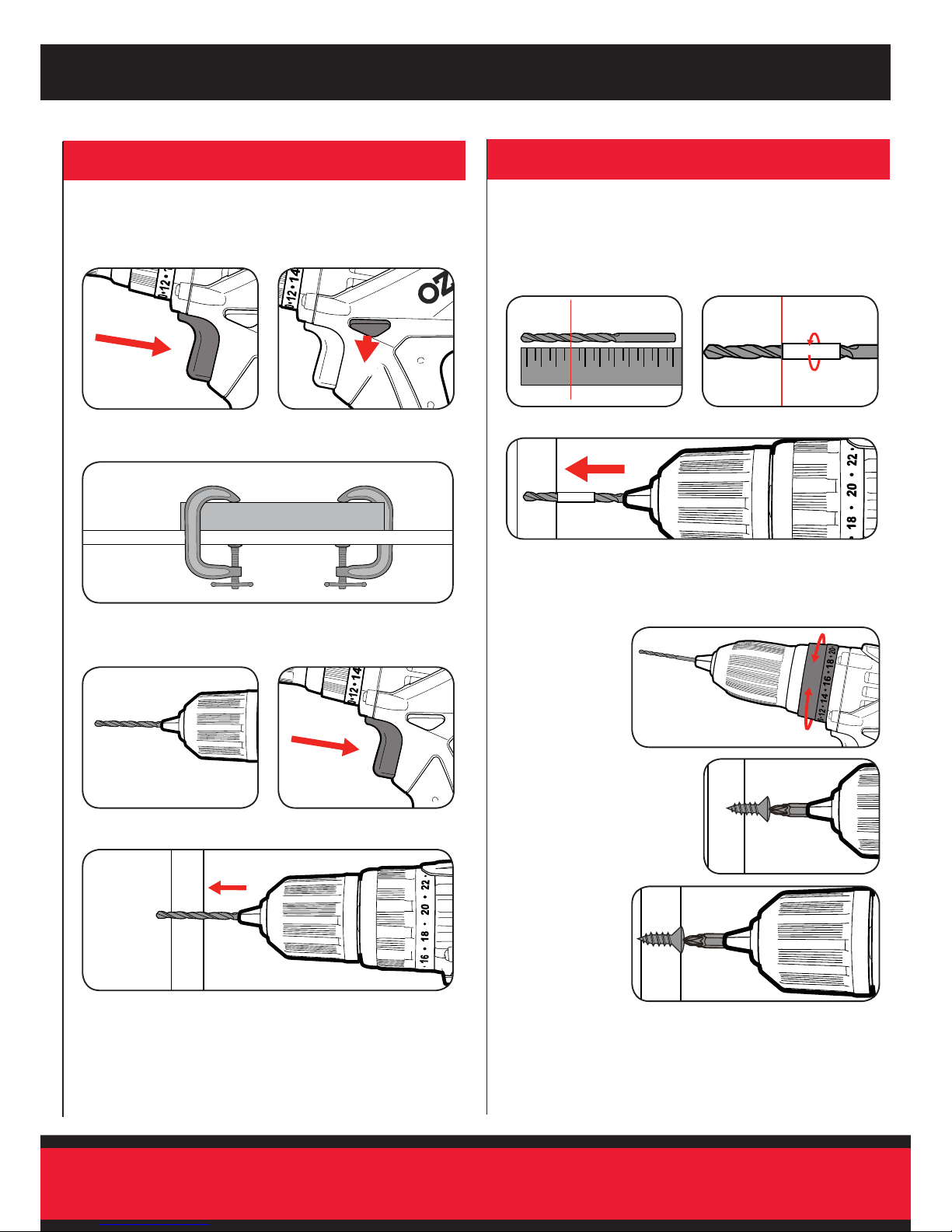

Before starting to drill, perform a few simple checks.
3 Secure the material to be drilled in a vice or clamp to stop it
turning whilst drilling.
1 Depress and release the
variable speed trigger to
ensure it is not locked on.
5 Hold the drill rmly and
place the bit at the point to
be drilled.
2 Check the forward/reverse
lever is on desired setting.
6 Depress the variable speed
trigger to start the drill.
7 Move the drill bit into the workpiece.
Note: Do not force the drill or apply side pressure to elongate
the hole. Let the drill do all the work.
3 Drill into the material until the surface reaches the start of the tape..
1 Measure along the drill bit to
indicate the desired depth
2 Wrap a small piece of masking
tape tightly around the drill bit.
Torque Settings
Drilling to a Preset Depth
Torque settings can alter the depth to which you can drill or drive into
a surface. To determine the torque setting required to drive a screw
perfectly ush to the work surface, follow the below steps.
A simple way of achieving a hole at a desired depth is to use masking
tape.
When drilling hard, smooth surfaces, use a centre punch to mark
the desired hole location. This measure will prevent the drill bit from
slipping off centre as you start the hole.
When drilling metals, use light oil on the drill bit to keep it from
overheating. The oil will prolong the life of the bit and increase drilling
action.
2 If the clutch rachets and
makes a clicking sound before
screw is ush, increase the
collar setting and continue
tightening.
1 Set the torque
collar to lowest
setting and tighten
the rst screw.
3 Repeat until you
reach the correct
setting/ screw
depth. Use this
setting for the
remaining screws.

MAINTENANCE TROUBLESHOOTING
Battery protection system
The tool is equipped with the battery protection system, which helps to
ensure a long service life.
The output power automatically cuts off during operation when the tool and/
or battery are placed under the following situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload,
then pull the switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use
or immediately after using the tool.
LED lights do not illuminate on charger
Check the charging adaptor is securely plugged into the wall outlet.
Check the battery is rmly connected to the charging cradle.
Check that the charging jack is securely connected to the charging cradle.
The battery has a short run time
Ensure the battery is properly charged. It will take 4-5 charging cycles
before the battery reaches optimum charge and run time.
Variable speed trigger is locked
Ensure that the forward / reverse lever is in the correct position; pressed
left for forwards direction, pressed right for backwards direction. If it is in
between the two settings the variable speed trigger will be locked.
The drill is stripping the screw head
Ensure you are starting with a low torque setting and holding the drill
securely onto the screw head. Increase the torque setting as required.
Drill has cut out during use
The battery charge could be completely depleted. Place the battery on the
charging cradle for 3-5 hours.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
1. When not in use, the drill should be stored in a dry, frost free
location, keep out of children’s reach.
2. Keep ventilation slots of the drill clean at all times and prevent
anything from entering.
3. If the housing of the drill requires cleaning, do not use solvents.
Use of a cloth only is recommended.
4. Blow out the ventilation slots with compressed air periodically .
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the drill by an unauthorised person or by
mishandling.

BATTERY AND CHARGER SAFETY WARNINGS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR
YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger, battery
pack and the product using the battery pack.
1. This charger is not intended for any uses other than charging rechargeable batteries. Any other
use may result in risk of re, electric shock or electrocution.
2. Do not place any object on top of the charger or place the charger on a soft surface that may
result in excessive internal heat. Place the charger in a position away from any heat source.
3. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when
disconnecting the charger.
4. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected
to damage or stress.
5. An extension cord should not be used unless absolutely necessary. Use of an improper extension
cord could result in the risk of re, electric shock or electrocution.
6. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in
any way. Have it checked by an electrician or power tool repairer.
7. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair
is required. Incorrect reassembly may result in a risk of electric shock, electrocution or re.
8. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning.
Removing the battery pack will not reduce this risk.
9. Never attempt to connect 2 chargers together.
10. DO NOT store or use the tool and battery pack in locations where the temperature may reach or
exceed 40ºC (such as inside sheds or metal buildings in summer).
11. The charger is designed to operate on standard household electrical power (240 volts). Do not
attempt to use it on any other voltage!
12. The battery pack is not fully charged out of the carton. First read the safety instructions and then
follow the charging notes and procedures.
13. The longest life and best performance can be obtained if the battery pack is charged when the
air temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below
10ºC or above 40ºC. This is important and will prevent damage to the battery pack.
14. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The
battery can explode in a re.
15. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack
breaks or cracks, immediately discontinue use and do not recharge.
16. During charging, the battery must be placed in a well ventilated area.
DESCRIPTION OF SYMBOLS
Warning Read instruction manual
ø Diameter
mA Milliamperes
Recycle battery Do not put in the rubbish
Polarity
Do not incinerate Do not get battery wet
Thermal cut-out protection
Transformer Energy
Rating (MEPS)
Double insulated
/min Revolutions or reciprocation per minute
Ah Amp hour
Indoor use only
Lithium Ion battery Do not use or store battery in
temperatures exceeding 50ºC
Electrical Emissions
Conformity (EMC)
Nm Newton Meters no No load speed
VVolts Hz Hertz
ac/~ Alternating current WWatts
Direct current
dc/
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your local
council authority for recycling advice.

SPARE PARTS Tool:
Model No.
Item
No. Description Part No.
How To Order
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any
further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
The following is a list of spare parts carried by Ozito.
Please contact Customer Service for any parts not
listed.
Item
No. Description Part No.

DRILL DRIVER SAFETY WARNINGS
WARNING! Wear ear protectors when drilling Exposure to noise can cause
hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause
personal injury.
Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.
Before drilling into walls, ceilings etc, ensure that there are no concealed power cables
or pipes in the cavity.
WARNING! Some dust created by power sanding, sawing, grinding,
drilling and other construction activities contain chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated timber
Your risk from exposure to these chemicals varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well ventilated
area and work with approved safety equipment, such as dust masks that are specially
designed to lter out microscopic particles.
This appliance is not intended for use by young or inrm persons unless
supervised by a responsible person to ensure that they can use the appliance
safely. Young children should be supervised to ensure that they do not play with the
appliance.
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tools charger is double insulated in accordance with AS/NZS 60745-1;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
The power supply for this products charger should be protected by a residual current device (rated at 30mA
or less). A residual current device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specically designated battery packs. Use of any other battery packs
may create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal
to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
1014
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
3 YEAR REPLACEMENT WARRANTY WITH
2 YEAR EXTENSION UPON REGISTRATION
Your Product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself) use
only. If a product is defective it will be replaced in accordance with
the terms of this warranty. You have the option to register your
product with Ozito on www.ozito.com.au/registrations for an
extended warranty of 2 years within four weeks of purchase. The
registration confirmation, which is sent out by e-mail, and the
original receipt showing the date of purchase will serve as proof of
the extended warranty. Lithium Ion batteries and chargers are
covered by a 36 month warranty and are excluded from the
warranty extension. Warranty excludes consumable.
Table of contents
Other Ozito Impact Driver manuals

Ozito
Ozito Power X Change PXBWS-340 User manual

Ozito
Ozito IWC-4100 User manual

Ozito
Ozito PXBIS-320 User manual

Ozito
Ozito IDL-018 User manual

Ozito
Ozito LID-3000 User manual

Ozito
Ozito PXDDK-301 User manual

Ozito
Ozito 12V DC User manual

Ozito
Ozito PXC PXBWS-340 User manual

Ozito
Ozito IWK-950 User manual

Ozito
Ozito PXBWK-130 User manual
