Ozito LCT-1800 User manual

CROSS LINE
LASER LEVEL
10m Working Range
INSTRUCTION MANUAL
SPECIFICATIONS
Battery: 3V DC (2 x AA Battery)
Laser Power: Class 2, <1mW
Laser Width: 100 LUX, 3mm/5m
Approx Run Time: 15 Hours
Working Range: 10m
Accuracy: ±0.5mm/m
Levelling Time: <5s
Levelling Range: >40
LCT-1800
WHAT’S IN THE BOX
Cross Line Laser Level
Tripod
2 x AA Batteries
ozito.com.au

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

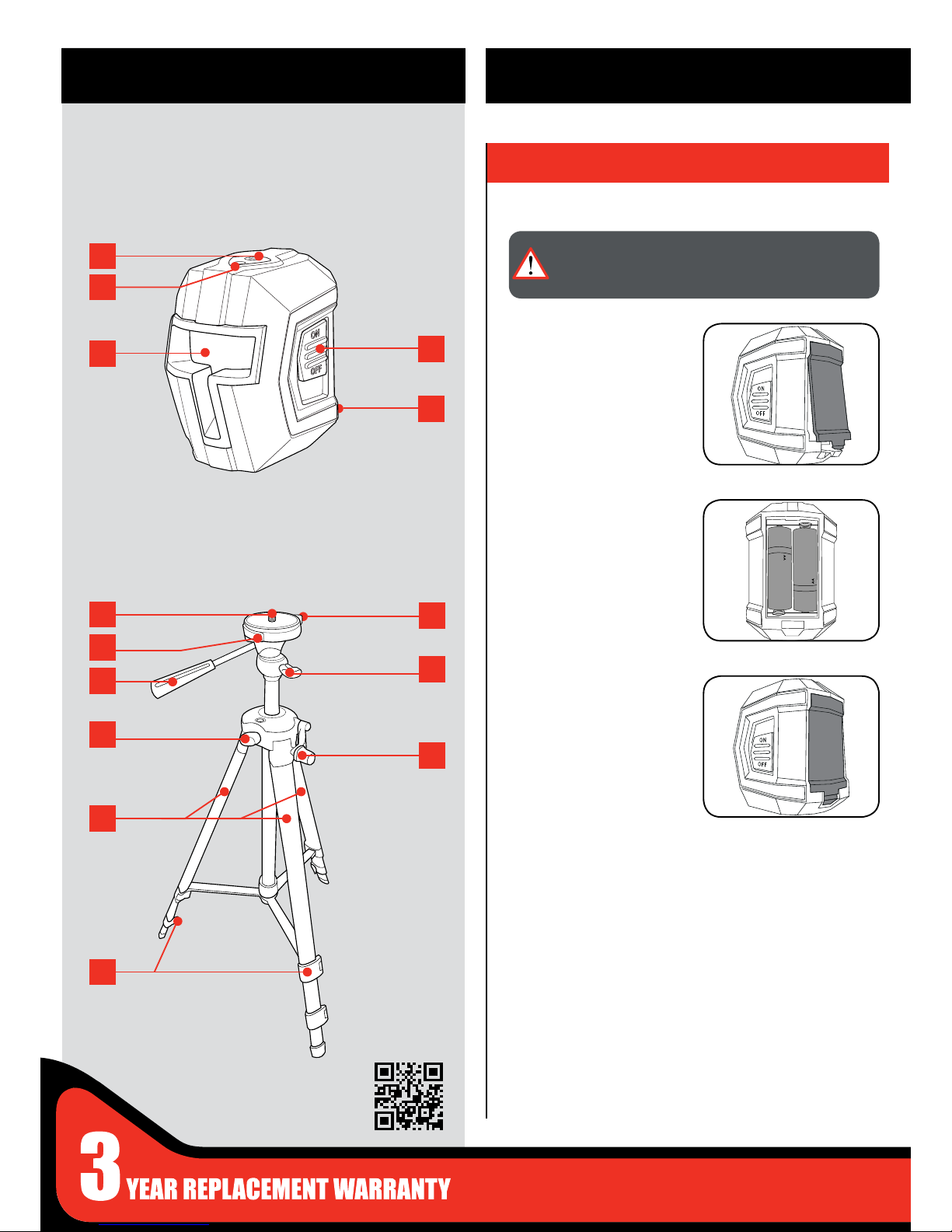

KNOW YOUR PRODUCT SETUP & PREPARATION
1. INSTALLING BATTERIES
1 On/Off &
Operating Mode Button
2 Auto Levelling Indicator Light
3 Laser Window
4 Automatic Levelling Switch
5 Battery Compartment
CROSS LINE LASER LEVEL WITH TRIPOD
1
2
34
5
612
13
14
7
8
9
10
11
The Cross Line Laser Level unit requires 2 x AA batteries to operate.
1 Remove the battery
compartment lid from the
laser unit using the tab at the
bottom.
3 Place the top of the battery lid
into the recess in the laser unit
and push the lid tab down to
secure in place.
2 Insert 2 x AA batteries in the
correct direction indicated
by the embossing inside the
battery compartment.
WARNING! BEFORE INSTALLING BATTERIES, ENSURE
THE UNIT IS SWITCHED OFF, INCLUDING AUTOMATIC
LEVELLING SWITCH, TO PREVENT THE LASER FROM
OPERATING.
6 1/4” Tripod Mounting Plate
7 Quick Release Lever
8 Angle Adjusting Handle
9 Height Locking Knob
10 Tripod Legs
11 Leg Locking Levers
12 Tilt Locking Knob
13 Rotation Locking Knob
14 Height Adjustment Handle

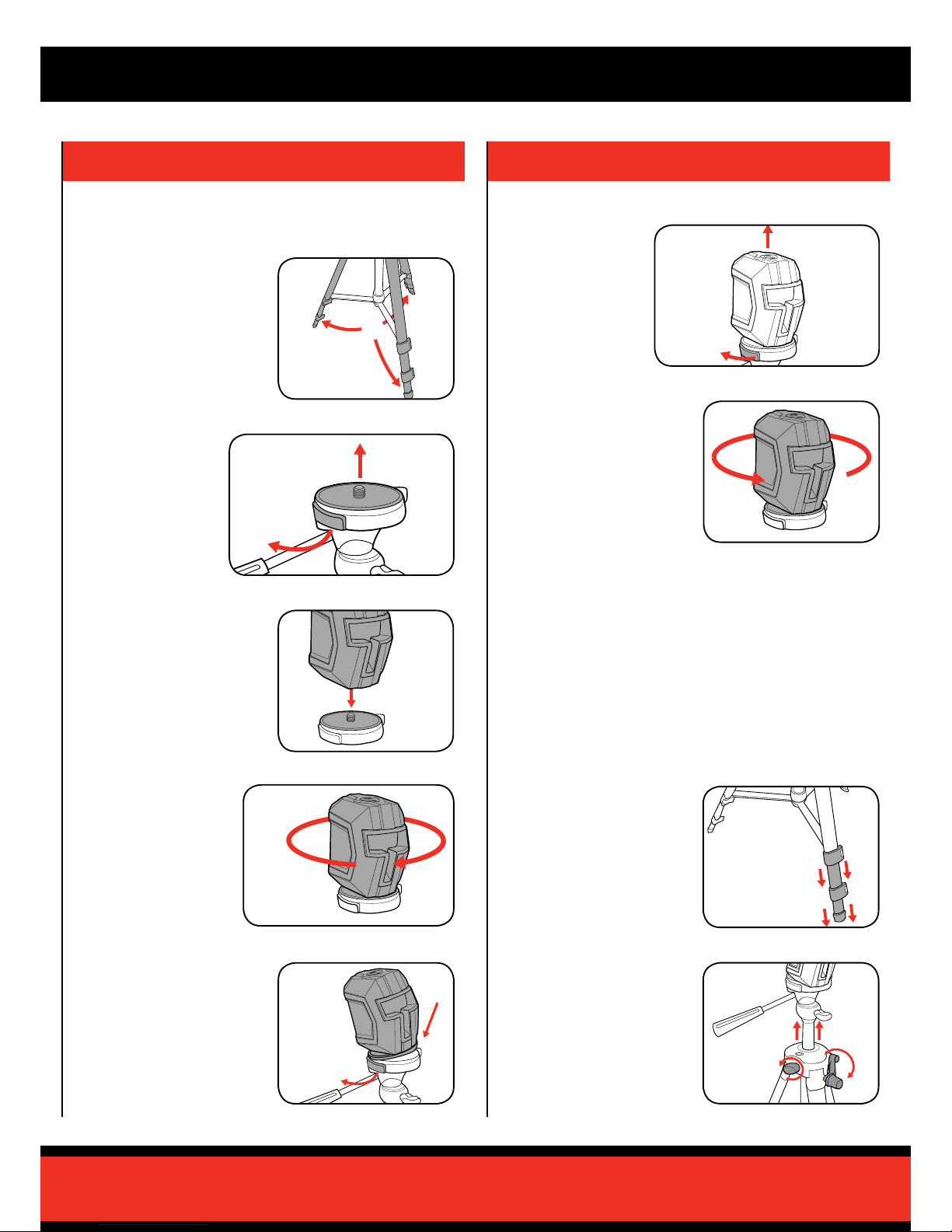

2. ATTACHING LASER TO TRIPOD 3. ADJUSTING THE TRIPOD
Adjusting the Height of the Laser
The tripod allows you to set up the laser in a specic position and easily
make adjustments to the height, angle and tilt of the unit.
1 Open up the 3 legs of the
tripod to stabilise the platform.
2 Remove the mounting
plate from the tripod
by lifting on the quick
release lever.
3 Align the 1/4” mount at the
base of the laser unit with the
1/4” screw at the top of the
tripod.
ab
a
b
4 Rotate the laser unit
clockwise to fasten the
unit to the mounting
plate securely.
5 Attach mounting plate with
laser to tripod by lifting the
quick release lever, then
slotting mounting plate into
tripod opening. Release lever
to secure.
Note: Make sure the laser is
pointing perpendicular to
the angle adjusting handle.
7 To remove the laser unit from
the mounting plate, rotate the
unit anti-clockwise.
6 To remove the laser
unit from the tripod,
lift the quick release
lever at the top of
the tripod and then
raise the laser and
mounting plate from
the tripod.
1 Extend the 3 legs of the tripod
by unlocking the leg locking
levers and raising the legs.
Note: Ensure the locking levers
are locked once desired
height is achieved to
secure the tripod.
2 To raise the laser further, wind
the height locking knob anti-
clockwise to loosen, then raise
the laser by winding the height
adjustment handle.
Note: Ensure the height locking
knob is secured after
adjusting, by rotating
clockwise.

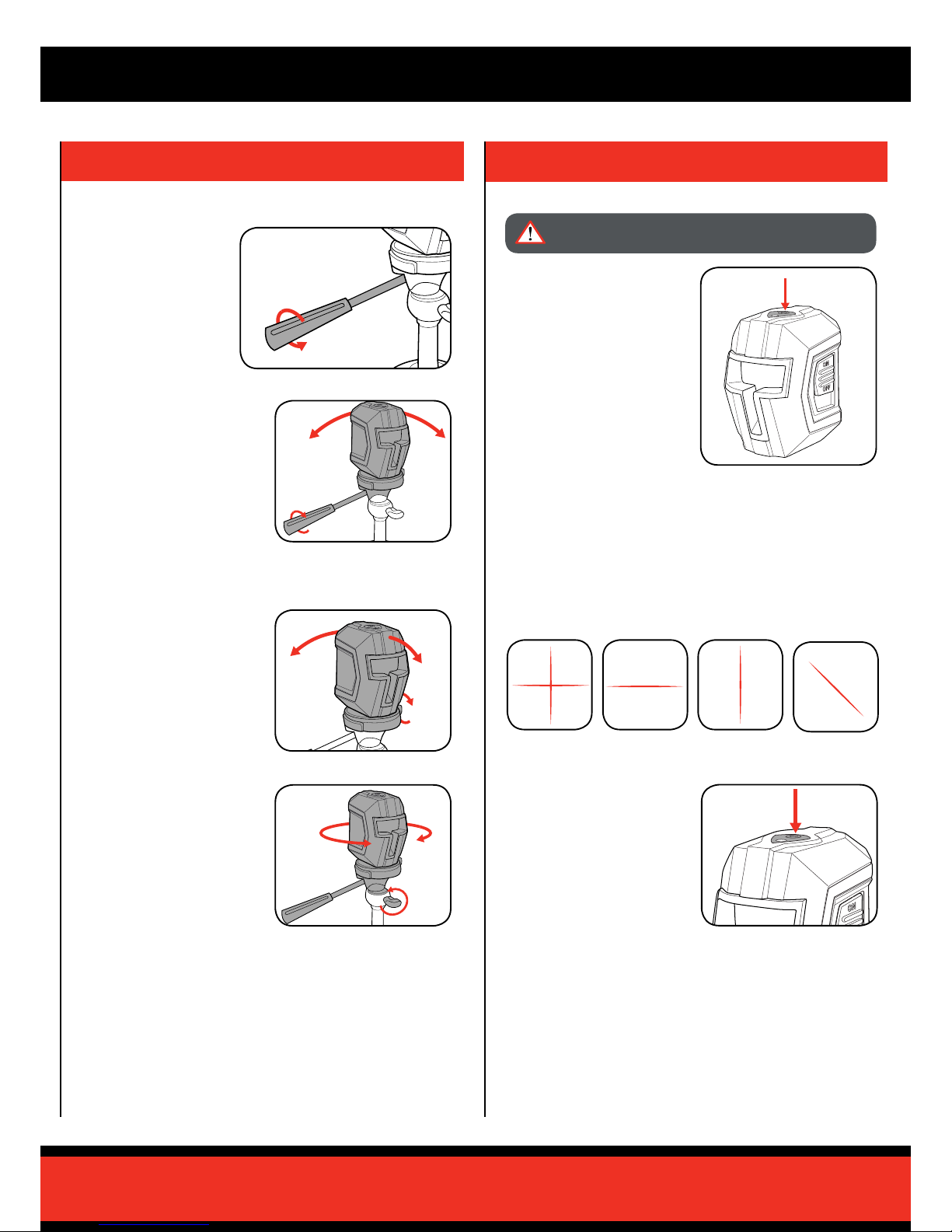

4. OPERATING THE LASER
OPERATION
Adjusting the Angle of the Laser
Laser Operating Mode
Adjusting the Tilt of the Laser
a
b
a
b
1 Rotate the angle
adjusting handle anti-
clockwise to allow the
handle to move.
2 Adjust unit to the desired
angle using the handle, then
secure in place by rotating the
handle clockwise.
1 Loosen the tilt locking knob by
rotating anti-clockwise. Then
adjust the tilt angle and secure
in place again.
Switching the Laser On and Off
Rotating the Laser
1 Turn laser on or off by pressing
the on/off button at the top of
the unit.
1 Loosen the rotation locking
knob by rotating anti-
clockwise. Adjust unit by using
the angle adjusting handle.
Note: Secure in place after
adjusting, by turning the
rotation locking knob
clockwise.
Note: Laser can also be turned
on, in auto levelling mode
by using the auto levelling
switch.
WARNING! ENSURE LASER WINDOW IS NOT AT EYE
LEVEL WHEN OPERATING.
Cross Line Horizontal Line Vertical Line Angled Line
The laser has 4 operating modes to assist in levelling as shown below.
1 To switch between these
modes, simply press the
on/off operating mode button
until the desired mode is
reached.

LCT-1800
Using the Auto-Levelling Function
1 Turn laser on or off by pressing
the on/off button at the top of
the unit.
Note: Laser can also be turned
on, in auto-levelling mode
by using the auto-levelling
switch.
A red light shown at the top of the unit will indicate that the unit is
auto-levelling is turned off, or at an angle out of auto-levelling range.
A green light indicates the auto-levelling switch is turned on and
operating correctly.
2 Press the auto-levelling
switch up into the on
position and then press
the operating mode
button to achieve the
desired mode.
Note: Ensure the laser is
level on tripod.
Disabling Auto-Levelling feature to Create an Angled Line
2 Turn the unit on using the on/
off switch, ensuring that the
auto-levelling switch is in
off position. Press the on/off
operating mode button until
desired laser more achieved.
Note: The indicator light will glow
red, indicating the auto-
levelling feature is in-active.
1 Attach the laser to the tripod
and adjust the tripod to the
desired height, angle and tilt.

Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your local
council authority for recycling advice.
MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Note: The LED light is not replaceable.
• When not in use, the tool should be stored in a dry, frost free
location, keep out of children’s reach.
• If the housing of the tool requires cleaning, do not use solvents
but cloth only.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the tool by an unauthorised person or by
mishandling of the tool.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
Warning
Read instruction manual
mW Milliwatt
Recycle battery
Do not incinerate
Transformer Energy
Rating (MEPS)
Ah Amp hour
Laser Light Laser Radiation
Electrical Emissions
Conformity (EMC)
V Volts Hz Hertz
ac/~ Alternating current W Watts
Direct current
dc/
Do not put in the rubbish
Regulatory Compliance Mark
(RCM)
Polarity
Do not get battery wet
Indoor use only
Do not use or store battery in
temperatures exceeding 50ºC
Laser does not turn on
The batteries may be depleted. Ensure you have inserted 4 AA batteries
with a full charge.
Make sure the batteries are in the correct direction as indicated by the
embossing in the battery compartment.
The indicator light is glowing red
This indicates that the auto-levelling feature is not in use. This is desired if
you require a line at a angle that is not level.
If this occurs when attempting to produce a level line, it means the angle
of the unit is outside the auto-levelling range. You will need to reset the
tripod to obtain a closer angle to level.
Laser line is ashing
This indicates that the product is outside of auto-levelling range. This is
desired if you require a line at a angle that is not level. To product a level
line, straighten the product on the tripod until green indicator light shows
on top of the product.

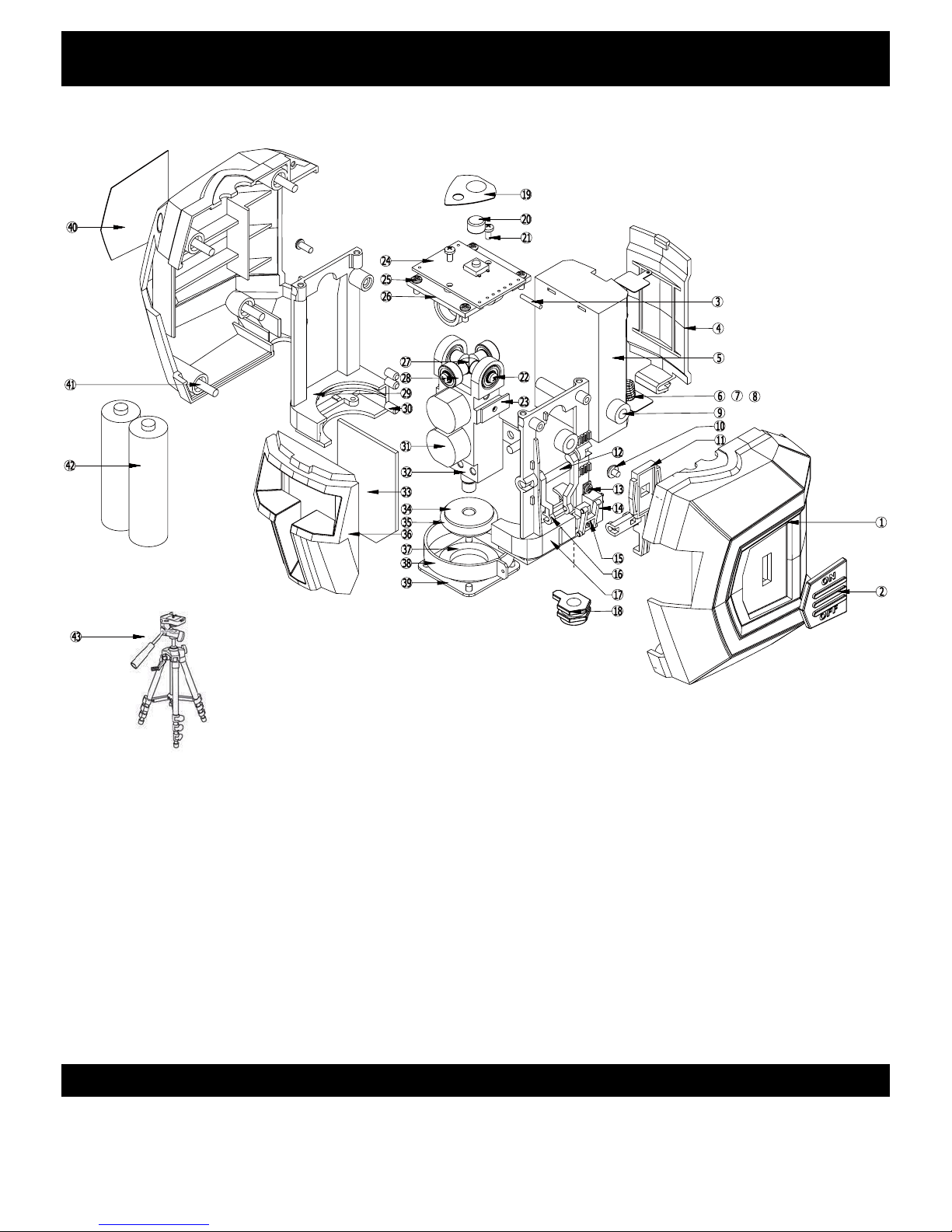

SPARE PARTS Tool: Cross Line Laser Level
Model No. LCT-1800
How To Order
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any
further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
Tool: Cross Hair Line Laser with Tripod
Model No. LCT-1800

WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The tool has been designed for 230V and 240V only. Always check that the power supply corresponds to the
voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on
the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specically designated battery packs. Use of any other battery packs may
create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
BATTERY & LASER LINE SAFETY WARNINGS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR
TOOL AND BATTERY
• DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed
40ºC (such as inside sheds or metal buildings in summer).
• Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The battery
can explode in a re.
Additional safety instructions for laser lights
The laser light/laser radiation used in the Ozito Cross Line Laser LCT-1800 laser is Class 2 with maximum 1mW
and 650nm wavelengths. These lasers do not normally present an optical hazard, although staring at the beam
may cause ash blindness.
WARNING! Do not stare directly at the laser beam. A hazard may exist if you deliberately stare into the
beam. Please observe all safety rules as follows:
• The laser shall be used and maintained in accordance with the manufacturer’s instructions.
• Never aim the beam at any person or an object other than the work piece.
• The laser beam shall not be deliberately aimed at personnel and shall be prevented from being directed
towards the eye of a person for longer than 0.25s.
• Always ensure the laser beam is aimed at a sturdy work piece without reective surface’, i.e. wood or rough
coated surfaces are acceptable. Bright shiny reective sheet steel or the like is not suitable for laser use as
the reective surface could direct the beam back at the operator.
• Do not change the laser light assembly with a different type. Repairs must only be carried out by a power tool
repairer.
Caution: Use of controls or adjustments or performance of procedures other than those specied herein may
result in hazardous radiation exposure. Please refer to the relevant Australian standards, AS 2397 and AS/
NZS2211 for more information on Lasers.

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Lithium Ion batteries are covered
by a 12 month warranty. Warranty excludes consumable parts,
for example: batteries etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0815
Table of contents
Other Ozito Laser Level manuals
