Ozito TLR-090 User manual

90 DEGREE
TILE LASER
7m Range
INSTRUCTION MANUAL
SPECIFICATIONS
Battery: 4.5V DC (3 x AA Battery)
Laser Power: Class 2, <1mW
Working Range: 7m
Laser Diode: 635nm
Accuracy: ±0.5mm/m
Weight: 80g
TLR-090
WHAT’S IN THE BOX
Tile Laser
Wall Mount Bracket
3 x AA Batteries
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Lithium Ion batteries are covered
by a 12 month warranty. Warranty excludes consumable parts.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
0617

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
8 AA Battery x 3 9 Wall Mount Bracket
KNOW YOUR PRODUCT SETUP & PREPARATION
1. INSTALLING BATTERIES
1 Angle Scale
2 Suction Cap Push Button
3 Power Button
4 90° Line Lasers
5 Angle Reference Point
6 Magnetic Base
7 Dual Spirit Levels
90° TILE LASER
ACCESSORIES
8
The Tile Laser unit requires 3 x AA batteries to operate.
1 Remove the battery
compartment lid from the base
of the laser unit using the tab.
3 Place the bottom of the battery
lid into the recess in the laser
unit and push the lid tab down
to secure in place.
2 Insert 3 x AA batteries in the
correct direction indicated
by the embossing inside the
battery compartment.
WARNING! BEFORE INSTALLING BATTERIES, ENSURE
THE UNIT IS SWITCHED OFF TO PREVENT THE LASER
FROM OPERATING.
3
4
2
7
5
1
6
9

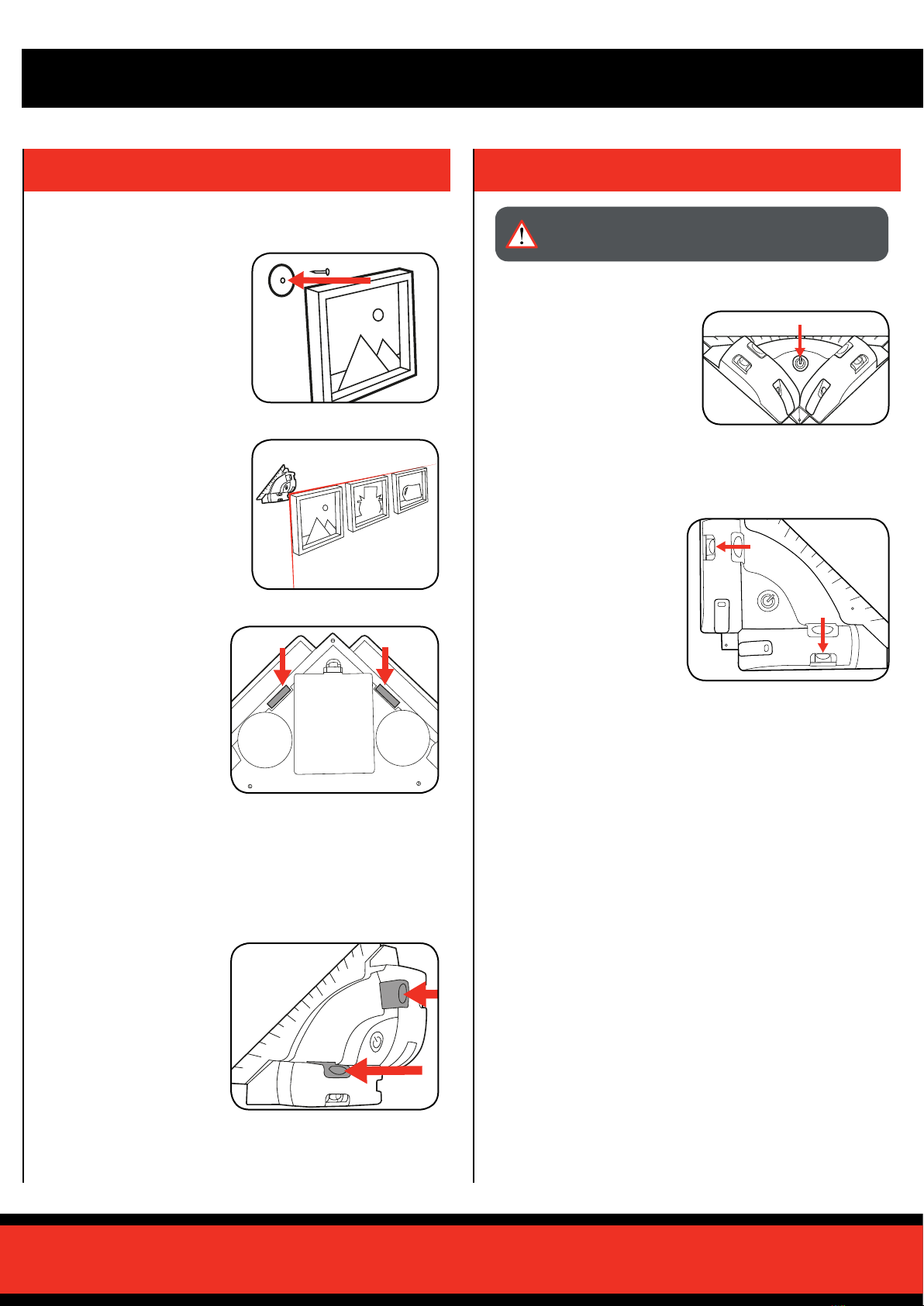

2. WALL MOUNT BRACKET 3. CONTROLS
OPERATION
Switching On and Off
Spirit Levels
Magnetic Mounting
A wall mount bracket is included with your tile laser to allow you to
attach to a wall using a screw or nail.
1 Attach the mounting bracket to
a wall using a screw or nail. Be
sure that the head of the nail
or screw ts into the sunken
recessed side of the plate so
that both magnets on the base
connect rmly.
1 To turn the Tile Laser on, push
the on/off switch located ontop
of the unit.
The Tile Laser has 2
perpendicular spirit levels to
allow you to check if the unit is
perfectly horizontal or vertical.
The laser unit has magnets on
the base to allow mounting to
metal surfaces.
2 To turn the laser unit off, push
the on/off switch again.
2 Place the back of the laser
level onto the wall mount. Use
the spirt level to ensure your
projected lines are level.
WARNING! ENSURE LASER WINDOW IS NOT AT
EYE LEVEL OR DIRECTED TOWARDS OTHERS
WHEN OPERATING.
Suction Cap Mounting
The laser unit has suction caps on the base and at the rear to allow
mounting to glass tiles or similar smooth surfaces.
1 Place Tile Laser against the
surface.
2 Press both suction cap
buttons to allow the suction
cups to mount.

TLR-090

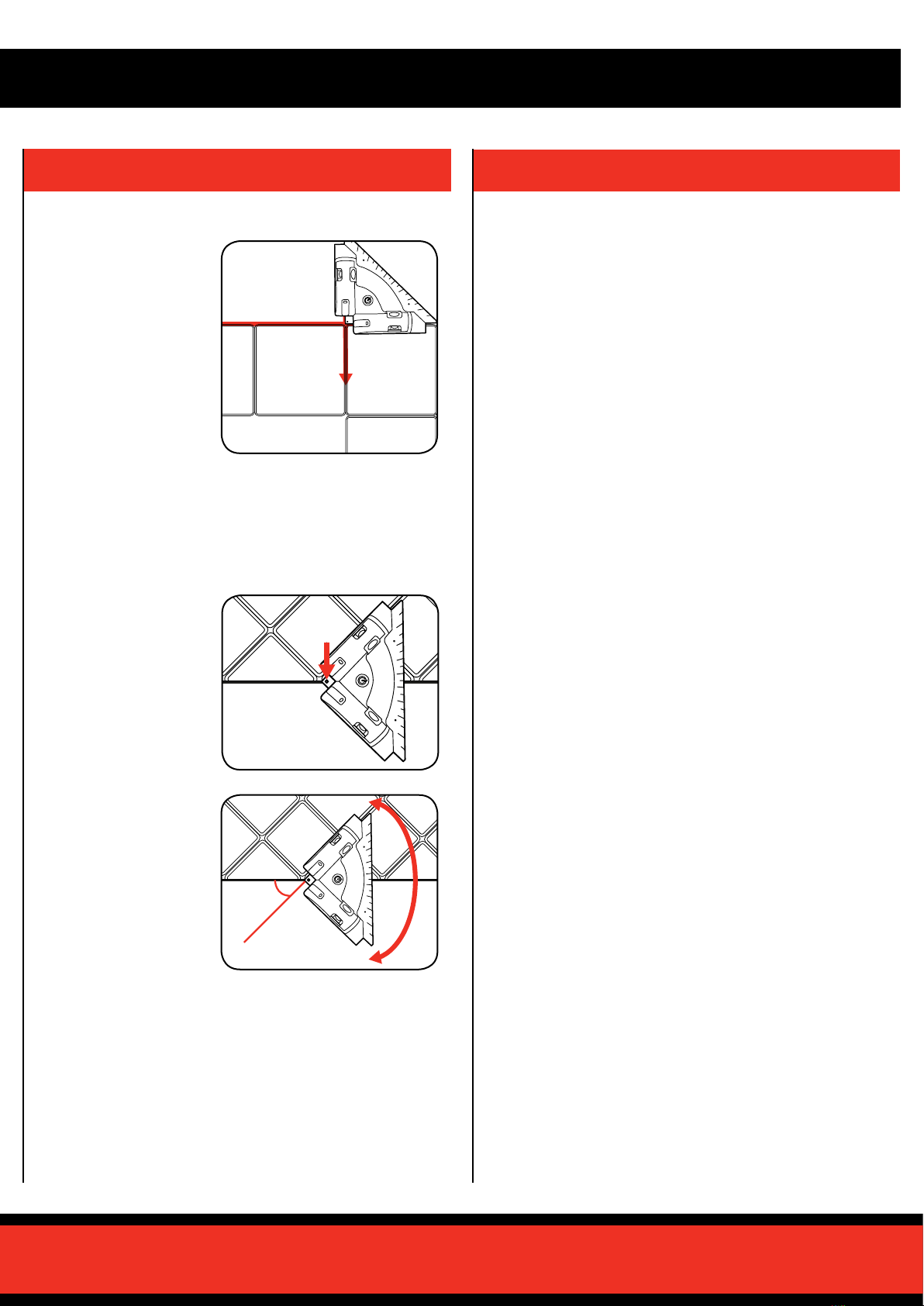

4. OPERATING MODES
Using the Tile Laser for 45° or other angles
Using the Tile Laser on a wall
1 Position the tile Laser
against the surface in the
desired location.
Note: This can be done by
mounting the unit with the wall
bracket or use of the suction
caps.
2 Press the on/off switch to
project the laser lines.
1 Align the angle reference
point with the edge of a tile
or horizontal line.
45°
2 Using the reference point as
a pivot, rotate the laser until
the line is aligned with the
desired angle on the scale.

Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your local
council authority for recycling advice.
MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Note: The LED light is not replaceable.
• When not in use, the tool should be stored in a dry, frost free
location, keep out of children’s reach.
• If the housing of the tool requires cleaning, do not use solvents
but cloth only.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the tool by an unauthorised person or by
mishandling of the tool.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
Laser does not turn on
The batteries may be depleted. Ensure you have inserted 3 x AA
batteries with a full charge.
Make sure the batteries are in the correct direction as indicated by the
engraving inside the battery compartment.
The laser line is very small
The back of the laser unit must be placed against a wall for the laser line
to project along the surface.
Warning
Read instruction manual
mW Milliwatt
Laser Light Laser Radiation
V Volts
W Watts
Direct current
dc/
Do not put in the rubbish
Regulatory Compliance Mark
(RCM)
Indoor use only

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceofammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
notuseapowertoolwhileyouaretiredorundertheinuenceofdrugs,alcoholormedication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on
the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Rechargeonlywiththechargerspeciedbythemanufacturer.A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Usepowertoolsonlywithspecicallydesignatedbatterypacks.Use of any other battery packs may
create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
 accidentallyoccurs,ushwithwater.Ifliquidcontactseyes,additionallyseekmedicalhelp.Liquid
ejected from the battery may cause irritation or burns.
6. Service
a. Haveyourpowertoolservicedbyaqualiedrepairpersonusingonlyidenticalreplacementparts.
This will ensure that the safety of the power tool is maintained.
GENERAL POWER TOOL SAFETY WARNINGS
BATTERY & TILE LASER SAFETY WARNINGS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR
TOOL AND BATTERY
• DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed
40ºC (such as inside sheds or metal buildings in summer).
• Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The battery
can explode in a re.
Additional safety instructions for laser lights
The laser light/laser radiation used in this laser unit is Class 2 with maximum 1mW and 650nm
wavelengths. These lasers do not normally present an optical hazard, although staring at the beam may
cause ash blindness.
WARNING! Do not stare directly at the laser beam. A hazard may exist if you deliberately stare into
the beam. Please observe all safety rules as follows:
• The laser shall be used and maintained in accordance with the manufacturer’s instructions.
• Never aim the beam at any person or an object other than the work piece.
• The laser beam shall not be deliberately aimed at personnel and shall be prevented from being
directed towards the eye of a person for longer than 0.25s.
• Always ensure the laser beam is aimed at a sturdy work piece without reective surface’, i.e. wood or
rough coated surfaces are acceptable. Bright shiny reective sheet steel or the like is not suitable for
laser use as the reective surface could direct the beam back at the operator.
• Do not change the laser light assembly with a different type. Repairs must only be carried out by a
power tool repairer.
Caution: Use of controls or adjustments or performance of procedures other than those specied
herein may result in hazardous radiation exposure. Please refer to the relevant Australian standards,
AS/NZS 60825 for more information on Lasers.
