Ozito Hero SQ TLR-090A User manual

85°
75°
67.5°
65°
55°
45°
35°
25°
15°
5°
90° TILE
LASER
7m Range
INSTRUCTION MANUAL
SPECIFICATIONS
Power: 4.5V DC (3 x AA Batteries)
Laser Wavelength: 635nm
Laser Power: Class II, ,1mW
Working Range: 7m
Accuracy: ±0.5mm/m
Weight: 0.355kg
TLR-090A
STANDARD EQUIPMENT
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: valve adapters
and accessories.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
85°
75°
67.5°
65°
55°
45°
35°
25°
15°
5°
90° Tile Laser
Wall Mounting Plate, 3 x AA
Batteries
0719

ONLINE MANUAL
Scan this QR Code with
your mobile device to take
you to the online manual.
85°
75°
67.5°
65°
55°
45°
35°
25°
15°
5°
+
-
+
-
+
-
The tool requires 3 AA batteries to operate.
1. Remove the metal wall
mounting plate if it is attached.
Note: The magnets on the base
of the tool are quite strong. Use
a at screwdriver to lift the plate
o󰀨 the tile laser if necessary.
2. Push in the tab and lift o󰀨 the
battery compartment lid.
3. Insert 3 AA batteries as
directed by the embossing in
the compartment.
4. Replace the battery
compartment lid by sliding the
lower tabs into the recess and
pressing the top half of the lid
into place.
1. On/O󰀨 Button
2. Spirit Levels
3. 90° Line Lasers
4. Angle Reference Point
5. Angle Scale
6. Wall Mounting Plate
7. Battery Compartment
8. Magnetic Base

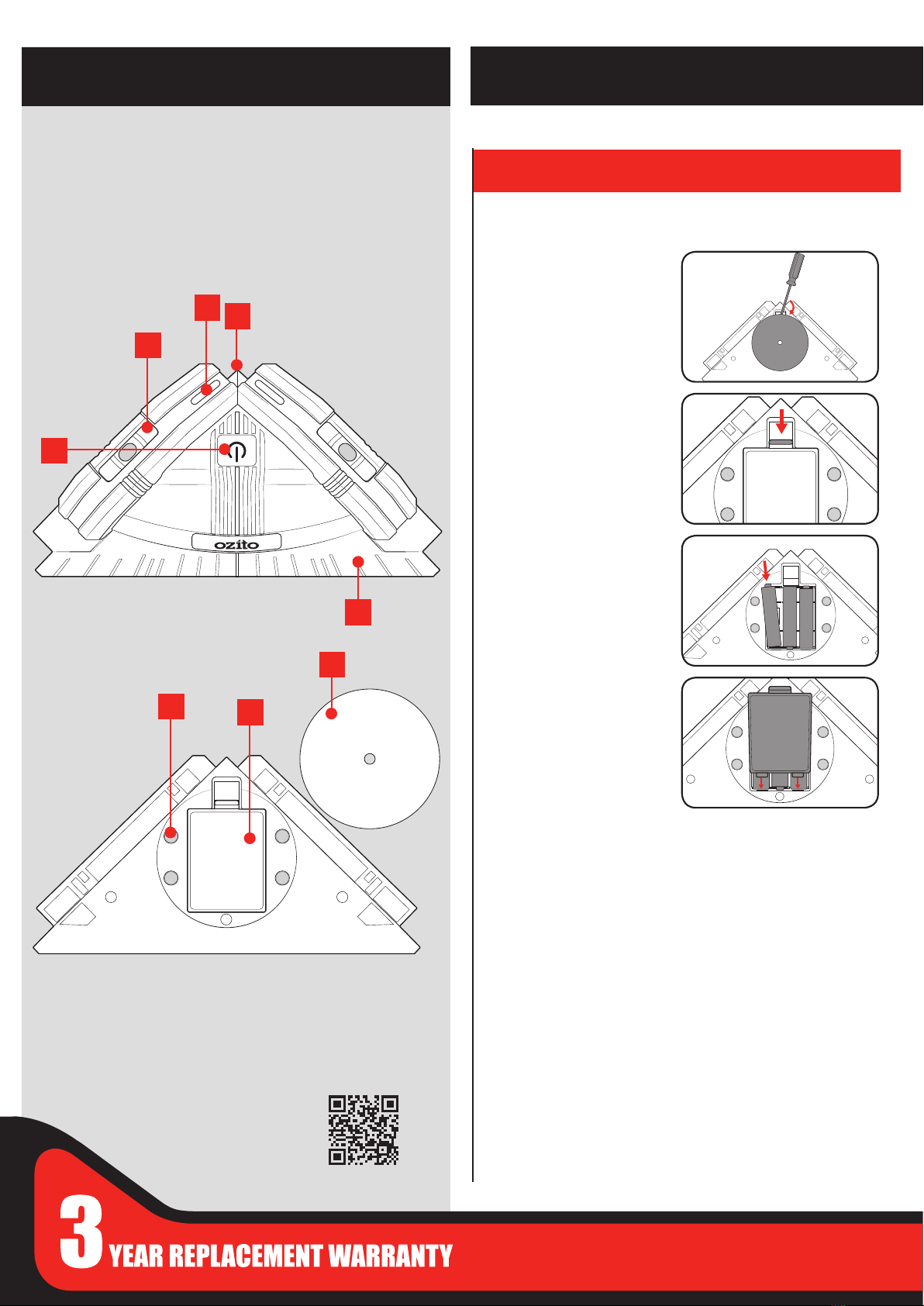

90° TILE LASER
TOP VIEW
BOTTOM VIEW
KNOW YOUR PRODUCT
1. INSTALLING BATTERIES
SETUP & PREPARATION
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
87
3
2
1
4
6
5

Installing The Wall Mounting Plate On A Wall
1. Remove the wall mounting plate from the tool.
2. Attach the mounting bracket
to a wall using a screw or nail
(not included). Be sure that
the head of the nail or screw
ts into the sunken recessed
side of the plate so that the
magnets on the tool can
connect rmly.
3. Place the base of the tile laser
onto the mounting plate.
4. Using the spirit levels as a
guide, rotate the tile laser on
the mounting plate until it is
fully level.
Attaching The Tile Laser
To A Metal Surface
The magnets on the base of the
tool can also be attached directly
to a metal surface.
Switching The Tool On/O󰀨
1. Press the on/o󰀨 button once
to turn the unit on.
2. Press the button again to turn the lasers o󰀨.
Spirit Levels
The tile laser also has 2 perpendicular spirit levels to ensure the tool
is perfectly horizontal or vertical during installation and use.
2. USING THE WALL MOUNT 3. CONTROLS
OPERATION
+
-
+
-
+
-
85°
75°
67.5°
65°
55°
45°
35°
25°
15°
5°
85°
75°
67.5°
65°
55°
45°
35°
25°
15°
5°
WARNING! ENSURE THE LASER WINDOWS ARE
NOT AT EYE LEVEL OR DIRECTED TOWARDS
YOURSELF OR OTHERS WHEN OPERATING.

Using The 90° Alignment
1. Position the tile laser against
the surface in the desired
location.
2. Use the spirit levels to check
that the tool is perfetly level.
3. Press the on/o󰀨 switch to
project the laser lines.
Using The Tile Laser For Other Angles
1. Align the angle reference
point with the edge of a tile or
horizontal line.
2. Using the reference point as a
pivot, rotate the laser until the
horizontal line/edge is aligned
with the desired angle on the
scale.
3. Press the on/o󰀨 switch to project the laser lines. The laser line will
then be at the indicated angle beneath the horizontal.
Laser does not turn on
Ensure that the batteries have been inserted in the correct direction
within the compartment.
The batteries may be depleted. Replace the batteries with new ones
and see if the tool will turn on.
The laser line is very small
The back of the laser unit must be placed against a at surface for
the laser line to project along the plane.
TLR-090A
4. OPERATING MODES 5. TROUBLESHOOTING
85°
75°
67.5°
65°
55°
45°
35°
25°
15°
5°
85°
75°
67.5°
65°
55°
45°
35°
25°
15°
5°
85°
75°
67.5°
65°
55°
45°
35°
25°
15°
5°
15°
85°
75°
67.5°
65°
55°
45°
35°
25°
15°
5°

MAINTENANCE DESCRIPTION OF SYMBOLS
Cleaning
1. We recommend that you clean the appliance immediately after you
use it.
2. Use a dry cloth to clean the housing. Do not use cleaning agents
or solvents; these may be aggressive to the plastic parts in the
appliance. Ensure that no water can get into the interior of the
appliance.
Storage
Store the tool in a dry location which is not accessible to unauthorised
persons.
Do not store the tool underneath other objects, haphazardly in a
drawer or similar where it may be turned on accidentally.
Remove batteries before long term storage.
Lasers
The laser LEDs are not replaceable.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by the repair of the tool by an unauthorised person or
by mishandling of the tool.
WARNING! BEFORE CLEANING OR CARRYING
OUT ANY MAINTENANCE PROCEDURE, MAKE
SURE THAT THE POWER SUPPLY IS REMOVED TO
PREVENT ACCIDENTAL STARTING.
VVolts L/s Litres per second
mbar Millibar Indoor use only
Warning
Laser light radiation
Regulatory Compliance Mark
(RCM)
Read Instruction Manual
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check
with your local council authority for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in
the environment. Please recycle packaging where facilities
exist. Check with your local council authority for recycling
advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]

WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury and
material damage.
Read the whole manual carefully and make sure you know how to switch the tool o󰀨 in an emergency,
before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
WARNING! The appliance is not to be used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction.
Young children should be supervised to ensure that they do not play with the appliance.
• DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed
40ºC (such as inside sheds or metal buildings in summer).
• Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The
battery can explode in a re.
• Do not use tool in wet conditions.
Additional safety instructions for laser lights
• The laser light/laser radiation used in this laser unit is Class 2 with maximum 1mW and 650nm
wavelengths. These lasers do not normally present an optical hazard, although staring at the beam
may cause ash blindness.
WARNING! Do not stare directly at the laser beam. A hazard may exist if you deliberately
stare into the beam. Please observe all safety rules as follows:
• The laser shall be used and maintained in accordance with the manufacturer’s instructions.
• Never aim the beam at any person or an object other than the work piece.
• The laser beam shall not be deliberately aimed at personnel and shall be prevented from being
directed towards the eye of a person for longer than 0.25s.
• Always ensure the laser beam is aimed at a sturdy work piece without reective surface’, i.e.
wood or rough coated surfaces are acceptable. Bright shiny reective sheet steel or the like is not
suitable for laser use as the reective surface could direct the beam back at the operator.
• Do not change the laser light assembly with a di󰀨erent type.
WARNING! Use of controls or adjustments or performance of procedures other than
those specied herein may result in hazardous radiation exposure. Please refer to the relevant
Australian standards AS/NZS 60825 for more information on lasers.
BATTERY & TILE LASER SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings
refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b.Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations di󰀨erent from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
