OZOFRESH ECLIPSE 4000 User manual

ECLIPSE 4000
EN Instruction Manual
FRESH AIR ON DEMAND.
ozofresh.co.uk
Ozofresh_Eclipse4k_V1

EN

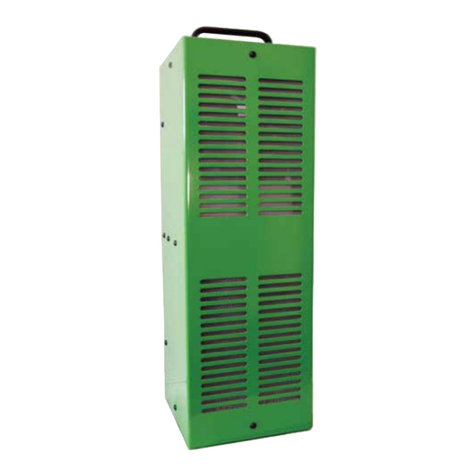

2ABOUT YOUR OZOFRESH ECLIPSE 4000 EN
ECLIPSE 4000
The Eclipse will destroy those unwanted odours that are familiar
with rented properties, second hand and rental cars, B&B’s, small
hotels, caravans and boats. The Eclipse will eliminate airborne
pollutants, bad bacteria, mould, mildew spores, completely
removing them and leaving the area smelling fresh
This “budget” ozone machine is ideal for small businesses,
landlords, letting agents, car valet shops for removing odours
when there are no time constraints. It is popular with cleaning
companies as a rst purchase of an ozone generator to see the
power that ozone treatments can provide.
YOUR NEW
CONFORMITY
DECLARATION OF
Model No. Eclipse 4000. This unit fully complies with CE rules
of EMC regulations: EN 61000-61, EN 61000-63, EN61000-32,
EN61000-33.
This unit is for indoor use only and has the necessary instructions
of use and warnings attached to the outside of the enclosure with
a reference to the Owners’ manual, service and the limitations of
use. It also bears the mandatory information such as a suppliers
name, CE marking, fuse, voltage and current ratings etc.
This unit is RoHS compliant (restriction of hazardous materials).

EN 3
ECLIPSE 4000 SAFETY GUIDANCE
PRECAUTIONS
SAFETY
1. This ozone generator is intended for Commercial / Industrial
and Domestic users. Any other user should seek advice from
an expert before considering using this generator. All users of
this product should assume full responsibility for the correct
use as well as any damage or injury that may arise through its
incorrect use.
2. All users should fully acquaint themselves with the contents of
the MATERIAL SAFETY DATA SHEET, which forms an integral
part of this operating manual.
3. The Eclipse is capable of producing ozone concentrations
Low enough for treatment of Occupied spaces as well as High
enough for Shock treatments of Unoccupied spaces. The
resultant ozone concentration (in ppm) will depend on the
volume of the treated zone, leakage ventilation,
temperature, humidity, period of ozone production , and
load of the treated space. Due to all of these variables, it is
impossible to determine likely ozone concentrations with any
level of accuracy, sufce to state that in most applications, the
Eclipse is capable of exceeding the 0.2ppm Short-Term
Exposure Limit within a matter of a few minutes in small
rooms. It is also important to note that the concentration of
ozone is considerably higher in close proximity to the ozone
generator. Treatment of Occupied spaces should only be
carried out under controlled conditions where Ozone
concentration monitors and/or alarms and/or automatic
shut-off controls are installed. It is the responsibility of the
user to ensure appropriate measures are taken to keep
people and pets from entering the treatment zone, and to
warn them of the dangers.

EN
4ECLIPSE 4000 SAFETY GUIDANCE cont...
4. At or below the Occupational Exposure Limit (0.1ppm), the
ozone smells like very fresh air immediately after a
thunderstorm. As the concentration increases toward 0.2ppm,
it exhibits a sharp “bleachy” odour. A strong smell of ozone
normally indicates an ozone concentration which exceeds
the 15 minute exposure limit (0.2ppm). At this concentration,
irritation or soreness within the throat may be experienced. It
must be re-iterated that due to different nose sensitivities, the
smell of ozone should not be relied upon to indicate the likely
ozone concentration.
5. Ozofresh and its authorised distributors/agents accept no
responsibility for any damage or injury caused by this product
or damage which may arise through its use by the purchaser
or by others. The purchaser is responsible for ensuring that
this product is correctly installed, operated, maintained, and
used only by persons made aware of the safety requirements
and its safe use.
General safety warnings
• The unit is not waterproof or splash-proof, and is intended
only for indoor use. Do not allow water to enter the unit.
Water entry will present a danger of electrocution as well as
damage the ozone plate. Water damage is excluded from the
Warranty.
• Do not handle the generator with wet hands whilst it is
connected to a power supply.
• Connect only to a properly earthed power supply of the
voltage stated on the unit (230V AC in the UK).
• Do not open the generator enclosure whilst it is connected to
a power supply.

EN 5
• The Eclipse utilizes very high voltages to generate ozone, and
as such, should not be used in extremely high humidity
environments – especially where a moisture mist or fog is
visible. This will also drastically reduce the ozone output!
• Keep the generator out of reach of children and unplug when
not in use.
• The generator should be kept under lock & key when not in
use, and only used by persons acquainted with the contents
of this user manual.
• Do not use this generator in an environment where ammable
gases or explosive materials are present.
• Ozone is a strong oxidiser and can corrode readily oxidisible
metals and lactoprene materials (latex and natural rubber).
• The person(s) operating the equipment should ensure that
nobody enters the treatment zone until it is safe to do so. It
is preferable to lock all access points where possible, and to
append notices at all possible entry points which make it
evident that access is prohibited and dangerous.
• Provided that good ventilation is provided after suspending
the ozone generation (in Unoccupied Shock Treatments), a
period of at least 30 minutes should be allowed before entry
is allowed into the treated zone. However, where suitable
protective breathing apparatus is used, this condition does
not apply.
ECLIPSE 4000 SAFETY GUIDANCE cont...

EN
6
SPECIFICATIONS
TECHNICAL
Ozone output: 5000mg/hr
Dimensions: 300 x 180 x 140 mm
Weight: 2.5kg approx.
Mains supply: 220-240V/25W via mains switch, with fuse and IEC
mains cable
Coverage: 150m3
Specication and colour of the product may change without prior
notice unless previously agreed.
POWER SWITCH
OZONE OUTPUT
CARRY HANDLE
AIR INTAKE
FILTER
DURABLE
CONSTRUCTION
ECLIPSE 4000 SPECIFICATIONS

EN 7
INSTRUCTIONS
OPERATING
1. Only connect the generator to a power supply of the correct
voltage as indicated on the product information label which is
afxed to the enclosure.
2. Vacate people, pets, plants, and materials (mainly latex &
natural rubber components and fabrics which may be
sensitive to colour change) which may be sensitive to
moderate to high ozone concentrations.
3. Set the Eclipse ozone generator at an elevated position close
to the centre of one of the sides of the treatment zone.
4. Close all doors, windows and air vents.
5. In large volume spaces, it is desirable to provide a fan to
assist in circulating the ozone
6. Switch on the red power switch – the red neon light built into
the switch will light up
7. The fan will be operating.
8. Lightly press and release the timer button switch on the top
of the unit for the desired program number is displayed. The
unit will then start producing ozone.
HOW TO OPERATE YOUR ECLIPSE 4000

EN
8HOW TO OPERATE YOUR ECLIPSE 4000 cont..
9. Conrm that the generator is producing ozone. When the unit
is running, the fan can be heard and the sound of electric
discharge (sparks) can be heard. You can safely wait a short
while to detect the smell of ozone – but do not inhale directly
from the generator exit.
10. Leave the room.
11. After the desired treatment time, ozone will cease and the
unit will be in standby mode,
12. Allow the room to vent for a minimum of 30 to 45 minutes to
allow the residue ozone to degrade.
13. Then switch the unit off and continue to ventilate the
treatment zone. This should be extended to 1 hours if the
room cannot be effectively ventilated.
Program
Ozone
Generation
Time
Usage
Scenario
115 minutes Light odours small
room
230 minutes Light odours
medium size room
345 minutes Stronger odours
and/or large room
460 minutes Stronger odours
and/or large room
Notes:
• The generator may not start making ozone immediately after
switching it on when the temperature is very low, or the
humidity is very high. Ozone generation will begin once the
ozone plate warms up after a few seconds.
• The treatment time should be extended when the
temperature exceeds 30°C, or when the humidity is over 75%.
Program / Timer Modes
Please call us if
you need advice
on the program
selection for a
different room
size or odour
issue.

EN 9
HOW TO LOOK AFTER YOUR ECLIPSE 4000
SERVICING
MAINTENANCE &
Ozone output will be reduced if the ozone plate is dirty, and as
such, needs to be cleaned from time to time. The ozone plate
may also need to be replaced if it becomes faulty, or there is a
noticeable reduction in ozone output.
The ozone plate can simply be cleaned by removing it and
rubbing it down with a soft, clean, dry cloth to remove dust and
other contaminants.
Please call for further advice - 0844 248 0107
Safety notice:
Disconnect the power supply cable from the mains supply before
attempting to carry out any service.
