2ABOUT YOUR ECLIPSE PRO EN
ECLIPSE PRO
The Eclipse Pro has been designed with hi-performance, quick
and efcient odour removal in mind. With its unique design
feature of an automatic residual ozone destruct system in-built as
standard, this machine is perfect for care homes, hotels, student
accommodation and holiday lodges to name but a few.
Initially, the Eclipse Pro produces a specic amount of ozone
dependent on the exible cycle time that is chosen. The ozone
will neutralise odours and pathogens in the air and on nearby
surfaces by breaking down their molecular structure. The nal
stage of the treatment process is where the ozone destruct cycle
gets to work in converting any residual ozone back into oxygen
meaning that a room can be safely occupied again.
Your Eclipse Pro ensures that problematic odours are destroyed
and not masked, which ultimately is all that scented air fresheners
will do. An added benet of the Eclipse Pro is that it does not
use harmful chemicals and the ozone produced will freshen those
difcult to reach areas within a facility.
We are delighted that you have chosen the Eclipse Pro as your
odour control partner and are sure that you will be delighted with
your purchase.
For further information about this or any other products/services,
please visit our website: www.ozofresh.co.uk
YOUR NEW

EN 3
ECLIPSE PRO SAFETY GUIDANCE
CONFORMITY
DECLARATION OF
Model No. Eclipse Pro. This unit fully complies with CE rules of
EMC regulations: EN 61000-61, EN 61000-63, EN 61000-32, EN
61000-33.
The Eclipse Pro is for indoor use only and the instructions of
use and warnings are supplied within the instruction manual/
on the machine itself. The instruction manual provided includes
the mandatory information including the suppliers name, CE
marking, fuse, voltage & current ratings.
The Eclipse Pro is RoHS compliant (Restriction of Hazardous
Materials).

EN
4
ECLIPSE PRO
UNPACKING YOUR
At all times, your Eclipse Pro should ideally be standing upright
to preserve the life of the machine. We recommend that you
immediately check your machine to ensure that there are no
signs of damage. Ensure that all parts are secured tightly prior
to attempting to use your machine. If there are any signs of
damage, please contact your supplier immediately for advice/
further action.
Your Eclipse Pro should arrive with the following items as well as
the machine itself: -
• Power Cable
• Instruction Manual
If any of the above items are missing, then please contact your
supplier immediately.
We recommend that you store your Eclipse Pro in the box that it
comes in when not in use to preserve the life of the machine and
to prevent accidental damage.
The Eclipse Pro comes with a 2-year manufacturer’s warranty
(subject to terms and conditions). The warranty does not cover
mis-use or abuse.
BOX CONTENTS

EN 5
PRECAUTIONS
SAFETY AND
1. This machine is intended for Commercial/Industrial &
Domestic users only. Any other user should seek advice from
an expert before considering using the machine. All users
of the Eclipse Pro should assume full responsibility for the
correct use as well as any damage or injury that may arise
through its incorrect use.
2. DO NOT expose your Eclipse Pro to rain or moisture. Should
any water or other liquid come into contact with the machine,
unplug it immediately and have it checked/serviced by
qualied personnel prior to further use.
3. DO NOT handle the machine with wet hands whilst it is
connected to a power supply.
4. DO NOT enter a room that is being treated during the
operating cycle. Place warning signs on doors to prevent
others from entering the area being treated.
5. DO NOT unplug the machine from the mains socket before
the operating cycle has been completed.
6. DO NOT block any of the vents on the machine or place the
machine close to items that may block the air ow to the
vents. Ideally, place the machine on a table in the middle of
the area to be treated.
ECLIPSE PRO SAFETY GUIDANCE

EN
6
PRECAUTIONS
SAFETY AND
7. Once you have selected the time cycle for your chosen
treatment, please ensure that all persons leave the room
immediately.
8. Ensure that your Eclipse Pro is unplugged from the power
source when not in use and store the machine in a dry, clean
& lockable environment to prevent damage/mis-use.
9. Staying in a room during the treatment cycle could be
hazardous to your health and any other person’s present.
10. All users should fully acquaint themselves with the contents
of the safety data sheet, which forms an integral part of the
operating procedures for the machine.
11. Keep the machine out of reach of children.
12. Items made of natural rubber may degrade in the presence of
ozone. We recommend that if there is any doubt that an item
contains rubber, then this is removed prior to treating an area
with ozone.
ECLIPSE PRO SAFETY GUIDANCE cont..

EN 7
PRECAUTIONS
SAFETY AND
AVOID ELECTRIC SHOCK
Your Eclipse Pro is supplied with an earthed cable as standard.
WARNING attempting to bypass the earth or to connect the unit
to an unearthed socket is prohibited and is highly dangerous.
The machine comes with a fuse which will automatically operate
in certain conditions. Tampering with the fuse in order to prevent
its intended automatic operation is strictly prohibited and is
highly dangerous.
Any maintenance operations should only be undertaken when
the machine is disconnected fully from the power source.
PLEASE NOTE
There are no parts inside your Eclipse Pro that are serviceable by
the user. Removing parts, unless qualied to do so, will void the
warranty of your machine.
ECLIPSE PRO SAFETY GUIDANCE cont..

EN
8
SPECIFICATIONS
TECHNICAL
Ozone output: 10000mg/hr
Dimensions: 460 x 157 x 157mm
Weight: 7kg approx.
Mains supply: 230V/50Hz/140W via mains switch, with fuse and
detachable IEC mains cable
Fan Airow (Ozone): 305m3/hr
Fan Airow (Destruct): 305m3/hr
Coverage: 200m3
Specication and colour of the product may change without prior
notice unless previously agreed.
OZONE OUTPUT
OZONE
DESTRUCT FAN
CARRY HANDLE
CONTROL PANEL
DURABLE
CONSTRUCTION
ECLIPSE PRO SPECIFICATIONS
POWER SWITCH

EN 9
INSTRUCTIONS
OPERATING
Your Eclipse Pro has been designed to enable simple and trouble
free operation. The main control features are on the top panel of
the machine, via the numbered buttons.
HOW TO OPERATE YOUR ECLIPSE PRO
1. Place the machine on a at level surface, ideally a table,
in the centre of the area to be treated whilst ensuring no
obstructions to the airow around the machine.
2. Remove any combustible materials, liquids or gases from the
vicinity of the machine.
3. Ensure ALL external doors/windows are closed, except for the
door that you will exit the room through.
4. Connect the power cable to the machine and plug into the
mains socket.
5. Switch the unit on at the base/rear of the machine. Blue
lights on the top panel numbered buttons will illuminate.
How to set a cycle

EN
10 HOW TO OPERATE YOUR ECLIPSE PRO cont..

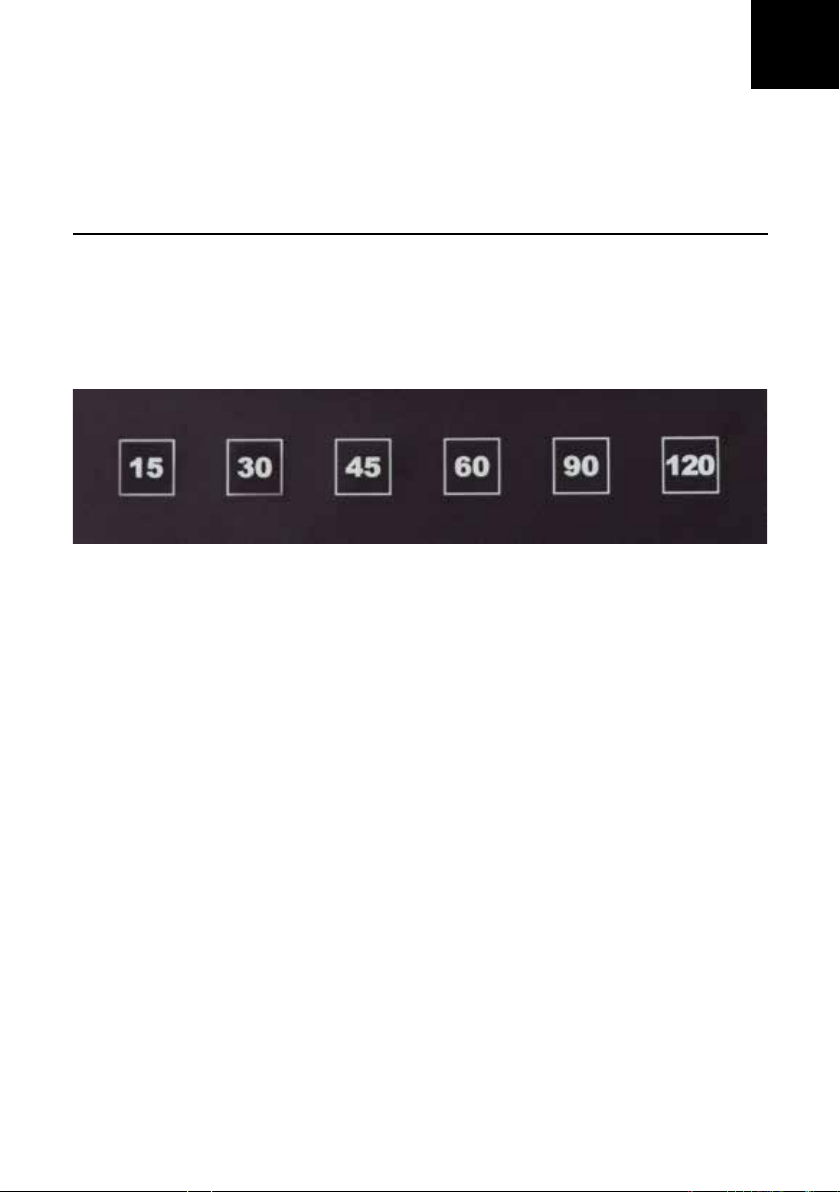

6. Choose your time cycle by pressing the appropriate button
on the top panel numbered buttons. The length of cycle
selected depends on the size of the room and degree of
odour contamination.
7. The chosen time cycle button will remain lit and the machine
will start to generate ozone immediately.
8. WARNING leave the room immediately, close the door and
place a warning sign on the door.
How to change the cycle
If you need to change the time cycle of the Eclipse Pro simply
press the button for the correct time.
Please note: if you have already left the room and started the
machine, we recommend that you do not return until the initial
cycle is nished.
How to stop the cycle
From time to time, you may wish to stop the machine from
operating during the cycle time selected. Simply press the
numbered button of the chosen cycle and this will stop the
machine.
WARNING
We would advise against entering the room during operation as
is could be unsafe to do so. Ideally, you should wait until the full
cycle has completed even if you wish to change the cycle time.

EN 11
HOW TO OPERATE YOUR ECLIPSE PRO cont..
Occasionally, even after a full cycle, there may still be a residual
smell of ozone in the air. A slight smell is normal but if it is too
strong, it may be necessary to carry out a further destruct only
cycle. To do this, simply press the 15 & 30 buttons together
on the top panel. Once the destruct only cycle has started it
is recommended that you leave the room until the cycle has
completed.
Please note: you must press the 15 & 30 buttons at the same
time. In the destruct only cycle you will notice that the machine
does not make the distinctive ‘hissing’ noise it makes when
producing O3
How to carry out additional destruct cycle
Operating times
Choosing an operating time for your Eclipse Pro is very much
dependent on the size of the room to be treated, degree of
odour within the room, level of soft furnishings and ventilation
within the room. Below we offer you a rough guideline to assist
with your choice:
Cycle Time (mins) Approx. Room Size (m3)
15 45m3
30 65m3
45 95m3
60 120m3
90 160m3
120 200m3
Please call your supplier if you require advice on the cycle time
selection.
Where room
temperature
exceeds 30°C,
or when
humidity is
over 75%, the
treatment time
should be
extended.

EN
12 HOW TO LOOK AFTER YOUR ECLIPSE PRO
SERVICING
MAINTENANCE &
To maintain the warranty and expected life-time of your Eclipse
Pro, we recommend a preventative maintenance inspection
annually. This will also ensure trouble free operation of the
machine.
We offer a ‘back to base’ service option whereby you simply
courier the machine back to our premises and we will service and
clean the unit before sending back to you. We aim to deliver this
service within 48 hours.
If you are a qualied technician and wish to carryout maintenance
or cleaning yourself, then we would recommend that you contact
your supplier before attempting to do so. You should be aware
that this could invalidate your manufacturers warranty and is
carried out entirely at your risk.

EN 13
TROUBLESHOOTING
FUNCTION TESTING
ECLIPSE PRO BUTTON
You can test the functionality of your Eclipse Pro to ensure
you are getting the best from the machine. Below is a list of
functionality tests: -
Complete cycle time
selection in minutes.
Destruct Only / Test
Destruct Fan (bottom).
Ozone Only / Test Ozone
Generator & Ozone Fan
(top).

EN

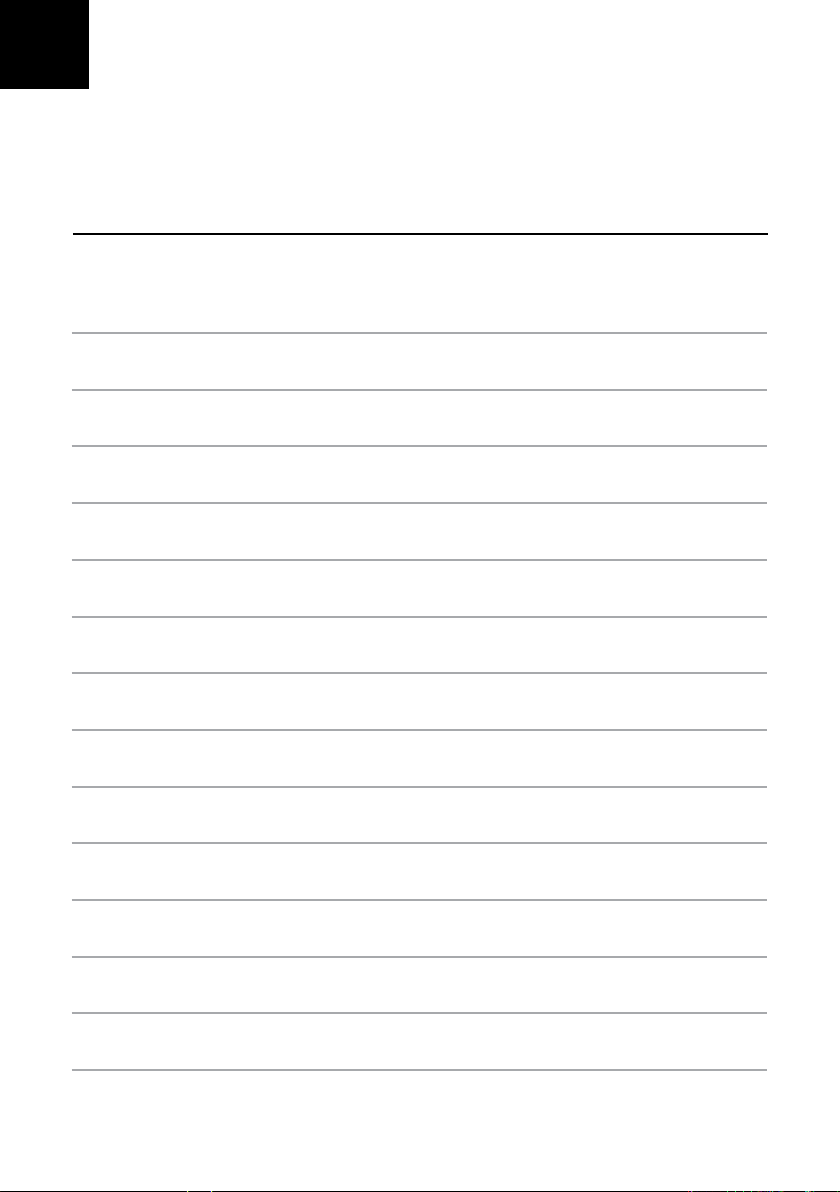

14 NOTES
NOTES

EN 15
NOTES
NOTES
