MK5/6 Installation Guide

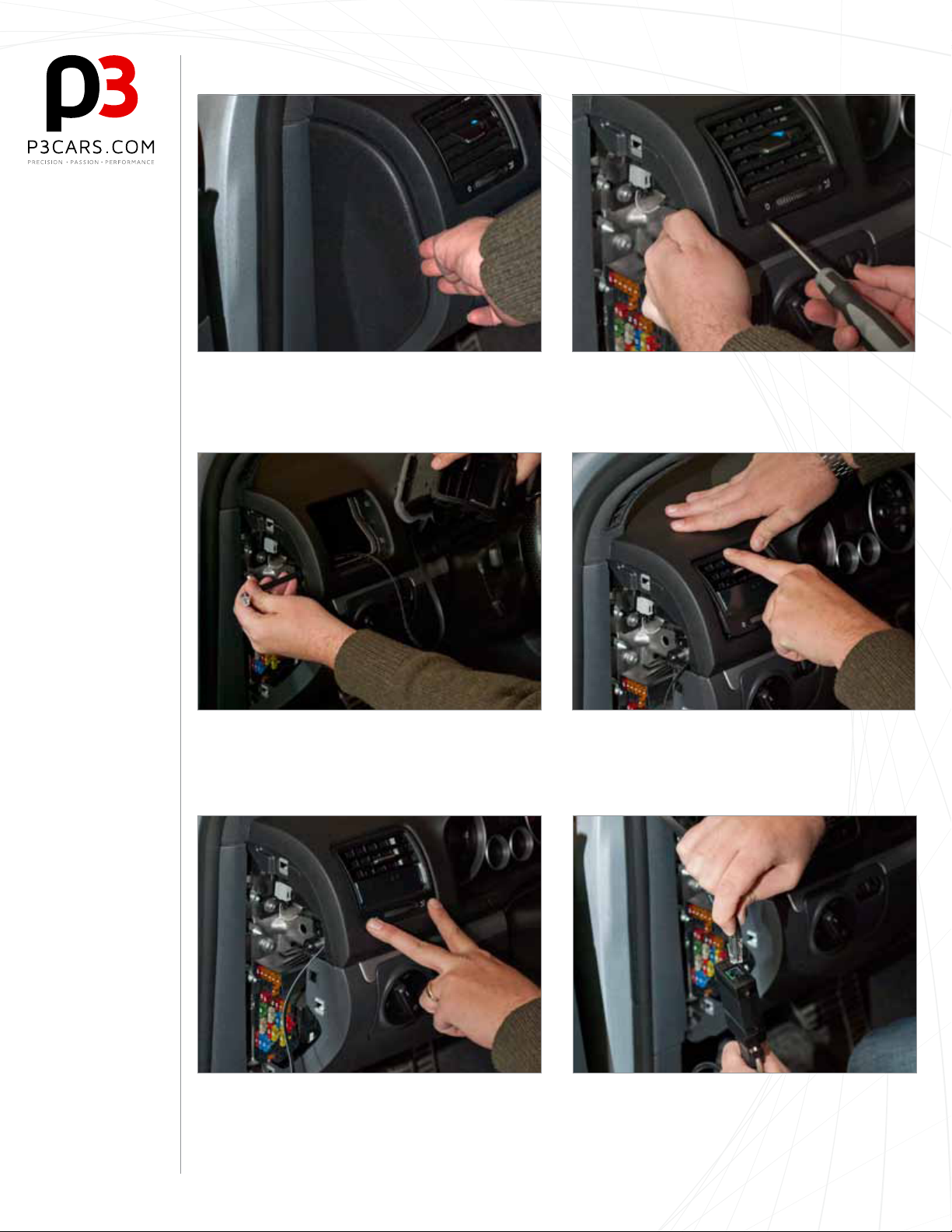

Open the driver’s side door and
remove the cover to the fuse box.
1Use your fingers to push out the lower
left corner of the vent and insert a
screw driver to pop out from the bottom
up.
2
Thread gauge connection cable
through the vent opening and out the
fuse box.
3Pull the entire cable through the fuse
box and snap the new vent into place
starting at the top.
4
Push on the bottom corners of the vent
to firmly secure into place.
5Connect the cable to the control unit. 6

Please download the latest
copy of this document from
www.p3cars.com/install
WARRANTY & LIABILITY:
Neither P3 Cars, nor its
dealers or agents shall be
liable in any way, for any
damage, loss, injury or other
claims, resulting from the
installation or use of this
product. By purchasing or
installing this product, you
assume all liability of any
kind connected with the use
and/or application of this
product. If you are unsure
that you can safely install and
use this product, consult a
qualied installer or
mechanic. The warranty on
this product covers only the
product itself for a period of 6
months from the date of
purchase, and it will be at our
discretion to repair or replace
the aected parts. No user
serviceable parts inside.
Warranty will be voided if
product shows physical
damage.
Tuck the control unit and the remaining
cable into the fuse box. Make sure the
cable that will be plugged in into the
diagnostic port is tucked into the crease at the
bottom of the fuse box.
7Snap the fuse box cover back on. Don’t
forget to remove the protective plastic
sheet from the glass face of the gauge.
8
Plug the connector firmly into your cars
diagnostic port. Tuck any visible cord
into the creases.
9
Installation complete!
Please refer to the gauge usage and configuration guide for an explanation of features.
If you have additional questions, email us at [email protected]
10
