P3 International P4320 User manual

P4320 Kill A Watt TM PS
Operating Manual
Thank you for purchasing the P4320 Kill A Watt™ PS Relocatable Power Tap / Transient
Voltage Surge Suppressor. This operating manual will provide an overview of the product,
safety instructions, a quick guide to operation, and complete instructions for correct usage.
Take the time to completely review these instructions as well as all safety warnings to ensure
your best use of the product.
Now you can protect your valuable electronics and find out what they are actually costing
you. Simply connect these appliances to the Kill A Watt™ PS and it will assess how efficient
they are while the built-in surge protection keeps them safe. Advanced features such as over
current, over voltage, and no load detection provide clean safe power to your expensive
equipment. Check the quality of your power by monitoring Voltage, Line Frequency,
Amperage, KWH, Current Leakage and more. Now you’ll know how much power your entire
computer of home theater system is using. With the innovative Kill A Watt™ PS you’ll have
peace of mind in more ways than one.

Safety Instructions
CAUTION
ÅRISK OF ELECTRIC SHOCK
DO NOT OPEN
ã
The lightning flash with
arrowhead, within an
equilateral triangle, is
intended to alert the
user to the presence of
uninsulated “dangerous
voltage” within the
product’s enclosure that
may be of sufficient
magnitude to constitute
a risk of electric shock to
persons.
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The exclamation point
within an equilateral
triangle is intended to
alert the user to the
presence of important
operating and
maintenance
instructions in the
literature accompanying
the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Read Instructions – All the safety and operating instructions should be read before the product is operated.
Retain Instructions – The safety and operating instructions should be retained for future reference.
Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.
Follow Instructions – All operating and use instructions should be followed.
Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners.
Attachments – Do not use attachments not recommended by the product manufacturer as they may cause
hazards.
Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen
sink, or laundry tub; in a wet basement; or near a swimming pool and the like.
Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may
fall, causing serious injury to a child or adult, and serious damage to the product. Any mounting of the product
should follow the manufacturer’s instructions.
Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of
the product and to protect it from overheating, and these openings (if any) must not be blocked or covered. The
openings (if any) should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation
is provided or the manufacturer’s instructions have been adhered to.
Power Sources – This product should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other sources, refer to the operating
instructions.
Grounding or Polarization – This product may be equipped with a polarized alternating-current line plug (a
plug having one blade wider than the other).
This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
Lightning – For added protection for this product during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to
lightning and power-line surges.
Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.
Object and Liquid Entry – Never push objects of any kind into this product through openings (if any) as they
may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
- When the power-supply cord or plug is damaged.
- If liquid has been spilled, or objects have fallen into the product.
- If the product has been exposed to rain or water.
- If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions as an improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product to
its normal operation.
- If the product has been dropped or damaged in any way.
- When the product exhibits a distinct change in performance – this indicates a need for service.
Replacement Parts – When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks to determine that the product is in proper operating condition.
Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products that produce heat.
Safety Instructions:
1. The operating voltage is limited. Maximum operating voltage is 120Vac. Do not use the unit with other
operating voltages.
2. The maximum output current is 15A.
3. To reduce the risk of electric shock, do not remove cover. No user-serviceable parts inside. Refer
servicing to qualified service personnel.

Product Functions:
1. Power Strip: 8 outlets, Spike-free switch.
2. Multi-Meters: Voltage, Current, Active Power, Power Factor, KWH, Leakage Current, Elapsed Time.
3. Protection: Abnormal Voltage, Over Current, Over Load, Surge.
4. Programmable Breaker Current: User adjustable 2, 5, 10, or 15A breaker.
5. NFB (No Fuse Breaker): Over Load protection.

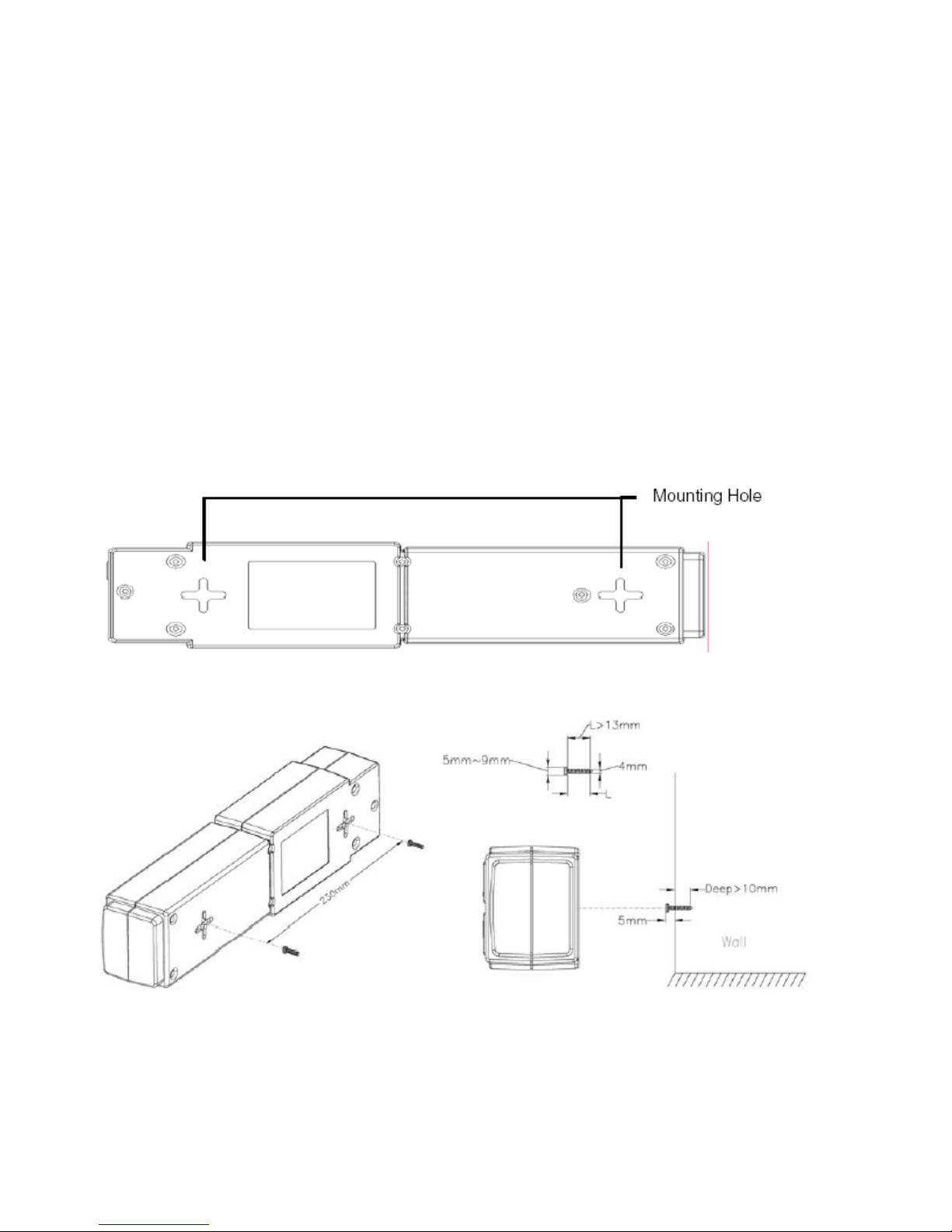

Wall Mount Instructions (Optional)
1. Use 3/4 inch no. 8 screws or similar.
2. Space the 2 screws about 9 inches (230mm) apart according to the figure. Leave about 1/4 inch (5mm)
of the screw head protruding from the surface.
3. Place the unit against the surface with the screw heads fitting into the mounting holes.
4. Move the unit downwards to secure the mounting holes onto the screw heads.

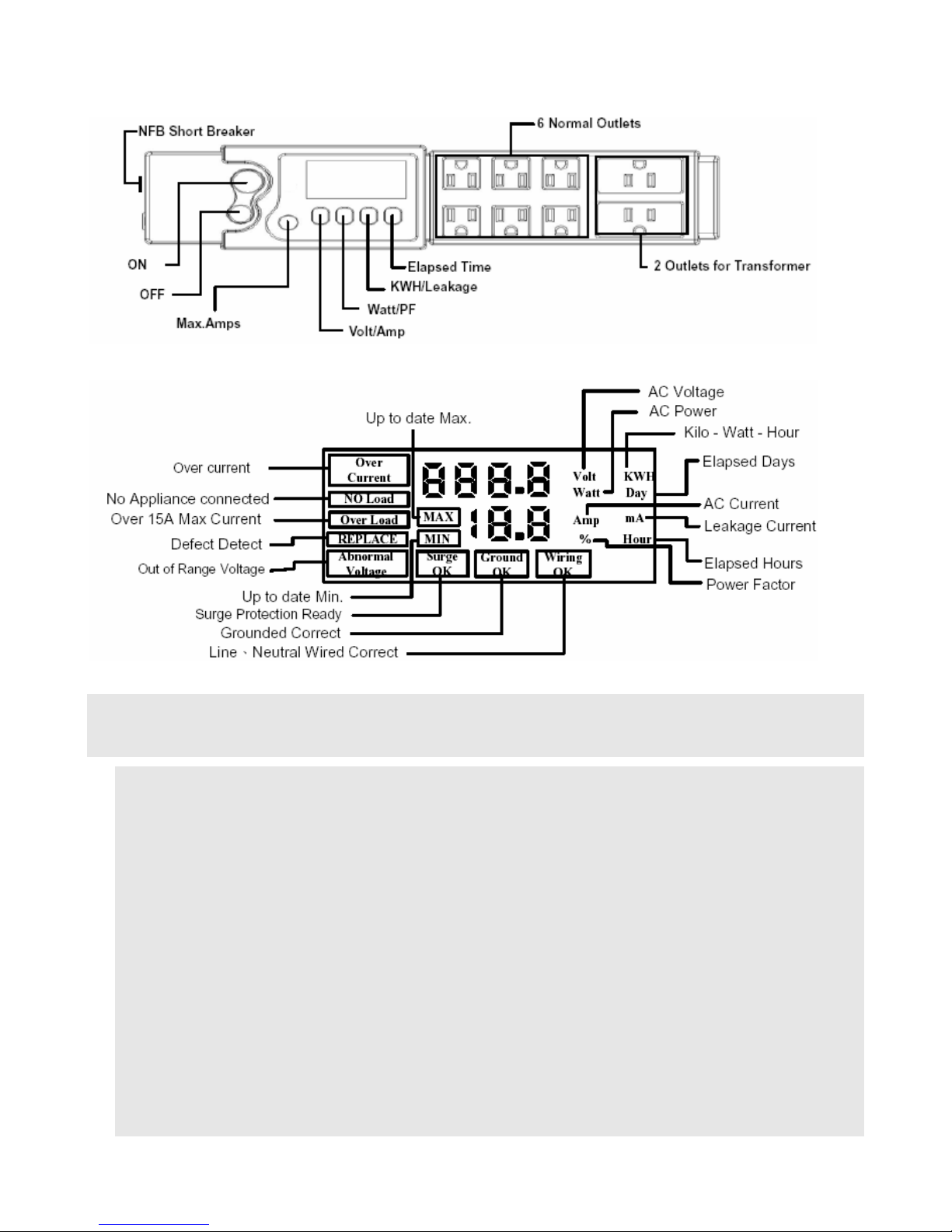

Feature Locations
Display Panel
Quick Start Guide:
Use these quick start instructions to get up and running in just a few minutes. Be sure to review all the operating
instructions later to ensure full enjoyment of the product.
1. Connect the Kill A Watt™ PS unit to the outlet and the appliance to the unit.
2. The LCD display will flash. Press any of the function keys to stop the flashing.
3. Press the OFF key. The OFF key will illuminate red.
4. Press the ON key. The ON key will illuminate blue and the attached appliance will be powered.
5. If the attached appliance is turned off and is not consuming any power, the unit will detect no load. The
ON key will go dark and the “NO Load” icon will flash on the LCD display. THIS IS NORMAL. If the
attached appliance is then turned on, the unit will detect a load, the ON key will illuminate and the “NO
Load” indicator on the LCD display will disappear.
6. Pressing the Volt/Amp key will cycle through currently measured voltage (Volts), current (Amps) and
Maximum/Minimum measured values.
7. Pressing the Watt/PF Key will cycle through currently measured active power (Watts), power factor (%)
and Maximum/Minimum measured values.
8. Pressing the KWH/Leakage key will cycle through cumulative kilowatt hours (KWH), currently measured
leakage current (mA) and Maximum/Minimum measured values (leakage current only).
9. Pressing the Elapsed Time key will cycle through time in Days:Hours and Hours:Minutes.
10. Review the complete operating instructions to familiarize yourself with all features.
