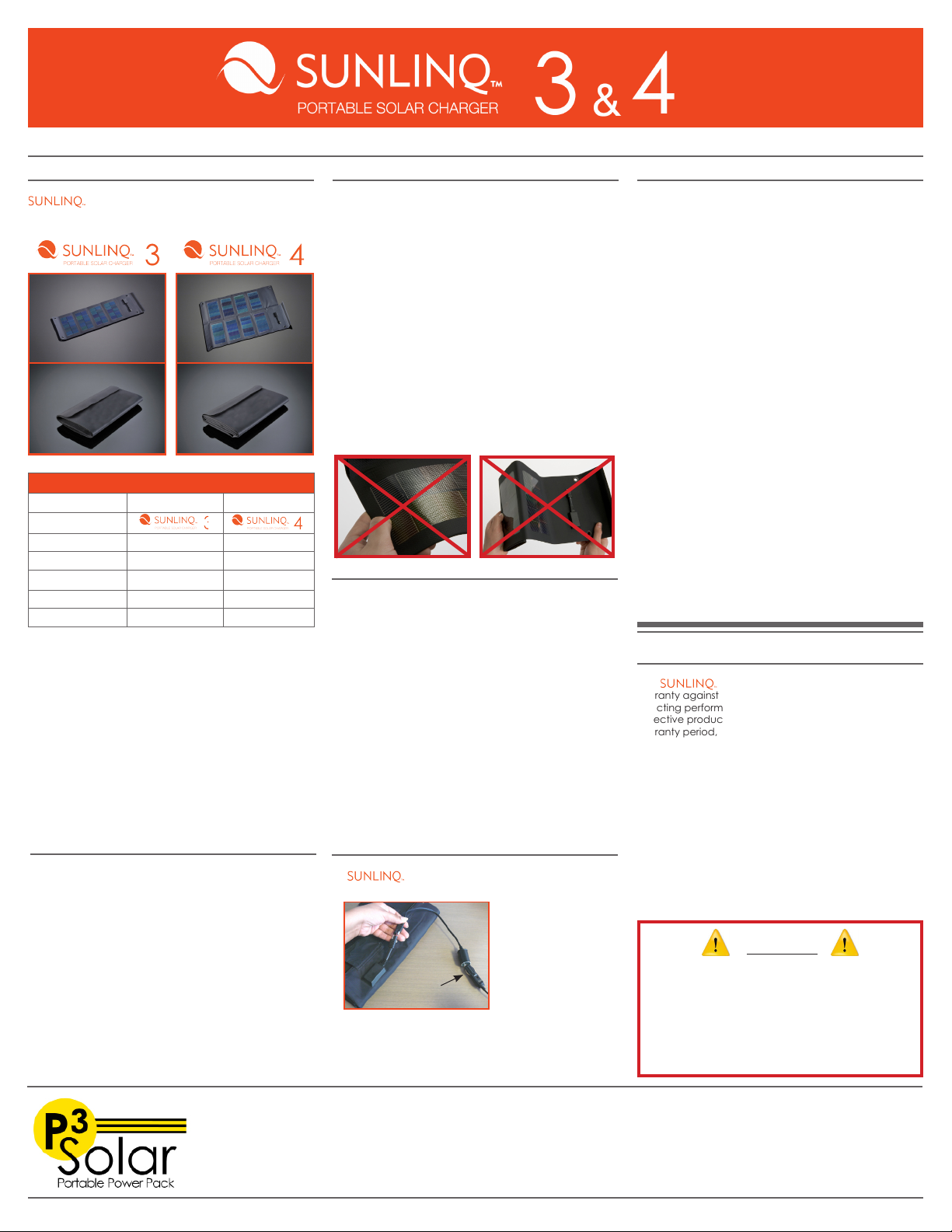

P3Solar Sunlinq 4 User manual

CAUTION: Please read the following instructions before operating your portable solar charger
portable solar chargers convert sunlight
directly into 12 V electricity - ideal for recharging consumer
electronics and maintaining vehicle batteries.
PRODUCT SPECIFICATIONS
Part Number 22105* 22110*
Module
Wattage 6.5 W 12 W
Dimensions Folded 9” x 5” x 1/2” 9” x 5” x 3/4”
Dimensions Unfolded 29 1/2” x 9” x 1/32” 29 1/4” x 16” x 1/32”
Weight 7 ounces 13 ounces
Maximum Output 12V @ 433mA 12V @ 800mA
* SAE to FCLA (22700-2RC) accessory included
The overall performance of the solar charger is dependent
on a variety of conditions including season, orientation
with direct sunlight, cloudy conditions, temperature, and
shadowing. As a result, providing ‘typical’ performance
parameters is dependent on the placement of the solar
charger.
NOTE: The product specication above lists the solar
charger’s maximum power rating and may not be the
actual power generated by the solar charger when
connected to a device or battery.
CAUTION: When recharging, some consumer products
may not be allowed to be in direct sunlight. Consult the
instruction manual of your product for further details.
NOTE: Since the conditions or methods of operation,
use and maintenance of solar chargers are beyond
its control, the Manufacturer does not assume
responsibility and expressly disclaims liability for loss,
damage or expense arising out of or in any way
connected with such operation, use or maintenance.
CAUTION: Ensure that you completely understand this
instruction manual before using your portable solar
charger.
1. Consumer Electronics
Handheld Devices & Rechargeable Batteries
Application: Charges/runs most handheld electronic
devices such as MP3 players, cellphones, digital
cameras, Personal Digital Assistants; and is also
compatible for running most AA/AAA Ni-Cd and Ni-
M-H battery chargers.
How to use: Connect the 12 V vehicle power outlet
receptacle to the portable solar charger. Insert
the adaptor (male) included with the handheld
electronic device or battery charger into the 12 V
vehicle power outlet. Place the charger in direct
sunlight. Consult “Sunlinq Solar Charging Chart” for
charging times (on back).
FAQs
How do I know that my portable solar charger is working?
Check the charge indicator light or bar on the handheld
electronics or accessory.
How do I know what size to use?
Consult the Product Application chart.
Will this product drain my battery at night?
No. The solar charger will not discharge your device battery
if left plugged in at night! The solar charger has a built in
reverse ow diode to prevent discharge from the battery.
What happens if the solar charger gets wet?
The solar charger is made from water-resistant material.
Wipe the product with a clean, dry cloth, and allow the
product to dry completely before folding for storage. DO
NOT keep the product in or under water. DO NOT use
the product is a salt water/marine environment.
Can I leave the solar charger outside for continual use?
The solar charger was not designed for continued
outdoor usage. Once your device is nished charging
(see charge times from chart), wipe the product with
a clean, dry cloth, and allow the product to dry completely
before folding for storage.
Should the solar charger be disconnected from the car
battery when starting the engine?
No, the solar charger can remain connected and will not
effect operation of the vehicle or any of the vehicle’s
electronic components.
Doc No. 22523 Rev Jan 2015
IMPORTANT SYSTEM CARE INSTRUCTIONS
Portable Solar Chargers generate electricity
when exposed to light, even when not
connected to a device or battery. Shocks and
burns can result from contact with module
output wiring, misuse or improper connections.
Contact battery manufacturer for questions on
battery specications before charging.
WARNING
PRODUCT DESCRIPTION AND SPECIFICATIONS
• Inspect the connections between the portable solar
charger and the device you are attempting to charge.
• Inspect all plugs, outlets, clamps, connectors and cables
to ensure they are not damaged or cut.
• If the connections are all secure, use a volt meter or 12
V test light to check voltage between the positive and
negative electrodes. This check should be done using
the 12 V vehicle power plug.
• For vehicle and AA/AAA battery charging, check to
make sure that the battery is in good condition. Over
time battery performance decreases. If the battery
performance is weakened, the battery may need to be
replaced.
• Note: Some portable electronics such as computers
require more power (current) than the solar charger
creates. If problems persist you may require a larger solar
charger persist you may require a larger solar charger.
TROUBLESHOOTING
APPLICATIONS / HOW TO USE
1-YEAR LIMITED WARRANTY
This product carries a one (1) year limited
warranty against defects in workmanship and materials
affecting performance. P3Solar agrees to replace the
defective product free of charge, within the stated
warranty period, when returned by the original purchaser
with proof of purchase. This product is not guaranteed
against wear or breakage due to misuse and/or abuse. In
addition, any units that show signs of creasing or folding
on the active photovoltaic areas are not covered under
this warranty. Use in salt water environments will VOID
warranty.
• Although the solar charger is exible, ONLY FOLD the
natural creases in the all-cloth portions of the charger
• DO NOT FOLD with the solar cells facing outward.
• DO NOT FOLD or crease the solar charger on sharp
edges or objects.
• DO NOT CRUMPLE OR IMPROPERLY BEND CHARGER.
• DO NOT excessively ex or bend the solar charger as
this could cause the plastic layers to crease or bubble.
• DO NOT machine wash, machine dry, or dry clean the
solar charger.
• DO NOT attempt to charge non-rechargeable
batteries.
• The solar charger is designed for portable outdoor use.
Fold and store when not in use.
• ALWAYS charge vehicle lead-acid batteries in a well-
ventilated area.
• DO NOT reverse the polarity of the connections.
• Contact battery manufacturer for questions on the
battery specications.
• DO NOT use the product is a salt water/marine
environment.
• portable solar charger
• SAE to FCLA (22700-2RC) accessory included
HOW TO CONNECT
FCLA
Consumer electronic device
MCLA (not included)
SAE
Note: The SAE plug
connects directly
to the solar charger
and the FCLA can be
connected to various
consumer electronic
devices.
P3Solar
Solar Portables Business, Inc.
4500 E. Speedway Blvd. Suite 50
Tucson, AZ 85712 USA
520-775-1390
[email protected]
www.p3solar.com

Charge times are approximate and will vary depending on specifc device and sun exposure.
* Charging standards vary from device to device. Please consult your device manufacturer for specic charging guidelines and requirements. Please be sure your device powers through a USB
connection.
** Most laptop computers require more power to charge than a portable solar charger can produce on a consistent basis. We recommend the purchase of an auxillary batter pack to store
the solar charger’s energy and deliver the specic power required for your device.

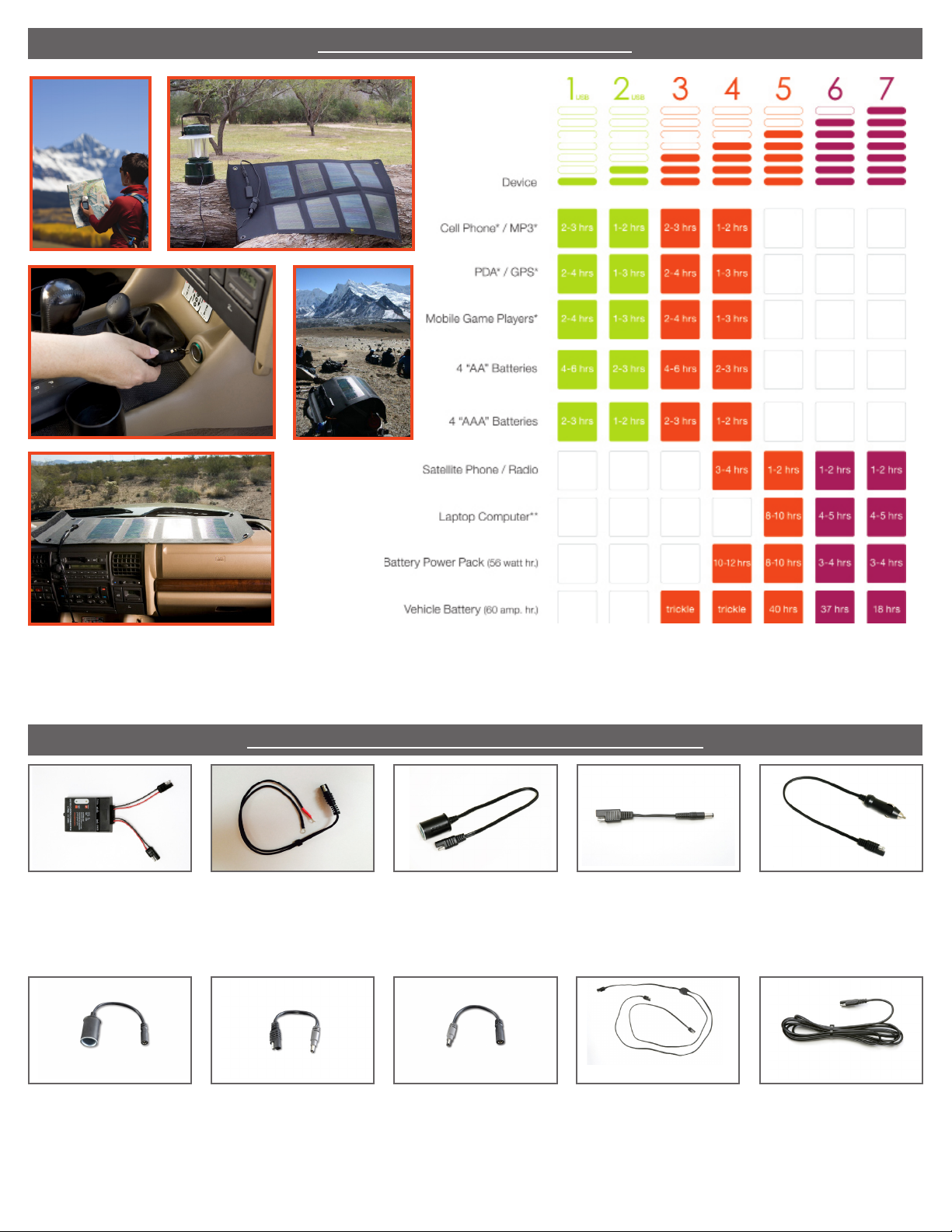

SUNLINQ SOLAR CHARGING CHART
SOLAR CHARGER ACCESSORIES (SOLD SEPARATELY)
7 AMP SOLAR CHARGE CONTROLLER
Protects your 12V lead acid batteries from
overcharge. It is to be used with any P3Solar
charger over 12W and can handle up to
100 Watts of power. With the attached
SAE trailer plug the 7 Amp Solar Charge
Controller can connect directly to the solar
charger and the remaining SAE trailer plug
can connect to any other accessory cable.
FCLA 2.5mm BARREL JACK
A 6 inch, 18 AWG zip cord cable. It has
a 2.5mmID barrel jack on one end and
a 12V FCLA receptacle on the other.
This cable can be used to connect to
various electronic devices.
SAE to FCLA
An 18 inch, 18 AWG zip cord cable. It
has a standard SAE two prong connector
on one end a 12V FCLA receptacle on
the other. The SAE plug connects directly
to the solar charger and the FCLA can be
connected to various electronic devices.
2.1mm BARREL PLUG to 2.5mm JACK
A 4 inch, 18 AWG zip cord cable. It has
a 2.5mmID x 5.5mmOD barrel jack on
one end and a 2.1mmID x 5.5mmOD
barrel plug on the other end. This cable
can be used to connect to various
electronic devices.
SAE to RING TERMINALS
An 18 inch, 18 AWG zip cord cable. It
has a standard SAE two prong connector
on one end and a set of standard ring
terminals on the other end. The SAE plug
connects directly to the 7 amp charge
controller and the ring terminals connect
to a 12V car battery.
SAE to 2.1mm BARREL PLUG
A 4 inch, 18 AWG zip cord cable. It has a
standard SAE two prong connector on one
end and a 2.1mmID x 5.5mmOD barrel plug
on the other end. The SAE plug connects
directly to the solar charger and the barrel
plug connects to various electronic devices
and battery packs including the Tekkeon
myPower All portable batteries (models
MP3450 and MP3700).
SAE to 2.5mm BARREL PLUG
A 4 inch, 18 AWG zip cord cable. It has
a standard SAE two prong connector
on one end and a 2.5mmID x 5.5mmOD
barrel plug on the other end. The SAE plug
connects directly to the solar charger
and the barrel plug connects to various
electronic devices and battery packs.
SAE to MCLA
An 18 inch 18 AWG zip cord cable. It
has a standard SAE two prong connector
on one end a 12V MCLA plug on the
other. The SAE plug connects directly to
the solar charger and the FCLA can be
connected to various electronic devices.
Y-CABLE
The 18 AWG SAE Y-Cable has two 3’
ends that branch from a 1’ SAE cable.
Use the SAE Y-Cable to connect two
solar chargers together in parallel if
you need more power. This effectively
doubles the power but the voltage
remains the same.
SAE 8 ft EXTENSION
An 8 foot, 18 AWG, jacketed cable with
a two-prong SAE trailer plug on each
end. This cable connects to any of the
accessories with a SAE connection and
plugs directly into the solar charger.
14598 22700-1RC 22700-2RC - Incl. with Sunlinqs 3, 4 & 5 22700-3RC 22700-4RC
28000RC 28001RC 28002RC 28003RC 28007RC
