Introduction
Welcome
ThankyouforpurchasingtheAdvancedDataLink(ADL)Vantageforusewithyoursurveysystem.The
ADLVantage™isanadvanced,highspeed,wirelessdatalinkthatisdesignedspecificallyforGNSS/RTK
applications.YoursuccessinusingtheADLVantageisPacificCrestCorporation’sprimarygoal.Pacific
CreststandsbehindtheADLVantagebyprovidingexpertsupportandservice.Yourcommentsand
questionsarewelcome.

Scope
ThisguideprovidesinformationconcerningtheuseoftheADLVantage.Thisguideiswrittenforthe
first‐timeuserandgivesdetailsconcerningsystemsetup,operationandmaintenance.Weurgeyouto
takethetimetoreviewthisshortmanualcompletelypriortosettingupyoursystem.

NoteConcerningthisGuide
WebelievethattheADLVantagesystemprovidesthebestvalueandperformancefortheuser.Assuch,
weprovideourequipmentincompleteturnkeysystems,includingalloftheitemsnecessaryfor
operationwithyourGPS.

YoumayhavepurchasedyourADLVantagefromathirdparty.Onoccasion,thebundledproduct
providedbythesesourcesmaydifferfromthekitsprovideddirectlyfromPacificCrestCorporation.If
thisguidedoesnotaccuratelyreflecttheequipmentthatyoureceived,pleasecontactyoursupplierfor
specificinstructionsconcerningthesetupofitemsthatdiffer.


FeaturesandBenefits
Compatible
FacilitatesGNSSequipmentmixandmatch
•InteroperablewithPacificCrestRFMandPDL,SATEL,andTrimbleradioproducts
•Allmodelssupport12.5and25kHzchannelbandwidthcommunications
•40MHz‐widechanneltables(390‐430and430‐470MHzmodels)
•Providesupgradepathforexistinginstallations

EnhancedUserInterface
BacklitLCDdisplayandfive‐buttonnavigationinterface
•Viewandchangeradiochannel,modulationandprotocoltypes
•Monitorsignallevels,baudrates,andotherparameters

FastOver‐the‐AirDataRate
19,200bitspersecond
•ReducedlatencyprovidesbetterGPSpositioninformation
•Lowerpowerconsumptionallowslongerfieldoperation



PacificCrestCorporation ADLVantageUser’sGuide 6
User‐selectableRFoutput
Selectbetween0.1.0.5,1,2and4Watts
•Increaserangebyswitchingto2or4Watts(wherepermitted)
•Increasebatterylifebyreducingoutputpowerwhenyoudon’tneedtherange

RuggedConstruction
Designedspecificallyforreal‐worldworkingenvironments
•AllmetalconstructionandshockmountedelectronicsensurehighestreliabilityandEMI‐
resistance
•Watertight,corrosion‐resistantconnectorsstanduptobadweatherconditions


ConfiguringADLVantage
ADLCONFConfigurationSoftware
ADLCONFisasuiteofsoftwareutilitiesforconfiguringandtroubleshootingPacificCrest’sAdvanced
DataLink(ADL)lineofdigitalcommunicationradiosandmodems.RunningADLCONFonaPCattached
viaserialcabletoanADLradioallowsyoutocheckthestatusoftheradio,inputreceive‐onlychannel
tables,andsetradioparameterssuchaschannelbandwidthandoutputpower.Channeltablesfor
transmissionofdatamustbeobtainedfromauthorizedPacificCrestdealers.Ifyourradiodidnotcome
withachanneltablealreadyinstalled,youcanobtainonefromyourdealerandimportitusing
ADLCONF.

ADLCONFsoftwareisfoundontheADLVantagesystemCD.Thelatestversionisavailableforfree
downloadfromwww.PacificCrest.com.AuserguidethatcompletelydescribeshowtoconfiguretheADL
VantageradioisavailablebyrunningADLCONFandclickingHelp>UserGuide.TheADLCONFUser’s
GuideisalsoavailableonthePacificCrestwebsite.

FactoryDefaultSettings
YoucanreturnyourADLVantageradiotoitsfactorydefaultconfigurationusingADLCONFsoftware.
SimplyclicktheRestoreFactorybuttontotherightofthescreenandthentheProgrambutton.The
factorydefaultsettingsareasfollows:
RadioLinkRate9600
ModulationTypeGMSK
SensitivityLow(Base)
TransmitPower100mW
ScrambleControlOn
CSMAOn
ForwardErrorCorrectionYes
TransmitRetries10
TXACKTimeout10
ModemAddress0
DestinationAddress255



PacificCrestCorporation ADLVantageUser’sGuide 7
RXDelay0
TXDelay2
RXLEDMeaningSignalreceived
CallSign:“OFF”
Owner:“OWNER”
LowVoltageTurnWarning10V
LowVoltageTurnOff9V
TurnOffLCDBacklightNo
TurnOffLCDDelayAfter20seconds
SerialInterface
PCBaudRate:  38400
Parity:  None
SoftBreakDisabled: Yes
ProtocolMode:  TransparentwithEOTTimeout
EOTTimeout:  50
EOTCharacter:  (thereisnodefault)
SecurityCode:  00000000

Table1‐ADLVantageFactoryDefaults


SettingUptheADLVantage
TheADLVantageOfficeAccessoryKit
TheADLVantageOfficeAccessoryKitconsistsofthefollowing:
•Wall/mainspowersupply
•Wallplugwithadaptorset
•Programmingcable
•ADLVantageCDcontaining:
oADLVantageUser'sGuide
oADLCONFUser'sGuide
oADLCONFSoftware
oPCCRangeEstimator

ToconfiguretheradiowithADLCONFsoftware,
•Connectthepowersupplytothemainwallcurrent
•Connecttheprogrammingcableto:
oThepowersupply
oTheADLVantageradio
oYourPC
•Turnontheradio
•LaunchADLCONFsoftwareandrefertothesectionoftheADLCONFUser’sGuideonconnecting
theprogramtoyourradio.




PacificCrestCorporation ADLVantageUser’sGuide 8
TooperateyourADLVantageradiointhefieldyouwillneedanantenna,aportablepowersupplyanda
cabletoconnecttoadatasourcesuchasaGNSSreceiver.PacificCrestCorporationanditsauthorized
dealerscanprovideyouwitheverythingyouneedincludingatripodaccessorykitandabattery/charger
kit.

AntennaandAntennaMount
IfyouhaveanantennawithamaleTNCconnector,youcanattachitdirectlytotheRFconnectoronthe
topoftheADLVantage.Wehighlyrecommend,however,thatyouelevateyourRFantennaasmuchas

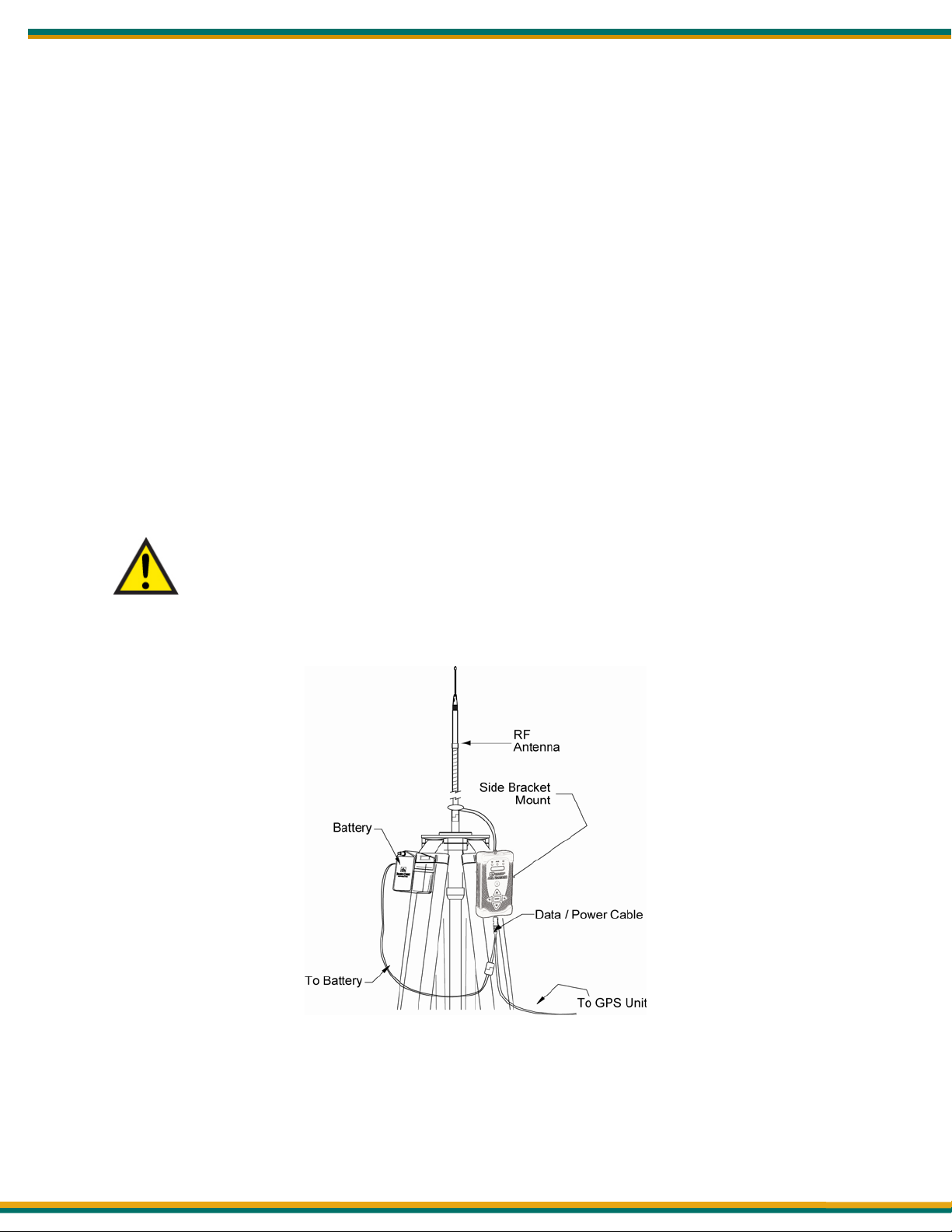

possible.ThemostcommonsetupissimilartothatseeninFigure1whereanantennacablewithmale
TNCconnectorisattachedtotheADLVantage.Theotherendofthiscableisattachedtoatripodor
elevatedsectionofrangepole.TheRFantennaisthenattachedtotheendofthecable.PacificCrest
offersanantennacablethatattachestostandard5/8‐inchthreadedtripodsandrangepolesand
antennaswithNMOconnectors.

Werecommendinspectingtheantennacenterpush‐pincontacttomakesurethatitmakesgood
contactwiththeantennamount.Agoodantennaconnectioniscriticaltosystemperformance.

AlthoughtransmittingwithoutanantennawillnotcausedamagetotheADLVantage,itis
notrecommended.UsingagainedantennawillraisetheEffectiveIsotropicRadiatedPower
oftheADLVantageradio.MakesuretheresultantEffectiveIsotropicRadiatedPowerdoes
notexceedyourlicensedlimit.




Figure1‐ADLVantageSetup






PacificCrestCorporation ADLVantageUser’sGuide 9
TripodSideClip
Beforeconnectinganycables,screwtheADLVantage’stripodclip(PNF01003)ontothebackofthe
radioandinserttheclipintotheslotonatripod.



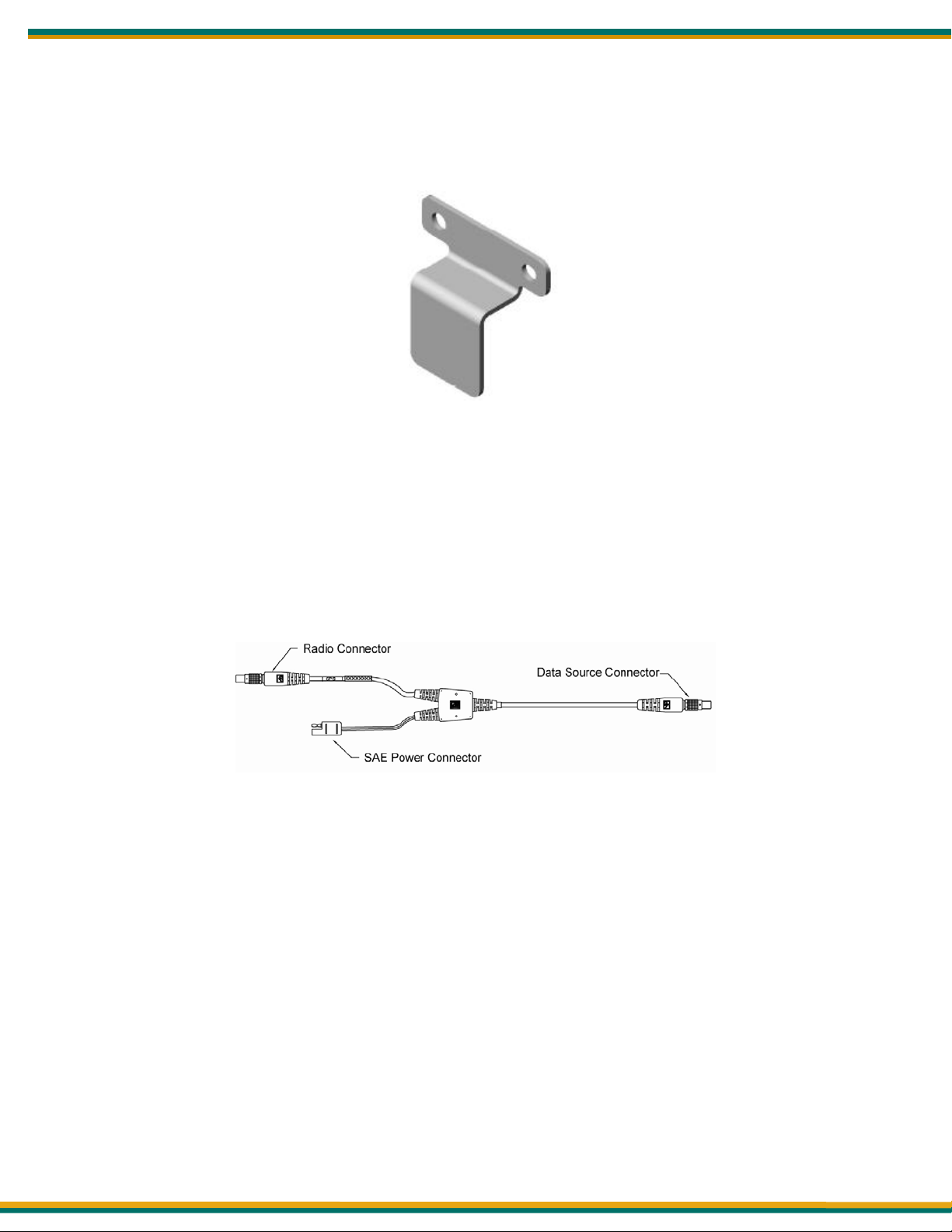

Figure2‐ADLVantageTripodClip

Data/PowerCable
TheADLVantageisconnectedtoadatasource,suchasaGNSSreceiver,usingadata/powercable(see
Figure3).Thiscableisavailablewithdifferentconnectorsforattachingtoalargevarietyofdatasources.
ContactyourPacificCrestsalesrepresentativeforselectingthebestcabletomeetyourneeds.





Figure3‐ADLVantageData/PowerCable

EachADLVantagedata/powercablealsoconnectstheradio(andinsomecasesthedatasource)to
externalpowerviaanSAE‐typeconnector.PacificCreststronglyrecommendsyouusetheADLexternal
battery(PNA02663),whichincludesanSAEconnector.Thisissoldbothseparatelyandaspartofthe
ADLBattery/ChargerKit(PNK01115).



PacificCrestCorporation ADLVantageUser’sGuide 10
OperatingtheADLVantage
TurningtheADLVantageOnandOff
ToturnontheADLVantage,attachtheradiotopowerusingeithertheprogrammingcable(attachedto
wall/mainscurrent)orthedata/powercable(attachedtotheADLVantagebattery).Onceitdetects
poweronitsdataconnector,theADLVantagewillturnonautomatically,displaytheradiomodem
firmwareversion,theownernameandbereadyforcommunicationwithin5seconds.Ifwall/mains
currentiseverinterrupted,theADLVantagewillautomaticallyturnitselfonandresumetransmitting
datawithin5secondsofpowerrestoration.ToturnofftheADLVantage,eitherdetachitspowercable
orpresstheOn/Offbuttoninthecenterofthefrontpanelforthreeseconds.

ADLVantageUserInterface
TheADLVantageuserinterfaceincludesthreeLEDs,anOn/Offbutton,atwo‐rowLCDdisplay,four
scrollingbuttonsmarkedwitharrowsandacentralEnterbutton.


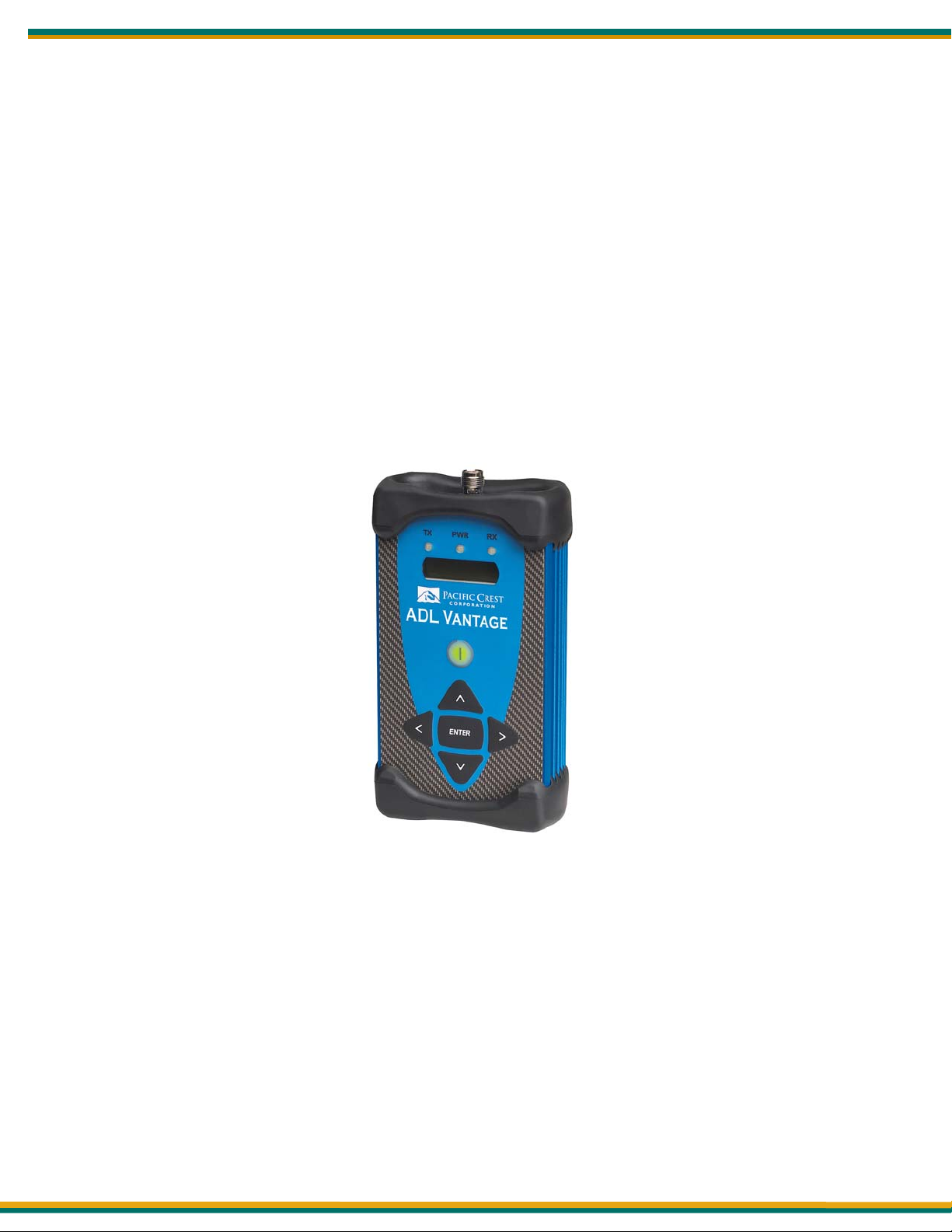

Figure4‐ADLVantage

TheLCDhasabacklightthatstaysonfor20seconds.ThebacklightmustbeonfortheEnterorarrow
buttonstofunction.Ifthebacklightisoff,pressinganybuttonturnsiton.Youcanopttohavethe
backlightstayonbyclickingtheAdvancedbuttononADLCONF’sSerialInterfacescreenandunchecking
theboxto“TurnoffradioLCDbacklightafter20seconds.”

ThetoprowoftheADLVantageLCDdisplaysthenameofthecurrentlyselectedradioconfiguration
function.ThebottomLCDrowdisplaysthevariousparametersyoucanchooseforthedisplayed
function.Presstheleftorrightarrowstoscrolltodifferentfunctions.Presstheupordownarrowsto
scrolltodifferentchoicesforthedisplayedfunction.




PacificCrestCorporation ADLVantageUser’sGuide 11
Table2(below)displaysthevariousfunctionsavailableintheADLVantageuserinterface.Italso
describesthesefunctionsandliststheparameterchoicesforeachfunction.Thedefaultparameters,
whereapplicable,areinboldface.

FunctionDescriptionParameterChoices
DeviceStatusDisplaysradiostatusandidentificationinformationBatterystatus
Frequencyofselectedchannel
Serialnumber
Ownername
Callsign
Modulationtype
Channelbandwidth
Transmitterstatus
Firmwareversion
Channel/FreqDisplays/selectschannelnumber&receive
frequency
Channel01andfrequency
(MHz)
Channel02andfrequency
(MHz)
Channel03andfrequency
(MHz)
Etc.
ChTXFreqDisplaysTXfreq(ifdifferentfromthechannel’sRX
freq)
ChannelNo.&frequency
(MHz)
DataProtocolDisplays/selectsdataprotocoltypeTransEOT(Endof
Transmission)
TransEOC(EndofCharacter)
PacketSwitched
TRIMTALK450S
TRIMMARKII/IIE
TT450S(HW)
TRIMMARK3
SATEL®
RadioLinkRateDisplays/selectsbitrateforradio
transmission/reception
4800
8000
9600
16000
19200
RepeaterModeSetstheradiotobearepeater(non‐Trimble
protocols)
Notarepeater
Isarepeater
OperationSetstheradiotobearepeater(Trimbleprotocols)Base/Rover



PacificCrestCorporation ADLVantageUser’sGuide 12
Mode
Base+1Repeater
Base+2Repeaters
Repeater1
Repeater2
SensitivityDisplays/selectsradiosquelchlevelLow(Base)
Moderate
High(Rover)
TransmitPowerDisplays/selectstransmitterpowerlevel100mW
500mW
1W(wherepermitted)
2W(wherepermitted)
4W(wherepermitted)
RXLED
Meaning
Displays/selectswhatitmeanswhentheRXLED
flashes
SignalReceived
DataReceived
CSMADisplays/selectsCarrierSenseMultipleAccess
setting
On
Off
SerialBaudDisplays/selectsserialbaudrateoftheradio’sdata
port
2400
4800
9600
19200
38000
115200
SignalStrengthDisplaysstrengthofthereceivedsignal(RSSI)indBmPressEnter
Weak
Moderate
Strong
ErrorCodeDisplayscurrenterrorstatusNoError
01:VoltageHigh
02:VoltageLow
08:TempHigh
11:MemoryError
15:TxFrequencyNotLocked
16:RxFrequencyNotLocked

Table2–ADLVantageUserInterfaceDisplay






PacificCrestCorporation ADLVantageUser’sGuide 13
TheADLVantageLCDdisplaysradiosettingsthataredetermined:
•Inthefactory:serialnumber,firmwareversion,transmitterstatus(enabled/disabled)
•Bytheradio:batterystatus,signalstrengthanderrorcodes
•Byyourdealer:channeltables(includingfrequencyandbandwidth)andmaximumtransmit
power
•IntheofficeusingtheADLCONFprogram(everythingelse)

Inaddition,youmayconfigurethefollowingparametersinthefieldusingtheADLVantageuser
interface:
•Channelnumber
•Dataprotocol
•Radiolinkrate
•RepeaterMode(called“OperationMode”whenusingaTrimbleprotocol)
•Sensitivity
•Transmitpower
•MeaningofRXLEDflashing
•CSMA(Note:ItisillegaltotransmitintheUnitedStateswhileCSMAisturnedoff.)
•Serialbaud

Forthefield‐configurablefunctions,theavailablechoicesaredisplayedonthebottomrowoftheLCD.
Thecurrentlyselectedparameterismarkedwithanasterisk.Toselectadifferentchoiceforthe
displayedfunction,scrollupordownwiththearrowbuttonsandpresstheEnterbuttonwhenthe
desiredchoiceisdisplayed.

Therearetwowaystomovetoadifferentfunctionscreen.Whenviewingadisplayonlyfunctionsuchas
DeviceStatusorSignalStrength,simplypresstheleftorrightarrow.Whenviewingadisplay‐and‐select
functionsuchasChannel/FreqorDataProtocol,firstpresstheup/downarrowstodisplaythecurrently
selectedparameter(markedwithanasterisk)inthesecondrow.Thenpresseithertheleftorright
arrowtomovetoanewfunctionscreen.
Note:ifthecurrentlyselectedparameter(shownwithanasterisk)isnotcurrentlydisplayedontheLCD,
andthebacklightisoff(i.e.,youhavenotpressedabuttonformorethan20seconds),youcanscroll
directlytotheselectedparameterbypressingtheleftorrightarrowonce.Tomovetoanewfunction
screen,presstheleftorrightarrowasecondtime.

Tospeedfieldconfigurationandtopreventtheselectionofunsupportedradioconfigurations,theADL
Vantageuserinterfacedisplaysonlythosefunctionparametersthatmakesensebasedonthe
parameterschosenforpreviouslydisplayedfunctions.Whatyouchooseforthedataprotocol
determinesyouroptionsforradiolinkrateandrepeatermode.Forexample,ifyourchanneltableisset
to12.5kHzchannelspacing,andyouselectTT450S(HW)ontheDataProtocolscreen,youcannotselect
aradiolinkrate–infacttheRadioLinkRatescreendoesnotevenappear‐becausetheTT450S(HW)
protocolworkswith12.5kHzchannelspacingonlyat4800bps.AndbecauseTT450S(HW)isaTrimble
protocol,Trimble‐specific“OperationModes”areavailableforselection.TheADLVantageuserinterface



PacificCrestCorporation ADLVantageUser’sGuide 14
remembersthingslikethissoyoudon’thaveto!Ifyoudecidetoundoanyoftheseselections,simply
presstheleftarrowtoreturntotheDataProtocolscreenandselectadifferentprotocol.

AlthoughtheADLVantageradiomodemsupportsbothGMSKand4FSKmodulation,youcannotselect
modulationtypewiththeuserinterface.Theradioautomaticallyselectstheappropriatemodulation
basedonthechannelbandwidthoftheradio’schanneltable(displayedontheDeviceStatusscreenas
“BW:12.5or25kHz”),thedataprotocolandtheradiolinkrate.Ifyouwanttoselectamodulationtype
firstandthenanappropriatechannelbandwidth,protocolandlinkrate,pleaseuseADLCONFto
configuretheradio.

IndicatorLEDs
TheTXLEDindicatesthattheADLVantageisbroadcasting.InmostGPSRTKapplications,theTXLEDwill
flashapproximatelyoncepersecond.

ThePWRLEDindicatesthepowerstatusandalsoprovidesalowexternalvoltagesupplyindicator.
Whenlit,poweristurnedon.ThePWRLEDwillblinktoindicateiftheexternalvoltagesupplyis
approachingtheminimumvalue.IfthePWRLEDdoesnotrespondtotheOn/Offbutton,thenthelevel
oftheexternalvoltagesupplyshouldbeinspected.

TheRXLEDflashestoindicatethattheADLVantageisreceivingsignalsfromanotherradioorfroma
sourceofinterference.ThedefaultisSignalreceived,butyoucanresettheradiosothatwhenitsRX
LEDflashesitmeansDatapacketsreceived.Youcanresetthemeaningeitherthroughtheuserinterface
orwithADLCONFconfigurationsoftware.Duringnormaloperation,theRXLEDwillflashataonce‐per‐
secondrateindicatingthereceptionoftransmissionsfromthetransmittingradio.IftheRXLEDison
continuously,thenasourceofinterferencemaybeimpactingtheabilityoftheADLVantagetoreceive
data.Tryrepositioningtheantenna,orchangingtoanotherchannelatboththetransmitterandreceiver
toreduceoreliminatetheinterference.

Enclosure
TheADLSentryenclosureisatough,impact‐resistant,aluminum.Itisfurtherprotectedwithachemical‐
andscratch‐resistantpolyurethanecoating.Elastomerendcapsprovidethefirstlevelofshock
protectionfortheinternalcomponents.Aninternalisolationsystemreducestheeffectsofvibrationon
theradioreceiverboard.

AntennaMount
TheintegratedantennamountprovidesanindustrystandardTNC‐femaleRFconnectorthatis
compatiblewithawiderangeofmobilewhipantennas.

BatteryCare
TheADLVantageBattery/Chargerkit(PNK01115)includesa12‐Volt,8‐AHr,deep‐discharge,lead‐acid
battery.Thisbatteryprovidesall‐dayoperationfortheradioandmayberechargedapproximately300
timesoveraperiodof3years.



PacificCrestCorporation ADLVantageUser’sGuide 15
TopowertheADLVantagewithauser‐suppliedbattery,selectadeep‐dischargebatterywitha
minimumcapacityof8AHr.Batteriesdesignedforautomotiveusecanbeusedifnecessarybutwillbe
damagedbyrepetitivedischarge/chargecyclesandarethereforenotrecommended.

Bydefault,theADLVantageuserinterfacedisplaysbatterystatusonthebottomrowoftheDevice
Statusscreen.Thescreendisplays“Normal”untilthevoltageonthebatteryfallsbelowalevelinputon
ADLCONFbyclickingtheAdvancedbuttonontheRadioLinkscreen.



Figure5–ADLCONF’sRadioLink/AdvancedScreen

Toprotectthebattery,theADLVantagewillautomaticallyshutitselfoffwhentheinputvoltagefrom
thebatterydropsbelowadefaultof9volts.Whenthebattery’svoltagefallsbelowauser‐specifiedlevel
higherthanthecutoffvoltage,theADLVantagebatteryStatusscreenwillchangefromdisplaying
“Normal”todisplaying“Low.”ThedefaultLowvoltagewarningoffsetis1volthigherthanthe9volts
cutoffvoltage.Bothlevelsareuser‐definable.Forexample,youcanchangetheADLVantagetodisplaya
“Low”warningwheninputvoltagefallsto11voltsbychangingtheLowvoltagewarningoffsetvalueto
2volts(above9volts).ADLCONFanditsuserguideareavailableforfreedownloadat
www.PacificCrest.com.

Charging
ThechargersuppliedwiththeADLVantageBattery/Chargerkit(PNK01115)providestwo‐stage
chargingandshouldbeconnectedtothebatteryfollowingeveryfulldayofoperationtoassuregood
batterylifeandperformance.Thefirststagequicklychargesthebatterytocapacityandthesecond
stagetricklechargesthebatterytomaintainafullcharge.

Itisimportanttoperiodicallychargeanybatterythatisstoredforanextendedlengthoftime.Storing
batteriesforanextendedtimeinadischargedstatewilldamagethem.Torechargeauser‐supplied
battery,selectachargerofappropriatetype.



PacificCrestCorporation ADLVantageUser’sGuide 16
TipsandTechniquesforBestPerformance
Antenna
Antennaplacementiscriticalforgoodperformance.Rangeandcoverageisdirectlyproportionaltothe
heightofthetransmittingandreceivingantennasinadditiontoantennagain.Wherepossible,selecta
referencestationlocationthattakesadvantageofterraintogetthetransmittingantennaashighas
possible.

Alwaysusethetelescopingantennamastandraisetheantennaashighasispracticalandsafegiven
terrainandwindconditions.

Donotuseagainedantennaifdoingsoincreasestheradio’sEffectiveIsotropicRadiatedPowerbeyond
thelimitofyourlicense.

LineLoss
Lineloss,producedbyRForantennacablesthatconnecttheradioandantenna,decreasestheoutput
power(Wattage)transmittedbytheantenna,therebydecreasingthesignal’srange.Tominimizeline
loss,pleasechecktheloss‐per‐lengthofcabletobeused.Forevery3dBoflineloss,theoutputpower
(Wattage)willdecreasebyhalf.Forexample,ifyouhada35Wradioandhadalinelossof3dBinyour
cable,theoutputpowerwouldbe17.5W,therebyreducingtherangeoftheradio’ssignal.Every6dBof
losswillreducetheradio’seffectiverangeby50%.

PowerSupplies
Maintainbatteriesinafullychargedstate.Theywilllastlongeriftheyarenotallowedtobecome
completelydischarged.Werecommendroutinelyconnectingthebatterytoitschargerafterevery
workingdayandfor24hoursevery3monthsduringperiodofnon‐use.Thiswillassureoptimal
performanceandlongbatterylife.

EquipmentCare
RoutineequipmentcarewillprolongthelifeandreliabilityofyourADLVantage.Radiocommunication
equipmentissusceptibletodamagefromshockorenvironmentalextremes.NeveroperatetheADL
VantageoutsidetheoperatingspecificationscontainedinAppendixC.

ErrorCodes
TheADLVantageperformsavarietyofpower‐upandrun‐timeteststoassureoptimaloperation.Tests
includeenvironmentalaswellaselectricalmeasurementsdesignedtoavoiddamagetotheunitwhile
maintainingadequateoperation.Intheeventofanerrorcondition,anerrorcodeisdisplayedonthe
LCDscreenandthePWRLEDflashesthenumberoftheerrorcode(twoflashesforErrorCode02,
followedbyapause,twomoreflashes,etc.).Table3liststhepossibleerrorconditions.






PacificCrestCorporation ADLVantageUser’sGuide 17
CodeDescription
01Inputvoltageistoohigh
02Inputvoltageistoolow
08Internaltemperatureexceedslimitforoperation
E11Memoryerror
E15TransmitFrequencyLockError
E16ReceiveFrequencyLockError

Table3‐ADLVantageErrorCodes


Whattodo
•ErrorCode01‐02:Checkbatteryorpowersupplyvoltagelevel;checkpowercables;rechargeor
replacethebattery;checkthecharger.
•ErrorCode08:Placetheradiointheshade;checktheantennaandantennacablesfordamage
ordisconnection;setradiolinkrateto19200toreducethedutycycle;selectalowerRFpower.
•ErrorCodes11,15and16:Contactcustomerservice.IftheradiosdisplaysErrorCode15
(Transmitfrequencylockerror),youshouldturntheradiooffasitmightbetransmittingatan
unprogrammedfrequencyforwhichyouarenotlicensed.

Iftheradiocontinuestodisplaytheerrorcodeafteryouhavefixedthesituation,youmayclearthe
errorcodefromtheradio’sdisplaybypressingtheOn/Offbuttonfor3seconds(turningofftheradio),
waitingonefullsecondandpressingtheOn/Offbuttonasecondtime.Ifanerrorwarningpersists,
contactaPacificCrestauthorizeddealerorPacificCrestCustomerSupport.


FCCRulesandRegulations
LicensingRequirements
Itistheresponsibilityoftheownertocomplywithapplicablerulesandregulationsconcerningtheoperationof
aradiotransmitter.IntheUnitedStates,theFCCregulatesthelicensingofthisequipment.

ApplicationforalicenseismadebysubmittingFCCForm600alongwithevidenceoffrequencycoordination(if
required)andapplicablefees.Similarlicensingrequirementsexistworldwide.Penaltiesforbroadcastingwithout
alicensecanbesevere,andmayincludetheconfiscationofyourradio.

Formoreinformation,contactourcustomerservicedepartment.

Warning:Alwaysobeylocallicensingrequirementsandrestrictions.Itisillegaltotransmitinthe
UnitedStateswhileCSMAisturnedoff.







PacificCrestCorporation ADLVantageUser’sGuide 18
EquipmentCompliances
ADLVantagehavebeentestedandfoundtocomplywithParts15and90ofTitle47oftheCodeofFederal
Regulations.ADLVantageradioshavealsobeentestedandfoundcompliantfortypecertificationandapproval
inmanyothercountriesworldwide.

Formoreinformationconcerningourworldwidecompliances,contactPacificCrestCustomerService.

BeingPartoftheRFcommunity
OperationofalicensedradioproductmakesyouamemberoftheRFcommunity.Beawarethatvirtuallyall
frequencieslicensedareprovidedonasharedbasiswithotherusers.Eachfrequencydedicatedspecificallyto
RTKsurveyingactivitieshascertainrestrictionsandlimitations.Forcompleteinformation,refertoPart90,Title
47,oftheCodeofFederalRegulations.

Mostfrequenciessharingdatatransmissionsandvoicetransmissionsgiveprioritytovoiceusers.Bemindfulof
thepersistentnatureofaGPSRTKdatatransmissionandalwayslimityourRFtransmissionoutputpowerwhen
performingclose‐insurveysituationstoavoidinterferencewithco‐channelusers.PacificCrestrecommends
usingthelowRFpowersettingforconstructionsiteandotherline‐of‐sitesurveyswithbaselineslessthantwo
miles(dependingonterrain).

Warning:Ifyouareinconflictwithaco‐channeluser,selectanotherfrequencytoavoidformalFCC
actions.Inmostcasesyouarerequiredtovacateafrequencyuponcomplaintbyasharedchannel
voiceuser.

Mostsurveyoperationsareitinerantinthatthesystemismovedonafrequentbasis.Forfixedsystem
installations,youshouldnotusefrequenciessetasideforitinerantoperations,butshouldcoordinatea
frequencybasedonthefixedareaoperation.

Regulationsdifferfromcountrytocountry,sopleasebeawareofthelocalregulationspriortousingradio
equipment.

AutomaticStationIdentification
ForoperationintheUnitedStates,theFCCrequiresthatradiotransmittersusedforGPSRTKapplications
periodicallybroadcastastationidentifier.Thestationidentifieristhecallsignassignedtoyouonthestation
license.

TheADLVantagesupportsthebroadcastofstationidentificationinamannerthatmeetstherequirementsof
theFCC.Uponreceiptofequipment,programyourFCCcallsignintotheconfigurationofyourADLVantage
usingADLCONFsoftware.Thisisonlyrequiredfortransmitters.

Warning:FailuretotransmityourstationidentificationisinviolationofFCCregulations.Use
ADLCONFsoftwaretoenteryourFCCcallsign.




PacificCrestCorporation ADLVantageUser’sGuide 19

CarrierSenseMultipleAccess(CSMA)
CSMAisatechnologyimplementedinADLVantagebaseradiostomeettheUnitedStatesFederal
CommunicationCommission(FCC)transmitterrequirements.ItisillegaltotransmitonanyUHFradiowithinthe
UnitedStateswithoutCSMAenabled.CSMAholdsofftheradiotransmissionifthefrequencyiscurrentlybeing
usedbyaco‐channeluser.Onoccasion,youmaynotethattheradiobroadcastsstopforshortperiodsoftime.
Mostoften,thisisacaseofco‐channelinterferenceandtheADLVantagebaseradioisholdingoffbroadcasts
duetotheFCCmandatedCSMA.

GPSRTKequipmentisdesignedtofunctionwithintermittentgapsinthedata.Heavyco‐channelusemaylimit
theabilityoftheADLVantagebaseradiototransmittherequiredinformation.Inareasofheavyco‐channel
usage,trychangingchannelstoalessusedfrequency.





PacificCrestCorporation ADLVantageUser’sGuide 20
ContactInformation
CustomerSupport
Quality,technologyandservicearethehallmarksofPacificCrestCorporation.Weprovideeasyaccesstoour
customerservicedepartmenttokeepyourunningefficiently.

HeadquartersEMEAOffice
PacificCrestCorporationHALTradeCenter
510DeGuigneDriveBevelandseweg150  
Sunnyvale,CA940851703AXHeerhugowaard
USATheNetherlands
Tel: 1‐800‐795‐1001(U.S.&Canadatollfree)  Tel:+31‐725‐724‐408
1‐408‐481‐8070(outsidetheU.S.)  Fax:+31‐725‐348‐288
Fax:1‐408‐481‐8984

E‐mail:[email protected]
Repairinfo:RMARequest
Web:www.PacificCrest.com

Supporthoursare8AMto5PMPacificTime.Pleasevisitourwebsiteforup‐to‐datenewsandproduct
announcements.Firmwareandsoftwareupgradesareavailablefromourwebsite,inmostcasesfreeofcharge.

SalesContact
HeadquartersEMEAOffice
PacificCrestCorporationHALTradeCenter
510DeGuigneDriveBevelandseweg150  
Sunnyvale,CA940851703AXHeerhugowaard
USATheNetherlands
Tel: 1‐800‐795‐1001(U.S.&Canadatollfree)  Tel:+31‐725‐724‐408
1‐408‐481‐8070(outsidetheU.S.)  Fax:+31‐725‐348‐288
Fax:1‐408‐481‐8984
E‐mail:[email protected]
Web:www.PacificCrest.com









