Pacific Floorcare MSB-11 ORB User manual

2024
MSB-11 ORB OPERATING MANUAL
Powered by

MACHINE DATA
MSB-11 ORB MACHINE DATA
Model:
Serial:
Date of Purchase:
Dealer:
Address:
Phone Number:
Sales Representative:
2
MSB-11 ORB

Machine Data
How to Use This Manual
Safety - Important Instructions
Technical Details
Operation
Unpacking
Solution Tank
Pad/Brushes
Power Switch
Battery
Handle Position
Operating Machine / Operating Option
Spray System
Lifting and Handling
Storage
Accessories and Applications
Pad Driver
SuperZorb Pad
MicroFiber Pad
UltraLift Pad
AkwaStrip Pad

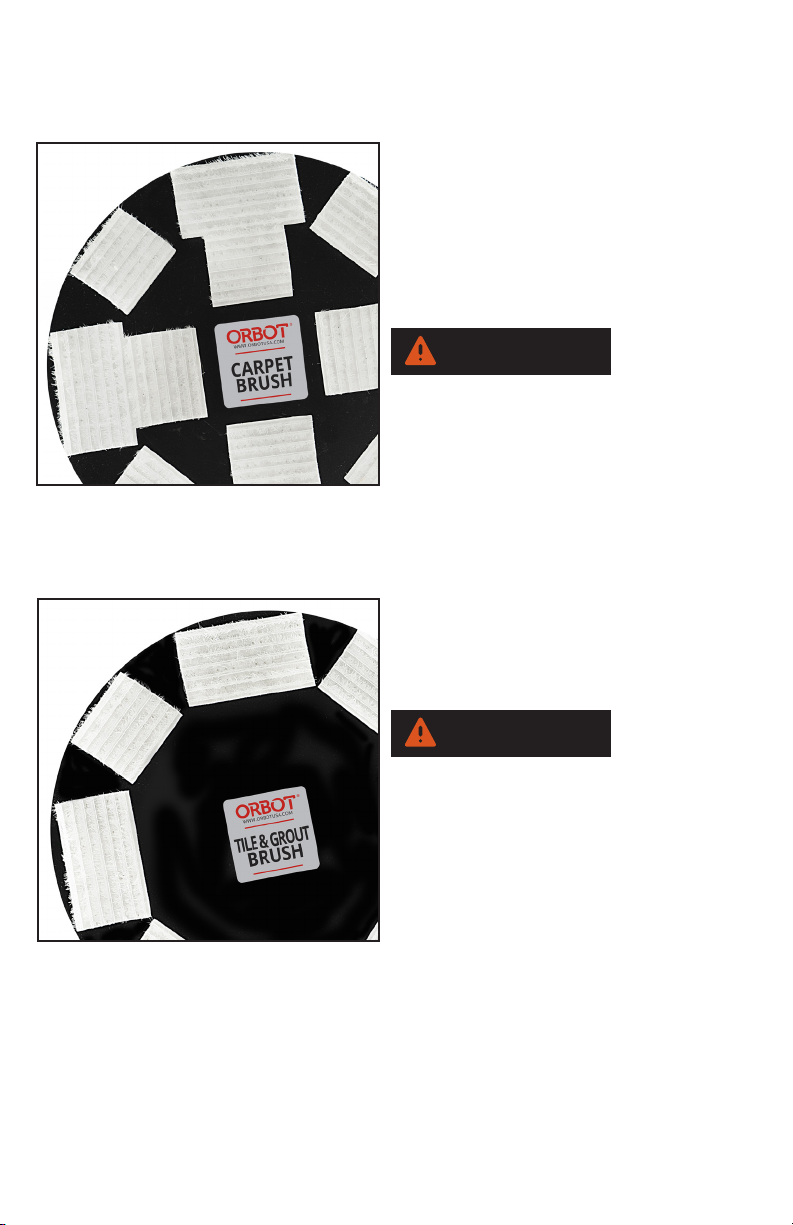

Carpet Brush
Tile & Grout Brush
Maintenance
Cleaning the Machine
Checking the Machine
SLiM Cleans in Small Spaces

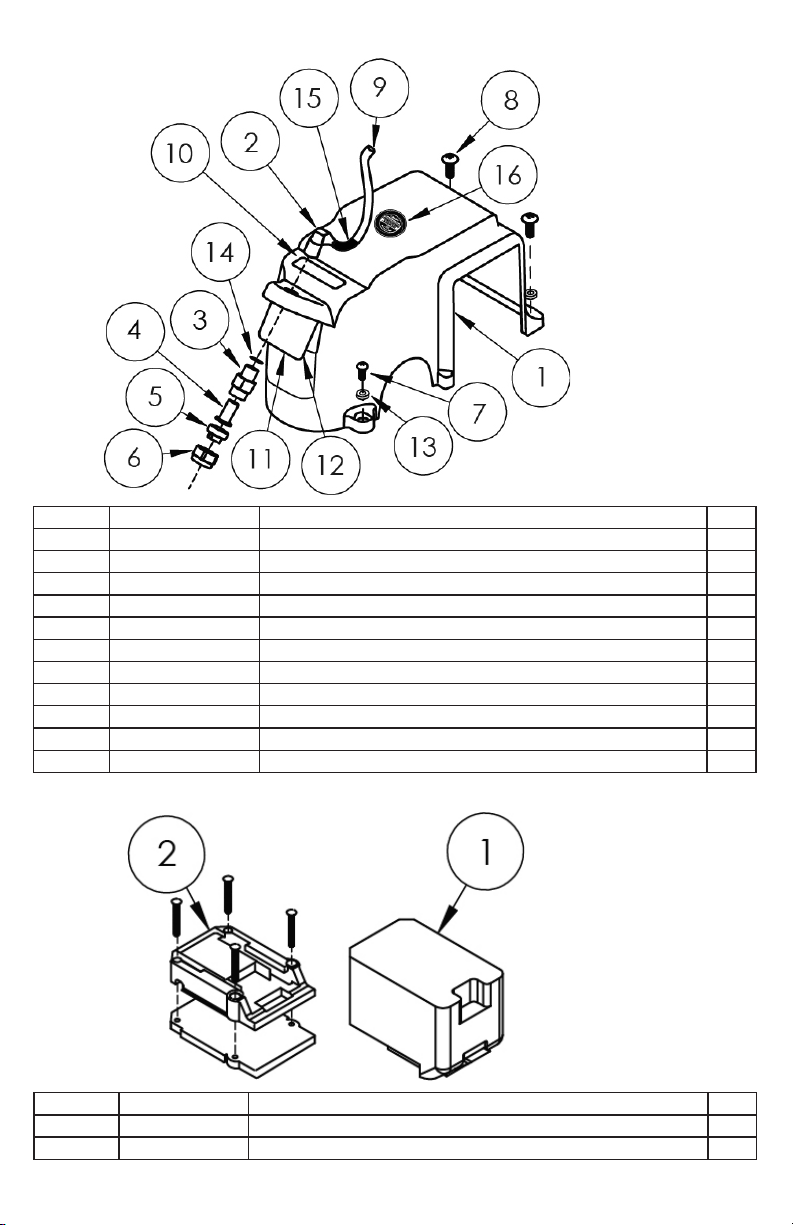

Part Diagrams and Part Lists
Wiring Diagram
2
4
5 - 6
7
8 - 12
8
9
10
11
12
13
15 - 21
22
TABLE OF CONTENTS
3

This manual contains the following sections:
• How to Use This Manual
• Safety
• Operations
• Maintenance
• Parts List
The HOW TO USE THIS MANUAL
section will tell you how to nd important
information for ordering correct repair
parts.
Parts may be ordered from authorized
dealers. When placing an order for
parts, the machine model and machine
serial number are important. Refer to the
MACHINE DATA box which is lled out
during the installation of your machine.
The MACHINE DATA box is located on the
inside of the front cover of this manual.
The model and serial number of your
machine is located on the left side of the
handle, from the operators perspective.
The SAFETY section contains important
information regarding hazardous or unsafe
practices of the machine. Levels of hazards
are identied that could result in product
damage, personal injury, or severe injury
resulting in death.
The OPERATIONS section is to familiarize
the operator with the operation and
function of the machine.
The MAINTENANCE section contains
preventive maintenance to keep the
machine and its components in good
working condition. They are listed in this
general order:
• Storage
• Maintenance
• Troubleshooting

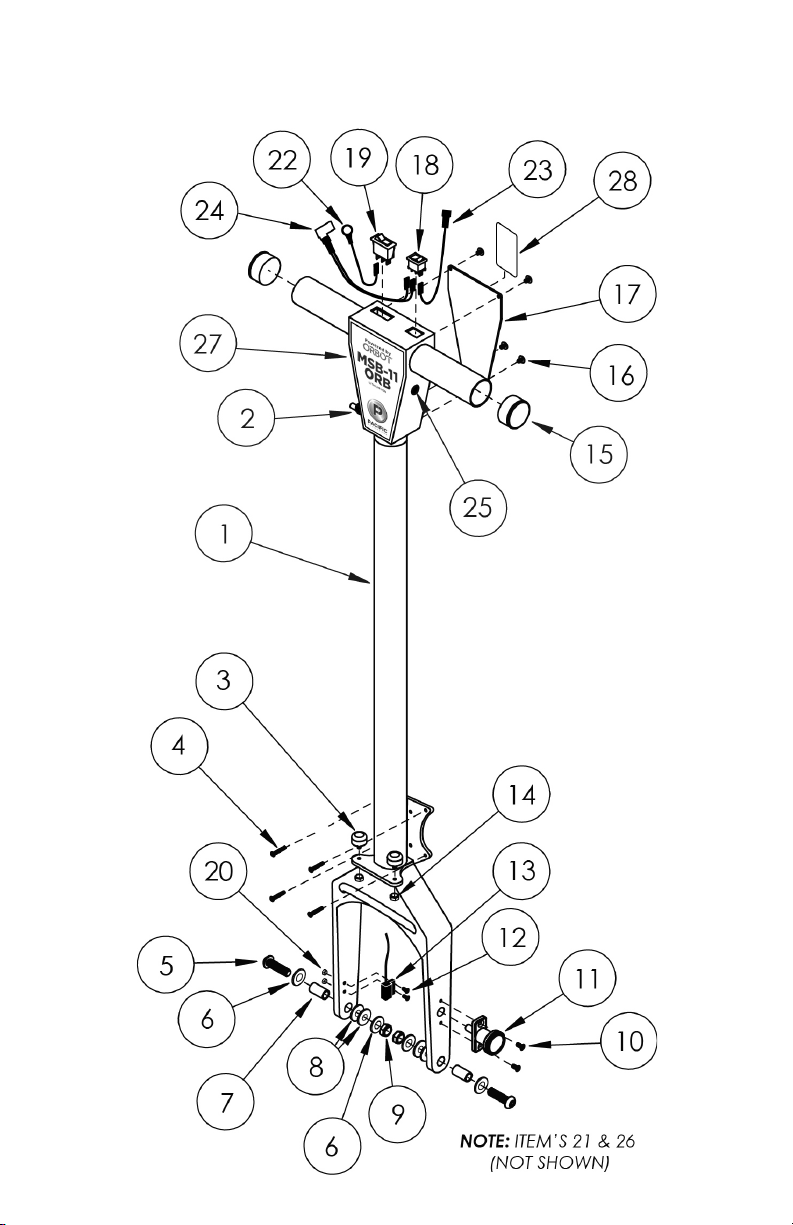

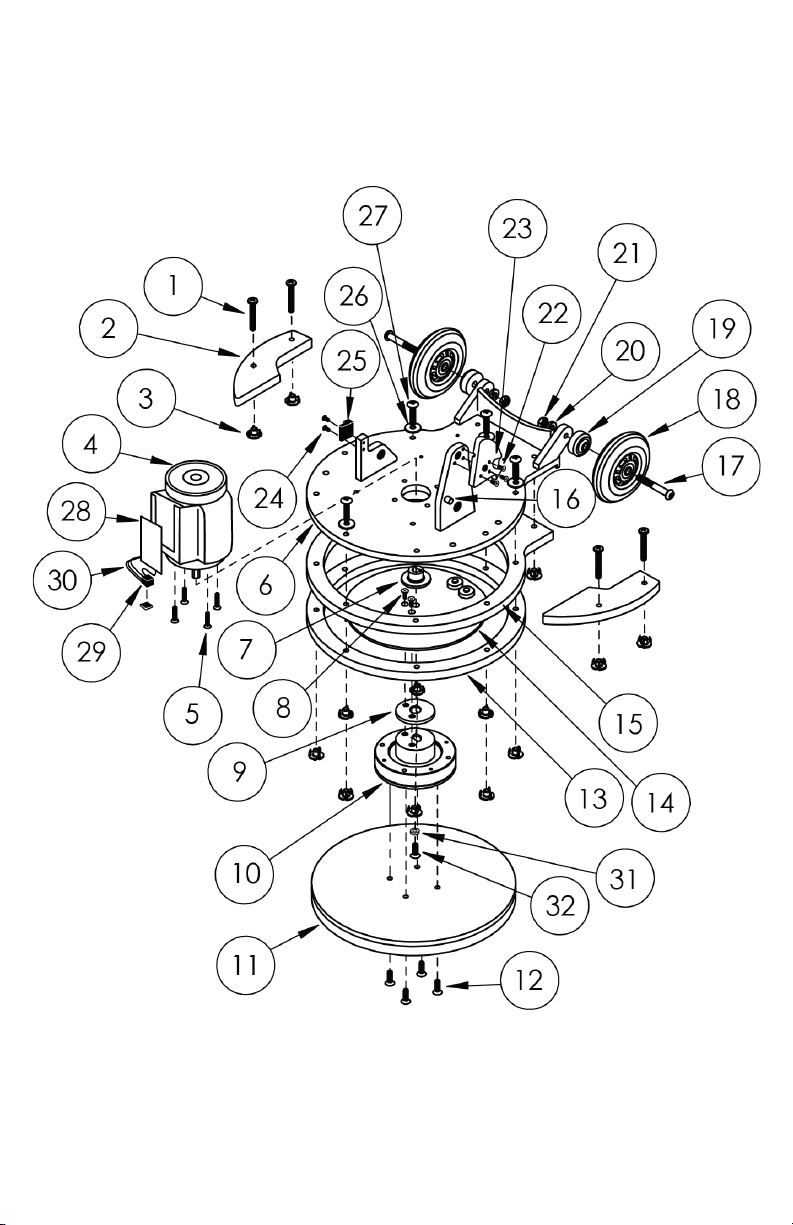

The PARTS LIST section contains assembled
parts illustrations and corresponding parts
list. The parts lists include a number of
columns of information:
• REF – column refers to the reference
number on the parts illustration.
• PART NO. – column lists the part number
for the part.
• PRV NO. – reference number.
• QTY – column lists the quantity of the part
used in that area of the machine.
• DESCRIPTION – column is a brief
description of the part.
• SERIAL NO. FROM – If this column has
an (*) and a Reference number, see the
SERIAL NUMBERS page in the back of
your manual. If column has two asterisk
(**), call manufacturer for serial number.
The serial number indicates the rst
machine the part number is applicable
to. The main illustration shows the most
current design of the machine. When a
boxed illustration is shown, it displays the
older design.
• NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed
on your machine, be sure to keep the KIT
INSTRUCTIONS which came with the kit. It
contains replacement parts numbers needed
for ordering future parts.
NOTE: The manual part number is located
on the lower left corner of the front cover.
HOW TO USE THIS MANUAL
4

IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic precautions must always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
WARNING
To reduce the risk of re, electric shock, or injury:
• Use only indoors. Do not use outdoors or expose to rain.
• Store the machine indoors where temperature is between 32° and 104°F (0° and 40°C).
• Use only as described in this manual. Use only manufacturers recommended components
and attachments.
• If the machine is not working properly, has been dropped, damaged, left outdoors, or
dropped into water, return it to an authorized service center.
• Do not operate the machine with any openings blocked. Keep openings free of debris that
may reduce airow.
• Machine can cause a re when operating near ammable vapors or materials. Do not
operate this machine near ammable uids, dust or vapors.
• This machine is suitable for commercial use such as: in hotels, schools, hospitals, factories,
shops, and ofces for more than normal housekeeping purposes.
• Maintenance and repairs must be done by qualied personnel.
• During operation, use caution around other persons, especially children.
• The machine shall only be operated by instructed and authorized persons.
• When leaving unattended, unplug the machine.
• Do not handle the plug or machine with wet hands.
• Do not unplug machine by pulling on cord. To unplug, grasp the plug and not the cord.
• Do not use with damaged cord or plug. Follow all instructions in this manual concerning
grounding the machine.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners.
• Do not pull/run machine over cord. Keep cord away from heated surfaces.
• Connect to a properly grounded outlet. See Grounding Instructions.
• If the supply cord is damaged it must be replaced by an authorized service agent.
• Unplug before cleaning or servicing.
• Operational hazard may occur when running the machine over the supply cord.
• This appliance has been designed for use with pads specied by the manufacturer. The
tting of other pads may affect its safety.
• This machine is for dry use only and shall not be used or stored outdoors in wet conditions
• Moving Parts - To reduce the risk of injury, unplug before servicing.
READ AND SAVE THESE INSTRUCTIONS
SAFETY
5

The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identied by signal words -WARNING,
CAUTION, and FOR SAFETY. The level of hazard intensity is determined by the following
denitions:
WARNING
WARNING - Hazards or unsafe practices CAN result in severe personal injury or death.
CAUTION
CAUTION - Hazards or unsafe practices which could result in minor personal injury or
product or property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not
in proper operating condition. The following is information that signals some potentially
dangerous conditions to the operator or the equipment. Read this information carefully.
Know when these conditions can exist. Locate all safety devices on the machine. Please take
the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
• Unless trained and authorized.
• Unless Operation Guide is read and understood.
• In ammable or explosive areas.
• In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing, jackets, shirts, or sleeves when working on
the machine. Use only manufacturer approved replacement parts.
SAFETY
6

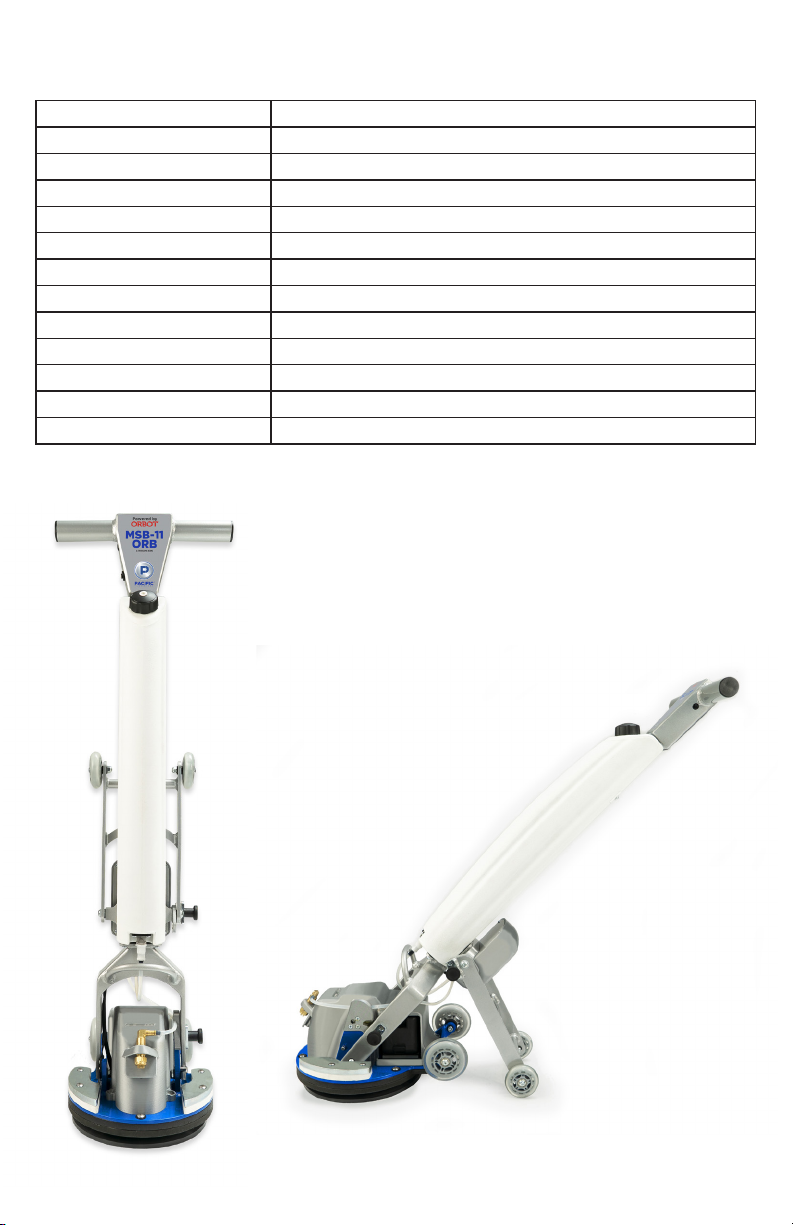

TECHNICAL DETAILS
7
ITEM SPECIFICATIONS
Motor 36 V/330W - DC, 3000 RPM, 59 dB with protective cover
Dual Speed 3000 RPM (Orbital), 120 RPM (Rotational)
Base Diameter 11” (27.9 cm)
Wheel Diameter 4” (10.16 cm)
Solution Tank Capacity 3/4 Gallon (2.84 L)
Pump 58 PSI (4 BAR)
Noise Level 59 dB
Height 47” (119 cm)
Weight 28 Lbs/12.7 Kg (+6 lbs/2.7kg w/tank & battery)
Battery (BMS) Lithium-ion 36V/40W/6Ah (Battery Management System)
Run Time Up to 45 Minutes (depending on oor type/pad)
Charge Time 90 Minutes

OPERATION
8
Unpacking
Open shipping box (both sides). Remove
packaging material and roll machine out of
the box.
Solution Tank
Disconnect the quick-connect tting located
at the bottom of the solution tank. Remove
solution tank by pulling away from the handle
frame. Add water or cleaning detergent of
choice. Snap solution tank onto frame.
Reconnect the quick-connect tting.
CAUTION
Ensure solution tank cap is securely fastened
to avoid leaks and spills.
Pads/Brushes
Choose an Orbot pad or brush of choice to
clean or restore the desired oor.
Place under the hook pad driver BEFORE
powering on machine.
To remove, simply peel off.
Power Switch
Turn power switch to the OFF position located
at the top of the handle. The power switch will
illuminate when powered ON.
Battery
Insert the battery into the battery tray located
inside the base housing cover.
Ensure to completely lock the battery into
position until you hear a click sound.
To remove the battery, release the battery
lever and pull out. You can use your right
hand to help push the battery out of the tray.
WARNING
Always remove battery and immediately
charge to avoid damage.

OPERATION
9
Handle Position
Before powering ON the machine, lower the
handle into a comfortable position by pulling
out the pull-pin lever located on the lower left
side of the handle fork.
Operating Machine
Turn power switch on, and begin to maneuver
the machine over the oor surface.
The machine can be moved in all directions.
When cleaning carpet, the machine is best
moved forward to backwards, while spraying
only forward.
Operating Option
To increase operator comfort, the wheel
kit can be lowered down onto the oor by
releasing the pull-pin lever and choosing the
desired height.
Spray System
To apply water or detergent to the oor
surface, press the spray switch located on the
top right side of the handle.
System Light Indicators
(Located on Top of Motor Cover)
Blue lights:
• One Blue Light: Low Battery Level
• Two Blue Lights: Medium Battery Level
• Three Blue Lights: Full Battery Level
Red light:
• Machine is working over full load capacity.
Run times will lessen.
Green light:
• Machine is working under light load
capacity. Run times will increase.

HANDLING & STORAGE/ACCESSORIES & APPLICATIONS
10
Lifting & Handling
To lift the machine into a vehicle, use handle
located on fork. To lift the machine up stairs,
lower the wheel kit to 90 degrees.
CAUTION
Storage
Always keep machine stored in the upright
position. Do not store brushes under pad
driver when not in use.
_______________________________________
ACCESSORIES AND APPLICATIONS
_______________________________________
WARNING
Never store the accessories in wet conditions.
Keep away from extreme heat and from
chemicals.
Pad Driver
To replace the pad driver, remove the 4
screws using a #3 Phillips/Star screwdriver.
Using the incorrect screwdriver can result in
stripping the screw head.
Pad drivers should be replaced when the hook
material becomes clogged with excess lint and
debris.
CAUTION
It is important to operate the machine using
clean pad drivers to ensure optimal cleaning
performance. When excess clogging occurs
from lint and debris, the hook tensile strength
is reduced which leads to damaged pads and
brushes.
WARNING
Never place driver onto oor surface without
a pad or brush.

OPERATION

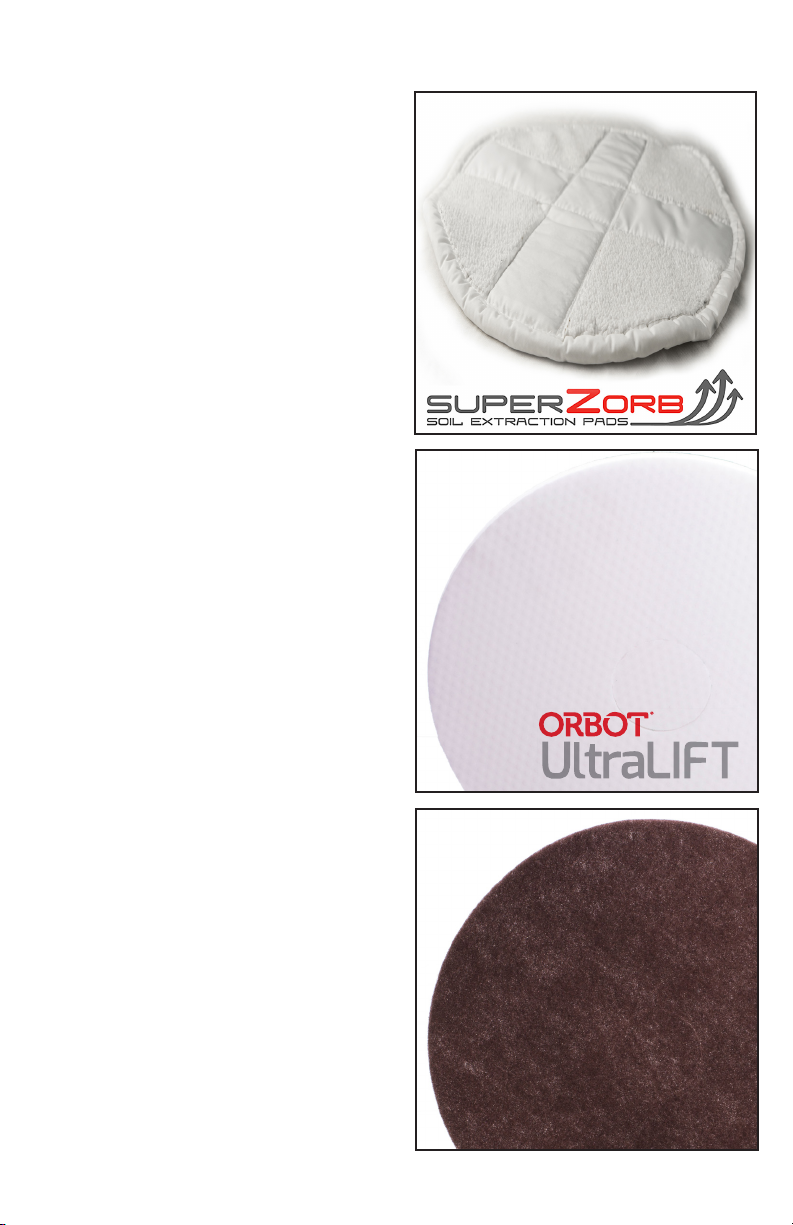

SuperZorb Pad
Our exclusive SuperZorb pad is made of a
special cotton and polyester blend. One of the
primary components that help to extract an
essential amount of soil from the carpet bers.
They also play an important role to achieve
fast dry times. SuperZorb pads can be used
on both sides. SuperZorb pads are machine
washable. Allow to air dry.
SuperZorb pads are also great to be used to
power mop hard oors.
MicroFiber Pad
Use for cleaning all carpets and hard oors.
Best used for high friction oor types. Choose
over SuperZorb Pads when laundry machines
are limited. Can be easily washed by hand.
UltraLift Pad
The UL pads are used to remove stubborn
stains and grease trapped in microporous
hard oors such as tile, stone, VCT/vinyl,
concrete, wood, epoxy, and more.
Use with water or mild detergents.
AkwaStrip Pad
The AkwaStrip pad is a chemical free
stripping pad made of a unique material lled
with diamonds. Used for deep cleaning and to
remove wax off of vinyl, VCT, linoleum, wood,
safety tiles and more. Used on both sides.
Thoroughly rinse with clean water after use.
11

OPERATION
12
Carpet Brush
To lift carpet ber piles.
Use for extra scrubbing power to release
stubborn stains.
Also use on hard or rubber oors to release
dirt from small cracks, crevices, and pores.
CAUTION
Do not store brushes under the machine. As
a result, bristles will become damaged and
deformed.
Tile & Grout Brush
Use for cleaning hard oor tiles, grout lines,
pores, cracks, and crevices.
CAUTION
Do not store brushes under the machine. As
a result, bristles will become damaged and
deformed.

MAINTENANCE
13
COMMON MAINTENANCE
Cleaning the Machine
• Always maintain a clean machine
to preserve it’s presence and optimal
performance.
• Maintain clog free hook pad drivers
to maximize cleaning performance and
eliminate damage to pads and brushes.
Checking the Machine
• Check counter weight bearing to ensure
optimal performance and minimal vibration.
• Check for any loose nuts and bolts to
minimize vibration.
• Check pull lever pins for any loose
fasteners.
• Check solution tank lters to ensure
maximum solution ow.
Cleans in Small Spaces
• Ease of cleaning in tight and narrow spaces
such as under chairs.
• Ease of cleaning within hard to reach spots
in bathrooms.
• Ease of carrying up stairs as well as
cleaning them.
• Also, planes, trains, automobiles, etc. are
very hard to clean where the SLiM comes
in handy to assist in these areas. Plus many
more possible opportunities where most
cleaning machines are too large to get to
those small spaces.

PARTS
14

15
PARTS
SOLUTION TANK ASSEMBLY
ITEM NO PART NUMBER DESCRIPTION QTY.
1 570237 SOLUTION TANK 1
2 570238 TANK CAP ASSEMBLY 1
3 570239 TANK FILTER ADAPTER ASSEMBLY 1
4 570240 MALE QUICK-CONNECT 1
5 570241 TANK HOSE 1
6 570242 TANK TAB SCREW, 10-32 X 1/2” 2
7 570243 TANK TAB 2
8 570244 TANK TAB, FOAM ADHESIVE, 1” 2

PARTS
16
HANDLE / FRAME ASSEMBLY

PARTS
17
ITEM NO PART NUMBER DESCRIPTION QTY.
1 570209 WELDED ALUMINUM HANDLE ASSEMBLY 1
2 570210 15 AMP CIRCUIT BREAKER 1
3 570211 RUBBER, TANK MOUNT STOP 2
4 570212 PUMP MOUNT SCREW 6-32 X 1-1/4” 4
5 570213 HANDLE FORK MOUNTING SCREW, 3/8-16 X 1-3/8” 2
6 570214 HANDLE FORK MOUNTING WASHER 3/8” 4
7 570215 HANDLE FORK SPACER 2
8 570216 HANDLE FORK INNER MOUNTING WASHER 1/2” 4
9 570217 HANDLE FORK MOUNTING NUT 3/8” 2
10 570218 PULL PIN MOUNTING SCREW 10-24 X 9/16” 2
11 570219 PULL PIN 1
12 570220 SAFETY SWITCH, SCREW, 6-32 X 5/8” 2
13 570221 SAFETY SWITCH 1
14 570222 RUBBER, TANK MOUNT STOP, NUT, 8-32 2
15 570223 PLASTIC CAPS, TUBE 2
16 570224 TERMINAL BOX COVER SCREW, 8-32 X 3/16” 4
17 570225 TERMINAL BOX COVER 1
18 570318 POWER SWITCH 1
19 570317 SPRAY SWITCH 1
20 570228 SAFETY SWITCH, NUT, 6-32 2
21 570229 COMPLETE WIRING HARNESS 1
22 570230 GROUND WIRE, POWER SWITCH, GREEN 1
23 570231 WIRE, POWER SWITCH to SPRAY SWITCH, BLUE 1
24 570232 WIRE HARNESS, POWER SWITCH to BREAKER, WHITE 1
25 570233 PLASTIC PLUG for TERMINAL BOX 2
26 570234 GROUND WIRE SCREW, 8-32 x 3/8” HEX, SS 4
27 570235 LABEL, SLIM, FRONT 1
28 570236 LABEL, QR CODE, REAR 1
HANDLE / FRAME ASSEMBLY

PARTS
18
WHEEL KIT / PUMP ASSEMBLY
ITEM NO PART NUMBER DESCRIPTION QTY.
1 570245 WHEEL, 3” 2
2 570246 WHEEL KIT FRAME ASSEMBLY 1
3 570247 WHEEL KIT WASHER, NYLON, 3/8” ID X 3/4” OD 4
4 570248 WHEEL KIT MOUNTING SCREW, 3/8”-16 X 1” 2
5 570249 WHEEL KIT MOUNT 1
6 570250 WHEEL KIT MOUNT SCREW, 10-24 X 3/4” 4
7 570251 PULL PIN MOUNTING SCREW, 10-24 X 9/16” 2
8 570252 PULL PIN 1
9 570253 PUMP COVER SCREW, 8-32 4
10 570254 PUMP MOUNT 1
11 570255 PUMP CIRCUIT BOARD 1
12 570256 PUMP ASSEMBLY, 58 PSI / 4 BAR 1
13 570257 PUMP COVER 1
14 570258 WHEEL KIT, SCREW, 5/16-18 x 1-3/4” 2
15 570259 UPPER WHEEL, WASHER 4
16 570260 UPPER WHEEL, NYLOCK, 5/16-18 2
17 570261 PUMP, CIRCUIT BOARD, SCREW, 6-32 x 5/8” 2
18 570262 PUMP, CIRCUIT BOARD SPACER, 1/4” BLK 2

PARTS
19
ITEM NO PART NUMBER DESCRIPTION QTY.
1 571302 BATTERY, 36V, 6AH 1
2 570278 BATTERY TRAY ASSEMBLY 1
ITEM NO PART NUMBER DESCRIPTION QTY.
1 570263 MOTOR COVER, SILVER 1
2 570264 90° QUICK-CONNECT SPRAY FITTING 1
3 / 4 570265 / 570266 SPRAY JET BODY / CHECK VALVE STRAINER 1 / 1
5 / 6 570267 / 570268 SPRAY JET TIP / SPRAY JET CAP 1 / 1
7 570269 FRONT MOTOR COVER MOUNTING SCREW, 1/4-20 X 5/8” 2
8 570137 REAR MOTOR COVER MOUNTING SCREW, 1/4-20 X 1” 2
9 570270 SPRAYER HOSE 1
10 / 11 570271 / 570272 LED, LENS COVER, TOP / LED, LENS COVER, BOTTOM 1 / 1
12 / 13 570273 / 570274 LED, CIRCUIT BOARD / MOTOR COVER, WASHER, BLK 1 / 1
14 / 15 570275 / 570276 SPRAYER WASHER, ZINC / 1/4” BLACK TUBE for 90° FITTING 1 / 1
16 570277 LABEL, LOW MOISTURE 1
BATTERY ASSEMBLY
SPRAY NOZZLE &
MOTOR COVER
ASSEMBLY

PARTS
20
BASE & DRIVER PLATE ASSEMBLY
