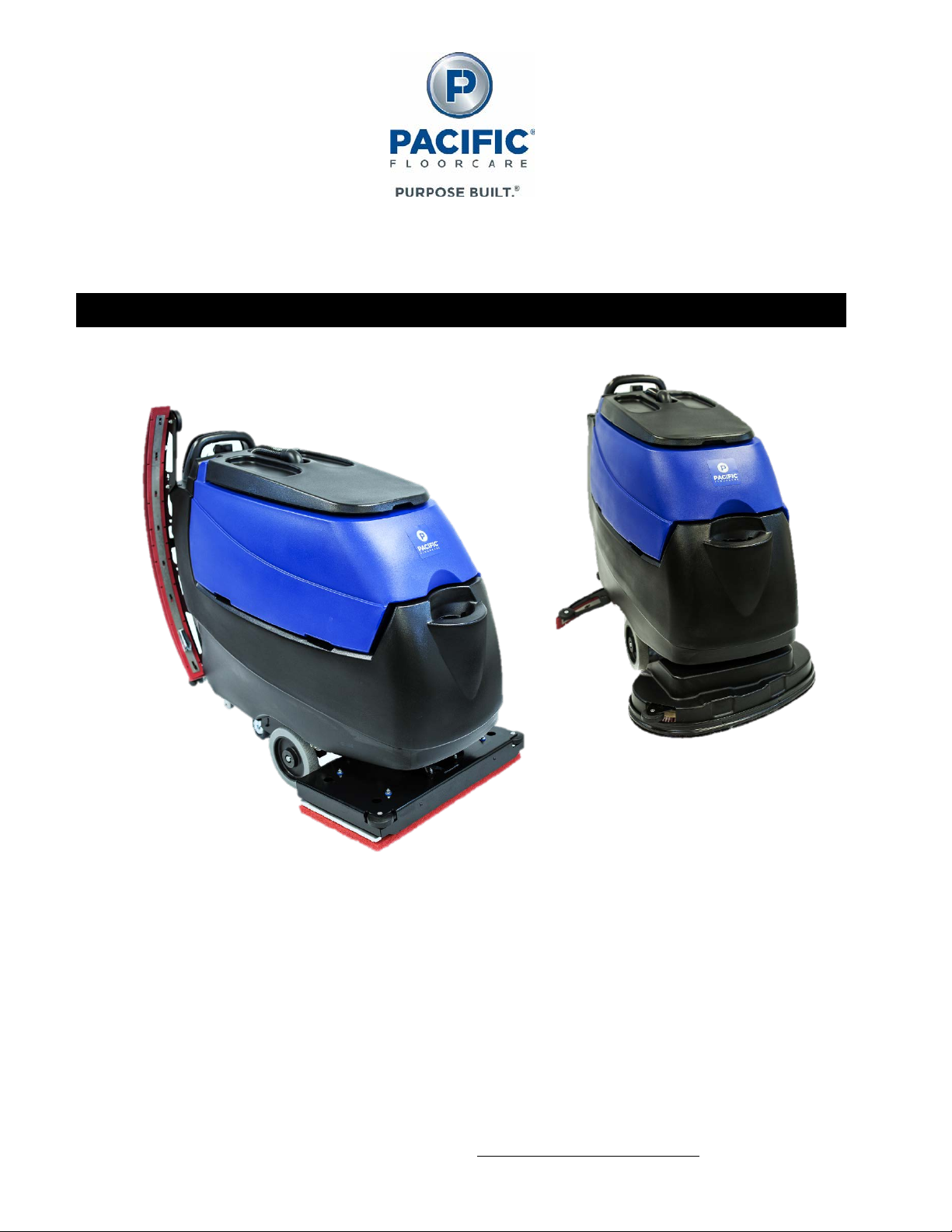

Pacific Floorcare S-28 User manual

S-24 / S-28 / S-32
22 GALLON AUTOSCRUBBER
PARTS & OPERATING MANUAL
Thank you for purchasing a Pacific Floorcare product. Carefully inspect all components for freight damage. If freight
damage is discovered, file a “CONCEALED DAMAGE REPORT” immediately with the delivering carrier.
Read this manual carefully and keep it near the machine, protected from liquids and other damaging substances. Failure to
follow the instructions may result in injury or damage to equipment and property.
The contents of this manual are based on the latest product information available at the time of publication. Pacific
Floorcare reserves the right to make changes or improvements without being obliged to apply changes to the machines
previously sold.
New manuals can be downloaded from: www.pacificfloorcare.com/manuals

Features Specifications Specifications Specifications Specifications
Model: S-24 (Disk) S-28 (Orbital) S-28 (Disk) S-32 (Disk)
Solution capacity: 22 gal / 83 l 22 gal / 83 l 22 gal / 83 l 22 gal / 83 l
Solution control: (Standard)
0-.55 gpm / 0-2.1 lpm, Variable
knob adjustment
0-.55 gpm / 0-2.1 lpm, Variable
knob adjustment
0-.55 gpm / 0-2.1 lpm, Variable
knob adjustment
0-.55 gpm / 0-2.1 lpm, Variable
knob adjustment
Solution control: (w/ Chemical Injection)
Low, Med & High flow settings
(.10, .25 & .45 gpm / .38, .95 & 1.7
lpm)
Speed Sensitive Flow or Constant
Output Flow Control
Low, Med & High flow settings
(.10, .25 & .45 gpm / .38, .95 & 1.7
lpm)
Speed Sensitive Flow or Constant
Output Flow Control
Low, Med & High flow settings
(.10, .25 & .45 gpm / .38, .95 & 1.7
lpm)
Speed Sensitive Flow or Constant
Output Flow Control
Low, Med & High flow settings
(.10, .25 & .45 gpm / .38, .95 & 1.7
lpm)
Speed Sensitive Flow or Constant
Output Flow Control
Cleaning path: 24 in / 610 mm 28 in / 711 mm 28 in / 711 mm 32 in / 813 mm
Pad/brush size: (2) 12 in / 305 mm (1) 28 x 14 in / 711 x 356 mm (2) 14 in / 356 mm Disks (2) 16 in / 406 mm Disks
Productivity (per hour)-Theoretical max: 26,400 ft
2
/ 2,453 m
2
30,800 ft
2
/ 2,861 m
2
30,800 ft
2
/ 2,861 m
2
35,200 ft
2
/ 3,270 m
2
Productivity (per hour)-Average coverage rate:* 19,525 ft
2
/ 1,814 m
2
22,425 ft
2
/ 2,083 m
2
(scrubbing)
11,865 ft
2
/ 1,102 m
2
(finish removal
at 100 ft/min / 30 m/min)
22,425 ft
2
/ 2,083 m
2
25,125 ft
2
/ 2,334 m
2
Brush motor horsepower (each): (1) 1 hp / 750 W (1) 1 hp / 750 W (2) 1 hp / 750 W (2) 1 hp / 750 W
Brush rpm: 360 rpm 2,200 rpm 300 rpm 300 rpm
Brush/pad pressure: 50, 100 & 140 lb / 23, 45 & 64 kg 70, 110 & 160 lb / 32, 50 & 73 kg 70, 110 & 150 lb / 32, 50 & 68 kg 70, 110 & 150 lb / 32, 50 & 68 kg
Brush/pad attachment/removal: Automatic on/off Manual Automatic on/off Automatic on/off
Recovery tank accessibility: Full clean out access Full clean out access Full clean out access Full clean out access
Recovery tank capacity:
25 gal / 95 l (3 gal / 11.4 l
demisting chamber)
25 gal / 95 l (3 gal / 11.4 l
demisting chamber)
25 gal / 95 l (3 gal / 11.4 l
demisting chamber)
25 gal / 95 l (3 gal / 11.4 l
demisting chamber)
Vacuum motor: .7 hp / 522 W, 3-stage .7 hp / 522 W, 3-stage .7 hp / 522 W, 3-stage .7 hp / 522 W, 3-stage
Vac motor cfm / cmm: 71 cfm / 2.0 cmm 71 cfm / 2.0 cmm 71 cfm / 2.0 cmm 71 cfm / 2.0 cmm
Vac motor water-lift: 71 in / 180 cm 71 in / 180 cm 71 in / 180 cm 71 in / 180 cm
Standard / Narrow Aisle Squeegee width: 35 / 30 in (89 / 76 cm) 40 / 35 in (102 / 89 cm) 40 / 35 in (102 / 89 cm) 44.5 / 40 in (113 / 102 cm)
Drive Type: Transaxle Drive Transaxle Drive Transaxle Drive Transaxle Drive
Motor horsepower: .5 hp / 373 W .5 hp / 373 W .5 hp / 373 W .5 hp / 373 W
System voltage: 24 V 24 V 24 V 24 V
Battery amp hour rating:
(4) 6V: 260 AH (wet) / 250 AH
(MF)
(4) 6V: 260 AH (wet) / 250 AH
(MF)
(4) 6V: 260 AH (wet) / 250 AH
(MF)
(4) 6V: 260 AH (wet) / 250 AH
(MF)
Battery run time: Up to 5.5 hours Up to 5.5 hours Up to 4.5 hours Up to 4.0 hours
Charger description:
On-board (standard)
Off-board (optional)
On-board (standard)
Off-board (optional)
On-board (standard)
Off-board (optional)
On-board (standard)
Off-board (optional)
Product length: 54 in / 137 cm 52 in / 132 cm 56 in / 142 cm 58 in / 147 cm
Product width (without squeegee): 26 in / 66 cm 28 in / 71 cm 30 in / 76 cm 34 in / 86 cm
Product height: 44 in / 112 cm 44 in / 112 cm 44 in / 112 cm 44 in / 112 cm
Product weight (with batteries): 650 lb / 295 kg 665 lb / 302 kg 660 lb / 299 kg 665 lb / 302 kg
Sound level (operator's ear): 65 dBA 63 dBA 65 dBA 65 dBA
Construction:
Rotationally molded polyethylene
tanks, powder coated steel frame
Rotationally molded polyethylene
tanks, powder coated steel frame
Rotationally molded polyethylene
tanks, powder coated steel frame
Rotationally molded polyethylene
tanks, powder coated steel frame
*Productivity calculations utilize key factors from ISSA 540 cleaning times handbook
Note: Specifications subject to change without notice
22 GALLON AUTOSCRUBBER SPECIFICATIONS
Scrubbing System
Solution Delivery System
Brush Drive System
Recovery System
Drive System
Battery System
Machine specifications

TABLE OF CONTENTS
1. SAFETY INFORMATION 4
2. UNPACKING THE MACHINE 5
•UNPACKING THE MACHINE 5
3. TRANSPORTING THE MACHINE 6
•TIE DOWN PROCEDURE 6
4. BATTERIES 7
•SELECTION AND INSTALLATION 7
•SERVICING LEAD ACID BATTERIES (NON-HYDROLINK® MODELS) 8
•SERVICING LEAD ACID BATTERIES WITH HYDROLINK™ WATERING SYSTEM 9
•BATTERYSHIELD® AUTOMATIC WET BATTERY PROTECTION SYSTEM 10
5. CHARGING 11
•ON-BOARD CHARGER 11
•OFF-BOARD CHARGER 12
6. PRE-USE SETUP 13
•TURNING THE UNIT ON/OFF 13
•BATTERY POWER LEVEL AND FAULT INDICATOR
7. DRIVE SYSTEM 14
•DRIVING OPERATION 14
8. SOLUTION DISTRIBUTION 14
•FILLING THE SOLUTION TANK 14
•SOLUTION FLOW: NON-CHEMICAL INJECTION MODELS 15
•SOLUTION FLOW: OPTIONAL CHEMICAL INJECTION MODELS 15
•FILTER INSPECTION AND CLEANING 16
9. SCRUB DECK SETUP 16
•HEAD LIFT 16
•SELECTING DOWN PRESSURE 16
•DISK MACHINE PAD DRIVERS AND BRUSHES 17
•ORBITAL PADS 18
10. RECOVERY SYSTEM 19
•RECOVERY TANK 19
•OPTIONAL TANK TREATMENT 19
•SQUEEGEE BLADE INSPECTION AND SELECTION 20
•SQUEEGEE ASSEMBLY SETUP 21
RECOMMENDED MAINTENANCE 22
RECOMMENDED SERVICE PARTS 23
TROUBLESHOOTING GUIDE 26
PARTS DIAGRAMS 28
MAINTENANCE LOG 58
WARRANTY INFORMATION 59

4
1. SAFETY INFORMATION
This machine is intended for commercial use. Only use recommended pads or brushes and commercially approved floor
cleaning chemicals intended for machine application.
The following categories are used in this manual to identify noteworthy concerns:
WARNING: A potentially hazardous situation that, if not avoided, could result in death or serious injury
CAUTION: A potentially hazardous situation that, if not avoided, could result in moderate injury or serious
property damage
NOTE: Information that will prevent premature equipment failure or minor property damage
WARNING: This machine is not equipped with explosion proof motors. Never use near flammable or reactive
materials, liquids, vapors or combustible dusts. Electric motors spark internally during operation and
could cause a flash fire or explosion
WARNING: Batteries emit hydrogen and oxygen gas
-Keep sparks and open flame away. Do not smoke near the machine
-Charge batteries in a well-ventilated area with the battery compartment open
WARNING: Do not plug in charger cable if wall cord or battery harness is damaged
WARNING: Disconnect battery cables before servicing
WARNING: Do not wear jewelry when working near moving or electrical components
WARNING: Do not use the machine as a means for transport. Never allow children to play on or around machine
WARNING: Do not bump into shelves or scaffoldings, especially where there is a risk of falling objects
WARNING: Support the machine on safety stands before working underneath
CAUTION: Keep hands away from spinning brushes
CAUTION: Do not operate machine unless trained and authorized
CAUTION: Do not modify the machine from its original design
CAUTION: Do not operate machine if it is not in proper operating condition
CAUTION: Wear non-slip shoes when operating machine
CAUTION: Reduce speed when turning or operating on inclines and slippery surfaces
CAUTION: Use Bromine only in your tank treatment system! Do not use chlorine. Chlorine can interact with
ammonia-based detergents and cause harmful fumes
CAUTION: Follow mixing and handling instructions on chemical containers
CAUTION: Remove the batteries and get assistance before lifting the machine manually
CAUTION: Park and service the machine on a level surface and remove the key
CAUTION: Always wear protective clothing, gloves and goggles when handling and charging batteries
CAUTION: Avoid moving parts and do not wear loose jackets, shirts or sleeves when servicing
NOTE: Do not power spray or hose off the machine. Electrical malfunction may occur
NOTE: All repairs must be performed by a qualified service technician using approved replacement parts
NOTE: To avoid damaging the floor, do not allow the brush/pad to operate while the machine is stationary
NOTE: Use a ramp with no more than a 12° incline when loading or unloading the machine
NOTE: Use tie down straps to secure the machine to the truck or trailer during transport
NOTE: Turn power off and put the scrub head in the lowered position during transport
NOTE: Discontinue use and report machine damage or faulty operation immediately
NOTE: Store the machine indoors where the temperature is between 32º and 104ºF (0º and 40ºC)
NOTE: Do not lower the orbital head without a pad. Doing so damages the Mighty-Lok® face
NOTE: Failure to clean the HydroLink® light pipe will limit BatteryShield’s® ability to read the water level
and will reduce battery life
NOTE: Do not use an extension cord. This will void the warranty on the charger
NOTE: Batteries designed for automotive or marine and RV use are not suited for use in floor scrubbers
NOTE: Ensure battery charging and storage locations comply with OSHA and any governing agencies’
standards based on your particular location and application
RETURN TO
TABLE OF
CONTENTS

5
2. UNPACKING
UNPACKING THE MACHINE
1. Remove the outer packaging
2. Remove the four cleats and two tie down brackets holding the machine to the pallet
3. Raise the scrub head into the transport position
4. Use a suitable ramp or platform and carefully pull the machine backwards down from the pallet
NOTE:
Use a ramp with no more than a 12°
incline when loading or unloading the
machine
RETURN TO
TABLE OF
CONTENTS

6
3. TRANSPORTING THE MACHINE
CAUTION: Remove the batteries and get assistance before lifting the machine manually
NOTE: Use a ramp with no more than a 12° incline when loading or unloading the machine
NOTE: Turn power off and put the scrub head in the lowered position during transport
NOTE: Do not rest the orbital head on a hard surface without a pad. Doing so damages the Mighty-Lok®
face
The S-Series Scrubber was designed for easy transport on a route cleaning program.
1. Raise the scrub deck
2. Raise and remove the squeegee assembly (leave the recovery hose attached)
3. Vertically position the squeegee frame on the hanger knob located to the right side of the control panel
TIE DOWN PROCEDURE
Use tie down straps to secure the machine to the truck or trailer during transport. Two options are available for tying the
machine down:
2
Tie down holes are located on both
sides of the main frame
Run tie down straps between the
recovery tank and solution tank
RETURN TO
TABLE OF
CONTENTS

7
4. BATTERIES
WARNING: Batteries emit hydrogen and oxygen gas
-Keep sparks and open flame away. Do not smoke near the machine
-Charge batteries in a well-ventilated area with the battery compartment open
WARNING: Do not wear jewelry when working near moving or electrical components
CAUTION: Remove the batteries and get assistance before lifting the machine manually
CAUTION: Park and service the machine on a level surface and remove the key
CAUTION: Always wear protective clothing, gloves and goggles when handling and charging batteries
NOTE: All repairs must be performed by a qualified service technician using approved replacement parts
NOTE: Batteries designed for automotive or marine and RV use are not suited for use in floor scrubbers
SELECTION
The machine requires four 6VDC Lead Acid or AGM Deep Cycle batteries designed for floor scrubber use with the
following maximum dimensions:
•Width: 7 1/8 in (181 mm)
•Length: 10 3/8 in (264 mm)
•Height: 11 5/8 in (295 mm)
INSTALLATION
1. Open the recovery tank
2. Use a lifting device capable of transferring the batteries safely
3. Slide all batteries forward
4. Connect the batteries in series, to obtain overall voltage of 24V on the lugs
5. Fully charge the batteries before using the machine
RETURN TO
TABLE OF
CONTENTS

8
SERVICING - LEAD ACID BATTERIES (NON-HYDROLINK® MODELS)
WARNING: Batteries emit hydrogen and oxygen gas
-Keep sparks and open flame away. Do not smoke near the machine
-Charge batteries in a well-ventilated area with the battery compartment open
WARNING: Do not wear jewelry when working near moving or electrical components
CAUTION: Always wear protective clothing, gloves and goggles when handling and charging batteries
REQUIRED EQUIPMENT
Eye protection
Acid resistant gloves
Distilled water
Baking soda (neutralizes acid spills)
SAFETY
Never:
Add acid to a battery
Smoke near batteries
Charge a frozen battery
Leave an acid spill unattended
Store batteries unless they are fully charged
Charge a battery when the temperature is above 122°F (50°C)
Charge a flooded battery without securing vent caps on the cells
Place objects on top of batteries, which can cause a short circuit
Always:
Neutralize acid spills with baking soda and water
Use insulated tools and check connections for proper torque
WATERING
If contact with electrolyte (sulfuric acid) occurs, flush with large amounts of water
Use only distilled water (tap water can contain contaminants that will damage the battery)
Remove the caps and place them upside down to check electrolyte levels
For discharged or partially charged batteries, add just enough water to cover the plates
Fully charge the batteries
Add distilled water to a level of 1/8” below the vent well
CLEANING AND INSPECTION
Fluid on the top of a battery may mean it is being over-watered or overcharged
Check cleanliness and keep terminals and connectors free of corrosion
Clean with a solution of 1 cup baking soda to 1 gallon of water
Do not allow cleaning solution to get inside the battery
Rinse with water and dry with a clean cloth
Keep the area around batteries clean and dry
Properly secure all vent caps
Check battery cables and connections. Replace any damaged cables and tighten any loose connections
Add distilled water to a level
of 1/8”below the vent well
Remove the caps and place
them upside down to check
RETURN TO
TABLE OF
CONTENTS

9
SERVICING LEAD ACID BATTERIES WITH HYDROLINK™ WATERING SYSTEM
1. Position the water jug at a level below the top of the batteries to
prevent siphoning. Insert the open end of the hand pump
assembly servicing tube into a jug of distilled water
2. Prime the bulb by squeezing it until it is filled with water
3. Remove the dust cap from the Quick Disconnect on the battery
servicing manifold and snap the couplers together
NOTE: Battery packs equipped with BatteryShield® may take
more than ½ gallon of water after the BatteryShield®
LED has illuminated. Failure to pump the
HydroLink™ bulb until it will no longer compress may
result in uneven battery servicing and premature
battery failure.
4. Squeeze the hand pump bulb with firm pressure to pump water
into the battery cells. When the bulb is solid and will no longer
compress, the cells are full
5. Press the yellow button and separate the Quick Disconnect
assembly. Replace the dust cap on the servicing manifold
coupler. Any remaining water in the pump lines can be pumped
back into the water jug
NOTE: Do not leave the hand pump connected to the batteries
after filling is complete.
RETURN TO
TABLE OF
CONTENTS

10
BATTERYSHIELD® AUTOMATIC WET BATTERY PROTECTION SYSTEM
Scrubbers equipped with BatteryShield® technology have a sensor on the battery pack and a red LED indicator on the
control panel which monitor and communicate low water conditions.
1. When batteries are fully charged and the key is turned on, BatteryShield® will check the water level
oIf the LED remains off, there is sufficient water in the batteries
oA solid red LED means BatteryShield® senses a low-water level. The brush motor will be disabled to
prevent battery damage
oA blinking red LED means the BatteryShield® light pipe needs to be cleaned (see below)
NOTE: Failure to clean the HydroLink® light pipe will limit BatteryShield’s® ability to read the
water level and will reduce battery life
2. Turn the key off and use the HydroLink single-point battery watering system to fill the batteries
NOTE: Battery packs equipped with BatteryShield® may take more than ½ gallon of water after
the BatteryShield® LED has illuminated. Failure to pump the HydroLink™ bulb until it
will no longer compress may result in uneven battery servicing and premature battery
failure
3. After completing the HydroLink™ watering procedure, cycle the key to verify the LED stays off
CLEANING THE BATTERYSHIELD® SENSOR LIGHT PIPE
WARNING: Do not wear jewelry when working near electrical components
WARNING: Batteries emit hydrogen and oxygen gas
-Keep sparks and open flame away. Do not smoke near the machine
-Charge batteries in a well-ventilated area with the battery compartment open
CAUTION: Always wear protective clothing, gloves and goggles when handling and charging batteries
NOTE: Failure to clean the HydroLink® light pipe will limit BatteryShield’s® ability to read the water
level and will reduce battery life
1. Remove the cap with the black sensor module being careful not
to damage the yellow floats. Do not remove the black module
from the cap assembly.
2. Thoroughly wipe the clear light pipe next to the middle yellow
float paying extra attention to the tip of the pipe
3. While the cap is still removed, cycle the key and verify the LED
stays on steady. Turn the key off
4. Carefully align the cap and press it firmly onto the battery
making sure it is fully seated
5. Complete the battery servicing procedures above, cycle the key,
and verify the light stays off
6. The machine is ready for use
RETURN TO
TABLE OF
CONTENTS

11
5. CHARGING
WARNING: Do not plug in charger cable if wall cord or battery harness is damaged
NOTE: Do not use an extension cord. This will void the warranty on the charger
NOTE: Ensure battery charging and storage locations comply with OSHA and any governing agencies’
standards based on your particular location and application
ON-BOARD CHARGER
The on-board charger has three LEDs to indicate the status of the charging cycle when it is plugged in:
LED INDICATION
MEANING
GREEN flashing (2 seconds)
Charger is set for AGM batteries
YELLOW flashing (continuous)
Unsuitable battery connected or output short circuit
RED flashing (2 seconds)
Charger is set for Lead Acid batteries
RED flashing (continuous)
Safety timer exceeded or internal short circuit
Solid GREEN
The unit is fully charged
Solid YELLOW
Phase 2 of charging is in progress
Solid RED
Charging cycle has begun
NOTE: Do not use an extension cord. This will void the warranty on the charger
SETTING THE CHARGER ON MACHINES PURCHASED WITHOUT BATTERIES
Configure the charging profile to the type of batteries installed on the machine. Switch banks SW1 and SW2 are
located behind the label on the lower right corner of the charger next to the green LED
SW2 – Set the charge current according to the battery amp hour
rate (Reference CHARGE CURRENT AND BATTERY
AMP HOURS table below)
DP2
DP1
CHARGING CURRENT
ON
ON
15A
ON
OFF
20A
OFF
ON
25A
OFF
OFF
25A
SW1 – Set the current profile according to the type of battery
installed
DP2
DP1
CHARGING CURVE
OFF
ON
Lead-acid (Wet) batteries
OFF
OFF
AGM FULLRIVER
ON
OFF
AGM DISCOVER
ON
ON
Gel
CHARGING CURRENT
BATTERY AMP HOUR RANGE
(5h)
(20h)
15A 100÷150 Ah 130÷180 Ah
20 A
120÷195 Ah
150÷240 Ah
25 A
180÷258 Ah
220÷315 Ah
RETURN TO
TABLE OF
CONTENTS

12
OFF-BOARD CHARGER
WARNING: Do not plug in charger cable if wall cord or battery harness is damaged
NOTE: Ensure battery charging and storage locations comply with OSHA and any governing agencies’
standards based on your particular location and application
Set the Battery Type switch to match the battery configuration of the machine
•Up for Lead Acid batteries
•Down for sealed, maintenance free AGM batteries
1. Connect the charger to the wall outlet
2. Connect the red plug pictured below to the battery harness below the control panel at the rear of the machine
Off-board status LEDs:
•Primary (green) LED:
•Blinking slowly: Batteries are still below 80% of full charge
•Blinking rapidly: Batteries are above 80% of full charge
•Solid green: Batteries are fully charge
•Fault (red) LED:
•See the charger manual for fault information
RETURN TO
TABLE OF
CONTENTS

13
6. PRE-USE SETUP
TURNING THE UNIT ON/OFF
The key switch is located on the control panel. When the machine is not in use, remove the key and store it in a secure
location.
CIRCUIT BREAKERS
The circuit breakers on the control panel protect the components from high amp-draw. In particular, the scrub head circuit
will draw too many amps when overloaded by improper application setup. Solution flow, floor surface, and down-pressure
should be considered when operating the machine (example: high down-pressure on a rough floor with no solution flow
will overload the circuit). Repeatedly tripping the breaker will cause the need for replacement.
BATTERY POWER LEVEL AND FAULT INDICATOR
When switched to the ON position, the Battery Power Level Indicator illuminates
indicating the battery charge level. A full charge is indicated when all LEDs are lit. As the
power level decreases, the LEDs go out from right to left.
When the battery charge is depleted, the last red LED will flash and the brush motor will
turn off. The vacuum and traction drive will continue to function allowing final water
recovery and transport to the charging station.
NOTE: Using AGM battery-equipped units after the last yellow LED goes out can reduce the life of the batteries
NOTE: After a full charge, operate the machine for at least 30 minutes before recharging the batteries. Do not leave the
batteries discharged overnight
A Flashing Battery Power Level Indicator indicates a detected fault. The following is a list of fault codes:
The battery needs to be charged or there is a faulty connection to the battery
Check the connection to the motor
The motor has a short circuit
Not used
Not used
The controller is being inhibited from driving
Throttle fault, check the connection
Controller fault, check connections
Parking brake fault, check the motor connections
Excessive voltage, check the battery connections
RETURN TO
TABLE OF
CONTENTS

14
7. DRIVE SYSTEM
DRIVING OPERATION
1. Bail: Squeezing the Bail activates solution flow, the brush motor, and traction drive
2. Speed Control: Rotate the Speed Control with either thumb
•Clockwise = Faster
•Counterclockwise = Slower
3. Reverse Button: Depress Reverse Button and squeeze Bail for reverse operation
8. SOLUTION DISTRIBUTION
FILLING THE SOLUTION TANK
Use liquid detergent in the concentration and manner specified by the manufacturer for a 22-gallon solution tank. Excess
foam will damage the vacuum motor. In addition to properly-mixed low-foam detergent, use a small amount of de-foaming
liquid in the recovery tank. Never use pure acids.
NOTE: The front fill port strainer blocks debris from falling into the tank. Keep the solution tank free from debris to
prevent filter clogs and reduced solution flow
1. Add water and cleaning agent to either the front or rear fill port. Water temperature should not exceed 120°F
(50°C)
2. Monitor the solution level through the sight tube and the marks on the tank at the rear of the machine
3. To drain the tank, slide the solution sight tube off of the upper fitting and lower to a drain or mop sink
FILL PORTS
SOLUTION SIGHT TUBE
RETURN TO
TABLE OF
CONTENTS

15
SOLUTION FLOW: NON-CHEMICAL INJECTION MODELS:
The Solution Control Knob is located at the lower rear
of the machine. The valve electrically turns on and off
with the Scrub Head. The Knob controls how much
solution passes through the valve when activated.
•Knob rotation: Three complete rotations
(counterclockwise) from low
to high
SOLUTION FLOW: OPTIONAL CHEMICAL INJECTION MODELS:
1. Place a 1-gallon chemical container in the holder in the battery compartment and remove the cap
2. Insert the leader hose so that the end is resting on the bottom of the container and screw the cap on
3. Match the mix ratio dial on the control panel to the setting (in ounces per gallon) prescribed on the chemical’s
container
4. Set the solution flow rate to low, medium, or high
5. A solid green LED indicates the system is automatically mixing the chemical while the machine operates
NOTE: If the detergent is not priming, temporarily select a higher setting until detergent appears on the floor
NOTE: To purge old detergent, set the mixture dial to the highest ratio and run until the leader hose line is empty
FILTER INSPECTION AND CLEANING:
NOTE: If excessive debris is present, drain
and flush the solution tank
1. Close the shutoff valve
2. Remove the filter bowl and
screen
3. Clean and rinse any debris in
the filter assembly
SHUTOFF VALVE
FILTER
RETURN TO
TABLE OF
CONTENTS

16
8. SCRUB DECK SETUP
HEAD LIFT
•Depress the foot lever (located at the lower right rear corner of the
machine) and shift it to the right
•Once clear of the notch, allow the lever to rise while the head lowers
into the operating position
•Disk machines are equipped with a self-adjusting shroud and bristle
skirt that virtually eliminates overspray
SELECTING DOWN PRESSURE
1. Standard: For daily cleaning of normal soils
2. Medium: For tough soils or chemical-free finish removal
3. Heavy: For toughest soils or chemical-free finish removal
Standard down pressure Medium down pressure Heavy down pressure
SCRUB HEAD DOWNPRESSURE SETTINGS
24” Disk 28” Orbital 28” & 32” Disk
STANDARD 50 lbs (23 kgs) 70 lbs (32 kgs) 70 lbs (32 kgs)
MEDIUM 100 lbs (45 kgs) 110 lbs (50 kgs) 110 lbs (50 kgs)
HEAVY 140 lbs (64 kgs) 160 lbs (73 kgs) 150 lbs (68 kgs)
RETURN TO
TABLE OF
CONTENTS

17
DISK MACHINE PAD DRIVERS AND BRUSHES
PAD AND BRUSH REMOVAL:
NOTE: Using a pad driver without a pad will damage the floor surface
1. Toggle the “Brush On/Off” switch to position “A” for 1 second and then immediately to position “B”. The brush
will spin in position “A” and abruptly stop in position “B” releasing the pad drivers
2. Remove the center lock fitting by squeezing the wires inward and pulling the center lock away
3. To connect the cleaning pad to the drivers: center the pad on the driver, squeeze the center lock wires inward and
press down (tab side first). Press the pad and release the wires so that they lock in place
PAD AND BRUSH INSTALLATION:
1. Turn the key switch on and rotate the speed control knob to the full slow position
2. Place the pad drivers or brushes on the floor in front of the scrub head
3. Push or drive the machine into position centering the scrub head over the pad drivers or brushes.
4. Lower the scrub deck onto the pad drivers or brushes
NOTE: When properly aligned, the scrub deck shroud bristle skirt should almost be touching the floor
5. Quickly pulse and release the activation trigger to “CLICK ON” the pad drivers or brushes
NOTE: If the pad drivers or brushes do not quickly engage, return to step two and try again
TAB
WIRES
RETURN TO
TABLE OF
CONTENTS

18
ORBITAL PADS
NOTE: Do not lower the orbital head without a pad. Doing so damages the Mighty-Lok® face
STANDARD CLEANING OPERATIONS:
1. Align the corners of the pad to the corners of the aluminum plate and press to attach
2. Lower the scrub deck onto the pad
3. Ensure front/back and left/right alignment
CHEMICAL-FREE FINISH REMOVAL:
The addition of a specialized surface preparation pad in addition to the traditional cleaning pad is required for chemical-free
finish removal. The traditional pad acts as a “backer pad” and compensates for variances in the floor
1. Leave a 2” gap along the front of the machine so water can fully saturate the pad
2. Align the Velcro pad retainer along one length of the red, backer pad and press down
3. Place the surface prep pad on top of the pad retainer, centering it with the red pad
4. See steps 1-3 of “Standard Cleaning Operations” above
RETURN TO
TABLE OF
CONTENTS

19
9. RECOVERY SYSTEM
RECOVERY TANK
To drain and rinse the recovery tank:
1. Lift the hose off the holder and lower the hose end to the desired drain location
2. Remove the press-fit cap from the drain hose and squeeze the restriction collar to control the flow
3. As the tank drains, lift the recovery tank lid to the fully open position
4. Thoroughly clean and rinse out the sediment from the bottom of the tank with a clean water hose
•Periodically use cleaner and sanitizer with a cloth or sponge to prevent mold and mildew
5. Inspect and clean the debris tray and the vacuum mesh filter screen and ball float system
6. Leave the lid open to dry
OPTIONAL TANK TREATMENT
The Tank Treatment System (TTS) utilizes Bromine tablets, (typically used in pools and spas) to kill the odor-causing
bacteria in the tank. To ensure that TTS is prepared to treat your recovery tank:
1. Lift the debris tray out and pinch the two tabs sticking through the underside of the tray
2. Check the size of the Bromine puck. Replace when it is approximately 25% of its original size
3. Press the TTS holder and bromine puck back into the debris tray
CAUTION: Use Bromine only! Do not use chlorine. Chlorine can interact with ammonia-based detergents to cause
harmful fumes
RETURN TO
TABLE OF
CONTENTS

20
SQUEEGEE BLADES INSPECTION AND SELECTION
SQUEEGEE ASSEMBLY SETUP
Inspect and maintain the squeegee system to achieve peak machine performance.
REMOVAL AND INSTALLATION:
•Install: Align the assembly, attach the vacuum hose, and tighten the easy grip knobs.
•Remove: Loosen the easy-grip knobs and detach the recovery hose (reverse of installation).
SQUEEGEE USE:
1. Lower: Lift the squeegee lever, shift it left, and lower. The vacuum motor will activate.
2. Raise: Lift the lever and shift it right. The vacuum motor will run for 10 seconds to prevent recovered solution
from running back out of the hose.
HEIGHT ADJUSTMENT:
•If the squeegee blade height requires adjustment, turn the button screws on the squeegee frame assembly
clockwise to raise and counter-clockwise to lower the wheels until proper blade deflection is achieved.
Proper blade
deflection
1/32”
clearance
RETURN TO
TABLE OF
CONTENTS
