Pacific Wave PW-FE1-4ETH User manual

PW-FE1-4ETH
Interface E1-Ethernet Converter
User Manual
Providing Better Solutions for Telecommunication Industry
http://www.pacificwave-wireless.com

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 2 of 16
Content
1. Product description.................................................................. 3
2. Main features .......................................................................... 5
3. Technical specifications............................................................ 6
4. Installation and panel description.............................................. 7
4.1Unpacking...............................................................................7
4.2 Front and rear panel of the device.........................................7
4.2.1The front panel of the FE1-4ETH.................................. 7
4.2.2 The rear panel of the FE1-4ETH.................................. 9
4.2.3 System test and configuration ................................... 10
5. Applications of FE1-4ETH.......................................................11
5.1 Definition of balanced twisted-pair wire sequence...............11
5.1.1 100BASE-TX interface wire sequence........................11
5.1.2 E1 interface wire sequence ........................................11
5.2 Setting of DIP switch and jumper.........................................11
5.2.1 Setting of E1 interface impedance ..............................11
5.3 Configuration of Ethernet connecting devices......................13
5.4 Simple self-test methods for devices and E1 circuits...........13
5.5 Typical applications..............................................................13
5.6 Common questions and their maintenance..........................15

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 3 of 16
1. Product description
PW-FE1-4ETH Interface Converter is an Ethernet bridge of high
performance, which accomplishes the converting between the 100M
Ethernet port and the E1 port. As an extended device of the Ethernet,
PW-1E1-4ETH bridge realizes interconnection of four Ethernet by using
1pc E1 channel provided by existing networks with low cost.
100BASE-TX (RJ45) interfaces are provided at the end of Ethernet
LAN to accomplish various functions including double Ethernet interface
broad band shared, MAC address self-learning, address filtering,
address table maintenance and flow control. The device has 4 ETH port,
it can work like an intelligent L2 switch. It can be reduce Net node,
dispense with device as HUB, consequently reduce the malfunction node.
Our PW-FE1-4ETH has the GUI NMS, it can manage the converter
like an intelligent L2 switch. It can set the TAG VLAN on these 4 ETH port,
can set the special tag like Q-in-Q, can configurable data rate from
32K~100M on each ETH port, can do some QoS setting.
E1 interfaces conforming to ITU-T G.703 and G.704 proposals are
provided at the end of WAN, supporting RJ45 and BNC connection
modes. The E1 ports support both framing and un-framing architecture.
The user can select an operating mode for the E1 interface according to
the connected E1 environment. This provides flexibility of network
application. In the framing mode, the E1 interface provides a rate of
N*64Kbps (N=1to31). In Un-Framing Mode,E1 channel provides a rate of
2.048Mbps and accomplishes transparent transmission.

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 4 of 16
If the FE1-4ETH bridge is used in the framing mode, the
transmission clock can be either provided internally, i.e. using the main
clocking timing mode (INT), or extracted from the E1 channel, i.e. using
slave clock timing mode.
The FE1-4ETH bridge provides plenty of self-test functions,
supporting local loop. It also provides pseudo random code test function
to test error codes in the circuit.
It is proposed to use the products of this series in pairs.

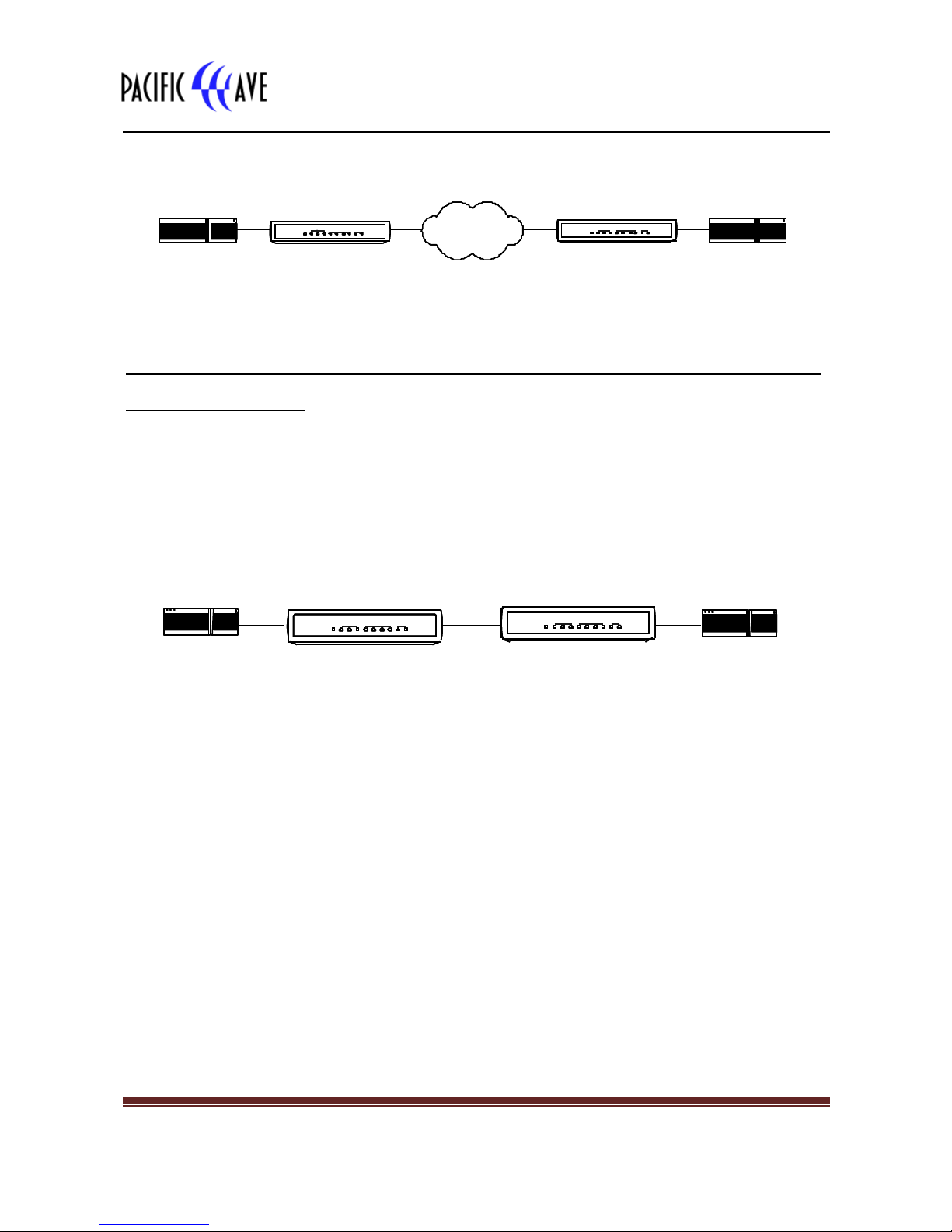

A typical application is shown in figure 1.
Figure1 typical application of AN-FE-4ETH bridge
SD
H
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
SD
H
SDH SWITCH/HUB
SWITCH/HUB B
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
FE1/ETH
CR
C
TES
T
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
A
FE1/ETH

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 5 of 16
2. Main features
In accordance with the provisions of IEEE 802.3, 802.3u Ethernet
ITU-T G.703, G.704 and G.823 protocols.
E1 interface framing/un-framing optional; balanced 120ohm
unbalanced 75ohm optional.
The E1 interface uses PCM31 mode, supporting CRC check.
E1 interface main/ slave clock optional in the framing mode.
In E1 framing mode, number of time slots is optional from 1 to 31.
Supporting 2.048Mbps transparent transmission in the E1
un-framing mode.
The two 100BASE-TX Ethernet interfaces support 100M half/ full
duplex modes.
MAC addresses self-learning and addresses filtering functions,
reducing the transmission load of the E1 circuit.
Built-in 64Mbits SDRAM Ethernet data buffer memory, improving the
capability of Ethernet side anti-outburst, assuring high throughput of
data transmission.
E1 circuit local loop tests.
Pseudo random sequence test, facilitating the test of E1 circuit.
Perfect circuit test and alarm indication.
Optional AC 220V or DC –48V input for bridge of both architectures

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 6 of 16
3. Technical specifications
Protocol: G.703, G.704, G.736, G.823, I.431
IEEE802.3u 100BASE_TX
Circuit Interface (E1): Impedance: 75Ω, physical interface: BNC
Impedance: 120Ω, physical interface: RJ45
Interface rate :Framing: N*64Kbps,N==0~31; UN-framing: 2.048Mbps
Coding: HDB3, Jitter tolerance in accordance with G.823
Output Jitter < 0.05UI
Data interface (100BASE_TX): Impedance: 100Ω, interface: RJ45
Interface rate: 100Mbps
Coding: Manchester
Cable: 75Ω coaxial-cable, UTP5 twisted pair.
Transmission range:
Data interface: 100m, Circuit interface: BNC: 600m; RJ45: 300m
Indicator: indicating power, connection states of data and circuit
interfaces, operation state, test state and trouble alarm.
Dimensions (LxWxD): 210 x 40 x 140mm
Power Supply : 85V ~ 264 Volt AC input , 5Volt/1Amp Output
-36V ~ -72 Volt DC Input, 5Volt/1Amp Output
Power dissipation: 3Watt
Operation Temperature : 00C ~ 500C
Storage Temperature : -200C ~ 800C
Humidity :5% ~ 90% (no Condensation)

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 7 of 16
4. Installation and panel description
4.1. Unpacking
Check the accessories and spare parts when opens the package.
■FE1-4ETH Bridge
■ Operation manual
■ A supply cord (only for AC type)
■ Two type of connector/plugs : BNC or RJ45
In case of missing or any damage during transportation, immediately
contact our offices or agencies.
4.2 Front and rear panel of the device
4.2.1. The front panel of the FE1-4ETH bridge

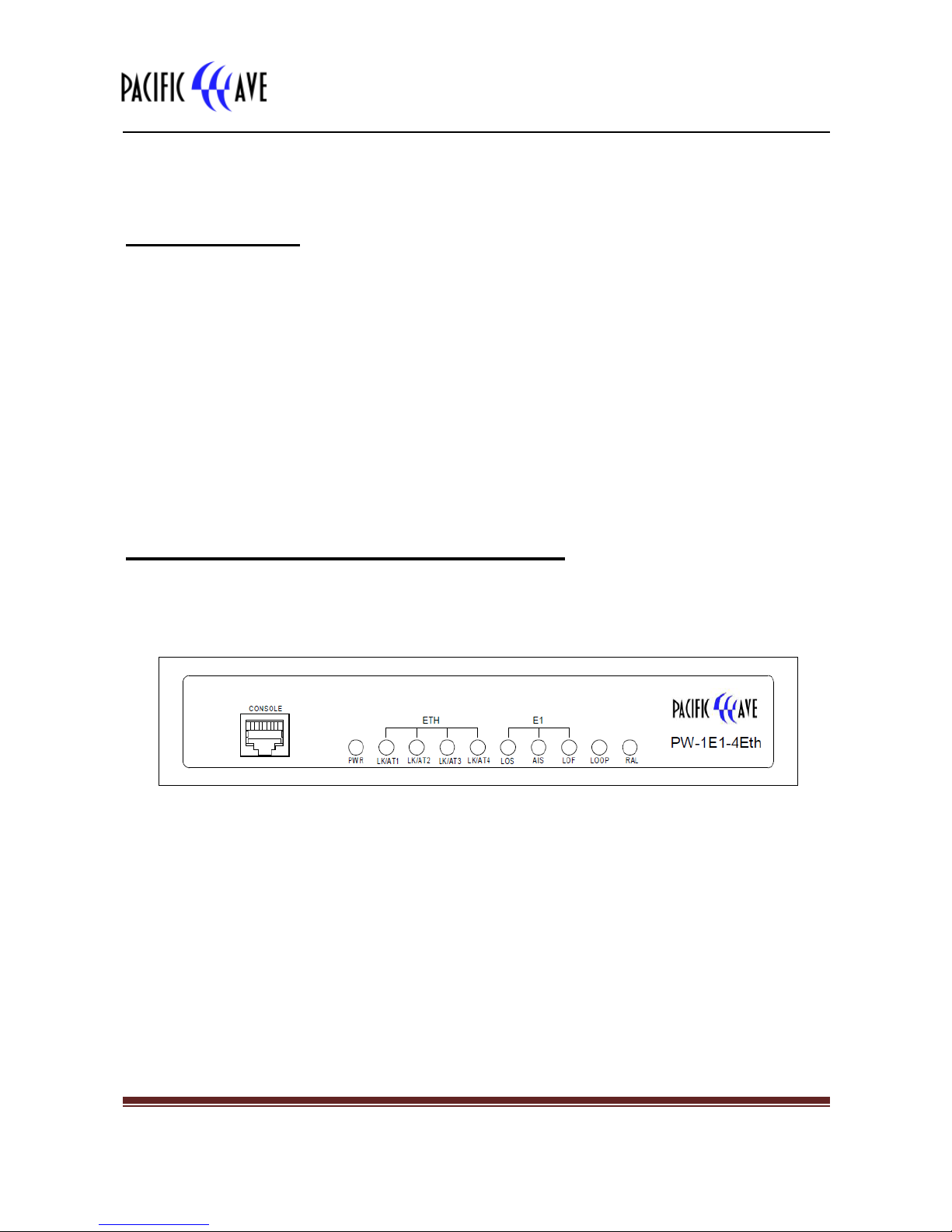

The front panel of the FE1-4ETH Bridge is shown as below
Figure 2 front panel of FE1-4ETH Bridge
Explanations for the two rows of indicators at the left are as follows:
POWER: Power. Always lights after starting up.
LK/AT1:Flickers if ETH1 is connected and transmitting data.
LK/AT2:Flickers if ETH2 is connected and transmitting data.
LK/AT3: Flickers if ETH3 is connected and transmitting data
LK/AT4: Flickers if ETH4 is connected and transmitting data

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 8 of 16
LOF: Alarm indicator lamp for input signal out-of-frame in E1 line.
Constantly lightening indicates the alarm with local device; flash
indicates the alarm with opposite device. Alarm status of opposite
device can be detected only at framing mode.
LOS: E1 link interruption alarm. Always lights after starting up till
synchronization is established. It also lights in case of E1 link
interruption or signal loss in communication.
AIS: Always lights after receiving a alarm indication signal.
LOOP: Always lights in testing if transmitting local loop, flickers if remote
E1 interface loop instructions or pseudo-random sequence test
instructions.
RAL : Always light when E1 line of remote site cut down

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 9 of 16
4.2.2. The rear panel of the FE1-4ETH bridge
The AC input rear panel of FE1-4ETH Bridge is shown in figure 3.
Figure 3 AC input rear panel of FE1-4ETH Bridge
220V AC: AC socket with two cores
OF ON: Power Switch for Electrical Power
8 Bits coded Switch: System configure, more description in 4.2.3
E1-75Ω: BNC Tx/Rx socket for 75ohm impedance E1 interface
E1-120Ω: RJ45 socket for 120Ω impedance E1 interface
ETH: RJ45 socket for 100Mbps Ethernet interface
The DC input rear panel of FE1-4ETH Bridge is shown in figure 4.
Figure 4 DC input rear panel of FE1-4ETH bridge
48VDC : DC-48Volt Power Supply Connector
The others are the same as in figure 3.

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 10 of 16
4.2.3 System test and configuration
We can find 8pcs DIP Switch (From
Left to Right : 1st to 8th Swich) with
below detail description :
S5.1, 1st Switch-Main/Slave Clock setting (valid only in Framing mode).
ON for Main clock (INT-CLK) and OFF for slave clock (LINE-CLK).
S5.2, 2nd Switch- BC_EN to set Bandwidth Coupling,
ON to follow bandwidth setting (time slot) of remote converter.
OFF to use bandwidth setting (time slot) of local converter
S5.3, 3rd Switch-LLOOP Local Loopback Setting (For Testing Purpose)
ON for E1 interface in direct Loop back mode.
OFF for E1 Interface not in direct Loop back mode..
S5.4, 4th Switch- 7221_SEL to Set Version of Remote Corverter
ON for working with the old Firmware Version Device.
OFF for working with same Firmware Version of Device
S5.5, 5th Switch –NULL (Not in Used)
S5.6 to S5.8, 6th to 8th Switch - To select between 75Ω or 120Ω
When S5.6~S5.8 is set 75Ω, The E1 circuit uses BNC Coaxial cable
When S5.6~S5.8 is set 120Ω, The E1 circuit uses RJ45 sockets and
120Ω balanced twisted-pair.

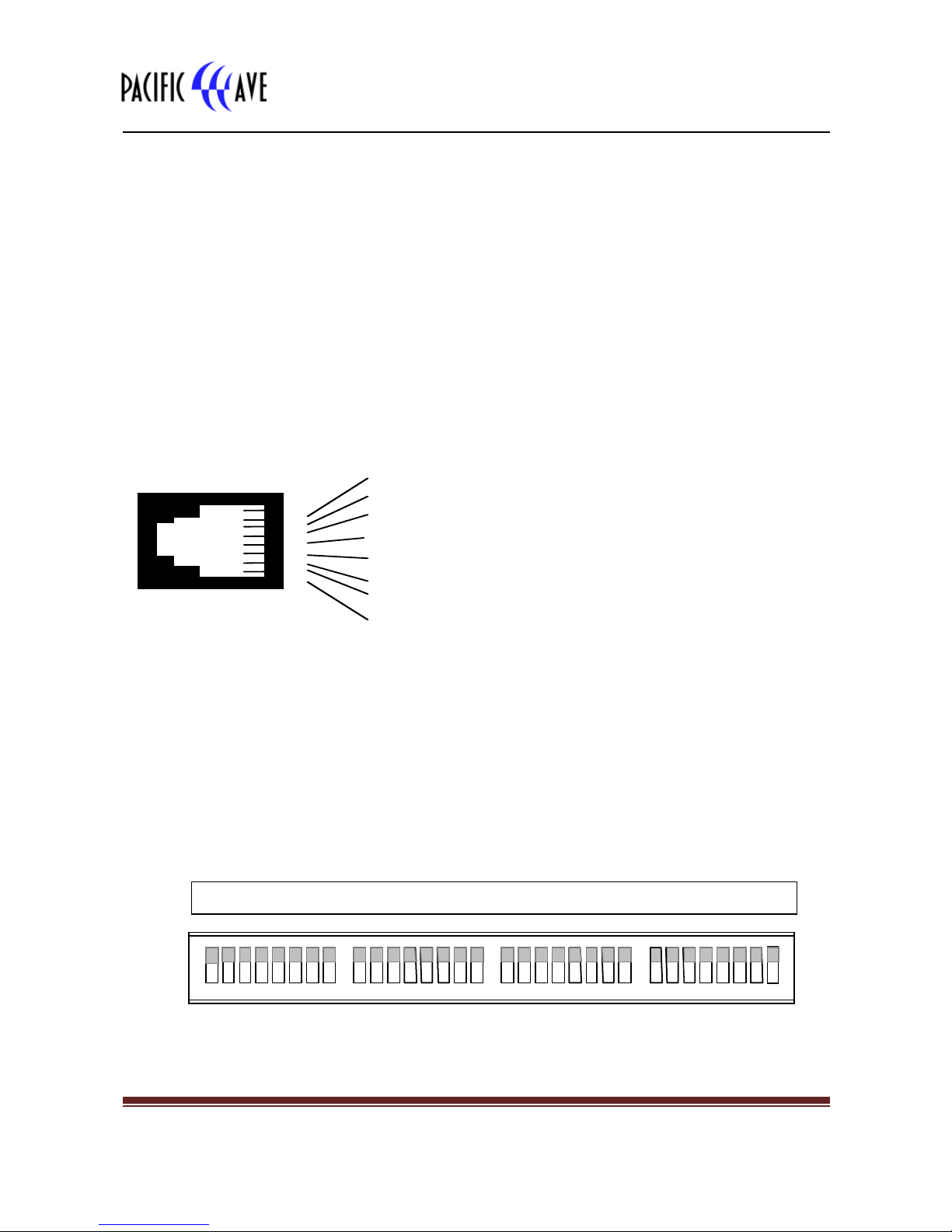

S5

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 11 of 16
24
0
7
15
23
31
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
ON
8
16
ON
ON
ON
ON
ON
ON
1
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
ON
E1-TS
S1
S2
S4
S3
5. Applications of FE1-4ETH Bridge
5.1 Definition of balanced twisted-pair wire sequence
5.1.1 100BASE-TX interface wire sequence
The RJ45 Unshielded twisted-pair for FE1-4ETH interface can use
DCE or DTE standard stipulations, it support AUTO MDI/MDX function.
5.1.2 E1 interface wire sequence
1 & 2 are transmitting lines, 4 & 5 are receiving lines, as shown below:
Figure 5 RJ45 balanced twisted-pair wire sequence for E1 interface
5.2 Setting of DIP switch and jumper
5.2.1 Setting of E1 interface impedance
Below are switch which allow user to set number of Time Slots according
to the expected rate : as shown by Figure 6 :
1
2
3
4
5
6
7
8
1. TX+ Positive end of data transmission
2. TX- Negative end of data transmission
3. Idel
4. RX+ Positive end of data reception
5. RX- Negative end of data reception
6. Idel
7. Idel
8. Idel

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 12 of 16
●1st switch-SW0 (S1.1) is used to set E1 framing/non-framing.
―ON‖ refers to non-framing mode (2.048Mbps), despite of whatever
positions are set at other switches (S2,S3,S4).
●2nd to 32nd Switch (S1.2~S1.8, S2.1~S2.8, S3.1~S3.8, S4.1~S4.8)
SW1—SW31are respectively used to set 1st–31st time slots (this only
function if S1.1 is off).
Set at ―ON‖, the corresponding time slot is selected;
Set at ―OFF‖, the corresponding time slot is not selected.
The rate of E1 interface dependent on Number of Selected time slots.
For example: if 3rd switch (S1.3) is ―ON‖ and other switches is ―OFF‖
indicates that 2nd Time slot is selected, at this setting E1 rate is 64K;
If 7th(S1.7) & 10th(S2.2) switches is ―ON‖ and other switches is ―OFF‖
indicates that 6th& 9th Time slots are selected, E1 rate is 2*64K=128K.
SW-16 (S3.1) is used to set E1 frame structure to be PCM30(CAS
mode) or PCM31 (CSS mode)
‗0FF‘—PCM30, 16th time slot not being used for transmission service;
‗ON‘—PCM31, 16th time slot can be used for transmission service.
SWITCH
Status
Function
Description
SW 0
(S1.1)
ON
Unframed
2048KBps
Full E1 used
(31Time Slot)
OFF
Framed in
Xx64K
User can set
X-Time Slot to use
SW 16 (S3.1)
(Valid If SW0 is off)
ON
CCS (PCM31)
Max 31 Timeslot
OFF
CAS (PCM30)
Max 30Timeslot

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 13 of 16
5.3 Configuration of Ethernet connecting devices
The equipment uses 100BASE-TX Ethernet interfaces and supports
adaptive 100M half/full duplex mode. Ethernet devices connected to
FE1-4ETH bridge (such as SWITCH, HUB, Ethernet adapter card (NIC),
etc.) can be set to 100M full duplex, 100M half duplex, adaptive 100M
half/full duplex and adaptive 10/100M.
5.4 Simple self-test methods for devices and E1 circuits
Test 1: test of back-to-back connection
Connect two FE1-4ETH bridge devices back to back, ping the other‘s IP
address on the two computers to test the two devices.
Test 2: test of E1 circuit transmission error codes.
Connect the device in the real operational environment, check the E1
circuit with the loop and pseudo-random sequence test function provided
by the device.
5.5 Typical applications

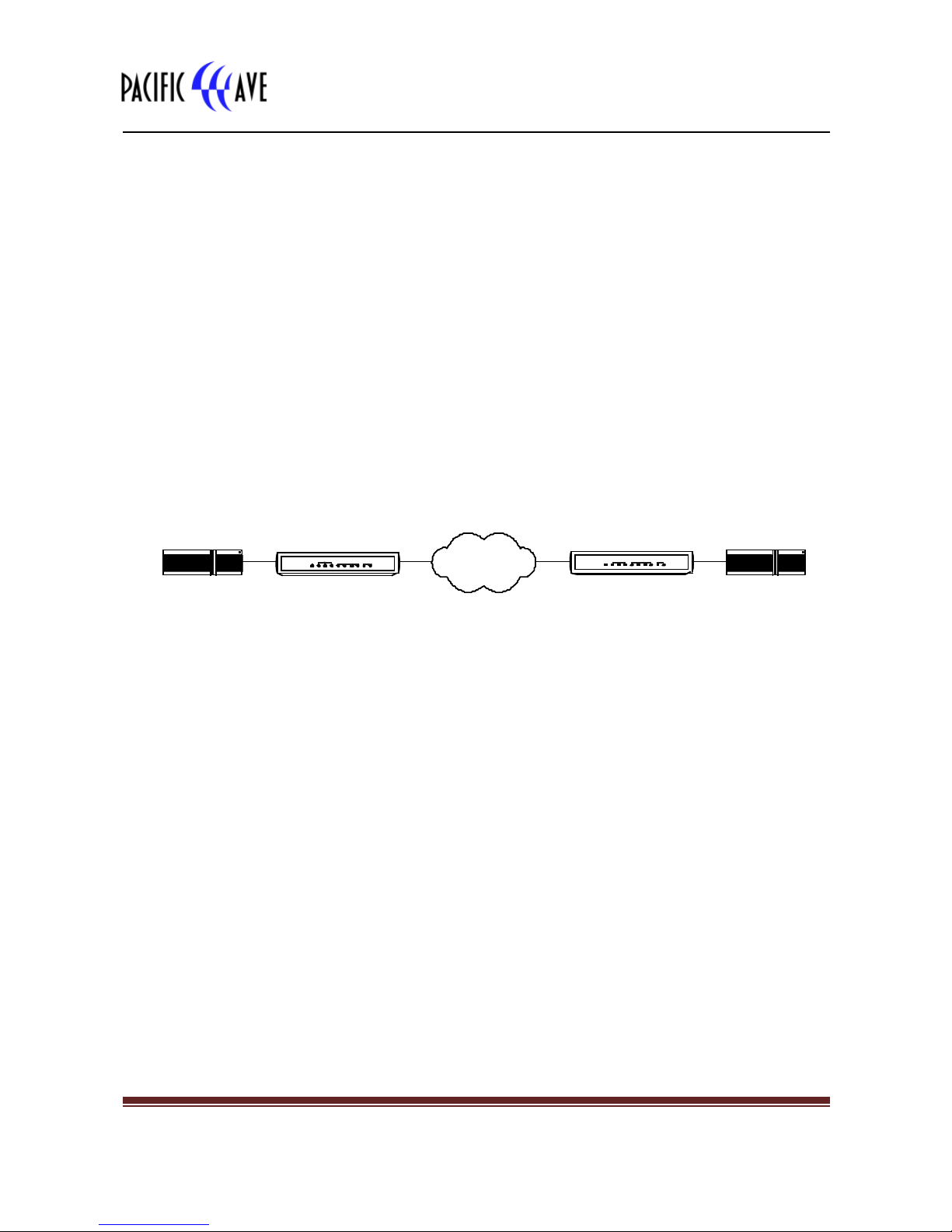

Mode 1: connect Ethernet with E1 networks.
SDH, PDH and DDN networks have already been widely adopted. With
E1 channels provide by such networks, bridging connection and
interconnection of two Ethernet networks at different locations can be
easily realized by FE1-4ETH bridge.
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
B
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
FE1/ETH
CR
C
TES
T
A
PC1PC2
FE1/ETH

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 14 of 16

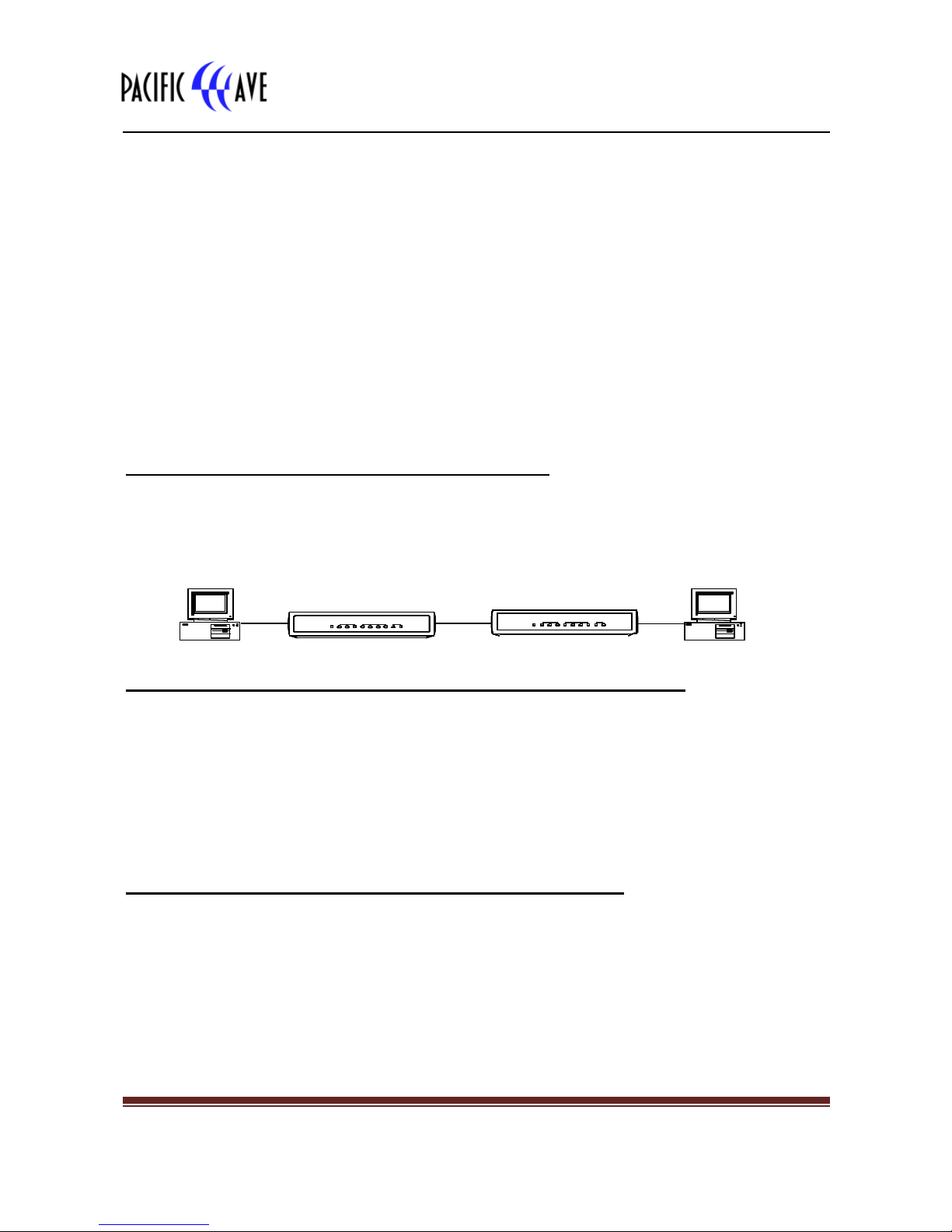

Connecting two Ethernet networks with an E1 network.
Mode 2: Extend an Ethernet network with existing twisted pair
or coaxial cable.
Connected with twisted pair or 75Ω coaxial cable, the E1 ports of
FE1-4ETH Bridge support a transmission range of 300m or 600m. Two
Ethernet networks at different locations can be bridged by two FE1-4ETH
bridge with existing twisted pair or coaxial cable.
Extending Ethernet with existing twisted pair and coaxial cable
SD
H
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
SD
H
SDH SWITCH/HUB
SWITCH/HUB B
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
FE1/ETH
CR
C
TES
T
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
TX
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
A
FE1/ETH
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
SWITCH/HUB SWITCH/HUB
B
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
CR
C
TES
T
ET
H
LN
K
LO
F
T
X
R
X
A
S
LOO
P
PTO
K
LO
S
E
1
POWE
R
FE1/eth
CR
C
TES
T
A
FE1/eth

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 15 of 16
5.6 Common Questions and Answer.
(For independent interface converter, reference for frame bridge)
No.
Symptoms
Causes
Remedies
1
The power indicator
does not light after
starting up.
The power
circuit has
a failure.
1. The power is not connected.
Check the contact of power
Cord and its converters.
2. Failure at internal power
module. Send back to factory
for repair.
2
Indicator LNK does
not light when the
Ethernet network
is connected.
Integrity
test of link
has not
passed.
1. The type of the cable does
not meet DTE/DCE modes of
Ethernet ports from Device..
2. The crystal head of the cable
is not well molded. Check
Quality of UTP cable.
3. The rate setting of converter
or the network card is wrong.
See 5.3.
4. The internal circuit of the
equipment is damaged. Send
back to factory for repair.

User Manual
PW-FE1-4Eth
E1-Ethernet Converter
www.pacificwave-wireless.com Page 16 of 16
3
Indicator LOS
always lights when
the cable at the E1
port is connected.
The circuit
signals
are lost.
1. Check the coaxial cable or
UTP5 twisted pair for open
circuit and short circuit.
Check whether the plugs are
positioned well.
2. The factory default of the
device is 75Ω BNC interface.
If a 120Ω RJ45 interface is
used, S5.6~S5.8 should be
reconfigured. (See 4.2.3)
3. The internal circuit of the
equipment is damaged. Send
it to factory for repair.
4
Indicators are
normal, but
communication
can not be done.
Different
mode/
Setting
between
Local
device
and
Remote
Device
1. The setting of framing or
un-framing are different.
Make sure both devices has
same code setting S1.1.
2. Setting of the time slots are
different. Make sure both
devices set same time slots
via the dip switch
S1.2~S1.8, S2.1~S2.8,
S3.1~S3.8, S4.1~S4.8..
