paco MCD-500VA User manual

MCD-1000VA
UNUSUAL
DELA
YING
WORKING
DELA
Y
UNDELAY
AUTOMATIC VOLTAGE REGULATOR
INPUT
OUTPUT
MICROPROCESSOR CONTROL (CPU)
AUTOMATIC VOLTAGE REGULATOR
Instruction Manual
Please read user manual carefully before use.
HIGH & LOW VOLTAGE PROTECTION

OUTPUT VOLTAGE
METER
INPUT VOLTAGE
METER
DELAYING INDICATOR
WORKING INDICATOR
UNUSUAL INDICATOR
DELAY / UNDELAY
SELECTOR
POWER SWITCH
Front Panel: 300-500VA
MCD-500VA
UNUSUAL
DELAYING
WORKING
DELA
Y
UNDELA
Y
AUTOMATIC VOLTAGE REGULATOR
INPUT
OUTPUT
Microprocessor Control (CPU)
Wide Range Voltage Regulation
Automatically Executes Protection, When Protection Finished, Goes Off.
High Voltage Protection: Yes
Low Voltage Protection: Yes
Overload Protection: Yes (3KVA,5KVA)
High Temperature Protection: Yes
Circuit Protection: Circuit Breaker
Smart Cooling System: Yes (3KVA,5KVA)
1. FEATURES
2. DESCRIPTION
FIG 1
Rear Panel: 300VA-500VA
Fuse
Input
Output
1

OUTPUT VOLTAGE
METER
INPUT VOLTAGE
METER
DELAYING INDICATOR
WORKING INDICATOR
UNUSUAL INDICATOR
DELAY / UNDELAY
SELECTOR
POWER SWITCH
Front Panel: 1000VA-2000VA Rear Panel: 1000VA-2000VA
FIG 2
Fuse
Input
Output
Front Panel: 3000VA-5000VA Rear Panel: 3000VA-5000VA
FIG 3
MCD-5000VA
UNUSUAL
DELA
YING
WORKING
DELAY
UNDELAY
AUTOMATIC VOLTAGE REGULATOR
OFF
ON
INPUT
OUTPUT
2
MCD-1000VA
UNUSUAL
DELA
YING
WORKING
DELA
Y
UNDELA
Y
AUTOMATIC VOLTAGE REGULATOR
INPUT
OUTPUT
OUTPUT VOLTAGE
METER
INPUT VOLTAGE
METER
DELAYING INDICATOR
WORKING INDICATOR
UNUSUAL INDICATOR
DELAY / UNDELAY
SELECTOR
POWER SWITCH
Output

3. INDICATING SIGN
DELAYING
WORKING
WHEN THE GREEN INDICATOR IS LIGHTING. THE
REGULATOR IS WORKING.
WHEN ORANGE INDICATOR IS FLASHING EVERY
ONE SECOND, THE SYSTEM IS TURNING INTO
DELAYING STATE, AND THE REGULATOR HAS NO
OUTPUT. AFTER DELAY, ORANGE INDICATOR WILL
EXTINGUISH AND THE REGULATOR RESUME
OUTPUT.
3
UNUSUAL
NOTE: Indication for overheating is not equipped in
standard configuration. This function should be effective
only after users notify manufacturer in advance.
WHEN OUTPUT VOLTAGE OF AVR IS HIGHER THAN
SET VALUE, THE SYSTEM ENTER INTO HIGH & LOW
VOLTAGE PROTECTION, UNUSUAL RED LED
FLASHES EVERY ONE SECOND AND OUTPUT GOES
OFF.WHEN OUTPUT VOLTAGE OF AVR IS UNDER
SET VALUE, THE SYSTEM ENTER NORMAL WORKING
STATE,UNUSUAL RED LED EXTINGUISHES.
WHEN TEMPERATURE OF AVR IS HIGHER THAN SET
TEMPERATURE, THE SYSTEM ENTER INTO
TEMPERATURE PROTECTION, UNUSUAL RED LED
FLASHES EVERY ONE SECOND AND OUTPUT GOES
OFF.WHEN TEMPERATURE OF AVR IS LOWER THAN
SET TEMPERATURE, THE SYSTEM ENTER INTO
NORMAL WORKING STATE, UNUSUAL RED LED
EXTINGUISHES

4. LED INDICATOR ILLUSTRATION
LED Indicator Illustration
CONDITION WORKING-G DELAYING-Y UNUSUAL-R
Power Off
Working
Delay State
Output high voltage protection
Output low voltage protection
High temperature protection
NOTE: : CONTINUOUSLY ILLUMINATE
: FLASH
: EXTINGUISH
NOTE: Indication for overheating is not equipped in standard
configuration. This function should be effective only after users
notify manufacturer in advance.
5. LED DIGITAL DISPLAY INDICATOR ILLUSTRATION
LED Digital Display Indicator Illustration
CONDITION INPUT DISPLAY
INDICATOR
OUTPUT DISPLAY
INDICATOR
Power Off Extinguish Extinguish
Working Input Voltage Output Voltage
Delay state Voltage at low-voltage
protection (selective) Countdown (selective)
Output high voltage
protection “HHH” （Flash）“U-P”
Output low voltage
protection “LLL” （Flash）“U-P”
High temperature
protection “FOH”“F-P”
Overload protection “LOH”“L-P”
4

MCD-1000VA
UNUSUAL
DELAYING
WORKING
DELA
Y
UNDELA
Y
AUTOMATIC VOLTAGE REGULATOR
INPUT
OUTPUT
5
6. OPERATION
NOTE: DELAY only takes effect when the system is restarted into normal.
HOME MAIN SOCKET
Before use, please make sure the voltage and power of the appliance are
accord with the labeled power and specification of the unit to avoid any damage.
Please connect the appliance before turning on the unit. Switch on appliance
after you make sure the unit is working normally with output voltage.
When connecting the electrical appliance with motor or compressor, such
as drill, air-conditioner and so on, to the automatic voltage regulator,
please make sure that the power rating of the automatic voltage regulator
is at least 3 times of the power rating of the electrical appliance, so that it
can work smoothly, because the starting up power is much beyond of the
power rating of the electrical appliance.
Output Delay: Delay time 6 seconds (DEFAULTED) and 120 seconds
(MANUAL SWITCH) are alternative.

6
7. LOW & HIGH VOLTAGE PROTECTION
When output voltage is lower or higher than labeled voltage, AVR will turn
into self-protection state automatically ,the UNUSUAL RED indicator
flashes every one second and output voltage will be cut off.
When output voltage comply with labeled voltage, AVR will go into
automatic recovering state, the UNUSUAL RED indicator extinguishes.
Then DELAYING ORANGE indicator flashes every one second, the
system goes into delaying state. After delay, DELAYING ORANGE
indicator extinguishes and output voltage resume .
10. WITH COOLING FAN
When the temperature of transformer excessed 90℃+/-5%, the cooling
fan will switch on automatically to low down inside temperature and will
stop working while the temperature comes down.
NOTE: This function only suitable for 3KVA , 5KVA
11. OUTPUT CAPACITY
The automatic voltage regulator will switch off automatically if the total
wattage of the electrical appliances exceed the automatic voltage
regulator output capacity.
9.OVERLOAD PROTECTION
When avr is overload, the system will turn into self-protection, red led
indicator will illuminate continuously and there is no output. To resume
the output, you should lessen the load and then restar the unit.
NOTE: This function only suitable for 3KVA / 5KVA
NOTE: No overload Protection is equipped in standard configuration,
users should notify manufacturer and take special order if this function
is required.
8. THERMAL PROTECTION
NOTE: No overheating Protection is equipped in standard configuration,
users should notify manufacturer and take special order if this function
is required.
When the temperature of the transformer exceeds 130℃+/-5% , the
system will automatically turn into self-protection state, UNUSUAL RED
indicator will flash every one second and output voltage shut down. While
temperature is lower 70℃+/-5% , the system will recover automatically.
UNUSUAL RED indicator will extinguish, and output resume.

If this voltage is in the range of 190-250V, the regulator provides the
100% listed maximum output power. maximum output power will change
as the curve shown below.
12. GROUNDING CONNECTION
Model: 500VA, 1000VA, 1500VA, 2000VA
WARNING: BEFORE USING THIS AUTOMATIC VOLTAGE REGULATOR
YOU MUST PROVIDE A GROUND CONNECTION TO THE AUTOMATIC
VOLTAGE REGULATOR.
THE POWER CURVE OF OUTPUT
USE THE SAME CURRENT
FUSE FOR REPLACEMENT
100 120 140 160 180 200 220 240 260 280 300
P(%)
100
75
50
25
U(V)
OUTPUT: 220V~
7
FUSE
Fuse
Input
Output
On the rear panel of the automatic voltage regulator there is a terminal fitted
with a nut. This terminal is connected to the case of the automatic voltage
regulator and also to the earth terminal of the AC output socket. The use of
this terminal will depend on your particular installation. In any installation,
heavy duty, green-insulated wire should be used for this connection.

NOTE: The earth terminal of the AC outlet is connected to the neutral terminal.
This is the same as a standard household power point where the neutral line is
bonded to earth and there is normally no voltage between them.
In a stationary land based installation, the earth terminal should be
connected to a metal earthing stake driven into the ground to a depth of
1.2m or more.
In case of trouble with the AC output, e.g.short-circuit, overload, etc... the
protection circuit will automatically cut off the output.
In such cases:
(A) switch off the power at once
(B) disconnect all units
(C) check the connected devices
(D) use the unit again unless the problems
concerning the connected devices have been solved
When in use for a prolonged period of time, the AC output may suddenly be
cut off although the input voltage normal, This may be caused by excessive
temperatures. If this happens. Please proceed as follows:
(A) Switch off the automatic voltage regulator at once
(B) Disconnect some of the appliances or wait until the automatic voltage
regulator cools off
(C) Switch the automatic voltage regulator back on
13.CAUTION
8
Model: 3KVA, 5KVA
GROUND TERMINAL
Output

Expert of Protector For:
15. EXPERT OF PROTECTOR FOR
Make sure that the to tal laden power does not exceed the listed maximum
output power of the regulator.
Be sure to connect the ground point to the ground for your safty.

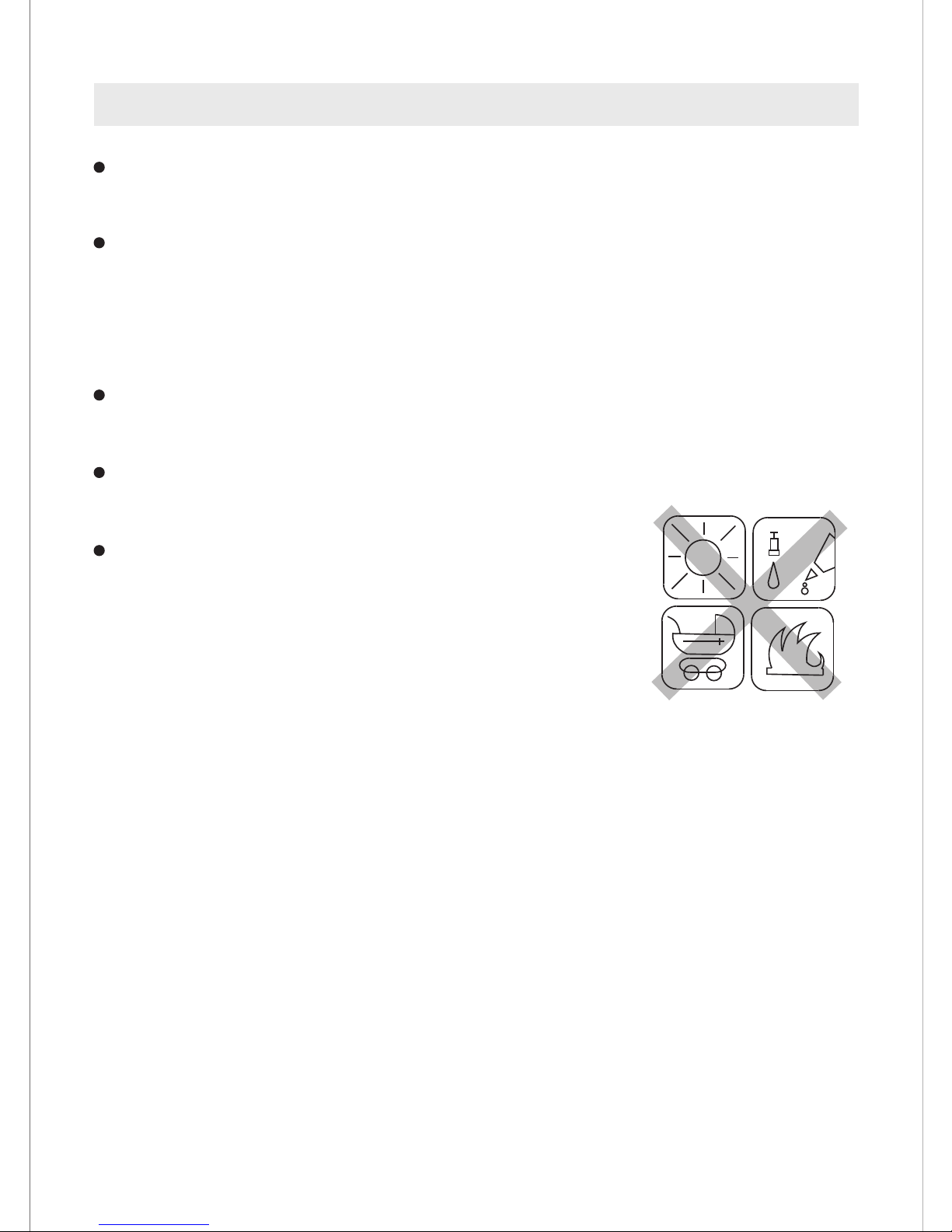

Always keep the automatic voltage regulator in an environment which is:
(A) Well-ventilated
(B) Not exposed to direct sunlight or any other heat source
(C) Inaccessible to children
(D) Safe from water/moisture, oil or grease
(E) Safe from any flammable substance
WARNING: DO NOT DISASSEMBLE THE UNIT. HAZARDOUS VOLTAGE! DANGER!
PLEASE RETURN TO THE DEALER IF YOU FIND ANY PROBLEM WITH THE UNIT
9
14. MAINTENANCE
Very little maintenance is required to keep your automatic voltage regulator
operating properly.
You should clean the exterior of the unit periodically with a damp cloth to
prevent accumulation of dust and dirt. At the same time, tighten the screws
on the AC input terminals.

6 secs. / 120 secs.
P/No.
Input
Voltage
Output
Voltage
Output
Power
Frequency
Output
Precision
High
Voltage
Protection
Low
Voltage
Protection
High
Output
Voltage
Protection
Input
Fuse
Fuse
Size
Delay
Time
Thermal
Protection
Cooling
Fan
Dimension
(L x W x H)
500VA
50/60Hz
+/-10%
Circuit Protection
Circuit Protection
255V~
250V AC,
T5.0A
5x20mm
O
130 C +/-5%
No
24.5x11.3x16.5
cm
1000VA 1500VA 2000VA 3000VA 5000VA
250V AC,
T8.0A
250V AC,
T10A
250V AC,
T15A 16A 25A
5x20mm 5x20mm 5x20mm Circuit
breaker
Circuit
breaker
No No No Yes Auto-operation fan
(temperature or load)
26.3x12.5x17
cm
28.3x14x19
cm
39x21.5x26
cm
39x21.5x26
cm
220V 230V 240V 110V 115V~ ~ ~ ~ ~
16. SPECIFICATION
10
specification are subjected to change without prior notice.
100-260V~ 120-260V 140-260V ~ ~ 80-140V~
Overload
Protection
Circuit Protection
MCD-5000VAMCD-3000VAMCD2000VAMCD-1500VAMCD-1000VAMCD-500VA
28.3x14x19
cm

Avoid overloading
Do not use the regulator beyond its maximum power.
When connected to any appliance with built-in motor compressor, the
starting power is generally several times of the appliance's listed power
rating. Make sure that the total starting power capacity of all connected
appliance does not exceed the listed maximum output power of the
regulator. For color TV, calculate it twice as its listed capacity.
Make sure that the regulator is of the same output voltage and frequency
as the appliance's it connected.
Make sure that the voltage of electrical source is within the listed range
of the input voltage of the regulator.
Always place the regulator in an environment that is:
(A) Well ventilated.
(B) Not exposed to direct sunlight or heat source.
(C) Out of reach from children.
(D) Away from water moisture oil or grease.
(E) Away from any flammable substance.
CAUTION
