PACOM VFE550 User manual

Quick Reference Guide
5MP Fisheye Camera
Proudly distributed by
Visit "http://www.hills.com.au/branches" to nd your nearest Hills oce,
or contact us at 1800 685 487 for more information.

2Quick Guide
Safety Precautions
1. Read Instructions
All the safety and operating instructions should be read before the
appliance is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future
reference.
3. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do
not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
4. Attachments
Never add any attachments and/or equipment without the
approval of the manufacturer as such additions may result in the
risk of re, electric shock or other personal injury.
5. Water and/or Moisture
Do not use this equipment near water or in contact with water.
6. Placing and Accessories
Do not place this equipment on an wall or ceiling
that is not strong enough to sustain the camera. The
equipment may fall, causing serious injury to a child
or adult, and serious damage to the equipment. Wall
or shelf mounting should follow the manufacturer’s
instructions, and should use a mounting kit approved
by the manufacturer.
This equipment and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the
equipment and cart combination to overturn.
Do not place this equipment in an enclosed space. Sucient
ventilation is required to prevent an increase in ambient
temperature which can cause malfunction or the risk of re.
7. Power Sources
This equipment should be operated only from the type of power
source indicated on the marking label. If you are not sure of the
type of power, please consult your equipment dealer or local
power company.
You may want to install a UPS (Uninterruptible Power Supply)
system for safe operation in order to prevent damage caused by
an unexpected power stoppage. Any questions concerning UPS,
consult your UPS retailer.
This equipment should be remain readily operable.
8. Power Cord
Operator or installer must remove power and TNT connections
before handling the equipment.
9. Lightning
For added protection for this equipment during a lightning storm,
or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or
cable system. This will prevent damage to the equipment due to
lightning and power-line surges. If thunder or lightning is common
where the equipment is installed, use a surge protection device.
10. Overloading
Do not overload wall outlets and extension cords as this can result
in the risk of re or electric shock.
11. Objects and Liquids
Never push objects of any kind through openings of this
equipment as they may touch dangerous voltage points or short
out parts that could result in a re or electric shock. Never spill
liquid of any kind on the equipment.
12. Servicing
Do not attempt to service this equipment yourself. Refer all
servicing to qualied service personnel.
13. Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to
qualied service personnel under the following conditions:
A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have hit the equipment.
C. If the equipment has been exposed to rain or water.
D. If the equipment does not operate normally by following
the operating instructions, adjust only those controls that
are covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualied technician to restore
the equipment to its normal operation.
E. If the equipment has been dropped, or the cabinet damaged.
F. When the equipment exhibits a distinct change in performance
— this indicates a need for service.
14. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specied by the
manufacturer or that have the same characteristics as the original
part. Unauthorized substitutions may result in re, electric shock
or other hazards.
15. Safety Check
Upon completion of any service or repairs to this equipment, ask
the service technician to perform safety checks to determine that
the equipment is in proper operating condition.
16. Field Installation
This installation should be made by a qualied service person and
should conform to all local codes.
17. Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect
type. Replace only with the same or equivalent type. Dispose of
used batteries according to the instructions. The battery shall not
be exposed to excessive heat such as sunshine, re or the like.
18. Tmra
A manufacturer’s maximum recommended ambient temperature
(Tmra) for the equipment must be specied so that the customer
and installer may determine a suitable maximum operating
environment for the equipment.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Important Safeguards
English

3Network Camera
FCC Compliance Statement
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15
OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE
EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY
ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE
TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN
WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.
WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE CAUSING EQUIPMENT REGULATIONS.
WEEE (Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government oce,
for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
should not be mixed with other commercial wastes for disposal.
Safety Symbols
Symbol Publication Description
IEC60417, No.5031 Direct current
Copyright
© 2016 Pacic Communications
Pacic Communications reserves all rights concerning this document.
Use or duplication of this document in part or whole without the prior consent of Pacic Communications is strictly prohibited.
Contents of this document are subject to change without prior notice for reasons such as functionality enhancements.
Registered Trademarks
Pacic Communications is a registered trademark of Pacic Communications.
Other company and product names are registered trademarks of their respective owners.
This product contains software built partially on open-source content. Codes for the corresponding open-source content are available
for download. For more information, refer to the software CD (OpenSourceGuide\OpenSourceGuide.pdf) or the open source guide
accompanying this document.
Accessories
Upon purchasing the product, check inside the box to make sure all the following accessories are included. Some parts may dier
depending on the situation.
Item
Network Camera
Installation CD (INIT/SiRiS Lite software, Operation Manuals)
Quick Guide
Guide Pattern
Allen Wrench
Screws (3 ea.)
Insulator, Bushings
Desiccant ( VFE550 model only)
English

4Quick Guide

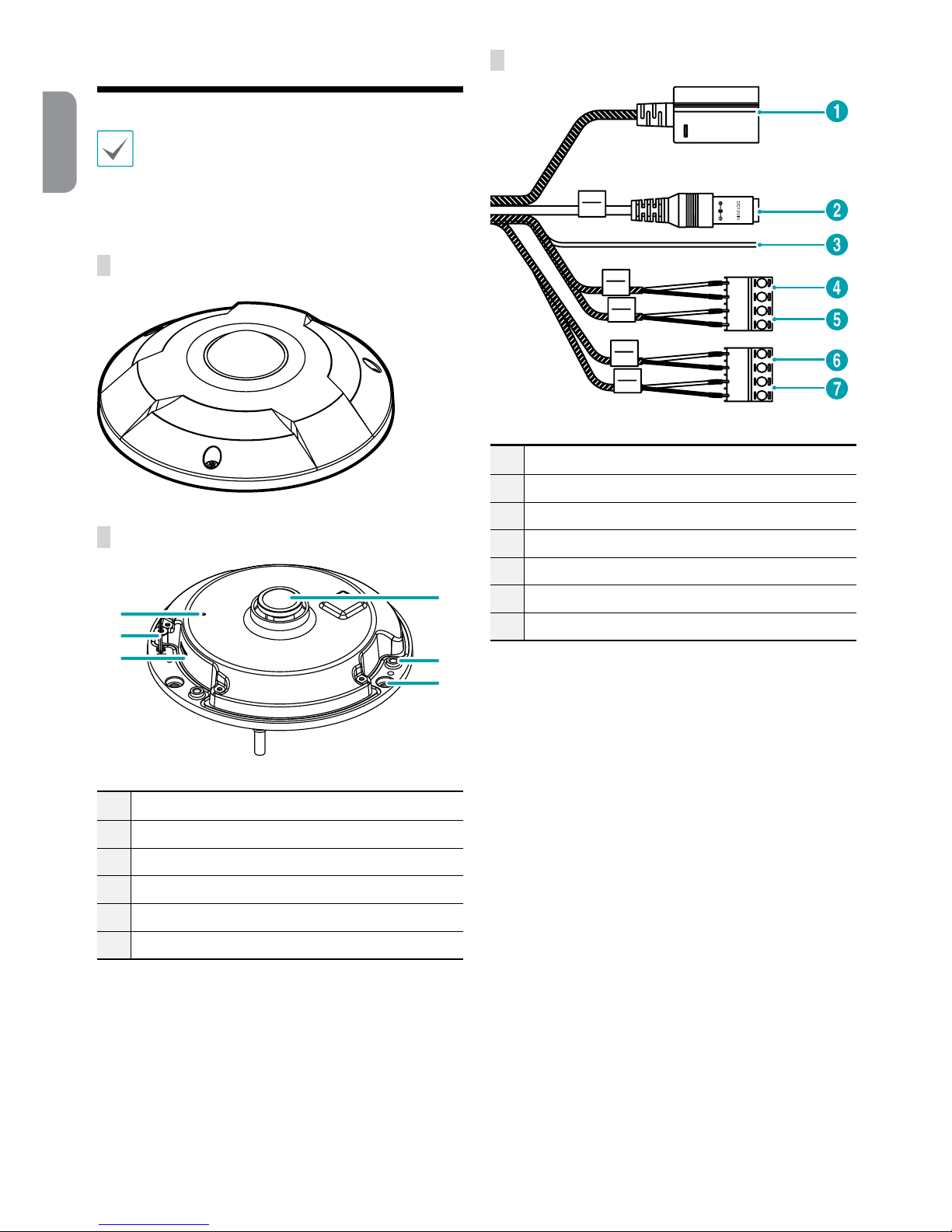

Overview
• Product color and design may vary depending
on the model.
• For more details on each part name, refer to
the manual.
Top Cover
Body
1
2
3
4
5
6
1Factory Reset Button
2Safety wire
3SD Memory Card Slot
4Wall/Ceiling Installation Hole
5Top Cover Screw Hole
6Lens
I/O Device Port
1Network Port
2Power Connector
3FGND (Frame Ground)
4Audio Out
5Audio In
6Alarm In
7Alarm out
English

5Network Camera
Camera Installation
Inserting a SD Memory Card
1 Loosen the screws counterclockwise using the
allen wrench provided with the product.
• Do not remove the screws from the top
cover, otherwise, they may hurt you
when they fall o.
• Do not remove the safety wire from the
top cover and camera body. It prevents
the top cover from falling on to the oor
when detached from the camera.
2 Remove the top cover.
3 Insert a SD memory card into the SD memory card
slot with the ‘micro SD’ print facing upward.
PLFUR
6'
• Push the SD memory card until it
disengages from the slot, and then pull
it out.
• microSD Logo is a trademark of SD-3C,
LLC.
Installation
• Check the wall or ceiling to see if it needs to
be reinforced. The camera may fall o if the
wall or ceiling is not strong enough to support
its weight.
• Do not touch the surface of the lens. You must
be extra careful when installing the
IFE550
model because its lens protrudes.
Use the provided guide pattern to check the
distance between the screw holes if necessary.
1 Remove the white paper of the provided insulator
and attach it to the wall or ceiling. This may reduce
noise which could occur when the camera is
installed on a metalic surface.
English

6Quick Guide
2 After you insert the SD memory card in the
camera, secure the body on a wall or ceiling using
the screws, bushings, and anchors that came with
the camera.
Do NOT use the bushings if you did not
attach the insulator to the wall or ceiling.
• Make it sure that a safety wire is
connected to the top cover and camera
body. It prevents the top cover from
falling on to the oor when detached
from the camera.
• Attach the enclosed desiccant in the
body to prevent moisture. (
VFE550
model only)
• After securing the body, remove the peel
o lm from the lens. (
IFE550 model
only).
Bushing
(Only when the
insulator is attached)
Desiccant
( VFE550
model only)
If you install the camera on a wall, check
the direction of the camera body to
prevent image from being turned upside
down.
It should be placed
downward.
3 Connect external devices, the network cable, and
the power adapter.
4 Secure the top cover to the body by turning the
screws clockwise with the Allen wrench.
• After securing the top cover, remove the
peel o lm from the dome port. (
VFE550
model only).
English

7
Specications
Vandal Resistance Yes *
Out-door Ready IP66 *
Operating Temperature -10°C ~ +50°C (+14°F ~ +122°F)
Boot Up Temperature 0°C ~ +50°C (+32°F ~ +122°F)
Operating Humidity 0% ~ 90%
Power Source 12VDC, PoE(IEEE 802.3af, Class 3)
Power Consumption Max. 7.56 W
Approval FCC, CE
External Dimensions (Ø x H) VFE550 155 mm x 48.3 mm (6.10" x 1.90" )
IFE550 155 mm x 43 mm (6.10" x 1.69" )
Weight (Main Unit) VFE550 0.59 kg (1.31 lb)
IFE550 0.58 kg (1.28 lb)
* Applies to VFE550 model only.
•DirectIP NVR makes it easy to use cameras without extra network congurations.
Each camera can be controlled via the DirectIP™ NVR setup menu, without any PC.
– For detailed camera settings, please see the camera setting pages of DirectIP™ NVR manual.
•To use your camera with non-DirectIP system (e.g. other NVR or VMS), refer to the camera
manual.
V1.1
English

Memo
English

Memo
English

Memo
English

Memo
English

Quick Reference Guide
5MP Fisheye Camera
Proudly distributed by
Visit "http://www.hills.com.au/branches" to nd your nearest Hills oce,
or contact us at 1800 685 487 for more information.
