Thank you for the purchase of our finder.
This guidance will show you the handling
and operation of the product. Please keep
this manual for future reference purposes.

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
2
Is this manual too small for you?
For this guidance, we have chosen a
particularlysmall printformat,so that you will
be able to put it in your pocket or in your car,
without requiring too much space.
If this manual is too small for you, it is
possible to find a current version of it as a
PDF here:
www.paj-gps.de/downloads-
anleitungen.de
You can display the file in any
size and even search for
individual keywords.

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
3
Still not satisfied?
Then contact us! We will take care of your
problem as soon as possible, so that you can
be satisfied!
Contact:
Phone: [phone]
E-Mail: [e-mail]
We would be pleased if you did not directly
open a case or leave a negative feedback,
but give us first the opportunity to find a
solution to your problem. This would be of
benefit to both parties. Contact us and we
will gladly help you! 

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
4
Satisfied?
If you are satisfied with our product, then we
would be very happy to get a positive
feedback or 5 stars from you!
Best regards and many thanks, your PAJ-
team
Artikel wie
beschrieben
Kommunikation
Versandzeit
Versand- und
Verpackungskosten
Kriterien Bewertungen

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
5
Quick start –MINI Finder von PAJ
Step 1: Activate the SIM card
In order to use the MINI finder, you need a
standard size SIM Card. This is not included
in the standard scope of delivery. We
recommend using a prepaid card, as costs
will be charged from the direct use only.
Activate your card and make sure that it
works. Please write down the phone number
of this SIM Card.
The SIM card used for the MINI Finder
must be in the micro format.
Standard
Mikro
Nano

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
6
Step 2: Disable PIN-Code and voice mail
of the SIM Card
Insert your SIM Card
in your mobile phone.
Disable the PIN Code
request of the SIM
Card over the
security setting on
your cell phone. For
most providers, it is
possible to disable
the voice mail by
calling ##002#.
For further details,
please refer to the
instructions of use of
your mobile operator
or network provider.

##002#
SIM-PIN
off

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
7
Step 3: Insert the SIM card in the MINI
Finder
First, the front housing of the
MINI finder must be removed.
To do this, the four
small screws on the back of
the unit with the enclosed
screwdriver.
The bottom, silver cover forms
the SIM card holder. The SIM
card used must be in micro
format. Please insert the SIM
card with the chamfered edge
to the left at the bottom so that
the gold contacts point
inwards (towards the finder).
You can then screw on the
cover again. The metal pins on
the right side provide guidance

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
8
and positioning assistance when
unscrewing.

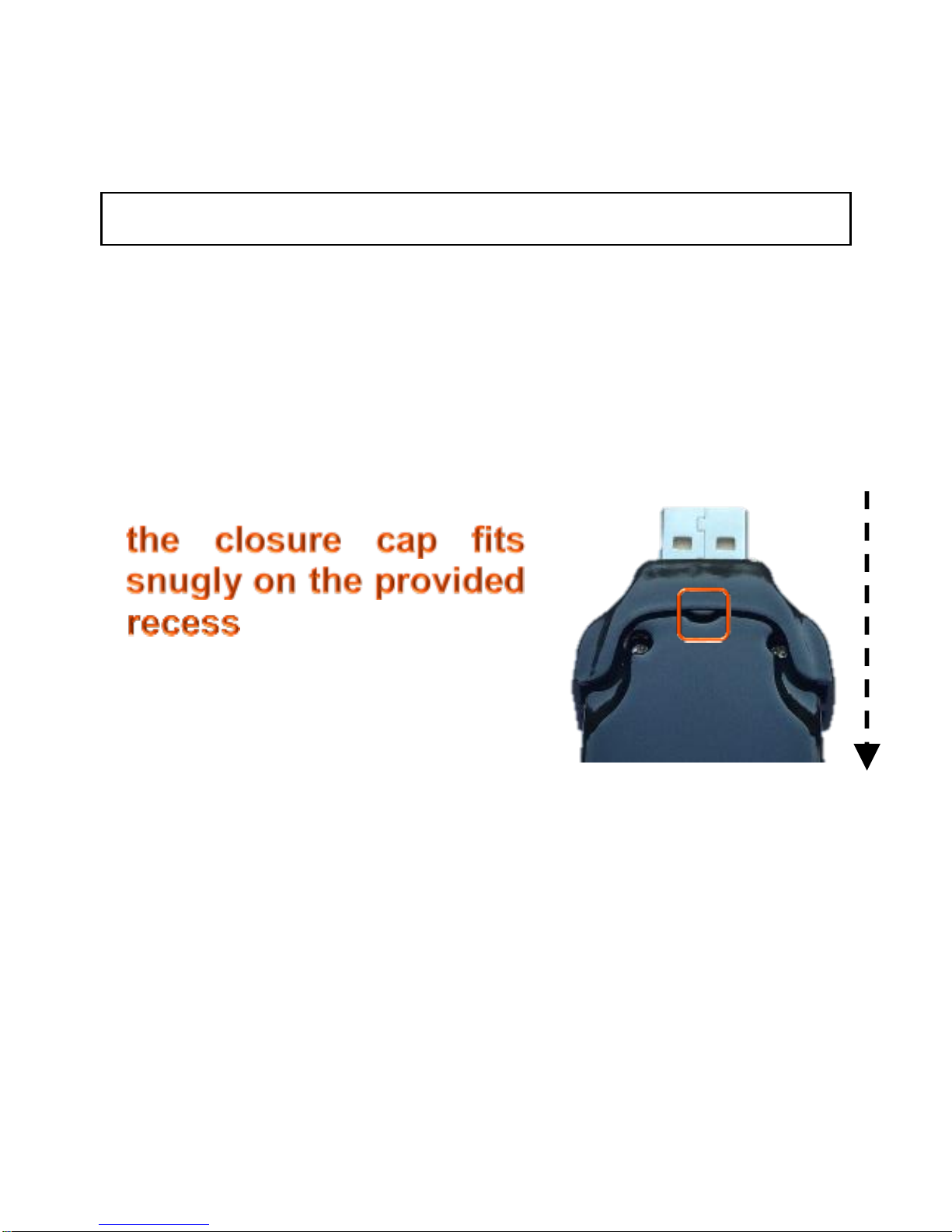

Step 4: Loading
The MINI Finder must be fully charged
before using it for the first time. The USB
adapter is used for this purpose. This has a
small cap on the back. The loading
attachment must be placed on the MINI
finder in such a way that
on the back of the
device.

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
9
Step 5: Launching the product for the
first time
The charging attachment has to be removed
for the use of the GPS Finder. The on / off
button of the MINI Finder forms a trough on
the front. Press and hold until a short
resistance is felt and hold for about 2-3
seconds to turn the unit on and off. The
status of the finder can be checked by the
LED lights.
Meaning of the LED lights:
GREEN
GPRS / GSM status
BLUE
GPRS status
RED
Battery status/State of charge

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
10
Step 6: Call and track your MINI Finder
Call the number of the SIM card that you
inserted in the GPS finder in order to request
a location.
After that, the finder will send you an SMS
with the coordinates and a link to Google
Maps directly to your mobile phone. As soon
as you use click on the link, the finder shows
the precise location.
MINI

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
11
Please make sure that your unit has
sufficient reception power and is not located
on a covered space at the beginning.
The team of PAJ-GPS wishes you lots of
fun with your MINI Finder!
For more detailed information, please read
the user manual on the following pages.

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
12
Table of contents
1Scope of delivery ......................... 14
2Grounds........................................ 14
3Product graphics.......................... 17
4Technical data.............................. 19
5Starting up.................................... 21
5.1 Deactivation of the PIN
Code/Mailbox................................. 21
5.2 Insertion of the sim card................. 23
5.3 Loading.......................................... 25
5.4 Launching the product for the first
time, turning on and LED signals.... 26
5.5 Meaning of the led lights ................ 26
5.6 Authorization.................................. 31
5.7 Password change........................... 35
5.8 Resetting to the factory defaults..... 37
Send an SMS with the following:............. 37
6Machine setup and commands ... 38

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
13
6.1 Location request ............................ 40
6.2 Radius-Alarm................................. 46
6.3 Alarm for over speeding................. 50
6.4 Shock alarm................................... 52
6.6 GPS-signal upon movement
(recommended setting) .................. 56
6.7 Low battery power.......................... 58
6.9 The most important commands in the
overview......................................... 60
8Safety............................................ 66
9Notes for the disposal of waste
batteries........................................ 68
9.1 Free withdrawal of used batteries...... 68
9.2 Meaning of the battery icons............. 69
10.2 Deregistration/Disconnect the internet
connection ..................................... 88
10.3 Test access and permanent use of the
portal access.................................. 89

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
14
1 Scope of delivery
The scope of delivery includes:
PAJ MINI Finder
USB charging attachment including
protective cap
Rubber protective case
Screwdriver
USB stick with user manual
Adapter for the socket
We are constantly improving our products.
Therefore, the contents of the manual may
change. The current version is available at
www.paj-gps.de/downloads-anleitungen.de
2 Grounds
Based on the GSM mobile network and the
GPS satellites, this product can transmit its
location via SMS or GPRS. In addition, you
can use a microphone to hear the ambient
sounds of the finder.

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
15
The MINI Finder offers you numerous
possibilities for position finding. For more
information about how to implement them,
please go to chapter 6.
SIM cards with contract term can also be
used. However, we recommend using a
prepaid SIM card for the GPS tracker.
Please do not use SIM cards that charge
automatically as soon as they reach a
specific account balance. This prevents you
from incurring increased costs due to an
incorrect setting.

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
16
Recommended for the first start of the MINI
Finder are places that are not covered,
such as the garden or terrace (not in the
apartment, garage, cellar or similar). Please
note that the GSM signal is not supplied in
some locations by the respective network
provider.
Please enter the uppercase and lowercase
of the letters when entering the commands.
In addition, the plus characters (+) and the
quotation marks („“)are not to be sent. If
you receive an errormessage,the command
was not accepted. Please check the entries
carefully and then repeat the procedure.

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
17
3 Product graphics
Usb charging
attachment
Turn on/off
Adapter side for the
USB charging
attachment

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
18
MINI Finder Complete set
MINI Finder with rubber
protection bag

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
19
4 Technical data
Dimensions
57mm x 32mm x
16mm
GPS accuracy
Up to 5 meters
Standby time
About 3 days
Battery
3,7V 500 mHa Li-ion
Weight
28g
Time to start
Coldstart: 1-3 min
Standby: 35 s
in operation: 5 s
Network
GSM/GPRS
Band
850/900/1800/190
MHz
GPS-Chip
UBLOX G6010-ST,
50 channel
GSM/GPRS module
Simcom Sim900
GPS reception
-159 dBm
Charging device
110-220V, AC, 50 Hz
input 5 V,
DC output
Storage temperature
from -40 °C to +55 °C
Operating environment
from -20 °C to +55 °C
Air humidity
5%-95%

MINI Finder v.1.1ENG
© PAJ UG (haftungsbeschränkt)
20
The GPS accuracy depends on the GPS
reception of the finder.
The MINI Finder offers you a running time of
up to 3 days, without loading in the
meantime! Using a new software, it is
possible to reduce the battery consumption.
However, please note that the runtime
depends on the utilization of the finder.
