PAJ GPS PET Finder 4G User manual

PAJ GPS
PET
FINDER
4G
+ WIFI-LOCATION

PAJ GPS PET Finder 4G by PAJ V.3.0 EN
© PAJ UG (haftungsbeschränkt)
Table of contents
2
Thank you for purchasing our FINDER!
Before starting: Read the instructions carefully,
before using the FINDER for the first time. Please keep this user manual
in a safe place in case you may need it in the future.
1.1 Scope of delivery ..................................................................................... 3
1.2 Product description................................................................................... 4
1.3 Instructions for charging......................................................................... 4
1.4 Activation ................................................................................................. 5
1.5 Switching on/off ...................................................................................... 6
1.6 Use ......................................................................................................... 10
1.7 Meaning of the LED lights ......................................................................12
1.8 Technical details ......................................................................................18
1.9 Safety instructions..................................................................................20
1.10 Disposal of used batteries ...................................................................25
1.11 Disposal of electrical devices ..............................................................26
NOTE!
We update our user manuals on a regular basis, in order to keep them up to
date. The latest version can be viewed at any time at:
www.paj-gps.de/nder.

3
1.1 Scope of delivery
*the M2M SIM card is already inside your
FINDER and is not replaceable.

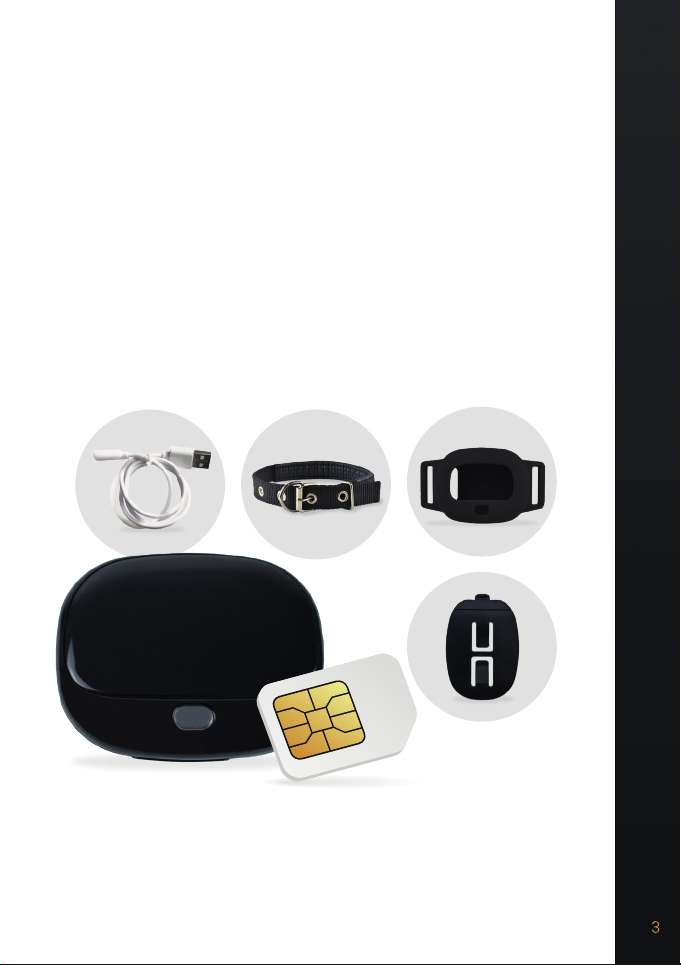

Your delivery will include:
• PAJ GPS PET Finder 4G
• M2M SIM card *
•Magnetic charger with USB connection
• Collar
• Rubber cover
• Collar clip

4
1.2 Product description
1.3 Instructions for charging
NOTE!
The FINDER has a battery duration of approximately 4 days, needless of
charging it in between! However, beware that this duration will depend on
how much you use your device. The more the FINDER is in motion and thus
sending data to the portal, the greater the battery usage.
Before using the FINDER for the first time you must charge it. Connect the magnetic
part of the charging cable to the FINDER's magnetic contact. Connect the USB
connector to the wall-plug adapter and plug it into a power socket. If the FINDER is
connected to the power source, it will switch on automatically. Please charge the
FINDER until the red LED is fixed.

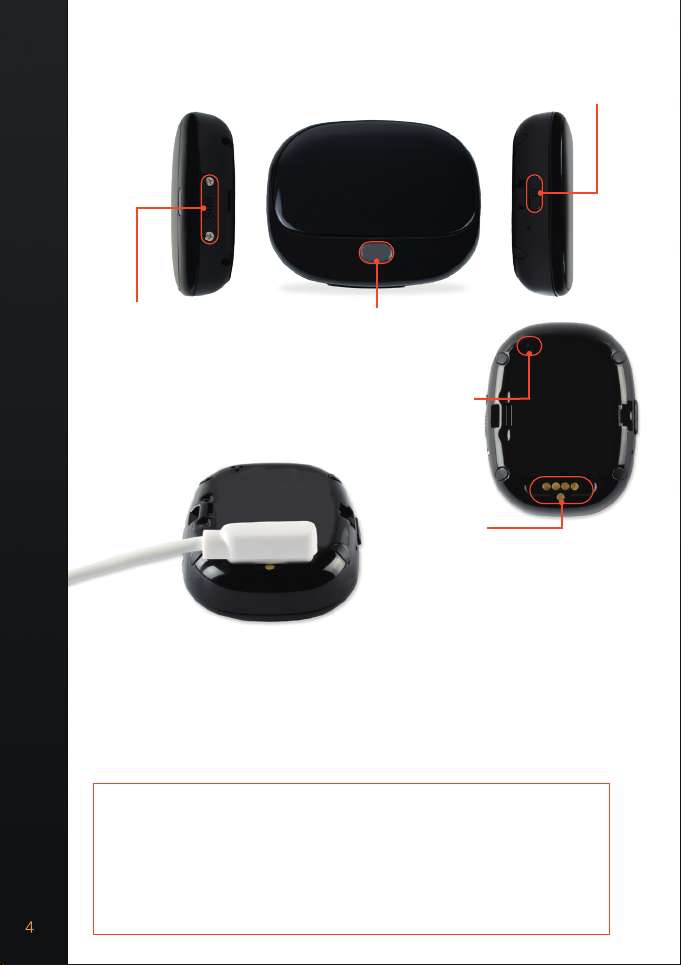

SIM card slot
(SIM card is already
inside your FINDER and
is not replaceable)
Light sensor
On/off button
Contacts
Speaker

5
1.4 Activation

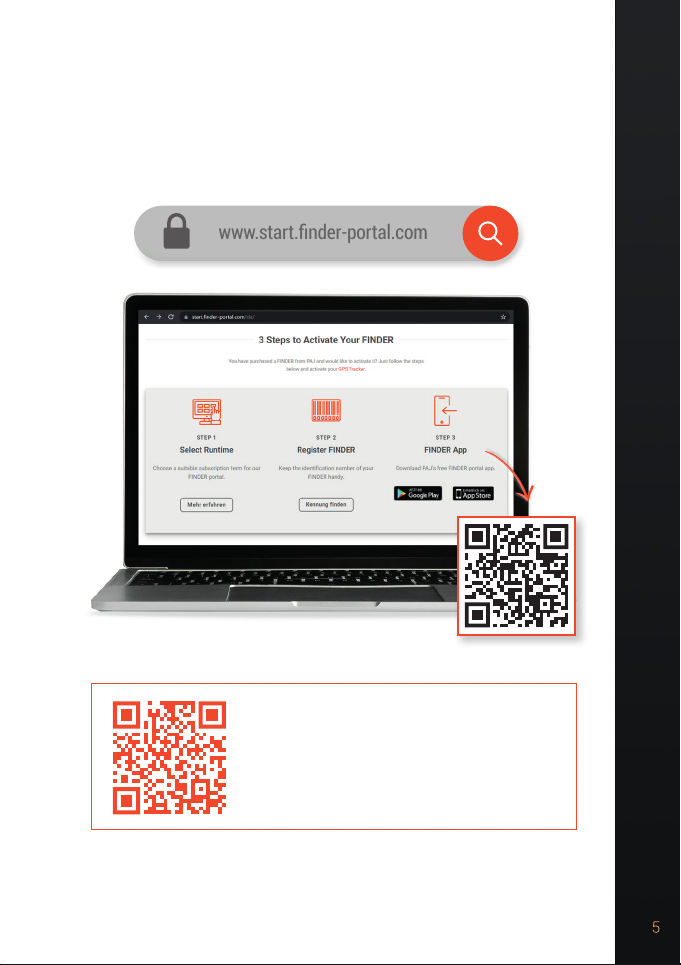

In order to use your PAJ GPS PET Finder 4G, you will need to previously activate it
online. Enter the following link and follow the instructions:
NOTE!
For a detailed explanation of the activation
process, you can simply click on the following link
or scan the QR code:
www.paj-gps.de/registrierung/
www.start.nder-portal.com

1.5 Switching on/off
6
Once your device has been activated successfully and fully charged, you are ready to
turn your device on and start using it!
Switch on:
In order to turn the device on, hold the on/off button down for 5 seconds until the
big green LEDs light up. When switching on, all three large LEDs (red, green, blue)
light up briefly. (If the FINDER is connected to the power source, it will switch on
automatically)
NOTE!
The PET Finder 4G is designed for outdoor use. In order to get the best reception
results, we recommend that you use it outside buildings. If you do not see a
position displayed in your FINDER portal, we recommend that you move the
device outdoors if possible (e.g. during a walk or a short drive). This allows the
FINDER to connect to the best mobile network. A network connection is essential
for position data to be transmitted from the FINDER to the FINDER portal and
displayed.

7

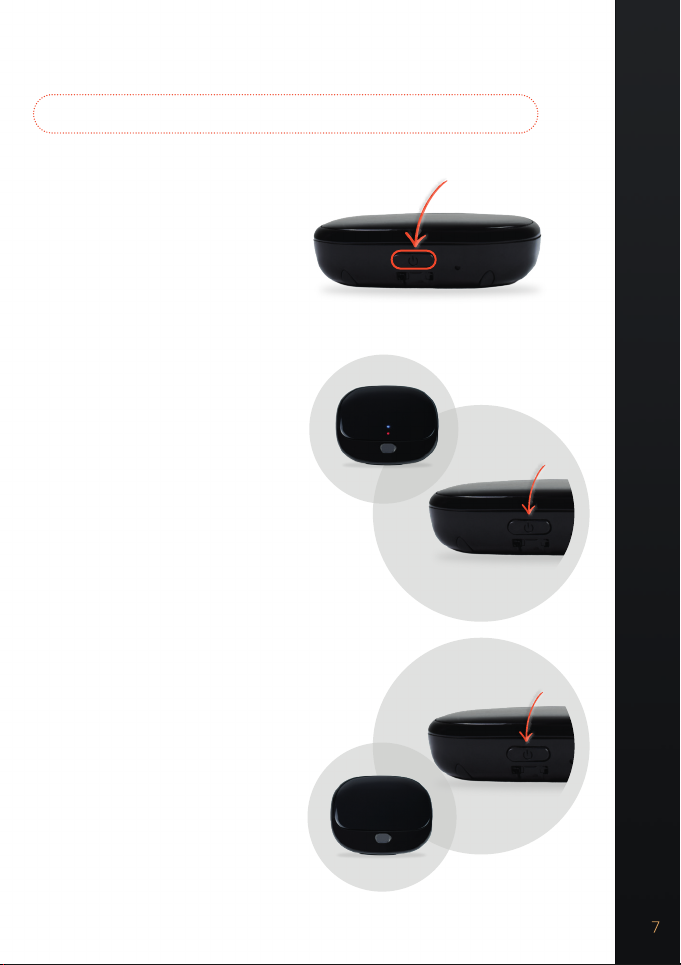

Switch off:
To turn it off, press the button 3 times
within 3 seconds. When the device turns
off, the two small LEDs (red and blue)
will light up again briefly.
Funcionality check
If you would like to check whether the
device is turned on, press the on/off
button once.
SWITCHED ON
If the LEDs light after pressing the on/off
button once, the GPS tracker is on
(see image). Then, the lights will turn off.
However, the device will still be on.
SWITCHED OFF
If the LEDs do not go on after pressing
the on/off button once, the GPS tracker
is turned off.
1x
1x
You must wait 1 minute between turning the device on and switching it off.
3x

7.
8.
9.
10.
11.
1. 2.
3.
4.
5.
6.
8

2. Notifications
1. Menu
3. Devices menu
4. Device position
5. 2D / 3D setting
6. Own location
7. Map adjustment
8. Alarms / Stops on the route
9. Route points
10. Heat map
11. Routes
9

10
1.6 Use
As soon as your device has been successfully activated, started up and has sent and
logged data for the rst time, you can place it wherever you choose and use your phone,
tabletorPC tostart trackingit!Youwill be able to do this inourApp or enter the following
link to the desktop version:
www.v2.nder-portal.com

11
Light sensor

12
1.7 Meaning of the LED lights
The FINDER searches for a
GPS signal
The FINDER searches for
Internet connection
The FINDER is charged
Light function in three colors - thanks to light sensor!
Small LEDs:
Big LEDs:

13
*The functionality check can be carried out here in order to check whether the
device is switched on.
Signal Meaning
The blue LED is flashing
The FINDER searches for a GPS signal - once
connection is successful, the LEDs will turn off
again.
Signal Meaning
All LEDs are off The FINDER is switched off/ is in
standby mode *
Signal Meaning
The red LED is flashing
The FINDER searches for Internet connection
- once connection is successful, the LEDs wil
turn off again.
Signal Meaning
The small LEDs are flashing
Once the charging cable is connected, the small
LEDs will start blinking. Once the FINDER is
completely charged, the red LEDs will be xed.
(Once the charging cable is connected, the FIN-
DER is automatically switched on)
Signal Meaning
The big LEDs are flashing The FINDER is turned on or it is dark and the
light function has been activated *
*In order for the LEDs to flash in the dark, activate the light function in the
Finder Portal.

14
DOG
TRAINING

15
Call training:
Train your dog to respond to the sound produced by the
device. This sound can be activated through the app.

16
WIFI function:
The FINDER looks for an available W-LAN network in order
to improve the positioning especially inside buildings.

17
INDOOR
WIFI TRACKING

18

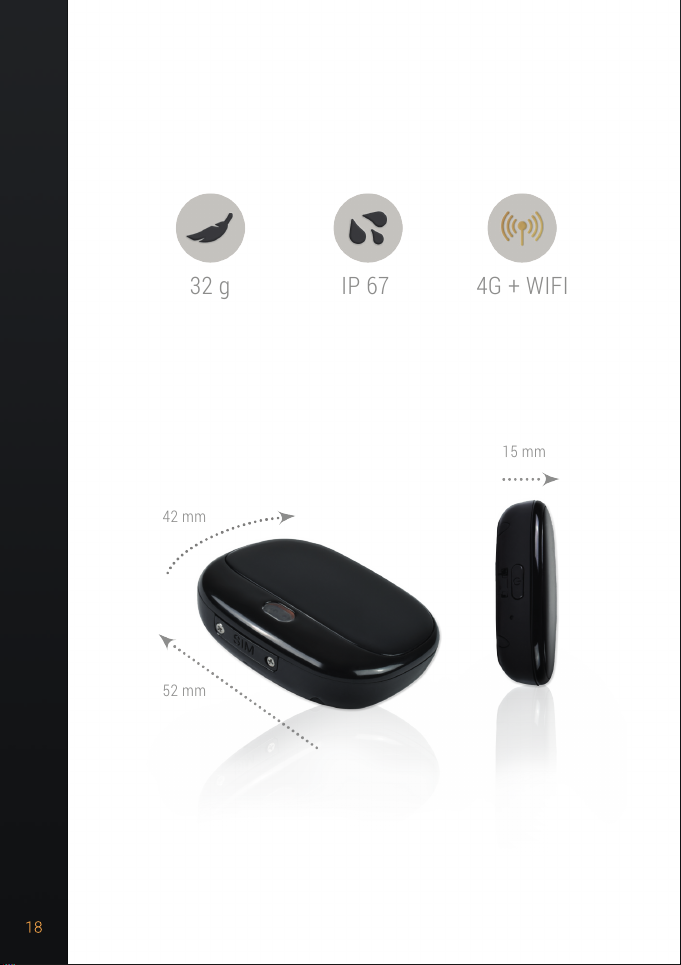

1.8 Technical details
52 mm
42 mm
15 mm
32 g
IP 67
4G + WIFI

19
Dimensions 52 mm x 42 mm x 15 mm
GPS accuracy up to 5-10 meters
Standby time approx. 5 Tage
Battery 500 MAH Li-Polymer
Weight 32 g
Starting time Cold start: 3-5 min
Standby: 1-3 min / Operating/running: 10-30 s
Netzwork GPS/GSM/GPRS Chipset
Bandwith GSM\FDD-LTE\FDD-TDD
GPS chip + GSM/GPRS module UNISOC 8910DM
GPS reception -165 dBm
Charging voltage Entrance max. 5 V DC
Charging current max. 2 A (not a fast charging device)
Storage temperature from -20°C to +50°C
Operating environment from -20°C to +50°C
Humidity from 5% to 90%
Waterproof waterproof according to IP67

20
1.9 Safety Instructions
Signal words
The following signal words are used in these operating instructions:
NOTE!
This signal word is used to draw your attention to an issue or situation. It also serves
as a recommendation for proper use. Possible damage to property or personal injury
can be prevented if this is observed.
WARNING!
This classies a hazard of medium risk level. Failure to
observe the warning may result in serious injury or damage.
Proper use
Read these safety instructions for this GPS tracker carefully before using it for the
rst time in order to use it properly. The intended use of the GPS Tracker to locate
an object or a living being is only that described in this manual. Please note that
it is a criminal offence to monitor third parties using a GPS tracker without their
consent. If you use it in any other way, it will be considered improper and may result
in damage to property or even personal injury.
Please note that the GPS Tracker is not a child‘s toy. In other countries and regions
there are different laws concerning digital positioning and tracking of people, animals
and/or objects. Salind UG cannot be held responsible if such laws or regulations
are violated. The user is held solely responsible for this.
NOTE!
The manufacturer and dealer accept no liability for damage caused by
improper or incorrect use.
