paladin FFC PREPARATOR LAF3566 User manual

Manual Number: MR95512
Models: LAF3566 & LAF3576
Serial Number: E042020 and UP
Release Date: February 2019
Rev. 6
PREPARATOR®
800-456-7100 I www.paladinattachments.com 2800 N. Zeeb Rd., Dexter, MI. 48130, United States of America Copyright ©
OPERATOR’S MANUAL
SERIAL NUMBER: ___________________
MODEL NUMBER: ___________________

MR955512 3
TABLE OF CONTENTS
PREFACE.................................................................................................................................5
SAFETY PRECAUTIONS
Safety Statements .........................................................................................................6
General Safety Precautions........................................................................................6-8
Equipment Safety Precautions .................................................................................9-10

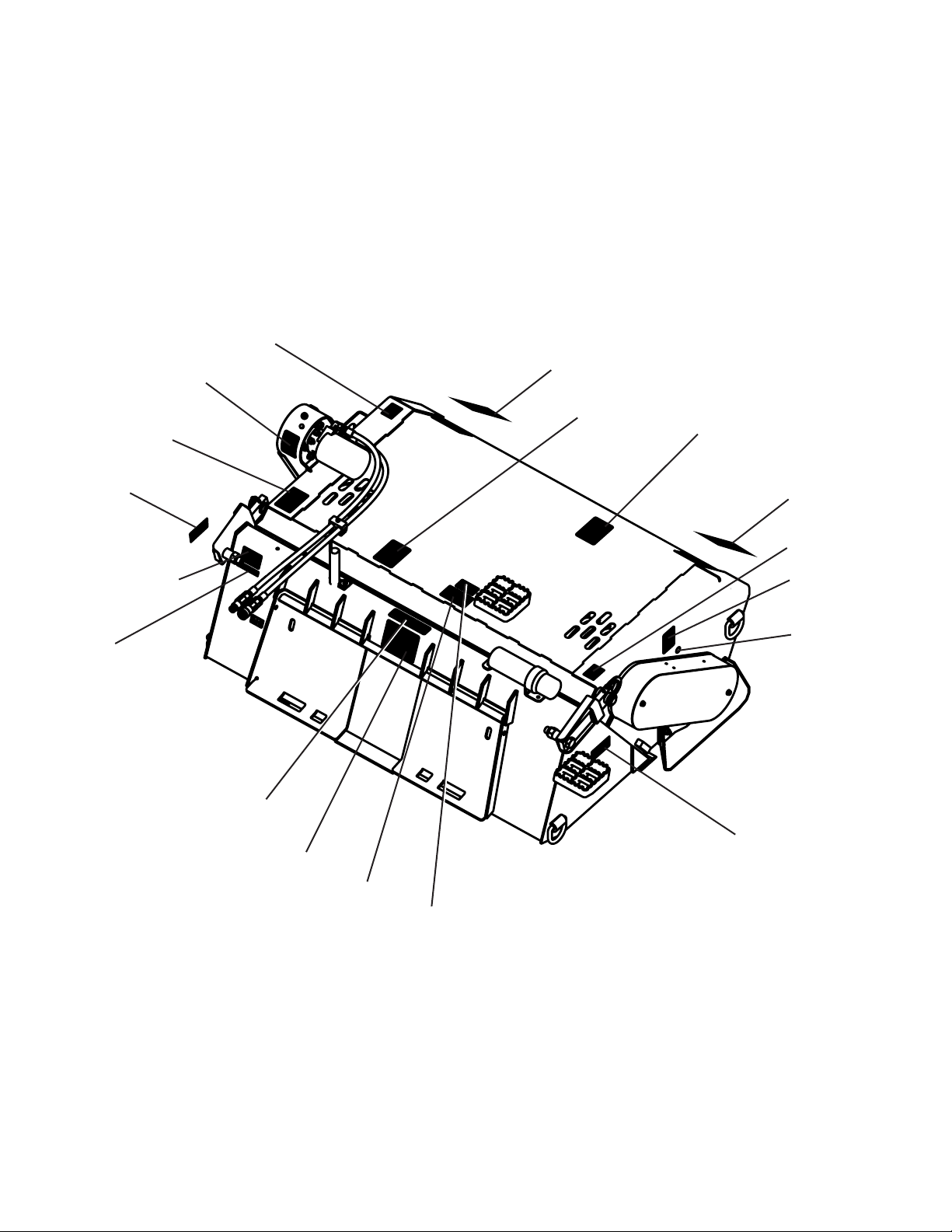

DECALS............................................................................................................................11-13
INSTALLATION
General Information.....................................................................................................14
Installation....................................................................................................................14
Detaching.....................................................................................................................14
OPERATION
Intended Use ..........................................................................................................15-16
Skid Shoe Adjustment.............................................................................................16-17
Operation................................................................................................................17-20
Rock Collection, Soil Tillage & Foliage Uprooting, Roughing, Foliage Collection, Finish Pass
Dumping ......................................................................................................................20
Storage ........................................................................................................................20
Removal From Storage................................................................................................21
Lift Points.....................................................................................................................21
Tie Down Points...........................................................................................................22
Transporting.................................................................................................................22
LUBRICATION .......................................................................................................................23
MAINTENANCE
Routine Maintenance................................................................................................... 24
Bearing Lock Adjustment.............................................................................................25
Chain Tension Adjustment ...........................................................................................26
TROUBLESHOOTING..................................................................................................... 27-28
SPECIFICATIONS
Preparator® Specications ........................................................................................... 29
Bolt Torque Specications ...........................................................................................30
PARTS / WARRANTY............................................................................................................31

MR955512
4
THIS PAGE
IS INTENTIONALLY
BLANK

MR955512 5
PREFACE
10344 1-31-17-5
GENERAL COMMENTS
Congratulations on the purchase of your new product! This product was carefully designed
and manufactured to give you many years of dependable service. Only minor maintenance (such
as cleaning and lubricating) is required to keep it in top working condition. Be sure to observe all
maintenance procedures and safety precautions in this manual and on any safety decals located
on the product and on any equipment on which the attachment is mounted.
This manual has been designed to help you do a better, safer job. Read this manual care-
fully and become familiar with its contents.
WARNING! Never let anyone operate this unit without reading the "Safety Precautions"
and "Operating Instructions" sections of this manual.
Always choose hard, level ground to park the vehicle on and set the brake
so the unit cannot roll.
Unless noted otherwise, right and left sides are determined from the operator’s control posi-
tion when facing forward.
NOTE: The illustrations and data used in this manual were current (according to the infor-
mation available to us) at the time of printing, however, we reserve the right to redesign and
change the attachment as may be necessary without notication.
BEFORE OPERATION
The primary responsibility for safety with this equipment falls to the operator. Make sure the
equipment is operated only by trained individuals that have read and understand this manual. If
there is any portion of this manual or function you do not understand, contact your local authorized
dealer or the manufacturer to obtain further assistance. Keep this manual available for reference.
Provide the manual to any new owners and/or operators.
SAFETY ALERT SYMBOL
This is the “Safety Alert Symbol” used by this industry. This symbol is used to warn
of possible injury. Be sure to read all warnings carefully. They are included for your
safety and for the safety of others working with you.
SERVICE
Use only manufacturer replacement parts. Substitute parts may not meet the required stan-
dards.
Record the model and serial number of your unit on the cover of this manual. The parts
department needs this information to insure that you receive the correct parts.
SOUND AND VIBRATION
Sound pressure levels and vibration data for this attachment are inuenced by many di󰀨erent param-
eters: some items are listed below (not inclusive):
• prime mover type, age, condition, with or without cab enclosure and conguration
• operator training, behavior, stress level
• job site organization, working material condition, environment
Based on the uncertainty of the prime mover, operator, and job site, it is not possible to get precise ma-
chine and operator sound pressure levels or vibration levels for this attachment.
NOTE:Alist of all Paladin Patents can be found at http://www.paladinattachments.com/patents.asp.

MR955512
6
SAFETY STATEMENTS
DANGER
GENERAL SAFETY PRECAUTIONS
WARNING! READ MANUAL PRIOR TO INSTALLATION
Improper installation, operation, or maintenance of this equipment could result
in serious injury or death. Operators and maintenance personnel should read
this manual, as well as all manuals related to this equipment and the prime
mover thoroughly before beginning installation, operation, or maintenance.
FOLLOW ALL SAFETY INSTRUCTIONS IN THIS MANUAL AND THE
PRIME MOVER’S MANUAL(S).
READ AND UNDERSTAND ALL SAFETY STATEMENTS
Read all safety decals and safety statements in all manuals prior to operat-
ing or working on this equipment. Know and obey all OSHA regulations, local
laws, and other professional guidelines for your operation. Know and follow
good work practices when assembling, maintaining, repairing, mounting,
removing, or operating this equipment.
KNOW YOUR EQUIPMENT
Know your equipment’s capabilities, dimensions, and operations before op-
erating. Visually inspect your equipment before you start, and never operate
equipment that is not in proper working order with all safety devices intact.
Check all hardware to ensure it is tight. Make certain that all locking pins,
latches, and connection devices are properly installed and secured. Remove
and replace any damaged, fatigued, or excessively worn parts. Make certain
all safety decals are in place and are legible. Keep decals clean, and replace
them if they become worn or hard to read.
WARNING
CAUTION
NOTICE
THIS SIGNAL WORD INDICATES A HAZARDOUS SITUATION WHICH, IF
NOT AVOIDED, WILL RESULT IN DEATH OR SERIOUS INJURY.
THIS SIGNAL WORD INDICATES A HAZARDOUS SITUATION WHICH, IF
NOT AVOIDED, COULD RESULT IN DEATH OR SERIOUS INJURY.
THIS SIGNAL WORD INDICATES A HAZARDOUS SITUATION WHICH, IF
NOT AVOIDED, COULD RESULT IN MINOR OR MODERATE INJURY.
NOTICE IS USED TO ADDRESS PRACTICES NOT RELATED TO PHYSICAL
INJURY.
THIS SYMBOL BY ITSELF OR WITH A WARNING WORD THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY OR THE SAFETY OF OTHERS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.

MR955512 7
GENERAL SAFETY PRECAUTIONS
WARNING! PROTECT AGAINST FLYING DEBRIS
Always wear proper safety glasses, goggles, or a face shield when driving
pins in or out, or when any operation causes dust, ying debris, or any other
hazardous material.
WARNING! LOWER OR SUPPORT RAISED EQUIPMENT
Do not work under raised booms without supporting them. Do not use support
material made of concrete blocks, logs, buckets, barrels, or any other material
that could suddenly collapse or shift positions. Make sure support material is
solid, not decayed, warped, twisted, or tapered. Lower booms to ground level
or on blocks. Lower booms and attachments to the ground before leaving the
cab or operator’s station.
WARNING! USE CARE WITH HYDRAULIC FLUID PRESSURE
Hydraulic uid under pressure can penetrate the skin and cause serious injury
or death. Hydraulic leaks under pressure may not be visible. Before connect-
ing or disconnecting hydraulic hoses, read your prime mover’s operator’s
manual for detailed instructions on connecting and disconnecting hydraulic
hoses or ttings.
• Keep unprotected body parts, such as face, eyes, and arms as far away
as possible from a suspected leak. Flesh injected with hydraulic uid may
develop gangrene or other permanent disabilities.
• If injured by injected uid, see a doctor at once. If your doctor is not famil-
iar with this type of injury, ask him to research it immediately to determine
proper treatment.

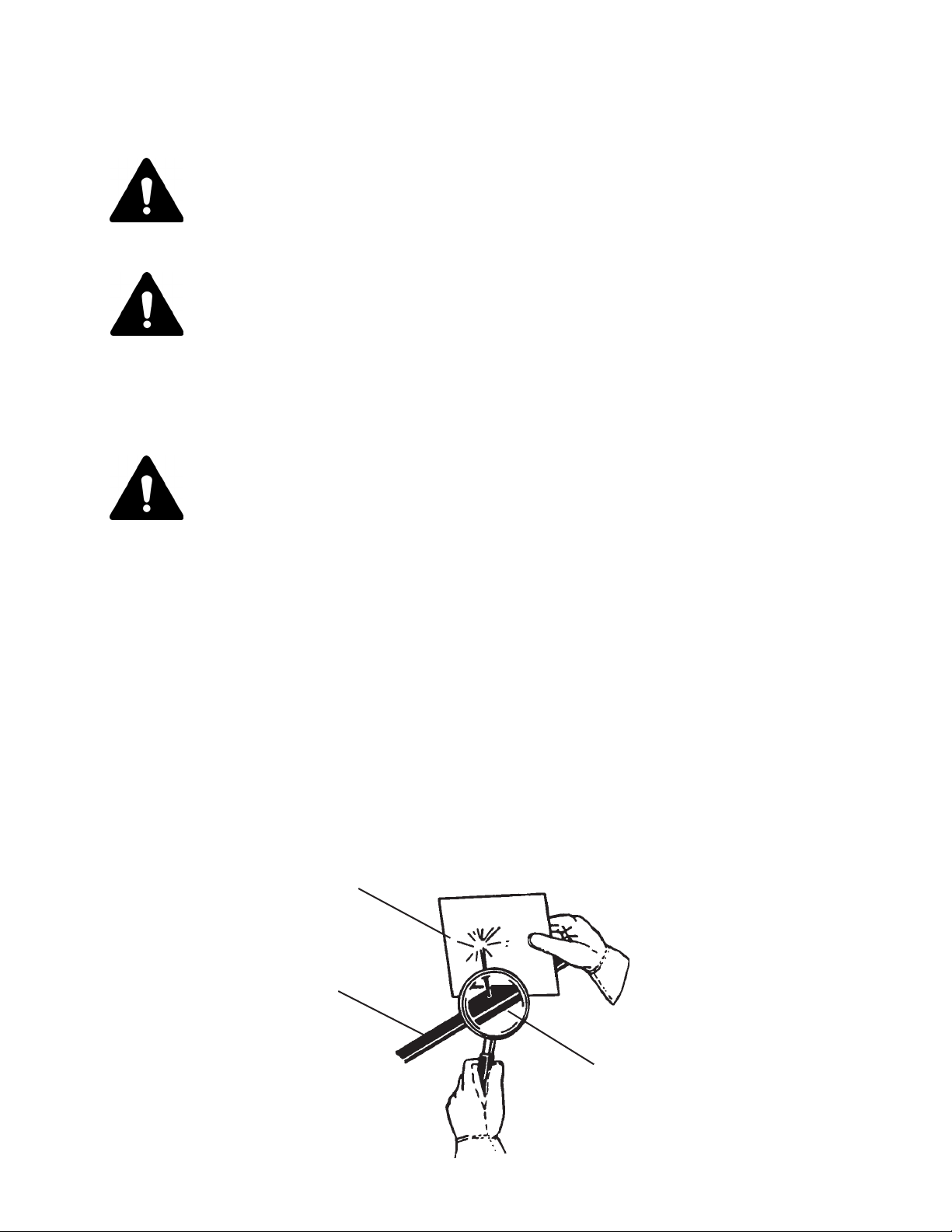

• Wear safety glasses, protective clothing, and use a piece of cardboard or
wood when searching for hydraulic leaks. DO NOT USE YOUR HANDS!
SEE ILLUSTRATION.
CARDBOARD
HYDRAULIC HOSE
OR FITTING
MAGNIFYING GLASS

MR955512
8
GENERAL SAFETY PRECAUTIONS
WARNING! DO NOT MODIFY MACHINE OR ATTACHMENTS
Modications may weaken the integrity of the attachment and may impair
the function, safety, life, and performance of the attachment. When mak-
ing repairs, use only the manufacturer’s genuine parts, following authorized
instructions. Other parts may be substandard in t and quality. Never modify
any ROPS (Roll Over Protective Structure) or FOPS (Falling Object Protec-
tive Structure) equipment or device. Any modications must be authorized in
writing by the manufacturer.
WARNING! SAFELY MAINTAIN AND REPAIR EQUIPMENT
• Do not wear loose clothing or any accessories that can catch in moving
parts. If you have long hair, cover or secure it so that it does not become
entangled in the equipment.
• Work on a level surface in a well-lit area.
• Use properly grounded electrical outlets and tools.
• Use the correct tools for the job at hand. Make sure they are in good
condition for the task required.
• Wear the protective equipment specied by the tool manufacturer.
SAFELY OPERATE EQUIPMENT
Do not operate equipment until you are completely trained by a qualied
operator in how to use the controls, know its capabilities, dimensions, and all
safety requirements. See your machine’s manual for these instructions.
• Keep all step plates, grab bars, pedals, and controls free of dirt, grease,
debris, and oil.
• Never allow anyone to be around the equipment when it is operating.
• Do not allow riders on the attachment or the prime mover.
• Do not operate the equipment from anywhere other than the correct
operator’s position.
• Never leave equipment unattended with the engine running, or with this
attachment in a raised position.
• Do not alter or remove any safety feature from the prime mover or this
attachment.
• Know your work site safety rules as well as trafc rules and ow. When in
doubt on any safety issue, contact your supervisor or safety coordinator
for an explanation.
WARNING! CALIFORNIA PROPOSITION 65 WARNING
This product may contain a chemical known to the state of California to cause
cancer, or birth defects or other reproductive harm. www.P65Warnings.ca.gov

MR955512 9
WARNING! KNOW WHERE UTILITIES ARE
Observe overhead electrical and other utility lines. Be sure equipment will
clear them. When digging, call your local utilities for location of buried utility
lines, gas, water, and sewer, as well as any other hazard you may encounter.
WARNING! EXPOSURE TO RESPIRABLE CRYSTALLINE SILICA DUST
ALONG WITH OTHER HAZARDOUS DUSTS MAY CAUSE
SERIOUS OR FATAL RESPIRATORY DISEASE.
It is recommended to use dust suppression, dust collection and if necessary
personal protective equipment during the operation of any attachment that
may cause high levels of dust.
WARNING! REMOVE PAINT BEFORE WELDING OR HEATING
Hazardous fumes/dust can be generated when paint is heated by welding,
soldering or using a torch. Do all work outside or in a well ventilated area
and dispose of paint and solvent properly. Remove paint before welding or
heating.
When sanding or grinding paint, avoid breathing the dust. Wear an approved
respirator. If you use solvent or paint stripper, remove stripper with soap and
water before welding. Remove solvent or paint stripper containers and other
ammable material from area. Allow fumes to disperse at least 15 minutes
before welding or heating.
WARNING! END OF LIFE DISPOSAL
At the completion of the useful life of the unit, drain all uids and dismantle
by separating the different materials (rubber, steel, plastic, etc.). Follow all
federal, state and local regulations for recycling and disposal of the uid and
components.
EQUIPMENT SAFETY PRECAUTIONS
OPERATING THE ATTACHMENT
• To avoid rolling over do not raise the attachment above ve feet off the
ground or to a height where visibility is obstructed, whichever is lower.
• Do not lock the auxiliary hydraulics of your prime mover in the “ON” position.
• Keep everyone at least nine feet away from this product when operating.
• Do not exceed the lifting capacity of your prime mover.
• Operate only from the operator’s station.
• When operating on slopes, drive up and down, not across. Avoid steep
hillside operation, which could cause the prime mover to overturn.
• Reduce speed when driving over rough terrain, on a slope, or turning, to
avoid overturning the vehicle.

MR955512
10
• An operator must not use drugs or alcohol, which can change his or her
alertness or coordination. An operator taking prescription or over-the-
counter drugs should seek medical advice on whether or not he or she can
safely operate equipment.
• Before exiting the prime mover, lower the attachment to the ground, apply
the brakes, turn off the prime mover’s engine and remove the key
TRANSPORTING THE ATTACHMENT
• Travel only with the attachment in a safe transport position to prevent un-
controlled movement. Drive slowly over rough ground and on slopes.
• When transporting on a trailer: Secure attachment at recommended tie
down locations using tie down accessories that are capable of maintaining
attachment stability.
• When driving on public roads use safety lights, reectors, Slow Moving
Vehicle signs etc., to prevent accidents. Check local government regula-
tions that may affect you.
• Do not drive close to ditches, excavations, etc., cave in could result.
• Do not smoke when refueling the prime mover. Allow room in the fuel tank
for expansion. Wipe up any spilled fuel. Secure cap tightly when done.
MAINTAINING THE ATTACHMENT
• Before performing maintenance, unless otherwise specied, lower the
attachment to the ground, apply the brakes, turn off the engine and
remove the key.
• Never perform any work on the attachment unless you are authorized and
qualied to do so. Always read the operator service manuals before any
repair is made. After completing maintenance or repair, check for correct
functioning of the attachment. If not functioning properly, always tag “DO
NOT OPERATE” until all problems are corrected.
• Worn, damaged, or illegible safety decals must be replaced. New safety
decals can be ordered from Paladin.
• Never make hydraulic repairs while the system is under pressure. Serious
personal injury or death could result.
• Never work under a raised attachment.
OPERATING THE ATTACHMENT
EQUIPMENT SAFETY PRECAUTIONS

MR955512 11
DECALS
DECAL PLACEMENT
GENERAL INFORMATION
The diagram on this page shows the location of the decals used on your attachment.
The decals are identified by their part numbers, with reductions of the actual decals located on
the following page. Use this information to order replacements for lost or damaged decals. Be
sure to read all decals before operating the attachment. They contain information you need to
know for both safety and product longevity.
IMPORTANT: Keep all safety decals clean and legible. Replace all missing, illegible, or damaged safety decals.
When replacing parts with safety decals attached, the safety decals must also be replaced. Safety decals are
available, free of charge, from your local dealer or Paladin.
REPLACING SAFETY DECALS: Clean the area of application with nonammable solvent, then wash the same
area with soap and water. Allow the surface to fully dry. Remove the backing from the safety decal, exposing the
adhesive surface. Apply the safety decal to the position shown in the diagram above and smooth out any bubbles.
# 50-0724
# RDL3102
SERIAL TAG
LOCATION
# 50-0769
# RDL3100
# RDL3100
# RDL3178
# RDL3102
# 50-0909
# 50-0737
# 50-0737
# 50-0769
# RDL3180
# 41204
# RDL3101
# 50-10017
# 40590
# RDL3178

MR955512
12
# 50-0724 WARNING! HIGH PRESSURE
FLUID HAZARD
# RDL3101 WARNING! ROLLOVER
DECALS
# RDL3178 CAUTION! NOT A STEP
# 50-0769 LIFT POINT
# 50-0909 MANDATORY
ACTION! LUBE
CAUTION
#40590
DO NOT OPERATE
USING HI-FLOW
HYDRAULIC SYSTEMS.
Maximum 25 GPM
# 40590 CAUTION! DO NOT USE HIGH FLOW

MR955512 13
# RDL3100 WARNING! FLYING OBJECTS
WARNING
Stand clear. Stay
at least 9 feet away.
RDL3100
# 50-10017 WARNING! AVOID SERIOUS INJURY
DECALS
NOTE: CONTACT YOUR LOCAL DEALER FOR MODEL NUMBER
AND LOGO DECALS
# RDL3102 WARNING! SHIELD
# RDL3180 IMPORTANT - CHAIN TENSION
# 50-0737 WARNING! PINCH POINT HAZARD
# 41204 ALL PATENTS

MR955512
14
GENERAL INFORMATION
The following instructions will help you to mount your Preparator®onto your prime
mover. The Preparator®uses the quick-attach system for ease of installation. Therefore, if you
know how to attach your loader bucket, attaching the Preparator®should prove no problem.
Remember to read all safety warnings, decals and operating instructions before
operating the attachment. If there is any portion of this manual that you do not understand,
contact your dealer.
INSTALLATION
NOTICE! Lubricate all grease fittings before connecting this product to your prime
mover's hydraulic system. See Lubrication Section.
1. Remove any attachment from the front of the prime mover.
2. Following all standard safety practices and the instructions for installing an attachment
in your prime mover operator’s manual, install the attachment onto your prime mover.
WARNING! To avoid serious personal injury, make sure the attachment is securely
latched to the attachment mechanism of your unit. Failure to do so could
result in separation of the attachment from the prime mover.
3. Lower the unit to the ground and relieve pressure to the auxiliary hydraulic lines.
4. Following the safety shut down procedure for your prime mover, shut down and exit the
prime mover.
5. After making sure that the hydraulic couplers are free from any foreign material or con-
taminants, connect the couplers to the auxiliary hydraulic system of your prime mover.
6. Following the standard start up procedure for your prime mover, start the prime mover.
Check for proper hydraulic connection, hose routing and hose length.
7. Attachment installation is complete.
INSTALLATION
DETACHING
1. Before exiting the prime mover, lower the attachment to the ground, apply the brakes,
turn off the prime mover’s engine, and remove the key.
2. Follow prime mover operator’s manual to relieve pressure in the hydraulic lines.
3. Disconnect power and return hoses from the auxiliary hydraulics.
4. Follow your prime mover operator’s manual for detaching (removing) an attachment.
5. Connect hydraulic couplers together or install caps to prevent contaminants from enter-
ing the hydraulic system. Store hoses off of the ground to help prevent damage.

MR955512 15
OPERATION
INTENDED USE
This Preparator®has been designed to separate rocks and other debris from the soil
while leveling and smoothing to prepare the soil for seeding or sod. Use in any other way is
considered contrary to the intended use. Compliance with and strict adherence to operation,
service and repair conditions as specied by the manufacturer, are also essential elements of
the intended use.
WARNING! Do not lock the auxiliary hydraulics of your prime mover in the “ON”
position. Failure to obey this warning could result in death or serious injury.
NOTICE! Operating this product continuously at hydraulic pressures greater than
2500 psi can result in damage to this product and will void all PALADIN warranties.
NOTICE! The use of the "float" position on the loader arm lift control can affect overall
performance.
Before using the Preparator®, the area must be free of all boulders and rocks larger than
20” in diameter, logs, branches, wire, lumber and any other debris that is too large for the buck-
et or could get wrapped around the drum.
The Preparator® is not designed for removing large mounds of soil and/or lling in large
or deep holes. Other equipment should be used to obtain a reasonable starting grade.
Before starting operation, determine soil condition and operation type and adjust your skid
shoes accordingly.
SOIL CONDITIONS
HARD Highly compacted soil. Usually inorganic (clay) or any soil that has been
subjected to vehicle trafc.
MEDIUM Untilled soil that has not been subject to compaction or trafc.
LOOSE Rough tilled soil. Still lumpy and coarse.
VERY LOOSE Soil that has been tilled to a ne texture.
OPERATION TYPE
ROCK COLLECTION Collecting large rocks and debris that are resting on the soil surface.
FOLIAGE REMOVAL Uprooting and collecting foliage that is growing or has been growing on
the soil surface.
SOIL TILLAGE Tilling the soil to create a looser soil condition.
ROUGHING Scarifying, raking rocks, debris, foliage, and filling depressions in tilled
or untilled soil.
FLAT MODE ROUGHING Roughing with the shroud parallel to the ground.
ANGLE MODE ROUGHING Roughing with the shroud at an angle to the ground surface.
FINISHING PASS Collecting small rocks and debris that are in or on the soil surface.

MR955512
16
OPERATION
Due to operator’s experience and the various soil types, moisture, foliage density and
debris, skid shoes may need re-adjusting during operation. Also, multiple passes requiring dif-
ferent skid shoe settings, drum speed, rotation direction and ground speed may be needed to
achieve the desire end results.
SKID SHOE ADJUSTMENT
1. Park your prime mover on a level surface with this product properly attached.
2. Place your prime mover’s transmission in “Park” and engage the parking brake.
3. Lower this product onto preplaced blocking.
WARNING! Do not use blocking made of concrete blocks, logs, buckets, barrels or any
other material that could suddenly collapse or shift positions. Do not use
wood or steel blocking that shows any signs of material decay. Do not use
blocking that is warped, twisted, or tapered. Failure to obey this warning
could result in death or serious injury.
4. Shut off your prime mover’s engine and remove the key. After all moving parts have to
come to a stop, relieve all pressure in the hydraulic lines.
5. Loosen the two .50” hex nuts that secure the right shoe. See Figure #1
TOOTH DEPTH
ADJUSTMENT
SLOTS
SKID SHOE
.50” HEX NUTS
FIGURE #1
6. Move the shoe to the proper slot for your soil condition and the operation being
performed. See Figure #2
NOTE: If, the operator determines that the best skid shoe setting for the conditions be-
ing encountered is between two adjustments shown, then the rear of the skid shoe may
be set one slot above the front of the skid shoe.

MR955512 17
OPERATION
OPERATION
1. Make sure that the skid shoes are in the correct position. See Skid Shoe Adjustment
2. Use the hydraulics on your prime mover to properly position the drum and bucket.
3. Activate the auxiliary hydraulics on your prime mover to rotate the drum in the correct
direction.
4. Increase your engine speed to the desired level and slowly move your prime mover in
the correct direction.
5. Gradually increase the ground speed until the desired balance between operating
results and efciency is achieved.

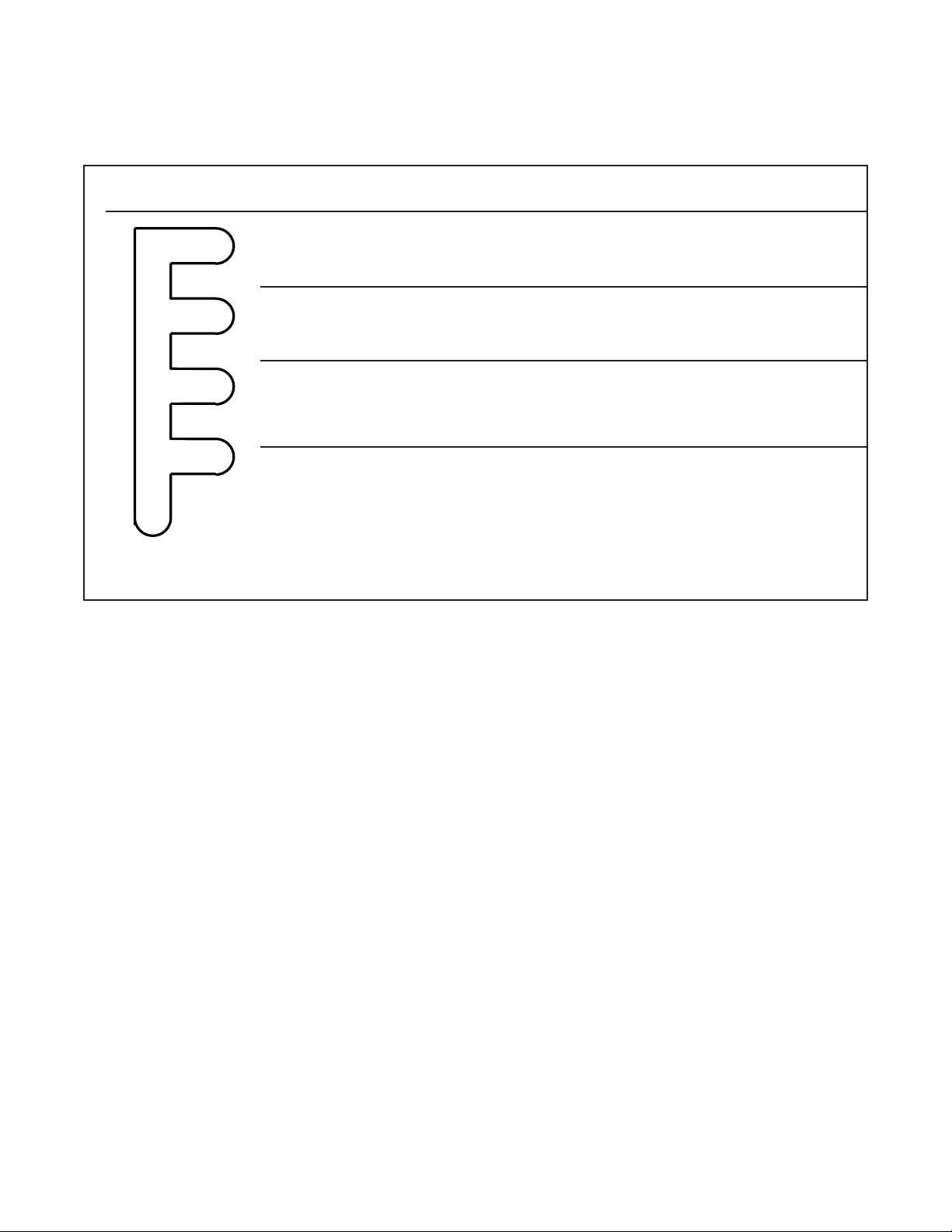

Skid Shoe
Adjustment Slots
Drum Tooth Depth
(Below Skid Shoe) Operation on Soil Condition 1
8
PREPARATOR®SETUP
SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages
2-5 of this manual) BEFORE BEGINNING ANY PREPARATOR®SETUP
SKID SHOE ADJUSTMENT
Before adjusting the skid shoes, determine what the soil conditions are and what type of operation is to be performed.
Remember that each time the soil conditions or operation type changes, the skid shoes may need to be repositioned.
Soil Conditions
•HARD: This is highly compacted soil, usually inorganic (clay). Any soil that has been subject to vehicle
or construction traffic would also be considered this soil condition.
•MEDIUM: This is untilled soil that has not been subject to compaction devices or traffic.
•LOOSE: This soil that has received a rough tillage pass of some type, but is still lumpy and coarse.
•VERY LOOSE: This soil that has been tilled to a fine texture.
Operation Type
•ROCK COLLECTION: Collecting large rocks and debris that are resting on the soil surface.
•FOLIAGE REMOVAL: Uprooting and collecting foliage that is growing or has been growing on the soil
surface.
•SOIL TILLAGE: Tilling the soil to create a looser soil condition.
•ROUGHING: Scarifying, raking rocks, debris, & foliage, and filling depressions in tilled or untilled
soil.
•FLAT MODE ROUGHING: Roughing with the shroud parallel to the ground.
•ANGLED MODE
ROUGHING:
Roughing with the shroud at an angle to the ground surface.
•FINISHING PASS: Collecting small rocks and debris that are in or on the soil surface.
Skid Shoe
Adjustment Slots
Rotor Tooth Depth
Below Skid Shoe
Operation on
Soil Condition
(Initial settings only. Workability, moisture,
experience, etc. affect settings.)
(-) 5/8” Finishing Pass on Very Loose soil.
Foliage Collection
1/4” Flat Mode Roughing on Medium or Loose soil.
Finishing Pass on Loose soil.
1-1/8” Rock Collection on Hard or Medium soil.
Soil Tillage on Medium soil.
Flat Mode Roughing on Hard soil.
Finishing Pass on Medium soil.
2” Foliage Uprooting on Hard or Medium soil.
Angled Mode Roughing on Hard, Medium, or Loose soil.
Soil Tillage on Hard soil.
(-) .62” Finishing Pass on Very Loose soil.
Foliage Collection
.25” Flat Mode Roughing on Medium or Loose soil.
Finishing Pass on Loose soil.
1.12
Rock Collection on Hard or Medium soil.
Soil Tillage on Medium soil.
Flat Mode Roughing on Hard soil.
Finishing Pass on Medium soil.
2” Foliage Uprooting on Hard or Medium soil.
Angled Mode Roughing on Hard, Medium, or Loose soil.
Soil Tillage on Hard soil.
1Initial settings only. Workability, moisture, experience, etc. effect settings.
7. Retighten the two .50” hex nuts to 84 ft. lbs. + or - 6.0 ft. lbs. of torque.
8. Repeat steps 5 through 7 for the left skid shoe.
FIGURE #2

MR955512
18
FIG. 2
DIRECTION OF TRAVEL
OPERATION: SOIL TILLAGE
DRUM ROTATION
OPERATION
ROCK COLLECTION
This operation is where surface rocks (5” to 20” dia.) are collected in the bucket. See Figure #1
• The teeth should move toward the bucket when contacting the soil.
• The prime mover should move in a forward direction.
• The larger the rocks, the slower the ground speed.
• The loader should be in the oat position. (Dumping of the bucket is required.)
SOIL TILLAGE & FOLIAGE UPROOTING
This operation is for loosening undisturbed soil and uprooting foliage. See Figure #2
• The teeth should move away from the bucket when contacting the soil.
• The prime mover should move in a reverse direction.
• The loader should not be in the oat position. (Dumping of the bucket is not required.)
DRUM ROTATION
DIRECTION OF TRAVEL
OPERATION: ROCK COLLECTION
FIG. 1
FIGURE #1
FIGURE #2
DRUM ROTATION
DRUM ROTATION
TRAVEL DIRECTION
TRAVEL DIRECTION

MR955512 19
OPERATION
FLAT MODE ROUGHING OR ANGLED MODE ROUGHING
These operations scarify, rake materials into piles or windrows and ll depressions. See
Figures #3 & #4
• The teeth should move toward the bucket when contacting the soil.
• The prime mover should move in a reverse direction.
• The loader should not be in the oat position. (Dumping of the bucket is not required, un-
less the bucket is closed at the end of a Flat Mode pass.)
FOLIAGE COLLECTION & FINISH PASS
This operation is where foliage, small rocks (up to 5” dia.) and debris are collected in the buck-
et. See Figure #5
• The teeth should move toward the bucket when contacting the soil.
• The prime mover should move in a reverse direction.
• The loader should be in the oat position. (Dumping of the bucket is required.)
DIRECTION OF TRAVEL
DRUM ROTATION
FIG. 3
OPERATION: FLAT MODE ROUGHING
DRUM ROTATION
DIRECTION OF TRAVEL
OPERATION: ANGLED MODE ROUGHING
FIG. 4
FIGURE #3
FIGURE #4
TRAVEL DIRECTION
TRAVEL DIRECTION
DRUM ROTATION
DRUM ROTATION
FIGURE #5
TRAVEL DIRECTION
DRUM ROTATION
DIRECTION OF TRAVEL
OPERATION: FINISHING PASS
FIG. 5
or FOLIAGE COLLECTION
DRUM ROTATION

MR955512
20
STORAGE
• Clean the unit thoroughly, removing all snow, dirt and grease.
• Inspect for visible signs of wear, breakage or damage. Order any parts required and make
the necessary repairs to avoid delays upon removal from storage.
• Tighten loose nuts, capscrews and hydraulic connections.
• Lubricate grease ttings.
• Seal hydraulic system from contaminants and secure all hydraulic hoses off the ground to
help prevent damage.
• Store unit in a dry and protected place. Leaving the unit outside will materially shorten its life.
Additional Precautions for Long Term Storage
• Touch up all unpainted surfaces with paint to avoid rust.
OPERATION
FIGURE #1
ADDITIONAL OPERATING TIPS
• In certain conditions, if the drum carries rocks past the brush and drops them back on the
ground, reducing the drum speed will correct this situation.
• The bucket will hold more material if, when the bucket starts to get full, the bucket is rolled
back to shift the material further back into the bucket. Some unwanted soil can also be re-
moved at this time if the roll-back/dump cylinder(s) on the loader are used to “shake” the unit.
DUMPING
1. Shut off the auxiliary hydraulics.
2. Raise the unit about four feet above the ground. See Figure #1
DRUM ROTATION
MEASURE
BUCKET HEIGHT
TO TOOTHBAR.
DO NOT EXCEED
5 FEET
3. Dump the bucket.
4. If some materials do not slide out, engage the auxiliary hydraulics so that the teeth on
the bottom of the drum move away from the bucket.
