Palazzetti GALAPAGOS User manual

5
Dear customer,
We would like to start thanking you for choosing one of our
products and congratulate you on your choice.
In order to best use your new barbecue, please follow
carefully what is described in this manual.
1 FOREWORD
Do not start using the barbecue until you have read and
understood the contents of this manual. Should you have any
doubts, please make sure you contact Palazzetti’s specialist
retailer. Palazzetti reserves the right to modify the technical
and/or functional specifications and features of the product at
any time without prior notice.
1.1 SYMBOLS
The important points in this manual are highlighted with the
following symbols
DANGER This is an important note on
behavior for injury preventions or material
damage.
maximum load of charcoal load allowed
maximum load of small and dry pieces of wood
allowed
to fix with glue Palazzetti (included in some
models)
1.2 PURPOSE AND CONTENTS OF THE MANUAL
Pu pose
The purpose of the manual is to allow the user to take the
necessary precautions and to have all the human and material
means required for its correct, safe and lasting use.
Contents
This manual contains all the information necessary for
installation, use and maintenance of the product. By
complying scrupulously with the contents of this manual you
will ensure a high degree of safety and productivity for the
product.
1.3 KEEPING THE MANUAL
Sto age and consultation
The manual must be stored in a safe, dry place and be
available at all times for consultation by the user and
installation and maintenance personnel. The Use and
Maintenance Instructions Manual is an integral part of the
product.
Dete io ation o loss
If required, please ask Palazzetti for another copy of the
manual.
Selling the p oduct
If the product is sold the user must give the manual to the new
owner as well.
1.4 UPDATING THE MANUAL
This manual reflects the state-of-the-art at the time the
product was introduced onto the market. The barbecues
already on the market, together with their technical
documentation, will not be considered as deficient or
inadequate simply because changes or adjustments have
been made or new technologies have been applied to the next
generation of appliances.
1.5 GENERAL INFORMATION
Liabilities
Upon delive y of this manual Palazzetti declines all civil
and penal esponsibility fo any accidents that may de ive
f om the total o pa tial failu e to comply with the
specifications contained he ein. PALAZZETTI also
declines all liability esulting f om an imp ope use of the
p oduct, inco ect use by the use , f om unautho ized
alte ations and/o epai s, o the use of non-o iginal o
non-specific spa e pa ts fo this pa ticula model.
Ext ao dina y maintenance
Extraordinary maintenance must be carried out by personnel
qualified and licensed to work on the product to which this
manual refers.
Responsibility fo installation
PALAZZETTI is not responsible for the installation of the
product. This work is entirely up to the installer who is
requested to check the flue and air intake and to check
whether the proposed installation solutions are feasible. In
addition, all the safety standards established by the relevant
law in force in the place of installation must be complied with.
Use
The use of the product is subject to compliance with all the
safety standards established by the relevant laws in force in
the place of installation, in addition to the instructions
contained in this manual.
1.6 MAIN SAFETY STADARD TO OBSERVE AND TO BE
OBSERVED
A) Directive 89/391/CEE “Implementation of measures to
promote improvement of the safety and health of workers
during their working hours.”.
B) Directive 89/106/EEC “Concerning the standardization of
legislative, regulating and
administrative guidelines of the member states on the subject
of construction products”.

6
C) Directive 85/374/EEC “Concerning the standardization of
legislative, regulating and administrative guidelines of the
state members on the subject of liability for damages due to
faulty products”.
1.7 LEGAL GUARANTEE
The user may only make use of the legal guarantee, as under
the EEC directive 1999/44/EC, if he has scrupulously
complied with the regulations indicated in this manual, and
more specifically
• always operate within the product’s limits of use;
• always perform constant, diligent maintenance work;
• only allow the product to be used by proven qualified and
skilled persons, properly trained for the purpose.
Failure to comply with the regulations contained in this manual
will invalidate the warranty with immediate effect.
1.8 MANUFACTURER’S LIABILITY
The manufacturer declines all direct and indirect civil and
penal responsibility for
• installation that fails to comply with the laws in force in the
country and the safety directives;
• failure to comply with the instructions provided in the manual;
• installation by unqualified and untrained personnel;
• use that fails to conform to the safety directives;
• modifications and repairs not authorized by the
manufacturer;
• use of non-original or non-specific spare parts for this
barbecue model;
• lack of maintenance;
• exceptional events.
1.9 CHARACTERISTICS OF THE USER
The product must be used by responsible adults who have the
technical knowledge necessary for carrying out routine
maintenance on its components. Make sure that children do
not come near the product while it is operating to play nearby.
1.10 TECHNICAL ASSISTANCE
Palazzetti is able to solve any technical problem concerning
the use and maintenance during the product’s whole life cycle.
1.11 SPARE PARTS
Only use original spare parts. Do not wait until the
components are worn from use before replacing them.
Changing a worn component before it breaks makes it easier
to prevent accidents that could otherwise lead to serious injury
or damage to property. Carry out the routine maintenance
checks as explained in the “Maintenance and Cleaning”
chapter.
ENGL
2 SAFETY WARNINGS
2.1 INFORMATION FOR THE INSTALLER
Make sure that the product’s place of installation complies
with all local, national and European regulations. Always use
the personal protection devices and other means of protection
provided for by law.
2.2 INFORMATION FOR THE USER
Prepare the barbecue’s place of installation in accordance
with local, national and European regulations. The bbq is an
appliance that becomes hot due to its nature and remains hot
for a long time even after it is shut off. Before assembly
product follow below mentioned requirement
To avoid unpleasant smoke downdrafts and for a correct
usage, there should be no obstacles, such as trees, buildings,
etc., closer than 6 metres from the flue;
For safety reasons can be used no more than 3 pieces of
extensions cubes to improve the draught of chimney;
The barbecue should be built on a solid and ample concrete
base sufficiently large and resistant to hold the weight of the
barbecue and make sure it is perfectly level.
Is possible that elements have a little differences into
dimensions, which are tolerated due to the kind of material,
they have to be adjusted during assembly and are not
accepted as claim.
Efflorescence is not considered a claim, cause it is a natural
phenomenon which appears as white spots on elements. It is
due to humidity (rain, snow, ect.), it is a normal reaction of
products with cement, and it could be more evident in some
particularly wet Countries. Usually it is dissolved by rain within
2 years.
- According to current regulations UNI EN 1860-1 some
cracks may appear but they do not affect the quality and the
functioning of the product, and could not be considered a
warranty claim, because they are the result of normal
expansion due to heat.
Do not touch the hot parts or bring objects near its walls,
especially if they are inflammable.
Always use suitable protection to insert or remove food by grill
or oven (for models with oven).It is advisable to prevent
children from coming close to bbq while it is operating.
- WARNING! Do not use spirit or petrol for lighting or re-
lighting! Use only firelighters complying to EN 1860-3!
Supervise the barbecue while cooking.
- ONLY USE THE BARBECUE to cook food outdoors. Any
other use is forbidden. DO NOT USE INDOORS.
- Do not use your barbecue as an incinerator for leaves, grass
or other household waste. Use no more than fuel quantities
indicated in draw pictures.
Light the fire and wait 30 min before cooking
Do not cook before the fuel has a coating of ash.
- WARNING! This barbecue will become very hot.
- WARNING! Keep children and animals away.
- WARNING! Do not stand or sit on worktop
- ALWAYS USE OVEN GLOVES AND HOLDING PADS.
- The wooden, cardboard and plastic parts of the packaging
must be recycled to the local recycling centers
- During winter season we suggest to protect the structure with
our polypropylene cover (optional) in order to avoid water
infiltrations, which may damage the structure.

7
3 ASSEMBLY
3.1 UNPAINTED REFRACTORY CONCRETE BARBECUE
We suggest you to use Assembly kit Palazzetti (optional).

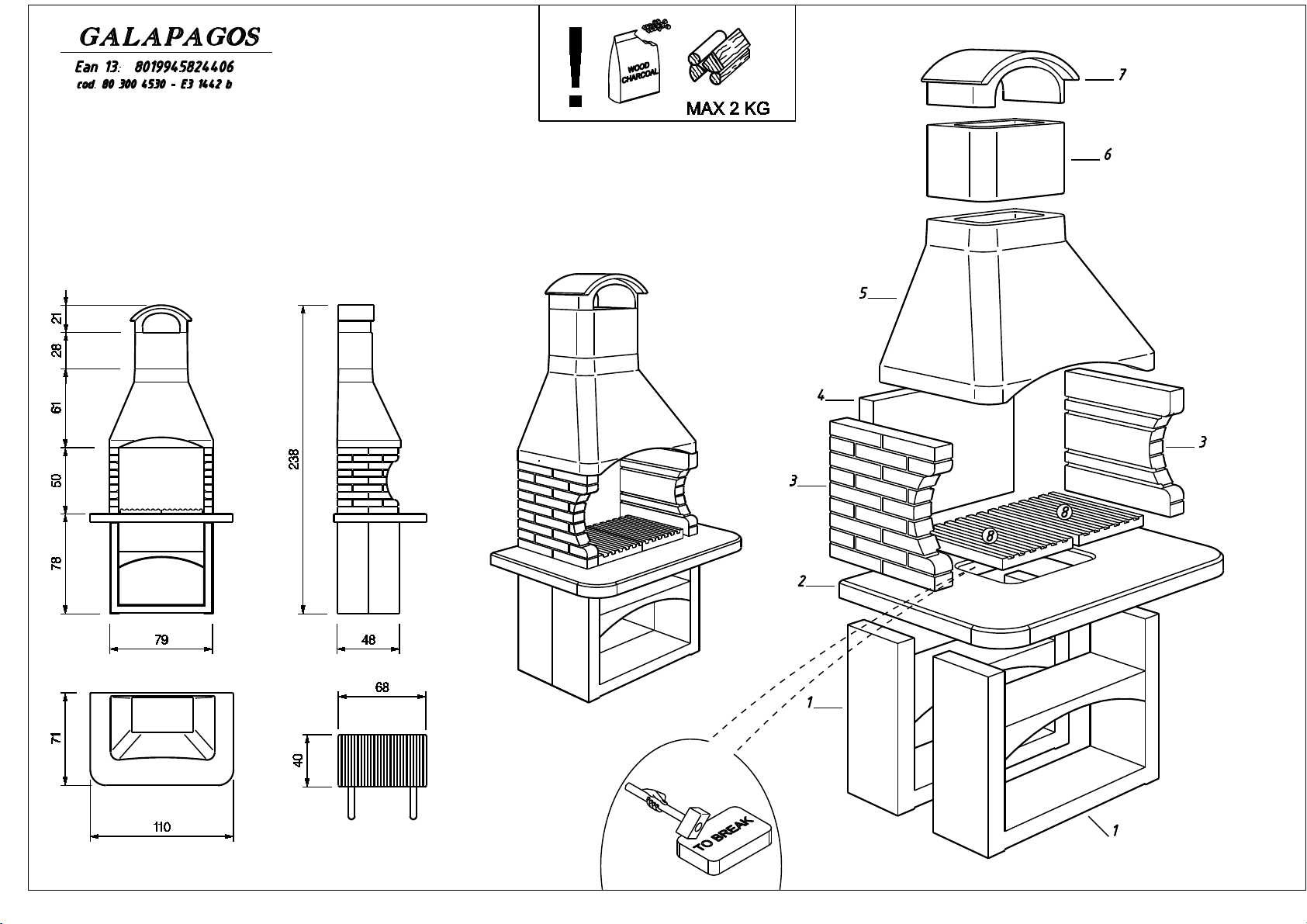

Assemble the elements in order as shown on the assembly
drawing and check each step with a spirit level. We suggest
to assemble the base and worktop of barbecue elements with
mortar (included into Assembly Kit Palazzetti) and check each
step with a spirit level. –Small thickness differences are due
to the material cannot be considered a warranty claim and
have to be leveled with mortar while assembly.
Do not use high resistance cement or quick-setting cement
(white cement, aluminated cement, etc.) or strong glue for tiles
etc. as they prevent the thermal expansion of parts in contact
with heat, causing cracks.
The part in contact with heat (from hearth up) have to be
assemble with glue Easy fix (included into Assembly kit
Palazzetti) This special glue is specific for outdoor and it is
resistant to heat, it become flexible and allow the expansion
of material due to heat of combustion.
Warning if the fireplace comes in more elements, fit the grill
between the 2 side elements before fixing them. Wait for it to
harden before proceeding;
Place fireplace plates in hearth without fix;
Before using the barbecue, wait for it to dry completely (at
least 4 days); Ba becues made of ef acto y conc ete has
to be p otected against bad weathe by painting it with an
outdoo plastic qua tz paint (included into Assembly kit
Palazzetti). A e necessa y at least 2 hands, to obtain 2-3
mm thickness. All pa ts in Ma motech o al eady colo ed
in mixtu e have to be p otected with wate epellent
t eatment Palazzetti (included into Assembly kit Palazzetti);
Repeat them once a yea .
3.2 MARMOTECH OR ALREADY COLORED IN MIXTURE
BARBECUE
to assemble the elements only use the special glue for
assembly by Palazzetti (included in some models). This
special glue becomes flexible when heating and can be used
to assembly all the elements of the barbecue.
Assemble the elements in order as shown on the assembly
drawing and check each step with a spirit level. These kind
of models do not equi e any finishing, but it is necessa y
to apply wate - epellent t eatment Palazzetti, which
p otects st uctu e against bad weathe and cooking
g ease. (Included in some barbecues, to protect only
worktop). Repeat it once a yea .
Any imperfections you could find on Easy Stone parts have to
be considered a quality, because these parts are hand made
by expert manufacturer.
3.3 SPECIFIC INSTRUCTIONS TO ASSEMBLE BBQ WITH
OVEN
ONLY FOR PARENZO, NOTO
Prepare elements 3-4 a-4b-7 for assembly, revise holes for
elements 9. Lay on worktop (piece 2) fiber ceramic papers
(included) without any glue, and on them lay oven elements
(3-4 a-4b-5-6 a-6b-7-8) respecting all distances as in cutsight
without fixing them.
Oven elements 3-4a-4b have some grooves, assemble fiber
ceramic lanyard using few drop of glue (included). Now you
can unite all oven parts using elements 9. When oven is hot,
elements 9 expands, when it happens do not tight more (to
avoid cracks on elements).
To build cast iron door (INCLUDED ONLY IN MODEL NOTO,
Optional in model Parenzo) use the screw with brass fisher
and use a bit of glue (included) between cast iron frame and
front side of oven (7).
ONLY FOR NEW ZEALAND, CRETA 2, NEW JERSEY,
GRADO
Assemble the barbecue using glue (included only on New
Jersey and New Zealand);
Lay on Worktop (piece 2 for Creta 2 and Grado, while piece 2
a for New Jersey and New Zealand) fiber ceramic papers
(included) without any glue, and on them lay oven elements
fixing only parts as shown in picture;
Use the rest ceramic fiber paper as in picture
Only for New Zealand and New Jersey after oven assembly,
it is necessary add light insulating material (ex. Expanded
clay NOT INCLUDED) in order to grant heat hold longer and
avoid thermal shocks.
IMPORTANT
- After completing assembly of barbecue, apply the included
warning adhesive as requested by current regulation UNI EN
1860-1 (included)
- Always light the barbecue with a moderate flame until it is
uniformly heated. - If it is heated too rapidly, some parts can
crack deeply and the structure could be damaged seriously.
- According to current regulations UNI EN 1860-1 some
cracks may appear but they do not affect the quality and the
functioning of the product, and could not be considered a
warranty claim, because they are the result of normal
expansion due to heat.
4 USE FORESEEN BY THE MANUFACTURER
The products described in this manual were specifically built
to cook food and to burn small pieces of well seasoned wood
or charcoal (see symbols on cutsight). Any other intended use
or any other type of fuel supply is to be considered improper
and therefore dangerous. This appliance was built in
compliance with technical standards and industry directives.
Do not exceed the allowable cha ge!
5 CLEANING AND MAINTENANCE
Before starting with cleaning, wait for the appliance
to cool down.
Clean the barbecue after each use this makes it easier
to remove cooking residuals, preventing them from
burning the next time the oven is used.

8
- Always light the ba becue with a mode ate flame until it
is unifo mly heated. - If it is heated too apidly, some
pa ts can c ack deeply and the st uctu e could be
damaged se iously.
- Acco ding to cu ent egulations UNI EN 1860-1 some
c acks may appea but they do not affect the quality and
the functioning of the p oduct, and could not be
conside ed a wa anty claim, because they a e the esult
of no mal expansion due to heat;
- It is necessa y to epeat once a yea the qua z paint
coating - fo unpainted ba becue- and wate epellent
t eatment – fo ba becue colo ed in mixtu e o Ma motech
– in o de to maintain it longe ;
- We suggest you to cove the ba beque du ing colde
months with p otective cove (optional), because ice can
damage the st uctu e.
THIS BARBECUE COMPLIES WITH DIRECTIVE CEE 2004
CONCERNING THE GENERAL PRODUCT SAFETY,
PARTICULARLY AS REGARDS TO MATERIALS IN
CONTACT WITH FOODSTUFFS.
THE BARBECUES PALAZZETTI ARE COMPLAINT WITH
THE PROVISIONS OF INTERNATIONAL NORM UNI EN
1860-1.
6 SUGGESTIONS FOR BAKING
Light up the fire in the back part of the oven and keep the door
closed. Open the combustion air register of the oven’s door.
Heat the oven slowly. Burning a slow fire for the first time (2
kg. of small pieces and dry wood) to avoid thermal shocks
which could cause cracks in the structure.
The temperature of the oven depends on the fire lighted. In
any case it is necessary about 1 hour to reach the right
cooking temperature (about 250° C and baking room clearer
). The temperature is shown on the black scale of the
thermometer, except on Cap i 2 and Diva with oven which
is the ed one. The baking methods, the temperature and
times may vary in a widely, depending on the food. The
instructions given apply in general to the baking of pizza,
bread, cakes, etc….
As soon as the oven reaches a sufficient temperature and the
fire dies down, open the oven and quickly clean the floor by
pushing the residual embers and ashes to a corner. If the
flames are still too high and there is no time to wait, eliminate
them by removing any still unburnt wood. Close the smokes
register in order to avoid heat dissipation. Set the pizza or
bread to bake directly on it. If you are still not experienced with
baking food in the oven, we suggest you set the food down on
a normal oven tray and after placing the food in the oven close
the door quickly. The cooking process can be followed
through the inspection port. When the food is baked, remove
it from the oven with the suitable utensils (optional).
