User’s Manual
PNG125 Bluetooth Speakerphone
040712R2

Contents:
1 - Specification.
2 - Getting to know your PNG125.
3 - Overview.
4 - Recommended installation position.
5 - Using the car charger.
6 - Turning on and off your PNG125
7 - Pairing your PNG125
8 - Connection/Link between PNG125 and Mobile Phone.
9 - Using the PNG125.
10 - Multipoint feature.
11 - Low Voltage Protection of Battery.
12 - Restore to Default Setting.
13 - LED Light Indicators.

1Specification
Bluetooth Specification
V2.1 +EDR
Bluetooth Profiles Supported
Headset, Handsfree
Transmission Power
Class2
Frequency Range
Up to 10 Metres
Battery Li-ion Polymer
Built-in Rechargeable
3.7V / 340mAh 1.26Wh
Charging Voltage
DC4.75-5.25V
Pairs up to
8 Devices
Multipoint
Yes
Charging Time (Car Charger)
2 Hours
Talk Time*
Up to 5 Hours
Standby Time* Fully Charged Battery
Up to 800 Hours
Voice Dialling
Phone Dependent
Microphone Mute
Yes
Call Transfer
Yes
Dimensions
L10 x W4 x H1.1 cm
Battery Weight
8 grams
*May vary due to user's operation mode and device settings.

2Getting to know your PNG125.
To use your Bluetooth PNG125, please follow these simple steps.
1) Charge prior to using the PNG125, it is recommended you
charge the battery fully for the first time. Normal full charge
time is 2 hrs (approx).
2) Place your PNG125 and a Bluetooth-enabled device within
1 metre for pairing.
3) Ensure your PNG125 and Bluetooth-enabled device is
placed within 10 metres during operation to ensure
connectivity. (Obstructions could cause shorter sensing
distance).
Contents:
1 x PNG125
1 x Visor Clip
1 x USB Charger
1 x USB Charging Lead
1 x User Manual

3 Overview.
1) Speaker.
2) Microphone.
3) Status indicator LED.
4) Charging socket (Micro 5-pin USB).
5) MFB Button (Multifunction Button).
6) Volume increase (V+).
7) Volume decrease (V-).

4. Recommended Installation Position.

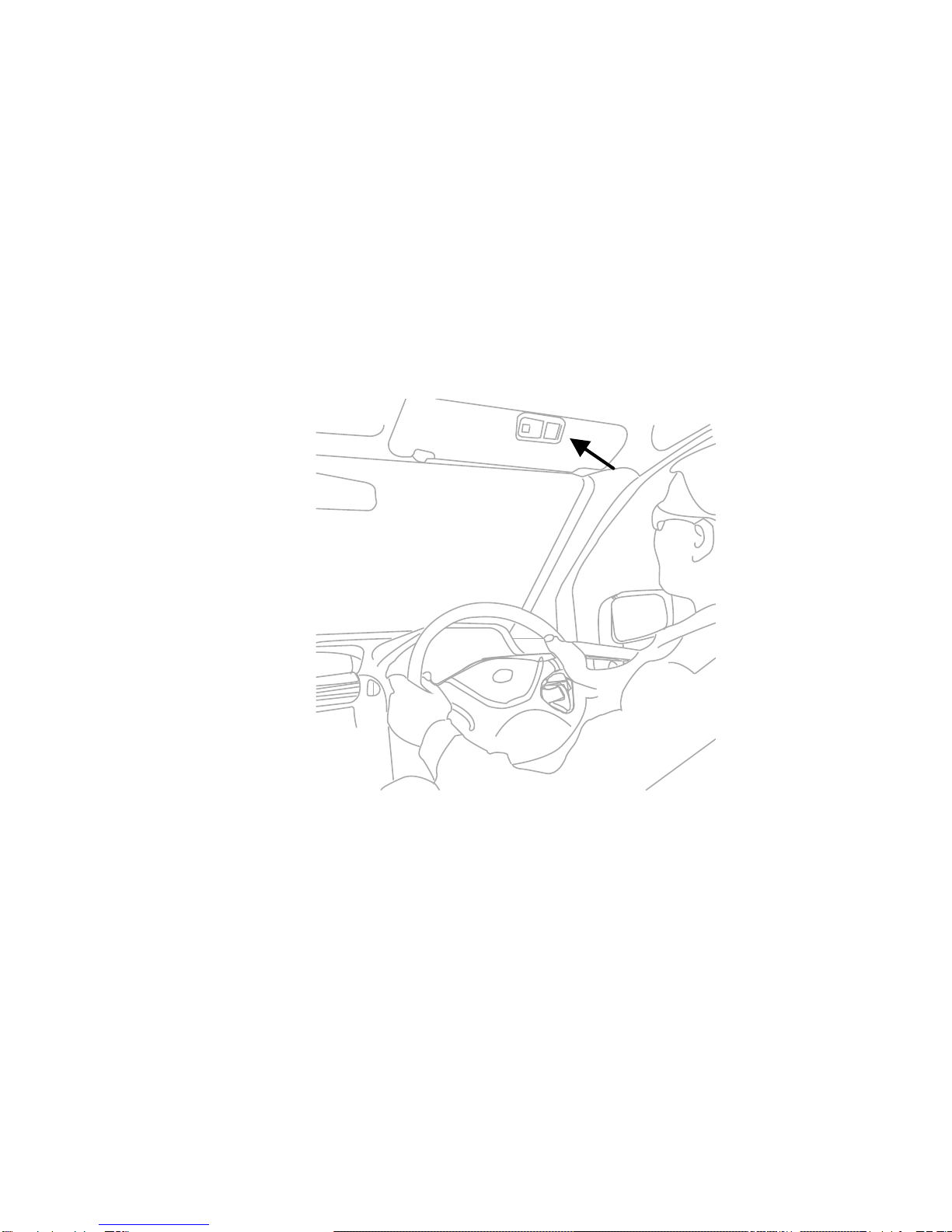

It is recommended that the PNG125 is positioned on to the top of
the sun visor as shown in the picture below.
Do not obscure your vision.
WARNING: Do not place or store the PNG125 over the area of the
car safety airbag deployment or it may cause serious injury if a
safety airbag deploys.

5 Using the charger.
When the engine is running insert the car charger plug fully
in to the cigarette socket until the LED flashes red.
Normal full charge time is 2 hours (approx), and the LED
will turn off when fully charged.
Remove charger after use and only reconnect when
engine is running.
WARNING: Do not attempt to charge the PNG125 with any charger
other than the one provided. Using another charger may damage or
destroy the PNG125.
6Turning the PNG125 ON/OFF
Power ON: When the PNG125 is turned off, press and hold the
“MFB” for 3 seconds until you hear a short beep. The blue LED will
start flashing indicating the PNG125 is in standby mode. The
PNG125 will automatically connect to the mobile phone which has
been paired already.
Power OFF: Press and hold MFB for 3 seconds, you will hear a tone,
PNG125 will flash red once and will be switched off.

7Pairing
Prior to using the PNG125 for the first time, you must pair it with a
Bluetooth-enabled device. The steps below describe the pairing
procedure for a typical Bluetooth-enabled mobile phone.
1) Place the PNG125 and mobile phone no more than 1
metre apart.
2) Ensure the PNG125 is in the OFF mode.
3) Press and hold the “MFB” button for 5 seconds until the
LED lights flashes red and blue alternately.
4) Activate the Bluetooth function on your mobile phone and
search for accessible Bluetooth devices, referring to your
mobile phone user guide for details if required.
5) Select “Plug N Go 125” from the list.
6) Enter the pairing code “0000” and press “OK” to pair the
PNG125 and the mobile phone. When pairing is completed,
the blue and red LED light will stop flashing, the PNG125 is
in the standby mode with the blue LED light flashing every
3 seconds.
7) Select connect on your mobile phone or if prompted to
connect please select OK.

PNG125 will return to standby mode if no device is paired or
connected within 2 minutes of activating pairing mode on the
PNG125.
8Reconnecting
When PNG125 is disconnected due to being out of range or
switched off, just click the MFB once and it will be reconnected to
the paired device (some models may require authorisation to
connect to the PNG125 simply press OK or accept).
Your PNG125 has been designed to switch off if no device is
connected after 15 minutes of being switched on, this function will
prevent the battery being discharged whilst not in use.
On standby mode blue LED light will flash every 3 seconds.

9Using the PNG125
1) Answering a Call
When receiving a phone call, press the “MFB” button once to
answer the call.
2) Ending a Call
Press the “MFB” button once during a call.
3) Reject a Call
When you hear the ringing tone, press and hold the “MFB”
button for 3 seconds to reject the call.
4) Voice Dial
Press MFB once to prompt voice dialling (your mobile phone
must have a voice dialling feature and voice tags must be
recorded on the phone) for best results record voice tags when
connected to PNG125 and in a vehicle when running with the
radio off and windows closed.
5) Last Number Re-Dialling
Press MFB twice to redial last number.
6) Adjusting the Volume
During a call, press the “V+” or “V-” buttons repeatedly until
you reach the desired volume level.

7) Transferring Calls
a. During a call Press both “V+” and “V-” buttons simultaneously
you will hear a beep and the call will be routed to your mobile
phone.
b. Repeat the same procedure to refuse a call back through
PNG125.
8) Mute
a. During a call press "V-" button for 3 seconds you will then
hear a beep and your microphone will be muted. A solid red on
LED on MFB will come on while mute function is activated.
b. Un-mute press and hold the "V+" button red LED will
disappear.
10 MultiPoint Feature
1) Activate Multipoint Connection
The default setting of the PNG125’s multipoint function is OFF.
You can activate the multipoint function for connecting with
two mobile phones at the same time. Follow the steps below to
pair and connect your PNG125 with two of your mobile
phones.

a. Start with your PNG125 turned off, press and hold MFB for 5
seconds until blue and red lights flash alternately.
b. On your mobile phone activate Bluetooth and search for
devices when PNG125 is disconnected select PNG125 and
enter pairing code '0000'
c. Now connect to PNG125.
d. Switch of PNG125
Pairing 2nd phone
e. Follow the pairing procedure from A to C to pair and connect
the 2nd phone.
f. Now press and hold the "V+" button on the PNG125 until you
hear a long beep.
g. On your 1st mobile phone under Bluetooth > paired devices
select PNG125 then select connect. You can take a call on
either phone on the PNG125.

2) Multipoint Connection/Link with two Mobile Phones
After the multipoint function is activated, please follow the
steps below to connect with two Bluetooth enabled mobile
phones at the same time.
When the power is on the PNG125, will automatically search
and connect the last two mobile phones that have been
connected before.
3) Answer the second call during a call. When receiving a second
call, press “MFB” button twice to hold the first call on line and
answer the second call.
4) Reject the Second Call during a Call (3 way call or 2 link
function)
When receiving a second call, press and hold the “MFB”
button for 3 seconds to reject the second mobile phone call.
5) Switch between two phone calls (3 way call or two link
function)
a. When having two calls on the line, press “MFB” button twice to
switch between these two phone calls.
b. When having two calls on the line, short press the “MFB”
button once to end the current call and stay with the other call.

NOTES: When the multipoint feature is being used, the device
cannot support 3 way calling feature.
11 Low Voltage Protection of Battery
When the voltage of the battery has decreased to 3.3V, the red LED
light will flash every three seconds, and the PNG125 will power OFF
automatically when the voltage drops to 3.0V.
12 Restore to Default Setting
Please follow the steps below to reset the PNG125 to its original
settings and remove all the previous pairing and connections.
(1) Ensure the PNG125 is in standby mode.
(2) Press and hold both “V+” and “V-” buttons simultaneously for
10 seconds until the blue and red LED lights flash 5 times,
then the PNG125 will resume standby mode. The PNG125 is
now back to its original settings, and after powering ON, the
PNG125 will enter pairing mode automatically.

Note: If the PNG125 is connected with a mobile phone before
restoring the default settings, it will enter pairing mode automatically
after it is restored to default. If the PNG125 is not connected with
the mobile phone before restoring the default settings, it will be in
standby mode after restoring the default settings.
13 LED Light Indicators
PNG125 Status
LED Indicator
Power OFF Mode
OFF
Power ON
Blue LED flash 3 seconds
Powering OFF
Red LED flash after 3 seconds
Standby Mode
Blue LED flash once every 3 seconds
Standby (Disconnect
Bluetooth Device)
Blue LED flash twice every 3 seconds
Standby-Low Voltage
Red LED flash once every 3 seconds
Talk in progress
Blue LED flash once every 6 seconds
Pairing Mode
The red and blue LED flash on
alternatively
Charging in progress
Red LED steady on
Charging completed
Off

EU
This product is CE certified according to the provision of the R&TTE
Directive (99/5/EC).
This product is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Please note that this product uses radio frequency bands not
harmonized within EU.
Within the EU this product is intended to be used in Austria,
Belgium, Denmark, Finland, France, Germany, Greece, Ireland,
Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and
United Kingdom and within EFTA in Iceland, Norway and
Switzerland.
Bluetooth is a trademark owned by the Bluetooth SIG, Inc.
Warranty
The condition of this warranty and our responsibilities under this
warranty are as follows: Warranty is non-transferable, and is limited
to the original purchaser only.
* You must be able to prove the date of original purchase of the unit
with a dated receipt.

* The warranty is not applicable if the product has been subject to
abuse, improper installation, modification or repair by unauthorised
third party.
* The responsibility of the supplier’s products shall be limited to the
repair or replacement of the product at its sole discretion.
* Specifically exempt from any warranty are limited-life consumable
components subject to normal wear and tear, such as batteries and
other accessories.
* Supplier will not take any responsibility if the failure of the unit has
resulted from accident, abuse, misuse, or any unauthorised repair
or modification.
*This warranty gives you specific legal rights, and you may also
have other rights which vary under local laws.
Helpline: [phone]
The Pama PNG range is an exclusive selection of Bluetooth
Handsfree products.

Manufactured to the highest possible standards, combining style
with functionality to bring you the ultimate handsfree product.
www.pama.com
Made In China.
