Pan Acoustics PAN NET User manual

QUALITY
MADE IN GERMANY
SINCE 2002
Pan Acoustics GmbH │ Schweigerstr. 13d │ D-38302 Wolfenbüttel │ Germany │ Tel.: [phone] │ E-Mail: [e-mail]
www.pan-acoustics.de
Pan Acoustics reserves the right to modify products without prior notice.
All products are designed, developed and manufactured by Pan Acoustics in Germany.
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
DOCUMENTATION
Page 1 of 14
BEAM
ACCESSORIES
SPEAKE
R
2-LINE
MANUAL
DANTE INTERFACE - PAN NET
Read the manual carefully before using the unit.
The manual must be kept in a safe place.
Interface
for integrating Pan Acoustics loudspeakers with
AES/EBU interface into Dante networks

© Pan Acoustics GmbH Page 2 of 14
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
General information
Manual Pan Accessories
DANTE INTERFACE - PAN NET
Language: English
Copyright © 2022 Pan Acoustics GmbH, all rights reserved
This document must be kept with the product or in a safe place so that it is available when
needed.
If the product is resold, the document must be handed over to the new owner in printed or electronic
form.
Pan Acoustics reserves the right to change / update the document without prior notice. The latest
version of this document can be downloaded from the Pan Acoustics website.
Pan Acoustics GmbH
Schweigerstr. 13d | 38302 Wolfenbüttel
Tel: [phone] | Fax: [phone]
Mail: [email protected]

© Pan Acoustics GmbH Page 3 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
Table of contents
1. Introduction 4
1.1. Symbols and explanation 4
1.2. General information and target group 4
2. General safety regulations 5
2.1. Safety instructions 6
2.2. Setup location 6
3. Scope of delivery 7
4. Denitions 7
5. Product description 7
6. Connection (overview) 8
6.1. Dante connections 8
6.2. Pan Net Link connection 9
6.3. Pan Net RJ45 pinout (DANTE INTERFACE) 9
6.4. Power supply (DC connection) 9

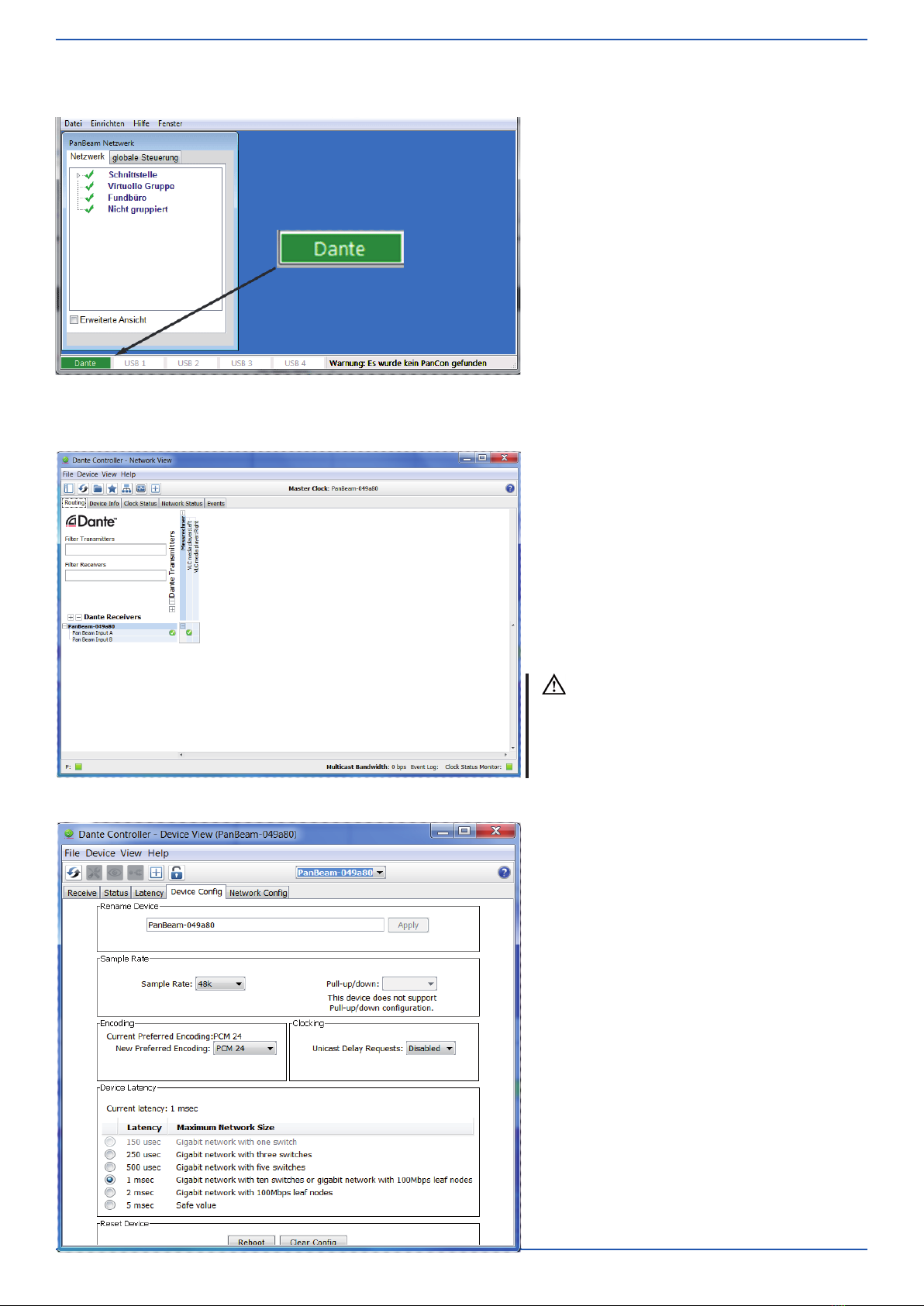

7. Dante 10
7.1. Setup 10
7.2. Routing 10
7.3. Device Cong 10
7.4. Network Cong 11
7.5. Status 11
8. Transport and storage 11
9. Maintenance and care 12
10. Disposal 12
11. EC conformity (CE mark) 12
12. WEEE declaration (disposal) 12
13. Copyright notice 12
14. Contact address 12
15. Technical data 13
16. Technical drawings 13

© Pan Acoustics GmbH Page 4 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
1. Introduction
Thank you for choosing a Pan Acoustics product.
With the purchase of the DANTE INTERFACE - PAN NET, you have acquired an accessory for Pan
Acoustics active loudspeakers. With this interface you can integrate loudspeakers with AES/EBU
interface into an already existing Dante network. An external power supply unit is required to ope-
rate the interface. This must be purchased separately with the appropriate country speci cations.
Please read these operating instructions carefully before commissioning to ensure trouble-free ope-
ration.
1.1. Symbols and explanation
All information in these operating instructions is based on the product characteristics available at the
time of writing and the safety regulations applicable at that time.
These operating instructions describe the setup, function and connection of the DANTE INTERFACE
- PAN NET. They are intended for system technicians and persons responsible for installation and
operation.
Technical speci cations as well as dimensions, weight and properties do not constitute guaranteed
characteristics. Pan Acoustics reserves the right to make changes and modi cations within the scope
of legal regulations and product improvements without notice.
These operating instructions and all other information necessary for operation must be read before
use by all persons involved in the operation of the equipment. The operating instructions and other
necessary information must be kept within easy reach near the unit.
The original language of all Pan Acoustics operating instructions is German.
All necessary information and documents can be obtained from the Pan Acoustics Internet Page
https://www.pan-acoustics.de/en/service/download or by sending an e-mail to contact@
pan-acoustics.de.
1.2. General information and target group
This symbol provides important instructions for proper handling of the
product. Failure to observe this instruction may lead to damage to the
product or malfunctions.
This symbol indicates a hazard with a high level of risk. If this hazard is not
prevented, severe injuries or death may result.
This symbol indicates a hazard with a moderate level of risk. If this hazard is
not prevented, moderate to severe injuries or death may result.
This symbol indicates a hazard with a moderate level of risk. Failure to
observe this instruction may lead to minor injuries or property damage.
NOTICE
CAUTION
WARNING
DANGER

© Pan Acoustics GmbH Page 5 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
2. General safety regulations
The following safety regulations are to be read completely and diligently prior to installing/com-
missioning the device and afterwards kept in a safe place near the device. Reading the instruction
manual is no substitute for knowing and following all valid local safety regulations and rules. Persons
assigned to the commissioning of equipment must be properly trained. Furthermore, the assigned
persons are responsible for, and are to guarantee, the safe setup and use of the equipment.
• Power and signal lines must never be used for suspending, rigging or securing devices.
• For devices with a DC power supply, be sure to observe the proper connection (polarity).
• The rated voltages for the device must be consistent with the line voltage of the external power
supply.
• In order to prevent injuries, electric shock and  re, ensure that all persons involved in the oper-
ation or installation of the device have read this operating manual.
In order to prevent electrical shock,
• the product is not allowed to be connected to the power supply if the enclosure is open.
• the product is only allowed to be used with an intact power cord.
• the product is only allowed to be connected to a (DC) power supply if the line voltage and
wattage is consistent with the voltage and wattage indicated on the device.
• the product is only allowed to be assembled and mounted when disconnected from the power supply.
• pull only the plug, never the wire, when unplugging the device.
• objects are not allowed to be placed on top of the power and signal cords of the device.
• the electrical cables are to be installed so that they are protected from damage due to foot
traf c pinching and tensile load.
• ensure that all devices interconnected via signal wires are operated with CEE sockets on a
common protective ground.
In order to reduce the risk of  re or electrical shock,
• the product is not allowed to be exposed to moisture or humidity.
(Exception: versions with an appropriate IP protection class).
• no objects (e.g. bottles)  lled with liquid are allowed to be placed on top of the device.
• the device is not allowed to be subjected to excessive heat, direct sunlight,  re or similar infl uences.
• no open sources of  re (e.g. candles) are allowed to be placed on top of the device.
In order to prevent injury, it is necessary to decommission this product, clearly mark it and secure
it from being inadvertently put back into operation if the product
• shows signs of visible damage.
• contains loose parts.
• no longer runs fault-free.
• was in prolonged storage under adverse conditions (e.g. in humid rooms).
• was subjected to severe transport stress (e.g. with improper packaging).
To avoid damage to the device and injuries to personnel,
• this product should be kept out of the reach of children.
To avoid injuries such as hearing damage from excessive volume levels, persons should
• never stand directly in front of a connected speaker.
• not be subjected to high volume levels for a prolonged period.
DANGER
WARNING

© Pan Acoustics GmbH Page 6 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
In order to prevent damage to the product, avoid
• connecting the device improperly via the RJ45 interfaces.
• connecting the product to the power supply for a prolonged period without using it.
• operating the device in environments with high air humidity.
Device protection and operating safety
• The device is completely disconnected from the power supply by pulling the power plug.
• The device is only to be cleaned from the outside using a dry cloth.
• The original packaging should be used when transporting the device. The device is to be
protected against vibrations.
2.1. Safety instructions
All products from Pan Acoustics are developed and manufactured in Germany according to the latest
safety regulations. Each product is thoroughly inspected prior to shipping according to in-house
quality guidelines.
The device conforms to the current CE regulations for operation in residential, business, commercial
and industrial areas.
The device is to be carefully inspected upon receipt for shipping damage and completeness. In case
of damage, the forwarder and sender are to be noti ed without delay.
Safety may be impaired if the product:
• shows signs of visible damage.
• no longer works properly.
• has been stored under adverse conditions for a prolonged period.
• has been improperly shipped (e.g. unsuitable packaging).
If the product shows signs of impairments that no longer guarantee safe operation, the device is
to be secured and labeled accordingly. It should also be ensured that no intentional or inadvertent
operation by third parties is possible.
The device must be operated in dry places guaranteeing suf cient air circulation. With an optional
enclosure, the DANTE INTERFACE - PAN NET can be run in IP65 environments.
The device can be damaged due to condensation. That is why devices should be properly
acclimated prior to operation.
The ambient temperature when operating the device should not exceed 40 °C and should not fall
below 0 °C, except xT variant.
2.2. Setup location
If the ambient temperature is higher than 40 °C, adequate measures are to be undertaken to pro-
tect the device against overheating.
When unpacking, it is important to pay attention to the temperature difference between the ambient
temperature and the device. In case there is a high temperature difference, it is necessary to wait for
a suf cient period before commissioning the device in order to prevent damage due to condensation.
CAUTION
NOTICE
WARNING
NOTICE

© Pan Acoustics GmbH Page 7 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
Description Quantity
DANTE INTERFACE - PAN NET 1
3. Scope of delivery
4. Defi nitions
Pan Net
Audio and control signals are transmitted via the Pan Net by means of a (twisted-pair) network
cable. The cable must be category CAT 5e or higher. The cabling is con gured in a daisy chain.
„Pan Beam Setup“ software
Software for the setup of Pan Beam speakers
RJ45
Plug connector for transmitting signals
AES/EBU
Interface for transmission of digital audio signals between various devices according to AES3
Dante
Digital audio network protocol for transmission of audio and control data developed by Audinate Pty Ltd.
Dante Controller
Software for setting up and monitoring the Dante audio network
5. Product description
NOTICE
AES/EBU stubs and the output on the last unit must be terminated.
The DANTE INTERFACE - PAN NET is an audio network bridge for integrating Pan Beam speakers with an
AES/EBU input into a Dante audio network. The Pan Beam speakers can be con gured and monitored
from a PC with installed “Pan Beam Setup” software which is located in the same IP network. The Dante
Controller software is required for setting up the interface. It can be obtained from www.audinate.com.
The Pan Net Interface consists of a high-quality aluminum enclosure, providing two Dante ports (primary
and secondary), as well as a Pan Net port. Via the Dante Interface, the connected Pan Beam speakers
can be supplied with two digital audio signals (AES/EBU). The DANTE INTERFACE - PAN NET can be run
both in daisy chain mode as well as in redundant mode. It supports sampling rates of 44.1 to 96 kHz.
The interface is also available in a weather-protected version for top hat rail mounting.

© Pan Acoustics GmbH Page 8 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
6. Connection (overview)
1
2
3
4
(1) Power connection (DC)
2-pole connection with integrated
strain relief 20..36 VDC / 0,5 A
(2) Port Pan Net Link
Connection: RJ45
(3) Dante Network primary Port
Connection: RJ45 / 1 GB
(4) Dante Network secondary Port
Connection: RJ45 / 1 GB
The Pan Net Dante Interface is equipped with a power connection for direct-current power supply
(DC), a Pan Net Link and two Dante network (primary and secondary port) connections. Via the Pan
Net Link, Pan Beam speakers with an AES/EBU audio interface can be connected, set up and moni-
tored.
The Pan Net Link port is not allowed to be connected to Ethernet devices such as switches, routers
and network cards of PCs or laptops. Operation of these devices can lead to malfunctions and defects
on these units and on the Pan Net Link port.
6.1. Dante connections
12
(1) LINK/ACT
Yellow LED lights up during data transfer
(2) 1G
green LED lights up when 1GB network
connection is detected
WARNING

© Pan Acoustics GmbH Page 9 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
6.2. Pan Net Link connection
1
(1) COM
Red LED lights up during data transfer
6.3. Pan Net RJ45 pinout (DANTE INTERFACE)
PIN Description
1 unassigned
2 unassigned
3 unassigned
4 Input B + (AES/EBU)
5 Input B - (AES/EBU)
6 unassigned
7 RS485 +
8 RS485 -
Enclosure PE (earth / ground) Shield
6.4. Power supply (DC connection)
1
(1) DC connection
Two-pin barrel-type plug 5,5 x 2,1
1
2
Connector pin assignment (socket/plug)
1) (+)
2) ( - )
The interface is to be connected to a DC power source using the enclosed connection cable. The
power source must provide 11...36 VDC / 8W.
It is essential to ensure proper polarity of connections. Wrong polarity can lead to malfunctions or
even damage the device.
NOTICE

© Pan Acoustics GmbH Page 10 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
7. Dante
7.1. Setup
The active speakers with AES/EBU interface
from Pan Acoustics are to be set up via the
„Pan Beam Setup“ software. The Dante
Controller software from Audinate must
be installed for access to a Dante net-
work. After successful installation, the
Dante interface appears in the bottom
line of the „Pan Beam Setup” software.
The Dante Controller can be launched via
the “Interface” menu item in the „Pan
Beam Setup” program.
The Dante Controller software in its latest
version must be properly installed. Link for
download: https://www.audinate.com
7.2. Routing
In the Dante network, a Pan Acoustics
speaker appears under the “Dante
Receivers” tab. The speaker features two
inputs, Input A and Input B.
For audio routing, the relevant connection
is to be set between the desired Dante
transmitter and the Pan Beam speaker.
Via the “Pan Beam Setup” software,
the relevant audio source of the speak-
er is also to be activated (Input A and /
or Input B).
7.3. Device Confi g
The Dante interface allows to adjust var-
ious settings of the Pan Acoustics speak-
ers via the “Device Con g” tab.
Rename device:
Assign name for the speaker
Sample rates:
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
Encoding:
Pan Beam speakers support PCM24 and
PCM32 encoding
Device latency and clocking
See Audinate Dante information at
https://www.audinate.com
NOTICE

© Pan Acoustics GmbH Page 11 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
7.4. Network Confi g
The DANTE INTERFACE - PAN NET
supports the “switched” and“redundant”
modes in the Dante network.
Switched:
If the DANTE INTERFACE - PAN NET is set
to “switched”, an additional Dante device
can be connected on the secondary port,
e.g. a stage box, and operated in the
Dante network.
Redundant:
If the DANTE INTERFACE - PAN NET is
set to “redundant”, the Pan Beam speak-
er can be connected to the redundant-
ly-con gured Dante network via a sec-
ond network cable.
7.5. Status
Via the “Status” tab, information can
be called up on the device,  rmware
and software version, clock status and
network interface.
8. Transport and storage
The product is to be transported with care to prevent any damage that would impair its function.
The product is designed for both indoor and outdoor applications. Prolonged storage in liquids, e.g.
water, is to be avoided.

© Pan Acoustics GmbH Page 12 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
9. Maintenance and care
The accessory may show signs of wear over time, e.g. due to mechanical loads, corrosion or improp-
er handling. Therefore, for permanent installations, check at regular intervals for signs of wear and
inspect the contact of the cables in the connector sockets.
When performing inspections, it is particularly important to watch out for deformations, cracks,
notches, damage (on threads, cables and connectors) and corrosion. The power voltage on the power
supply is also to be checked.
If the check reveals uncertainties or damaged parts, the accessories may no longer be used.
The operator/user is required to be familiar with country-speci c comprehensive testing regulations
and to apply them.
10. Disposal
The product is to be disposed of according to existing national regulations.
Please ensure that the product cannot be re-used or used for any other purpose after disposal.
The declaration of conformity for the relevant product from the Pan Beam series can be re-
quested from Pan Acoustics.
11. EC conformity (CE mark)
12. WEEE declaration (disposal)
14. Contact address
Pan Acoustics GmbH
Schweigerstraße 13d
38302 Wolfenbüttel
Germany
Tel: [phone]
Fax: [phone]
Mail: [email protected]
DANTE® is a registered trademark of Audinate Pty Ltd.
13. Copyright notice
The waste bin symbol points out that electrical and electronic components are not al-
lowed to be disposed of in household waste. This symbol is found on our products. If
the product is to be disposed of, please consult with your dealer or distributor.

© Pan Acoustics GmbH Page 13 of 14
Manual
Doc. Nr.: 01684.V1 - 12.2022 [translation based on German version]
15. Technical data
164 mm
80 mm 46 mm
16. Technical drawings
* depending on the used cable
** not included in the scope of delivery
Network I/O: 1 x etherCON Primary
1 x etherCON Secondary
1 x etherCON Pan Net Link
Audio input via Dante: 44.1 / 48 / 96 Sample rate
Supported Dante network modes: Switch / redundancy mode
Pan Link output: AES/EBU (2 Channel), Pan Net Control
Supported cable length:
(Device -> Device)
up to 100m*
Temperature range: 0 °C to +40 °C Ambient temperature
Power consumption: 8W
Power supply: 11...36 VDC
Connection: Two-pin barrel-type plug 5.5 x 2.1 [mm] //
(external power supply)**
ELECTRICAL PROPERTIES
Enclosure: Aluminium prole casing
Colour: Aluminium RAL 9006
Dimensions (H x B x T): 164 x 80 x 46 [mm]
Weight: 1.0 kg
Optional accessories: IP protection housing
MECHANICAL PROPERTIES

© Pan Acoustics GmbH Page 14 of 14
Doc.-Nr.: 01684.V1 - 12.2022 [translation based on German version]
Contact:
Pan Acoustics GmbH | Schweigerstr. 13d | D-38302 Wolfenbüttel | Germany
Tel: [phone] | Fax: [phone] | Mail: [email protected]
www.pan-acoustics.de
QUALITY
MADE IN GERMANY
SINCE 2002
