Pan Acoustics P 01 User manual

QUALITY
MADE IN GERMANY
SINCE 2002
Pan Acoustics GmbH │ Schweigerstr. 13d │ D-38302 Wolfenbüttel │ Germany │ Tel.: [phone] │ E-mail: [email protected]
www.pan-acoustics.de
Pan Acoustics reserves the right to modify products without prior notice.
All products are designed, developed and manufactured by Pan Acoustics in Germany.
Doc. No.: 2022_01515
DOCUMENTATION
BEAM
2-LINE
SPEAKER
EVAC
MANUAL PAN SPEAKER P 01 + VARIANTS
Read the manual carefully before putting the device into operation.
The manual must be retained.
V 1.0
Shapely.
Versatile.
Functional.

© Pan Acoustics GmbH V 1.0 Page 2 of 16
General information
Manual Pan Speaker P 01 + variants
P 01-Pi
P 01-Pi (mB)
Version: 1.0
Language: English
Doc. No.: 2022_01515
Copyright © 2022 Pan Acoustics GmbH, all rights reserved
This document must be kept with the product or in a safe place so that it is available when
needed.
If the product is resold, the document must be handed over to the new owner in printed or electronic
form.
Pan Acoustics reserves the right to change / update the document without prior notice. The latest
version of this document can be downloaded from the Pan Acoustics website.
Pan Acoustics GmbH
Schweigerstr. 13d | 38302 Wolfenbüttel
Tel.: [phone] | Fax: [phone]
E-mail: [email protected]

© Pan Acoustics GmbH V 1.0 Page 3 of 16
Manual
Table of contents
1. Product description 4
2. Symbols and explanation 4
3. General information and target group 4
4. General safety regulations 4
5. Safety instructions 6
6. Scope of delivery 6
7. Setup location 6
8. Assembly and connection 7
8.1. Assembly of mounts (accessories) 7
8.1.1. Assembly / disassembly of the bracket (mB variant) 8
8.1.2. Angle of the U-bracket 9
8.2. Electrical connection 10
8.3. Operation on the power amplier 11
9. Operating conditions 11
10. Service and repair 11
11. Maintenance measures 11
12. Declaration of conformity 11
13. WEEE declaration (disposal) 11
14. Warranty 12
15. Contact address 12
16. Mounts 12
17. Technical data loudspeaker 13
17.1. P 01-Pi 13

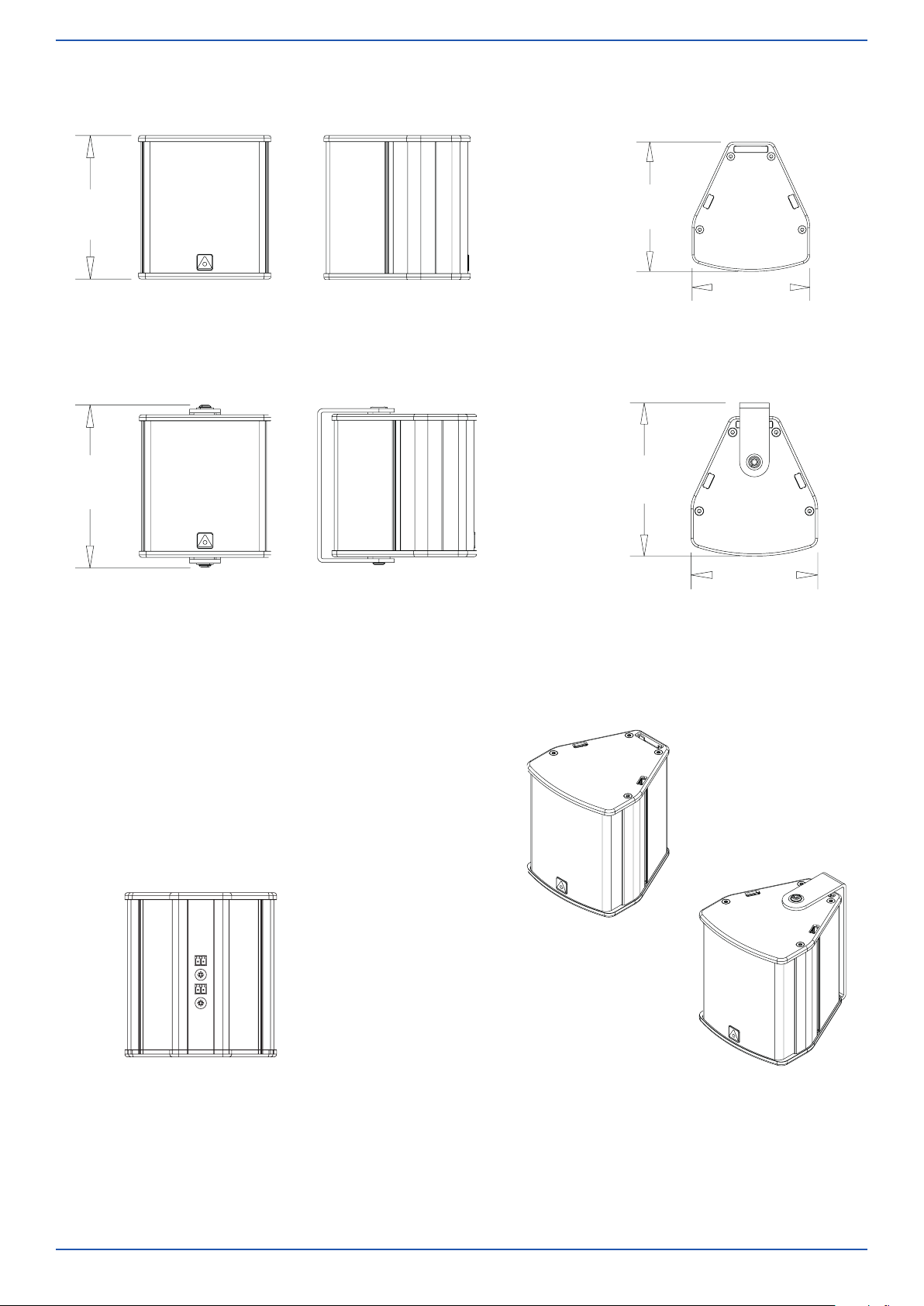

18. Technical drawing loudspeaker 14
18.1. P 01-Pi 14

© Pan Acoustics GmbH V 1.0 Page 4 of 16
Manual
1. Product description
Thank you for choosing a product from Pan Acoustics. The passive loudspeakers from the Pan Speaker
series combine architecturally appealing design with fl exible connections. Depending on the model,
low impedance, 100 V and RJ variants are available.
The Pan Speaker series off ers a comprehensive range of loudspeakers for diff erent applications such
as traditional AV installations, theatre, immersive sound and outdoor applications.
All loudspeakers from the Pan Speaker series feature:
• appealing design
• natural and unaltered audio reproduction
• fl exibility and modularity
Please read this operating manual carefully prior to startup in order to guarantee fault-free operation.
This symbol provides important instructions for the proper handling of the
product. Failure to observe this instruction may result in damage to the
product or malfunctions.
2. Symbols and explanation
This symbol indicates a hazard with a high level of risk. If this hazard is not
avoided, serious injury or death may result.
This symbol indicates a hazard with a medium level of risk. If this hazard is
not avoided, moderate to serious injury or death may result.
This symbol indicates a hazard with a low level of risk. Failure to observe this
instruction may result in minor injuries or damage to property.
All information in this operating manual is based on the product properties available at the time of
preparation and the safety regulations applicable at that time.
This operating manual describes the setup, function and connection of the Pan Speaker loudspeaker
systems P 01-Pi and P 01-Pi (mB). It is aimed at system technicians and persons assigned the task
of installing and operating a relevant system.
Pan Acoustics reserves the right to make changes and modi cations within the scope of legal regula-
tions and product improvements without prior notice.
This operating manual and all additional information required for operation must be read prior to
use by all persons involved in commissioning. The operating manual and all additional information
required must be kept within reach near the device.
All necessary information and documents can be obtained from the Pan Acoustics website,
https://www.pan-acoustics.de/en/service/download, or by sending an e-mail to
[email protected].
3. General information and target group
4. General safety regulations
The following safety regulations must be read completely and diligently before putting the device
into operation and must then be kept in a safe place near the device. Reading the operating manual
does not replace the knowledge and observance of all valid local safety rules and regulations. The
information and technical speci cations published in this document are based on data available at
the time of publication. We reserve the right to make changes to the product aimed towards product
improvement and adjustment to new applicable standards.
NOTICE
CAUTION
WARNING
DANGER

© Pan Acoustics GmbH V 1.0 Page 5 of 16
Manual
In order to prevent falling object injuries,
• this device is to be fastened to building  xtures with friction-locking connections using suitable
connector elements according to the installation instructions. The base surface is to be checked
for suitability of installation and, where required, prepared by quali ed personnel.
• the connections and components delivered by Pan Acoustics or expressly mentioned
in this manual are to be used.
• the load-bearing elements and connections are to be checked regularly for wear and loosening.
To minimise the risk of  re or electric shock,
• the product must not be opened. It does not contain any parts that can be serviced by the user.
• the product must not be exposed to moisture or humidity, except for loudspeakers with an ap-
propriate IP protection class.
• no objects  lled with liquid (e.g. bottles) must be placed on top of the device.
• the device must not be exposed to excessive heat, direct sunlight,  re or the like.
• no open sources of  re (e.g. candles) must be placed on top of or under the device.
To prevent injury, this product must be taken out of operation, clearly marked and secured against
accidental operation if the product
• shows signs of visible damage.
• contains loose parts.
• no longer works fl awlessly.
• has been stored for a long time under unfavourable conditions (e.g. in humid rooms).
• was exposed to severe transport stress (e.g. with unsuitable packaging).
To avoid injuries such as hearing damage due to excessive volume levels, persons should
• never stand directly in front of a connected loudspeaker.
• not be exposed to high volume levels over a long period of time.
To prevent injuries, electric shock and  re, ensure that all persons involved in the set up, operation,
dismounting or installation of the device / system have read this operating manual.
To prevent damage to the product, avoid
• generating acoustic feedback.
• playing back distorted signals of high power over a long period of time.
• generating impulse-like sounds (e.g. popping noises) which occur when a media player is switched
on, connected or disconnected.
Device protection and operating safety
• The device is completely disconnected from the signal network by disconnecting the signal
connection.
• The device may only be cleaned from the outside using a dry cloth.
• The original packaging or an appropriate transport box (fl ight case) should be used when trans-
porting the device. The device must be protected against vibrations.
NOTICE
CAUTION
WARNING
DANGER

© Pan Acoustics GmbH V 1.0 Page 6 of 16
Manual
All products from Pan Acoustics are developed and manufactured in Germany according to the latest
safety regulations. Each product is thoroughly inspected prior to shipping according to in-house
quality guidelines.
The device conforms to the current CE regulations for operation in residential, business, commercial
and industrial areas.
The device must be carefully inspected upon receipt for transport damage and completeness. In case
of damage, the transport company and the shipper must be noti ed without delay.
Safety may be compromised if the product:
• shows signs of visible damage.
• no longer works correctly.
• has been stored for a long time under unfavourable conditions.
• has been transported incorrectly (e.g. unsuitable packaging).
If the product shows signs of impairments that no longer guarantee safe operation, the device must
be secured and labelled accordingly. It must also be ensured that no intentional or accidental oper-
ation by third parties is possible.
The loudspeaker is suitable for indoor operation. In outdoor areas, the loudspeaker must only be oper-
ated with a suitable IP protection class (IP54 or IP65). Suffi cient air circulation must be ensured when
operating the device indoors.
The device may be damaged by condensation. It should therefore be appropriately
acclimatised before operation.
The loudspeaker may only be operated in the speci ed ambient temperature --> see chapter 17 “Technical
data loudspeaker”.
When unpacking, it is important to pay attention to the temperature diff erence between the ambient
temperature and the device. If the temperature diff erence is high, it is necessary to wait a suffi ciently
long time before operating the device to avoid damage due to condensation.
5. Safety instructions
6. Scope of delivery
7. Setup location
Inspect the product for completeness upon delivery. The scope of delivery includes:
1 x Pan Speaker P 01-Pi (version as ordered)
1 x manual download information
2 x 2-pin connection terminal (wire cross-section: 0.08 - 1.3 mm²)
WARNING

© Pan Acoustics GmbH V 1.0 Page 7 of 16
Manual
8. Assembly and connection
8.1. Assembly of mounts (accessories)
Various mounts are available from the “Pan Accessories” range for installing the loudspeaker on walls
and ceilings
--> see chapter 16 “Mounts”.
The installation and commissioning of loudspeakers must only be carried out by quali ed personnel.
Ensure that the mount chosen corresponds to the requirements on the wall or ceiling structure, along
with operating requirements.
National safety regulations for operation and assembly must be followed.
CONNECTION WITH THE BUILDING STRUCTURE
• It must be ensured that the ceiling/wall area where the device is to be installed is structurally
suitable.
• The mount must lie fl at on the surface of the building structure. The surface must not show any
settlement eff ects even in the long term.
• For a safe and durable connection, plug and screw connections must be dimensioned according to
the acting forces that may occur through lever eff ects.
• In case of doubt as to the type and composition of the building structure, consult a structural engineer.
CONNECTION OF THE LOUDSPEAKER AND MOUNT
• All mounts sourced via Pan Acoustics for the Pan Speaker series are delivered with suitable instal-
lation material for connection with the loudspeaker.
• The connection between the loudspeaker and the mount is made by a  xing point (e.g. a slot nut,
which is inserted into the rear slot of the loudspeaker and tightened with two M6 set screws). The
mB variant of the loudspeaker features a U-bracket, which is mounted via a  xing point in the lids
of the loudspeaker.
• To avoid damage to the mounts and the loudspeakers, no screws longer than the original ones
must be used. Longer screws may destroy the stability of the loudspeaker or cause short circuits
inside the loudspeaker.
• A tightening torque of 10 Nm must be observed for the screw connection between the mount and
the loudspeaker.
You can  nd the installation instructions for the selected mount on our website in the download area.
NOTICE

© Pan Acoustics GmbH V 1.0 Page 8 of 16
Manual
8.1.1. Assembly / disassembly of the bracket (mB variant)
The mB variant of the loudspeaker P 01-Pi is delivered with a pre-assembled U-bracket. The bracket
features three  xing points for mounting e.g. on a building surface. To mount the U-bracket on a
surface, it must  rst be removed from the loudspeaker. After mounting the bracket on the wall, the
loudspeaker must be inserted into the bracket and  xed (see step 3).
Tools required for assembly /
disassembly of the U-bracket:
Hexagon screwdriver
Step 1:
Unscrew 2 x hexagon screw.
Step 2:
Pull off the bracket to the back.

© Pan Acoustics GmbH V 1.0 Page 9 of 16
Manual
Step 3:
Secure plastic washer.
Mount the bracket on the desired building sur-
face. When assembling, position the plastic
washers appropriately.
Assembly is done in reverse order.
The U-bracket can be swivelled from the centre
to the left and right by 110° each. To adjust the
set angle, hand-tighten the screws connecting
the U-bracket to the lids.
8.1.2. Angle of the U-bracket
NOTICE

© Pan Acoustics GmbH V 1.0 Page 10 of 16
Manual
8.2. Electrical connection
The loudspeaker P 01-Pi is equipped with two 2-pin connectors at the back. The audio signal must be
connected via one of the enclosed connection terminals. The second connection terminal can be used
to pick up the audio signal at the loudspeaker again and pass it on.
Step 1:
Make the connection panel accessible.
Step 3:
Insert the connection terminal with the cable
into the 2-pin connector on the loudspeaker.
Step 2:
Insert the stripped wires into the connection
terminal. To do this, press in the yellow spring
contacts with a screwdriver. Close the spring
contacts after insertion of the wires.
The upper and lower 2-pin connectors on the loudspeaker are connected in parallel so that it is
possible to loop on to other loudspeakers. To avoid damage to the connected power ampli er, the
total impedance of all connected loudspeakers in a line must not fall below the impedance of the
ampli er.
NOTICE
Connection cables must not be used for  xing or suspending loudspeakers.
WARNING

© Pan Acoustics GmbH V 1.0 Page 11 of 16
Manual
The product is suitable for operation in an ambient temperature from -10 °C to +50 °C. If the product
is operated below 0 °C, the device must be operated by means of a continuous signal in order to
prevent the loudspeaker chassis from freezing.
Before operating the device for the  rst time, it must be acclimatised. Avoid exposing the device to
aggressive chemical liquids and vapours. The device must not be covered up by textiles. Take pre-
cautions to prevent the enclosure from heating up due to direct exposure to sunlight or powerful
spotlights. The device must also not be exposed to strong vibrations.
8.3. Operation on the power ampli er
9. Operating conditions
Service and repair work may only be carried out by persons and partners authorised by Pan Acoustics.
No service or repair measures are to performed on the device that exceed the statements made in
chapter 11 “Maintenance”.
Contact data:
--> see chapter 15 “Contact address”.
The following measures must be carried out at regular intervals:
Cleaning
The enclosure should be regularly dusted off with a damp cloth and checked for damage.
Visual and functional check
The installed device should be regularly subjected to a visual check.
The following checks must be carried out:
• Check the wall and ceiling mount for a  rm  t.
• Check the enclosure for damage.
• Check the connection cable for damage.
10. Service and repair
11. Maintenance measures
The declaration of conformity for the relevant product from the Pan Speaker series can be requested
from Pan Acoustics.
12. Declaration of conformity
The waste bin symbol indicates that electrical and electronic devices must not be dis-
posed of with household waste after their useful life. This symbol can be found on the
type plate of our products. Dispose of the device in accordance with the applicable regu-
lations and any contractual agreements. If you have any questions about disposal, please
contact your dealer, distributor or us.
The loudspeaker P 01-Pi must be operated on a correctly con gured DSP ampli er or ampli er with
upstream audio DSP. The ampli er to be used must be chosen according to the technical data of the
loudspeaker.
Technical data --> see chapter 17 ”Technical data loudspeaker”.
DSP settings for various DSP ampli ers and DSP audio platforms for sound equalisation can be down-
loaded from the Pan Acoustics website www.pan-acoustics.de. If you have any technical questions,
you can also contact our support team at [e-mail].
13. WEEE declaration (disposal)

© Pan Acoustics GmbH V 1.0 Page 12 of 16
Manual
16. Mounts
Pan Acoustics stands by its products and gives up to 10 years warranty on its loudspeakers for
any material or manufacturing defects. New products manufactured in accordance with protection
classes IP54 and IP65 as well as digital audio interfaces (Dante®) from Audinate Pty Ltd and re-
chargeable batteries are excluded from the 10-year warranty. A warranty period of 3 years is granted
for loudspeakers in accordance with protection classes IP54 and IP65. For further information on the
warranty, please refer to the Pan Acoustics warranty conditions.
https://www.pan-acoustics.de/en/service/warranty
15. Contact address
Recommended mounts for mounting products from the Pan Speaker series on walls and ceilings or
for mobile use include:
14. Warranty
Pan Acoustics GmbH
Schweigerstr. 13d
38302 Wolfenbüttel
Germany
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Tripod mount Wall mount, TWM II Ceiling mount (W)
Ceiling mount (BK)
Depending on the length and weight of the loudspeaker, a corresponding number of mounts must be
used and, if necessary, additional measures for stability or fall protection must be taken.
Information on additional measures or the number of mounts to be used can be found in the manual
of the corresponding accessory. If you have any technical questions, you can also contact our support
team at [email protected].
NOTICE

© Pan Acoustics GmbH V 1.0 Page 13 of 16
Manual
17. Technical data loudspeaker
17.1. P 01-Pi
ACOUSTIC PROPERTIES
MECHANICAL PROPERTIES
Conguration: 2-way coaxial system (point source)
Frequency range: 145 Hz – 20 kHz
Equipment: 1 x 3.5” / 0.5” voice coil
Rated power: 80 W (peak20 ms) / 50 W (programme) / 30 W (nominal)
Recommended amplier: DSP power amplier
Sensitivity: 87 dB 1 W/1 m
Maximum SPL: 109 dB* (peak) @ 1 m
Impedance: 4 ohms
Horizontal radiation pattern: 100° (< 10 kHz)
Vertical radiation pattern: 100° (< 10 kHz)
Connections: 2 x Phoenix, 2-pin (in/out)
Operating temperature: -10 °C to +50 °C (ambient temperature)
Enclosure: Aluminium prole
Grille: Powder-coated perforated metal sheet
Standard colours (with silver lids):
(optional: lids in enclosure colour)
RAL 9006 (aluminium), anodised
RAL 9010 (white), silk matt
RAL 9005 (black), silk matt
Dimensions without bracket (HxWxD):
Dimensions with bracket (HxWxD):
116 x 107 x 118 [mm]
130 x 107 x 130 [mm]
Weight: 0.8 kg
Mounting option: Available with or without U-bracket.
Other mounting accessories available.
*Under anechoic half-space conditions with DSP settings.
Frequency range: -10 dB under anechoic half-space conditions.

© Pan Acoustics GmbH V 1.0 Page 14 of 16
Manual
18. Technical drawing loudspeaker
18.1. P 01-Pi
without bracket
with bracket
118 mm
107 mm
116 mm
130 mm
107 mm
130 mm

© Pan Acoustics GmbH V 1.0 Page 15 of 16
Manual

CONTACT:
Pan Acoustics GmbH | Schweigerstr. 13d | D-38302 Wolfenbüttel | Germany
Tel.: [phone] | Fax: [phone] | E-mail: [email protected]
www.pan-acoustics.de
QUALITY
MADE IN GERMANY
SINCE 2002
