Pan Acoustics PAN EVAC Series User manual

QUALITY
MADE IN GERMANY
SINCE 2002
Pan Acoustics GmbH │ Schweigerstr. 13d │ D-38302 Wolfenbüttel │ Germany │ Tel.: [phone] │ E-mail: [email protected]
www.pan-acoustics.de
Pan Acoustics reserves the right to modify products without prior notice.
All products are designed, developed and manufactured by Pan Acoustics in Germany.
Doc. No.: 2022_01608.V1 - 03.05.2022
DOCUMENTATION
BEAM
2-LINE
SPEAKE
R
EVAC
Page 1 of 16
MANUAL PAN EVAC SERIES
EN 54-24 CERTIFIED LOUDSPEAKERS FOR VOICE ALARM SYSTEMS
Read the manual carefully before putting the device into operation.
The manual must be retained.
Shapely.
Versatile.
Functional.
Pan EVAC P 04-EN54
Pan EVAC P 08-EN54

© Pan Acoustics GmbH Page 2 of 16
Doc. No.: 2022_01608.V1 - 03.05.2022
General information
Manual Pan EVAC Series
Pan EVAC P 04-EN54
Pan EVAC P 08-EN54
Language: English
Translation based on German edition
Doc. No.: 2022_01608.V1 - 03.05.2022
Copyright © 2022 Pan Acoustics GmbH, all rights reserved
This document must be kept with the product or in a safe place so that it is available when
needed.
If the product is resold, the document must be handed over to the new owner in printed or electronic
form.
Pan Acoustics reserves the right to change/update the document without prior notice. The latest
version of this document can be downloaded from the Pan Acoustics website.
Pan Acoustics GmbH
Schweigerstr. 13d | 38302 Wolfenbüttel
Tel.: [phone] | Fax: [phone]
E-mail: [email protected]

© Pan Acoustics GmbH Page 3 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
Table of contents
1. Product description 4
2. Symbols and explanation 4
3. General information and target group 4
4. General safety regulations 4
5. Safety instructions 6
6. Scope of delivery 6
7. Setup location 6
8. Assembly and connection 7
8.1. Assembly 7
8.2. Electrical connection 8
9. Operating conditions 9
10. Service and repair 9
11. Maintenance measures 9
12. EC conformity 9
13. WEEE declaration (disposal) 10
14. Contact address 10

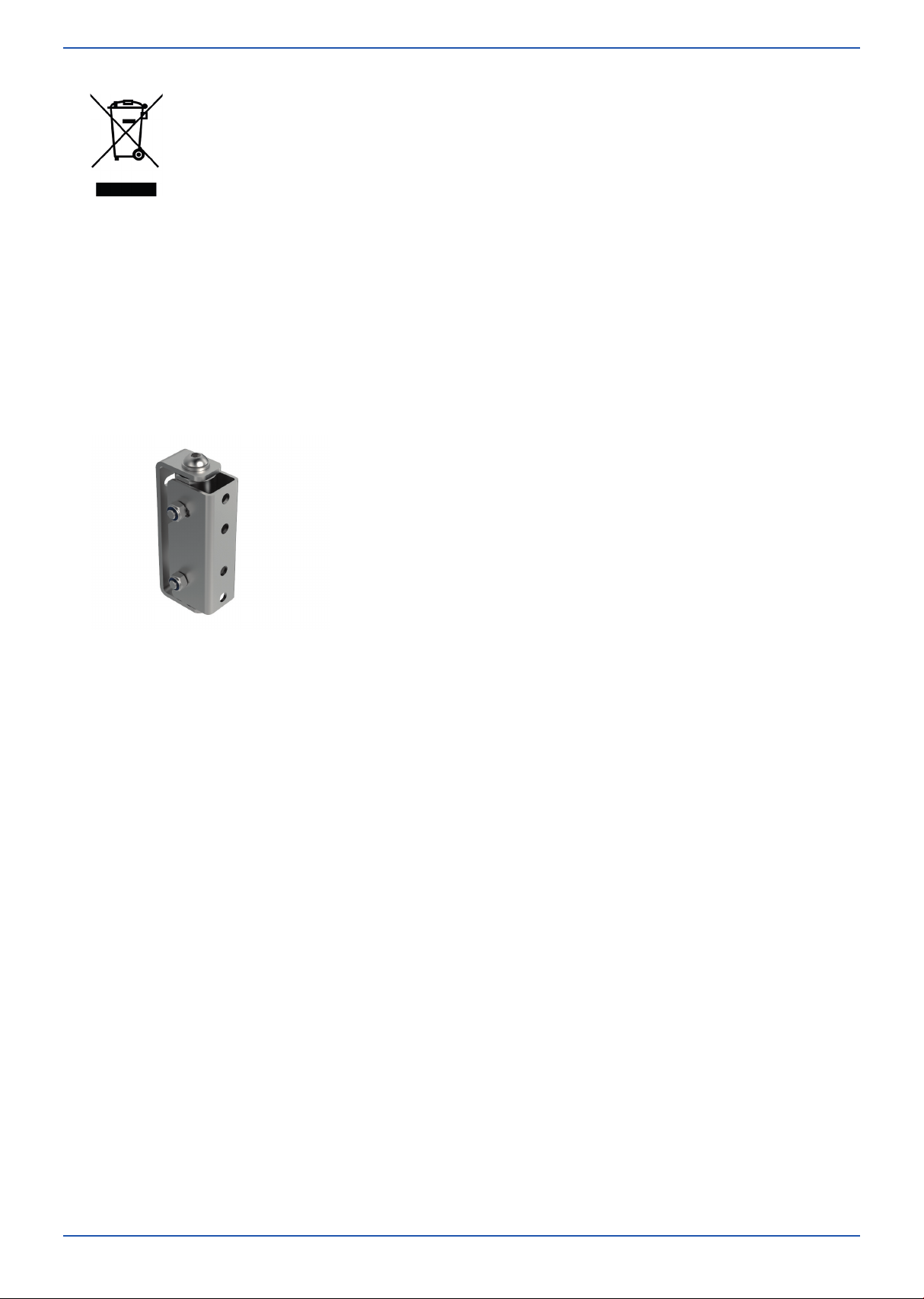

15. Mount 10
16. Technical data loudspeaker 11
16.1. Pan EVAC P 04-EN54 11
16.2. Pan EVAC P 08-EN54 12

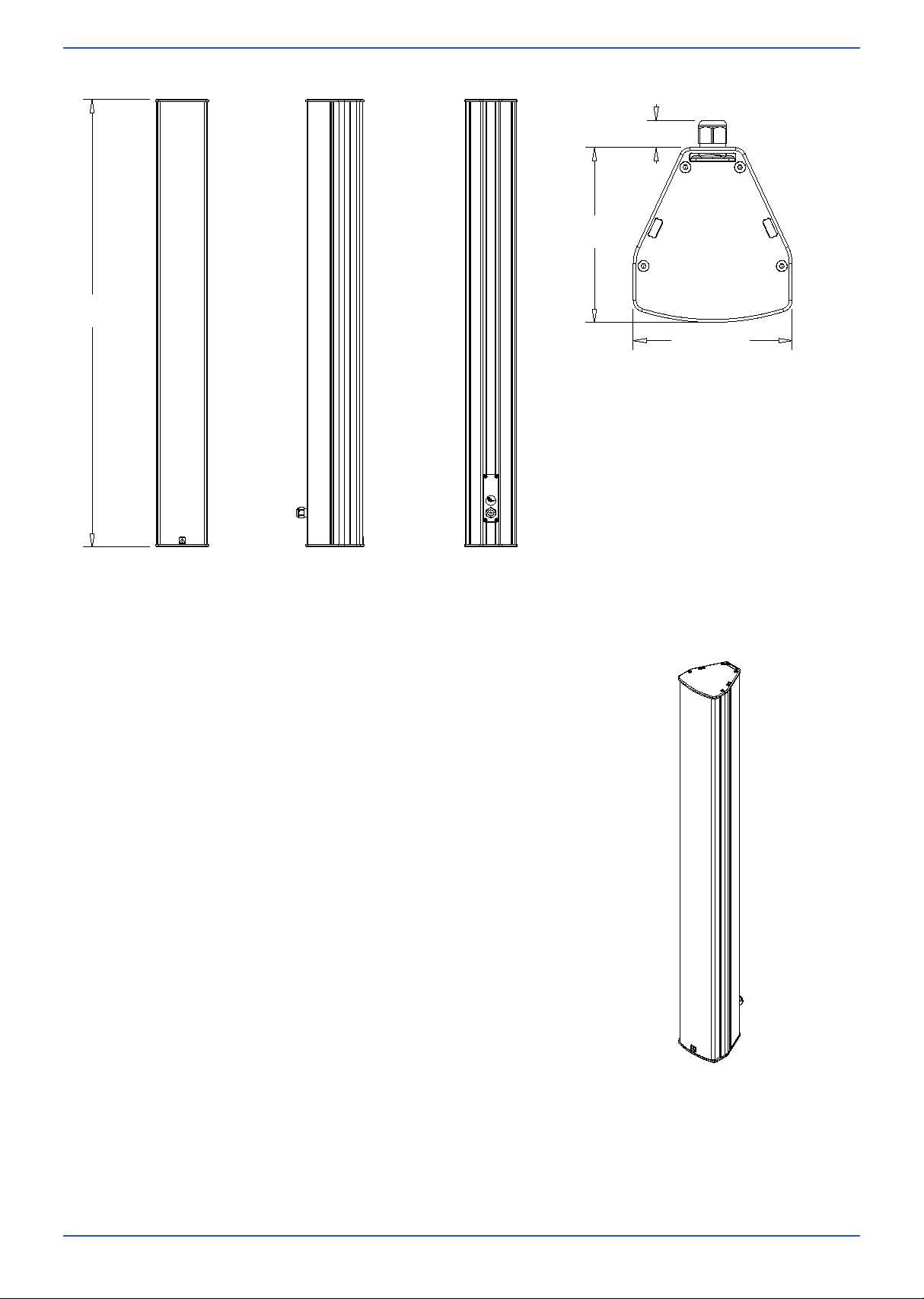

17. Technical illustrations loudspeaker 13
17.1. Pan EVAC P 04-EN54 13
17.2. Pan EVAC P 08-EN54 14
18. Certicate 15

© Pan Acoustics GmbH Page 4 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
1. Product description
Thank you for choosing a product from Pan Acoustics. The passive column loudspeakers from the Pan
EVAC series, certi ed according to EN 54-24 (type B), are passive 100 V column loudspeakers with
aluminium enclosure for operation in voice alarm systems, including visual display for an available
pilot signal.
The loudspeakers of the Pan EVAC series conform to protection class IP 54 and are therefore also
suited for outdoor applications. The loudspeakers P 04-EN54 and P 08-EN54 from the Pan EVAC series
have been tested for ball impact resistance and can be used in sports environments.
With the EN 54-24 loudspeakers, the Pan EVAC series o ers a comprehensive range of loudspeaker
models, e.g. for acoustically challenging environments, traditional AV installations, theatre and out-
door applications. All products of the Pan EVAC series are optimised for natural speech reproduction.
Please read this manual carefully prior to startup in order to guarantee fault-free operation.
This symbol provides important instructions for the proper handling of the
product. Failure to observe this instruction may result in damage to the
product or malfunctions.
2. Symbols and explanation
This symbol indicates a hazard with a high level of risk. If this hazard is not
avoided, serious injury or death may result.
This symbol indicates a hazard with a medium level of risk. If this hazard is
not avoided, moderate to serious injury or death may result.
This symbol indicates a hazard with a low level of risk. Failure to observe this
instruction may result in minor injuries or damage to property.
All information in this manual is based on the product properties available at the time of writing and
the safety regulations applicable at that time.
This manual describes the design, function and connection of the Pan EVAC EN 54-24 loudspeaker
systems P 04-EN54 / P 08-EN54. It is aimed at system technicians and persons assigned the task of
installing and operating a relevant system.
Pan Acoustics reserves the right to make changes and modi cations within the scope of legal regula-
tions and product improvements without prior notice.
This manual and all additional information required for operation must be read prior to use by all
persons involved in commissioning. The manual and all additional information required must be kept
within easy reach near the device.
All necessary information and documents can be obtained from the Pan Acoustics website,
https://www.pan-acoustics.de/en/service/download, or by sending an e-mail to contact@
pan-acoustics.de.
3. General information and target group
4. General safety regulations
The following safety regulations must be read completely and diligently before putting the device into
operation and must then be kept in a safe place near the device. Reading the manual does not replace
the knowledge and observance of all valid local safety rules and regulations. The information and
technical speci cations published in this document are based on data available at the time of publica-
tion. We reserve the right to make changes to the product aimed towards product improvement and
adjustment to new applicable standards.
NOTICE
CAUTION
WARNING
DANGER

© Pan Acoustics GmbH Page 5 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
In order to prevent falling object injuries,
• this device is to be fastened to building  xtures with friction-locking connections using suitable
connector elements according to the installation instructions. The base surface is to be checked
for suitability of installation and, where required, prepared by quali ed personnel.
• the connections and components delivered by Pan Acoustics or expressly mentioned in this manual
are to be used.
• the load-bearing elements and connections are to be checked regularly for wear and loosening.
To minimise the risk of  re or electric shock,
• the product must not be opened. It does not contain any parts that can be serviced by the user.
• the product is not allowed to be exposed to moisture or humidity.
• no objects  lled with liquid (e.g. bottles) must be placed on top of the device.
• the device must not be exposed to excessive heat, direct sunlight,  re or the like.
• no open sources of  re (e.g. candles) must be placed on top of or under the device.
To prevent injury, this product must be taken out of operation, clearly marked and secured against
accidental operation if the product
• shows signs of visible damage.
• contains loose parts.
• no longer works fl awlessly.
• has been stored for a long time under unfavourable conditions (e.g. in humid rooms).
• was subjected to severe transport stress (e.g. with improper packaging).
To avoid injuries such as hearing damage due to excessive volume levels, persons should
• never stand directly in front of a connected loudspeaker.
• not be subjected to high volume levels for a prolonged period.
To prevent injuries, electric shock and  re, ensure that all persons involved in the set up, operation,
dismounting or installation of the device / system have read this manual.
To prevent damage to the product, avoid
• generating acoustic feedback.
• playing back distorted signals of high power over a long period of time.
• generating impulse-like sounds (e.g. popping noises) which occur when a media player is switched
on, connected or disconnected.
Device protection and operating safety
• The device is completely disconnected from the signal network by disconnecting the signal con-
nection.
• The device may only be cleaned from the outside using a dry cloth.
• The original packaging or an appropriate transport box (fl ight case) should be used when trans-
porting the device. The device must be protected against vibrations.
NOTICE
CAUTION
WARNING
DANGER

© Pan Acoustics GmbH Page 6 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
All products from Pan Acoustics are developed and manufactured in Germany according to the latest
safety regulations. Each product is thoroughly inspected prior to shipping according to in-house
quality guidelines.
The device conforms to the current CE regulations for operation in residential, business,
commercial and industrial areas.
The device must be carefully inspected upon receipt for transport damage and completeness. In
case of damage, the transport company and the shipper must be noti ed without delay.
Safety may be compromised if the product:
• shows signs of visible damage.
• no longer works correctly.
• has been stored for a long time under unfavourable conditions.
• has been transported incorrectly (e.g. unsuitable packaging).
If the product shows signs of impairments that no longer guarantee safe operation, the device must
be secured and labelled accordingly. It must also be ensured that no intentional or accidental oper-
ation by third parties is possible.
The loudspeakers can be operated in interior rooms or in outdoor areas. When operating them inside
rooms, ensure adequate air circulation.
The device may be damaged by condensation. It should therefore be appropriately accli-
matised before operation.
The ambient temperature during operation of the device should not exceed 70 °C and should not fall
below 25 °C.
When unpacking, it is important to pay attention to the temperature di erence between the ambient
temperature and the device. If the temperature di erence is high, it is necessary to wait a su ciently
long time before operating the device to avoid damage due to condensation.
5. Safety instructions
6. Scope of delivery
7. Setup location
Inspect the product for completeness upon delivery. The Pan EVAC EN 54 system includes the fol-
lowing components:
1 x Pan EVAC P 04-EN54 or P 08-EN54
1 x manual download information
1 x connection sealing plate (including 2 x cable screw connections, 1 x blind plug)
WARNING

© Pan Acoustics GmbH Page 7 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
8. Assembly and connection
8.1. Assembly
For the installation of the Pan EVAC EN 54 on walls and ceilings, there are various mounts available
from the Pan EVAC series range of accessories
--> see chapter 15 “Mounts”.
The installation and commissioning of loudspeakers must only be carried out by quali ed personnel.
Ensure that the mount chosen corresponds to the requirements on the wall or ceiling structure,
along with operating requirements.
National safety regulations for operation and assembly must be followed.
CONNECTION WITH THE BUILDING STRUCTURE
• It must be ensured that the ceiling/wall area where the device is to be installed is structurally
suitable.
• The mount must lie fl at on the surface of the building structure. The surface must not show any
settlement e ects even in the long term.
• For a safe and durable connection, plug and screw connections must be dimensioned according
to the acting forces that may occur through lever e ects.
• In case of doubt as to the type and composition of the building structure, consult a structural
engineer.
CONNECTION OF THE LOUDSPEAKER AND MOUNT
• All mounts sourced via Pan Acoustics for the Pan EVAC EN 54 are delivered with suitable instal-
lation material for connection with the loudspeaker.
• The connection between the loudspeaker and the mount is made by a  xing point (e.g. a slot
nut, which is inserted into the rear slot of the loudspeaker and tightened with two M6 set
screws).
• To avoid damage to the mounts and the loudspeakers, no screws longer than the original ones
must be used. Longer screws may destroy the stability of the loudspeaker or cause short cir-
cuits inside the loudspeaker.
• A tightening torque of 10 Nm must be observed for the screw connection between the mount
and the loudspeaker.
The assembly manual for the selected mount is included along with the mount.
NOTICE

© Pan Acoustics GmbH Page 8 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
8.2. Electrical connection
1
2
3
4
5
6
1
7
9
10
11
8
12
Switch positions as delivered:
• HPF: o ,
• Power: 100%
(1) Enclosure
with connection plate and slot for assembly of
mounts
(2) Sealing plate
(3) Connection plate
(4) 4 x screws for fastening the connecting
plate (3) to the enclosure
(5) Bore with blind plug
for second cable gland / 100 V link
(6) Cable gland
pre-assembled for introduction of the con-
nection cable
(7) 100 V connector of the connection plate
(8) Fuse
(9) Slide switch for power tap
stated in %: 100 / 50 / 25 / 12.5
= P 04-EN54: 75 W / 37.5 W / 18.8 W / 9.8 W
= P 08-EN54: 125 W / 62 W / 32 W / 15 W
(10) Slide switch for high-pass  lter
(11) Indicator
lights up green when pilot signal is detected
Frequency range: 20 kHz - 23 kHz
Required signal level (min): 6 Vrms
(12) Connection for signal input lead
suitable for cable diameters up to 2.5 mm2
The loudspeakers from the Pan EVAC series
with an EN 54-24 option are passive 100 V
systems. An external ampli er is required to
operate them.
These systems have identical connections
for the feed cable. The rated power can be
adjusted via an internal switch. Likewise, the
high-pass  lter can be activated via a switch.
For connecting (linking) to other loudspeakers,
there is a second cable gland.
The cables are to be adequately sized in terms of
their diameter. The cable ends to be connected
must be  tted with wire end ferrules.
The loudspeaker is delivered with a sealing plate
and two M16 cable glands. These are used to
seal the loudspeaker and to relieve strain on the
connection cables. The cable glands are suitable
for Ø 4.5 - 10 mm. If only one connection cable
is used, the second cable gland is to be replaced
by a plug.
NOTICE

© Pan Acoustics GmbH Page 9 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
The product is suitable for operation in an ambient temperature from -25 °C to +70 °C. If the product
is operated below 0 °C, the device must be operated by means of a continuous signal in order to
prevent the loudspeaker chassis from freezing.
Before operating the device for the  rst time, it must be acclimatised. Avoid exposing the device to
aggressive chemical liquids and vapours. The device must not be covered by textiles. Take precau-
tions to prevent the enclosure from heating up due to direct exposure to sunlight or powerful spot-
lights. The device must also not be exposed to strong vibrations.
9. Operating conditions
10. Service and repair
Service and repair work may only be carried out by persons and partners instructed by Pan
Acoustics.
No service or repair measures are to be performed on the device that exceed the statements
made in chapter 11 “Maintenance”.
Contact data:
--> see chapter 14 “Contact address”.
The following measures are to be carried out at regular intervals:
Cleaning
The enclosure should be regularly dusted o with a damp cloth and thereby examined for any damage.
Visual and functional check
The installed device should be regularly subjected to a visual inspection.
The following checks must be carried out:
• Check the wall and ceiling mount for a  rm  t.
• Check the enclosure for damage
• Check the connection cable for damage.
11. Maintenance measures
12. EC conformity

© Pan Acoustics GmbH Page 10 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
13. WEEE declaration (disposal)
The waste bin symbol indicates that electrical and electronic devices must not be disposed
of with household waste after their useful life. This symbol can be found on the type plate
of our products. Dispose of the device in accordance with the applicable regulations and
any contractual agreements. If you have any questions about disposal, please contact
your dealer, distributor or us.
14. Contact address
Pan Acoustics GmbH
Schweigerstr. 13d
38302 Wolfenbüttel
Germany
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
15. Mount
The loudspeakers from the Pan EVAC series can be mounted to the wall with the following mount.
Horizontally rotatable wall mount
(TWM III)
Article no.801841

© Pan Acoustics GmbH Page 11 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
16. Technical data loudspeaker
16.1. Pan EVAC P 04-EN54
ELECTRICAL PROPERTIES
Impedance*: @ 100% : 133 Ω
@ 50% : 266 Ω
@ 25% : 532 Ω
@ 12.5%: 1013 Ω
Rated noise power: 75 Wrms
Rated noise voltage: 100 Vrms
Switch: Power selector switch (100%, 50%, 25%, 12.5%)
Switchable high-pass lter
Fuses: Lead fuse (1.0 A, time-lag type, replaceable)
Thermal fuse (trigger temperature 104 °C, 16 A, 250 VAC,
one-shot operation, replaceable)
Connections: Connecting terminal (ceramic) (2-pin)
Cable diameter: (0.5 ... 2.5) mm2
Cable gland: Ø (4.5 ... 10) mm
ACOUSTIC PROPERTIES
Conguration: Passive line array
Drivers: 4 x 3.5”
Rated power: 75.0 W, 37.5 W, 18.8 W, 9.8 W (switchable)
Recommended amplier: Suciently dimensioned DSP power amplier
Maximum SPL 100 V*: 96.3 dBSPL @ 4 m
Sensitivity (1 W/4 m)*: 81.6 dBSPL
Frequency range: 190 Hz - 15 kHz (-10 dB, +6 dB, HPF o)
Horizontal radiation pattern*: @ 500 Hz: 360°
@ 1000 Hz: 215°
@ 2000 Hz: 145°
@ 4000 Hz: 98°
Vertical radiation pattern*: @ 500 Hz: 160°
@ 1000 Hz: 75°
@ 2000 Hz: 30°
@ 4000 Hz: 15°
Tilt angle**: Vertical -4°
Range**: 15 m
MECHANICAL PROPERTIES
Pilot signal detection**: Indicator: green LED behind protective grid
Frequency range: 20 kHz - 23 kHz
Required signal level (min): 6 Vrms
Enclosure: Aluminium prole
Grille: Powder-coated perforated metal sheet
Standard colours (with silver lids)***:
(optional: lids in enclosure colour)
Aluminium RAL 9006
White RAL 9010 (silk matt)
Black RAL 9005 (silk matt)
Operating temperature: -25 °C to +70 °C ambient temperature
Dimensions (H x W x D): 506 x 107 x 136 [mm]
Weight: 3.6 kg
Certicates: EN 54-24 Type B (outdoor)
IP 54**
Ball impact resistant**
Mounting: Horizontally rotatable wall mount (TWM III)
* according to EN 54-24, HPF o
** not measured/tested in laboratory
*** special colours available on request

© Pan Acoustics GmbH Page 12 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
16.2. Pan EVAC P 08-EN54
ELECTRICAL PROPERTIES
Impedance*: @ 100% : 80 Ω
@ 50% : 158 Ω
@ 25% : 322 Ω
@ 12.5%: 666 Ω
Rated noise power: 125 Wrms
Rated noise voltage: 100 Vrms
Switch: Power selector switch (100%, 50%, 25%, 12.5%)
Switchable high-pass lter
Fuses: Lead fuse (1.6 A, time-lag type, replaceable)
Thermal fuse (trigger temperature 104 °C, 16 A, 250 VAC,
one-shot operation, replaceable)
Connections: Connecting terminal (ceramic) (2-pin)
Cable diameter: (0.5 ... 2.5) mm2
Cable gland: Ø (4.5 ... 10) mm
ACOUSTIC PROPERTIES
Conguration: Passive line array
Drivers: 8 x 3.5”
Rated power: 125 W, 62 W, 32 W, 15 W (switchable)
Recommended amplier: Suciently dimensioned DSP power amplier
Maximum SPL 100 V*: 98.8 dBSPL @ 4 m
Sensitivity (1 W/4 m)*: 79 dBSPL
Frequency range: 140 Hz - 15 kHz (-10 dB, +6 dB, HPF o)
Horizontal radiation pattern*: @ 500 Hz: 360°
@ 1000 Hz: 215°
@ 2000 Hz: 147°
@ 4000 Hz: 100°
Vertical radiation pattern*: @ 500 Hz: 87°
@ 1000 Hz: 37°
@ 2000 Hz: 25°
@ 4000 Hz: 8°
Tilt angle**: Vertical -4°
Range**: 20 m
MECHANICAL PROPERTIES
Pilot signal detection**: Indicator: green LED behind protective grid
Frequency range: 20 kHz - 23 kHz
Required signal level (min): 6 Vrms
Enclosure: Aluminium prole
Grille: Powder-coated perforated metal sheet
Standard colours (with silver lids)***:
(optional: lids in enclosure colour)
Aluminium RAL 9006
White RAL 9010 (silk matt)
Black RAL 9005 (silk matt)
Operating temperature: -25 °C to +70 °C ambient temperature
Dimensions (H x W x D): 906 x 107 x 136 [mm]
Weight: 5.55 kg
Certicates: EN 54-24 Type B (outdoor)
IP 54**
Ball impact resistant**
Mounting: Horizontally rotatable wall mount (TWM III)
* according to EN 54-24, HPF o
** not measured/tested in laboratory
*** special colours available on request

© Pan Acoustics GmbH Page 13 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
17. Technical illustrations loudspeaker
17.1. Pan EVAC P 04-EN54
506 mm 118 mm
18 mm
107 mm

© Pan Acoustics GmbH Page 14 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
17.2. Pan EVAC P 08-EN54
906 mm
118 mm
18 mm
107 mm

© Pan Acoustics GmbH Page 15 of 16
Manual
Doc. No.: 2022_01608.V1 - 03.05.2022
18. Certicate

© Pan Acoustics GmbH Page 16 of 16
Doc. No.: 2022_01608.V1 - 03.05.2022
CONTACT:
Pan Acoustics GmbH | Schweigerstr. 13d | D-38302 Wolfenbüttel | Germany
Tel.: [phone] | Fax: [phone] | E-mail: [email protected]
www.pan-acoustics.de
QUALITY
MADE IN GERMANY
SINCE 2002
