Operating Manual
for hand-held UV lamp model UV-H 255
(polymerisation tool for industrial and laboratory applications)
To be observed prior to commissioning:
The instructions in this manual are binding. For a safe and
disruption-free operation of the UV lamp, it is imperative
that these instructions are adhered to.
In the event of improper use or use for purposes other than
those intended, all warranty is voided and Panacol-Elosol
rejects any liability for damages.
The operating instruction must be available near the UV lamp for
reference.
If you have any queries regarding the safety, operation or
maintenance of the device, please do not hesitate to contact Panacol-
Elosol.

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 2
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
Contents
1General safety instructions.................................................................................................3
2Product features.................................................................................................................5
Market and applications.....................................................................................................5
Proper use..........................................................................................................................5
Delivery and accessories...................................................................................................6
3Transport, packaging and storage .....................................................................................6
4Commissioning and decommissioning...............................................................................7
Location of operation..........................................................................................................7
Assembly of the device......................................................................................................7
5Operation ...........................................................................................................................8
6Maintenance and cleaning...............................................................................................10
Replacement of tube........................................................................................................11
Glass Filter replacement..................................................................................................13
(only in repairing case).....................................................................................................13
Replacement of the dust filter ..........................................................................................13
Cleaning of the blue filter .................................................................................................14
Cleaning of device surface...............................................................................................14
7Disposal ...........................................................................................................................15
8Troubleshooting (repairs).................................................................................................15
9Technical data..................................................................................................................17
10 Lamp replacement maintenance report ...........................................................................18
Symbols
The following symbols are designed to facilitate the use of this
manual. They refer to specific types of information:
Warning – Risk of damage to persons or property
Important information – always follow the instructions!
Tip – useful tips and hints
Step-by-step instructions for specific procedures
Safety symbols
Symbol Meaning/nature of risk Possible damage
Caution! High voltage! => Risk to life and limb
Caution! Risk of fire! => Risk to life and limb
Caution! Risk of explosion! => Risk to life and limb
Caution! UV radiation! => Damage to eyes, burns
UV Caution! UV radiation! => Damage to eyes, burns
Caution! Hot surfaces! => Burns
Caution! Broken filter! => Cuts, damage to eyes

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 3
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
1 General safety instructions
To prevent damage to persons and materials, it is important that all
operators read this manual carefully prior to commissioning. All
instructions must be adhered to:
DANGER
Risk of fire!
Follow safety
instructions
Risk of fire
Do not use material containing flammable solvents.
Always ensure that the hand-held lamp and the control device are only
used in a dry room. Never use the devices outdoors or in areas where
there is a risk of explosion.
Always adhere to the safety instructions of the manufacturers of the
coatings, adhesives and casting compounds. It might be necessary to
apply special fume extraction equipment.

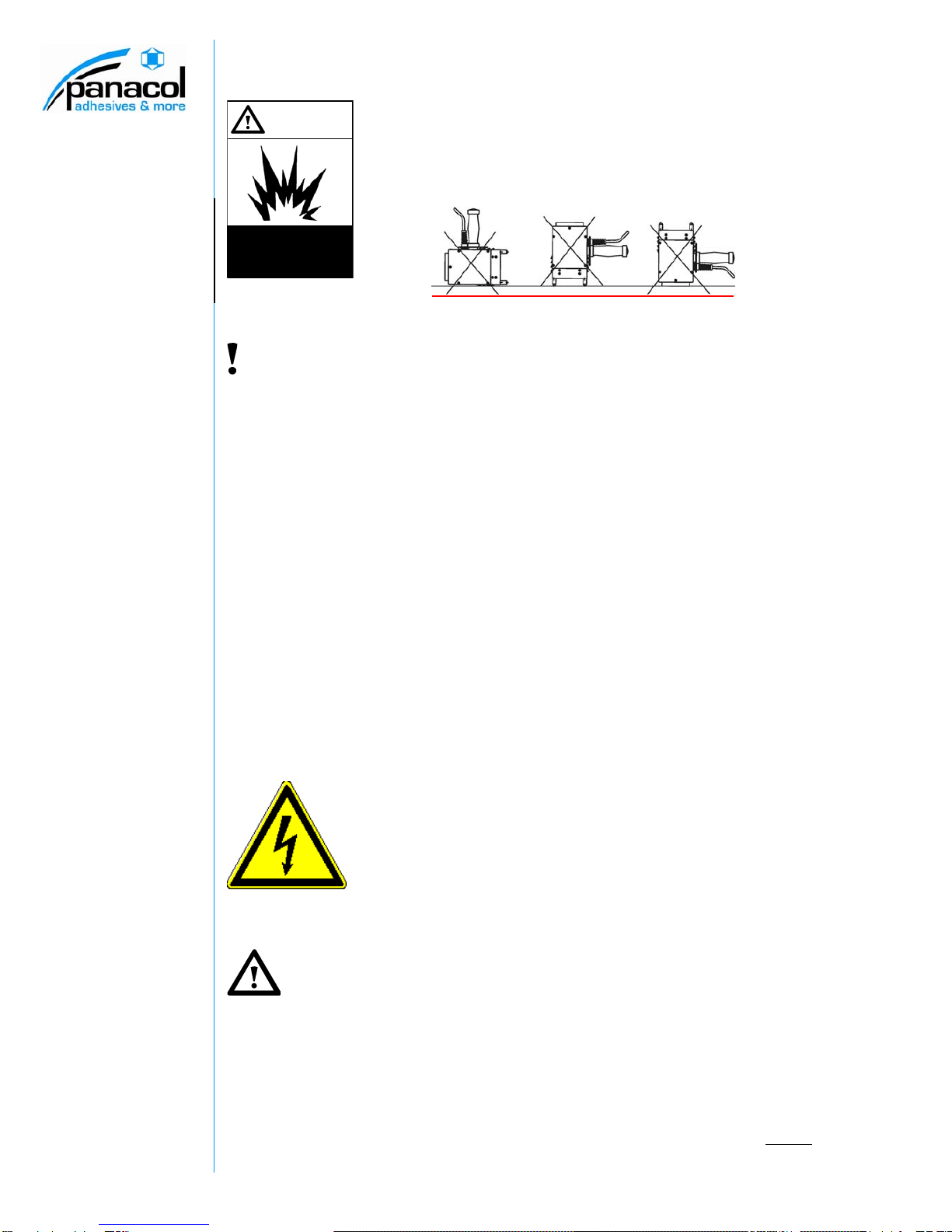

Caution! Placing of hand-held lamp
Never place lamp as shown below.
Always place the hand-held lamp as shown below. Place the hand-
held lamp only onto non-flammable and heat-resistant surfaces:
U
V
DANGER
Risk to eyes!
Always wear
goggles
UV
light
Risk of burns and dazzling
UV radiation can damage skin and eyes. Always protect skin and eyes
against direct radiation.
Personal protective equipment: Always wear UV-protective goggles
and protective clothing and always direct UV lamp away from persons.
Non flammable surface
correct

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 4
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]

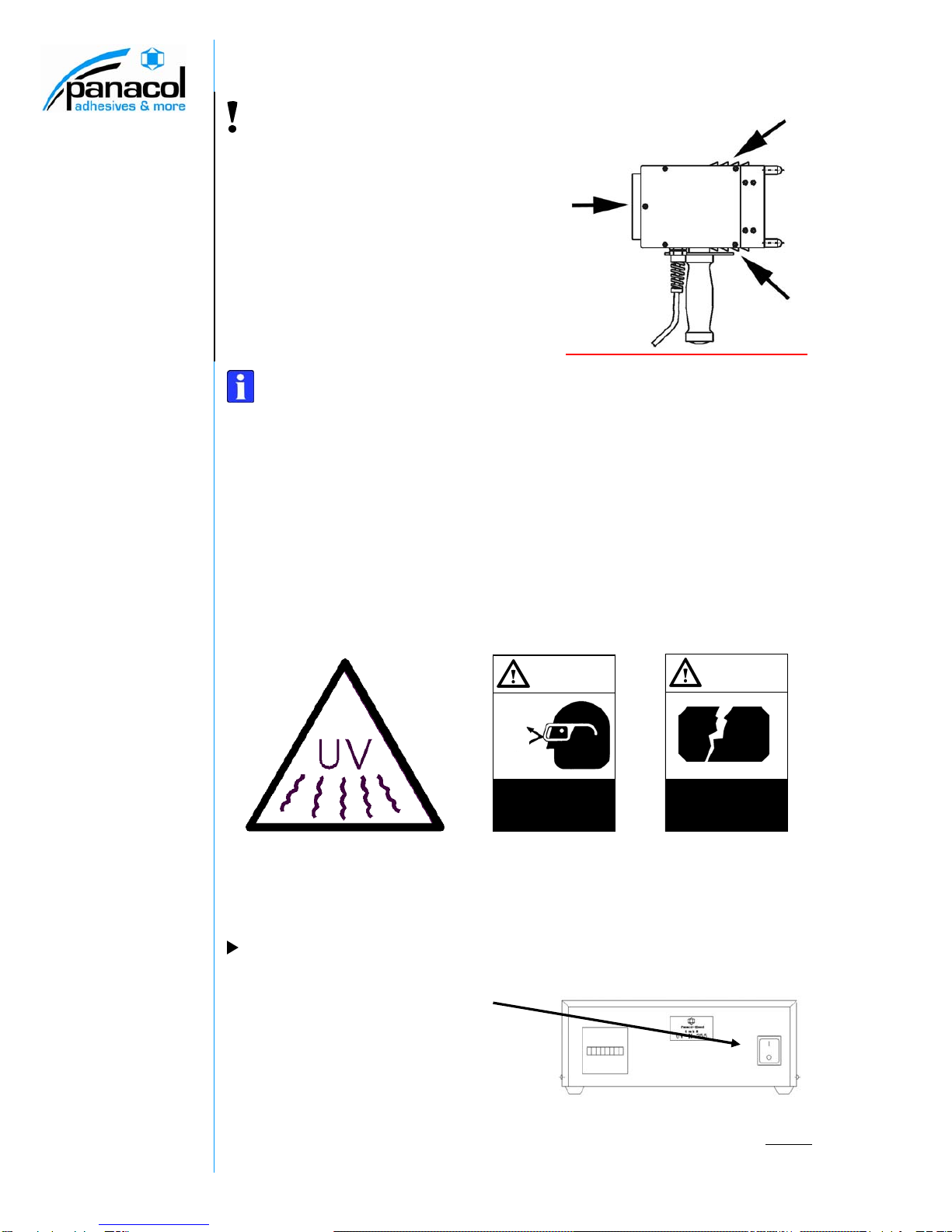

DANGER
UV radiation!
Inspect filter disk!
Risk in the event of damage
When unpacking the device and during operation, inspect hand-held
lamp, control device and cables for damages. The hand-held lamp
must only be operated, if
– the UV-A blue filter is undamaged and correctly fitted.
– there is no visible damage to the hand-held lamp, control device,
cables and adapters.
– a standard 4A slow safety fuse is inserted into the power adapter
housing.
The hand-help lamp may only be operated, when all damages have
been fully repaired!
Risk of burns from hot surfaces
Repair or replacement work at the electrical components (e.g.
replacement of tube) may only be carried out after the device has
cooled down. Prior to such work, disconnect the device from the
power supply.
Always hold the lamp by the handle! Always direct the lamp away from
the body!
During the operation, the blue filter is heated to a temperature of over
100°C. The lamp may thus not be used near flammable material.
Please always remember that also the treated material might become
very hot, depending on the duration of treatment.
DANGER
Risk of explosion
and broken glass
DANGER
UV radiation!
Prior to operation,
inspect filter disk
Risk of injury by broken glass
During operation, the internal pressure of the metal-halide lamp can
increase to up to 2 bar. Always take measures to ensure that there is
no risk to persons in the event of an exploding tube.
Caution: The risk of the lamp exploding increases with its age.
Therefore always observe the average service life of the lamp. The
service life of the lamp is reduced by frequent switching on and off and
by touching the lamp with bare hands. The risk of exploding is thereby
increased.
Safety measures for repair and cleaning work
Prior to starting repair or cleaning, disconnect device from the power
supply.

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 5
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
2 Product features
Polymerisation devices such as the hand-held UV lamp, are used for the
hardening of specially designed polymers. The term polymerisation describes the
process where several molecules of a compound of the same composition are
combined into one product, similar to the melting together of two materials. To
enable or accelerate this process, many compounds require activation by UV
radiation. This radiation is generated by means of a metal halide discharge tube
in a lamp housing. The discharge tube contains a halogen gas mixture, which is
ignited with high-voltage power (3,500V) and thus beams of light.
Market and applications
The hand-held lamp is specifically designed for industrial and laboratory
applications. The commissioning, operation, maintenance, etc. must always be
carried out by suitably trained staff who have read the instructions and are
familiar with the process. Always ensure that the device is not handled by any
other persons.
Proper use
UV radiation is used in a wide range of industrial laboratory applications, such as
the detection of hairline cracks or the examination of bank notes to detect
forgeries. The UV-H 255 lamp is exclusively designed for the hardening of
– coatings
– adhesives (e.g. Panacol-Elosol 1K Vitralit adhesives)
– and casting compounds requiring UV hardening.
Always comply with the instructions of the manufacturers as regards safety and
the application of the above materials.
Do you have questions regarding a specific application? Please do not
hesitate to contact Panacol-Elosol. We would be delighted to help you find
a suitable adhesive.

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 6
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
Use for other purposes
The UV lamp including control device must only be used for the above
purposes and applications. Any other application requires the written
consent of Panacol-Elosol.
Never use the UV lamp as a tanning lamp or as a hair-dryer, as this
could lead to serious burns and injuries.
In the event of improper use or use for purposes other than those
intended, all warranty is voided and Panacol-Elosol rejects any liability
for damages.
Delivery and accessories
The following components are included in the delivery:
– Hand-held lamp (housing holding the metal halide tube, reflector, safety
thermostat, cooling fan, frame with blue filter)
– Control device (power adapter with working hour counter)
– Power cable
– Operating manual
Optional accessories:
– UV protective glasses
– Stand for lamp
– Extension cables
– mounting bracket for static/swinging fixing
3 Transport, packaging and storage
The components are delivered in a robust cardboard box. The foam packaging in
the cardboard box protects the components against damage by impact.
After removing the components from the packaging, inspect every part for
damages, especially the blue filter. This is recommended for your own safety.
Store components in their original packaging at a temperature of between 10°C
and 40°C in a dry room.
We recommend to keep the packaging material so that it is available for any
future transport.

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 7
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
4 Commissioning and decommissioning
Location of operation
The ambient temperature should not exceed 40°C. The device should only be
used in a dry room with adequate ventilation.
DANGER
Risk of explosion!
Ensure proper
ventilation
Caution! Risk of explosion!
During the hardening of adhesives, gases are produced. If
there is no sufficient extraction, the concentration of such
gases might locally be increased. The gas mixture can in
certain cases be explosive. There is a risk of ignition of the
gases by sparks produced in the device housing.
Therefore remove the lamp during the hardening process
from the spray booth and do not use the lamp in rooms
without adequate extraction.
Assembly of the device
The hand-held lamp can only be used with handle ( see mounting
instruction for handle)
Connect the supplied power cable to
the control device and insert the power
plug into a 115V 60Hz socket.
To prevent damage to the device, do not connect it to a socket to which
other high-powered devices are connected.
Cable of the Hand Lamp should not be
disconnected during operation of
control device.
The control device should be first shut
down and disconnected from plug.
Back side

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 8
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
During operation, always ensure that
the ventilation slots and the fan grid are
not covered.
The lamp housing is equipped with a safety thermostat, which switches off
the device when a temperature of > 90°C is reached.
5 Operation
Please read these instructions prior to operating the device
UV radiation can damage skin and eyes. Protect skin and eyes from direct
radiation. Always wear UV protective goggles and protective clothing. Always
direct the hand-held lamp away from persons. Please also note that certain
surfaces might reflect UV radiation.
DANGER
Risk to eyes!
Always wear
goggles
UV
light
DANGER
UV radiation!
Inspect filter disk
Switch on the control device by
pressing the power switch at the front
of the housing (position I).
Front side

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 9
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
After approx. 4 minutes, the operating temperature for optimum UV
radiation is reached.
The hand-held lamp should be held (or secured to the stand) in such a way
that the area to be treated is exposed to direct radiation.
Spectral power distribution
Certain applications require "controlled UV exposure". This exposure is
defined by the intensity of radiation and the duration of exposure.
Always comply with the instructions of the manufacturers. Certain
manufacturers indicate the optimum spectral region for their products.
The figure below shows the spectral region of the hand-held lamp.
Spektral energy
distribution
(Metal halide lamp with
filter disk)
Placing of lamp
When putting down the hand-held
lamp, ensure that it is positioned as
shown in the figure to the right.
Never place the lamp on the fan
slots or on all three plastic knobs of
the filter frame.
accurate
Non flammable surface

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 10
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
DANGER
Risk of fire!
A
lways
follow the safety
instructions
Caution! Risk of fire!
If the lamp is placed in any other position, it could overheat or
damage and ignite the material to be hardened. Never place
the lamp as shown below.
Important operating instructions
If the above instructions are not adhered to, the lamp might be damaged or
its service life might be considerably shortened!
– Frequent switching on and off leads to damage to the lamp and
shortens its service life.
– After switching on the lamp, it should be left on for at least 15 minutes.
Only switch off the device during production breaks that exceed 1 hour.
– After switching off the device, allow the lamp to cool down for
approximately 10 minutes before you switch it on again.
6 Maintenance and cleaning
Maintenance includes the replacement of the metal halide tube as well as the
cleaning of the filter, the dust filter and the surfaces of the device.
Caution! High voltage!
Prior to any maintenance or cleaning work, disconnect the
device from the power supply.
During cleaning, ensure that no moisture penetrates the
housing. Use only a slightly moist cloth for cleaning.
Use only original spare parts!
Unsuitable cables, metal halide tubes or fuses result in faults. Use only
original spare parts and accessories that fulfil the technical
requirements (see technical data). If in doubt contact Panacol-Elosol.

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 11
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
Working hour counter
The different maintenance tasks must be
carried out depending on the working hours.
The number of completed working hours is
shown on the counter.
Replacement of tube
Please use our Lamp Change Kit.
The performance of the metal halide tube is gradually reduced after approx. 500
hours of operation so that the tube should be replaced.
Important
Never touch the metal halide tube with bear hands. Fingerprints on the tube
can be burnt into the quartz and reduce the service life of the tube.
If there are fingerprints on the tube, clean it with a little alcohol on a cloth.
High voltage!
Always switch off the
control device by setting
the power switch at the
front of the housing to
position 0) and
disconnect the power
cable.
Caution! Hot surfaces!
Before any maintenance or cleaning, allow the lamp to cool
down for 30 minutes.
>30 minutes
front side

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 12
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]

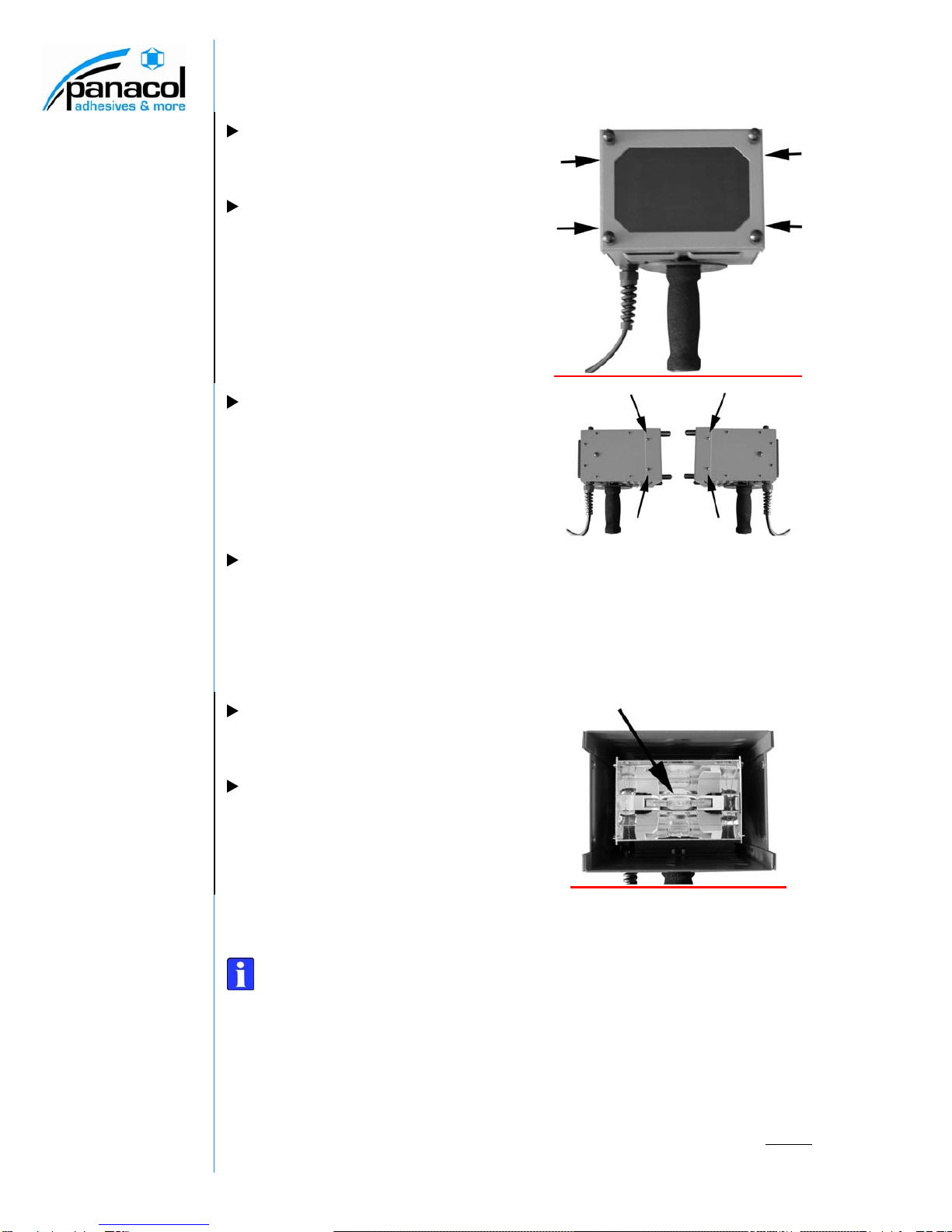

Loosen the 2 cross-head screws with a
Philips screwdriver at the right and left
side.
Place the hand-held lamp onto the fan
grid so that the filter is at the top, and
remove the frame.
Carefully remove the filter. Never use
tools with sharp edges as this could
damage the filter.
The metal halide tube is held in an R7s
socket. Carefully push the tube to the
side and remove it from the socket.
Insert the new tube into the hand-held
lamp.
Ensure that the tube is properly
positioned at the contacts. To position
the tube correctly, move it carefully in
the socket.
Close the housing be completing the above steps in reverse order. Ensure
that the filter is exactly centred within the housing.
Carry out a function test. The hand-held lamp is again ready for operation.

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 13
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]

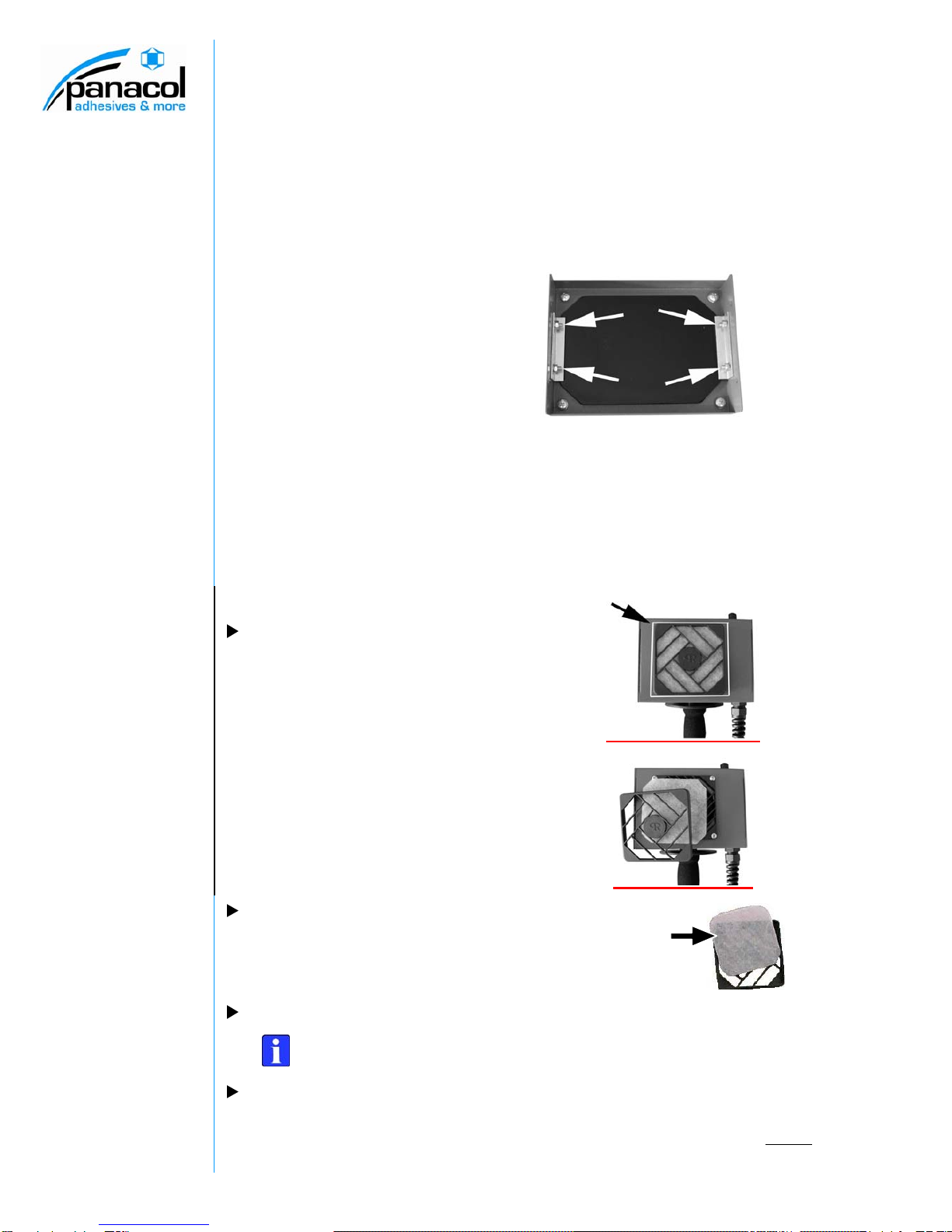

Glass Filter replacement
(only in repairing case)
to remove the glass filter , Loosen the
4 cross-head screws with a Philips
screwdriver at the right and left side.
Never use tools with sharp edges as
this could damage the filter.
Replacement of the dust filter
The dust filter should be replaced or cleaned at regular intervals (after approx.
100 hours).
Pull off the plastic cover (snap-on lid).
Remove the dirty dust filter from the
housing. Dust filter
Insert a new or cleaned filter.
To clean the filter, remove the visible dirt from its surface and clean it
subsequently with compressed air.
Replace plastic cover.

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 14
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
Cleaning of the blue filter
It is recommended to regularly clean the blue filter.
Clean the filter only when it is cold and after you have disconnected the device
from the power supply!
Clean the blue filter carefully with a soft moist cloth (water or alcohol-based
window cleaner).
Important
– Never use soap or other cleaning agents.
– Inspect the blue filter for damages. Ensure that it is exactly centred in
the housing. Do not use hand-held lamp, if you suspect that there are
damages to the filter.
Cleaning of device surface
It is recommended to regularly clean the housing.
Clean the housing only when it is cold and after you have disconnected the
device from the power supply!
Clean the housing with a moist soft cloth. Use only water.

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 15
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
7 Disposal
Always comply with the local statutory regulations for the disposal of
defective or burnt out metal halide tubes or other device components
(power adapter, thermostat, housing, etc.). Contact the local authorities to
obtain the address of the respective disposal contractor.
8 Troubleshooting (repairs)
If the device must be repaired, always contact the service department of your
supplier. We are committed to ensure that your device is repaired as quickly as
possible.
Restricted liability
Panacol-Elosol rejects any liability or warranty for damages caused by
improperly completed repairs.
Prior to returning the device to Panacol-Elosol, please check the device by
following the steps in the table below. If none of the remedies below is
successful, please contact your supplier.

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 16
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
Problem Possible cause Remedy
Hand-held lamp/tube does
not emit any radiation Metal halide tube is being heated up (initial warming-
up phase)
Depending on the ambient
temperature, the warming-
up phase can take up to 2
minutes.
Cables not properly
connected Inspect cable connections
Hand-held lamp/tube goes
off during operation Hand-held lamp has overheated => safety
thermometer has
automatically switched off
the tube
– Clean blue filter, if
necessary
– The hand-held lamp is
automatically switched
on again after a cooling
period
Metal halide tube has burnt
out Replace metal halide tube; follow the relevant
instructions
Cables not properly
connected Inspect cable connections
Hand-held lamp/tube is not
emitting any radiation after
renewed switching on
Automatic switching delay The hand-held lamp is
automatically switched on
after a few minutes
Poor lamp performance Metal halide tube has burnt
out Replace metal halide tube; follow the relevant
instructions
The power switch lamp at
the front of the control
device housing is not on
Power cable is disconnected Inspect power cables and
adapters
Fuse burnt out Contact appliance retailer to
replace fuse
Power failure Check other electrical
devices and fuses

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 17
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
9 Technical data
Operating conditions
Temperature:
Air humidity:
15°C to 40°C
20% to 60%
Metal halide tube
Type:
Average service life:
Voltage, current:
Power:
Min. ignition voltage:
Base edge temperature Tmax:
Electrical contact:
radiation
UV-A 315-400 nm:
UV-B 280-315 nm:
ES 250
approx. 500 h (depending on operation: ON-
OFF cycle, cooling, etc.)
~125 V, 2.5 A, 250 W
3.5 kV
350 °C
R7smetal contact (ceramic base)
30 W
3 W
Reflector: Aluminium
Filter
Type:
UV-A radiation spectrum:
Dimensions:
Blue filter
320 to 450 nm
140 x 85 mm
Exposed surface: approx. 300 x 200 mm
(at a distance of approx. 200 mm)
Electrical data
Power supply:
Power consumption:
Fuse:
115V/60Hz
500 VA
2*T 4 AH 250V (4A, slow)
Dimensions (H x L x W)
Hand-held lamp:
Control device:
250 x 165 x 190 mm
90 x 246 x 212 mm
Power cable: 4 metres (longer cable available on request)
Weight
Hand-held lamp:
Control device:
approx. 1.3 kg
approx. 3.5 kg
Noise: < 70 dB
Protection class according to
VED 0710/part 1: IP 20
Subject to changes due to technical improvements.

BA_uv-h255 hand.held lamp 09_v1 US
GB.doc 18
Panacol-Elosol GmbH
Daimlerstr. 8
D- 61449 Steinbach/Ts
Germany
℡[phone]
¬[phone]
|[email protected]
10 Lamp replacement maintenance report
Lamp type Hour counter Date Signature
