Panamax M4300-EX User manual

Power Cleaning
and Filtration
Protect or Disconnect™ Automatic
Voltage Monitoring Circuitry (AVM)
LED Power Status Indicator Lights
8 Outlets:
3 Always On
4 Switched
1 High Current (always on)
2 Isolated Outlet Banks
Coaxial Signal Line Protection:
1 HD Sat and 1 HD CATV
Auto-resetting Telephone (pay-
per-view) and LAN Line Protection
Rack Mountable (rack mount kit
not included and sold separately-
Part # GRM2205)
Optional Silver Bezel
Improve Picture Quality with Home Theater
Power Conditioners by Panamax
Improves Picture and Sound Quality
Power Cleaning and Filtration eliminates common symp-
toms of contaminated power (including loss of detail, pops, hiss-
es, hums and visual artifacts) and allows your A/V equipment to
perform up to its full capability.
Monitors Incoming Line Voltage
Panamax’s patent pending AVM circuitry continuously monitors
the incoming line voltage and disconnects your equipment in the
event of an over voltage or under voltage (brownout). Power is
automatically reconnected when voltage returns to a safe level,
eliminating service calls or system downtime.
Reduces Cross-Contamination Between Components
The M4300-EX is designed to provide noise isolation between 2
isolated outlet banks including 1 high current outlet so that any
noise created by an A/V component can not contaminate the
power going to equipment plugged into another outlet bank.
L547 REV B 10/06
The Power Specialists Since 1975
®
FEATURESTOP BENEFITS
www.panamax.com
1
2
3
LEVEL 2
LEVEL 2
THE SOURCE OF PURE SOUND AND PICTURE™
MAX ® 4300-EX

AC Power
Line Voltage:____________________________________________________120V, 60Hz
Total Current Capacity:__________________________________________________15 A
UL1449 Suppression Rating:____________________________________________330V
Protection Modes:______________________________________________L-N, L-G, N-G
Initial Clamping Level:_________________________________________________200V
Energy Dissipation:______________________________________________1650 Joules
Peak Impulse Current:___________________________________________52,000 Amps
Catastrophic Surge Circuit:_______________________________________________Yes
Thermal Fusing:_______________________________________________________Yes
Over-voltage shutoff:__________________________________________142 VAC ±5 VAC
Under-voltage shutoff:_________________________________________84 VAC ± 6 VAC
EMI/RFI Noise Filtration
Bank 1, High Current Outlet: ___________________________ 49 db, 100 KHz - 2 MHz
Bank 1, Always ON Outlets:____________________________ 61 db, 100 KHz - 2 MHz
Bank 2, Switched Outlets:_____________________________ 60 db, 100 KHz - 2 MHz
Common Mode (all banks)____________________________ 60 db, 100 KHz - 2 MHz
Telephone Circuit (pay-per-view)
Fuseless/Auto-resetting:_________________________________________________Yes
Clamping Level:______________________________________________________260V
Capacitance:__________________________________________________30pf (approx.)
Suppression Modes:____________________________________Metallic & Longitudinal
Jacks:
LINE:_____________________________________________RJ-45 (RJ-11 compatible)
Wires Protected:________________________________________2-Wire, Pins 4 & 5
EQUIP 1:__________________________________________RJ-45 (RJ-11 compatible)
Wires Protected:________________________________________2-Wire, Pins 4 & 5
EQUIP: 2__________________________________________________________RJ-11
Wires Protected:________________________________________2-Wire, Pins 3 & 4
DSL Compatible:_______________________________________________________Yes
LAN Circuit
Clamping Level:____________________________________________________8V ± 2V
Jacks:_____________________________________________________________RJ-45
Wires Protected:_______________________________________4-Wires, Pins 1, 2, 3 & 6
HD Satellite TV Circuit
Bidirectional:__________________________________________________________Yes
Shielded:_____________________________________________________________Yes
Clamping Level:_______________________________________________________27V
Attenuation:_____________________________________< 1db from 950MHz - 2.05GHz
< 2.4db @ 2.2GHz
Connections:__________________________________________Female “F”, Gold Plated
HD Cable TV Circuit
Bidirectional:__________________________________________________________Yes
Shielded:_____________________________________________________________Yes
Clamping Level:_______________________________________________________1.4V
Attenuation:________________________________________< 1db from 5MHz - 950MHz
Connections:__________________________________________Female “F”, Gold Plated
Pay-Per-View Compatible________________________________________________Yes
MODEL M4300-EX UNIT CARTON MASTER CARTON
Dimensions Weight Dimensions Weight UPC Qty Dimensions Weight UPC
17" x 7.25" x 1.75" 6.5 lbs 19.5" x 12.125" x 5.25" 9.5 Lbs 0 50616 00784 9 4 26.6" x 20" x 11.25" 40 Lbs 5 00 50616 00784 4
2.125" H with feet
UPC’s, QUANTITIES, WEIGHTS & MEASUREMENTS FOR ORDERING & SHIPPING
OPTIONAL SILVER BEZEL
SILVER BEZEL PRODUCT UNIT CARTON MASTER CARTON
Model # Dimensions Weight Dimensions Weight UPC Qty Dimensions Weight UPC
BEZ4300-EXS 17" W x 0.625" D x 1.75" H 14.5 Oz 18" x 4" x 1" 18.0 Oz 0 50616 00791 7 N/A N/A N/A N/A
1690 Corporate Circle, Petaluma, CA 94954 • 800-472-5555 or 707-283-5900 •Fax - 707-283-5901 •www.panamax.com
The Power Specialists Since 1975
®

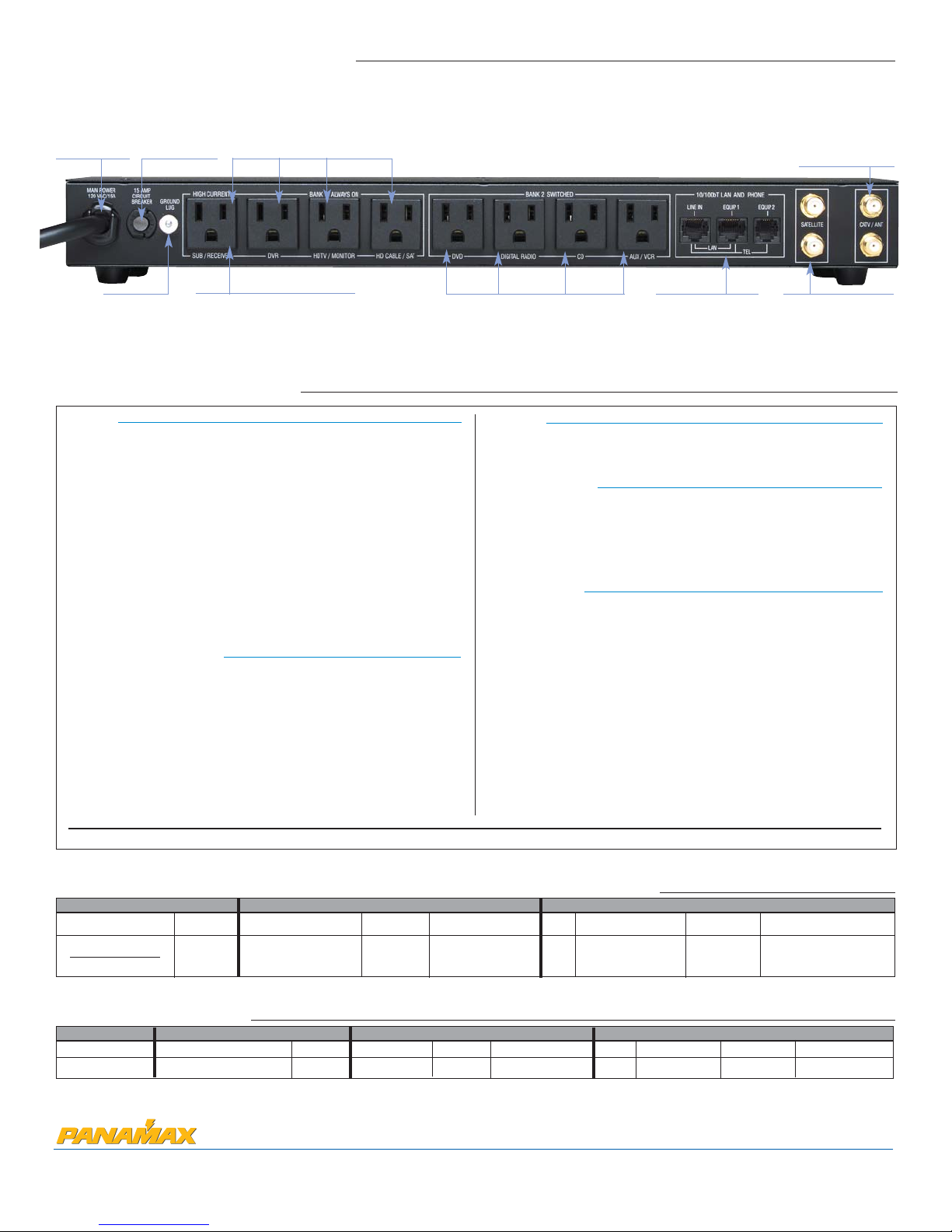

MAX®4300-EX REAR PANEL FEATURES
MAX®4300-EX SPECIFICATIONS
Specifications subject to change due to product upgrades and improvements.
Circuit Breaker
Automatically opens
when the current load is
greater than 15 Amps.
Ground Lug
Provides a common
grounding point for
equipment with sep-
arate ground leads.
Main Power
Must be plugged into a
properly wired and
grounded 3-wire outlet
Outlet Bank 1
Four always on outlets. Power will only be turned
off under a fault condition. (See specifications for
over-voltage and under-voltage thresholds)
Outlet Bank 1 (continued)
The High Current outlet provides power from a non-inductive noise fil-
tration circuit that does not limit the current to your equipment. Its out-
put is noise isolated from all of the other outlets. Power from the other
three always on outlets is cleaned by a two-stage tapped Pi filter circuit
which provides noise isolation from both the High Current outlet and
Outlet Bank 2.
Outlet Bank 2
Four switched outlets controlled by the front panel Power
Button. EMI/RFI noise filtration is provided by a two stage
tapped Pi filter circuit which also provides noise isolation
from all four outlets in Bank 1.
LAN / Phone Jacks
Protection circuits for 10/100
baseT Ethernet and standard
telephone or pay-per-view lines.
Phone circuit is auto-resetting.
Satellite TV Coax Jacks
Bidirectional protection circuit opti-
mized for satellite TV signal lines.
Rack Mountable
(rack mount kit not included and sold separately - Rack Mount Kit Single DIN, Part # GRM2205)
Cable TV Coax Jacks
Bidirectional protection circuit
optimized for cable TV, off-air
antennas and cable modem
signal lines.
© 2006 Panamax, Inc. Panamax, MAX and the Panamax logo are registered US trademarks of Panamax. Protect or Disconnect is a trademark of Panamax. SIDACtor is a registered US trademark of Teccor Electronics, Inc.
