HOME THEATER POWER MANAGEMENT
MAX ® 7500-PRO
MAX®7500-PRO
The MAX®7500 PRO has been specifically engineered to
improve the performance and life expectancy of home the-
ater equipment. The combination of sophisticated power
conditioning and the world’s finest power protection has
resulted in an audio/video power center that meets the power
quality needs for the entire entertainment system.
At the heart of the MAX®7500-PRO is an advanced power fil-
tration system featuring a 720VA isolation transformer, that
provides power for digital source components and displays.
In addition, any noise generated by digital source compo-
nents is isolated and prevented from reaching key audio or
video components. The MAX®7500-PRO’s ground isolation
feature mechanically interrupts ground loops, making the
MAX 7500-PRO especially useful for applications with unsta-
ble power or ground issues. IP addressable, the MAX 7500-
PRO is also ideal for multi-zone audio/video whole-home
automation and wherever remote diagnostics are needed.
RS-232 communication comes standard with the unit and a
TCP/IP card is optional. End users can configure each outlet
bank individually to customize for their home theater system.
• Remote diagnostics (IP-ready with optional Ethernet card)
• Ground Isolation – Advanced Video Filtration
• Voltage regulation and Balanced Power
• Automatic Voltage Monitoring (AVM)
• Universal Coax Connectors for Satellite (SAT)
•and Cable Access Television (CATV) protection
• Telephone (TEL) and Local Area Network (LAN) protection
• Auto dimming meters
• DC trigger Input & Output
• 11 Outlets: 2 Always On, 6 Switched, 2 High Current,
•1 Convenience (front)
• Rack Mounting Brackets Included
• Optional Silver Bezel
• Convenience lamp

MAX®7500-PRO SPECIFICATIONS

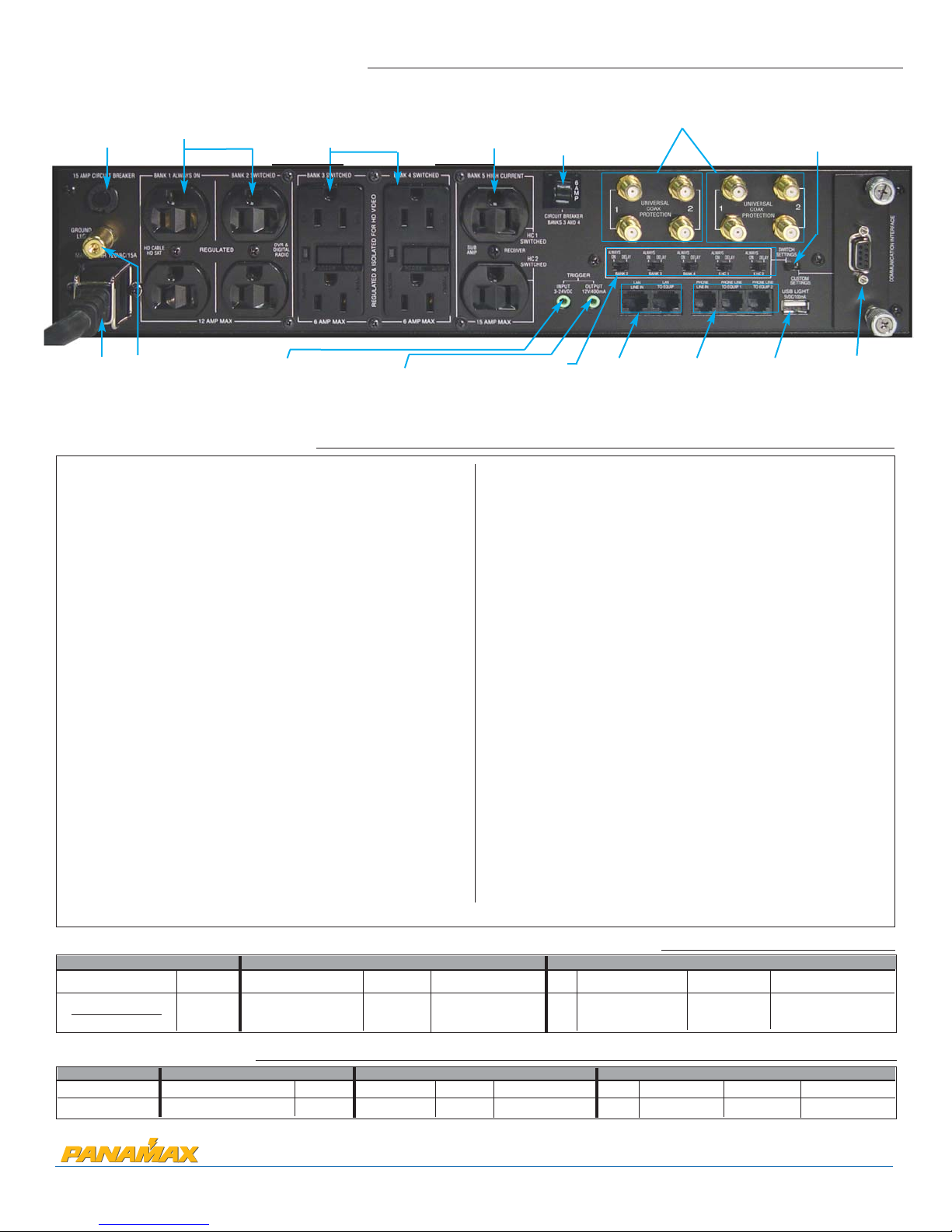

MAX®7500-PRO BACK PANEL FEATURES
MODEL M7500-PRO UNIT CARTON MASTER CARTON
Dimensions Weight Dimensions Weight UPC Qty Dimensions Weight UPC
17" x 12.75" x 3.5" 36 lbs 23.75" x 18.5" x 10" 39.5 Lbs 0 50616 00806 8 1 Same as 39.5 Lbs 5 00 50616 00806 3
4.1" H with feet Unit Carton
UPC’s, QUANTITIES, WEIGHTS & MEASUREMENTS FOR ORDERING & SHIPPING
OPTIONAL SILVER BEZEL
SILVER BEZEL PRODUCT UNIT CARTON MASTER CARTON
Model # Dimensions Weight Dimensions Weight UPC Qty Dimensions Weight UPC
BEZ7500-PRO-S 17" W x 0.625" D x 3.5" H 14 Oz 18" x 4" x 1" 17.5 Oz 0 50616 00789 4 N/A N/A N/A N/A
© 2007 Panamax, Inc. Panamax, MAX and the Panamax logo are registered US trademarks of Panamax.
1690 Corporate Circle, Petaluma, CA 94954 •800-472-5555 or 707-283-5900 •Fax - 707-283-5901 • www.panamax.com
General________________________________________________________________
Dimensions......................................17 in. W x 12.75 in. D x 3.5 in H, (4.1 in. Including feet)
Weight.........................................................................................................................36 lbs.
AC Power_______________________________________________________________
Line Voltage.........................................................................................................120V, 60Hz
Regulation Range.................................................................................................100V-135V
Regulated Output...................................................................................................120V ± 2V
Total Current Capacity.....................................................................................................15 A
Suppression Rating.......................................................................................................330V
Protection Modes.............................................................................................L-N, L-G, N-G
Initial Clamping Level....................................................................................................200V
Energy Dissipation..............................................................................................2670 Joules
Peak Impulse Current.....................................................................................162,000 Amps
Catastrophic Surge Circuit................................................................................................Yes
Thermal Fusing:...............................................................................................................Yes
Over-voltage shutoff....................................................................................142 VAC ± 5 VAC
Under-voltage shutoff....................................................................................90 VAC ± 2 VAC
EMI/RFI Noise Filtration___________________________________________________
Banks 1 - 4...................................................................................100 db, 100 KHz – 2 MHz
Bank 5, High Current Outlets..........................................................60 db, 100 KHz – 2 MHz
USB Light_______________________________________________________________
Voltage..........................................................................................................................5VDC
Current.......................................................................................................................100mA
DC Trigger Input__________________________________________________________
Jacks............................................................................................... 3.5mm mono mini-plug
Voltage and Polarity........................................................................3 - 24V DC, bidirectional
Current Requirement....................................................................4.6 mA @3V, 58 mA @24V
Design and specifications subject to change without notice due to product improvement.
DC Trigger Output________________________________________________________
Voltage.........................................................................................................................<12V
Current...................................................................................................................<400 mA
Short-circuit protection...................................................................................................Yes
Delay on output..................................................................................................10 seconds
LAN Circuit_____________________________________________________________
Clamping Level.........................................................................................................8V ± 2V
Jacks...........................................................................................................................RJ-45
Wires Protected:.............................................................................4-Wires, Pins 1, 2, 3 & 6
Telephone Circuit________________________________________________________
Fuseless/Auto-resetting..................................................................................................Yes
Clamping Level.............................................................................................................260V
Capacitance....................................................................................................30pf (approx.)
Suppression Modes..........................................................................Metallic & Longitudinal
Connections................................................................................................................RJ-11
Lines Protected.......................................................................................2-Wire, Pins 4 & 5
Universal Cable and Satellite TV Circuit______________________________________
HD Ready 1080 i/p............................................................................................................................Yes
Shielded.......................................................................................................................................Yes
Clamping Level................................................................................................................................75V
Frequency Range............................................................................................................0MHz - 2.2GHz
Insertion Loss.............................................................................................................................<0.5 dB
Connections..........................................................................................................Female F, Gold Plated
Bidirectional......................................................................................................................................Yes
4. High Current Outlet Bank
(BANK 5): Two delayed outlets
designed for high current compo-
nents such as amplifiers and pow-
ered subwoofers. The current
available to connected equipment
is not limited by the noise
filtration components.
12. Outlet Delay Switches:
Two-position slide switches. Allows
for the user to configure each bank
for delayed turn-on/turn-off or
always-on operation.
6. Universal Cable and Satellite TV
Coax Jacks: Two pairs of F-Connectors
optimized for Satellite TV, Cable TV,
Antenna or Cable Modem signal line
protection. Bi-directional
13. LAN:
In/Out
connections
for Ethernet.
14. Telephone Jacks:
1 In & 2 Out connec-
tions for telephone line
or pay-per-view line
protection.
16. Communications
Interface: RS232
interface for custom
configuration and/or
home automation
control. Contact
Panamax for availabil-
ity of alternate TCP/IP
interface.
10. DC Trigger Input: 3.5mm
(1/8”) Mini-Plug jack. Connect to
a remote trigger device that uses
a DC voltage signal to initiate a
startup/shutdown sequence.
11. DC Trigger Output: 3.5mm
(1/8”) Mini-Plug jack. The M7500-
Pro generates its own 12VDC trig-
ger to control another device.
8. IEC Main Power
Receptacle:
Detachable power
cord connects to
this receptacle.
1. 15A Main Circuit Breaker:
Opens in the event that equip-
ment plugged into the MAX
7500 draws too much current.
When white is visible, the
breaker has opened. Reduce
the load and push to reset.
9. Ground Lug: Provides
a common grounding
point for equipment with
separate ground leads
2. Filtered Regulated Outlets
(BANKS 1 & 2): Four, Balanced
Double L filtered outlets for low
current analog audio components
such as pre-amplifiers, receivers,
VCR's and tape decks.
3. Isolated (Switched) Outlets
(BANKS 3 & 4): Four outlets provide
complete isolation for digital source
components such as DVD players or
display devices like plasma TVs or
DLP projectors. These outlets are
completely isolated from the rest of
the system.
5. Isolated Outlets Circuit
Breaker: Opens in the event
that equipment connected to the
Isolation Transformer Outlets
exceeds 6 Amps current draw.
When white is visible, the
breaker has opened. Reduce the
load and push to reset.
15. Lamp Receptacle: USB
jack. The convenience lamp
included with the M7500-Pro is
to illuminate the rear panels of
other components during setup.
7. Settings Option: Two-position slide
switch. Switch settings selects the use
of the five switches to configure the out-
lets for delayed or always-on operation.
Custom settings selects the stored con-
figuration in non-volatile memory for the
outlets trigger source and delays.
