Panasonic CS-E9TKA User manual

Operating Instructions
Air Conditioner
2-11
Thank you for purchasing Panasonic Air Conditioner.
Before operating the unit, please read these operating
instructions thoroughly and keep them for future reference.
The included Installation Instructions should be kept and
read by the installer before installation.
Remote control is packaged in the indoor unit and removed
by the installer before installation.
操作說明書
空調器
12-21
感謝您購買 Panasonic 空調器。
在操作空調器前 , 請細讀此操作說明 , 並保存此書以備
日後參考。
附帶的安裝說明須保存並請安裝人員在安裝前閲讀。
遙控器包裝在室内機箱子裏並請安裝人員在安裝前取出。
ACXF55-04530
Model No.
Indoor Unit Outdoor Unit
CS-E9TKA
CS-E12TKA
CS-E18TKA
CS-E24TKA
CU-E9TKA
CU-E12TKA
CU-E18TKA
CU-E24TKA
中文 English
POWERFUL
Operating Instructions
Air Conditioner

2
Provide fast cooling, maximum comfort,
clean air and optimise energy saving
ECONAVI + INVERTER The Perfect Energy Saving Technology
ECONAVI detects where energy is normally wasted and adjusts cooling power depending on room
conditions and activity levels. Then, INVERTER leverages ECONAVI sensor data and varies compressor
rotation speed. This helps to optimize cooling operation and reduces wasteful cooling.
nanoe-G Purifies the air down to the smallest particles
Deactivates harmful micro-organisms such as viruses, bacteria, etc. to keep air clean.
It also deactivates viruses and bacteria on the filter to keep inside of the unit clean.
See “To learn more...” for details.

English
3

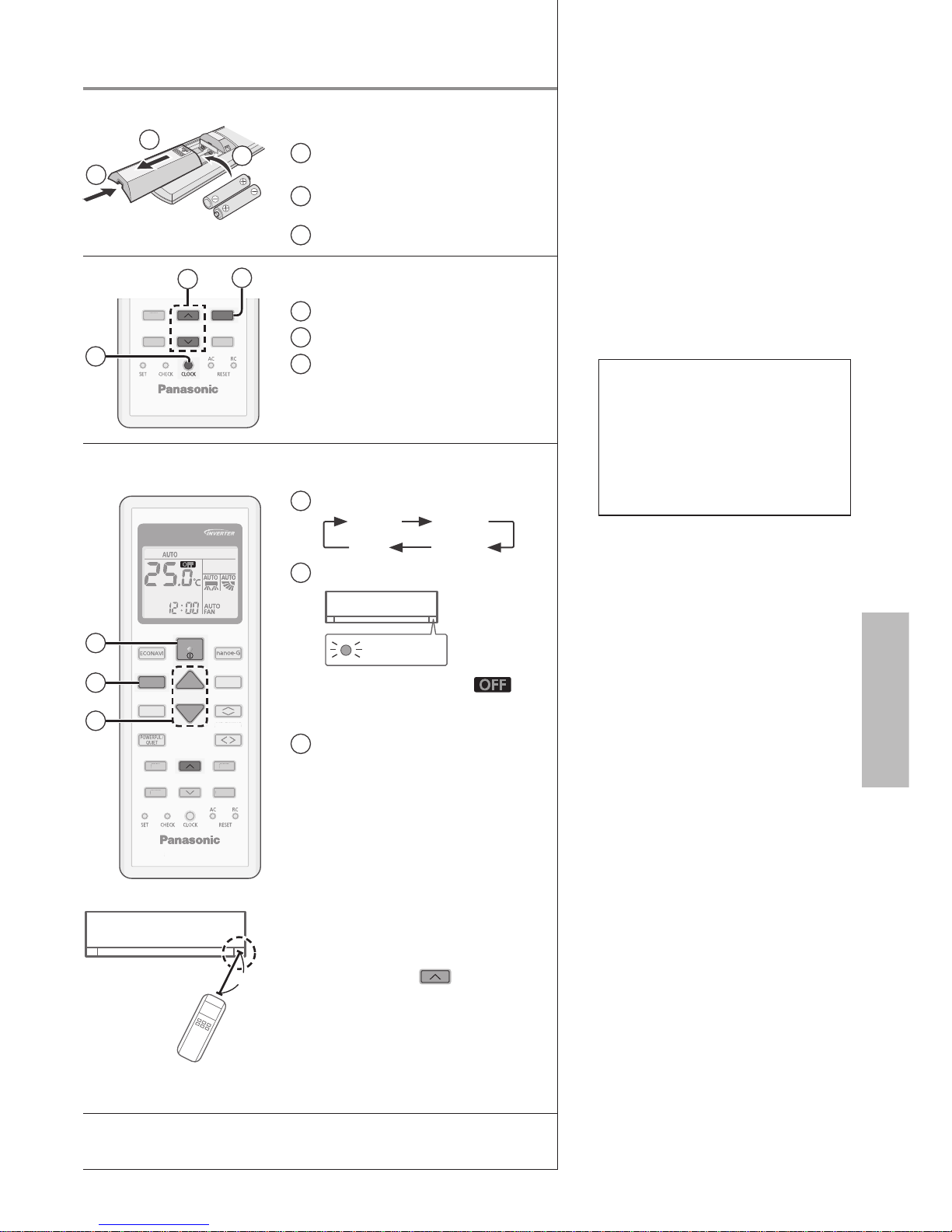

Quick guide
1
2
3
Inserting the batteries
1Pull out the back cover of
remote control
2Insert AAA or R03 batteries
(can be used ~ 1 year)
3Close the cover
AIR CONDITIONER
TIMER
ON SET
CANCEL
OFF
A
IR C
O
NDITI
O
NE
R
TIMER
ON
C
AN
C
E
L
O
FF
23
1
Clock setting
1Press CLOCK
2Set the time
3Confirm
AIR CONDITIONER
TIMER
SLEEP
MODE
ON SET
CANCEL
OFF
FAN SPEED
OFF/ON
TEMP
AIR SWING
A
IR C
O
NDITI
O
NE
R
TIMER
S
LEE
P
ON
S
ET
C
AN
C
E
L
O
FF
F
AN
S
PEE
D
A
IR
S
WIN
G
8m
1
3
2
Basic operation
1Select the desired mode
DRY
AUTO HEAT
COOL
2Start/stop the operation
POWER
• Please note that the
indication is on display to start
the unit.
3Select the desired
temperature
• Selection range:
16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F.
• Operating the unit within the
recommended temperature
range may save energy.
HEAT : 20.0 °C ~ 24.0 °C /
68 °F ~ 75 °F.
COOL: 26.0 °C ~ 28.0 °C /
79 °F ~ 82 °F.
• To dim or restore the unit’s indicator
brightness, press and hold for
5 seconds.
• Use remote control within 8 m from
the remote control receiver of the
indoor unit.
The illustrations in this manual are for explanation purposes only
and may differ from the actual unit. They are subject to change
without notice for future improvement.
Table of contents
Safety precautions...................4-5
How to use...............................6-7
To learn more... ......................8-9

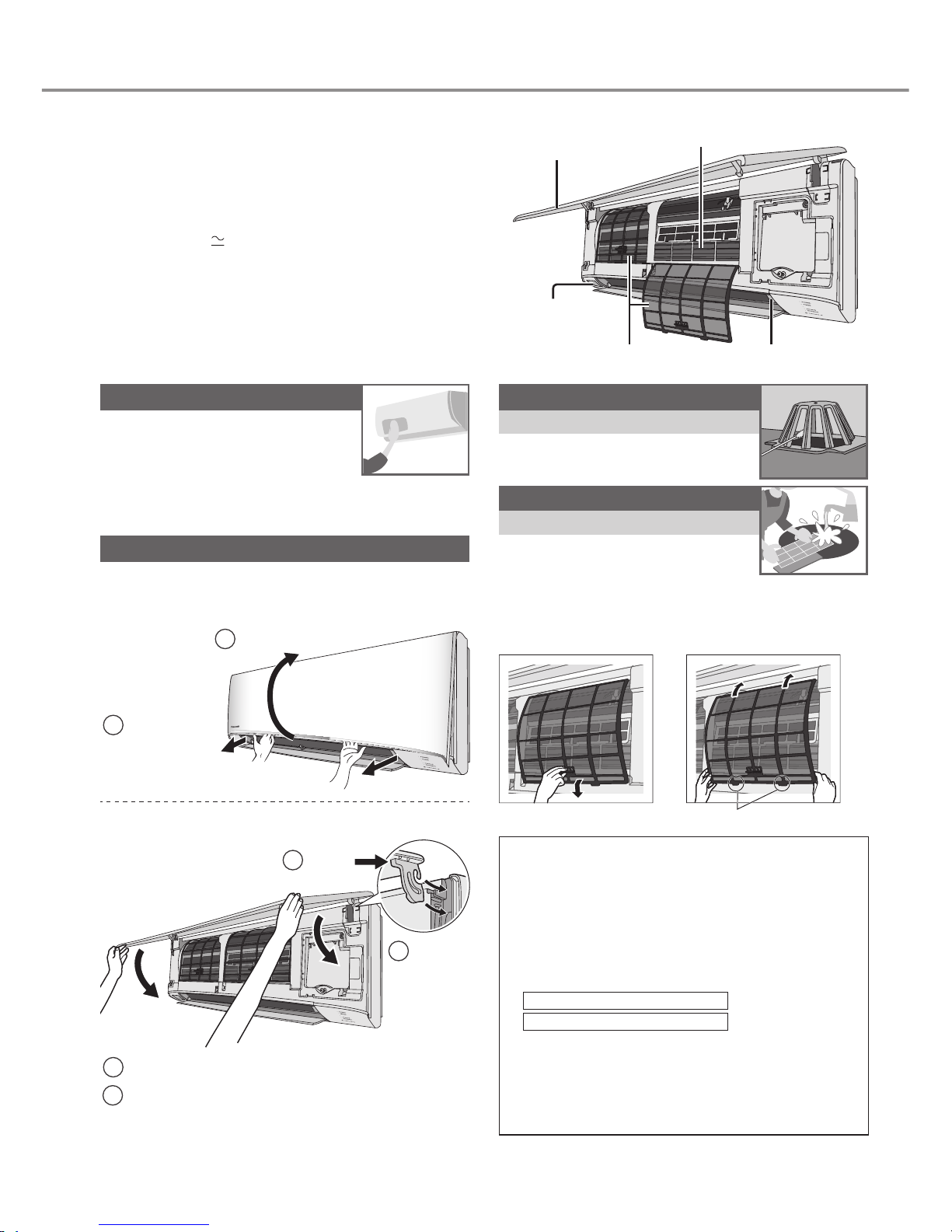

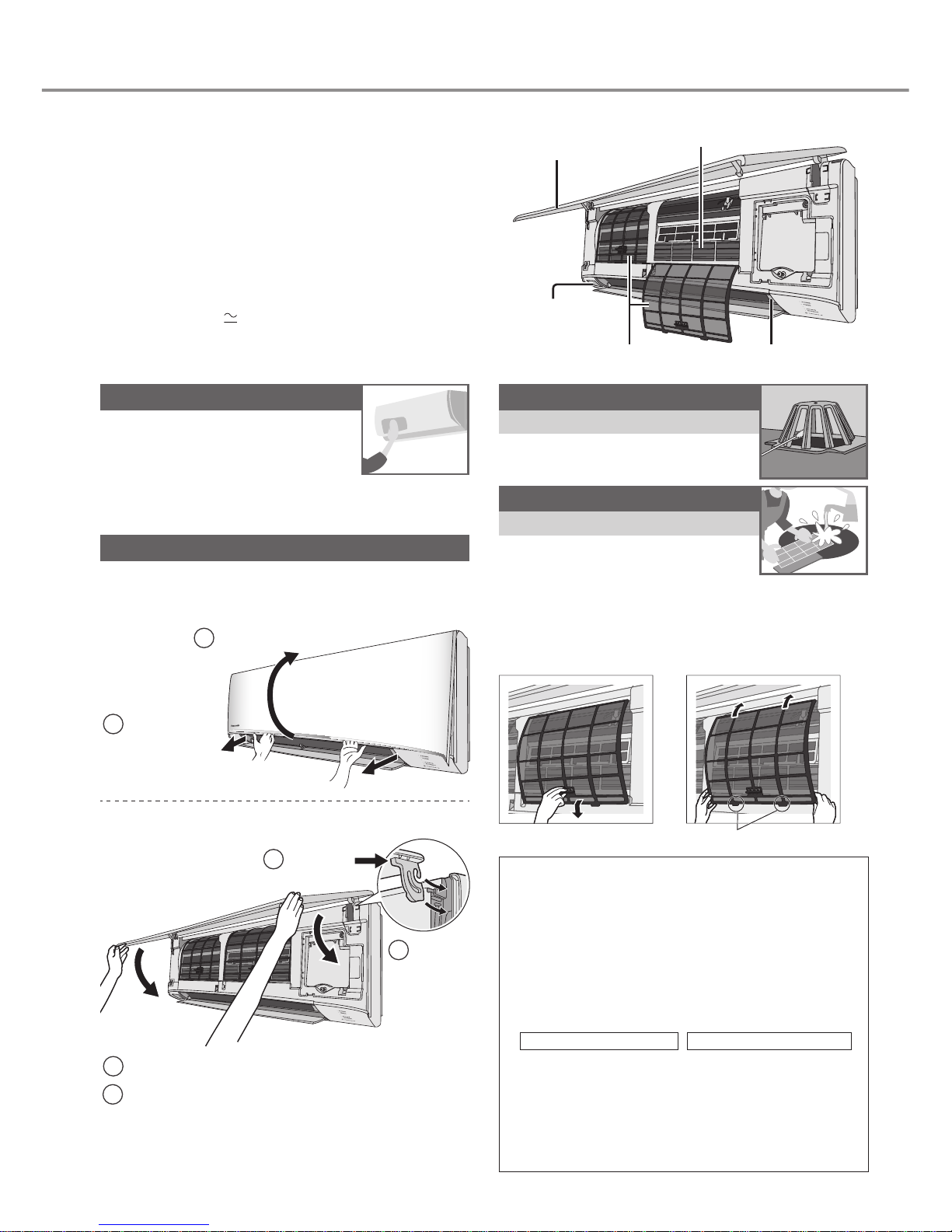

Cleaning instructions ................ 10
Troubleshooting ....................... 11
Information.................Back cover
Accessories
• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control
holder × 2

4
Safety precautions
To prevent personal injury, injury to others
or property damage, please comply with the
following:
Incorrect operation due to failure to follow
instructions below may cause harm or damage,
the seriousness of which is classified as below:
WARNING
This sign warns of
death or serious
injury.
CAUTION
This sign warns of
injury or damage to
property.
The instructions to be followed are classified by
the following symbols:
This symbol denotes an
action that is PROHIBITED.
These symbols denote
actions COMPULSORY.
WARNING
Indoor unit and outdoor unit
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety. Children should be supervised to
ensure that they do not play with the appliance.
Please consult authorised dealer or specialist to
clean the internal parts, repair, install, remove
and reinstall the unit. Improper installation and
handling will cause leakage, electric shock or fire.
Confirm with authorised dealer or specialist on
usage of any specified refrigerant type.
Using refrigerant type other than the specified
may cause product damage, burst and injury etc.
Do not install the unit in a potentially explosive
or flammable atmosphere. Failure to do so could
result in fire.
Do not insert your fingers or other
objects into the air conditioner indoor or
outdoor unit, rotating parts may cause
injury.
Do not touch the outdoor unit during lightning, it
may cause electric shock.
Do not expose yourself directly to cold air for a
long period to avoid excess cooling.
Do not sit or step on the unit, you may
fall down accidentally.
Remote control
Do not allow infants and small children to play
with the remote control to prevent them from
accidentally swallowing the batteries.
Indoor unit
Outdoor unit
Remote control
Air inlet
Air inlet
Air inlet
Air inlet
Air outlet
Air outlet
Air outlet
Air outlet
Power supply

English
5

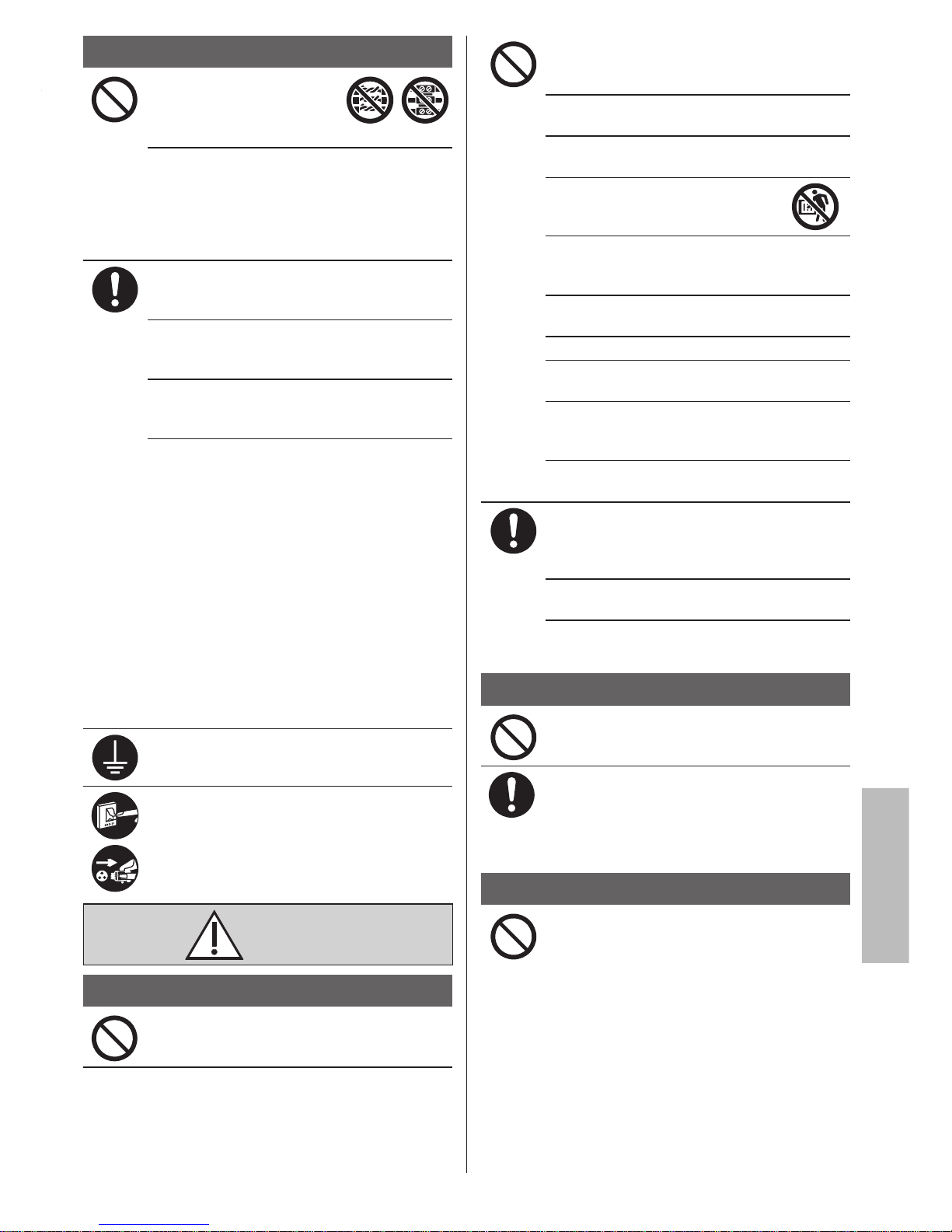

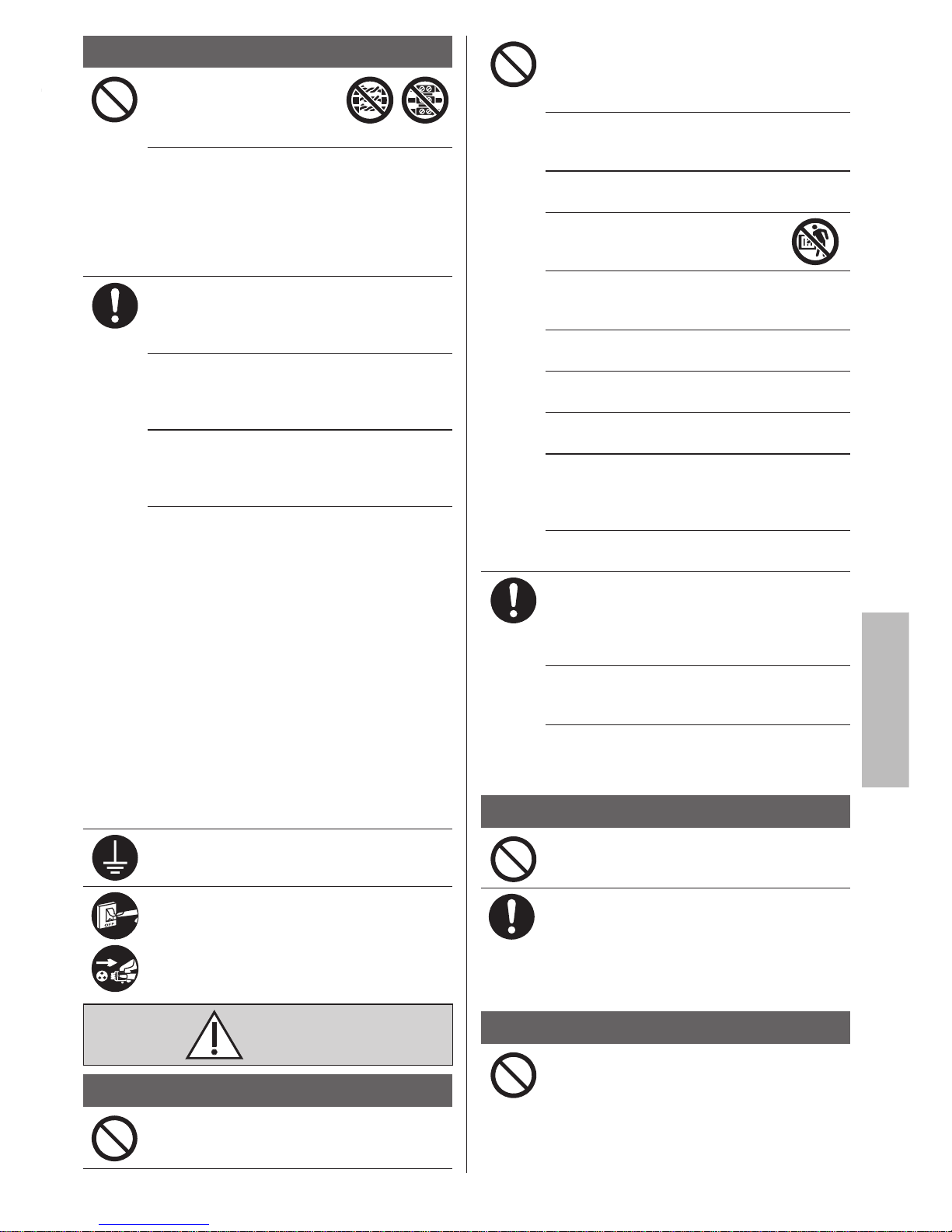

Safety precautions
Power supply
Do not use a modified cord,
joint cord, extension cord or
unspecified cord to prevent
overheating and fire.
To prevent overheating, fire or electric shock:
• Do not share the same power outlet with
other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting
or pulling out the power plug.
If the supply cord is damaged, it must be
replaced by the manufacturer, service agent
or similarly qualified persons in order to avoid
a hazard.
It is strongly recommended to be installed
with Earth Leakage Circuit Breaker (ELCB)
or Residual Current Device (RCD) to prevent
electric shock or fire.
To prevent overheating, fire or electric shock:
• Insert the power plug properly.
• Dust on the power plug should be
periodically wiped with a dry cloth.
Stop using the product if any abnormality/
failure occurs and disconnect the power plug
or turn off the power switch and breaker.
(Risk of smoke/fire/electric shock) Examples
of abnormality/failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of the unit is
observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately even if it
is switched on for operation.
• The fan does not stop even if the operation
is stopped.
Contact your local dealer immediately for
maintenance/repair.
This equipment must be earthed to prevent
electrical shock or fire.
Prevent electric shock by switching off the
power supply and unplug:
- Before cleaning or servicing,
- When extended non-use, or
- During abnormally strong lightning activity.
CAUTION
Indoor unit and outdoor unit
Do not wash the indoor unit with water,
benzine, thinner or scouring powder to avoid
damage or corrosion at the unit.
Do not use for preservation of precise
equipment, food, animals, plants, artwork
or other objects. This may cause quality
deterioration, etc.
Do not use any combustible equipment
in front of the airflow outlet to avoid fire
propagation.
Do not expose plants or pet directly to airflow
to avoid injury, etc.
Do not touch the sharp aluminium
fin, sharp parts may cause injury.
Do not switch ON the indoor unit when waxing
the floor. After waxing, aerate the room
properly before operating the unit.
Do not install the unit in oily and smoky areas
to prevent damage to the unit.
Do not dismantle the unit for cleaning purpose
to avoid injury.
Do not step onto an unstable bench when
cleaning the unit to avoid injury.
Do not place a vase or water container on the
unit. Water may enter the unit and degrade
the insulation. This may cause an electric
shock.
Do not open window or door for long time
during COOL/DRY mode operation.
Prevent water leakage by ensuring drainage
pipe is:
- Connected properly,
- Kept clear of gutters and containers, or
- Not immersed in water
After a long period of use or use with any
combustible equipment, aerate the room
regularly.
After a long period of use, make sure the
installation rack does not deteriorate to
prevent the unit from falling down.
Remote control
Do not use rechargeable (Ni-Cd) batteries. It
may damage the remote control.
To prevent malfunction or damage of the
remote control:
• Remove the batteries if the unit is not going
to be used for a long period of time.
• New batteries of the same type must be
inserted following the polarity stated.
Power supply
Do not disconnect the plug by pulling the cord
to prevent electric shock.

6
POWERFUL
How to use
Auto OFF/ON button
AUTO
OFF/ON
Use when remote control is misplaced or a malfunction occurs. Raise the front panel:
• To use in AUTO mode, press the button once.
• To use in COOL mode, press and hold the button until 1 beep is heard, then
release.
• To use in HEAT mode, press and hold the button until 1 beep is heard, then
release. And press again until 2 beeps, then release.
• Press the button again to turn off.
To optimise energy saving
ECONAVI
MODE
To select operation mode
AUTO - For your convenience
HEAT - To enjoy warm air
COOL- To enjoy cool air
DRY - To dehumidify the environment
SLEEP
To maximise comfort while
sleeping
(CANCEL)
• This operation provides you with a comfortable
environment while sleeping. It will automatically
adjust the sleep pattern temperature during the
activation period.
• The indoor unit indicator will dim when this
operation is activated. This is not applicable
if the indicator brightness has been manually
dimmed.
• This operation is incorporated with the
activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9
hours).
• This operation can be set together with timer.
Sleep operation has the priority over OFF timer.
• This operation can be cancelled by pressing
the respective button when the sleep timer
reaches 0.0h.
To switch between
powerful & quiet
(Remote control display)
POWERFUL QUIET
(NORMAL)
POWERFUL: To reach temperature quickly
POWERFUL
• This operation stops automatically after 15
minutes.
QUIET: To enjoy quiet operation
• This operation reduces airflow noise.
Sunlight sensor
and remote
control receiver
AIR CONDITIONER
TIMER
SLEEP
MODE
ON SET
CANCEL
OFF
FAN SPEED
OFF/ON
TEMP
AIR SWING
A
IR C
O
NDITI
O
NE
R
TIMER
ON
S
ET
C
AN
C
E
L
O
FF
O
FF/O
N
TEMP
Remote control
display
Press and hold for
approximately
10 seconds to show
temperature setting in
°C or °F.
Press and hold for
approximately
5 seconds to show
12-hour (am/pm) or
24-hour time indication.
Press to restore the
remote control to
default setting.
Not used in normal
operations.
Human activity
sensor
Indicator
POWER
TIMER
POWERFUL
nanoe-G
ECONAVI
(Green)
(Orange)
(Orange)
(Blue)
(Green)

7
English
See "To learn more..." for details.

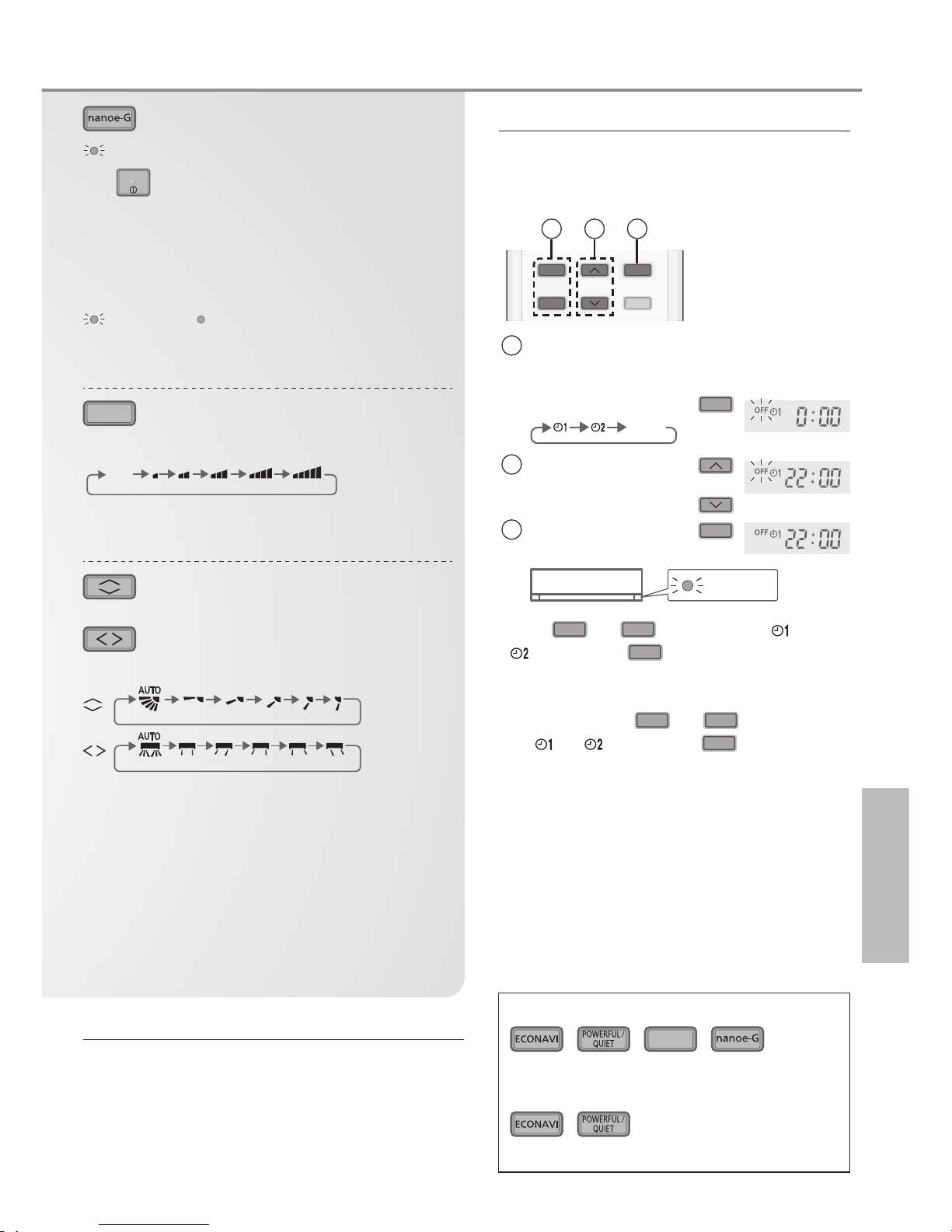

How to use
To purify the air
nanoe-G
• nanoe-G starts automatically when the unit is
turned on with
OFF/ON
.
• Can be activated even when the unit is turned
off. In this condition, the unit will operate as a fan
with AUTO fan speed and flap swing.
To deactivate viruses/bacteria on the filter
nanoe-G
POWER
• After the unit is turned off, the nanoe-G in-filter
deactivation may activate up to 150 minutes.
Turning on the unit cancels this operation.
FAN SPEED
To select fan speed
(Remote control display)
AUTO
FAN
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
AIR SWING
To adjust airflow direction
(Remote control display)
• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the flap
swings left/right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal
flap is fixed at the predetermined position.
The vertical flap swings left/right after the
temperature rises.
• Do not adjust the flap by hand.
Note
, ,
SLEEP
,
• Can be activated in all modes and can be
cancelled by pressing the respective button
again.
,
• Cannot be selected at the same time.
Auto Restart Control
• If power is resumed after a power failure, the
operation will restart automatically after a period
of time with previous operation mode and airflow
direction.
• This control is not applicable when TIMER is set.
To set the timer
2 sets of ON and OFF timers are available
to turn ON or OFF the unit at different preset
times.
TIMER
ON SET
CANCEL
OFF
C
AN
C
E
L
1 2 3
1Select ON or OFF
timer
Example:
OFF at 22:00
• Each time pressed:
OFF
Cancel
2Set the time
3Confirm
SET
TIMER
• To cancel ON or OFF timer, press
ON
or
OFF
to select respective or then press
CANCEL
.
• If timer is cancelled manually or due to power
failure, you can restore the timer again by
pressing
ON
or
OFF
to select respective
or then press
SET
.
• The nearest timer setting will be displayed and
will activate in sequence.
• When ON Timer is set, the unit may start
earlier (up to 15 minutes) before the actual
set time in order to achieve the desired
temperature on time.
• Timer operation is based on the clock set in
the remote control and repeats daily once set.
For clock setting, please refer to Quick guide.

8

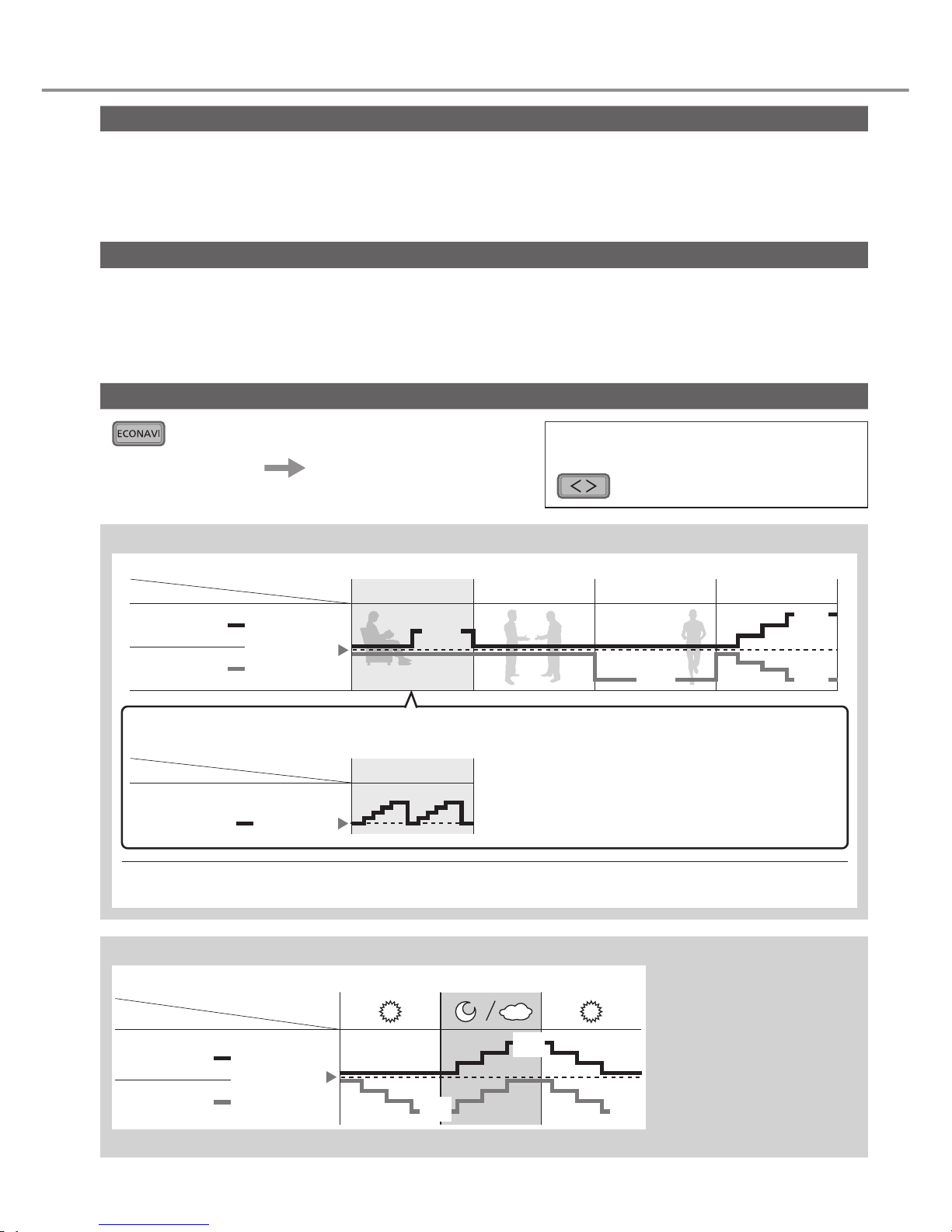

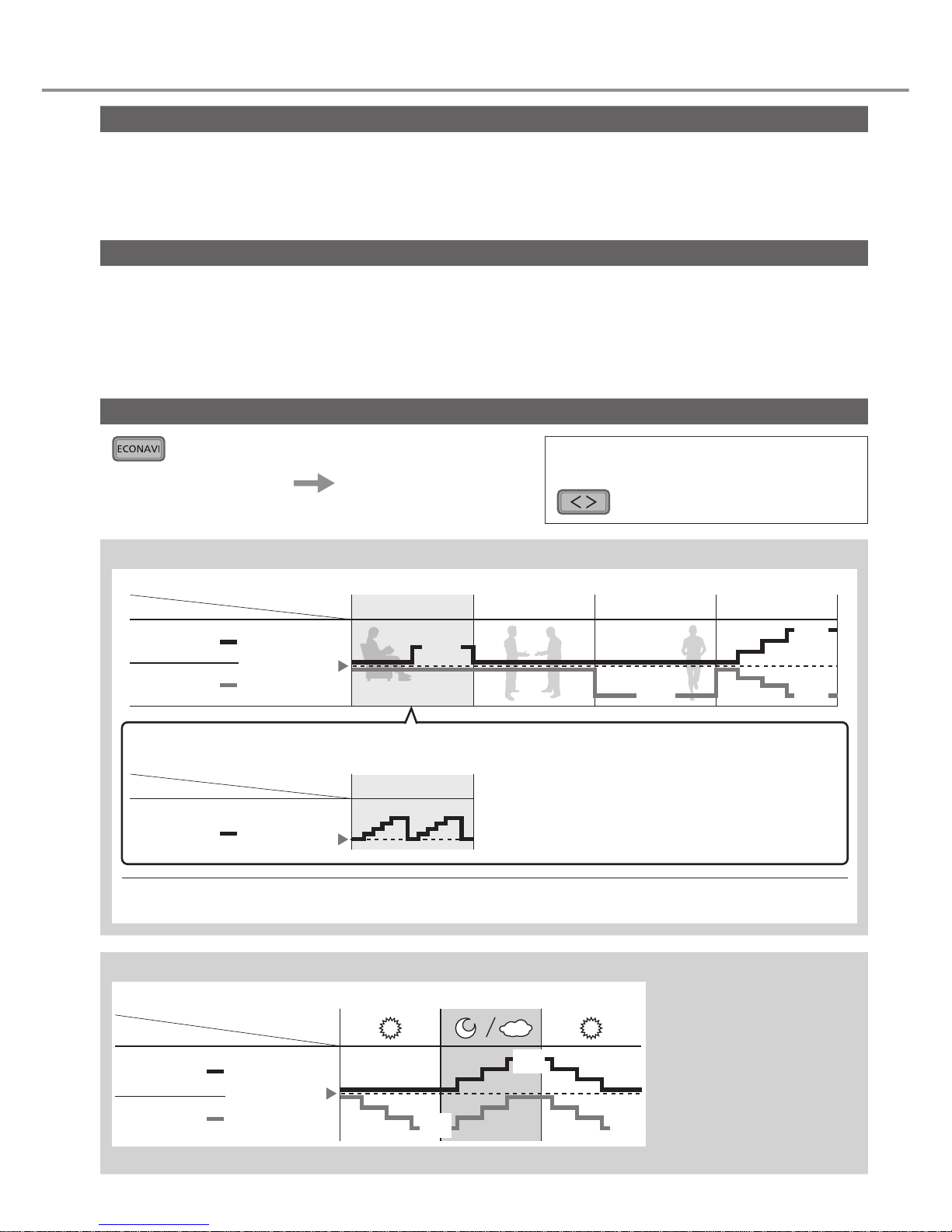

To learn more...
Operation mode
AUTO : During operation mode selection the POWER indicator blinks.
• Unit selects operation mode every 10 minutes according to setting temperature and room temperature.
HEAT : Unit takes a while to warm up. The POWER indicator blinks at the initial stage of this operation.
COOL: Provides efficient comfort cooling to suit your needs.
DRY : Unit operates at low fan speed to give a gentle cooling operation.
nanoe-G in-filter deactivation
Depending on the unit’s accumulated operation time, nanoe-G in-filter deactivation may activate only once a day after
the unit turned off.
To remove the moisture left in the internal parts, the fan will operate for 30 minutes with flap opened slightly. This
process only applicable when the unit is operated in COOL/DRY mode before turned off. Then, nanoe-G deactivates
viruses/bacteria on the filter for 2 hours with fan stopped and flap closed.
Do not turn off the power supply during this operation. After power failure, this operation will not resume.
ECONAVI
Note
AIR SWING
When manual AIR SWING is selected,
the ECONAVI operations will be
cancelled.
The unit will start to initialise
(for approximately 1 minute)
The human activity sensor
and the sunlight sensor will
start to detect.
Human activity sensor operation
Low activity Normal activity
Human
Mode
Set
temperature
High activity Absent
ECONAVI ; Detecting human presence and activity, the unit controls room temperature to save energy.
HEAT
COOL/DRY
* During low activity, fan speed 1 tap up for first 15 minutes or until set temperature is reached.
** During human absence, maximum fan speed for COOL/DRY mode is medium fan.
Low activity
Human
Mode
Precise control of temperature during low activity to maximise energy saving.
Set
temperature
COOL/DRY
ECONAVI
+2°C /
+4°F
+1°C /
+2°F
-2°C /
-4°F
-2°C /
-4°F
ECONAVI take advantage of the human nature that
human being takes time to feel the temperature rise
during low activity level; the unit adjusts temperature
to maximise energy saving without sacrificing the
comfort.
Sunlight Sensor operation
Set
temperature
HEAT
COOL/DRY
ECONAVI ; Detecting sunlight intensity, the unit adjust temperature to save energy.
Ambient condition
Mode
+1°C /
+2°F
-1°C /
-2°F
-1°C /
-2°F
ECONAVI is activated,
the unit maintains set
temperature until a high
sunlight intensity is detected.
The sunlight sensor detects
sunlight intensity during
weather or day/night
changes, and the unit adjusts
temperature.
• In a room without window or with thick curtain, the sunlight sensor will judge as cloudy/night.

9
English To learn more...

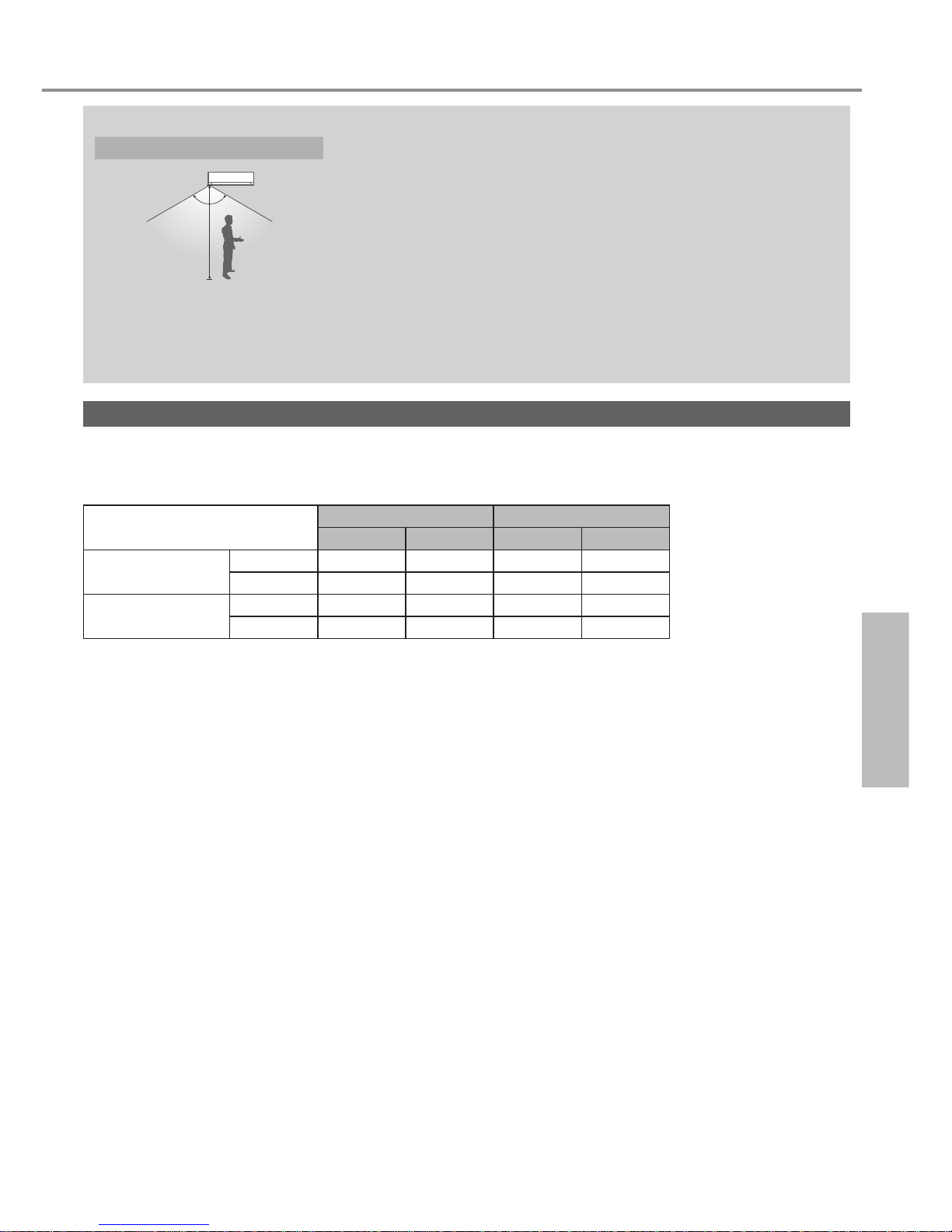

The human activity sensor will also scan for area of heat source and movement in a room.
Detection area
• Based on area activeness horizontal airflow direction will adjust either fix
at predetermined position or swing left/right periodically.
• The human activity sensor performance is influenced by indoor unit
location, movement speed, temperature range, etc.
120º
7m
• The human activity sensor may:
- mistakenly detect an object with heat source & movement similar to human, such as pets, etc.
- mistakenly detect as non-heat source & movement if a human stays motionless for certain period of time.
• Do not place large objects near the sensor and keep away heating units or humidifier from the sensor’s detection
area. They may cause sensor malfunction.
Operation conditions
Use this air conditioner under the following temperature range.
DBT : Dry bulb temperature
WBT : Wet bulb temperature
Temperature
°C (°F)
Indoor Outdoor
DBT WBT DBT WBT
COOL Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8)
Min. 16 (60.8) 11 (51.8) 16 (60.8) 11 (51.8)
HEAT Max. 30 (86.0) - 24 (75.2) 18 (64.4)
Min. 16 (60.8) - -5 (23.0) -6 (21.2)

10
Cleaning instructions
POWERFUL
To ensure optimal performance of the unit,
cleaning has to be carried out at regular
intervals. Dirty unit may cause malfunction
and you may see nanoe-G indicator blinks or
error code “H99”. Please consult authorised
dealer.
• Switch off the power supply and unplug before
cleaning.
• Do not touch the aluminium fin, sharp parts may
cause injury.
• Do not use benzine, thinner or scouring powder.
• Use only soap ( pH 7) or neutral household
detergent.
• Do not use water hotter than 40 °C / 104 °F.
nanoe-G Generator
Once every 2 weeks
• Clean with dry cotton bud.
• Do not touch during operation.
Air filters
Once every 2 weeks
• Wash/rinse the filters gently
with water to avoid damage to
the filter surface.
• Dry the filters thoroughly under shade, away
from fire or direct sunlight.
• Replace any damaged filters.
Remove air filter Attach air filter
Insert into the unit
For seasonal inspection after extended
non-use
• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select COOL/
HEAT operation. After 15 minutes of
operation, it is normal to have the following
temperature difference between air inlet and
air outlet vents:
COOL: ≥8 °C / 14.4 °F HEAT: ≥14 °C / 25.2 °F
For extended non-use
• Activate HEAT mode for 2~3 hours to remove
moisture left in the internal parts thoroughly to
prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.
Indoor unit
Wipe the unit gently with a soft,
dry cloth.
Human activity sensor
Do not hit or violently press or poke it with a sharp
object. This can lead to damage and malfunction.
Front panel
Wash gently and dry.
Remove the front panel
1Release the
hooks at
both ends
2Pull out and lift up
POWERFUL
Close it securely
POWERFUL
1Insert
at both
sides
2Push in
3Close down
4Press both ends and center of the front panel
Indoor unit
Aluminium fin
Front panel
Air filters nanoe-G Generator
Human activity
sensor

11
English
The following symptoms do not indicate malfunction.
Symptom Cause
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Water flowing sound during operation. • Refrigerant flow inside the unit.
The room has a peculiar odour. • This may be due to damp smell emitted by the wall, carpet,
furniture or clothing.
Airflow continues even after operation has
stopped.
• Extraction of remaining heat from the indoor unit
(maximum 30 seconds).
Indoor fan stops occasionally during automatic
fan speed setting.
• This helps to remove the surrounding odour.
Operation is delayed a few minutes after
restarting.
• The delay is a protection to the unit’s compressor.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
TIMER indicator is always on. • The timer setting repeats daily once set.
Indoor fan stops occasionally during heating
operation.
• To avoid unintended cooling effect.
POWER indicator blinks before the unit is
switched on.
• This is a preliminary step in preparation for the operation
when the ON timer has been set.
Cracking sound during operation. • Changes of temperature caused the expansion/contraction
of the unit.
Discoloration of some plastic parts. • Discoloration is subject to material types used in plastic
parts, accelerated when exposed to heat, sun light, UV
light, or environmental factor.
Dust may have collected around the front
panel, grilles and wall surrounding the unit
after extended use.
• The dust accumulation is due to air purification effect of
negative ions from nanoe-G. Remove the dust regularly
with a clean dampened cloth.
Check the following before calling for servicing.
Symptom Check
Operation in COOL/HEAT mode is not working
efficiently.
• Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. • Check if the unit has been installed at an incline.
• Close the front panel properly.
Remote control does not work.
(Display is dim or transmission signal is weak.)
• Insert the batteries correctly.
• Replace weak batteries.
The unit does not work. • Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from the
remote control.
• Make sure the receiver is not obstructed.
• Certain fluorescent lights may interfere with signal
transmitter. Please consult authorised dealer.
Troubleshooting
Cleaning instructions / Troubleshooting
NON SERVICEABLE CRITERIAS
TURN OFF POWER SUPPLY AND
UNPLUG then please consult authorised
dealer under the following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the
remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning
properly.
If the unit stops and the TIMER indicator blinks, use
the remote control to retrieve the error code.
TIMER
ON SET
CANCEL
OFF
TIMER
ON
S
ET
C
AN
C
E
L
O
FF
Press for
5 seconds
Press for
5 seconds
to quit
checking
Press until you
hear beep sound,
then write down
the error code
Turn the unit off
and reveal the
error code to
authorised dealer
21
3
4
• For certain errors, you may restart the unit for limited
operation if there are 4 beeps when operation starts.

12
提供快速製冷，最佳的舒適度，
清新的空氣及更有效的節省能源
ECONAVI + INVERTER 完善的節能技術
ECONAVI 會檢測能源通常被浪費掉的起因，並視室內狀況和活動量而定調節製冷性能。此外,
INVERTER(變頻器)會控制 ECONAVI 感應器資料而改變壓縮機的旋轉速度。這有助於增強製冷運轉，
並減少浪費冷氣。
nanoe-G 淨化空氣到最小的顆粒
壓制有害的微生物如病毒，細菌等滋長以保持空氣清新。
也會在濾塵網中消滅病毒和細菌以保持本機內部清潔。
參閲“學習更多…”以獲取詳情。

13
中文
簡易指南
1
2
3
裝入電池
1 拉出遙控器的背蓋
2 裝入 AAA 或 R03 電池
(可用大約一年)
3 把蓋關上
AIR CONDITIONER
TIMER
ON SET
CANCEL
OFF
A
IR C
O
NDITI
O
NE
R
TIMER
ON
C
AN
C
E
L
O
FF
23
1
時間設定
1 按下CLOCK(時間)
2 設定時間
3 確認
AIR CONDITIONER
TIMER
SLEEP
MODE
ON SET
CANCEL
OFF
FAN SPEED
OFF/ON
TEMP
AIR SWING
AIR C
O
NDITI
O
NE
R
TIMER
S
LEE
P
ON
S
ET
C
AN
C
E
L
O
FF
FAN
S
PEE
D
A
IR
S
WIN
G
8m
1
3
2
基本操作
1 選擇所需要的模式
DRY
AUTO HEAT
COOL
2 開始/停止操作
POWER
• 請注意 指示燈顯示在
顯示屏以啟動本機。
3 選擇所需要的溫度
• 選擇範圍:
16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F。
• 在所建議的溫度範圍內操作
本機可為您節省能源。
HEAT (製暖):
20.0 °C ~ 24.0 °C /
68 °F ~ 75 °F。
COOL(製冷):
26.0 °C ~ 28.0 °C /
79 °F ~ 82 °F。
• 持續按下 5 秒以調暗或恢
復主機的指示燈亮度。
• 在室内機遙控接收器的 8 米範圍
内使用遙控器。
本操作說明書裡的圖解僅作為說明用途,並且可能與實際產品
有所區别。若因為產品改進而發生變更,恕不另行通知。
目錄
安全措施 ..............................14-15
如何使用 ..............................16-17
學習更多… .........................18-19
清洗說明 ...................................20
故障檢修 ...................................21
信息 .......................................封底
附件
• 遙控器
• AAA 或 R03 電池 × 2
• 遙控器托架
• 用於遙控器托架的螺釘 × 2

14
安全措施
室內機
室外機
電源
遙控器
空氣吸入口
空氣吸入口
空氣吸入口
空氣吸入口
空氣吹出口
空氣吹出口
空氣吹出口
空氣吹出口
為了防止個人傷害，危害其他人或財物的損失，
請遵守以下指示:
因不遵守以下指示導致的錯誤操作將引起傷害或
損壞，其嚴重程度分類如下:
警告
此標識所示的行為有
可能導致嚴重傷害或
死亡。
注意
此標識所示的行為有
可能導致傷害或財產
損失。
要遵守的指示按下列符號分類:
此符號表示被禁止的行為。
此符號表示務必執行的行為。
警告
室内機及室外機
此裝置不適合殘疾、感應欠佳或智障，經驗
與知識不足的人士（包括兒童）使用。除非
負責其安全的監督人從旁監督或指示如何正
確使用此裝置。務必監督兒童以確保他們不
會玩弄本機。
請諮詢授權經銷商或專業人員清潔内部零
件，修理、安裝、拆卸和重新安裝本機。安
裝及處理不當將導致漏電，觸電或火災。
請向授權經銷商或專業人員確認有關任何指
定製冷劑類型之運用。使用所指定以外的製
冷劑類型會導致產品損壞，爆裂並導致傷
害等。
切勿將本機安裝在爆炸或可燃性的環境中。
否則會導致火災。
切勿把手指或其他物件插入空調器
的室内或室外機以免受到旋轉部件
傷害。
閃電時切勿觸摸室外機，否則會導致觸電。
切勿長時間受冷氣流直接吹拂以免過冷。
切勿坐或踩踏在主機上以免意外摔
跤。
遙控器
切勿讓嬰兒和小孩玩遙控器以免不小心吞下
電池。

15
中文 安全措施
電源
切勿採用改裝電線，接合
電線，延長電線或非指
定的電線，以免過熱及
火災。
為免過熱，火災或觸電:
• 切勿與其他設備共用一個電源插座。
• 切勿用潮濕的手操作。
• 切勿過度扭曲電線。
• 切勿以插入或拉出插頭的方式來操作或
停止本機。
如果電線損壞，必須由製造商、其服務代
理商或具有同等資格的合格人員進行更換
以免遭受危害。
強烈建議您安裝接地漏電電源斷路器
(ELCB) 或殘餘電流裝置 (RCD) 以免觸電
或火災。
為免過熱，火災或觸電:
• 妥當插入插頭。
• 務必定時用乾布擦掉插頭上的灰塵。
當出現任何異常/故障時，請停止使用本
機，拔出電插頭或關掉電源開關及斷路
器。
(煙霧/火災/觸電危險)異常/故障舉例
• 接地漏電電源斷路器 (ELCB) 頻繁跳
閘。
• 出現燒焦味。
• 本機出現異常噪音或振動。
• 室内機漏水。
• 電線或插頭變得異常熱。
• 無法控制風量。
• 本機立即停止運轉，雖然已經打開準備
操作。
• 雖然已經停止操作,風扇仍然不停止轉
動。
立即諮詢經銷商以進行保養/修理。
本設備必須接地以免觸電或火災。
為免觸電，請在下列情況時關閉電源並拔
出插頭:
- 清洗或維修之前，
- 長期不使用時，或
- 異常強烈閃電時。
注意
室内機及室外機
切勿用水、苯、稀釋劑或潔亮粉末清洗室
内機以免損壞或腐蝕本機。
切勿充作其他用途，如貯藏食物、動物、
植物、藝術品或其他物件。否則會破壞品
質等。
切勿在氣流出口使用任何易燃器具以免引
起火災。
切勿讓植物或寵物受冷氣流直接吹拂以免
損傷等。
切勿觸摸尖銳的鋁散熱片以免受
到尖銳部件傷害。
當在地面打蠟時切勿 ON(開啟)室内機。
打蠟完畢之後，請先讓房間良好通風再操
作本機。
切勿將本機安裝在油煙重的場所以免損壞
本機。
切勿拆卸本機來進行清洗工作以免受傷。
當清洗本機時切勿踩踏在不穩固的架子上
以免受傷。
切勿將花瓶或水容器放置在本機上。水會
進入本機而導致絕緣受到破壞。這會引起
觸電。
切勿在 COOL/DRY(製冷/除濕)模式下長
時間打開門窗。
為免漏水，請確保排水軟管:
- 連接正確，
- 不受通水道及容器阻擋，或
- 不浸在水裏
長時間使用或與其他易燃設備一起使用後
請定時讓房間通風換氣。
長期使用後，請注意安裝支架是否有損壞
以免主機墜落。
遙控器
切勿使用可充電電池 (Ni-Cd)。它會損壞
遙控器。
為免遙控器失靈或損壞:
• 如果準備長期不使用本機，務必將電池
取出。
• 務必採用同類型的新電池並對準電極插
入。
電源
切勿以抽拉電線的方式來拔除插頭以免
觸電。

16
如何使用
POWERFUL
為更有效的節省能源
ECONAVI
MODE
選擇運轉模式
AUTO(自動) - 給您方便
HEAT(製暖) - 享受暖氣
COOL(製冷) - 享受清涼
DRY(除濕) - 為您創造乾爽的環境
SLEEP
睡眠時的最佳舒適度
⎸
• 此操作為您提供一個舒適的睡眠環境。在啟動
期間，它會自動調整為睡眠模式的溫度。
• 當操作啟動時，室內機指示燈會變暗。如果指
示燈亮度已手動調暗，此功能不適用。
• 這項操作含啟動定時器(0.5，1，2，3，4，5，
6，7，8或9個小時)。
• 此操作可與定時器一同設置。睡眠模式優先于
OFF(關閉)定時器。
• 當睡眠定時器達0.0h時，可按各別相關按鈕以
取消此操作。
轉換於強勁和安靜之間
(遙控器顯示屏)
POWERFUL QUIET
(NORMAL)
POWERFUL: 迅速達到設定温度
POWERFUL
• 此運轉在 15 分鐘後自動停止。
QUIET: 享受安靜運轉
• 此功能將減低氣流噪音。
陽光感測器及
遙控接收器
AIR CONDITIONER
TIMER
SLEEP
MODE
ON SET
CANCEL
OFF
FAN SPEED
OFF/ON
TEMP
AIR SWING
A
IR C
O
NDITI
O
NE
R
TIMER
ON
S
ET
C
AN
C
E
L
O
FF
O
FF/O
N
TEMP
持續按下大約 10 秒以
在 °C 或 °F 格式中顯
示溫度。
持續按下大約 5 秒以顯
示 12 小時 (am/pm)
或 24 小時時間格式。
按下以恢復遙控器的出
廠設定。
在正常操作下不使用。
人類活動感測器 指示燈
POWER
TIMER
POWERFUL
nanoe-G
ECONAVI
(綠色)
(橙色)
(橙色)
(藍色)
(綠色)
遙控器顯示屏
自動OFF/ON(關/開)按鈕
AUTO
OFF/ON
當遙控器遺失或失靈時使用。向上提起正面板:
• 在AUTO(自動)模式使用時，按一次按鈕。
• 在COOL(製冷)模式使用時，持續按下按鈕直到聽見一聲“嗶”，然後鬆開。
• 在HEAT(製暖)模式使用時，持續按下按鈕直到聽見一聲“嗶”，然後鬆開。再次按
下按鈕直到聽見兩聲“嗶”，然後鬆開。
• 再按一次按鈕以關閉。

17
中文
參閲“學習更多…”以獲取詳情。
如何使用
以淨化空氣
nanoe-G
• 用
OFF/ON
啟動本機時 nanoe-G 功能會自動開始
操作。
• 此功能在本機關閉時依然可以啟動。在此情況
下，本機將AUTO(自動)調節風量及擺動葉片並
送風。
在濾塵網中消滅病毒/細菌
nanoe-G
POWER
• 關閉本機後，nanoe-G 濾塵網抗菌功能可能會啟
動達 150 分鐘。啟動本機取消本功能。
FAN SPEED
選擇風量
(遙控器顯示屏)
AUTO
FAN
• 至於AUTO(自動)運轉，室内風扇風量將依據運
轉模式自動調節。
AIR SWING
調節風向
(遙控器顯示屏)
• 保持室內空氣循環。
• 在COOL/DRY(製冷/除濕)模式下，如果設定為
AUTO(自動)風向時，葉片將自動向左/右及向
上/下擺動。
• 在HEAT(製暖)模式下，若AUTO(自動)模式被設
定，水平風向葉片將被固定在預先決定的位置。
溫度升高後，垂直葉片將向左/右擺動。
• 切勿用手調節葉片。
自動重新啟動控制
• 如果在電源中斷後恢復電源，在一段時間後運轉將
自動重新啟動於先前的運轉模式和風向。
• 當定時器被設置時此功能將無效。
注意
, ,
SLEEP
,
• 可以在任何模式中操作。再分別按下相關的
按鈕即可取消操作。
,
• 無法被同時選取。
設定預約時間
具有兩組ON(開機)及OFF(關機)定時預約時間
以在不同的預約時間下ON(啟動)或OFF(關閉)
主機。
TIMER
ON SET
CANCEL
OFF
C
AN
C
E
L
1 2 3
1選擇ON(開機)或
OFF(關機)模式
舉例:
在 22:00
OFF(關機)
• 每次按下時:
OFF
Cancel
2設定時間
3確認
SET
TIMER
• 按下
ON
或
OFF
以選擇相關的 或
, 然後按下
CANCEL
以取消ON(開機)或
OFF(關機)定時預約時間。
• 如果自行取消定時預約或因爲發生停電而被
取消，您可按下
ON
或
OFF
以選擇相關
的 或 ，然後按下
SET
以恢復之前
的設定。
• 最接近的定時操作設置會顯示，並且會順序
啟動。
• 當設定了定時ON(開機)時，為了在您設定的時
間內達到您所設定的溫度，空調器會在設定的
時間提前運轉(高達 15 分鐘)。
• 定時預約機能將依據遙控器所設定的時間操
作，並且一旦被設定後會每天重覆操作。至於
時鐘設定，請參閱簡易指南。

18
學習更多…
運轉模式
AUTO (自動) : 在運轉模式選擇時，POWER(電源)指示燈將閃爍。
• 本機會在每10分鐘依據設定溫度及室溫選擇運轉模式。
HEAT(製暖) : 本機需時預暖。此時POWER(電源)指示燈會閃爍。
COOL(製冷) : 提供高效舒適製冷，以滿足您的需求。
DRY(除濕) : 空調以低速運轉，進行極為柔和的製冷運轉。
nanoe-G 濾塵網抗菌功能
視本機的累積操作時間而定，在關閉主機後 nanoe-G 濾塵網抗菌功能可能會每天只啟動一次。
為排除留在内部機件的濕氣，葉片將在稍微打開的情況下操作風扇送風 30 分鐘。此流程只會在主機關閉之前操作
COOL/DRY(製冷/除濕)模式方為有效。之後，nanoe-G 將於停止風扇送風和關閉葉片的狀態下在濾塵網中消滅病毒/細
菌達 2 小時。
切勿在此功能操作中關閉電源。電源中斷後此功能操作將不恢復。
ECONAVI
注意
AIR SWING
當手動 AIR SWING 被選取時，
ECONAVI 運轉將被取消。
本機將開始預置
（約一分鐘）
人類活動感測器及陽光感測器
將開始檢測。
人類活動感測器操作
+2°C /
+4°F
+1°C /
+2°F
-2°C /
-4°F
-2°C /
-4°F
Ӱ五
⁗ᕅ
ECONAVI󱁳⑜Ӫ于Ⲵᆈ൘㠷⍫ˈᵜ₏ሷ䃯䀓ᇔⓛԕㇰⴱ㜭ⓀDŽ
ք⍱ ↙ᑮ⍱ 儎⍱ 㕰ᑣ
COOL/DRY
㼭ߧ䲔★
HEAT
㼭᳆
䁝ᇊⓛᓖ
ECONAVI࡙⭘Ӫ于൘վ⍫䟿ᱲ䴰㙇ᱲᝏⓛᓖк
Ⲵཙᙗˈᵜ₏ᴳ൘нᖡ丯㡂䚙Ⲵᛵ⋱л䃯ㇰⓛᓖԕᴤᴹ
᭸ൠㇰⴱ㜭ⓀDŽ
COOL/DRY
㼭ߧ䲔★ 䁝ᇊⓛᓖ
ք⍱
Ӱ五
⁗ᕅ
ECONAVI
൘վ⍫ᱲ㋮⻪ൠ᧗ࡦⓛᓖԕᴤᴹ᭸ൠㇰⴱ㜭ⓀDŽ
* ൘վ⍫ᱲˈ付䟿ᴳ൘俆15࠶䩈ка㍊ᡆⴤ㠣䚄ࡠ䁝ᇊⲴⓛᓖDŽ
** Ӫ于н൘๤ᱲˈCOOL/DRY 㼭ߧ  䲔★  ⁑ᔿⲴᴰ儈付䟿⛪ѝ䙏付䟿DŽ
陽光感測器操作
+1°C /
+2°F
-1°C /
-2°F
-1°C /
-2°F
ECONAVI󱁳⑜䲭ݹᕧᓖDŽᵜ₏ሷ䃯ㇰⓛᓖԕㇰⴱ㜭ⓀDŽ
ઞൃ᛻⋷
⁗ᕅ
COOL/DRY
㼭ߧ䲔★
HEAT
㼭᳆
䁝ᇊⓛᓖ
ECONAVI 被啟動，本機會保
持設定的溫度直至檢測到高陽
光強度。陽光感測器會在天氣
或日/夜變化過程中檢測到陽
光強度，本機從而調節溫度。
• 在無窗戶或使用厚窗簾的房間，陽光感測器將判斷為多雲/夜晚。

19
中文 學習更多…
人類活動感測器也可掃描房間的熱源與動作範圍。
檢測範圍
• 基於範圍的活動量，水平風向將被固定在預先決定的位置或按時左/右擺
動。
• 人類活動感測器的性能取決於室内機的位置，移動速度，溫度等。
120º
7m
• 人類活動感應器或許會:
- 誤把類似人類熱源及移動的物體，例如寵物等當作是人。
- 誤將在一定時間內保持不動的人類判斷為無熱源或動作。
• 切勿放置任何大型物件於感測器附近，並且別放置製暖器或潮濕器於感測器的感測範圍内。否則會導致感測器故
障。
操作條件
在以下溫度範圍內使用空調器。
DBT : 乾球溫度
WBT : 濕球溫度
溫度
°C (°F)
室内 室外
DBT WBT DBT WBT
COOL(製冷) 最高 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8)
最低 16 (60.8) 11 (51.8) 16 (60.8) 11 (51.8)
HEAT(製暖) 最高 30 (86.0) - 24 (75.2) 18 (64.4)
最低 16 (60.8) - -5 (23.0) -6 (21.2)

20
清洗說明
為了確保本機發揮最佳性能，您必須進行定期清
洗。本機變髒會導致故障並出現 nanoe-G 指示燈
閃爍或 “H99” 錯誤代碼。請諮詢授權經銷商。
• 進行清洗前，關掉電源並拔出插頭。
• 切勿觸摸鋁片，尖銳部分會造成傷害。
• 切勿使用苯、稀釋劑或潔亮粉末。
• 僅使用肥皂 ( pH 7) 或中性家用清潔劑。
• 切勿使用溫度高過 40 °C / 104 °F 的水。
nanoe-G 產生器
每 2 星期一次
• 使用乾棉花棒清洗。
• 運轉時切勿觸摸。
空氣濾塵網
每 2 星期一次
• 用水輕輕清洗/冲洗濾塵網以免損
壞濾塵網的表層。
• 在陰凉處徹底弄乾濾塵網，遠離
火源或直射陽光。
• 請更換損壞的濾塵網。
取出空氣濾塵網 安裝空氣濾塵網
裝入主機
至於長期不使用時的換季檢查
• 檢查遙控器的電池。
• 確保室內機或室外機的空氣吸入或吹出口順
暢無阻。
• 用自動OFF/ON(關/開)按鈕來選擇COOL/
HEAT(製冷/製暖)運轉。 運轉 15 分鐘後，
在正常情況下，室內機空氣吸入及吹出口的
溫差為:
COOL(製冷): ≥8 °C / 14.4 °F
HEAT(製暖): ≥14 °C / 25.2 °F
長期不使用時
• 啟動HEAT(製暖)模式 2 至 3 小時是徹底排
除留在内部機件的濕氣，以防止微菌滋生。
• 關閉電源並拔出插頭。
• 取出遙控器的電池。
室內機
使用乾、軟的布輕抹。
人類活動感測器
切勿用尖銳物件敲打或強烈地按或刺室内機。否則
會導致損壞及故障。
正面板
輕洗並弄乾。
取出正面板
1釋放兩端的
掛鉤
POWERFUL
2拉出和提起
確實關上
POWERFUL
1裝入於
兩側
2推進
3關閉
4按正面板的兩端和中央
室內機
POWERFUL
鋁片
正面板
空氣濾塵網 nanoe-G 產生器
人類活動感
測器
