1 Features 2
2 Functions 3
3 Product Specifications 6
4 Dimensions 10
5 Refrigeration Cycle Diagram 12
6 Block Diagram 13
7 Wiring Diagram 14
8 Operation Details 15
9 Operating Instructions 24
10 Installation Instructions 29
© 2002 Matsushita Industrial Corp. Sdn. Bhd.
(11969-T). All rights reserved. Unauthorized copying
and distribution is a violation of law.
CS-C9CKPG CU-C9CKP6G
CS-C12CKPG CU-C12CKP6G
11 2-way, 3-way Valve 39
12 Servicing Information 46
13 Troubleshooting Guide 50
14 Technical Data 52
15 Exploded View 54
16 Replacement Parts List 55
17 Exploded View 56
18 Replacement Parts List 57
19 Electronic Circuit Diagram 58
Room Air Conditioner
CONTENTS
Page Page
Order No. MAC0210069C1
E25

• High Efficiency
• Compact Design
• Comfort Environment
− Air filter with function to reduce dust and smoke
− Wider range of horizontal discharge air
• Auto Restart
− Random auto restart after power failure for safety restart
operation
• Removable and Washable Front Panel
• Remote Control Self-illuminating Button
• Air Purifying Filter
− Trap dust, tobacco smoke and tiny particles
− Prevent the growth of bacteria and viruses trapped
• Solar Refreshing Deodorizing Filter
− Remove unpleasant odour from the air
• Quality Improvement
− Gas leakage protection
− Prevent compressor reverse cycle
− OLP to protect compressor
− Noise prevention during soft dry operation
− Blue Coated Condenser
− High resistance to corrosion.
• Operation Improvement
− Quiet mode to provide extra quiet operation
− Powerful mode to reach the desired room temperature
quickly
− Economy mode to reduce electrical power consumption
• Long Installation Piping
− CS/CU-C9CK, long piping up to 10 meter
− CS/CU-C12CK, long piping up to 15 meter
• 24-hour Timer Setting
1 Features
2
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

2 Functions
Remote Control
Operation OFF / ON
OFF / ON IRoom Temperature Setting
TEMP.
Operation Mode Selection
•AUTO Automatic Operation Mode
•COOL Cooling Operation Mode
•DRY Soft Dry Operation Mode
•FAN Air Circulation Mode
MODE
TIME Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Economy Operation OFF / ON
Indoor Fan Speed Selection
FAN SPEED
•FAN Low Fan Speed
•FAN Medium Fan Speed
•FAN High Fan Speed
•AUTO Automatic Fan Speed
FAN
Vertical Airflow Direction Control
• 24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER Timer Operation Selection
SET
CANCEL Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
CLOCK
AIR SWING
•AUTO Automatic Vertical Airflow
Direction Control
•MANUAL Vertical Airflow Direction
Manual Control (5 stages of
adjustment)
Powerful Mode Operation OFF/ON
POWERFUL
Quiet Mode Operation OFF/ON
QUIET
Cooling, Soft Dry, Air Circulation Operation.
• Temperature Setting (16°C to 30°C)
Automatic Operation
•Operation with 2°C higher than
standard temperature.
• Operation with standard temperature.
•Operation with 2°C lower than
standard temperature.
Self illuminating
button
ECONOMY
3
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Indoor Unit
Economy Operation
•To reduce electrical power consumption.
Indoor Fan Speed Control
•High, Medium and Low.
•Automatic Fan Speed Mode
–Cooling : Fan rotates at Hi, Me and SLo
speed. Deodorizing control is
available.
–Soft Dry : Fan rotates at Lo- speed.
Deodorizing control is
available.
•Automatic air swing and manual adjusted
by remote control for vertical airflow.
•Manually adjusted by hand for horizontal
airflow.
Airflow Direction Control
Automatic Operation Button
•Press for < 5s to operate Automatic
operation mode.
(Used when the remote control cannot be used.)
•Press continuously for 5s or < 10s to
operate Test Run/Pump down. “Beep”
sound will be heard at the 5th second.
(Used when test running or servicing.)
•Press continuously for 10s and above to
omit or resume the remote control signal
receiving sound. “Beep, beep”sound will
be heard at the 10th second.
AUTO
OFF / ON
Operation Indication Lamps (LED)
• POWER (Green) ......... Lights up in operation,
blinks in Automatic
Operation Mode judging.
• QUIET (Orange) ......... Lights up in Quiet Mode
Operation.
• TIMER (Orange) ......... Lights up in Timer
Setting.
• POWERFUL (Orange) ... Lights up in Powerful
Mode Operation.
• ECONOMY (Green) ...... Lights up in Economy
Mode Operation.
Operation Mode
•Cooling, Soft Dry, Air Circulation and
Automatic Mode.
Powerful Operation
•Reaches the desired room temperature
quickly.
Time Delay Safety Control
•Restarting is inhibited for appro. 3
minutes.
Starting Current Control
Quiet Operation
•To provide extra quiet operation.
7 Minutes Time Save Control
•Cooling Operation only.
•Fan motor is delayed for 1.6 seconds when
compressor starts simultaneously.
Random Auto Restart Control
•Operation is restarted randomly after power
failure at previous setting mode.
Anti-Freezing Control
•Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
4
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Outdoor Unit
•To protect compressor from reverse
rotation when there is a instantaneous
power failure.
60 Secs. Forced Operation Control
•Once the compressor is activated, it
does not stop within the first 60 secs.
However, it stops immediately with
remote control stop signal.
Overload Protector
•OLP to protect the compressor. Overload
Protector will trip when
–High temperature or high current flows
to compressor.
Compressor Reverse Rotation
Protection Control
Outdoor Fan Operation Control
•Temperature Fuse.
5
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

3 Product Specifications
Unit CS-C9CK CU-C9CK
Power Source Phase, Voltage, Cycle Single, 115, 60 Hz
Cooling Capacity kW (BTU/h) (1) 2.58 (8,800)
(2) 2.60 (8,800)
Moisture Removal l/h (Pint/h) 0.8 (1.7)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) 6.1 (220) —
Indoor Air (Me) m3/min (cfm) 7.2 (250) —
Indoor Air (Hi) m3/min (cfm) 8.9 (310) 33.8 (1,190)
Indoor Air (SHi) m3/min (cfm) 9.8 (340) —
Noise Level dB (A) High 36, Low 26 High 49
Power level dB — —
Electrical Data Input Power W(1) 790
(2) 800
Running Current A(1) 7.2
(2) 7.3
EER W/W (BTU/hW) (1) 3.265 (11.10)
(2) 3.25 (11.00)
Starting Current A42.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 3/8”
L ; Half Union 1/4”
G ; 3-way valve 3/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m— —
Number of core-wire — —
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) 20 (9.0) 64 (29.0)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W—600
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W55.1 78.0
Rated Output W15 30
Fan Speed Low rpm 780 —
Medium rpm 920 —
High rpm 1,140 845
SuperHigh rpm 1,250 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 1×20
FPI 19 16
Size (W × H × L) mm 610 × 315 × 25.4 841 × 508 × 22
Refrigerant Control Device —Capillary Tube
6
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Unit CS-C9CK CU-C9CK
Refrigeration Oil (cm3)
—
SUNISO 4GDID or ATMOS
M60 (290)
Refrigerant (R-22) g (oz) —790 (27.9)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —870
Flow Rate l/min —12.0
Inner Diameter mm —1.6
Air Filter Material
Style
P.P.
Honeycomb
—
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —35 µF, 370VAC
Fan Motor Capacitor µF, VAC 5.0 µF, 230VAC 8.0 µF, 230VAC
Note:
• Specifications are subject to change without notice for further improvement.
• (1) —CS-C9CKPG-4 / CU-C9CKP6G-4 (USA).
• (2) —CS-C9CKPG-5 / CU-C9CKP6G-5 (Canada).
7
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Unit CS-C12CK CU-C12CK
Power Source Phase, Voltage, Cycle Single, 115, 60 Hz
Cooling Capacity kW (BTU/h) 3.60 (12,300)
Moisture Removal l/h (Pint/h) 1.4 (3.0)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) 6.9 (240) —
Indoor Air (Me) m3/min (cfm) 8.3 (290) —
Indoor Air (Hi) m3/min (cfm) 9.7 (340) 31.1 (1,100)
Indoor Air (SHi) m3/min (cfm) 10.0 (350) —
Noise Level dB (A) High 39, Low 29 High 49
Power level dB — —
Electrical Data Input Power kW (1) 1.16
(2) 1.15
Running Current A(1) 10.3
(2) 10.2
EER W/W (BTU/hW) (1) 3.100 (10.60)
(2) 3.10 (10.65)
Starting Current A57.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m— —
Number of core-wire — —
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) 20 (9.0) 73 (33.0)
Compressor Type —Rotary (1 cylinder) rolling
piston type
Motor Type —Induction (2-poles)
Rated Output kW —0.85
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W55.1 78.0
Rated Output W15 30
Fan Speed Low rpm 900 —
Medium rpm 1,080 —
High rpm 1,260 850
SuperHigh rpm 1,300 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 2×24
FPI 21 16
Size (W ×H×L) mm 610 ×315 ×25.4 744.2
723.5
×504 ×25.4
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (cm3)—SUNISO 4GDID or ATMOS
M60 (350)
8
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Unit CS-C12CK CU-C12CK
Refrigerant (R-22) g (oz) —970 (34.2)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —583
Flow Rate l/min —16
Inner Diameter mm —1.7
Air Filter Material
Style
P.P.
Honeycomb
—
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —50 µF, 370VAC
Fan Motor Capacitor µF, VAC 5.0 µF, 230VAC 8.0 µF, 230VAC
Note:
• Specifications are subject to change without notice for further improvement.
• (1) —CS-C12CKPG-4 / CU-C12CKP6G-4 (USA).
• (2) —CS-C12CKPG-5 / CU-C12CKP6G-5 (Canada).
9
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

4 Dimensions
10
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

11
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

5 Refrigeration Cycle Diagram
12
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

6 Block Diagram
13
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

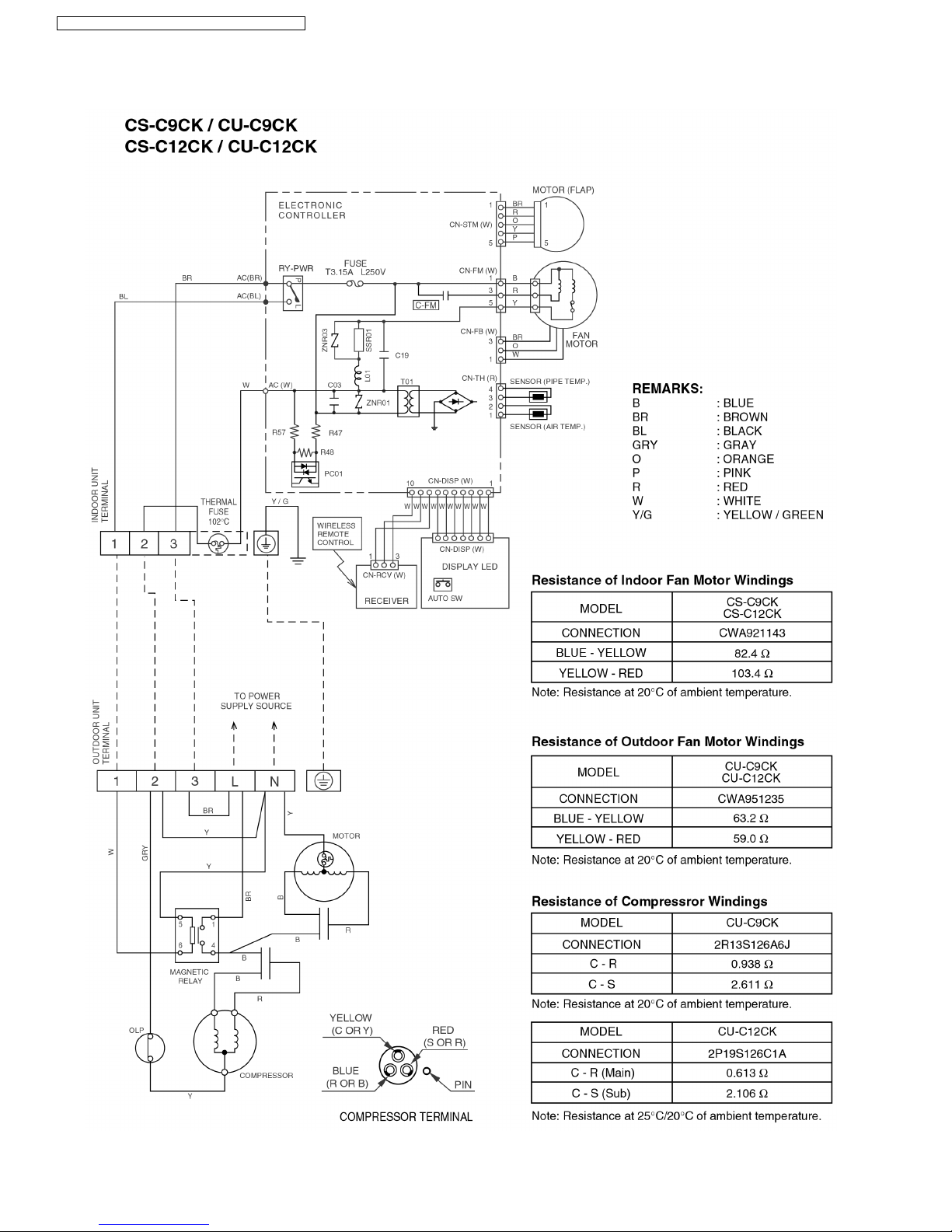

7 Wiring Diagram
14
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Cooling in operation according to Remote Control setting.
Time Delay Safety Control (3 minutes)
7 minutes Time Save Control
Starting Current Control
Anti-Freezing Control
• If the temperature of the indoor heat exchanger falls
continuously below 2°C for 4 minutes or more, the
compressor turns off to protect the indoor heat exchanger
from freezing. The fan speed setting remains the same.
• Compressor will restart again when the indoor heat
exchanger temperature rises to 10°C (Recovery).
3 minutes waiting of Time Delay Safety Control is valid for
Cooling Operation.
Compressor Reverse Rotation Protection Control
8 Operation Details
8.1. Cooling Mode Operation
• When the compressor is stopped by Remote Control, it restarts after 3 minutes when the Remote Control is turned ON.
• When the setting temperature is reached during cooling operation, the compressor stops and it will not start for 3 minutes.
• The compressor will start automatically if it has stopped for 7 minutes even if the room temperature is between the compressor
ON temperature and OFF temperature.
• When the compressor outdoor fan motor and indoor fan motor are simultaneously started, the indoor fan motor will operate 1.6
second later.
• If the compressor is operating continuously for 5 minutes or longer and the temperature difference between intake air and
indoor heat exchanger is 2.5°C or less for 2 minutes, compressor will stop and restart automatically.
(Time Delay Safety Control is valid)
▲T = Intake air temperature - Indoor heat exchanger temperature
This is to protect reverse rotation of the compressor when there is a instantaneous power failure.
15
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Automatic Fan Speed Mode
Cooling Operation Time Diagram
When Automatic Fan Speed is selected at Remote Control during cooling operation.
• Fan speed rotates in the range of Hi to Me.
• Deodorizing Control.
16
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Quiet Operation Control
(For Cooling Mode or cooling region of Soft Dry Mode)
• Purpose of this operation is to provide quite cooling operation compare to normal operation.
• When the Quiet Mode is set at the remote control, Quiet Mode LED illuminates, the sound level will be automatically decreased
2 dB (Lo), decreased 3 dB (Hi, Me), against the present sound level operation.
• Quiet setting of fan speed rpm refer to Indoor Fan Speed Control.
• Dew formation become severe at Quiet Lo cool, therefore Quiet Lo cool is operated only 1h 30 min (1h QLo, 30 min QLo + 50).
After that, it goes back to Lo cool (However Quiet LED remains on).
• Manual Airflow Direction:-
− RPM control during Lo cool
− RPM control during Hi & Me cool
• Auto Airflow Direction:-
• Quiet Mode Operation will stop if:-
− Quiet mode button is pressed again.
− Stopped by ON/OFF switch.
− Timer OFF activates.
− Powerful mode button is pressed.
− When change mode to Air Circulation mode.
17
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Time Delay Safety Control
Starting Current Control
Anti-Freezing Control
Compressor Reverse Rotation Protection Control
Automatic Fan Speed Mode
8.2. Soft Dry Mode Operation
• The unit starts cooling operation until the room temperature reaches the setting temperature set on the Remote Control, and
then Soft Dry operation will start.
• During Soft Dry operation, the Indoor Fan will operate at Lo- speed.
• The operation will be switched on and off for up to 10 minutes “ON”and 6 minutes “OFF”. Once Soft Dry operation is turned
off, it stops for 6 minutes.
• Once the compressor stops, it will not start for 3 minutes during Cooling operation.
• Same as Starting Current Control for Cooling Mode operation.
• Same as Anti-Freezing Control for Cooling Mode operation. (For Soft Dry region, 6 minutes waiting is valid during compressor
stops.)
• Same as Compressor Reverse Rotation Protection Control for Cooling Mode Operation. (For Soft Dry region, 6 minutes waiting
is valid during compressor stops.)
When Automatic Fan Speed is selected at Remote Control during Soft Dry operation.
• Fan speed off and on at Lo- speed.
• Deodorizing Control.
18
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Soft Dry Operation Time Diagram
Quiet Operation Control
(For Dry region of Soft Dry Mode)
19
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G

Air Circulation Mode Operation Time Diagram
Standard for Determining Operation Mode
8.3. Air Circulation Mode Operation
• When the temperature near the ceiling reaches the setting temperature, Air Circulation Mode operation commences at low
airflow volume. It stops when the temperature drops to 2°C below the setting temperature.
8.4. Automatic Mode Operation
• Indoor fan operates at SLo fan speed for 20 seconds.
• After judging indoor air temperature, the operation mode is determined and operation continued at the mode determined.
• After the operation mode has been determined, the mode does not change. However, Soft Dry mode operation includes
Cooling mode operation.
• Room temperature adjustment.
The following are added to the setting temperature specified as above.
• The mode judging temperature and standard setting temperature can be increased by 2°C, by open the circuit of JX1 at indoor
electronic controller.
20
CS-C9CKPG CU-C9CKP6G / CS-C12CKPG CU-C12CKP6G
