Panasonic CU-C7BKP6 User manual

1 Features 2
2 Functions 3
3 Product Specifications 6
4 Dimensions 16
5 Refrigeration Cycle Diagram 18
6 Block Diagram 19
7 Wiring Diagram 20
8 Operation Details 21
9 Operating Instructions 29
10 Installation Instructions 34
© 2001 Matsushita Air-Conditioning Corp. Sdn. Bhd.
(183914D). All rights reserved. Unauthorized copying
and distribution is a violation of law.
CS-C7BKP CU-C7BKP5
CS-C7BKP CU-C7BKP6
CS-C9BKP CU-C9BKP5
CS-C9BKP CU-C9BKP6
CS-C12BKP CU-C12BKP5
CS-C12BKP CU-C12BKP6
11 2-way, 3-way Valve 45
12 Servicing Information 58
13 Troubleshooting Guide 62
14 Technical Data 64
15 Exploded View 68
16 Replacement Parts List 69
17 Exploded View 71
18 Replacement Parts List 72
19 Electronic Parts List 75
20 Electronic Circuit Diagram 76
Room Air Conditioner
CONTENTS
Page Page
Order No. MAC0107024C0
E25

• High Efficiency
• Compact Design
• Comfort Environment
− 8 hours of sleep mode operation
− Air filter with function to reduce dust and smoke
− Wider range of horizontal discharge air
• Auto Restart
− Random auto restart after power failure for safety restart
operation
• Removable and Washable Front Panel
• Remote Control Self-illuminating Button
• Catechin Air Purifying Filter
− Trap dust, tobacco smoke and tiny particles
− Prevent the growth of bacteria and viruses trapped
• Solar Refreshing Deodorizing Filter
− Remove unpleasant odour from the air
• Quality Improvement
− Gas leakage protection
− Prevent compressor reverse cycle
− 2-stage OLP to protect compressor
− Noise prevention during soft dry operation
− Anti-dew Formation Control (Cooling & Soft Dry)
− Blue Coated Condenser (Gold Coated Condenser for
Panama only)
− High resistance to corrosion.
• Operation Improvement
− Economy mode to reduce electrical power consumption
− Powerful mode to reach the desired room temperature
quickly
• Long Installation Piping
− CS/CU-C7BK, CS/CU-C9BK, long piping up to 10 meter
− CS/CU-C12BK, long piping up to 15 meter
• 24-hour Timer Setting
1 Features
2
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

2 Functions
Remote Control
Operation OFF / ON
OFF / ON I
Room Temperature Setting
TEMP.
Operation Mode Selection
•AUTO Automatic Operation Mode
•COOL Cooling Operation Mode
•DRY Soft Dry Operation Mode
•FAN Air Circulation Mode
MODE
TIME
Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Sleep Mode Operation OFF / ON
SLEEP
Indoor Fan Speed Selection
FAN SPEED
•FAN Low Fan Speed
•FAN Medium Fan Speed
•FAN High Fan Speed
•AUTO Automatic Fan Speed
FAN
Vertical Airflow Direction Control
• 24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER
Timer Operation Selection
SET
CANCEL
Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
CLOCK
AIR SWING
•AUTO Automatic Vertical Airflow
Direction Control
•MANUAL Vertical Airflow Direction
Manual Control (5 stages of
adjustment)
Powerful Mode Operation OFF/ON
POWERFUL
Economy Mode Operation OFF/ON
ECONOMY
Cooling, Soft Dry, Air Circulation Operation.
• Temperature Setting (16°C to 30°C)
Automatic Operation
•Operation with 2°C higher than
standard temperature.
• Operation with standard temperature.
•Operation with 2°C lower than
standard temperature.
Self illuminating
button
3
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Indoor Unit
Random Auto Restart Control
• Operation is restarted randomly after
power failure at previous setting mode.
Anti-Freezing Control
• Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
Sleep Mode Auto Control
• Indoor Fan operates at Low speed.
• Operation stops after 8 hours.
Indoor Fan Speed Control
• High, Medium and Low.
• Automatic Fan Speed Mode
– Cooling : Fan rotates at Hi, Me and
SLo speed. Deodorizing
control is available.
– Soft Dry: Fan rotates at SLo speed.
Deodorizing control
is available.
• Automatic air swing and manual adjusted
by remote control for vertical airflow.
•
Manually adjusted by hand for horizontal airflow.
Airflow Direction Control
Automatic Operation Button
• Press for < 5s to operate Automatic
operation mode.
(Used when the remote control cannot be used.)
• Press continuously for 5s or < 10s to
operate Test Run/Pump down. “Beep”
sound will be heard at the 5th second.
(Used when test running or servicing.)
• Press continuously for 10s and above to
omit or resume the remote control signal
receiving sound. “Beep, beep” sound will
be heard at the 10th second.
AUTO
OFF / ON
Operation Indication Lamps (LED)
•POWER (Green) ........ Lights up in operation,
blinks in Automatic
Operation Mode
judging.
•SLEEP (Orange) ........ Lights up in Sleep
Mode Operation.
•TIMER (Orange) ....... Lights up in Timer
Setting.
•POWERFUL (Orange) .. Lights up in Powerful
Mode Operation.
•ECONOMY (Green) ..... Lights up in Economy
Mode Operation.
Operation Mode
• Cooling, Soft Dry, Air Circulation and
Automatic Mode.
Powerful Operation
• Reaches the desired room temperature
quickly.
Time Delay Safety Control
• Restarting is inhibited for appro. 3 minutes.
Starting Current Control
Economy Operation
• To reduce electrical power consumption.
7 Minutes Time Save Control
• Cooling Operation only.
Anti-Dew Formation Control
• Anti-Dew Formation Control for indoor
unit discharge area.
• Fan motor is delayed for 1.6 seconds
when compressor starts simultaneously.
4
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Outdoor Unit
• To protect compressor from reverse
rotation when there is a instantaneous
power failure.
60 Secs. Forced Operation Control
• Once the compressor is activated, it
does not stop within the first 60 secs.
However, it stops immediately with
remote control stop signal.
Overload Protector
• 2-Stage OLP to protect the compressor.
Overload Protector will trip when
– Temperature of compressor increases
to 120°C.
– High temperature or high current flows
to compressor.
(Refer circuit diagram for OLP
characteristic)
Compressor Reverse Rotation
Protection Control
Outdoor Fan Operation Control
•Temperature Fuse.
5
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

3 Product Specifications
Unit CS-C7BK CU-C7BK
Power Source Phase, Voltage, Cycle (1) Single, 220 - 230, 50 Hz
(3) Single, 220 - 240, 50 Hz
Cooling Capacity kW (kcal/h) (1) 2.00 - 2.10 (1,720 - 1,800)
kW (BTU/h) (3) 2.00 - 2.05 (6,820 - 6,990)
Moisture Removal l/h (Pint/h) 1.3 (2.7)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) 6.4 (230) - 6.4 (230) —
Indoor Air (Me) m3/min (cfm) 7.4 (260) - 7.4 (260) —
Indoor Air (Hi) m3/min (cfm) 8.5 (300) - 8.5 (300) —
Indoor Air (SHi) m3/min (cfm) 9.4 (330) - 9.4 (330) —
Noise Level dB (A) High 33 - 33, Low 26 - 26 High 46 - 47
Power level dB High 45 - 45 High 61 - 62
Electrical Data Input Power W (1) 550 - 600
(3) 580 - 640
Running Current A (1) 2.7 - 2.7
(3) 2.7 - 2.8
EER W/W (kcal/hW) (1) 3.64 - 3.50 (3.13 - 3.00)
WW (BTU/hW) (3) 3.45 - 3.20 (11.8 - 10.9)
Starting Current A 11.8
Piping Connection Port
(Flare piping) inch inch G ; Half Union 3/8” L ; Half Union 1/4” G ; 3-way valve 3/8” L ; 2-way valve 1/4”
Pipe Size
(Flare piping) inch inch G ; (gas side) 3/8” L ; (liquid side) 1/4” G ; (gas side) 3/8” L ; (liquid side) 1/4”
Drain
Hose Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire 3 (1.0 mm2) —
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) 20 (9.0) 62 (28)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W — 500
6
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Note:
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W 44.8 - 53.5 52.0 - 59.0
Rate Output W 15 30
Fan Speed Low rpm 780 - 780 —
Medium rpm 900 - 900 —
High rpm 1,030 - 1,030 820 - 830
SuperHigh rpm 1,140 - 1,140 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 1×20
FPI 19 17
Size (W × H × L) mm 610 × 315 × 25.4 841 × 508 × 22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (cm3) — SUNISO 4GDID or ATMOS
M60 (260)
Refrigerant (R-22) g (oz) — 685 (24.2)
Thermostat Electronic Control —
Protection Device — 2 Stage Overload Protector
Capillary Tube Length mm — 655
Flow Rate l/min — 9.5
Inner Diameter mm — 1.4
Air Filter Material
Style P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC — 25 µF, 370VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 2.0 µF, 450VAC
• Specifications are subject to change without notice for further improvement.
• (1) — CS-C7BKP/CU-C7BKP5 (Europe).
• (3) — CS-C7BKP-2/CU-C7BKP5-2 (Oceania).
7
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

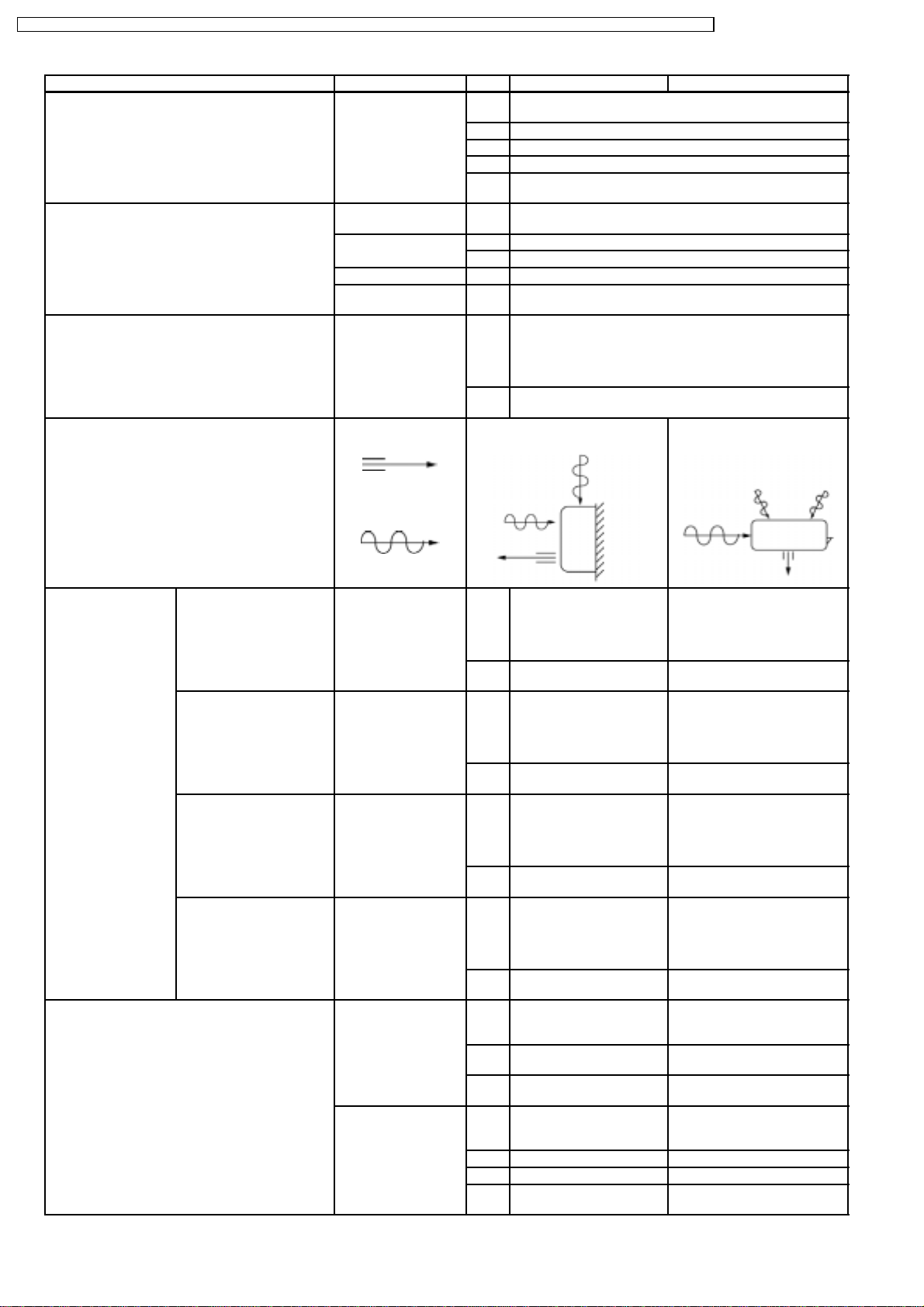

Unit CS-C9BK CU-C9BK
Power Source Phase, Voltage, Cycle (1)
(7) Single, 220 - 230, 50 Hz
(2) Single, 220, 60 Hz
(3) Single, 220 - 240, 50 Hz
(4) Single, 220, 50 Hz
(5)
(6) Single, 230 - 208, 60 Hz
Cooling Capacity kW (kcal/h) (1)
(7) 2.65 - 2.75 (2,280 - 2,360)
kW (BTU/h) (2) 2.65 (9,000)
(3) 2.65 - 2.70 (9,040 - 9,200)
kW (kcal/h) (4) 2.65 (2,280)
kW (BTU/h) (5)
(6) 2.56 - 2.52 (8,760 - 8,600)
Moisture Removal l/h (Pint/h) (1)
(2)
(3)
(4)
(7)
1.6 (3.4)
(5)
(6) 0.4 (0.8)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) (1)
(3)
(5)
(6)
(7)
6.8 (240) - 6.8 (240) —
(2)
(4) 6.8 (240) —
Indoor Air (Me) m3/min (cfm) (1)
(3)
(5)
(6)
(7)
8.0 (280) - 8.0 (280) —
(2)
(4) 8.0 (280) —
Indoor Air (Hi) m3/min (cfm) (1)
(3)
(5)
(6)
(7)
9.9 (350) - 9.9 (350) —
(2)
(4) 9.9 (350) —
Indoor Air (SHi) m3/min (cfm) (1)
(3)
(5)
(6)
(7)
10.9 (380) - 10.9 (380) —
(2)
(4) 10.9 (380) —
8
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Noise Level dB (A) (1)
(3)
(7) High 36 - 36, Low 26 - 26 High 46 - 47
(2) High 36, Low 26 High 48
(4) High 36, Low 26 High 46
(5)
(6) High 36 - 36, Low 26 - 26 High 49 - 48
Power level dB (1)
(3)
(7) High 49 - 49 High 61 - 62
(2) High 49 High 63
(4) High 49 High 61
(5)
(6) High 49 - 49 High 64 - 63
Electrical Data Input Power W (1)
(7) 740 - 785
(2) 750
(3) 780 - 820
(4) 740
(5)
(6) 780 - 760
Running Current A (1)
(3)
(7) 3.6 - 3.5
(2) 3.7
(4) 3.6
(5)
(6) 3.7 - 3.9
EER W/W (kcal/hW) (1)
(7) 3.58 - 3.50 (3.08 - 3.00)
W/W (BTU/hW) (2) 3.53 (12.0)
(3) 3.40 - 3.29 (11.6 - 11.2)
W/W (kcal/hW) (4) 3.58 (3.08)
W/W (BTU/hW) (5)
(6) 3.28 - 3.32 (11.2 - 11.3)
Starting Current A (1)
(3)
(4)
(7)
16.4
(2)
(5)
(6) 23.0
Piping Connection Port
(Flare piping) inch inch G ; Half Union 3/8” L ; Half Union 1/4” G ; 3-way valve 3/8” L ; 2-way valve 1/4”
Pipe Size
(Flare piping) inch inch G ; (gas side) 3/8” L ; (liquid side) 1/4” G ; (gas side) 3/8” L ; (liquid side) 1/4”
Drain
Hose Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire (1)
(2)
(3)
(5)
(6)
(7)
3 (1.0 mm2) —
(4) 3 (1.5 mm2) —
9
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) (1)
(3)
(4)
(7)
20 (9.0) 71 (31.0)
(2)
(5)
(6) 20 (9.0) 62 (28.0)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W (1)
(3)
(4)
(7)
—700
(2)
(5)
(6) —600
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W (1)
(3)
(4)
(7)
44.8 - 53.5 52.0 - 59.0
(2)
(5)
(6) 44.8 - 53.5 72.4 - 78.9
Rated Output W 15 30
Fan Speed Low rpm (1)
(3)
(5)
(6)
(7)
780 - 780 —
(2)
(4) 780 —
Medium rpm (1)
(3)
(5)
(6)
(7)
920 - 920 —
(2)
(4) 920 —
High rpm (1)
(3)
(5)
(6)
(7)
1,140 - 1,140 820 - 830
(2)
(4) 1,140 820
SuperHigh rpm (1)
(3)
(5)
(6)
(7)
1,250 - 1,250 —
(2)
(4) 1,250 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue/Gold Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 1×20
FPI 19 17
Size (W × H × L) mm 610 × 315 × 25.4 841 × 508 × 22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (cm3) (1)
(3)
(4)
(7)
— SUNISO 4GDID or ATMOS
M60 (320)
(2)
(5)
(6) —SUNISO 4GDID or ATMOS
M60 (290)
10
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Note:
Refrigerant (R-22) g (oz) (1)
(3)
(4)
(7)
—815 (28.7)
(2)
(5)
(6) —890 (31.4)
Thermostat Electronic Control —
Protection Device — 2 Stage Overload Protector
Capillary Tube Length mm — 720
Flow Rate l/min — 11.0
Inner Diameter mm — 1.5
Air Filter Material
Style P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC (1)
(3)
(4)
(7)
—30 µF, 370VAC
(2)
(5)
(6) —15 µF, 370VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 2.0 µF, 450VAC
• Specifications are subject to change without notice for further improvement.
• (1) — CS-C9BKP/CU-C9BKP5 (Europe).
• (2) — CS-C9BKP-1/CU-C9BKP6-1 (Panama).
• (3) — CS-C9BKP-2/CU-C9BKP5-2 (Oceania).
• (4) — CS-C9BKP-3/CU-C9BKP5-3 (Argentina).
• (5) — CS-C9BKP-4/CU-C9BKP6-4 (USA).
• (6) — CS-C9BKP-5/CU-C9BKP6-5 (Canada).
• (7) — CS-C9BKP-6/CU-C9BKP5-6 (Turkey).
11
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Unit CS-C12BK CU-C12BK
Power Source Phase, Voltage, Cycle (1)
(7) Single, 220 - 230, 50 Hz
(2) Single, 220, 60 Hz
(3) Single, 220 - 240, 50 Hz
(4) Single, 220, 50 Hz
(5)
(6) Single, 230 - 208, 60 Hz
Cooling Capacity kW (kcal/h) (1)
(7) 3.52 - 3.65 (3,030 - 3,140)
kW (BTU/h) (2) 3.56 (12,100)
(3) 3.52 - 3.57 (12,000 - 12,170)
kW (kcal/h) (4) 3.52 (3,030)
kW (BTU/h) (5)
(6) 3.51 - 3.48 (12,000 - 11,900)
Moisture Removal l/h (Pint/h) (1)
(2)
(3)
(4)
(7)
2.1 (4.4)
(5)
(6) 0.7 (1.5)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) (1)
(3)
(5)
(6)
(7)
7.3 (260) - 7.3 (260) —
(2)
(4) 7.3 (260) —
Indoor Air (Me) m3/min (cfm) (1)
(3)
(5)
(6)
(7)
8.7 (310) - 8.7 (310) —
(2)
(4) 8.7 (310) —
Indoor Air (Hi) m3/min (cfm) (1)
(3)
(5)
(6)
(7)
10.2 (360) - 10.2 (360) —
(2)
(4) 10.2 (360) —
Indoor Air (SHi) m3/min (cfm) (1)
(3)
(5)
(6)
(7)
10.5 (370) - 10.5 (370) —
(2)
(4) 10.5 (370) —
Noise Level dB (A) (1)
(3)
(7) High 39 - 39, Low 29 - 29 High 48 - 49
(2)
(4) High 39, Low 29 High 48
(5)
(6) High 39 - 39, Low 29 - 29 High 49 - 48
Power level dB (1)
(3)
(7) High 52 - 52 High 62 - 63
(2) High 52 High 63
(4) High 52 High 62
(5)
(6) High 52 - 52 High 64 - 63
12
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Electrical Data Input Power kW (1)
(7) 1.05 - 1.10
(2) 1.11
(3) 1.10 - 1.15
(4) 1.05
(5)
(6) 1.18 - 1.16
Running Current A (1)
(7) 5.1 - 5.0
(2) 5.3
(3) 5.1 - 4.9
(4) 5.1
(5)
(6) 5.2 - 5.7
EER W/W (kcal/hW) (1)
(7) 3.35 - 3.32 (2.89 - 2.85)
W/W (BTU/hW) (2) 3.21 (10.9)
(3) 3.20 - 3.10 (10.9 - 10.6)
W/W (kcal/hW) (4) 3.35 (2.89)
W/W (BTU/hW) (5)
(6) 2.97 - 3.00 (10.2 - 10.3)
Starting Current A (1)
(3)
(4)
(7)
16.9
(2)
(5)
(6) 33.0
Piping Connection Port
(Flare piping) inch inch G ; Half Union 1/2” L ; Half Union 1/4” G ; 3-way valve 1/2” L ; 2-way valve 1/4”
Pipe Size
(Flare piping) inch inch G ; (gas side) 1/2” L ; (liquid side) 1/4” G ; (gas side) 1/2” L ; (liquid side) 1/4”
Drain
Hose Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire (1)
(2)
(3)
(5)
(6)
(7)
3 (1.0 mm2) —
(4) 3 (1.5 mm2) —
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) (1)
(3)
(4)
(7)
20 (9.0) 77 (35.0)
(2)
(5)
(6) 20 (9.0) 73 (33.0)
Compressor Type —Rotary (1 cylinder) rolling
piston type
Motor Type —Induction (2-poles)
Rated Output kW (1)
(3)
(4)
(7)
— 1.10
(2)
(5)
(6) — 0.85
13
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W (1)
(3)
(4)
(7)
44.8 - 53.5 63.7 - 71.8
(2)
(5)
(6) 44.8 - 53.5 72.4 - 78.9
Rated Output W 15 35
Fan Speed Low rpm (1)
(3)
(5)
(6)
(7)
900 - 900 —
(2)
(4) 900 —
Medium rpm (1)
(3)
(5)
(6)
(7)
1,080 - 1,080 —
(2)
(4) 1,080 —
High rpm (1)
(3)
(5)
(6)
(7)
1,260 - 1,260 830 - 840
(2)
(4) 1,260 830
SuperHigh rpm (1)
(3)
(5)
(6)
(7)
1,300 - 1,300 —
(2)
(4) 1,300 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue/Gold Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
(2) 2×15 1×20
(1)
(3)
(4)
(7)
2×15 2×24
FPI 21 17
Size (W × H × L) mm (2) 610 × 315 × 25.4 841 × 508 × 22
(1)
(3)
(4)
(7)
610 × 315 × 25.4 723.5
744.2 ×504×22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (cm3) (1)
(3)
(4)
(7)
—SUNISO 4GSI (410)
(2)
(5)
(6) —SUNISO 4GDID or ATMOS
M60 (350)
Refrigerant (R-22) g (oz) (1)
(3)
(4)
(7)
—950 (33.5)
(2)
(5)
(6) —780 (27.5)
Thermostat Electronic Control —
14
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Note:
Protection Device — 2 Stage Overload Protector
Capillary Tube Length mm — 605
Flow Rate l/min — 15.7
Inner Diameter mm — 1.7
Air Filter Material
Style P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC — 30 µF, 370VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 2.0 µF, 450VAC
• Specifications are subject to change without notice for further improvement.
• (1) — CS-C12BKP/CU-C12BKP5 (Europe).
• (2) — CS-C12BKP-1/CU-C12BKP6-1 (Panama).
• (3) — CS-C12BKP-2/CU-C12BKP5-2 (Oceania).
• (4) — CS-C12BKP-3/CU-C12BKP5-3 (Argentina).
• (5) — CS-C12BKP-4/CU-C12BKP6-4 (USA).
• (6) — CS-C12BKP-5/CU-C12BKP6-5 (Canada).
• (7) — CS-C12BKP-6/CU-C12BKP5-6 (Turkey).
15
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

4 Dimensions
16
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

17
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

5 Refrigeration Cycle Diagram
18
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

6 Block Diagram
19
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

REMARKS
B : BLUE
BR :BROWN
BL : BLACK
GRY :GRAY
O : ORANGE
P : PINK
R : RED
W: WHITE
Y/G : YELLOW/GREEN
Power Supply Cord Destination
• Europe
• Panama
• Oceania
• Turkey
• Argentina
• USA
• Canada
Resistance of Indoor Fan Motor Windings
MODEL CS-C7BK
CS-C9BK
CS-C12BK
CONNECTION CWA921060
BLUE-YELLOW 371.0 Ω
YELLOW-RED 386.6 Ω
Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-C7BK
CU-C9BK CU-C12BK
CONNECTION CWA951088 CWA951089
BLUE-YELLOW 217.3 Ω195.9 Ω
YELLOW-RED 198.5 Ω206.6 Ω
MODEL CU-C9BK
CU-C12BK
CONNECTION CWA951128
BLUE-YELLOW 210.7 Ω
YELLOW-RED 196.5 Ω
Note: Resistance at 20°C of ambient temperature.
Resistance of Compressor Windings
MODEL CU-C7BK
CONNECTION 2RS110D5DA04
C-R 5.382 Ω
C-S 5.328 Ω
Note: Resistance at 20°C of ambient temperature.
MODEL CU-C9BK
CONNECTION 2PS146D3AA04 2R13C236BSC
C-R 3.941 Ω3.298 Ω
C-S 3.499 Ω5.500 Ω
Note: Resistance at 20°C of ambient temperature.
MODEL CU-C12BK
CONNECTION QJ208PAA 2P19S236A1L
C-R(Main) 3.31 Ω2.237 Ω
C-S(Sub) 4.72 Ω2.710 Ω
Note: Resistance at 25°C/20°C of ambient temperature.
7 Wiring Diagram
20
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6
