Panasonic CU-LZ25TKE User manual

Dansk Suomi Norsk Svenska English
Model No.
Indoor Unit Outdoor Unit
CS-LZ25TKE
CS-LZ35TKE
CU-LZ25TKE
CU-LZ35TKE
Operating Instructions
Air Conditioner
Operating Instructions
Air Conditioner
2-15
Before operating the unit, please read these operating
instructions thoroughly and keep them for future reference.
The included Installation Instructions should be kept and
read by the installer before installation.
Remote control is packaged in the indoor unit and
removed by the installer before installation.
Bruksanvisning
Luftkonditionering
16-29
Innan du använder enheten, läs noga igenom denna
bruksanvisning och spara den för framtida bruk.
De medföljande installationsanvisningarna ska sparas och
läsas av installatören före installationen.
Fjärrkontrollen finns i inomhusenheten och tas bort av
installatören före installationen.
Bruksanvisninger
Klimaanlegg
30-43
Les bruksanvisningen nøye før du bruker denne
enheten, og oppbevar den for fremtidig bruk.
Installatøren bør oppbevare og lese de medfølgende
installasjonsinstruksene før installasjon. Fjernkontrollen
skal pakkes inn i innendørsenheten og fjernes av
installatøren før installasjon.
Käyttöohjeet
Ilmastointilaite
44-57
Lue nämä käyttöohjeet huolellisesti ennen yksikön
käyttämistä ja säilytä ne tulevaisuutta varten.
Sisällytetyt asennusohjeet tulee pitää ja lukea asentajan
toimesta ennen asennusta.
Kaukosäädin on pakattu sisätilayksikköön ja poistetaan
asentajan toimesta ennen asennusta.
Betjeningsvejledning
Klimaanlæg
58-71
Læs brugsanvisningen grundigt igennem før du
benytter anlægget og gem den til fremtidig brug.
De inkluderede installationsinstruktioner skal opbevares og
læses af montøren før installationen.
Fjernbetjeningen er pakket i den indendørs enhed og
fjernet af montøren inden installationen.
ACXF55-11470

2
Provides maximum comfort and clean air
with optimal energy saving methods.
Quick Guide
Inserting the batteries
12
3
1Pull out the back cover
of remote control.
2
Insert AAA or R03
batteries.
3Close the cover.
AClock setting
1Press and
set the
time .
• Press and hold
for approximately
5 seconds to show
time in 12-hour
(am/pm) or 24 hour
indication.
2Confirm
SET
.
Use remote
control within 8 m
from the remote
control receiver of
the indoor unit.
AIR CONDITIONER
ON
OFF
SET

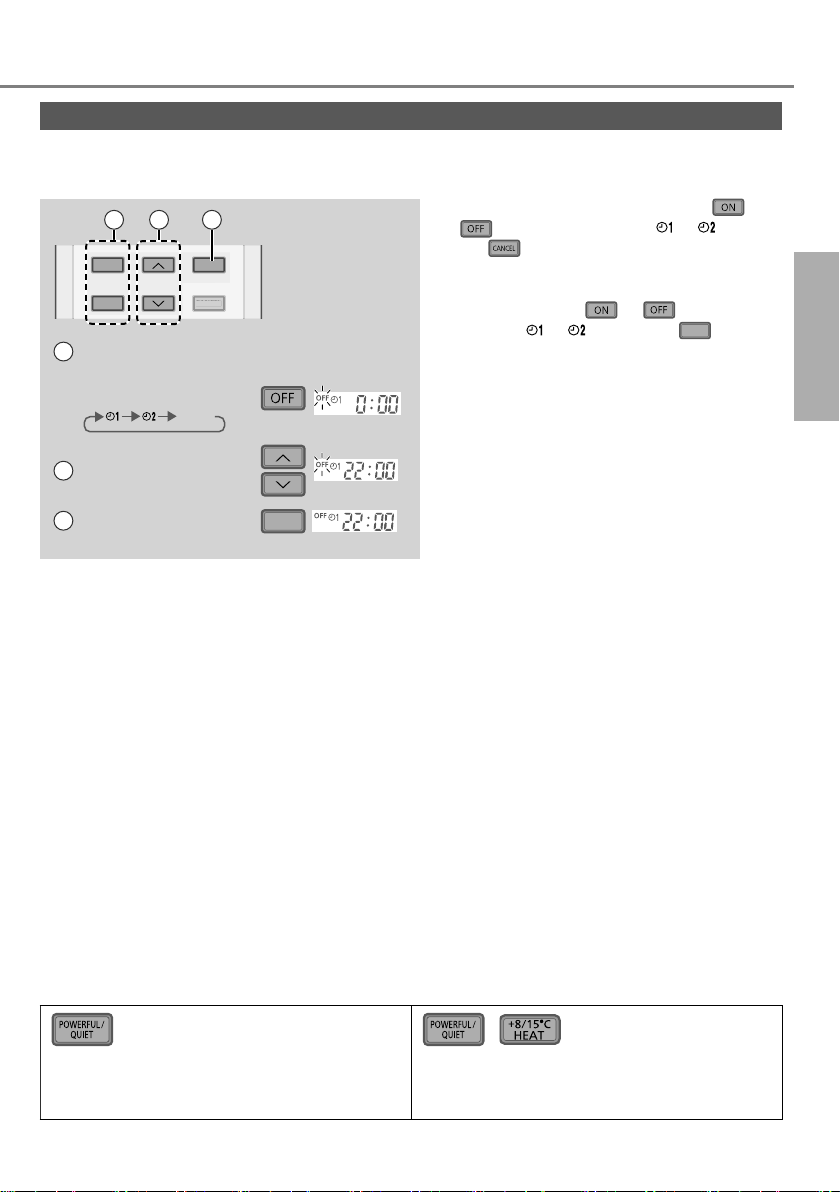

TIMER
CANCEL
TEMP
FAN SPEED
i
f
SET
TEMP
2
control receiver of
the indoor unit
.
AIR SWING
AIR SWING
OFF/ON
MODE
AIR CONDITIONER
ON
OFF
TIMER
CANCEL
FAN SPEED
AIR SWING
AIR SWING
AIR SWING
AIR SWING
A
B

3
English
Table of contents
Safety precautions ……………… 4-7
How to use
………………………… 8-9
To learn more...
…………………… 10

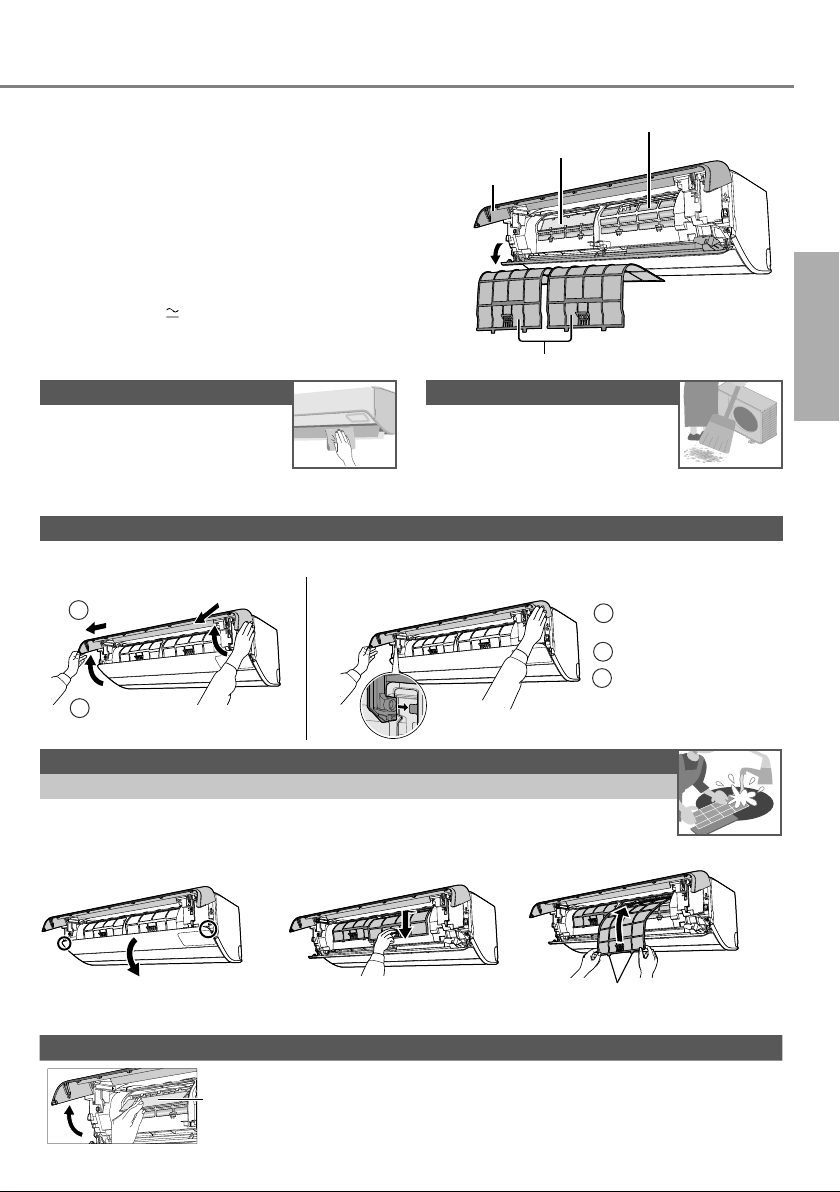

Cleaning instructions
…………… 11

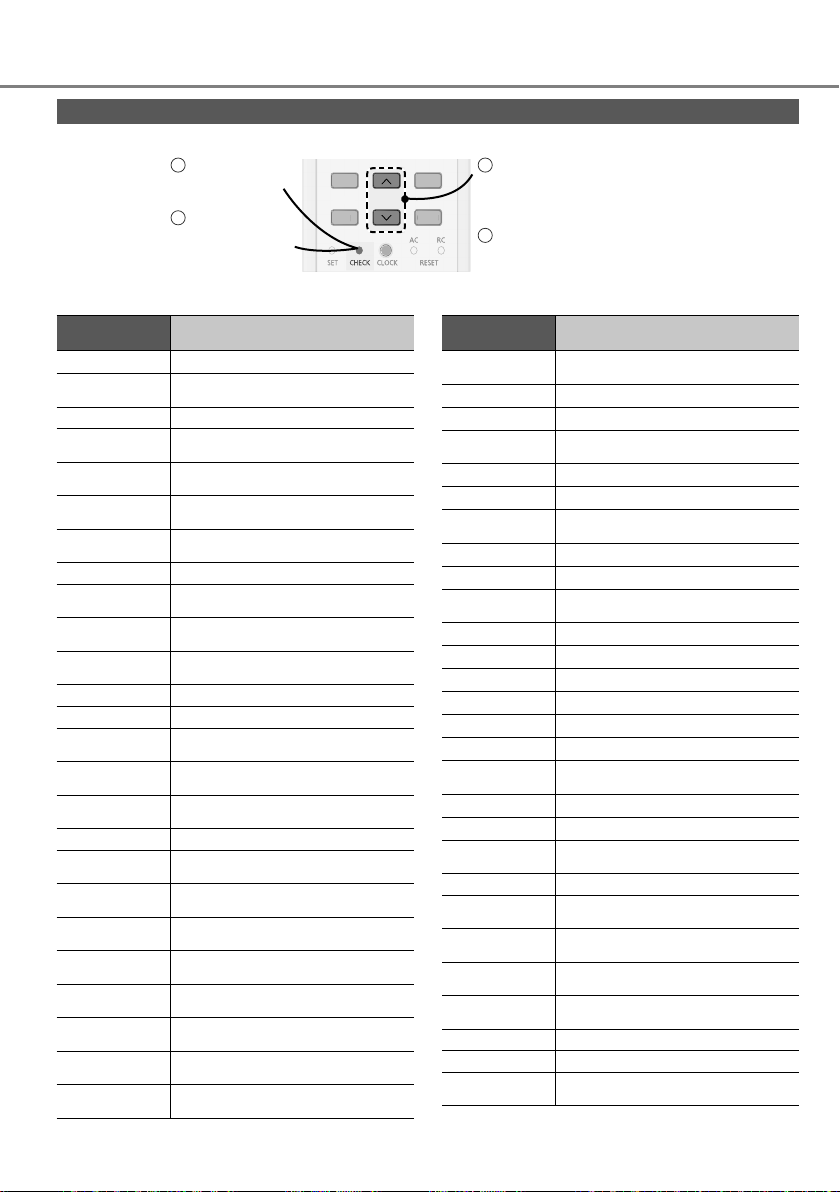

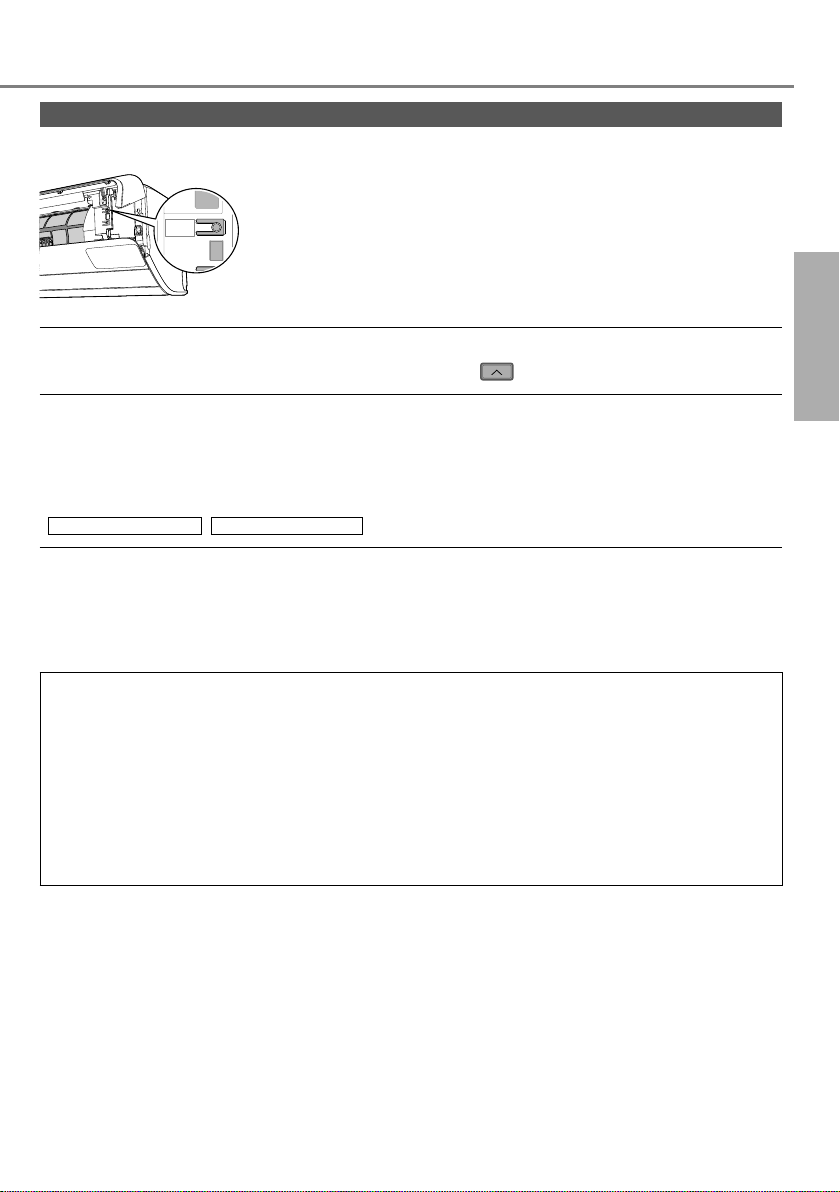

Troubleshooting
.................... . 12-14
Information
……………………………… 15

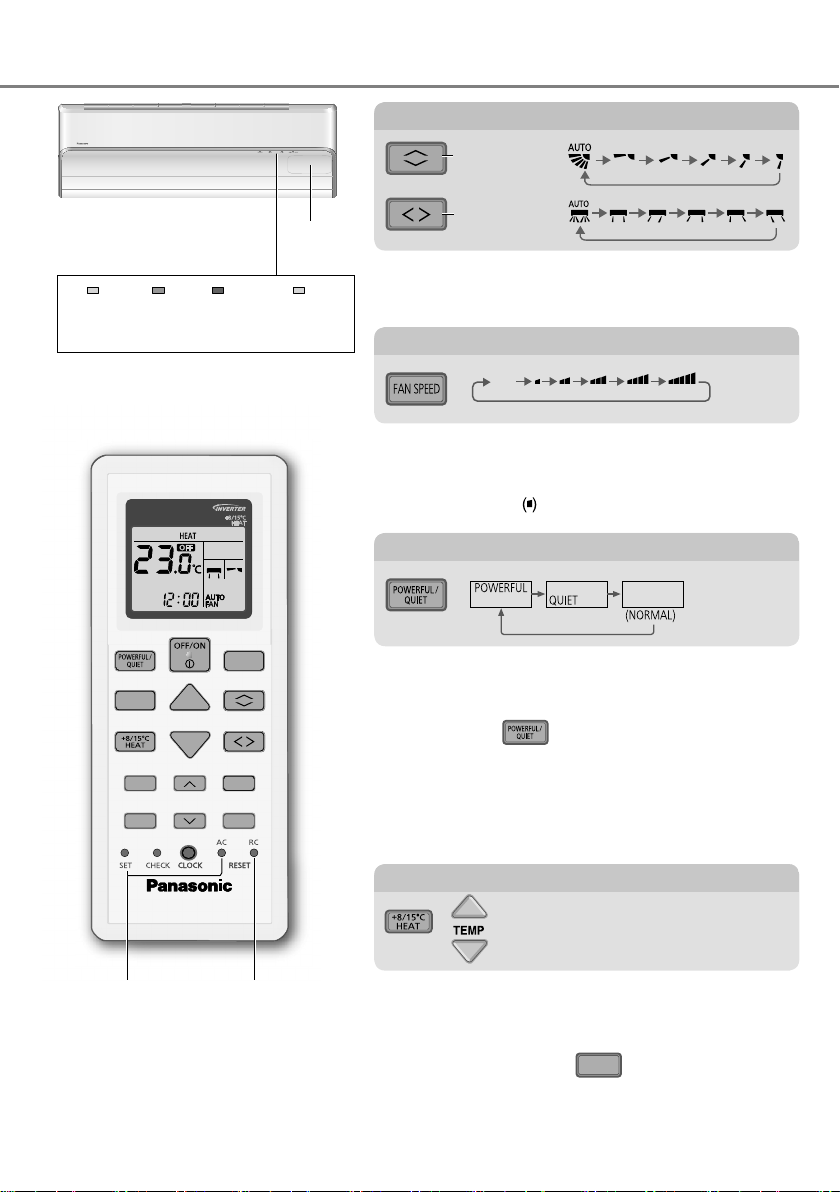

BBasic operation
1Press
MODE
to select
the desired mode.
AUTO
HEAT COOL
FAN DRY
2Press to start/
stop the operation.
POWER
• Please note that
the indication
is on display to
start the unit.
3Select the desired
temperature.
Up
Down
Selection range:
16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F.
• Press and hold for
approximately 10 seconds
to switch the temperature
indication in °C or °F.
Thank you for purchasing Panasonic
Air Conditioner.
WARNING
This symbol shows that this
equipment uses a flammable
refrigerant. If the refrigerant
is leaked, together with an
external ignition source,
there is a possibility of
ignition.
CAUTION
This symbol shows that
the Operation Instructions
should be read carefully.
CAUTION
This symbol shows that there
is information included in the
Operation Instructions and/or
Installation Instructions.
The illustrations in this manual are for
explanation purposes only and may differ
from the actual unit. They are subject
to change without notice for future
improvement.
Accessories
• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control
holder × 2

4

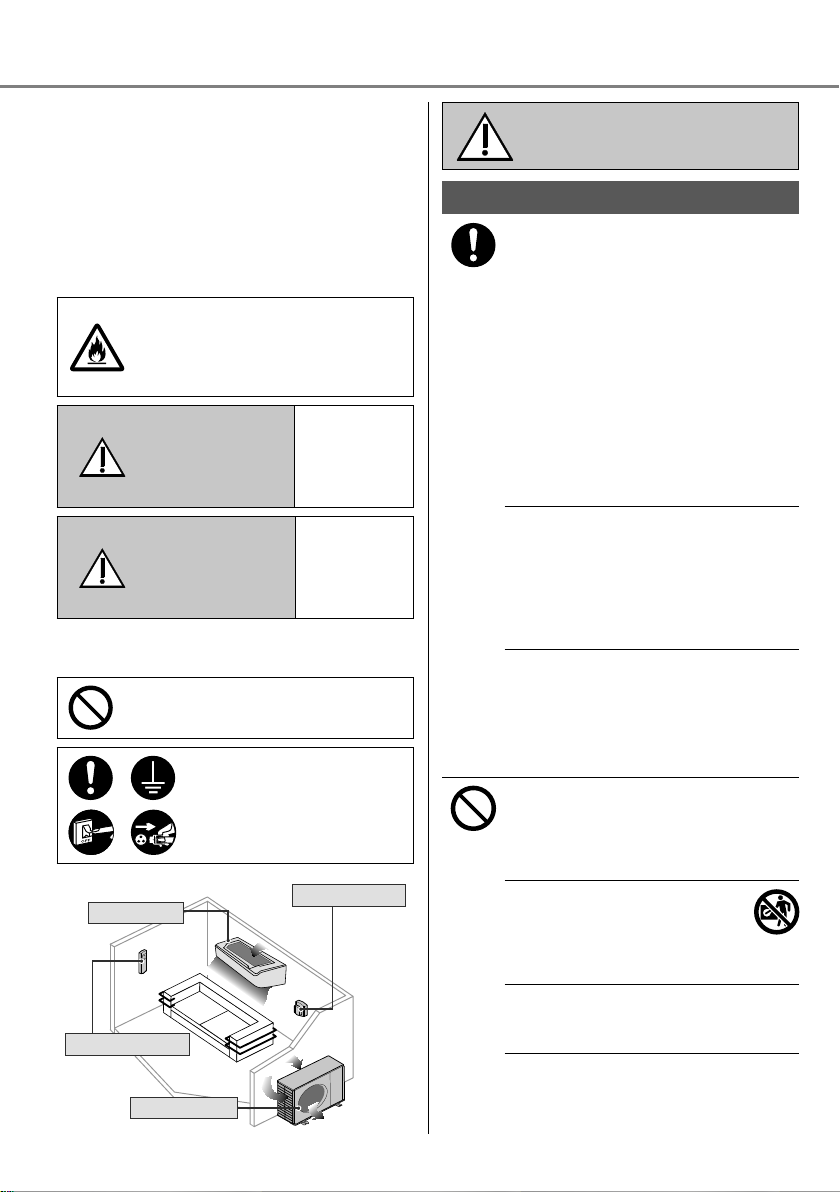

Safety precautions
To prevent personal injury, injury to
others or property damage, please
comply with the following:
Incorrect operation due to failure to
follow instructions below may cause
harm or damage, the seriousness of
which is classified as below:
This appliance is not intended for
accessibility by the general public.
For appliance filled with R32
(mild flammable refrigerant).
If the refrigerant is leaked and
exposed to an external ignition
source, there is a risk of fire.
WARNING
This sign
warns of
death or
serious
injury.
CAUTION
This sign
warns of
injury or
damage to
property.
The instructions to be followed are
classified by the following symbols:
This symbol denotes an
action that is PROHIBITED.
These symbols denote
actions COMPULSORY.
WARNING
Indoor unit and outdoor unit
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
Please consult authorised dealer
or specialist to clean the internal
parts, repair, install, remove
and reinstall the unit. Improper
installation and handling will
cause leakage, electric shock or
fire.
Confirm with authorised dealer
or specialist on usage of any
specified refrigerant type.
Using refrigerant type other than
the specified may cause product
damage, burst and injury etc.
Do not install the unit in
a potentially explosive or
flammable atmosphere.
Failure to do so could result in
fire.
Do not insert your fingers
or other objects into the
air conditioner indoor or
outdoor unit, rotating parts
may cause injury.
Do not touch the outdoor
unit during lightning, it may
cause electric shock.
Indoor unit
Outdoor unit
Power supply
Remote control
Air inlet
Air inlet
Air inlet
Air inlet
Air outlet
Air outlet
Air outlet
Air outlet

5
English
Do not expose yourself directly
to cold air for a long period to
avoid excess cooling.
Do not sit or step on the
unit, you may fall down
accidentally.
Remote control
Do not allow infants and small
children to play with the remote
control to prevent them from
accidentally swallowing the
batteries.
Power supply
Do not use a
modified cord, joint
cord, extension cord
or unspecified cord to
prevent overheating
and fire.
To prevent overheating, fire or
electric shock:
•Do not share the same power
outlet with other equipment.
•Do not operate with wet hands.
•Do not over bend the power
supply cord.
•Do not operate or stop the unit
by inserting or pulling out the
power plug.
If the supply cord is damaged,
it must be replaced by the
manufacturer, service agent or
similarly qualified persons in
order to avoid a hazard.
It is strongly recommended to
be installed with Earth Leakage
Circuit Breaker (ELCB) or
Residual Current Device (RCD)
to prevent electric shock or fire.
To prevent overheating, fire or
electric shock:
•Insert the power plug properly.
•Dust on the power plug should
be periodically wiped with a dry
cloth.
Stop using the product if any
abnormality/failure occurs and
disconnect the power plug or
turn off the power switch and
breaker.
(Risk of smoke/fire/electric
shock)
Examples of abnormality/failure
•The ELCB trips frequently.
•Burning smell is observed.
•Abnormal noise or vibration of
the unit is observed.
•Water leaks from the indoor
unit.
•Power cord or plug becomes
abnormally hot.
•Fan speed cannot be controlled.
•The unit stops running
immediately even if it is
switched on for operation.
•The fan does not stop even if
the operation is stopped.
Contact your local dealer
immediately for maintenance/
repair.
This equipment must be earthed
to prevent electrical shock or fire.
Prevent electric shock by
switching off the power supply
and unplug:
-Before cleaning or servicing,
-When extended non-use, or
-During abnormally strong
lightning activity.
Safety precautions

6
Safety precautions
WARNING
Precaution for appliance filled
with R32
Pay careful attention to the following
points when operating the appliances
and dealing with different refrigerants.
The appliance shall be installed,
and/or operated in a room with
floor area larger than Amin (m²)
and keep away from ignition
sources, such as heat/sparks/
open flame or hazardous areas
such as gas appliances, gas
cooking, reticulated gas supply
systems or electric cooking
appliances, etc. (Refer to Table
A of Installation instructions table
for Amin (m²))
Be aware that refrigerant may
not contain an odour, highly
recommended to ensure suitable
flammable refrigerant gas
detectors are present, operating
and able to warn of a leak.
Since the working pressure is
higher than that of refrigerant
R22 models, some of the piping
and installation and service tools
are special.
Especially, when replacing a
refrigerant R22 model with a new
refrigerant R32 model, always
replace the conventional piping
and flare nuts with the R32 and
R410A piping and flare nuts on
the outdoor unit side.
The R32 flare nut and pipe on
the outdoor unit side can also be
used for a R410A model.
Models that use refrigerant R32
and R410A have a different
charging port thread diameter to
prevent erroneous charging with
refrigerant R22 and for safety.
Therefore, check beforehand.
[The charging port thread
diameter for R32 and R410A is
12.7 mm (1/2 inch).]
Be extra careful so that foreign
matter (oil, water, etc.) does not
enter the piping.
Also, when storing the piping,
securely seal the opening by
pinching, taping, etc. (Handling
of R32 is similar to R410A.)
This appliance shall be stored in
a well ventilated area.
This appliance shall be stored
in a room without continuously
operating open flames and
ignition sources.
This appliance shall be stored
so as to prevent mechanical
damage from occurring.
Do not use means to accelerate
the defrosting process or
to clean, other than those
recommended by manufacturer.
Any unfit method or using
incompatible material may cause
product damage, burst and
serious injury.
Do not pierce or burn as the
appliance is pressurized. Do not
expose the appliance to heat,
flame, sparks, or other sources
of ignition. Else it may explode
and cause injury or death.

7
English
CAUTION
Indoor unit and outdoor unit
Do not wash the indoor unit
with water, benzine, thinner
or scouring powder to avoid
damage or corrosion at the unit.
Do not use for preservation
of precise equipment, food,
animals, plants, artwork or other
objects. This may cause quality
deterioration, etc.
Do not use any combustible
equipment in front of the airflow
outlet to avoid fire propagation.
Do not expose plants or pet
directly to airflow to avoid injury,
etc.
Do not touch the sharp
aluminium fin, sharp parts
may cause injury.
Do not switch ON the indoor
unit when waxing the floor. After
waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and
smoky areas to prevent damage
to the unit.
Do not dismantle the unit for
cleaning purpose to avoid injury.
Do not step onto an unstable
bench when cleaning the unit to
avoid injury.
Do not place a vase or water
container on the unit. Water may
enter the unit and degrade the
insulation. This may cause an
electric shock.
Do not open window or door
for long time during operation,
it may lead to inefficient power
usage and uncomfortable
temperature changes.
Prevent water leakage by
ensuring drainage pipe is:
-Connected properly,
-Kept clear of gutters and
containers, or
-Not immersed in water
After a long period of use or use
with any combustible equipment,
aerate the room regularly.
After a long period of use, make
sure the installation rack does
not deteriorate to prevent the unit
from falling down.
Remote control
Do not use rechargeable (Ni-Cd)
batteries. It may damage the
remote control.
To prevent malfunction or
damage of the remote control:
•Remove the batteries if the unit
is not going to be used for a
long period of time.
•New batteries of the same type
must be inserted following the
polarity stated.
Power supply
Do not disconnect the plug
by pulling the cord to prevent
electric shock.
Safety precautions

8
ON
OFF
SET
TIMER
CANCEL
TEMP
AIR SWING
OFF/ON
MODE
FAN SPEED
AIR CONDITIONER
How to use
Not used
in normal
operations.
Press to restore
the remote
control to default
setting.
POWERFUL:
To reach the preset temperature quickly
• This operation continues until it is cancelled by
pressing again button or turn OFF the unit to
stop this operation.
QUIET:
To enjoy quiet operation
• This operation reduces airflow noise.
AIR SWING
To adjust airflow direction
Upper direction
Lateral direction
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
• To have low noise priority operation, select the
lowest fan speed .
To adjust fan speed
AUTO
FAN
To switch between powerful/quiet
• Do not adjust the flap by hand.
• Do not insert finger into the air flow outlet to prevent
injury.
•
Maintain indoor temperature at 8/15°C. Fan switches
to high fan speed automatically.
• This operation overwrite the operation mode and could
be cancelled by pressing
MODE
.
•
Defrost operation at outdoor unit will result in sudden
cold air from indoor unit. Eliminate cold air with heat
mode.
To use maintenance heating
15˚C
8˚C
Indicator
POWER
(Green)
TIMER
(Orange)
DEICE
(Blue)
+8/15 °C HEAT
(Green)
Receiver

9
English
See "To learn more..." for details.
To set the timer
Note
,
• Can be activated in all modes and can be
cancelled by pressing the respective button
again.
• Cannot be selected at the same time.
ON
OFF
TIMER
CANCEL
SET
C
AN
C
E
L
21 3
1Select ON or OFF
timer
Example:
OFF at 22:00
• Each time pressed:
Cancel
2Set the time
3Confirm
SET
• To cancel ON or OFF timer, press
or to select respective or then
press .
• If timer is cancelled manually or due to
power failure, you can restore the timer
again by pressing or to select
respective or then press
SET
.
• The nearest timer setting will be displayed
and will activate in sequence.
• Timer operation is based on the clock set
in the remote control and repeats daily
once set. For clock setting, please refer to
Quick Guide.
2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset
times.
How to use

10
Operation mode
HEAT : The POWER indicator blinks at the initial stage of this operation. Unit takes a while
to warm up.
Unit may stops warm air supply for deice. The deice indicator ON during this
operation.
• For system which HEAT mode has been locked, if operation mode other than
HEAT is selected, the indoor unit stops and the POWER indicator blinks.
COOL : Provides efficient comfort cooling to suit your needs.
DRY : Unit operates at low fan speed to give a gentle cooling operation.
FAN : To circulate air in the room.
AUTO : During operation, the POWER indicator will blinks at initial.
Unit selects operation mode every 10 minutes according to the setting and room
temperatures.
Energy saving temperature setting
Operating the unit within the recommended temperature range may save energy.
HEAT : 20.0 °C ~ 24.0 °C / 68 °F ~ 75 °F.
COOL : 26.0 °C ~ 28.0 °C / 79 °F ~ 82 °F.
Air flow direction
In COOL/DRY mode:
If AUTO is set, the flap swings left/right and up/down automatically.
In HEAT mode:
If AUTO is set, the horizontal flap is fixed at the predetermined position. The vertical flap
swings left/right after the temperature rises.
Auto restart control
If power is resumed after a power failure, the operation will restart automatically after a
period of time with previous operation mode and airflow direction.
• This control is not applicable when TIMER is set.
Operating conditions
Use this air conditioner in the temperature range indicated in the table.
Temperature °C (°F) Indoor Outdoor
DBT WBT DBT WBT
COOL Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8)
Min. 16 (60.8) 11 (51.8) -15 (5.0) 11 (51.8)
HEAT Max. 30 (86.0) - 24 (75.2) 18 (64.4)
Min. 16 (60.8) - -20 (-4.0) -
+8/15°C
HEAT
Max. 15 (59.0) - - -
Min. 8 (46.4) - -20 (-4.0) -
DBT : Dry bulb temperature, WBT : Wet bulb temperature
To learn more...
