Operating Instructions
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
Model No. H-H014A
until
2014/9/25
SQT0455
F0814DT0
SQT0455_E.book 1 ページ ２０１４年８月１８日 月曜日 午後４時２９分

2
SQT0455
Contents
Information for Your Safety..................................... 2
Precautions........................................................... 4
Supplied Accessories ............................................. 5
Names and Functions of Components ................... 6
Attaching/Detaching the Lens................................. 7
Cautions for Use..................................................... 8
Troubleshooting .................................................... 9
Specifications........................................................ 10
Limited Warranty (ONLY FOR AUSTRALIA)........ 11
Information for Your Safety
Keep the unit as far away as possible from
electromagnetic equipment (such as microwave
ovens, TVs, video games, radio transmitters,
high-voltage lines etc.).
≥Do not use the camera near cell phones because
doing so may result in noise adversely affecting
the pictures and sound.
≥
If the camera is adversely affected by electromagnetic
equipment and stops functioning properly, turn the
camera off and remove the battery and/or the
connected AC adaptor. Then reinsert the battery and/
or reconnect the AC adaptor and turn the camera on.
The lens can be used with a digital camera
compatible with the lens mount standard for the
“Micro Four ThirdsTM System”.
≥It cannot be mounted on the Four ThirdsTM mount
specification camera.
≥The digital camera illustrations in these operating
instructions show DMC-GM1 as an example.
≥The appearance and specifications of products
described in this manual may differ from the actual
products you have purchased due to later
enhancements.
≥Micro Four ThirdsTM and Micro Four Thirds Logo
marks are trademarks or registered trademarks of
Olympus Imaging Corporation, in Japan, the
United States, the European Union and other
countries.
≥Four ThirdsTM and Four Thirds Logo marks are
trademarks or registered trademarks of Olympus
Imaging Corporation, in Japan, the United States,
the European Union and other countries.
≥G MICRO SYSTEM is an interchangeable lens
type digital camera system of LUMIX based on a
Micro Four Thirds System standard.
≥Other names of systems and products mentioned
in these instructions are usually the registered
trademarks or trademarks of the manufacturers
who developed the system or product concerned.
SQT0455_E.book 2 ページ ２０１４年８月１８日 月曜日 午後４時２９分

3
SQT0455
ENGLISH
-If you see this symbol-
Disposal of Old Equipment
Only for European Union and countries with
recycling systems
This symbol on the products,
packaging, and/or accompanying
documents means that used
electrical and electronic products
must not be mixed with general
household waste.
For proper treatment, recovery
and recycling of old products,
please take them to applicable
collection points in accordance
with your national legislation.
By disposing of them correctly,
you will help to save valuable resources and prevent
any potential negative effects on human health and
the environment.
For more information about collection and recycling,
please contact your local municipality.
Penalties may be applicable for incorrect disposal of
this waste, in accordance with national legislation.
SQT0455_E.book 3 ページ ２０１４年８月１８日 月曜日 午後４時２９分

4
SQT0455
∫Lens Care
≥Sand and dust can damage the lens. Make
sure that no sand or dust gets inside the lens
or the terminals when using the lens on a
beach, etc.
≥The lens is neither waterproof nor splash-
proof. If drops of water get onto the lens, wipe
the lens with a dry cloth.
≥Do not press the lens with excessive force.
≥When there is dirt (water, oil, and fingerprints, etc.)
on the surface of the lens, the picture may be
affected. Lightly wipe the surface of the lens with a
soft, dry cloth before and after taking pictures.
≥Do not place the lens mount facing downwards.
Do not allow the lens contact points 1to become
dirty.
∫About Condensation (Fogging of the
Lens)
≥Condensation occurs when there are differences
in temperature and humidity as described below.
Condensation can cause the lens to become dirty
and lead to mold and malfunctioning, so exercise
caution in the following situations:
– When the camera is brought indoors from outside
during cold weather
– When the camera is brought into an air-
conditioned car
– When cold air from an air conditioner is directly
blown onto the lens
– In humid places
≥Put the camera into a plastic bag to allow it to
acclimatize to the surrounding temperature in
order to prevent condensation. If condensation
occurs, turn the power off and leave it for about
two hours. Once the camera acclimatizes to the
surrounding temperature the condensation will go
away naturally.
Precautions
SQT0455_E.book 4 ページ ２０１４年８月１８日 月曜日 午後４時２９分

5
SQT0455

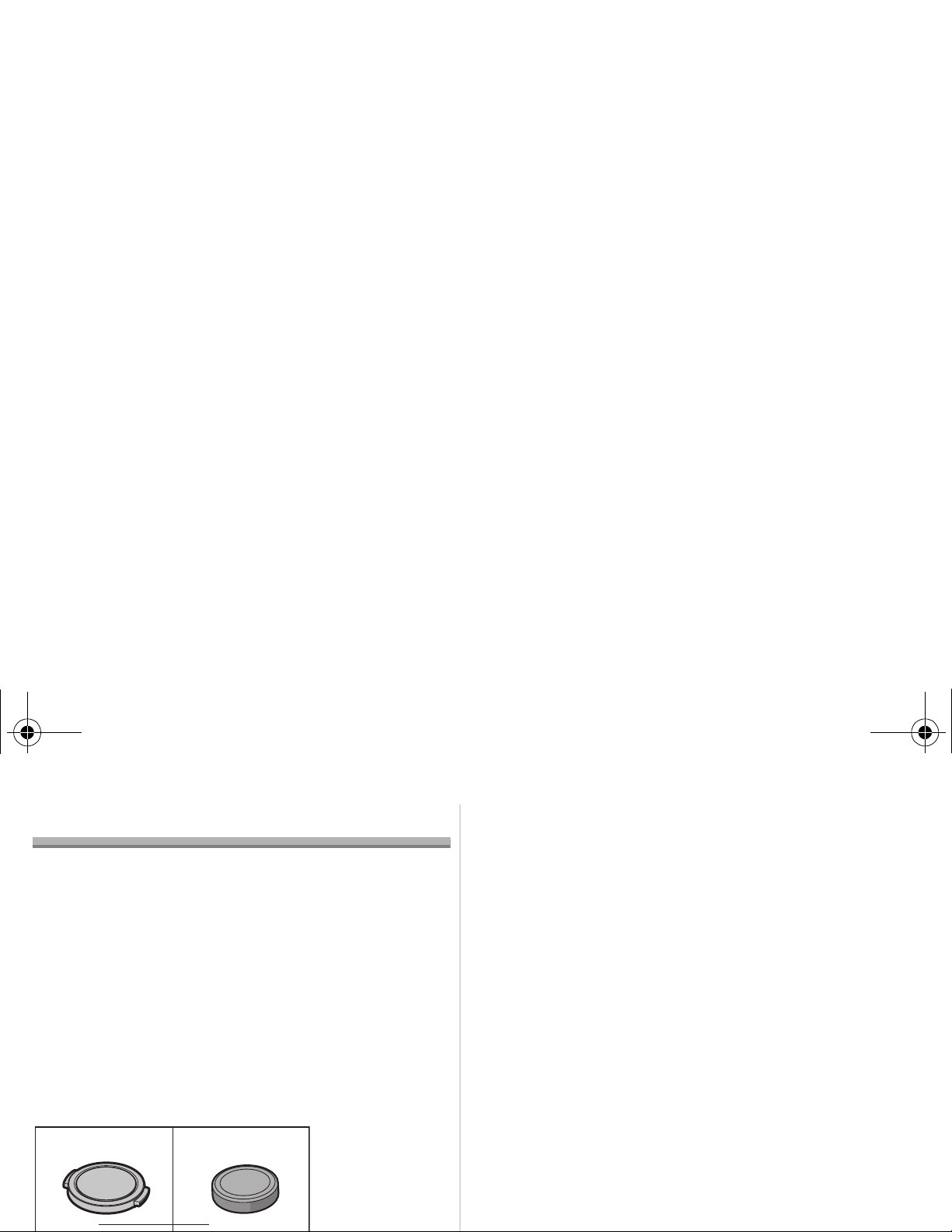

Supplied Accessories
[Inspection to be performed when you unpack
the unit]
When removing the unit from its packing box, check
that the main unit and the supplied accessories are
there and also check their external appearance and
functions to verify that they have not sustained any
damage during distribution and transportation.
If you discover any trouble, contact your vendor
before using the product.
Product numbers correct as of August 2014. These
may be subject to change.
1Lens Cap
2Lens Rear Cap
(The lens rear cap and lens cap are attached to
the interchangeable lens at the time of purchase.)
SYF0001 VFC4605
12
SQT0455_E.book 5 ページ ２０１４年８月１８日 月曜日 午後４時２９分

6
SQT0455

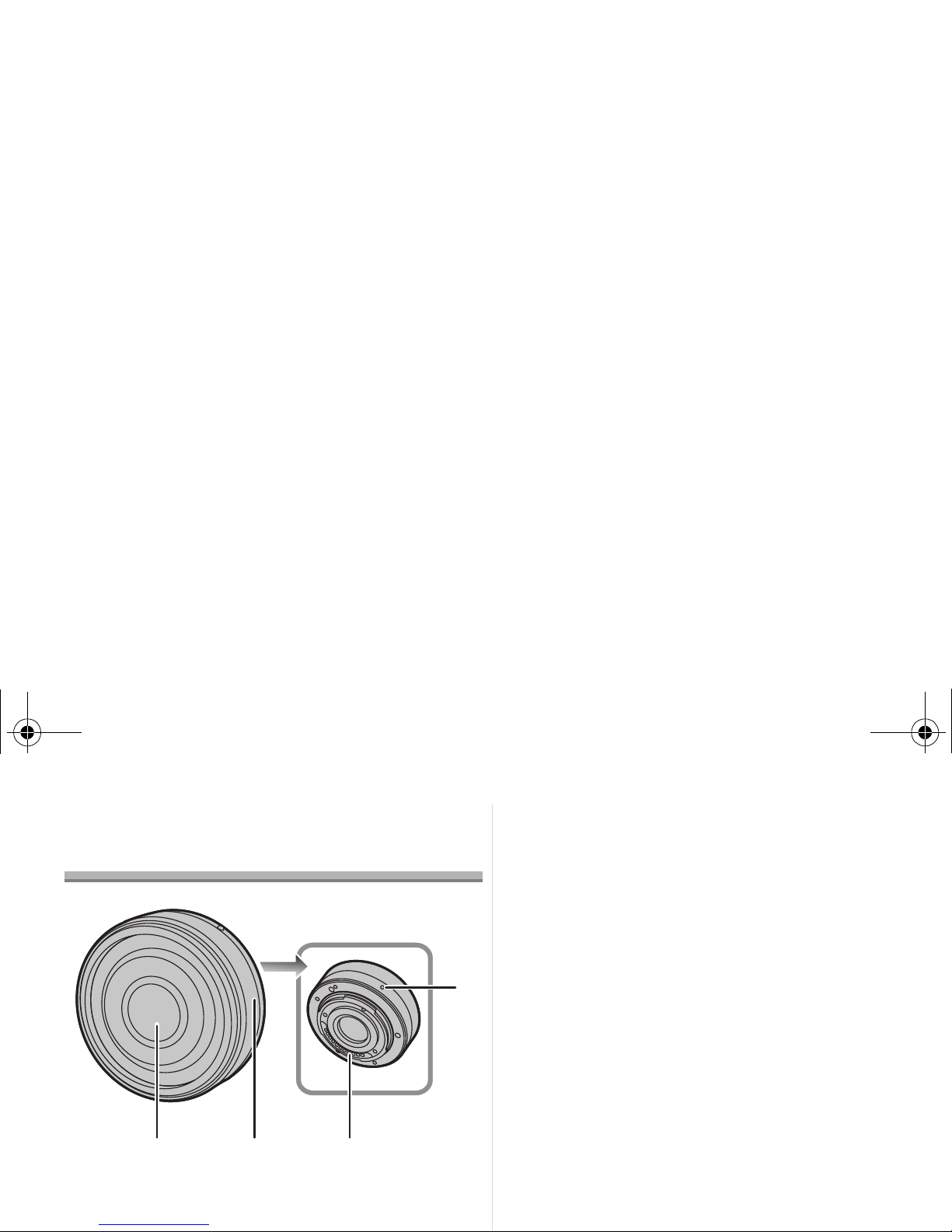

Names and Functions of
Components

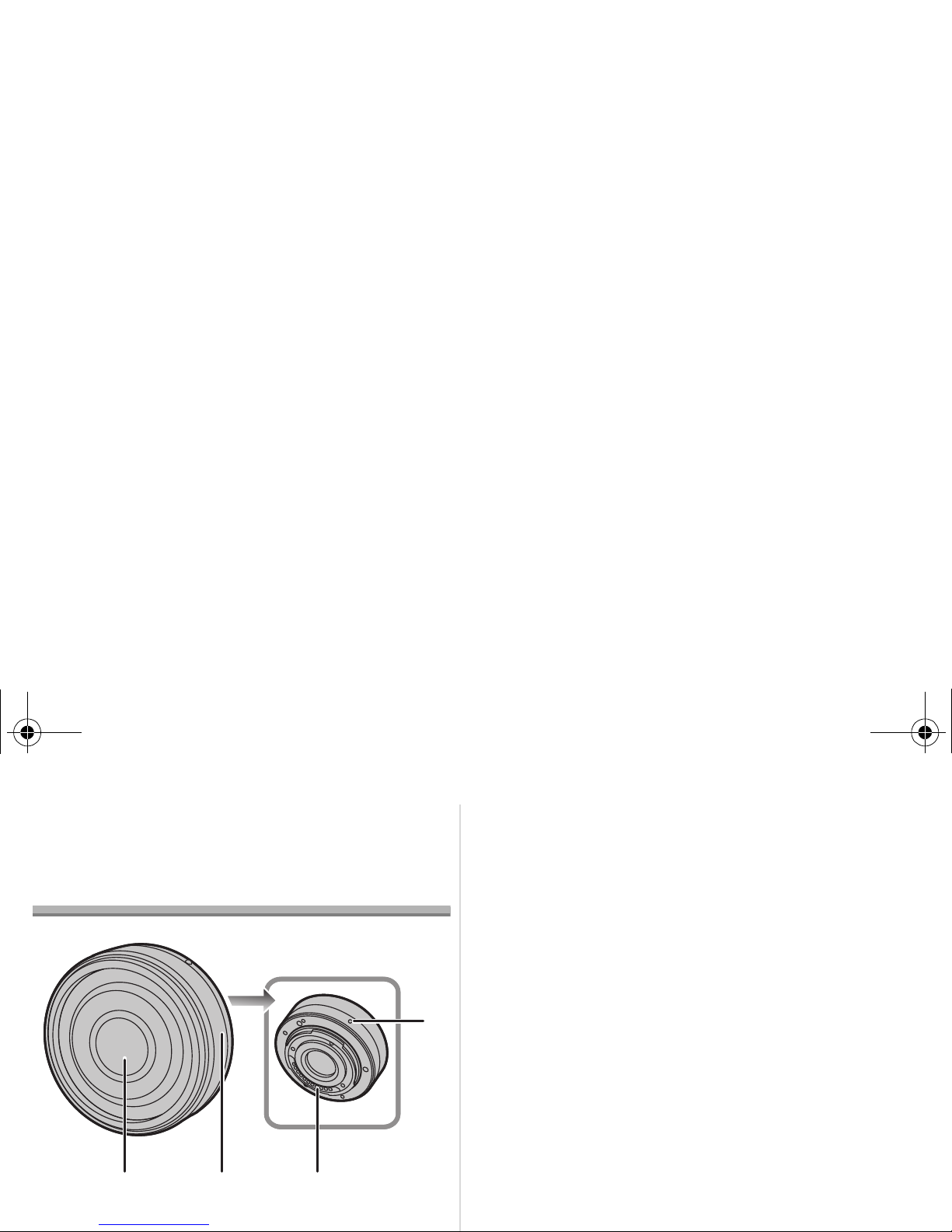

1Lens surface
2Focus ring
Rotate to focus when taking pictures with
manual focus.
3Contact points
4Lens fitting mark
4
3
21
SQT0455_E.book 6 ページ ２０１４年８月１８日 月曜日 午後４時２９分

7
SQT0455

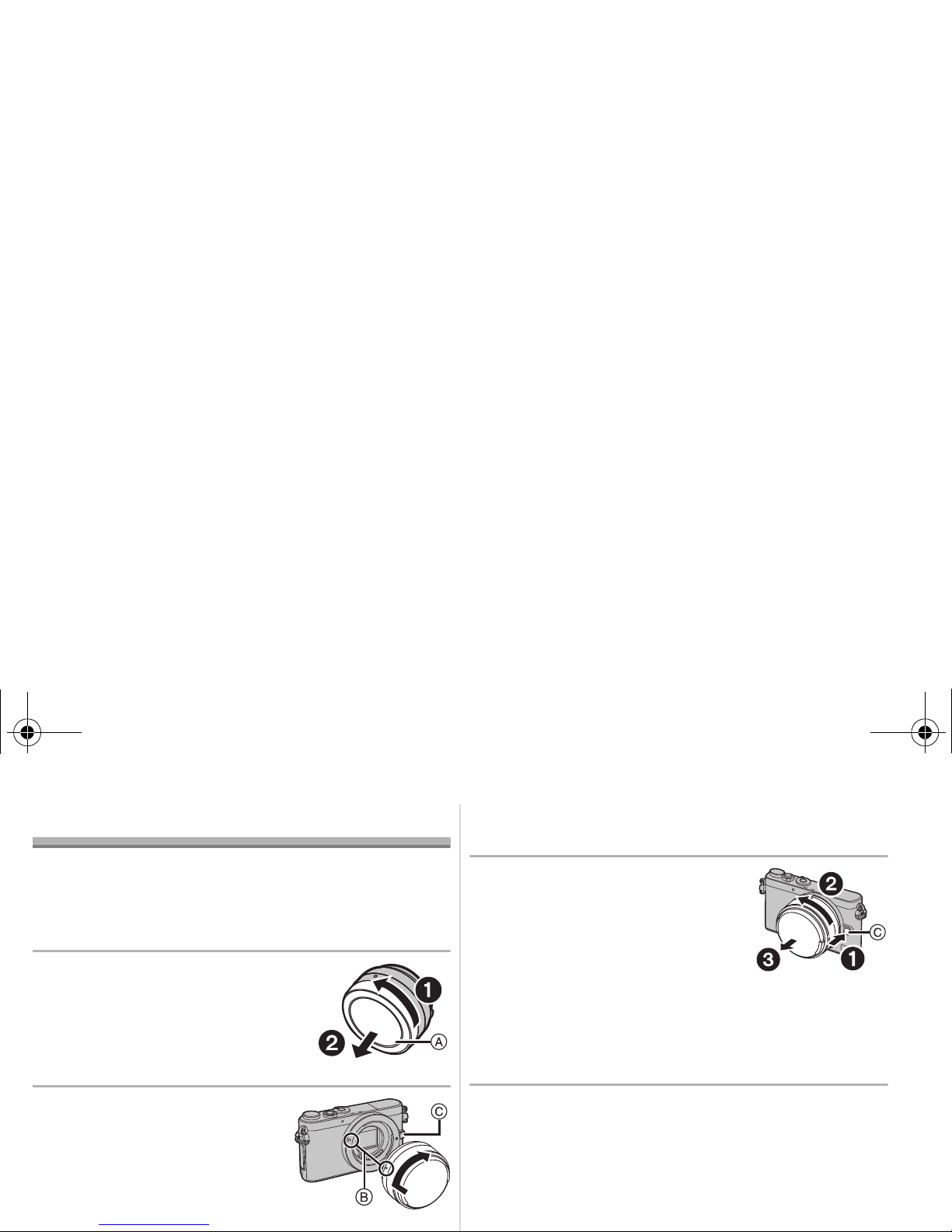

Attaching/Detaching the Lens
≥Refer also to the camera’s operating instructions
for attaching and detaching the lens.
∫Attaching the Lens
≥Check that the camera is turned off.
1 Turn the lens rear cap to
detach it.
A: Lens Rear Cap
2Align the lens fitting
marks Bon the camera
body and the lens and
then rotate the lens in
the direction of the
arrow until it clicks.
• Do not press the lens
release button C when you attach a lens.
• Do not try to attach the lens when holding it at an
angle to the camera body as the lens mount may
get scratched.
• Check that the lens is attached correctly.
• Be sure to remove the lens cap when recording.
∫Detaching the Lens
≥Check that the camera is turned off.
Press the lens release
button Cwhile turning
the lens as far as
possible in the direction
of the arrow to detach it.
• Attach the lens rear cap so that the lens contact
point does not get scratched.
• Attach the body cap to the camera so no dirt or
dust will get inside the main unit.
SQT0455_E.book 7 ページ ２０１４年８月１８日 月曜日 午後４時２９分

8
SQT0455
∫Attaching Filters
≥Vignetting may occur if using 2 or more
MC protectors (optional: DMW-LMC46),
PL filters (optional: DMW-LPL46) or ND filters
(optional: DMW-LND46), or if using thick
protectors and/or filters.
≥The filter may become impossible to remove if
excessively tightened, so please refrain from
tightening it too strongly.
≥It is possible to attach the lens cap with the filter
already attached.
∫Conversion lens
≥We recommend that you use a conversion lens
that is compatible with this unit.
– Wide conversion lens (optional: DMW-GWC1)
– Macro conversion lens (optional: DMW-GMC1)
– Fish eye conversion lens (optional: DMW-GFC1)
≥Use of a non-compatible conversion lens or
adaptor may result in breakage or damage to the
lens.
≥For details, refer to the operating instructions of
the relevant conversion lenses.
Cautions for Use
Take care not to drop or knock the lens. Also
take care not to put a lot of pressure on the lens.
≥Take care not to drop the bag that you inserted the
lens in as it may strongly shock the lens. The
camera may stop operating normally and pictures
may no longer be recorded. Also, the lens may be
damaged.
When using pesticides and other volatile
substances around the camera make sure that
they do not get onto the lens.
≥If such substances get onto the lens they can
damage the exterior case or cause the paint to
peel.
Do not point the lens at the sun or other strong
light sources.
≥This could cause the lens to collect an excessive
amount of light, resulting in fire and malfunction.
Do not carry the unit when it is still attached to
the camera body.
≥Under no circumstances should the unit be stored
in any of the following locations since doing so
may cause problems in operation or
malfunctioning.
SQT0455_E.book 8 ページ ２０１４年８月１８日 月曜日 午後４時２９分

9
SQT0455
– In direct sunlight or on a beach in summer
– In locations with high temperatures and humidity
levels or where the changes in temperature and
humidity are acute
– In locations with high concentrations of sand,
dust or dirt
– Where there is fire
– Near heaters, air conditioners or humidifiers
– Where water may make the unit wet
– Where there is vibration
– Inside a vehicle
≥Refer also to the operating instructions of the
digital camera.
≥When the unit is not going to be used for a
prolonged period, we recommend storing with a
desiccant (silica gel). Failure to do so may result in
performance failure caused by mold, etc. It is
recommended that you check the unit’s operation
prior to use.
≥Do not leave the lens in contact with rubber or
plastic products for extended periods of time.
≥Do not touch the lens contact point. Doing so can
cause failure of the unit.
≥Do not disassemble or alter the unit.
Do not use benzine, thinner, alcohol or other
similar cleaning agents to clean the lens glass or
exterior cabinet.
≥Using solvents can damage the lens or cause the
paint to peel.
≥Wipe off any dust or fingerprints with a soft, dry
cloth.
≥Use a dry dust cloth to remove dirt and dust on
the focus ring.
≥Do not use a household detergent or a chemically
treated cloth.
A sound is heard when the camera is turned on
or off.
≥This is the sound of lens or aperture movement
and is not a malfunction.
Troubleshooting
SQT0455_E.book 9 ページ ２０１４年８月１８日 月曜日 午後４時２９分

10
SQT0455
Specifications
Specifications are subject to change without notice.
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
“LUMIX G 14 mm/F2.5 ⅡASPH.”
Focal length f=14 mm
(35 mm film camera equivalent: 28 mm)
Aperture type 7 diaphragm blades/circular aperture diaphragm
Maximum aperture F2.5
Minimum aperture value F22
Lens construction 6 elements in 5 groups (3 aspherical lenses)
In focus distance 0.18 m to ¶ (from the focus distance reference line)
Maximum image magnification 0.1k(35 mm film camera equivalent: 0.2k)
Optical image stabiliser Not available
Mount “Micro Four Thirds Mount”
Angle of view 75x
Filter diameter 46 mm
Max. diameter Approx. 55.5 mm
Overall length Approx. 20.5 mm
(from the tip of the lens to the base side of the lens mount)
Mass Approx. 55 g
SQT0455_E.book 10 ページ ２０１４年８月１８日 月曜日 午後４時２９分
