Operating Instructions
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
Model No. H-HS35100
Please read these instructions carefully before using this product, and save this manual for future use.
VQT4G75
F1012HH0 ( 7000 A)
until
2012/10/15
VQT4G75_E.book 1 ページ ２０１２年９月１１日 火曜日 午後７時３５分

2
VQT4G75
Contents
Information for Your Safety..................................... 2
Precautions........................................................... 4
Supplied Accessories ............................................. 5
Attaching/Detaching the Lens................................. 6
Names and Functions of Components ................... 8
Cautions for Use..................................................... 9
Troubleshooting .................................................... 9
Specifications........................................................ 10
Information for Your Safety
Keep the unit as far away as possible from
electromagnetic equipment (such as microwave
ovens, TVs, video games, radio transmitters,
high-voltage lines etc.).
≥Do not use the camera near cell phones because
doing so may result in noise adversely affecting
the pictures and sound.
≥
If the camera is adversely affected by electromagnetic
equipment and stops functioning properly, turn the
camera off and remove the battery and/or the
connected AC adaptor. Then reinsert the battery and/
or reconnect the AC adaptor and turn the camera on.
The lens can be used with a digital camera
compatible with the lens mount standard for the
“Micro Four ThirdsTM System”.
≥It cannot be mounted on the Four ThirdsTM mount
specification camera.
≥The digital camera illustrations in these operating
instructions show DMC-GH2 as an example.
≥The appearance and specifications of products
described in this manual may differ from the actual
products you have purchased due to later
enhancements.
≥Micro Four ThirdsTM and Micro Four Thirds Logo
marks are trademarks or registered trademarks of
Olympus Imaging Corporation, in Japan, the
United States, the European Union and other
countries.
≥Four ThirdsTM and Four Thirds Logo marks are
trademarks or registered trademarks of Olympus
Imaging Corporation, in Japan, the United States,
the European Union and other countries.
≥G MICRO SYSTEM is an interchangeable lens
type digital camera system of LUMIX based on a
Micro Four Thirds System standard.
≥Other names of systems and products mentioned
in these instructions are usually the registered
trademarks or trademarks of the manufacturers
who developed the system or product concerned.
VQT4G75_E.book 2 ページ ２０１２年９月１１日 火曜日 午後７時３５分

3
VQT4G75
-If you see this symbol-
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private
households)
This symbol on the products and/or accompanying documents means that used
electrical and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to
designated collection points, where they will be accepted on a free of charge basis.
Alternatively, in some countries you may be able to return your products to your local
retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent
any potential negative effects on human health and the environment which could
otherwise arise from inappropriate waste handling. Please contact your local authority
for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.
ENGLISH
VQT4G75_E.book 3 ページ ２０１２年９月１１日 火曜日 午後７時３５分

4
VQT4G75
∫Lens Care
≥This lens has a dust-proof and splash-proof
construction. When using it, please be careful of
the following.
If the lens is not working properly, consult the
dealer or your nearest Service Centre.
– Please attach the lens to a dust-proof and
splash-proof digital camera.
– Make sure that no sand, dust, drops of water,
etc., gets on or inside the lens mount rubber,
terminals, and inside the digital camera and lens
when attaching or detaching the lens.
– This lens is not waterproof and cannot be used to
record underwater. For splash-proofing, the lens
is constructed to resist the entry of water. If
splashes of water etc. do adhere to the lens, wipe
after use with a soft dry cloth.
≥To improve the dust-proofing and splash-proofing
of this lens, a lens mount rubber is used in the
mounting portion. After changing the lens a
number of times, you may find that the lens mount
rubber has marked the mount portion of the digital
camera body, which does not affect its
performance.
For information on changing the lens mount
rubber, contact your nearest Service Centre.
≥Do not press the lens with excessive force.
≥When there is dirt (water, oil, and fingerprints, etc.)
on the surface of the lens, the picture may be
affected. Lightly wipe the surface of the lens with a
soft, dry cloth before and after taking pictures.

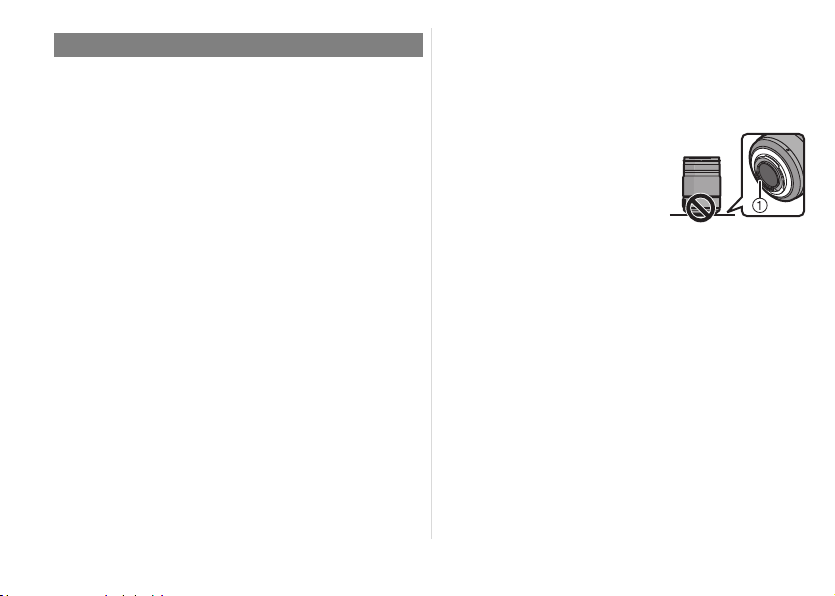

≥Do not place the lens mount
facing downwards. Do not
allow the lens contact points
1to become dirty.
∫About Condensation
(Fogging of the Lens)
≥Condensation occurs when there are differences
in temperature and humidity as described below.
Condensation can cause the lens to become dirty
and lead to mold and malfunctioning, so exercise
caution in the following situations:
– When the camera is brought indoors from outside
during cold weather
– When the camera is brought into an air-
conditioned car
– When cold air from an air conditioner is directly
blown onto the lens
– In humid places
Precautions
VQT4G75_E.book 4 ページ ２０１２年９月１１日 火曜日 午後７時３５分

5
VQT4G75
≥Put the camera into a plastic bag to allow it to
acclimatize to the surrounding temperature in
order to prevent condensation. If condensation
occurs, turn the power off and leave it for about
two hours. Once the camera acclimatizes to the
surrounding temperature the condensation will go
away naturally.

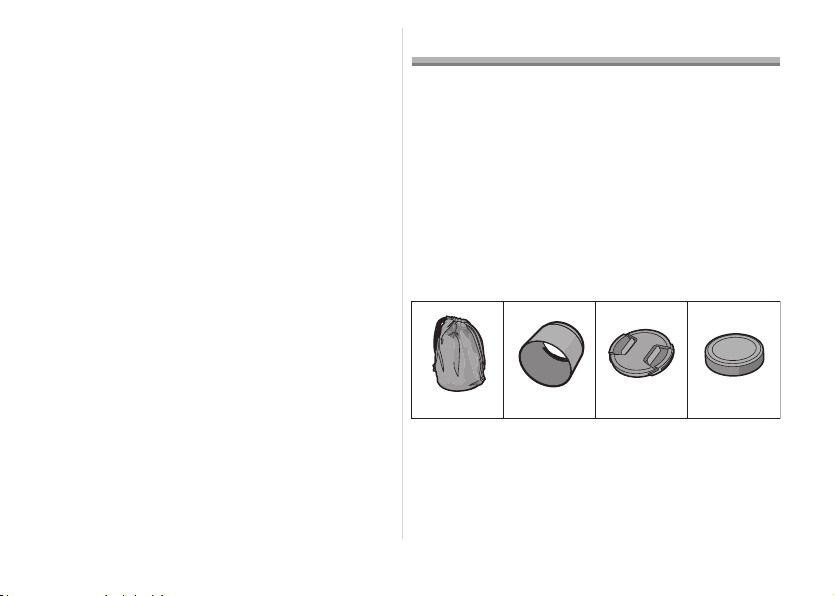

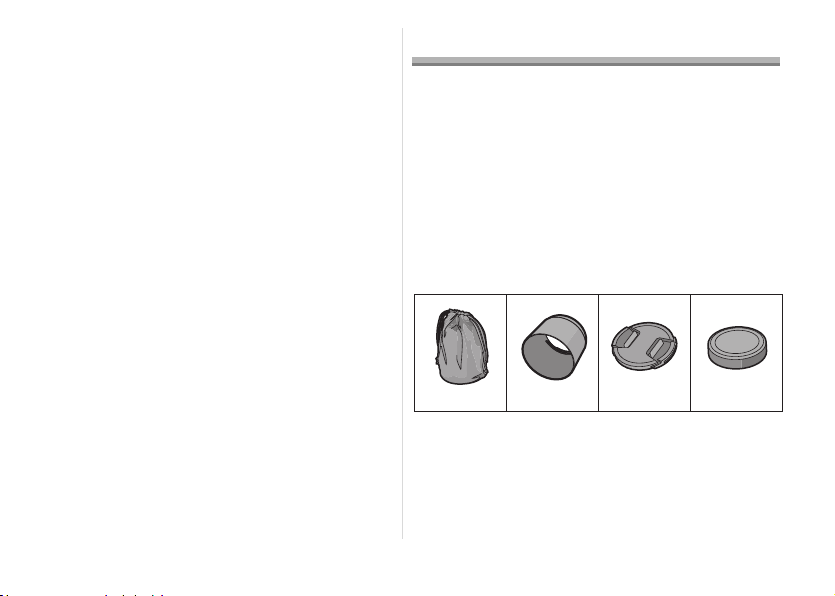

Supplied Accessories
[Inspection to be performed when you unpack
the unit]
When removing the unit from its packing box, check
that the main unit and the supplied accessories are
there and also check their external appearance and
functions to verify that they have not sustained any
damage during distribution and transportation.
If you discover any trouble, contact your vendor
before using the product.
Product numbers correct as of October 2012. These
may be subject to change.
1Lens Storage Bag
2Lens Hood
3Lens Cap
4Lens Rear Cap
(The lens rear cap and lens cap are attached to
the interchangeable lens at the time of purchase.)
VFC4430 VYC1085 VYF3480 VFC4605
312 4
VQT4G75_E.book 5 ページ ２０１２年９月１１日 火曜日 午後７時３５分

6
VQT4G75

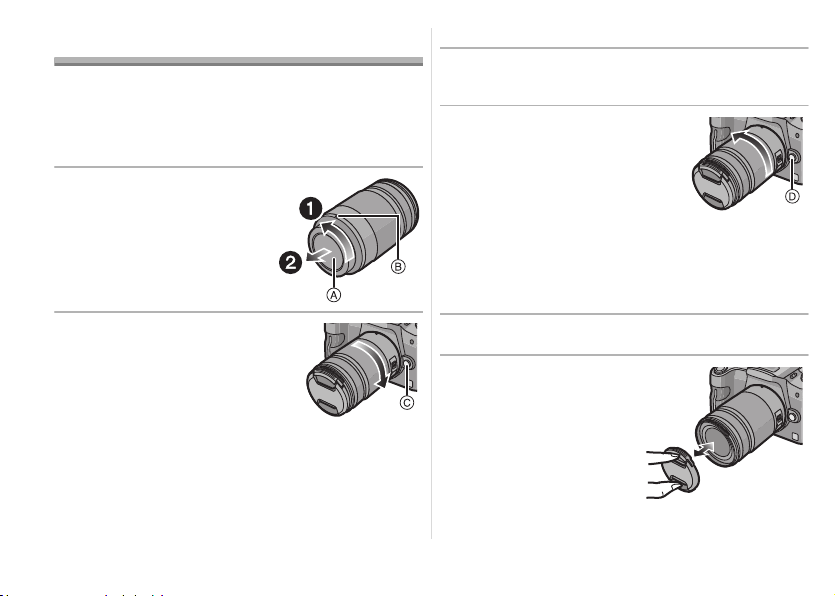

Attaching/Detaching the Lens
≥Refer also to the camera’s operating instructions
for attaching and detaching the lens.
∫Attaching the Lens
≥Check that the camera is turned off.
1 Turn the lens rear cap
to detach it.
A: Lens Rear Cap
2 Align the lens fitting
marks B(red marks) on
the camera body and the
lens and then rotate the
lens in the direction of
the arrow until it clicks.
• Do not press the lens release
button C when you attach a lens.
• Do not try to attach the lens when holding it at an
angle to the camera body as the lens mount may
get scratched.
• Check that the lens is attached correctly.
∫Detaching the Lens
≥Check that the camera is turned off.
While pressing on the
lens release button D,
rotate the lens toward
the arrow until it stops
and then remove.
• Attach the lens rear cap so
that the lens contact point does not get
scratched.
• Attach the body cap to the camera so no dirt or
dust will get inside the main unit.
∫Attaching and Detaching the Lens Cap
Pinch the lens cap
as shown in the
figure to attach or
detach.
• Be careful not to lose
the lens cap.
VQT4G75_E.book 6 ページ ２０１２年９月１１日 火曜日 午後７時３５分

7
VQT4G75

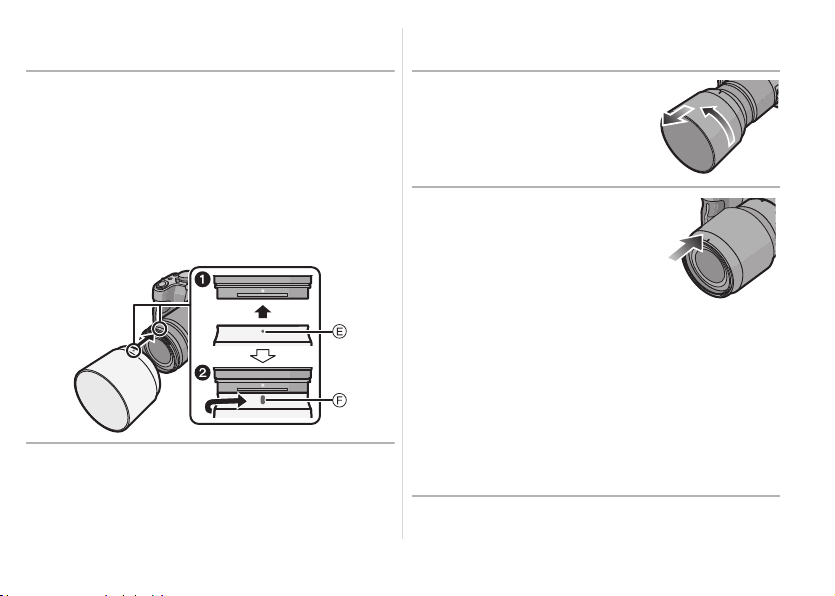

∫Attaching the Lens Hood
(Supplied Accessory)
1 Align the fitting mark E on the lens
hood with the mark on the tip of the lens.
2Turn the lens hood in the direction of
the arrow until it stops, and align the
stop mark Fon the lens hood with
the mark on the tip of the lens.
∫Temporarily Storing the Lens Hood
1 Turn the lens hood in the
direction of the arrow to
detach it.
2 Reverse the lens hood
and then attach it in the
same way as shown
previously.
• When taking pictures with
the flash with the lens hood
attached, the lower portion of
the screen may turn dark (vignetting effect) and
the control of the flash may be disabled because
the photo flash may be obscured by the lens
hood. We recommend detaching the lens hood.
• When using the AF assist lamp in the dark,
detach the lens hood.
∫Attaching Filters
≥Vignetting may occur if using 2 or more
MC protectors (optional: DMW-LMCH58),
PL filters (optional: DMW-LPL58) or ND filters
(optional: DMW-LND58), or if using thick
protectors and/or filters.
≥The filter may become impossible to remove if
excessively tightened, so please refrain from
tightening it too strongly.
≥It is possible to attach the lens cap with the filter
already attached.
≥You cannot attach a conversion lens or adaptor to
this lens. A filter may be used, but attaching any
other element may cause damage to the lens.
VQT4G75_E.book 7 ページ ２０１２年９月１１日 火曜日 午後７時３５分

8
VQT4G75

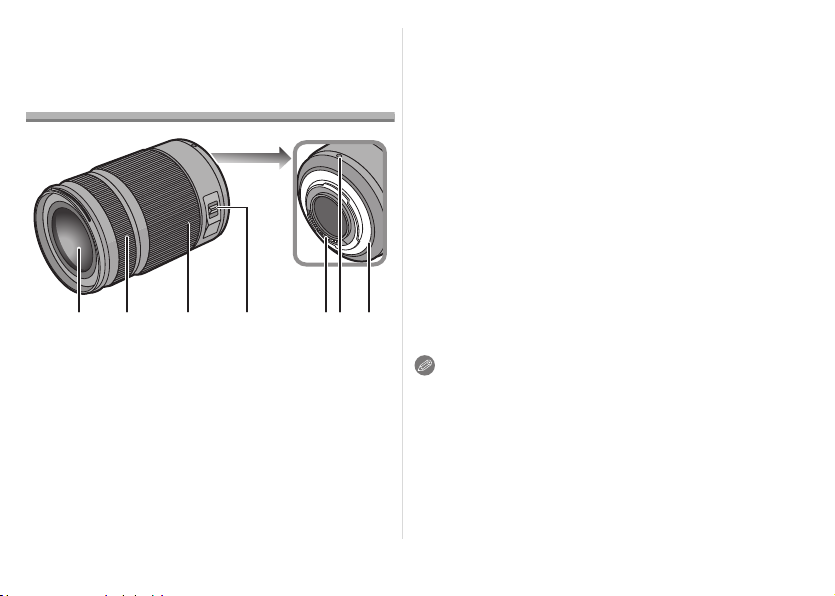

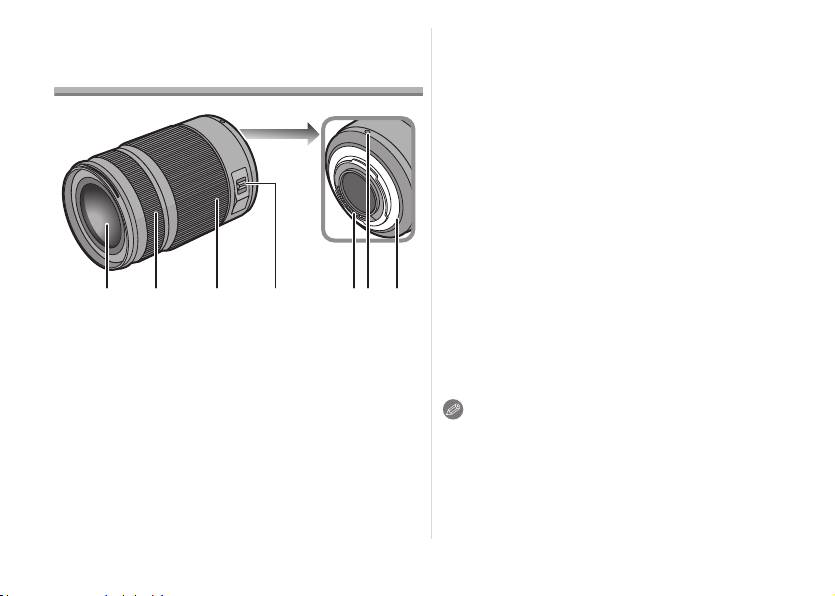

Names and Functions of
Components
1Lens surface
2Focus ring
Rotate to focus when taking pictures with manual
focus.
3Zoom ring
Rotate the zoom ring when you wish to take large
(tele) or wide (wide angle) pictures. (35 mm film
camera equivalent: 70 mm to 200 mm)
4[O.I.S.] switch
When the lens is attached to the camera the
stabiliser function is set to activate if the [O.I.S.]
switch is set to [ON].
≥We recommend setting the [O.I.S.] switch to [OFF]
when using a tripod.
≥The stabiliser function may not be effective in the
following cases.
– When there is a lot of jitter.
– When the zoom magnification is high.
– When using the digital zoom.
– When taking pictures while following a moving
subject.
– When the shutter speed becomes slower to take
pictures indoors or in dark places.
5Contact points
6Lens fitting mark
7Lens mount rubber
Note
≥When flash recording with a close subject, the
light of the flash will be blocked by the lens and
part of the picture may be dark. Check the
distance from the subject when recording.
≥
If you zoom after focusing, focusing errors may occur.
After zooming, please perform the focusing again.
5642 31 7
VQT4G75_E.book 8 ページ ２０１２年９月１８日 火曜日 午後５時５０分

9
VQT4G75
Cautions for Use
Take care not to drop or knock the lens. Also
take care not to put a lot of pressure on the lens.
≥
Take care not to drop the bag that you inserted the
lens in as it may strongly shock the lens. The camera
may stop operating normally and pictures may no
longer be recorded. Also, the lens may be damaged.
When using pesticides and other volatile
substances around the camera make sure that
they do not get onto the lens.
≥
If such substances get onto the lens they can
damage the exterior case or cause the paint to peel.
Do not carry the unit when it is still attached to
the camera body.
≥
Under no circumstances should the unit be stored in
any of the following locations since doing so may
cause problems in operation or malfunctioning.
– In direct sunlight or on a beach in summer
– In locations with high temperatures and humidity
levels or where the changes in temperature and
humidity are acute
– Where there is fire
– Near heaters, air conditioners or humidifiers
– Where there is vibration
– Inside a vehicle
≥Refer also to the operating instructions of the
digital camera.
≥
When the unit is not going to be used for a prolonged
period, we recommend storing with a desiccant (silica
gel). Failure to do so may result in performance
failure caused by mold, etc. It is recommended that
you check the unit’s operation prior to use.
≥Do not leave the lens in contact with rubber or
plastic products for extended periods of time.
≥Do not touch the lens contact point. Doing so can
cause failure of the unit.
≥Do not disassemble or alter the unit.
Do not use benzine, thinner, alcohol or other
similar cleaning agents to clean the lens glass or
exterior cabinet.
≥Using solvents can damage the lens or cause the
paint to peel.
≥
Wipe off any dust or fingerprints with a soft, dry cloth.
≥Wipe off the dust or dirt on the lens mount rubber
(P8), zoom ring, or focus ring with a dry dust cloth.
≥Do not use a household detergent or a chemically
treated cloth.
A sound is heard when the camera is turned on or off.
≥This is the sound of lens or aperture movement
and is not a malfunction.
Troubleshooting
VQT4G75_E.book 9 ページ ２０１２年９月１１日 火曜日 午後７時３５分

10
VQT4G75
Specifications
Specifications are subject to change without notice.
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
“LUMIX G X VARIO 35– 100 mm/F2.8/POWER O.I.S.”
Focal length f=35 mm to 100 mm
(35 mm film camera equivalent: 70 mm to 200 mm)
Aperture type 7 diaphragm blades/circular aperture diaphragm
Aperture range F2.8
Minimum aperture value F22
Lens construction 18 elements in 13 groups (2 ED Lens, 1 UED Lens)
Nano surface coating Ye s
In focus distance 0.85 m to ¶ (from the focus distance reference line)
Maximum image magnification 0.1k(35 mm film camera equivalent: 0.2k)
Optical image stabiliser Available
[O.I.S.] switch Available (Switching ON/OFF)
Mount “Micro Four Thirds Mount”
Angle of view 34x(Wide) to 12x(Tele)
Filter diameter 58 mm
Max. diameter Approx. 67.4 mm
Overall length Approx. 99.9 mm
(from the tip of the lens to the base side of the lens mount)
Mass Approx. 360 g
Dust-proof and splash-proof Yes
VQT4G75_E.book 10 ページ ２０１２年９月１８日 火曜日 午後５時５０分
