Panasonic AWE800 - COLOR CAMERA User manual

17 : 1 Motor Drive Zoom Lens
AW-LZ17MD9
for AW-E800 Series
PREFACE
Motor drive zoom lens AW-LZ17MD9 used with AW-E800
series color camera (2/3” 3CCD Bayonet mount remote
control color camera).
SPECIFICATION
Focal Length : 9 - 153 mm, 17 times
Maximum Relative
Aperture : F1.9 (9 - 115 mm) - F2.6 (153 mm)
Image Size : φ11 mm (8.8 x 6.6 mm)
Iris : F1.9 - F16, CLOSE Servo or Manual
Zoom : Servo or Manual
Focus : Servo or Manual
Focusing Range : 0.9 m (Macro:0.05m) - ∞
Field of View : Wide Tele
Horizontal : 52°06’ - 3°18’
Vertical : 40°16’ - 2°28’
Diagonal : 62°51’ - 4°07’
Flangeback : 48.0 mm (±0.4 mm Adjustable)
Mount : 2/3” Bayonet Mount
Filter (Flont frame) Size : M82 x 0.75 mm
Dimensions : 123 (W) x 120 (H) x 214 (D) mm
(with Hood)
[4-7/8” (W) x 4-3/4” (H)
x 8-7/16” (D)]
Weight : 1.3 kg (2.87 lbs) (without Hood)
Finish : Black
Input Voltage : +12 V DC
Current Consumption : 410 mA Max.
Iris Operating Time : Approx. 2 s (Full Travel)
Zoom Operating Time : Approx. 3 s (Full Travel)
Focus Operating Time : Approx. 3 s (Full Travel)
Camera Connector : HR10A-10P-12P, HIROSE
Control Connector : HR10A-10P-12S, HIROSE
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
NOTE : Refer to the operating instructions of
AW-E800 series for details.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
INSTALLATION
Rotate the lens fixing ring knob of camera counterclock-
wise and remove the lens mount cap. Mount the lens on
the camera and rotate the lens fixing ring knob clockwise
in order to fix the lens securely. Connect the camera
cable to the IRIS connector on the back panel of the
camera.
Connect the control cable to the lens I/F connector on
the pan/tilt unit.
VIDEO OUT
G/L IN
I/F REMOTE
OPTION CARD
IRIS
DC12V IN
MENU
ITEM/AWC
YES/ABC
NO/BAR
Control cable
To lens I/F connector
on the pan/tilt unit
To iris connector
Lens fixing
ring knob
Camera cable
We declare under our sole responsibility that the product to which this
declaration relates is in conformity with the standards or other
normative documents following the provisions of Directive EEC/89/336.
NM1199-0 7J1A431A Printed in Japan
PANASONIC BROADCAST & DIGITAL SYSTEMS COMPANY
DIVISION OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA
Executive Office: 3330 Cahuenga Blvd W., Los Angeles, CA 90068
(323) 436-3500
EASTERN ZONE: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621
Mid-Atlantic: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621
Southeast Region: 1225 Northbrook Parkway, Ste 1-160 Suwanee, GA 30024
(770) 338-6845
Central Region: 1707 N Randall Road E1-C-1, Elgin, IL 60123 (847) 468-5200
WESTERN ZONE: 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500
Dallas Region: 6226 Abington Way, Houston, TX 77008 (713) 802-2726
Government Marketing Department: 52 West Gude Drive, Rockville, MD 20850 (301) 738-3840
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 (905) 238-2115
PANASONIC SALES COMPANY
DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.
San Gabriel Industrial Park, 65th Infantry Ave., KM9.5 Carolina, Puerto Rico 00630 (809) 750-4300
© 1999 Matsushita Communication Industrial Co., Ltd.
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan

Other manuals for AWE800 - COLOR CAMERA

2

This manual suits for next models

1

Other Panasonic Camera Lens manuals

Panasonic LUMIX S PRO 70-200 mm F4 O.I.S. User manual

Panasonic

Panasonic LUMIX S PRO 70-200 mm F4 O.I.S. User manual

Panasonic Lumix H-FS14140 Installation guide

Panasonic

Panasonic Lumix H-FS14140 Installation guide

Panasonic LUMIX S-X50GC User manual

Panasonic

Panasonic LUMIX S-X50GC User manual

Panasonic H-FS1442APP User manual

Panasonic

Panasonic H-FS1442APP User manual

Panasonic ET-EMW200 User manual

Panasonic

Panasonic ET-EMW200 User manual

Panasonic H-VSO14140 User manual

Panasonic

Panasonic H-VSO14140 User manual

Panasonic Lumix H-FSA14140 User manual

Panasonic

Panasonic Lumix H-FSA14140 User manual

Panasonic WV-LP6 User manual

Panasonic

Panasonic WV-LP6 User manual

Panasonic Lumix H-XA025 User manual

Panasonic

Panasonic Lumix H-XA025 User manual

Panasonic ET-DLE060 User manual

Panasonic

Panasonic ET-DLE060 User manual

Panasonic H-FS35100 User manual

Panasonic

Panasonic H-FS35100 User manual

Panasonic WV-LZ62 User manual

Panasonic

Panasonic WV-LZ62 User manual

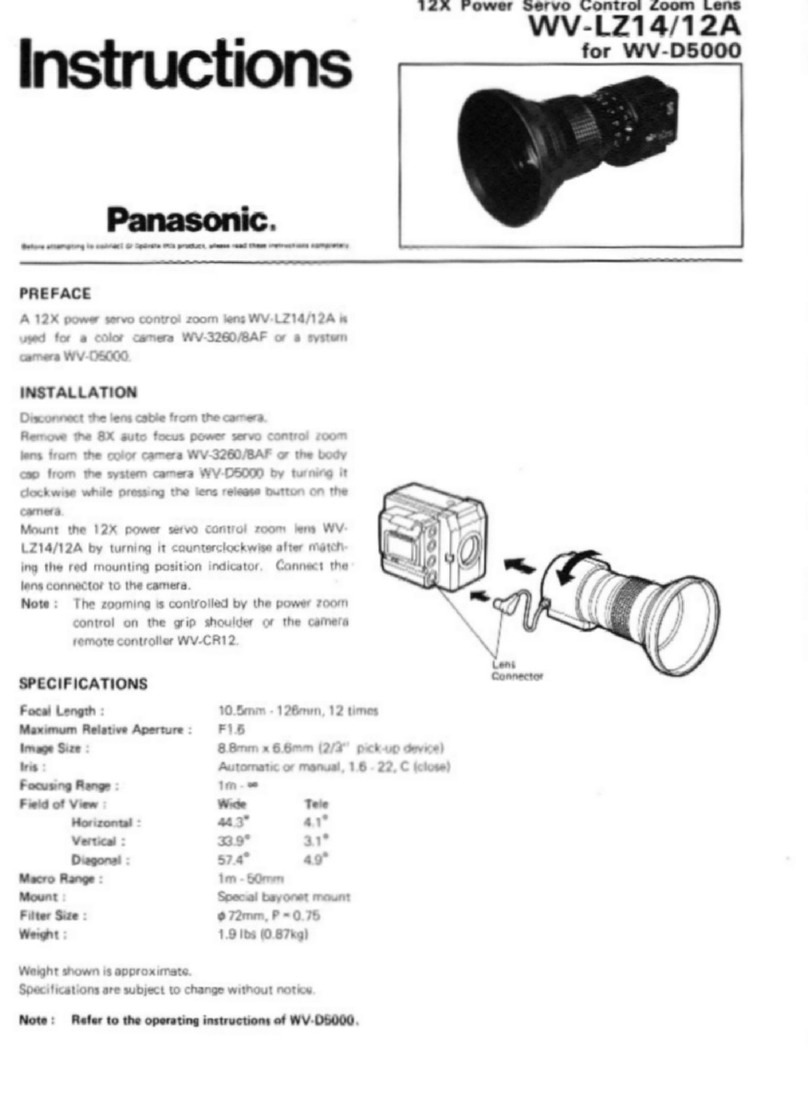

Panasonic WV-LZ12A User manual

Panasonic

Panasonic WV-LZ12A User manual

Panasonic LUMIX H-F007014E User manual

Panasonic

Panasonic LUMIX H-F007014E User manual

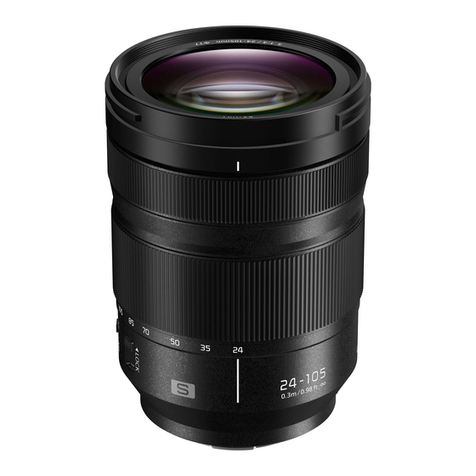

Panasonic Lumix S-R24105 User manual

Panasonic

Panasonic Lumix S-R24105 User manual

Panasonic H-FS35100 User manual

Panasonic

Panasonic H-FS35100 User manual

Panasonic ET-ELW30 User manual

Panasonic

Panasonic ET-ELW30 User manual

Panasonic WV-LF9C3 User manual

Panasonic

Panasonic WV-LF9C3 User manual

Panasonic LUMIX S PRO R1635 User manual

Panasonic

Panasonic LUMIX S PRO R1635 User manual

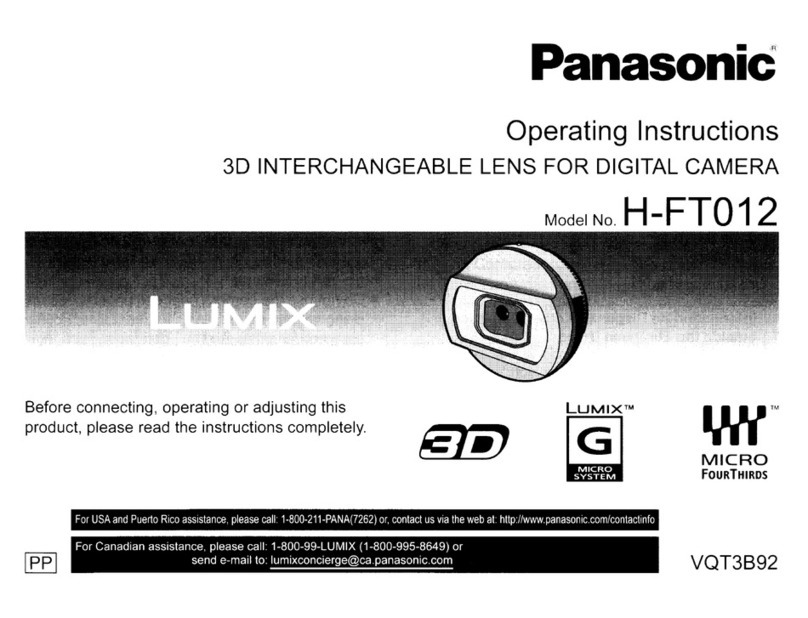

Panasonic Lumix H-FT012 User manual
