Panasonic Lumix H-FT012 User manual

Panasonic
Operating Instructions
3D INTERCHANGEABLE LENS FOR DIGITAL CAMERA
Model No. H-FTO 12
Before connecting, operating or adjusting this
product, please read the instructions completely.
LUMIXTM
••
G
Wi"
MICRO
FOURTHIRDS
Ippi
VQT3B92

Contents
Information for Your Safety 2
Precautions 5
Supplied Accessories 6
Attaching/Detaching the Lens 6
Names and Functions
of Components 8
Cautions for Use 9
Specifications
11
Limited Warranty 12
-If you see this symbol-
Information on Disposal in other Countries
outside the European Union
This symbol
is only valid in the
European Union.
If
you wish to discard this
product, please contact your
local authorities or dealer and
ask for the correct method of
disposal.
2
VQT3B92
THE FOLLOWING APPLIES ONLY IN CANADA.
This Class Bdigital apparatus complies with
Canadian ICES-003.
Information for Your Safety
~lM>.lt.~l_;~::»''..'='A:c::;l~:;o;m!~*:~~~~~~~_:~lj~~~~*'t~~~«'illll:l1~ti:i«~~;r~.<:t'i~~~~~j:;a::WMtlI>6l~~~~~~I1N~~.&<":ItIJ.~laW;:~lllmSitm;l.'
Keep the unit as far away as possible from
electromagnetic equipment (such as microwave
ovens, TVs, video games, radio transmitters,
high-voltage lines etc.).
•Do not use the camera near cell phones because
doing so may result
in noise adversely affecting
the pictures and sound.
•If the camera
is adversely affected by
electromagnetic equipment and stops functioning
properly, turn the camera off and remove the
battery and/or the connected AC adaptor. Then
reinsert the battery and/or reconnect the AC
adaptor and turn the camera on.

•This lens is compatible with the lens mount
standard for the Micro Four Thirds™System. You
can take impressive 3D pictures just by mounting
it on adigital camera that supports 3D picture
recording.
• It cannot be mounted on the Four Thirds™mount
specification camera.
• A TV compatible with 3D is required to play back
pictures recorded in 3D.
• It does not support recording in vertical
orientation.
•The digital camera illustrations in these operating
instructions show DMC-GH2 as an example.
Refer to catalogueslWeb pages for most current
information regarding compatible digital camera
bodies.
http://panasonic.jp/support/global/cs/dsc/
(This Site is English only.)
ENGLISH
•The appearance and specifications of products
described in this manual may differ from the actual
products you have purchased due to later
enhancements.
•Micro Four Thirds™and Micro Four Thirds Logo
marks are trademarks or registered trademarks of
Olympus Imaging Corporation, in Japan, the
United States, the European Union and other
countries.
•Four Thirds™and Four Thirds Logo marks are
trademarks or registered trademarks of Olympus
Imaging Corporation, in Japan, the United States,
the European Union and other countries.
• G MICRO SYSTEM is alens exchange type
digital camera system of LUMIX based on aMicro
Four Thirds System standard.
•Other names, company names, and product
names printed in these instructions are
trademarks or registered trademarks of the
companies concerned.
3
VQT3B92

THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the limits for aClass Bdigital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in aresidential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur
in aparticular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into
an outlet on acircuit different from that to which the receiver is connected.
•Consult the dealer or
an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.
This device complies with Part 15
of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Responsible Party:
Panasonic Corporation
of North America
One Panasonic Way
Secaucus,
NJ 07094
Support Contact:
Panasonic Consumer Electronics Company
Telephone No.: 1-800-211-PANA (7262)
4
VQT3B92

.Lens Care
•Sand and dust can damage the lens. Make
sure that no sand or dust gets inside the lens
or the terminals when using the lens on a
beach, etc.
• This lens is not waterproof. If drops of water get
onto the lens, wipe the lens with a dry cloth.
• Do not press the protective glass with excessive
force.
•When there is dirt (water, oil, and fingerprints, etc.)
on the surface of the protective glass, the picture
may be affected. Lightly wipe the surface of the
protective glass with asoft, dry cloth before and
after taking pictures.
• Do not place the lens mount facing downwards.
Do not allow the lens contact points CD to become
dirty.
• About Condensation (Fogging of the
Lens)
•Condensation occurs when there are differences
in temperature and humidity as described below.
Condensation can cause the lens to become dirty
and lead to mold and malfunctioning, so exercise
caution in the following situations:
-When the camera is brought indoors from outside
during cold weather
-When the camera is brought into an air-
conditioned car
-When cold air from an air conditioner is directly
blown onto the lens
-In humid places
•Put the camera into aplastic bag to allow it to
acclimatize to the surrounding temperature in
order to prevent condensation. If condensation
occurs, turn the power off and leave it for about
two hours. Once the camera acclimatizes to the
surrounding temperature the condensation will go
away naturally.
5
VQT3B92

Supplied Accessories
Attaching/Detaching the Lens
[Inspection to be performed when you unpack
the unit]
When removing the unit from its packing box, check
that the main unit and the supplied accessories are
there and also check their external appearance and
functions to verify that they have not sustained any
damage during distribution and transportation.
If you discover any trouble, contact your vendor
before using the product.
Product numbers correct as of October 2010. These
may be subject to change.
•Refer also to the camera's operating instructions
for attaching and detaching the lens.
•Attaching the Lens
•Check that the camera is turned off.
1Turn the lens rear
cap to detach
it.
@: Lens Rear Cap
2Align the lens fitting
marks ®(red marks)
on
the camera body and the
lens and then rotate the
lens
in the direction of
the arrow until it clicks.
•Do not press the lens release
button ©when you attach alens.
•Do not try to attach the lens when holding it at an
angle to the camera body as the lens mount may
get scratched.
•Check that the lens is attached correctly.
VFC4605
3
VYF3393
2
VFC4460
1
1Lens Storage Bag
2Lens Cap
3Lens Rear Cap
(The lens rear cap and lens cap are attached to
the interchangeable lens at the time of purchase.)
6
VQT3B92

•Detaching the Lens
•Check that the camera is turned off.
Press the lens release
button @while turning
the lens as far as
possible
in the direction
of the arrow to detach it.
•Attach the lens rear cap so
that the lens contact point does not get
scratched.
•Attach the body cap to the camera
so no dirt or
dust will get inside the main unit.
•Attaching and Detaching the Lens Cap
• Be careful not to lose
the lens cap.
7
VQT3B92

~~""~··If$.'~PX~'I"f'·'>f:;;';<''f;oi<c;,o;,:x:~~~.",.~:'':<~~.w;:",:»~~,,,==0<y;o;"'««;(oX:'("'=~":'I,;s,<·>:,:««>· ':'::":";»/"~<:::::<': ::::::::,-::::,::::::::=::~,::,';><~.~*,},~::i;k:::,:,;;. :-:-'-'-:,-c.;:::=;-: :;:::::·::>::::«-~~_M.';:·'r.'"x«~",,·::~·
Names and Functions of
Components
1 2
1Protective glass
2Lens
3Contact points
4Lens fitting mark
8
VQT3B92
3
"' 4
- ..
w Note
•Zoom operation is not supported.
•It
is recommended to use atripod or aflash to
record steady pictures.
•When adistance to the subject
is 0.6 m(1.97 feet)
to approximately 1 m (3.28 feet), horizontal
disparity becomes too great, and you may not see
the 3D effect at the edges
of the image.
•Functions that can
be used depend on the digital
camera you are using. Please refer to the
operating instructions of the digital camera for
details.
To
ensure that the 3D pictures can be safely
viewed, pay attention to the following points
when recording.
•Where possible, record with the digital camera in
ahorizontal state.
•Do not get too close
to the subject [record from a
distance
of at least 0.6 m(1.97 feet)].
•Be careful not to shake the camera while
in a
vehicle or walking.

Cautions for Use
Take care not to drop or knock the lens. Also
take care not to put alot of pressure
on the lens.
•Take care not
to drop the bag that you inserted the
lens
in as it may damage the lens. The camera
may stop operating normally and pictures may
no
longer be recorded.
When using pesticides and other volatile
substances around the camera make sure that
they do not get onto the lens.
•If such substances get onto the lens they can
damage the exterior case or cause the paint
to peel.
Do not carry the unit when
it is still attached to
the camera body.
•Under
no circumstances should the unit be stored
in any of the following locations since doing so
may cause problems
in operation or
malfunctioning.
-In direct sunlight or on abeach in summer
-In locations with high temperatures and humidity
levels or where the changes
in temperature and
humidity are acute
-In locations with high concentrations of sand,
dust or dirt
-Where there
is fire
-Near heaters, air conditioners or humidifiers
-Where water may make the unit wet
-Where there
is vibration
-Inside avehicle
•Refer also to the operating instructions
of the
digital camera.
•When the unit
is not going to be used for a
prolonged period, we recommend storing with a
desiccant (silica gel). Failure
to do so may result in
performance failure caused by mold, etc. It is
recommended that you check the unit's operation
prior to use.
•Do not leave the lens
in contact with rubber or
plastic products for extended periods of time.
•Do not touch the lens contact point. Doing so can
cause failure of the unit.
•Do not disassemble or alter the unit.
Do not use benzine, thinner, alcohol or other
similar cleaning agents to clean the lens glass or
exterior cabinet.
•Using solvents can damage the lens or cause the
paint to peel.
•Wipe off any dust or fingerprints with asoft, dry
cloth.
•Do not use ahousehold detergent or achemically
treated cloth.
9
VQT3B92

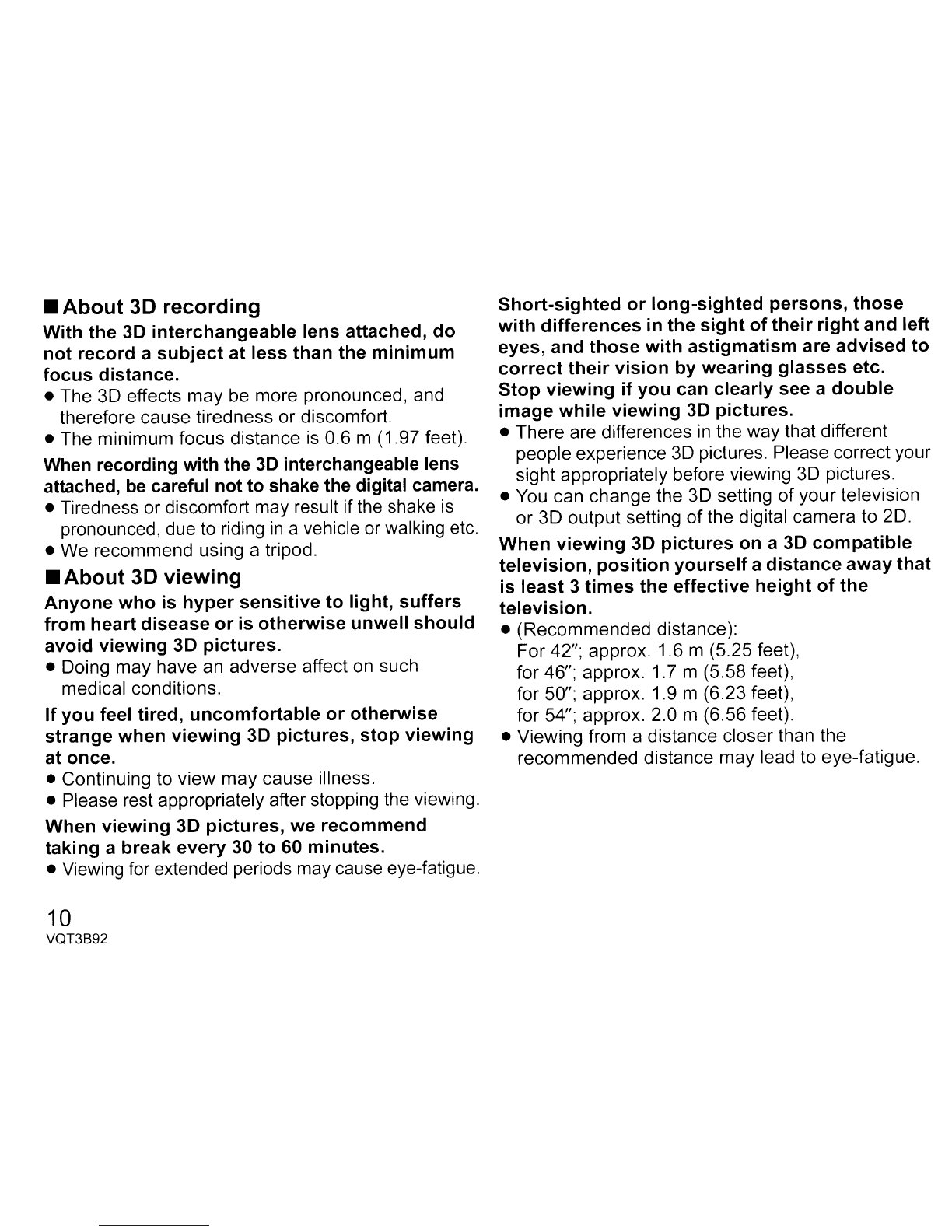

.About 3D recording
With the 3D interchangeable lens attached, do
not record asubject at less than the minimum
focus distance.
•The 3D effects may be more pronounced, and
therefore cause tiredness or discomfort.
•The minimum focus distance
is 0.6 m(1.97 feet).
When recording with the 3D interchangeable lens
attached, be careful not to shake the digital camera.
•Tiredness or discomfort may result if the shake is
pronounced, due to riding in avehicle or walking etc.
•We recommend using atripod.
.About 3D viewing
Anyone who is hyper sensitive to light, suffers
from heart disease or is otherwise unwell should
avoid viewing 3D pictures.
•Doing may have an adverse affect on such
medical conditions.
If you feel tired, uncomfortable or otherwise
strange when viewing 3D pictures, stop viewing
at once.
•Continuing to view may cause illness.
•Please rest appropriately after stopping the viewing.
When viewing 3D pictures, we recommend
taking abreak every 30 to 60 minutes.
•Viewing for extended periods may cause eye-fatigue.
10
VQT3B92
Short-sighted or long-sighted persons, those
with differences in the sight of their right and left
eyes, and those with astigmatism are advised to
correct their vision by wearing glasses etc.
Stop viewing if you can clearly see adouble
image while viewing 3D pictures.
•There are differences in the way that different
people experience
3D pictures. Please correct your
sight appropriately before viewing 3D pictures.
•
You can change the 3D setting of your television
or 3D output setting
of the digital camera to 20.
When viewing 3D pictures on a 3D compatible
television, position yourself adistance away that
is least 3times the effective height of the
television.
•(Recommended distance):
For 42"; approx. 1.6 m(5.25 feet),
for 46"; approx. 1.7 m(5.58 feet),
for 50"; approx. 1.9 m(6.23 feet),
for 54"; approx. 2.0 m(6.56 feet).
•Viewing from adistance closer than the
recommended distance may lead to eye-fatigue.

Specifications
~~~ilffm • .ay'%W"ffi~~lWtI~m~ms~\""lm~~",*~W:i~~~·-··-·'-:,,~::::::·-···.:::::.:-I}:.';J.Ui·~ik(~~~m~#>W'~~\<'~~m'l~~~~~l'W~~%f:_:"_:: .. :·.~.g:----i:;w:;:it::::"::::":&&::*~~W;'w~~~.m~:~u~~S~~~.,~~iit~-_.)._'-~---$: (,@I t __ L"t'
3D INTERCHANGEABLE LENS FOR DIGITAL CAMERA
"LUMIX G12.5 mm/F12"
Focal length f=12.5 mm [35 mm film camera equivalent: 65 mm (When the
DMC-GH2 is used and the aspect ratio is set to [16:9])],t-1
Aperture type Fixed
Aperture F12 (Fixed)
._._--_ ... -_._._-_ ...• -.
Lens construction 4elements in 3groups x 2
In focus distance 0.6 m(1.97 feet) to x(from the focus distance reference line)
Maximum image magnification 0.02x [35 mm film camera equivalent: 0.1 x
(When the DMC-GH2 is used and the aspect ratio is set to [16:9])]*1
Optical image stabilizer Not available
Mount "Micro Four Thirds Mount"
Angle of view
37
0(When the
DMC-GH2 is used and the aspect ratio is set to [16:9])*1
Stereo Base 10 mm (0.39 inch)
Max. diameter Approx. 57 mm (2.24 inch)
Overall length Approx. 20.5 mm (0.81 inch)
(from the tip
of the lens to the base side of the lens mount)
Mass (Weight) Approx. 45 g(0.10 Ib)
*1When using adigital camera other than the DMC-GH2, check details via the following support site.
http://panasonic.jp/support/global/cs/dsc/ (This Site is English only.)
11
VQT3B92

Limited Warranty
FOR U.S.A. and Puerto Rico
PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA
One Panasonic Way,
Secaucus, New Jersey 07094
[ . ._-. --.------.-. -- ----.-.---.----.--.-- .. ------------ .. - --.------ ------ -------- ·---·1
Panasonlc Digital Still Camera ACCESSORIES LIMITED WARRANTY I
_.,--_ ...• -----_. __ ., -----_.- _._---'.-._---_.' ..•.. ----
Limited Warranty Coverage
If your product does not work properly because of adefect in materials or workmanship, Panasonic
Consumer Electronics Company (referred
to as "the warrantor") will, for the length of the period indicated
on the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a)
repair your product with new or refurbished parts, or (b) replace
it with anew or arefurbished product. The
decision to repair or replace will be made by the warrantor.
PRODUCT OR PART NAME PARTS LABOR
Interchangeable Lens for Digital Camera 1(ONE) YEAR 1(ONE) YEAR
You must Mail-In your product during the warranty period. This warranty only applies to products purchased
and serviced
in the United States or Puerto Rico. This warranty is extended only to the original purchaser of
anew product which was not sold "as is".
Mail-In Service
For assistance in obtaining service in the United States and Puerto Rico please contact:
Panasonic Camera and Digital Service Center
1590 Touhy Ave.
Elk Grove Village,
IL 60007
12
VQT3892

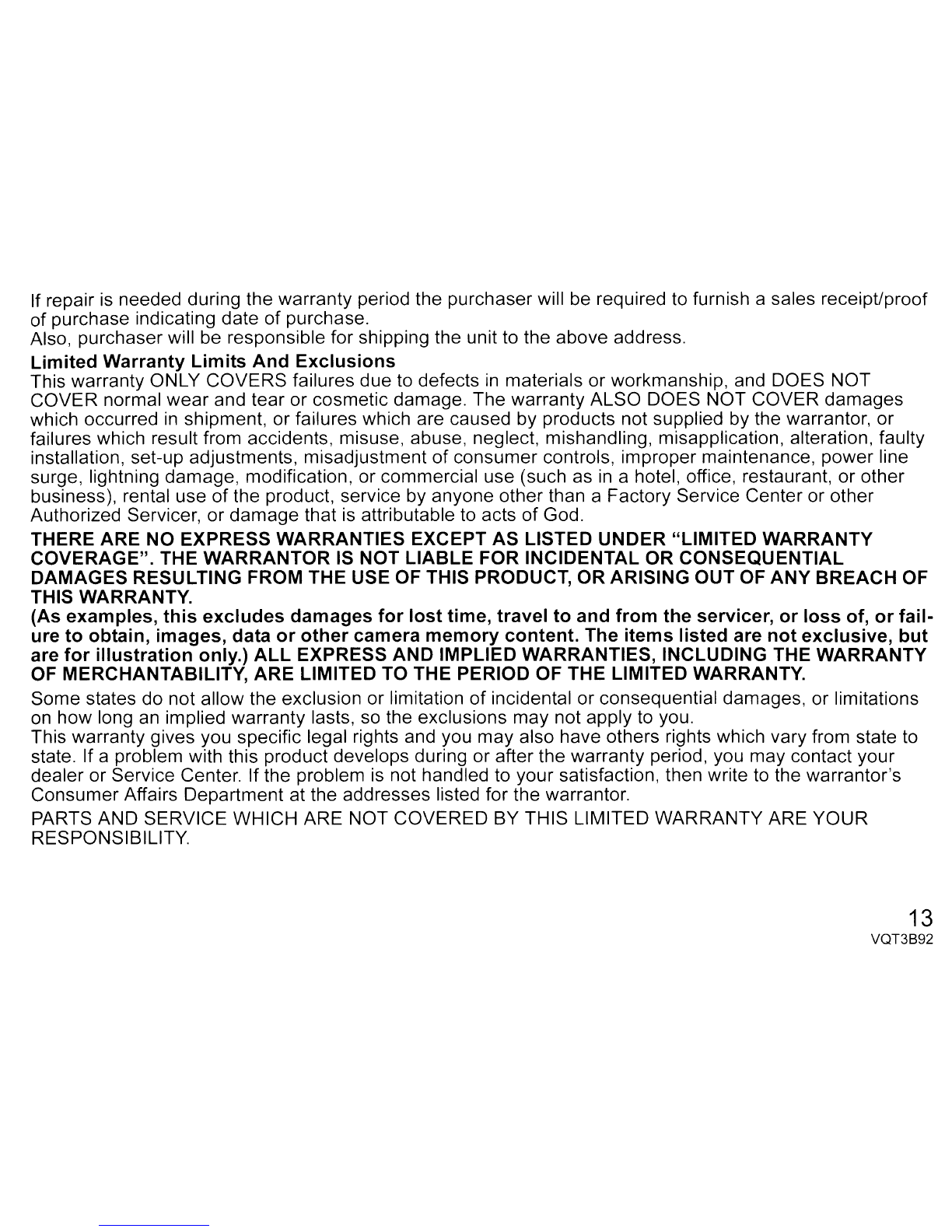

If repair is needed during the warranty period the purchaser will be required to furnish asales receipt/proof
of purchase indicating date of purchase.
Also, purchaser will be responsible for shipping the unit to the above address.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT
COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages
which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or
failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line
surge, lightning damage, modification, or commercial use (such as in ahotel, office, restaurant, or other
business), rental use of the product, service by anyone other than aFactory Service Center or other
Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer, or loss of, or fail-
ure to obtain, images, data or other camera memory content. The items listed are not exclusive, but
are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY
OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have others rights which vary from state to
state. If aproblem with this product develops during or after the warranty period, you may contact your
dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor's
Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR
RESPONSIBILITY.
13
VQT3B92

FOR CANADA
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT -LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and
for aperiod as stated below from the date
of original purchase agrees to, at its option either (a) repair your product with
new or refurbished parts, (b) replace
it with anew or arefurbished equivalent value product, or (c) refund your purchase
price. The decision to repair, replace or refund will
be made by Panasonic Canada Inc.
Digital Camera One (1) year, parts and labour
Digital Photo Peripherals One (1) year, parts and labour
Digital Camera Accessories Ninety (90) days, parts and labour
This warranty is given only to the original purchaser,
or the person for whom it was purchased as agift, of aPanasonic
brand product mentioned above sold by an authorized Panasonic dealer
in Canada and purchased and used in Canada,
which product was not sold "as is", and which product was delivered to you
in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, APURCHASE RECEIPT OR OTHER
PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE
IS REQUIRED
14
VQT3B92

Our Customer Care Centre:
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due
to defects in materials or workmanship, and DOES NOT COVER normal wear
and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred
in shipment, or failures
which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse,
abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer
controls, improper maintenance, improper batteries, power line surge, lightning damage, modification, introduction
of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or
service by anyone other than aAuthorized Servicer, or damage that
is attributable to acts of God.
Dry cell batteries, printer ink cartridge and paper are also excluded from coverage under this warranty.
Rechargeable batteries are warranted for ninety (90) days from date
of original purchase.
THIS EXPRESS, LIMITED WARRANTY
IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.
IN
NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH
OF ANY EXPRESS
OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized
Servicer, loss
of or damage to media or images, data or other memory or recorded content. This list of items is not
exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or
the exclusion of implied warranties, so the above limitations and exclusions may not
be applicable. This warranty gives you
specific legal rights and you may have other rights which vary depending
on your province or territory.
WARRANTY SERVICE
For product operation and information assistance, please contact:
Telephone: 1-800-99-LUMIX (1-800-995-8649)
Fax # : [phone]
Email link:[email protected]
For defective product exchange within the warranty period, please contact the original Dealer or our Customer Care
Centre.
15
VQT3B92
