Operating Instructions
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
Model No. H-X015
Please read these instructions carefully before using this product, and save this manual for future use.
until
2014/4/28
SQT0244_E.book 1 ページ ２０１４年４月１１日 金曜日 午前９時１７分

2
SQT0244
Contents
Information for Your Safety..................................... 2
Precautions........................................................... 3
Supplied Accessories ............................................. 4
Names and Functions of Components ................... 5
Attaching/Detaching the Lens................................. 6
Cautions for Use..................................................... 9
Troubleshooting .................................................... 9
Specifications........................................................ 10
Limited Warranty (ONLY FOR AUSTRALIA)........ 11
Information for Your Safety
Keep the unit as far away as possible from
electromagnetic equipment (such as microwave
ovens, TVs, video games, radio transmitters,
high-voltage lines etc.).
≥Do not use the camera near cell phones because
doing so may result in noise adversely affecting
the pictures and sound.
≥
If the camera is adversely affected by electromagnetic
equipment and stops functioning properly, turn the
camera off and remove the battery and/or the
connected AC adaptor. Then reinsert the battery and/
or reconnect the AC adaptor and turn the camera on.
The lens can be used with a digital camera
compatible with the lens mount standard for the
“Micro Four ThirdsTM System”.
≥It cannot be mounted on the Four ThirdsTM mount
specification camera.
≥The digital camera illustrations in these operating
instructions show DMC-GM1 as an example.
≥
The appearance and specifications of products described
in this manual may differ from the actual products you
have purchased due to later enhancements.
≥ Micro Four Thirds
TM
and Micro Four Thirds Logo
marks are trademarks or registered trademarks of
Olympus Imaging Corporation, in Japan, the United
States, the European Union and other countries.
≥Four ThirdsTM and Four Thirds Logo marks are
trademarks or registered trademarks of Olympus
Imaging Corporation, in Japan, the United States,
the European Union and other countries.
≥G MICRO SYSTEM is an interchangeable lens
type digital camera system of LUMIX based on a
Micro Four Thirds System standard.
≥LEICA is a registered trademark of Leica
Microsystems IR GmbH.
SUMMILUX is a
registered trademark of Leica Camera AG. The
LEICA DG lenses are manufactured using
measurement instruments and quality assurance
systems that have been certified by Leica Camera
AG based on the company’s quality standards.
≥Other names of systems and products mentioned
in these instructions are usually the registered
trademarks or trademarks of the manufacturers
who developed the system or product concerned.
SQT0244_E.book 2 ページ ２０１４年４月１１日 金曜日 午前９時１７分

3
SQT0244
-If you see this symbol-
∫Lens Care
≥Sand and dust can damage the lens. Make
sure that no sand or dust gets inside the lens
or the terminals when using the lens on a
beach, etc.
≥The lens is neither waterproof nor splash-
proof. If drops of water get onto the lens, wipe
the lens with a dry cloth.
≥Do not press the lens with excessive force.
≥When there is dirt (water, oil, and fingerprints, etc.)
on the surface of the lens, the picture may be
affected. Lightly wipe the surface of the lens with a
soft, dry cloth before and after taking pictures.

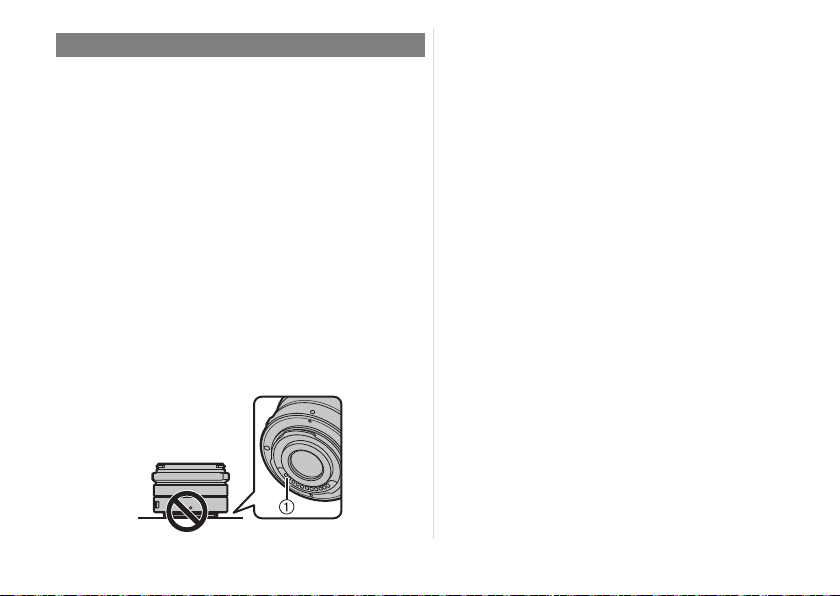

≥Do not place the lens mount facing downwards.
Do not allow the lens contact points 1to become
dirty.
Disposal of Old Equipment
Only for European Union and countries with
recycling systems
This symbol on the products,
packaging, and/or accompanying
documents means that used
electrical and electronic products
must not be mixed with general
household waste.
For proper treatment, recovery
and recycling of old products,
please take them to applicable
collection points in accordance
with your national legislation.
By disposing of them correctly,
you will help to save valuable resources and prevent
any potential negative effects on human health and
the environment.
For more information about collection and recycling,
please contact your local municipality.
Penalties may be applicable for incorrect disposal of
this waste, in accordance with national legislation.
Precautions
ENGLISH
SQT0244_E.book 3 ページ ２０１４年４月１１日 金曜日 午前９時１７分

4
SQT0244
∫About Condensation (Fogging of the
Lens)
≥Condensation occurs when there are differences
in temperature and humidity as described below.
Condensation can cause the lens to become dirty
and lead to mold and malfunctioning, so exercise
caution in the following situations:
– When the camera is brought indoors from outside
during cold weather
– When the camera is brought into an air-
conditioned car
– When cold air from an air conditioner is directly
blown onto the lens
– In humid places
≥Put the camera into a plastic bag to allow it to
acclimatize to the surrounding temperature in
order to prevent condensation. If condensation
occurs, turn the power off and leave it for about
two hours. Once the camera acclimatizes to the
surrounding temperature the condensation will go
away naturally.
Supplied Accessories
[Inspection to be performed when you unpack
the unit]
When removing the unit from its packing box, check
that the main unit and the supplied accessories are
there and also check their external appearance and
functions to verify that they have not sustained any
damage during distribution and transportation.
If you discover any trouble, contact your vendor
before using the product.
Product numbers correct as of April 2014. These
may be subject to change.
VFC4456
:SFC0191
:SFC0190
:SFC0090
:SFC0089
:SFC0133
:SFC0093
SYF0001
21
65
34
VFC4605
SQT0244_E.book 4 ページ ２０１４年４月１１日 金曜日 午前９時１７分

5
SQT0244
≥The lens cap, lens rear cap, and decoration ring
are attached to the lens at the time of purchase. In
addition, the lens hood cap is attached to the lens
hood.
Names and Functions of
Components
1Lens surface
2Decoration ring
Remove this cover when using the lens hood.
3Aperture ring
Rotate this to adjust the aperture value.
≥If you set the camera to Aperture-Priority AE
Mode or Manual Exposure Mode, the aperture
value of the ring will be enabled.
≥If you set the position of the aperture ring to [A],
the aperture value of the camera will be enabled.
≥When the aperture ring is enabled, check if the
aperture value has changed after attaching or
removing the decoration ring.

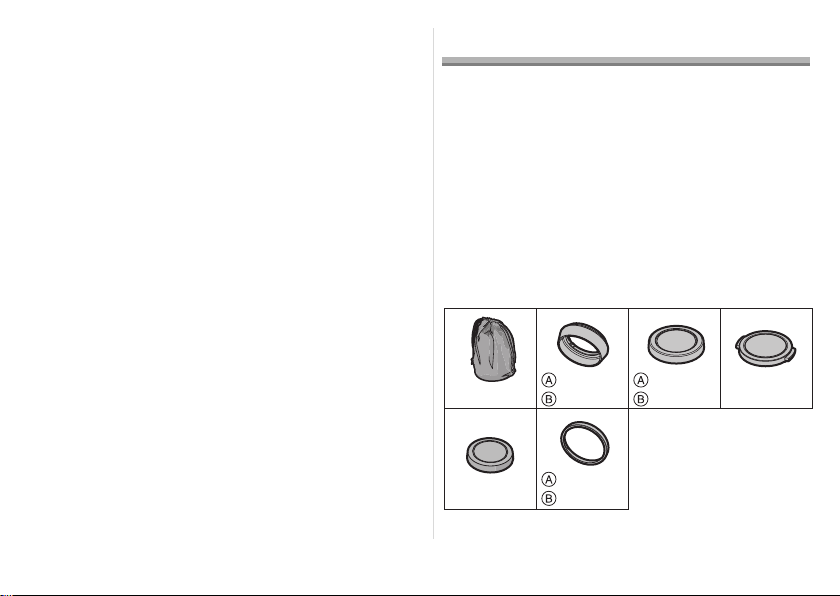

1Lens Pouch 4Lens Cap
2Lens Hood
A: Black
B: Silver
5Lens Rear Cap
3Lens Hood Cap
A: Black
B: Silver
6Decoration ring
A: Black
B: Silver
1234 5 6 7
SQT0244_E.book 5 ページ ２０１４年４月１１日 金曜日 午前９時１７分

6
SQT0244
4Focus ring
Rotate to focus when taking pictures with manual
focus (MF).
5[AF/MF] switch
This allows you to switch between Auto Focus (AF)
and Manual Focus (MF). If you set [MF], you can
use the focus ring to adjust the focus.
≥When either the [AF/MF] switch of the lens or the
setting of the camera is set to [MF], Manual Focus
(MF) is enabled.
6Lens fitting mark
7Contact points
Note
≥When using this lens and the flash to record a
subject very close to the camera, it is possible that
a darker shadowed area may appear in the lower
portion of the picture. This situation is not a
malfunction and is caused when the flash is
partially blocked by the lens. This situation may be
worsened when the lens hood is used.
≥
In very quiet situations Auto Focus operating sounds
may be recorded during motion picture recording.
This is not a malfunction. In such situations,
switching to Manual Focus will improve the situation.
≥The aperture can be adjusted with the aperture
ring only when a Panasonic digital camera is
attached to the lens. (As of April 2014)
Attaching/Detaching the Lens
Check that the camera is
turned off.
≥Remove the lens rear cap
from the lens.
∫Attaching the Lens
Align the lens fitting
marks A on the
camera body and the
lens and then rotate
the lens in the
direction of the
arrow until it clicks.
• Do not press the lens release button B when
you attach a lens.
• Do not try to attach the lens when holding it at an
angle to the camera body as the lens mount may
get scratched.
• Check that the lens is attached correctly.
• Be sure to remove the lens cap when recording.
SQT0244_E.book 6 ページ ２０１４年４月１１日 金曜日 午前９時１７分

7
SQT0244
∫Detaching the Lens
While pressing on the
lens release button B,
rotate the lens toward
the arrow until it stops
and then remove.
• Attach the lens rear cap so
that the lens contact point does not get scratched.
• Attach the body cap to the camera so no dirt or
dust will get inside the main unit.
∫ Attaching the Lens Hood (Supplied Accessory)
≥Before attaching the lens
hood, make sure to
remove the lens cap. The
lens hood cannot be
attached unless you
remove the lens cap.
1 Rotate the decoration ring Cin the
direction of the arrow to remove it.
2 Align the mounting index Don the lens
hood with the mark on the tip of the lens.
3 Rotate the lens hood in the direction of
the arrow until it clicks into place, and
align the stop position Eon the lens
hood with the index on the tip of the lens.
Note
≥
When using this lens and the flash to record a subject
very close to the camera, it is possible that a darker
shadowed area may appear in the lower portion of the
picture. This situation is not a malfunction and is caused
when the flash is partially blocked by the lens. This
situation may be worsened when the lens hood is used.
≥When using the AF assist lamp in the dark, detach
the lens hood.
≥Make sure to remove the lens hood cap when
recording an image.
23
SQT0244_E.book 7 ページ ２０１４年４月１１日 金曜日 午前９時１７分

8
SQT0244
∫Attaching the decoration ring
≥Before attaching the decoration ring, make
sure to remove the lens cap.

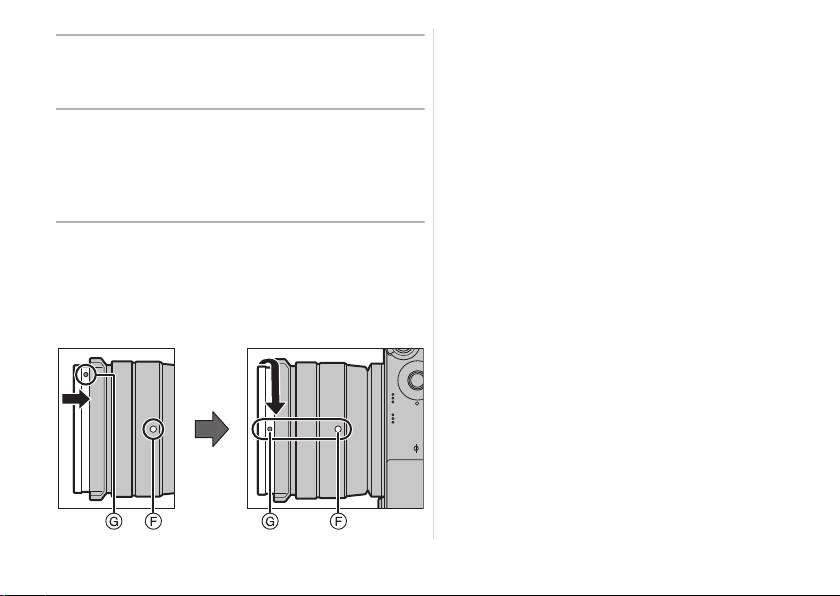

1 Align the mounting position G on the
decoration ring with a position
approximately 90xaway from the lens
fitting mark F to fit the decoration ring
into place.
2 Rotate the decoration ring in the
direction of the arrow to align the
mounting position Gon the decoration
ring with the lens fitting mark F.
∫Attaching Filters
≥Vignetting may occur if using 2 or more
MC protectors (optional: DMW-LMC46), PL filters
(optional: DMW-LPL46) or ND filters (optional:
DMW-LND46), or if using thick protectors and/or
filters.
≥The filter may become impossible to remove if
excessively tightened, so please refrain from
tightening it too strongly.
≥It is possible to attach the lens cap with the filter
already attached.
≥When the lens hood is attached to this lens, you
cannot attach a filter to it.
≥You cannot attach a conversion lens or adaptor to
this lens. A filter may be used, but attaching any
other element may cause damage to the lens.
12
SQT0244_E.book 8 ページ ２０１４年４月１１日 金曜日 午前９時１７分

9
SQT0244
Cautions for Use
Take care not to drop or knock the lens. Also
take care not to put a lot of pressure on the lens.
≥
Take care not to drop the bag that you inserted the
lens in as it may strongly shock the lens. The camera
may stop operating normally and pictures may no
longer be recorded. Also, the lens may be damaged.
≥ When carrying the digital camera with the lens
attached, hold both the digital camera and the lens.
When using pesticides and other volatile
substances around the camera make sure that
they do not get onto the lens.
≥
If such substances get onto the lens they can
damage the exterior case or cause the paint to peel.
Do not point the lens at the sun or other strong
light sources.
≥This could cause the lens to collect an excessive
amount of light, resulting in fire and malfunction.
≥
Under no circumstances should the unit be stored in
any of the following locations since doing so may
cause problems in operation or malfunctioning.
– In direct sunlight or on a beach in summer
– In locations with high temperatures and humidity levels or
where the changes in temperature and humidity are acute
– In locations with high concentrations of sand, dust or dirt
– Where there is fire
– Near heaters, air conditioners or humidifiers
– Where water may make the unit wet
– Where there is vibration
– Inside a vehicle
≥
Refer also to the operating instructions of the digital camera.
≥ When the unit is not going to be used for a prolonged
period, we recommend storing with a desiccant (silica
gel). Failure to do so may result in performance
failure caused by mold, etc. It is recommended that
you check the unit’s operation prior to use.
≥ Do not leave the lens in contact with rubber or plastic
products for extended periods of time.
≥ Do not touch the lens contact point. Doing so can
cause failure of the unit.
≥ Do not disassemble or alter the unit.
Do not use benzine, thinner, alcohol or other
similar cleaning agents to clean the lens glass or
exterior cabinet.
≥Using solvents can damage the lens or cause the
paint to peel.
≥
Wipe off any dust or fingerprints with a soft, dry cloth.
≥Use a dry, dust cloth to remove dirt and dust on
the focus ring and the aperture ring.
≥Do not use a household detergent or a chemically
treated cloth.
When I turn on or off the camera or when I shake the
lens, I hear a sound, for example a rattling sound.
When I take pictures of a bright subject, such as a
subject outside, or when I take pictures with a large
aperture value, the lens makes a sound.
≥This is the sound of lens or aperture movement
and is not a malfunction.
Troubleshooting
SQT0244_E.book 9 ページ ２０１４年４月１１日 金曜日 午前９時１７分

10
SQT0244
Specifications
Specifications are subject to change without notice.
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
“LEICA DG SUMMILUX 15 mm/F1.7 ASPH.”
Focal length f=15 mm
(35 mm film camera equivalent: 30 mm)
Aperture type 7 diaphragm blades/circular aperture diaphragm
Maximum aperture F1.7
Minimum aperture value F16
Lens construction 9 elements in 7 groups (3 aspherical lenses)
Nano surface coating Yes
In focus distance 0.2 m to ¶ [from the focus distance reference line]
Maximum image magnification 0.1k(35 mm film camera equivalent: 0.2k)
Optical image stabiliser Not available
[AF/MF] switch Available (Switching AF/MF)
Mount “Micro Four Thirds Mount”
Angle of view 72x
Filter diameter 46 mm
Max. diameter Approx. 57.5 mm
Overall length Approx. 36 mm
(from the tip of the lens to the base side of the lens mount)
Mass Approx. 115 g
SQT0244_E.book 10 ページ ２０１４年４月１１日 金曜日 午前９時１７分
