Panasonic Lumix DMC-G1KPP User manual

© Panasonic Corporation 2008. Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. DSC0810042CE
B26
Digital Camera/Lens Kit
Model No.DMC-G1KPP
DMC-G1KEB
DMC-G1KEC
DMC-G1KEG
DMC-G1KGC
DMC-G1KGD
DMC-G1KGH
DMC-G1KGK
DMC-G1KGN
DMC-G1KGT
DMC-G1KGJ
Vol. 1
Colour
(K)...........Black Type
(A)...........Blue Type (except GD/GN/GT/GJ)
(R)...........Red Type (except GD/GN/GT/GJ)

2
TABLE OF CONTENTS PAGE PAGE
1 Safety Precaution-------------------------------------------------3
1.1. General Guidelines ----------------------------------------3
1.2. Leakage Current Cold Check---------------------------3
1.3. Leakage Current Hot Check (See Figure 1.)--------3
1.4. How to Discharge the Capacitor on Flash Sub
PCB------------------------------------------------------------4
2Warning--------------------------------------------------------------5
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices ----------5
2.2. How to Recycle the Lithium Ion Battery (U.S.
Only)-----------------------------------------------------------5
2.3. Caution for AC Cord(For EB/GC/GH)-----------------6
2.4. How to Replace the Lithium Battery-------------------7
3 Service Navigation------------------------------------------------8
3.1. Introduction --------------------------------------------------8
3.2. Important Notice--------------------------------------------8

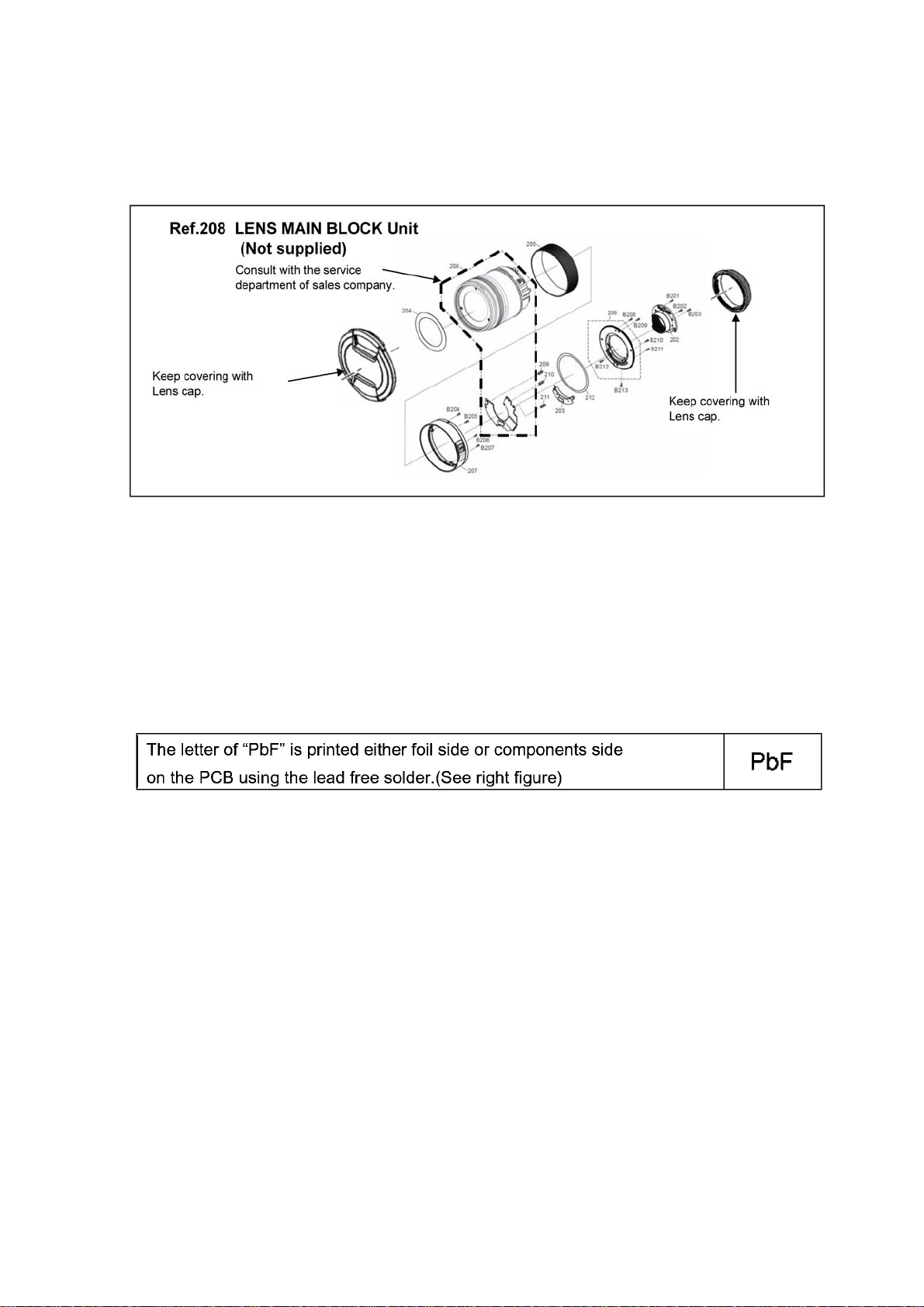

3.3. General Description About Lead Free Solder
(PbF) ----------------------------------------------------------9
3.4. How to Define the Model Suffix (NTSC or PAL
model)-------------------------------------------------------10

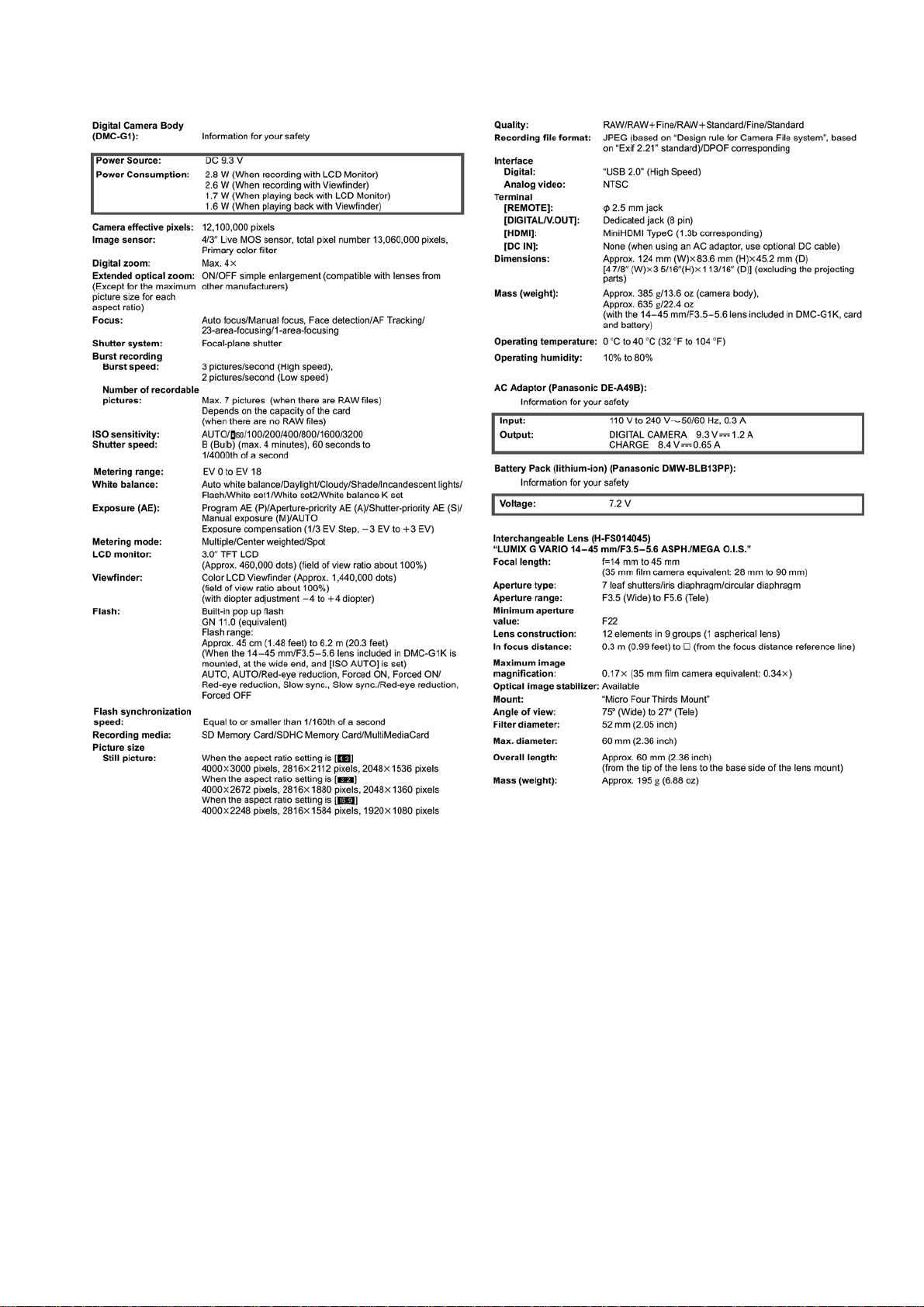

4 Specifications----------------------------------------------------13
5 Location of Controls and Components------------------14
6 Service Mode-----------------------------------------------------34
6.1. Error Code Memory Function -------------------------34
7 Troubleshooting Guide----------------------------------------36
8 Service Fixture & Tools ---------------------------------------39
8.1. Service Fixture and Tools ------------------------------39
8.2. Clean Box--------------------------------------------------40
8.3. Service Position ------------------------------------------41
9 Disassembly and Assembly Instructions---------------42
9.1. Disassembly Flow Chart--------------------------------42
9.2. PCB Location----------------------------------------------42
9.3. Disassembly Procedure --------------------------------43
9.4. Disassembly and Assemble Procedure for the
Lens ---------------------------------------------------------51
10 Measurements and Adjustments --------------------------54
10.1. Matrix Chart for Replaced Part and Necessary
Adjustment-------------------------------------------------54
11 Maintenace--------------------------------------------------------55

3
1 Safety Precautions
1.1. General Guidelines
1. IMPORTANT SAFETY NOTICE
There are special components used in this equipment
which are important for safety. These parts are marked by
in the Schematic Diagrams, Circuit Board Layout,
Exploded Views and Replacement Parts List. It is essen-
tial that these critical parts should be replaced with manu-
facturer’s specified parts to prevent X-RADIATION,
shock, fire, or other hazards. Do not modify the original
design without permission of manufacturer.
2. An Isolation Transformer should always be used during
the servicing of AC Adaptor whose chassis is not isolated
from the AC power line. Use a transformer of adequate
power rating as this protects the technician from acci-
dents resulting in personal injury from electrical shocks. It
will also protect AC Adaptor from being damaged by acci-
dental shorting that may occur during servicing.
3. When servicing, observe the original lead dress. If a short
circuit is found, replace all parts which have been over-
heated or damaged by the short circuit.
4. After servicing, see to it that all the protective devices
such as insulation barriers, insulation papers shields are
properly installed.
5. After servicing, make the following leakage current
checks to prevent the customer from being exposed to
shock hazards.
1.2. Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the
two prongs on the plug.
2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed metal-
lic cabinet part on the equipment such as screwheads,
connectors, control shafts, etc. When the exposed metal-
lic part has a return path to the chassis, the reading
should be between 1 MΩand 5.2 MΩ. When the exposed
metal does not have a return path to the chassis, the
reading must be infinity.
1.3. Leakage Current Hot Check
(See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.

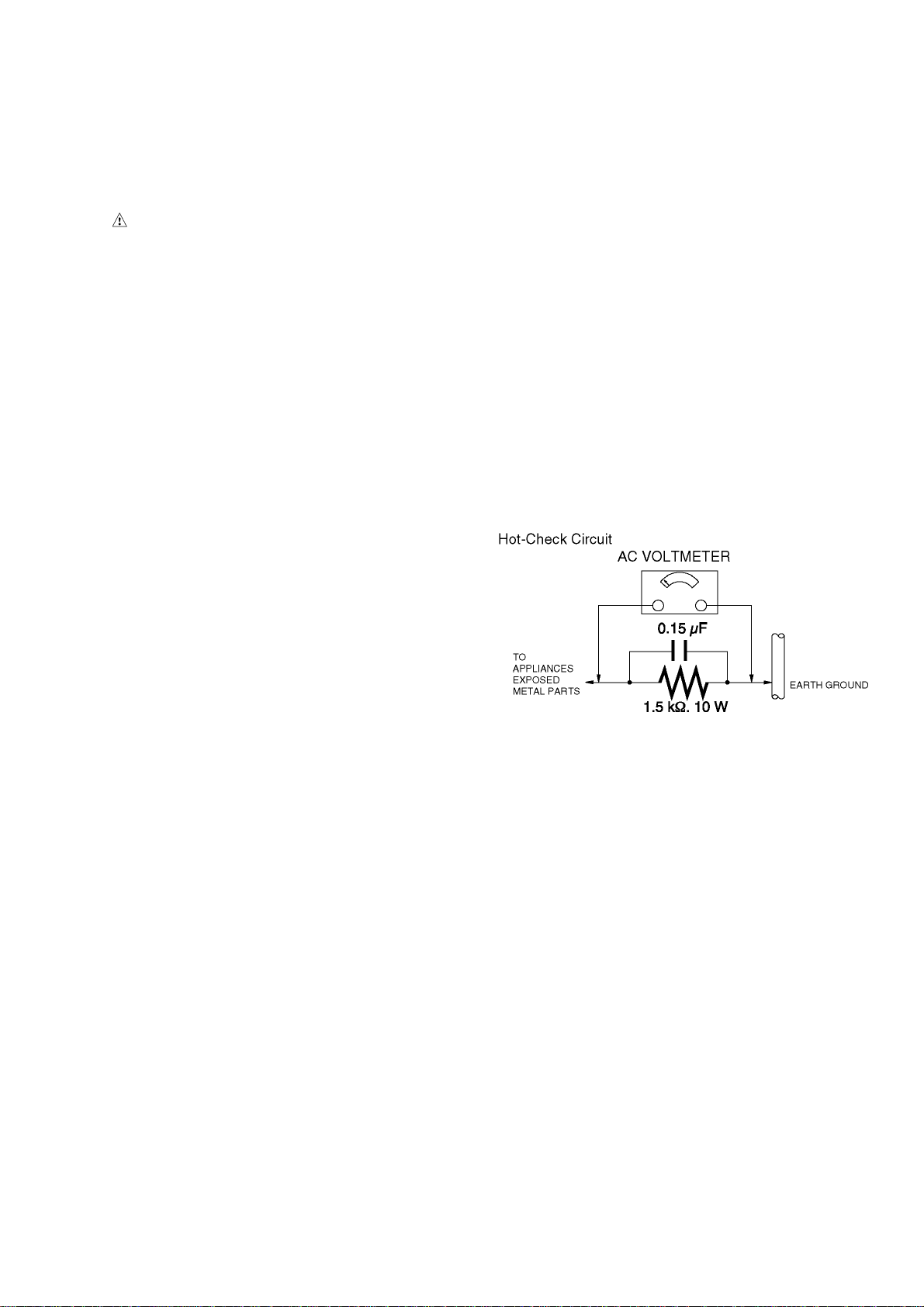

2. Connect a 1.5 kΩ, 10 W resistor, in parallel with a 0.15 μF
capacitor, between each exposed metallic part on the set
and a good earth ground, as shown in Figure 1.
3. Use an AC voltmeter, with 1 kΩ/V or more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallic part, and measure the volt-
age at each point.
5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.
6. The potential at any point should not exceed 0.75 V RMS.
A leakage current tester (Simpson Model 229 or equiva-
lent) may be used to make the hot checks, leakage cur-
rent must not exceed 1/2 mA. In case a measurement is
outside of the limits specified, there is a possibility of a
shock hazard, and the equipment should be repaired and
rechecked before it is returned to the customer.
Figure. 1

4
1.4. How to Discharge the Capacitor on Flash Sub PCB
CAUTION:
1. Be sure to discharge the capacitor on FLASH SUB PCB.
2. Be careful of the high voltage circuit on FLASH SUB PCB when servicing.
[Discharging Procedure]
1. Refer to the disassemble procedure and Remove the necessary parts/unit.
2. Put the insulation tube onto the lead part of Resistor (ERG5SJ102:1kΩ/5W).
(An equivalent type of resistor may be used.)
3. Put the resistor between both terminals of capacitor on FLASH SUB PCB for approx. 5 seconds.
4. After discharging confirm that the capacitor voltage is lower than 10V using a voltmeter.
Fig. F1

5
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec-
trostatically Sensitive (ES) Devices.
The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge
(ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi-
num foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an antistatic solder removal device. Some solder removal devices not classified as "antistatic (ESD protected)" can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara-
ble conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
CAUTION :
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) suf-
ficient to damage an ES device).

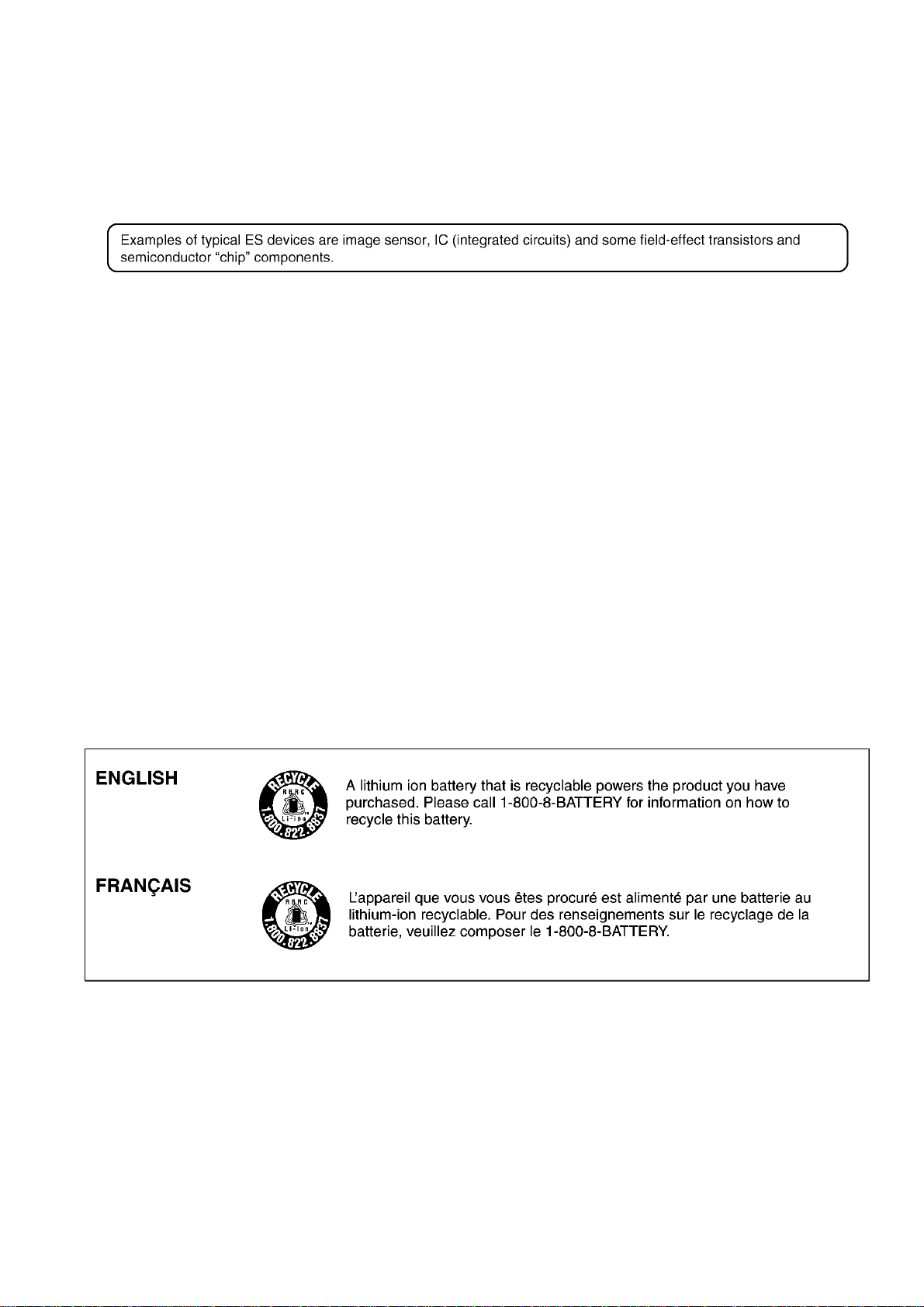

2.2. How to Recycle the Lithium Ion Battery (U.S. Only)

6
2.3. Caution for AC Cord
(For EB/GC/GH)
2.3.1. Information for Your Safety
IMPORTANT
Your attention is drawn to the fact that recording of pre-
recorded tapes or discs or other published or broadcast
material may infringe copyright laws.
WARNING
To reduce the risk of fire or shock hazard, do not expose
this equipment to rain or moisture.
CAUTION
To reduce the risk of fire or shock hazard and annoying
interference, use the recommended accessories only.
FOR YOUR SAFETY
DO NOT REMOVE THE OUTER COVER
To prevent electric shock, do not remove the cover. No user
serviceable parts inside. Refer servicing to qualified service
personnel.
2.3.2. Caution for AC Mains Lead
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three-pin mains plug
for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5 amperes and it is approved
by ASTA or BSI to BS1362
Check for the ASTA mark or the BSI mark on the body of the
fuse.
If the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.
If you lose the fuse cover, the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
Panasonic Dealer.
If the fitted moulded plug is unsuitable for the socket outlet in
your home then the fuse should be removed and the plug cut
off and disposed of safety.
There is a danger of severe electrical shock if the cut off plug is
inserted into any 13-ampere socket.

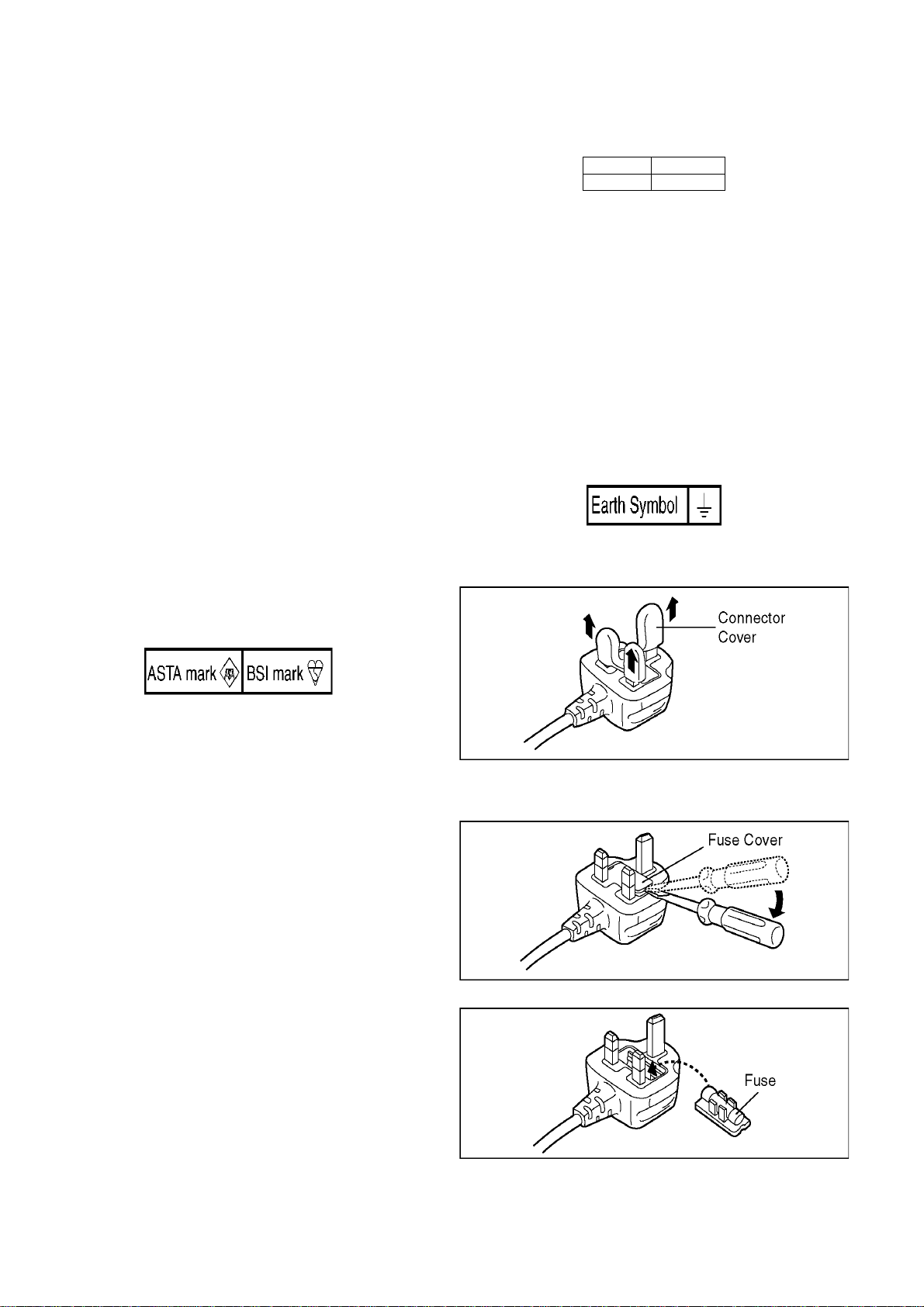

If a new plug is to be fitted please observe the wiring code as
shown below.
If in any doubt, please consult a qualified electrician.
2.3.2.1. Important
The wires in this mains lead are coloured in accordance with
the following code:
As the colours of the wires in the mains lead of this appliance
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the ter-
minal in the plug which is marked with the letter N or coloured
BLACK.
The wire which is coloured BROWN must be connected to the
terminal in the plug which is marked with the letter L or coloured
RED.
Under no circumstances should either of these wires be con-
nected to the earth terminal of the three pin plug, marked with
the letter E or the Earth Symbol.
2.3.2.2. Before Use
Remove the Connector Cover as follows.
2.3.2.3. How to Replace the Fuse
1. Remove the Fuse Cover with a screwdriver.
2. Replace the fuse and attach the Fuse cover.
Blue Neutral
Brown Live

7
2.4. How to Replace the Lithium Battery
2.4.1. Replacement Procedure
1. Remove the REMOTE PCB. (Refer to Disassembly Procedures.)

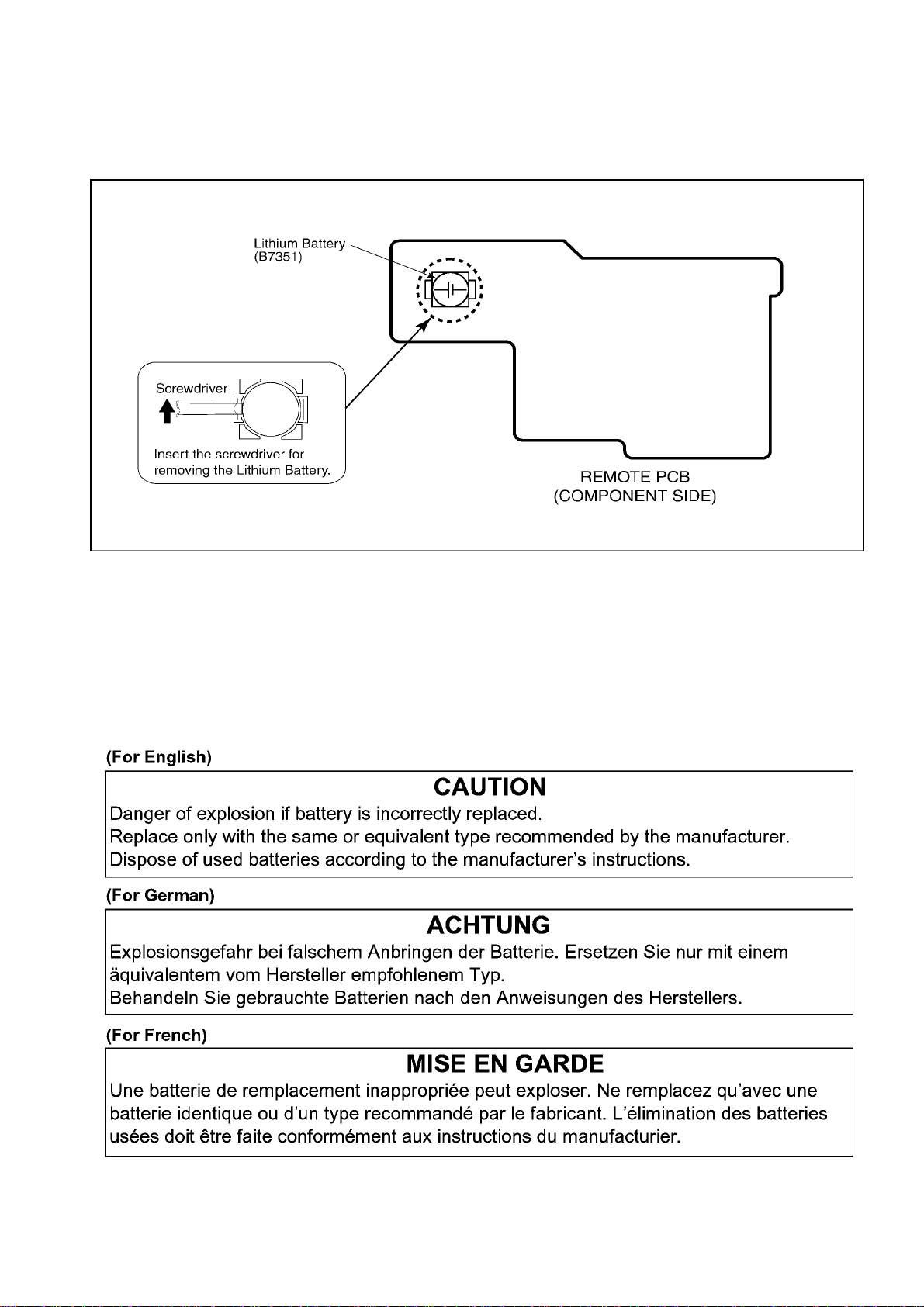

2. Remove the Lithium battery (Ref. No. “B7351” at component side of REMOTE PCB) and then replace it into new one.
NOTE:
This Lithium battery is a critical component.
(Type No.: ML421S/ZT Manufactured by Energy Company, Panasonic Corporation.)
It must never be subjected to excessive heat or discharge.
It must therefore only be fitted in requirement designed specifically for its use.
Replacement batteries must be of same type and manufacture.
They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed.
Do not attempt to re-charge the old battery or re-use it for any other purpose.
It should be disposed of in waste products destined for burial rather than incineration.
NOTE:
Above caution is applicable for a battery pack which is for DMC-G1K series, as well.

8
3 Service Navigation
3.1. Introduction
This service manual contains technical information, which allow service personnel’s to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual.
3.2. Important Notice
3.2.1. Camera Body Unit
3.2.1.1. About Mount Box Block (Ref. 8)
1. This Service Manual does not contain the repair service information for "MOUNT BOX BLOCK"(Ref.8), because it requires
special facilities and equipment.
a. Schematic diagram, Block diagram and P.C.B. layout of "MOUNT BOX BLOCK".
b. Parts list for individual parts of "MOUNT BOX BLOCK"
2. If the "MOUNT BOX BLOCK" is confirmed as defective, exchange the "MOUNT BOX BLOCK" as supplied as service parts.
3. Before exchange the "MOUNT BOX BLOCK", the performances must be carefully checked ,by following the "7.Troubleshoot-
ing Guide" section of this service manual.
Fig. S1
Important:
1. After replacing the MOUNT BOX BLOCK, the mount box data has to be stored to the unit.
For more details, consult the adjustment instruction which is available together with the Maintenance software at "software
download" on the "Support Information from NWBG/VDBG-AVC" web-site in "TSN system".
2. The full adjustment procedures must be performed after replacing the "MOUNT BOX BLOCK", otherwise picture quality can
not be meet with specification.
3.2.1.2. About Main PCB (Ref. 1)
1. This Service Manual does not contain the repair service information for "MAIN P.C.B."(Ref.1), because it requires special facil-
ities and equipment.
a. Schematic diagram, Block diagram and P.C.B. layout of "MAIN P.C.B.".
b. Parts list for individual parts of "MAIN P.C.B."
2. When a part replacement is required for repairing "MAIN P.C.B.", replace as an assembled parts. (MAIN P.C.B.)
3. The following category is recycle module part. please send it/them to Central Repair Center.
*MAIN P.C.B. (VEP56071A)
4. Before exchange the "MAIN P.C.B.", the performances must be carefully checked ,by following the "7.Troubleshooting Guide"
section of this service manual.
Important:
1. Before replacing the "MAIN P.C.B.", proceed the EEPROM data backup from the unit. After replacing the MAIN PCB, over-
write the EEPROM data with backup data from the unit. before proceeding the adjustment /inspection.
For more details, consult the adjustment instruction which is available together with the Maintenance software at "software
download" on the "Support Information from NWBG/VDBG-AVC" web-site in "TSN system".
2. The full adjustment procedures must be performed After replacing the "MAIN P.C.B.", otherwise Picture quality can not be
meet with specification.

9
3.2.2. Lens Unit
1. This Service Manual does not contain the repair service information for "LENS MAIN BLOCK UNIT"(Ref.208), because it
requires special facilities and equipment.
2. "LENS MAIN BLOCK UNIT" performance must be confirmed with the "7.Troubleshooting Guide" section of this service man-
ual.
3. In case of the "LENS MAIN BLOCK UNIT" defect, contact to the service department of sales company.
Fig. S2
3.3. General Description About Lead Free Solder (PbF)
The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this
equipment in considering the globally environmental conservation.
The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin
(Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30°C (86°F) more than that of the
normal solder.
Distinction of PCB Lead Free Solder being used
Service caution for repair work using Lead Free Solder (PbF)
• The lead free solder has to be used when repairing the equipment for which the lead free solder is used.
(Definition: The letter of “PbF” is printed on the PCB using the lead free solder.)
• To put lead free solder, it should be well molten and mixed with the original lead free solder.
• Remove the remaining lead free solder on the PCB cleanly for soldering of the new IC.
• Since the melting point of the lead free solder is higher than that of the normal lead solder, it takes the longer time to melt the
lead free solder.
• Use the soldering iron (more than 70W) equipped with the temperature control after setting the temperature at 350±30°C
(662±86°F).
Recommended Lead Free Solder (Service Parts Route.)
• The following 3 types of lead free solder are available through the service parts route.
RFKZ03D01K-----------(0.3mm 100g Reel)
RFKZ06D01K-----------(0.6mm 100g Reel)
RFKZ10D01K-----------(1.0mm 100g Reel)
Note
* Ingredient: tin (Sn) 96.5%, silver (Ag) 3.0%, Copper (Cu) 0.5%, Cobalt (Co) / Germanium (Ge) 0.1 to 0.3%

10
3.4. How to Define the Model Suffix (NTSC or PAL model)
There are seven kinds of DMC-G1K, regardless of the colours.
• a) DMC-G1K (Japan domestic model)
• b) DMC-G1KPP
• c) DMC-G1KEB/EC/EG/GH
• d) DMC-G1KGC/GJ/GN
• e) DMC-G1KGD
• f) DMC-G1KGT
• g) DMC-G1KGK
What is the difference is that the “INITIAL SETTINGS” data which is stored in Flash ROM mounted on MAIN PCB.
3.4.1. Defining methods:

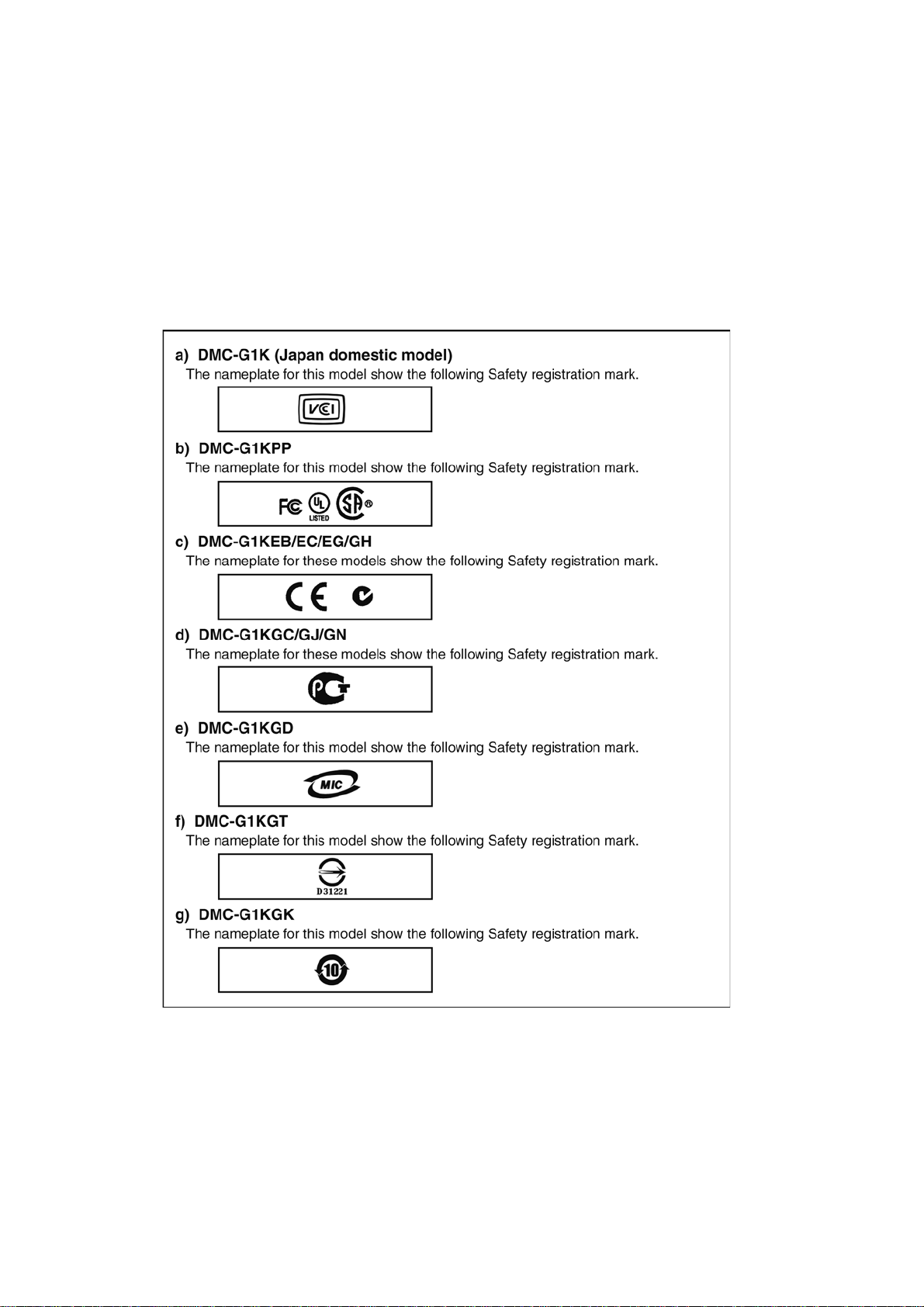

To define the model suffix to be serviced, refer to the nameplate which is putted on the bottom side of the Unit.

11
3.4.2. INITIAL SETTINGS:
When you replace the MAIN PCB, be sure to perform the initial settings after achieving the adjustment by ordering the following pro-
cedure in accordance with model suffix of the unit.
1. IMPORTANT NOTICE:
Before proceeding Initial settings, be sure to read the following CAUTIONS.
2. PROCEDURES:
•Preparation
Insert the SD memory card which has a few photo data.
•Step 1. The temporary cancellation of initial setting:
Set the Drive mode lever to [ SINGLE ].
While keep pressing [ DISPLAY ] and [ FILM MODE ] buttons simultaneously, turn the Power on.
•Step 2. The cancellation of initial setting:
Press the [PLAYBACK] button, then playback the picture.
Press [ FILM MODE ] and “[ UP ] of Cursor buttons” simultaneously, then turn the Power off.
•Step 3. Turn the Power on:
Set the mode dial to [ P ], and then turn the Power on.
•Step 4. Display the INITIAL SETTING:
While keep pressing [ MENU/SET ] and “[ RIGHT ] of Cursor buttons” simultaneously, turn the Power off.
When MAIN P.C.B. is replaced, all of the model suffix is displayed as follows.
There are two kinds of “INITIAL SETTINGS” menu format.
[1. After replacing MAIN P.C.B.]

12
[2. Other than “After replacing MAIN P.C.B.”]
•Step 5. Set the INITIAL SETTING: (Refer to “CAUTION 1”)
[Caution: After replacing MAIN P.C.B.]
The model suffix can been chosen, JUST ONE TIME.
Once one of the model suffix have been chosen, the model suffix lists will not be displayed, thus, it can be changed.
Select the area carefully.
Select the area with pressing “[ UP ] / [ DOWN ] of Cursor buttons”, and then press the “[ RIGHT ] of Cursor buttons”.
The only set area is displayed, and then press the “[ RIGHT ] of Cursor buttons” after confirmation.
(The unit is powered off automatically.)
Confirm the display of “PLEASE SET THE CLOCK” in English when the unit is turned on again.
•Step 6. CONFIRMATION:
The display shows “PLEASE SET THE CLOCK” when turn the Power on again.
When the unit is connected to PC with USB cable, it is detected as removable media.
1) As for your reference Default setting condition is given in the following table.
•Default setting (After “INITIAL SETTINGS”)
MODEL VIDEO OUTPUT LANGUAGE DATE REMARKS
a) DMC-G1K (Japan domestic model) NTSC Japanese Year/Month/Date
b) DMC-G1KPP NTSC English Month/Date/Year
c) DMC-G1KEB/EC/EG/GC/GH/GN PAL English Date/Month/Year
d) DMC-G1KGK PAL Chinese (simplified) Year/Month/Date
e) DMC-G1KGT NTSC Chinese (traditional) Year/Month/Date
f) DMC-G1KGD NTSC Korean Year/Month/Date
g) DMC-G1KGJ PAL Thai Date/Month/Year

13
4 Specifications

14
5 Location of Controls and Components
Names of the Components

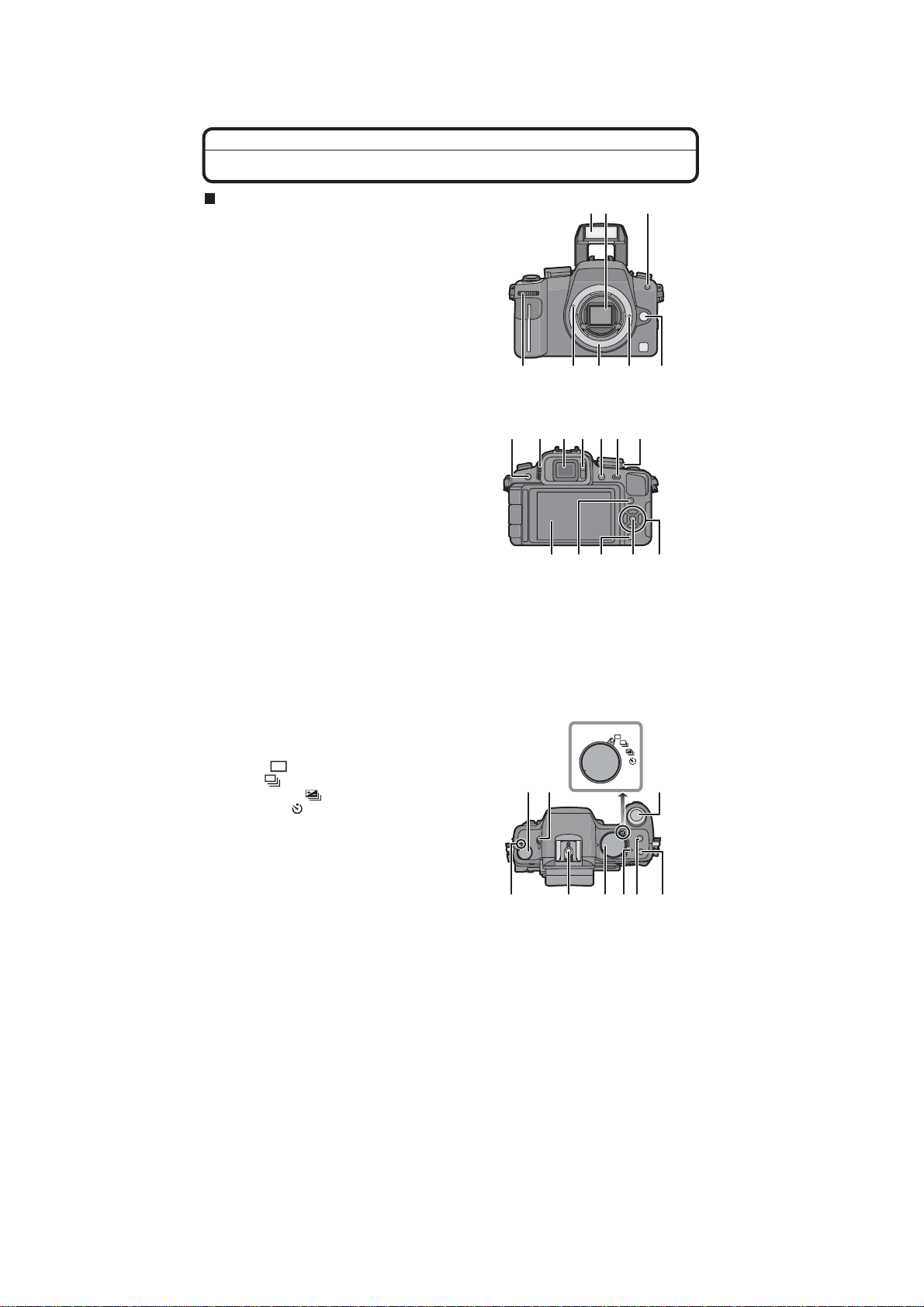

Camera body
1Flash
2 Sensor
3 Self-timer indicator
AF assist lamp
4 Lens release button
5 Lens lock pin
6 Mount
7 Lens fitting mark
8 Front dial
9 [LVF/LCD] button
10 Diopter adjustment dial
11 Viewfinder
12 Eye sensor
13 Playback button
14 [AF/AE LOCK] button
15 Camera ON/OFF switch
16 LCD monitor
17 [DISPLAY] button
18 Delete button/
Preview button
19 [MENU/SET] button
20 Cursor buttons
/ISO
/AF mode
/Function button
Assign Menu to button. It is convenient to register Menu that is used often.
[ASPECT RATIO]/[QUALITY]/[METERING MODE]/[I.EXPOSURE]/[GUIDE LINE]
/WB (White balance)
23
76 5 4
1
8
11 13
16 17
9 10 12 14 15
2018 19
21 Focus mode dial
22 Flash open lever
23 Drive mode lever
Single:
Burst:
Auto bracket:
Self-timer:
24 Shutter button
25 Focus distance reference mark
26 Hot shoe
27 Mode dial
28 Status indicator
29 [Q.MENU] button
30 [FILM MODE] button
25 26
22 21
23
24
30292827

15

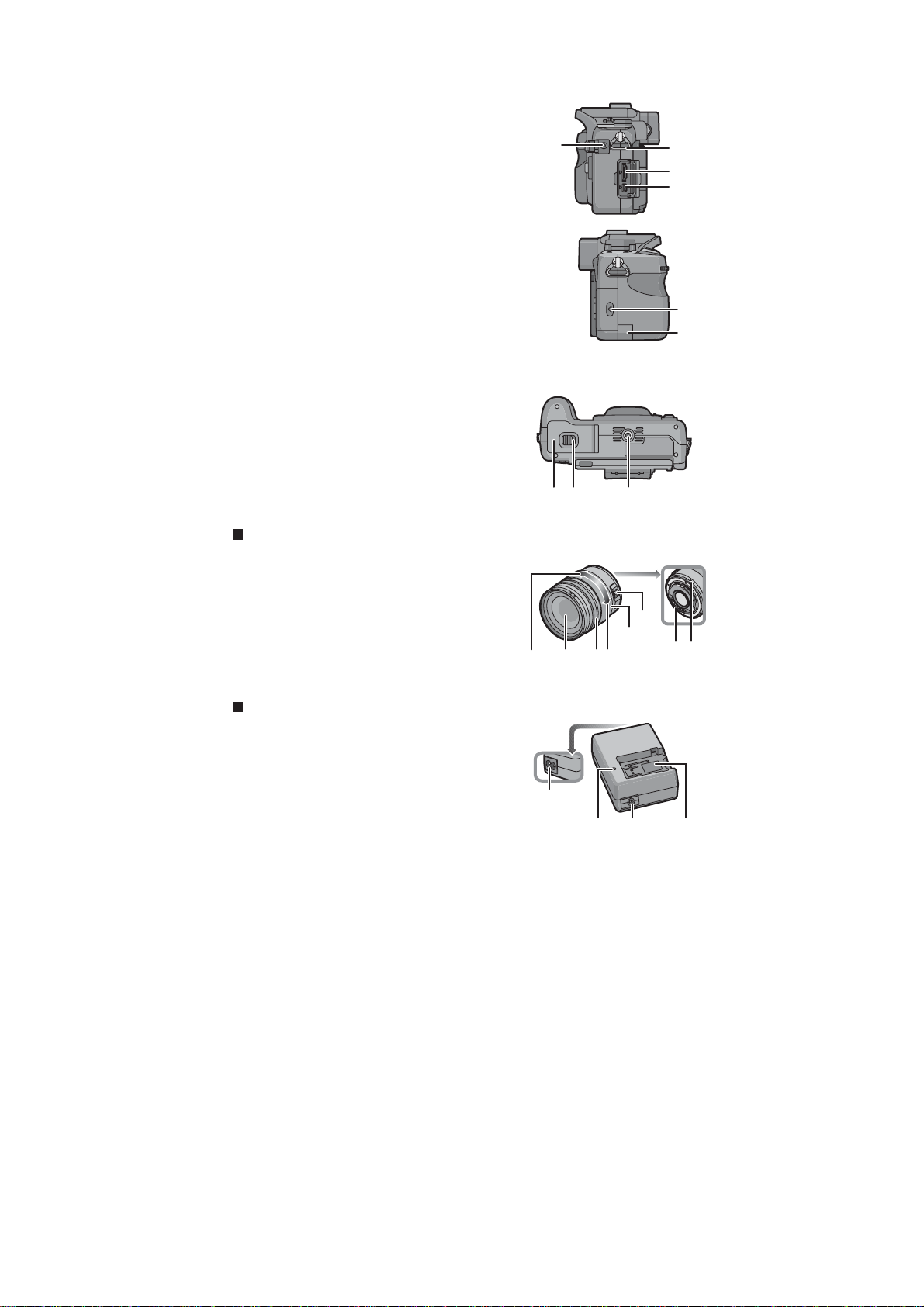

31 [REMOTE] socket
32 Strap eyelet
Be sure to attach the strap when using the
camera to ensure that you will not drop it.
33 [HDMI] socket
34 [DIGITAL/V.OUT] socket
35 Card door
36 DC cable cover
33
32
31
34
36
35
37 Battery door
38 Release lever
39 Tripod receptacle
When you use a tripod, make sure the tripod
is stable when the camera is attached to it.

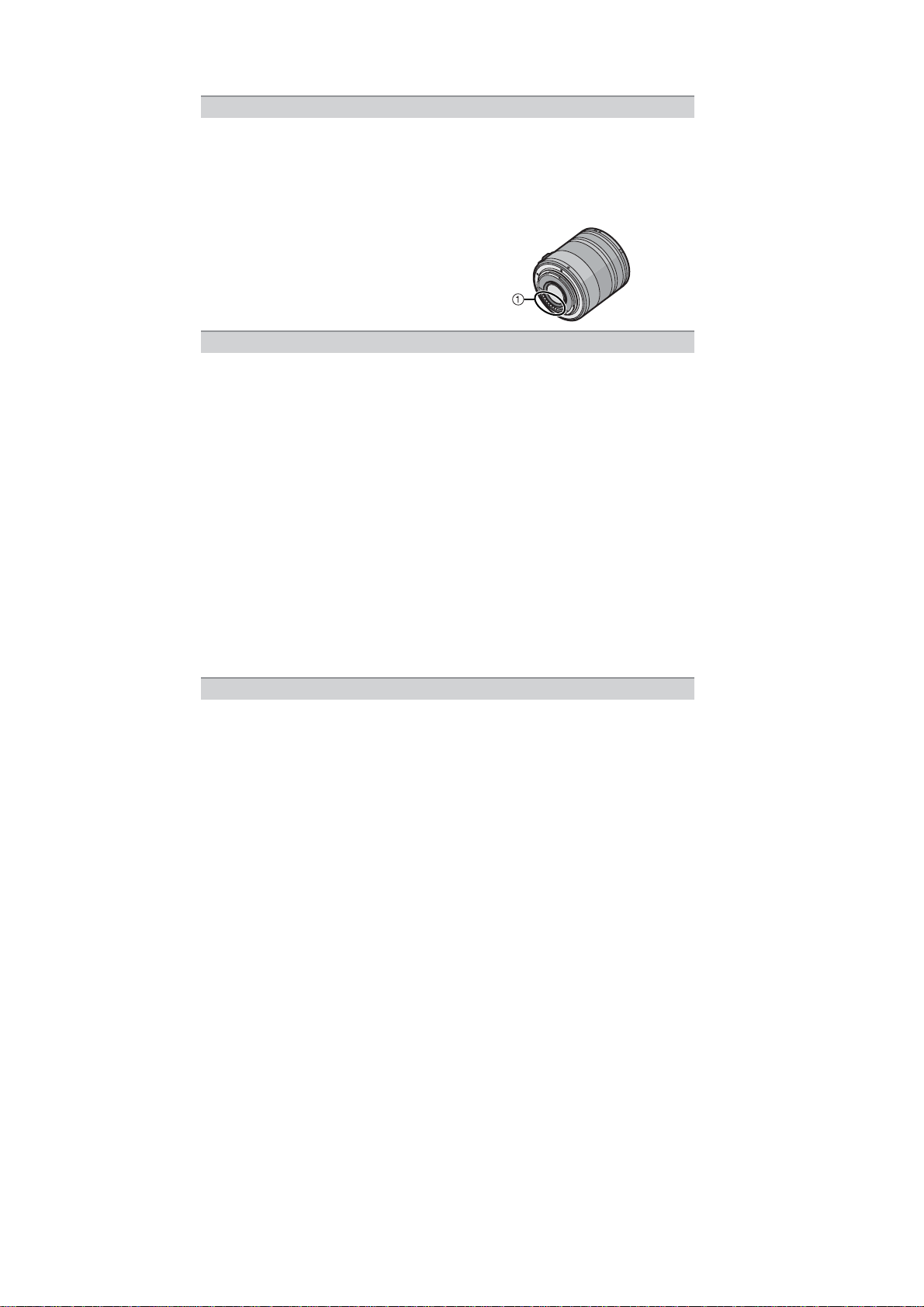

Lens
H-FS014045 (LUMIX G VARIO 14 –45 mm/F3.5 – 5.6 ASPH./MEGA O.I.S.)
40 Tele
41 Lens surface
42 Focus ring
43 Wide
44 Zoom ring
45 [O.I.S.] switch
46 Contact point
47 Lens fitting mark
Battery charger/AC adaptor
48 Power input socket [AC IN]
49 [CHARGE] indicator
50 Power output socket [DC OUT]
51 Battery holder
393837
42 43 46 47
45
44
40 41
5049
48
51

16
Mode switching
Selecting the [REC] Mode
When the [REC] mode is selected, the camera can be set to the Intelligent auto mode in which the optimal settings are
established in line with the subject to be recorded and the recording conditions, or to the scene mode which enables
you to take pictures that match the scene being recorded.
Turn the camera on.
Switching the mode by rotating the mode
dial.
Align a desired mode with part .

Rotate the mode dial slowly and surely to adjust
to each mode. (
The mode dial rotates 360 Q )
Basic
Intelligent auto mode
The subjects are recorded using settings automatically
Program AE mode
The subjects are recorded using your own settings.
ON
OFF
Advanced
Advanced scene mode
Aperture-priority AE mode
The shutter speed is automatically determined by the
Shutter-priority AE mode
The aperture value is automatically determined by the
Manual exposure mode
The exposure is adjusted by the aperture value and the
shutter speed which are manually adjusted.
Custom mode
Use this mode to take pictures with previously registered
settings.
My color mode
Easily check the color of light, brightness, and vividness
of color when the picture is taken.
Scene mode
This allows you to take pictures that match the scene
being recorded.
Portrait mode
Use this mode to take pictures of people.
Scenery mode
Use this mode to take pictures of scenery.
Sports mode
Use this mode to take pictures of sporting events, etc.
Close-up mode
Use this mode to take picture of close-by subject.
Night portrait mode
Use this mode to take pictures of night scenes and
people with night time scenery.
selected by the camera.
aperture value you set.
shutter speed you set.

17
About the Lens

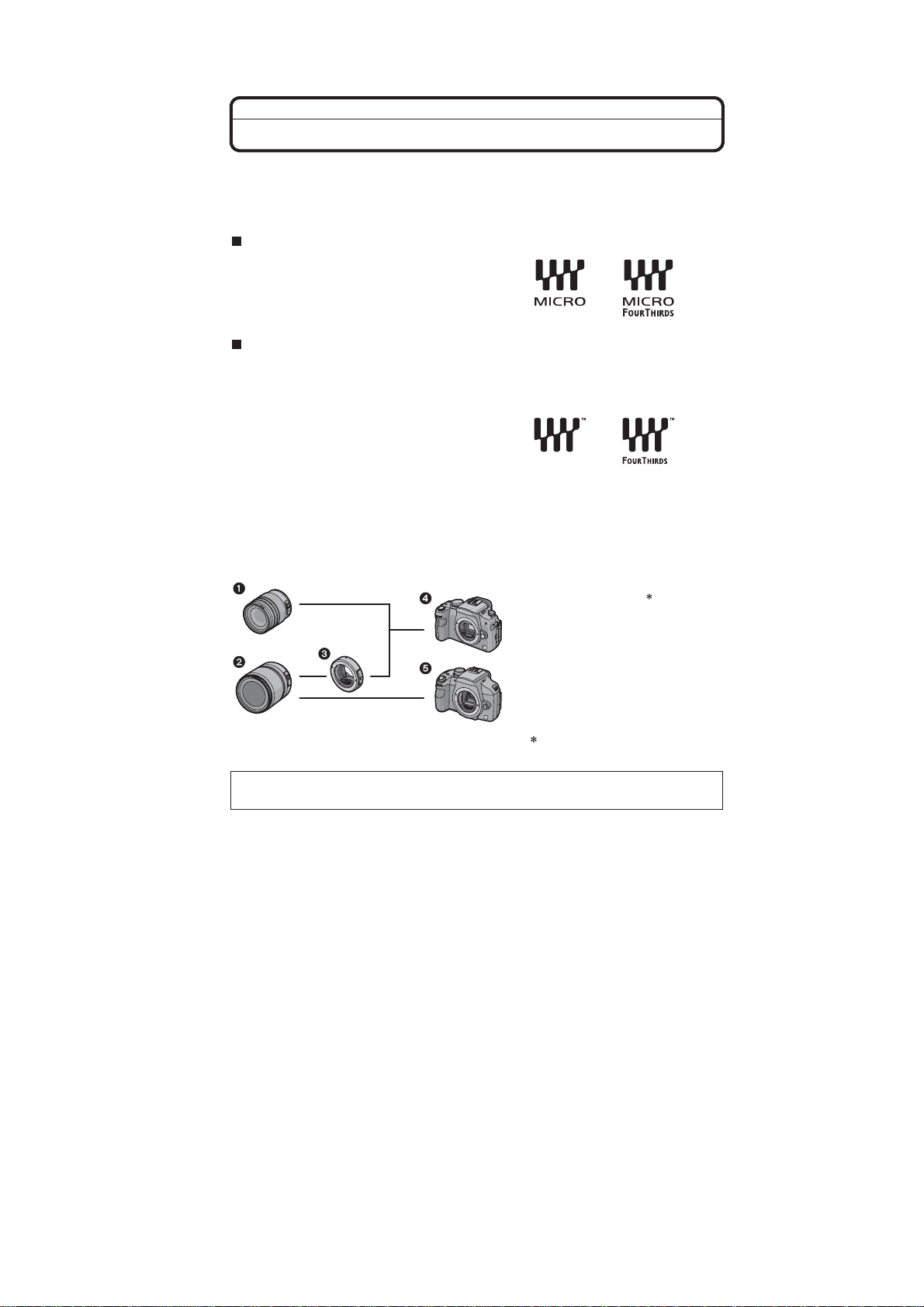

This unit can use the dedicated lenses compatible to the Micro Four Thirds System lens
mount specification (Micro Four Thirds mount) such as the lenses included in DMC-G1K.
Select a lens that matches the scene being recorded and your use of the pictures.
If you use a lens other than a dedicated interchangeable lens, auto focus cannot be
activated and accurate metering is not possible. Also, some functions will not work.
“Micro Four Thirds Mount”
This is the lens mount standard for the
“Micro Four Thirds System”.
This was newly developed as
interchangeable lens dedicated for digital
cameras.
When using lenses other than the lenses included in DMC-G1K
sDepending on the type of lens, you may not be able to use some functions such as the direction
detection function, [STABILIZER], Quick AF and Continuous AF.
sThe available flash range etc. differs depending on the aperture value of the lens you are using.
sTake some test pictures with the lens you are using.
sLens with the Four Thirds™ mount
specification can be used by using the mount
adaptor (DMW-MA1; optional). However,
[AFC] mode and continuous AF function
cannot be used. Only manual focus is
possible when using a lens that is not
compatible with the Contrast AF. There are
some restrictions to some other functions too.
Because of its structure, Micro Four Thirds mount specification lenses cannot be used on
the Four Thirds mount specification cameras. It can only be used on the Micro Four Thirds
mount specification cameras.
Lens Installation Combination Diagram
Micro Four Thirds mount
specification lens
Four Thirds mount
specification lens
Mount adaptor (DMW-MA1)
Micro Four Thirds mount
specification camera
(DMC-G1)
Four Thirds mount
specification camera
It cannot be mounted on the Four
Thirds mount specification camera.
Refer to catalogues/Web pages for most current information regarding compatible lenses.
http://panasonic.co.jp/pavc/global/cs (This Site is English only.)

18
Cautions for Use
In the event of abnormal operation (e.g. if the unit emits smoke or an unusual smell),
immediately stop operating the unit and consult the Panasonic Customer Care Centre on
132600.
Take care not to drop or knock the unit or put a lot of pressure on it.
s
Take care not to knock or drop the bag/case that you inserted the camera in as the shock may
cause damage to the camera, lens or LCD monitor.
s Do not use a paper bag as it can easily rip causing the camera to fall and be damaged.
s We strongly recommend you purchase a good camera bag/case from your local dealer to
protect your camera.
Keep the camera as far away as possible from electromagnetic equipment (such as
microwave ovens, TVs, video games etc.).
s
If you use the camera on top of or near a TV, the pictures on the camera may be disrupted by
electromagnetic wave radiation.
s Do not use the camera near cell phones because doing so may result in noise adversely
affecting the pictures.
s Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields
created by speakers or large motors.
s Electromagnetic wave radiation generated by microprocessors may adversely affect the
camera, disturbing the pictures.
s If the camera is adversely affected by electromagnetic equipment and stops functioning
properly, turn the camera off and remove the battery or disconnect AC adaptor. Then reinsert
the battery or reconnect AC adaptor and turn the camera on.
Do not use the camera near radio transmitters or high-voltage lines.
s
If you record near radio transmitters or high-voltage lines, the recorded pictures may be
adversely affected.
Always use the supplied cords and cables. If you use optional accessories, use the
cords and the cables supplied with them.
Do not extend the cords or the cables.
Do not spray the camera with insecticides or volatile chemicals.
s
If the camera is sprayed with such chemicals, the body of the camera may be damaged and the
surface finish may peel off.
s Do not keep rubber or plastic products in contact with the camera for a long period of time.
Optimal use of the camera

19
Before cleaning the camera, remove the battery or disconnect the power plug from
the outlet. Then wipe the camera with a dry soft cloth.
s
When the camera is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth,
and then with a dry cloth.
s Wipe off any dust or dirt on the zoom ring and the focus ring with a dry, dust cloth.
s Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean the
camera, since it may deteriorate the external case or the coating may peel off.
s When using a chemical cloth, be sure to follow the accompanying instructions.
About dirt on the image sensor
This camera features an interchangeable lens system so dirt may get inside the camera
body when changing lenses. Depending on the recording conditions, dirt on the image
sensor may appear on the recorded picture.
Do not change lenses where there is a lot of dust, and always attach the body cap when a
lens is not attached to the camera, so that dirt or dust does not get inside the camera body.
Remove any dirt on the body cap before attaching it.
Removing dirt on the image sensor
The image sensor is very precise and delicate, so be sure to observe the following when
you do have to clean it yourself.
s
Blow off the dust on the surface of the image sensor with a commercially available blower
brush. Be careful not to blow too strongly.
s Do not put the blower brush further inside than the lens mount.
s Do not let the blower brush touch the image sensor as the image sensor may get scratched.
s Do not use any objects except a blower brush to clean the image sensor.
s If you cannot remove the dirt or dust with the blower, consult the dealer or your nearest Service
Centre.
s Do not press the LCD monitor with excessive force. Uneven colours may appear on the LCD
monitor and it may malfunction.
s If the camera is cold when you turn it on, the picture on the LCD monitor/Viewfinder will be
slightly darker than usual at first. However, the picture will return to normal brightness when the
internal temperature of the camera increases.
Cleaning
Dust reduction function
This unit has a dust reduction function that will blow off the debris and dust that has
affixed to the front of the imaging device. This function will function automatically when
the camera is turned on, but if you see dust, perform the [PIXEL REFRESH] in the
[CUSTOM MENU] menu.
About the LCD monitor/Viewfinder
Extremely high precision technology is employed to produce the LCD monitor/
Viewfinder screen. However there may be some dark or bright spots (red, blue or
green) on the screen. This is not a malfunction. The LCD monitor/Viewfinder screen
has more than 99.99% effective pixels with a mere 0.01% of the pixels inactive or
always lit. The spots will not be recorded on pictures on a card.

20
s Do not press the lens with excessive force.
s Do not leave the camera with the lens facing the sun as rays of light from the sun may cause it
to malfunction. Also, be careful when placing the camera outside or near a window.
s When there is dirt (water, oil, and fingerprints, etc.) on the surface of the lens, the picture may
be affected. Lightly wipe the surface of the lens with a soft, dry cloth before and after taking
pictures.
s Do not place the lens mount facing downwards. Do not allow the lens mount contacts to
become dirty.
The battery is a rechargeable lithium ion battery. Its ability to generate power comes
from the chemical reaction that takes place inside it. This reaction is susceptible to
the surrounding temperature and humidity. If the temperature is too high or too low,
the operating time of the battery will become shorter.
Always remove the battery after use.
If you drop the battery accidentally, check to see if the body of the battery and the
terminals are damaged.
s
Inserting a damaged battery in the camera will damage the camera.
Bring charged spare batteries when going out.
s
Be aware that the operating time of the battery becomes shorter in low temperature conditions
such as at a ski resort.
s When you travel, do not forget to bring the battery charger (supplied) so that you can charge
the battery in the country that you are travelling in.
Dispose of unusable battery.
s
The battery has a limited life.
s Do not throw the battery into fire because it may cause an explosion.
Do not allow battery terminals to come into contact with metal objects (such as
necklaces, hairpins etc.).
s
This can cause short circuiting or heat generation and you may be badly burned if you touch a
battery.
s If you use the battery charger near a radio, the radio reception may be disturbed.
s Keep the charger 1 m or more away from radio.
s The charger may generate whirring sounds when it is being used. This is not a malfunction.
s After use, be sure to disconnect the power supply device from the electrical outlet. (A very
small amount of current is consumed if it is left connected.)
s Keep the terminals of the charger and battery clean.
About the Lens
Battery
Charger
