Panasonic Lumix H-H020A User manual

E
Operating Instructions
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
Model No. H-H020A
Please read these instructions carefully before using this product, and save this manual for future use.
VQT5B49
F0713MC0
until
2013/07/3
VQT5B49_E.book 1 ページ ２０１３年５月３１日 金曜日 午後４時５４分

2
VQT5B49
Contents
Information for Your Safety..................................... 2
Precautions........................................................... 4
Supplied Accessories ............................................. 5
Names and Functions of Components ................... 6
Attaching/Detaching the Lens................................. 6
Cautions for Use..................................................... 8
Troubleshooting .................................................... 9
Specifications........................................................ 10
Information for Your Safety
Keep the unit as far away as possible from
electromagnetic equipment (such as microwave
ovens, TVs, video games, radio transmitters,
high-voltage lines etc.).
≥Do not use the camera near cell phones because
doing so may result in noise adversely affecting
the pictures and sound.
≥
If the camera is adversely affected by electromagnetic
equipment and stops functioning properly, turn the
camera off and remove the battery and/or the
connected AC adaptor. Then reinsert the battery and/or
reconnect the AC adaptor and turn the camera on.
The lens can be used with a digital camera
compatible with the lens mount standard for the
“Micro Four ThirdsTM System”.
≥It cannot be mounted on the Four ThirdsTM mount
specification camera.
≥The digital camera illustrations in these operating
instructions show DMC-GF6 as an example.
≥The appearance and specifications of products
described in this manual may differ from the actual
products you have purchased due to later
enhancements.
≥Micro Four ThirdsTM and Micro Four Thirds Logo
marks are trademarks or registered trademarks of
Olympus Imaging Corporation, in Japan, the
United States, the European Union and other
countries.
≥Four ThirdsTM and Four Thirds Logo marks are
trademarks or registered trademarks of Olympus
Imaging Corporation, in Japan, the United States,
the European Union and other countries.
≥G MICRO SYSTEM is an interchangeable lens
type digital camera system of LUMIX based on a
Micro Four Thirds System standard.
≥Other names of systems and products mentioned
in these instructions are usually the registered
trademarks or trademarks of the manufacturers
who developed the system or product concerned.
VQT5B49_E.book 2 ページ ２０１３年５月３１日 金曜日 午後４時５４分

3
VQT5B49
-If you see this symbol-
Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents means that
used electrical and electronic products must not be mixed with general household
waste.
For proper treatment, recovery and recycling of old products, please take them to
applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local
municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
ENGLISH
VQT5B49_E.book 3 ページ ２０１３年５月３１日 金曜日 午後４時５４分

4
VQT5B49
∫Lens Care
≥Sand and dust can damage the lens. Make
sure that no sand or dust gets inside the lens
or the terminals when using the lens on a
beach, etc.
≥This lens is not waterproof. If drops of water
get onto the lens, wipe the lens with a dry
cloth.
≥Do not press the lens with excessive force.
≥When there is dirt (water, oil, and fingerprints, etc.)
on the surface of the lens, the picture may be
affected. Lightly wipe the surface of the lens with a
soft, dry cloth before and after taking pictures.
≥Do not place the lens mount facing downwards.
Do not allow the lens contact points 1to become
dirty.
∫About Condensation (Fogging of the
Lens)
≥Condensation occurs when there are differences
in temperature and humidity as described below.
Condensation can cause the lens to become dirty
and lead to mold and malfunctioning, so exercise
caution in the following situations:
– When the camera is brought indoors from outside
during cold weather
– When the camera is brought into an air-
conditioned car
– When cold air from an air conditioner is directly
blown onto the lens
– In humid places
≥Put the camera into a plastic bag to allow it to
acclimatize to the surrounding temperature in
order to prevent condensation. If condensation
occurs, turn the power off and leave it for about
two hours. Once the camera acclimatizes to the
surrounding temperature the condensation will go
away naturally.
Precautions
VQT5B49_E.book 4 ページ ２０１３年５月３１日 金曜日 午後４時５４分

5
VQT5B49
Supplied Accessories
[Inspection to be performed when you unpack
the unit]
When removing the unit from its packing box, check
that the main unit and the supplied accessories are
there and also check their external appearance and
functions to verify that they have not sustained any
damage during distribution and transportation.
If you discover any trouble, contact your vendor
before using the product.
Product numbers correct as of June 2013.
These may be subject to change.
1Lens Storage Bag
2Lens Rear Cap
(The lens rear cap and lens cap are attached to
the interchangeable lens at the time of purchase.)
3Lens Cap
VFC4460 VFC4605 VYF3371
312
VQT5B49_E.book 5 ページ ２０１３年５月３１日 金曜日 午後４時５４分

6
VQT5B49

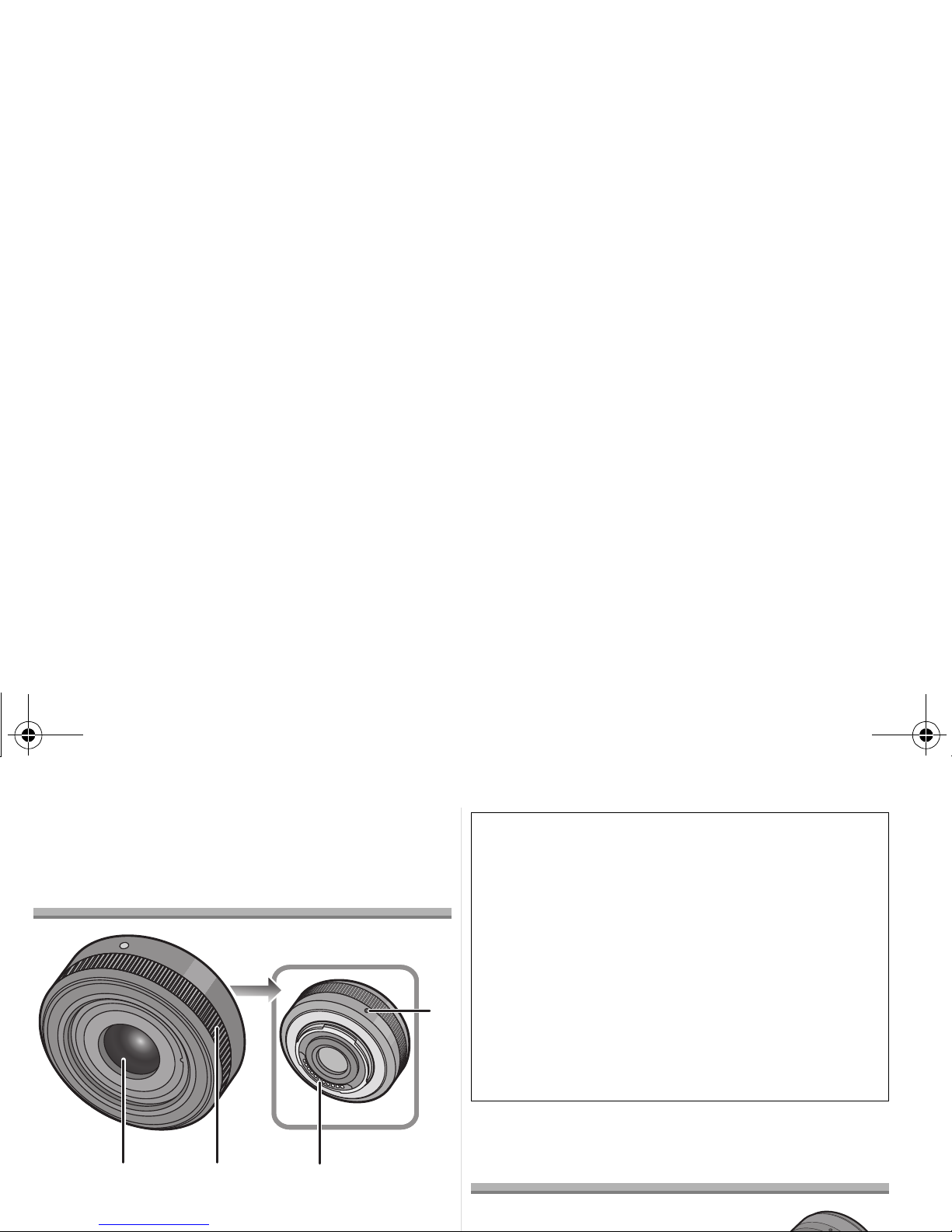

Names and Functions of
Components
1Lens surface
2Focus ring
Rotate to focus when taking pictures with
manual focus.
3Contact point
4Lens fitting mark
Attaching/Detaching the Lens
≥ Refer also to the camera’s
operating instructions for
attaching and detaching the lens.
≥Check that the camera is
turned off.
≥Remove the lens rear cap from
the lens.
312
4
This lens uses a lens drive system to enable a
compact and bright F1.7. As a result of this, there
are operating sounds and vibrations when focusing,
but this is not a malfunction. Operating sounds are
recorded when auto-focusing during motion picture
recording. If operating sounds become bothersome,
we recommend setting to manual focus (
[MF] ) and
fixing focus before recording to avoid recording the
lens noise.
VQT5B49_E.book 6 ページ ２０１３年５月３１日 金曜日 午後４時５４分

7
VQT5B49

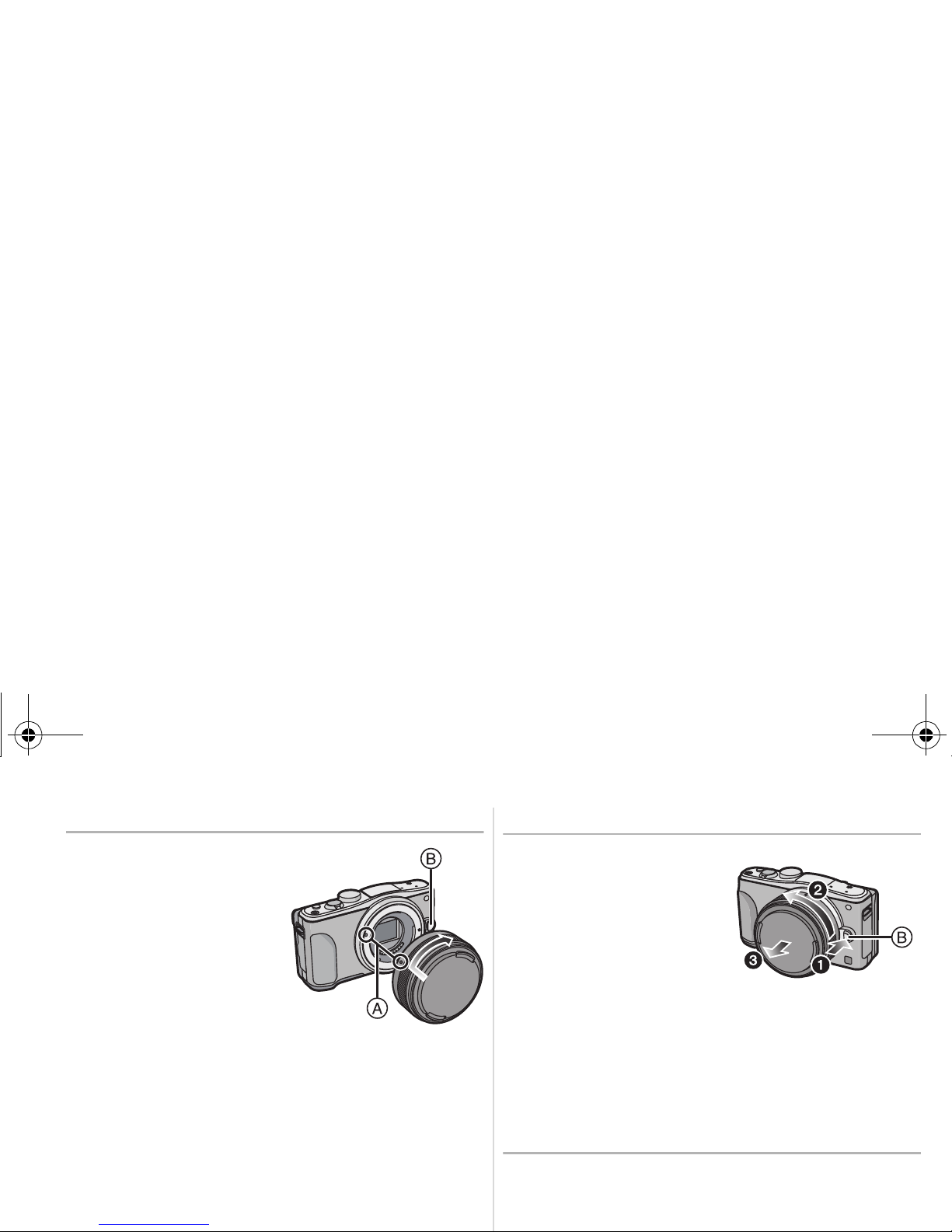

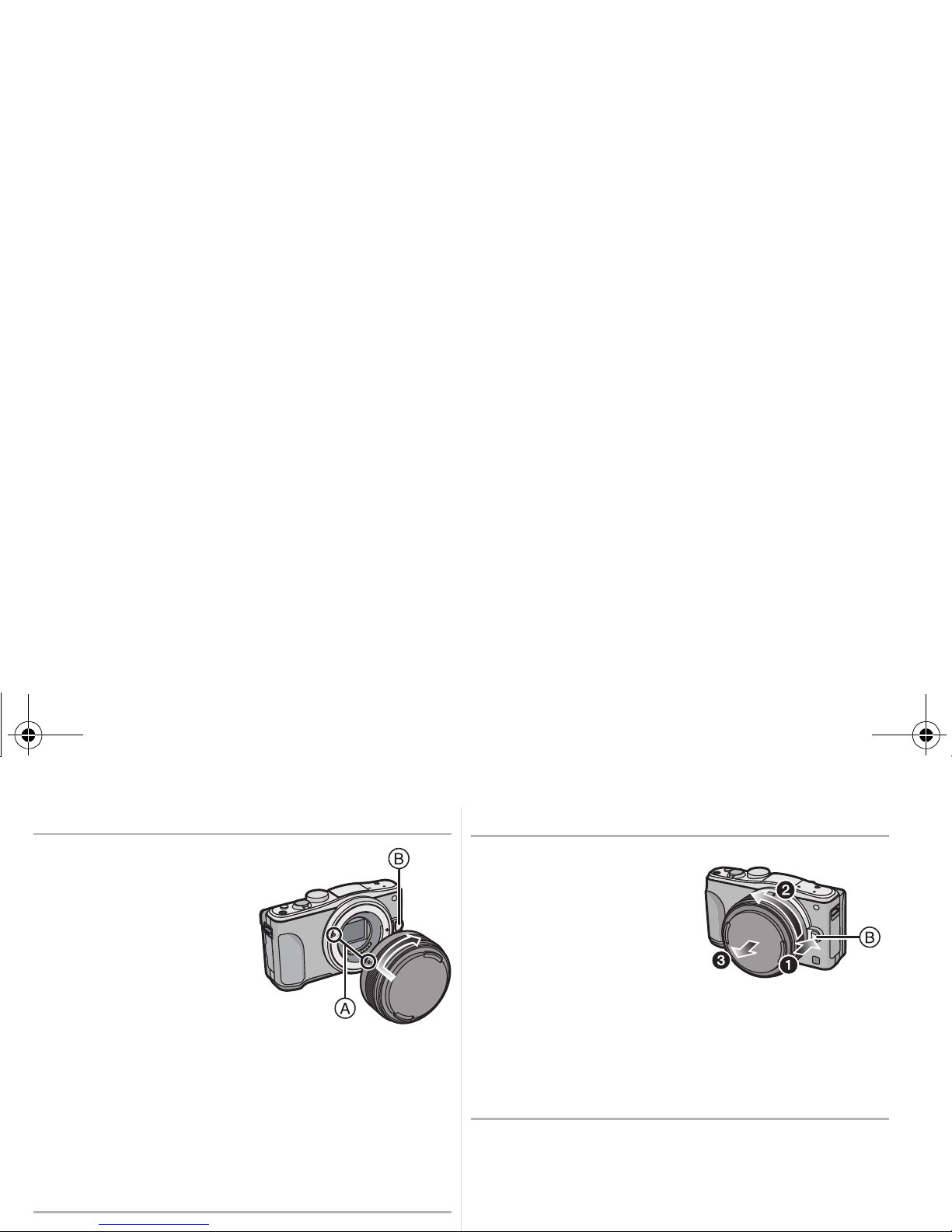

∫Attaching the Lens
Align the lens
fitting marks Aon
the camera body
and the lens and
then rotate the lens
in the direction of
the arrow until it
clicks.
• Do not press the lens release button B when
you attach a lens.
• Do not try to attach the lens when holding it at an
angle to the camera body as the lens mount may
get scratched.
• Check that the lens is attached correctly.
• Be sure to remove the lens cap when recording.
∫Detaching the Lens
While pressing on
the lens release
button B, rotate the
lens toward the
arrow until it stops
and then remove.
• Attach the lens rear
cap so that the lens contact point does not get
scratched.
• Attach the body cap to the camera so no dirt or
dust will get inside the main unit.
VQT5B49_E.book 7 ページ ２０１３年５月３１日 金曜日 午後４時５４分

8
VQT5B49
∫Attaching Filters
≥Vignetting may occur if using 2 or more
MC protectors (optional:DMW-LMC46),
PL filters (optional:DMW-LPL46) or ND filters
(optional:DMW-LND46), or if using thick
protectors and/or filters.
≥The filter may become impossible to remove if
excessively tightened, so please refrain from
tightening it too strongly.
≥It is possible to attach the lens cap with the filter
already attached.
≥If you have problems with the attachment or
removal of the PL filter (optional:DMW-LPL46), we
recommend turning on the digital camera and
trying again with the focus mode set to “manual”
([MF]).
≥You cannot attach a conversion lens or adaptor to
this lens. A filter may be used, but attaching any
other element may cause damage to the lens.
Cautions for Use
Take care not to drop or knock the lens. Also
take care not to put a lot of pressure on the lens.
≥
Take care not to drop the bag that you inserted the
lens in as it may strongly shock the lens. The camera
may stop operating normally and pictures may no
longer be recorded. Also, the lens may be damaged.
When using pesticides and other volatile
substances around the camera make sure that
they do not get onto the lens.
≥
If such substances get onto the lens they can
damage the exterior case or cause the paint to peel.
Do not carry the unit when it is still attached to
the camera body.
≥
Under no circumstances should the unit be stored
in any of the following locations since doing so may
cause problems in operation or malfunctioning.
– In direct sunlight or on a beach in summer
– In locations with high temperatures and humidity
levels or where the changes in temperature and
humidity are acute
– In locations with high concentrations of sand,
dust or dirt
– Where there is fire
– Near heaters, air conditioners or humidifiers
VQT5B49_E.book 8 ページ ２０１３年５月３１日 金曜日 午後４時５４分

9
VQT5B49
– Where water may make the unit wet
– Where there is vibration
– Inside a vehicle
≥Refer also to the operating instructions of the
digital camera.
≥When the unit is not going to be used for a
prolonged period, we recommend storing with a
desiccant (silica gel). Failure to do so may result in
performance failure caused by mold, etc. It is
recommended that you check the unit’s operation
prior to use.
≥Do not leave the lens in contact with rubber or
plastic products for extended periods of time.
≥Do not touch the lens contact point. Doing so can
cause failure of the unit.
≥Do not disassemble or alter the unit.
Do not use benzine, thinner, alcohol or other
similar cleaning agents to clean the lens glass or
exterior cabinet.
≥Using solvents can damage the lens or cause the
paint to peel.
≥
Wipe off any dust or fingerprints with a soft, dry cloth.
≥Use a dry, dust cloth to remove dirt and dust on
the focus ring.
≥Do not use a household detergent or a chemically
treated cloth.
A sound is heard when the camera is turned on
or off.
A sound is heard from the lens when taking a
picture of a bright subject such as when
outdoors.
≥This is the sound of lens or aperture movement
and is not a malfunction.
Troubleshooting
VQT5B49_E.book 9 ページ ２０１３年５月３１日 金曜日 午後４時５４分

10
VQT5B49
Specifications
Specifications are subject to change without notice.
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
“LUMIX G 20 mm/F1.7 II ASPH.”
≥
When using the lens with a LUMIX digital camera, you cannot set to [AFC] /[AFF] in focus mode or [ ] in
[PRE AF].
(As of June 2013) (The focus modes available may vary depending on the camera)
Focal length f=20 mm
(35 mm film camera equivalent: 40 mm)
Aperture type 7 diaphragm blades/circular aperture diaphragm
Aperture range F1.7
Minimum aperture value F16
Lens construction 7 elements in 5 groups (2 aspherical lenses)
In focus distance 0.2 m to ¶ (from the focus distance reference line)
Maximum image magnification 0.13k(35 mm film camera equivalent: 0.25k)
Optical image stabilizer Not available
Mount “Micro Four Thirds Mount”
Angle of view 57x
Filter diameter 46 mm
Max. diameter Approx. 63 mm
Overall length Approx. 25.5 mm
(from the tip of the lens to the base side of the lens mount)
Mass Approx. 87 g
VQT5B49_E.book 10 ページ ２０１３年５月３１日 金曜日 午後４時５４分
