Battery Notes
Remove and dispose of an old battery immediately.
Battery Information: ≥Battery type: Panasonic lithium battery (CR2025) (included)
≥Battery life: Approximately 6 months with normal use (at room temperature)
E
N
G
L
I
S
H
2
CQ-DF802W 17
E
N
G
L
I
S
H
1
CQ-DF802W
16
Before Use and Preparations
[PWR] (SOURCE)
≥Switches on/off the power. (➡page 20)
≥Selects a source. (➡page 20)
[BAND]
≥Selects a band. (➡page 22)
≥Pause CD playing. (➡page 25)
["] [#](Hour/minute/disc)
≥Selects (vertically) or adjusts an op-
eration or item.
≥Adjusts the clock. (➡page 21)
≥Selects disc. (➡page 28)
[%] [$] (Track/tune)
≥Selects (horizontally) or adjusts an
operation or item.
≥Selects or searches frequency/track.
(➡pages 22, 25, 28)
[SET]
≥Determines an operation or item.
["] [#] VOL (Volume)
≥Adjusts the sound volume.
(➡page 21)
[MUTE]
≥Lowers the volume. (➡page 21)
[RET] (RETURN)
≥Returns to the previous display in menu setting
mode.
[MENU]
≥Enters the menu setting mode.
≥Returnstotheregularmodeduringmenuplaysetting.
[FACE]
≥Selects the button color and display
brightness. (➡page 33)
[S·A] (Spectrum Analyzer)
≥Selects the Spectrum Analyzer display
pattern. (➡page 37)
[DISP] (Display)
≥Changes the display.
(➡pages 22, 25, 29)
[DIM] (DIMMER)
≥Changes the dimmer level.
(➡page 37)
[„] (NUMBER)
≥Enters the number input mode.
(➡pages 25, 29)
(S·HDB)
≥Sets the Super High Definition Bass
sound. (➡page 33)
RANDOM SCAN REPEAT
Car Audio
PWR
DISP
NUMBER
123
456
789
0
DIM
BAND RET MENU
SET
SOURCE
FACE S • A
MUTE
VOL
RETURN
DIMMER
Battery Installation
1Remove the battery holder.
Pull the battery holder by the position B while pushing posi-
tion A in the direction indicated by the arrow.
2Install the battery on the battery holder.
As shown in the figure on the right, fit the battery into the battery
holder with the “i” side facing up while pressing on position A.
3Insert the battery holder.
Push the battery holder back into its original position.
Back side Lithium battery (included)
Battery holder
Position A
Position B
≥Do not disassemble or short the battery. Do not throw a battery into a fire.
≥Keep batteries away from children to avoid the risk of accidents.
≥Be careful to observe proper local disposal rules when you dispose of batteries.
Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a
fire. Battery leakage may damage the unit.
Point the remote control unit at the main unit’s sensor. (➡page 18)
[\ ]

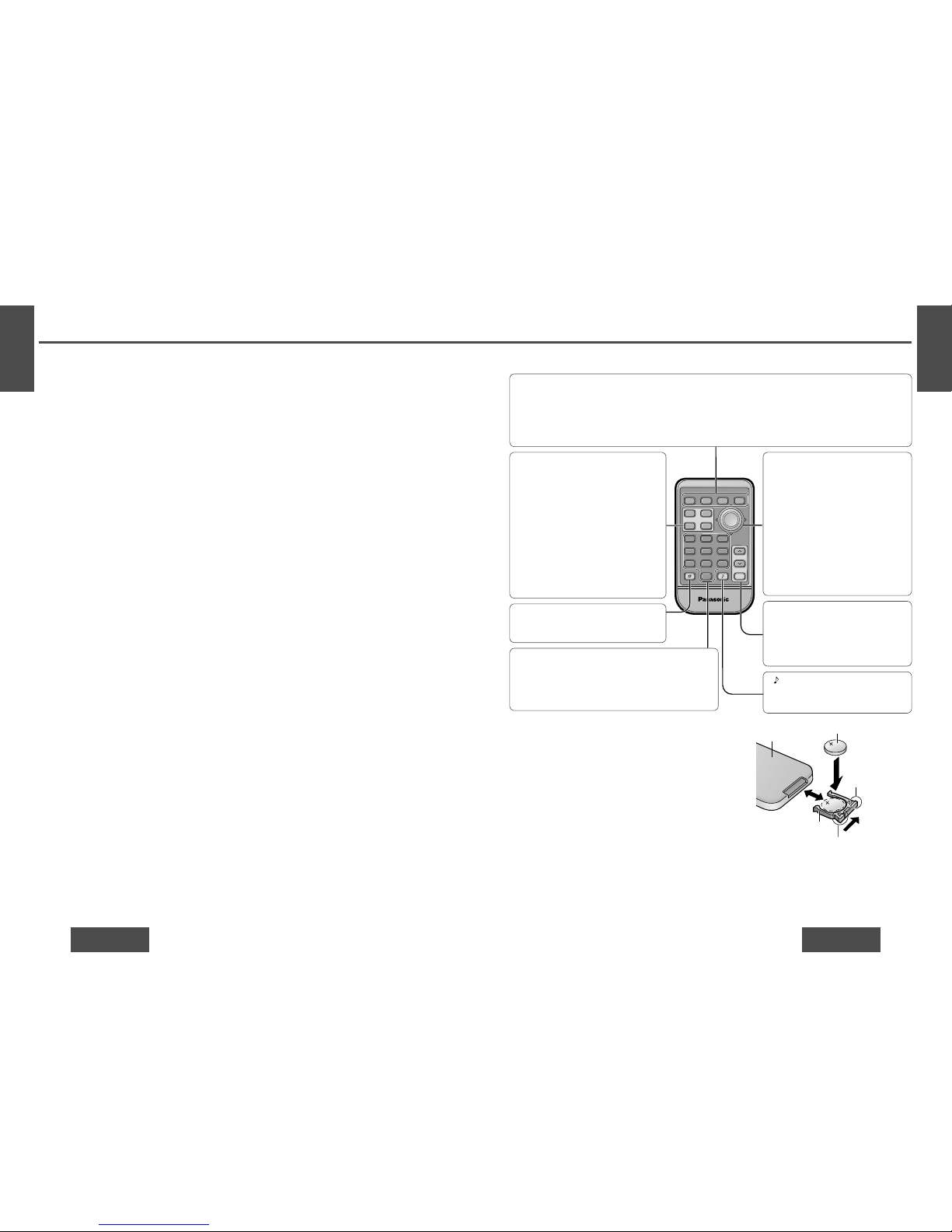

Name of Controls Functions(Remote Control Unit)
[0] to [9]
≥Memorizes broadcast stations. (➡page 23)
≥Selects track/disc. (➡page 25, 29)
[4] (RANDOM)/[5] (SCAN)/[6] (REPEAT)
≥Selects listening item. (➡pages 26, 30)
❐Notes for the touch panel
When operating
≥You must use your fingers to touch the panel and perform operations.
≥Do not press the buttons too forcefully. If you do so, you may damage or break the glass on the top surface
of the touch panel.
≥Do not allow the top surface of the touch panel to be caught by your fingernails or any hard objects. If you
do so, you may damage or break the glass on the top surface of the touch panel.
≥Do not use a pen or other sharp implement to perform touch panel operations. If you do so, you may dam-
age or break the glass on the top surface of the touch panel.
≥Performing operations while the top surface of the touch panel is covered with dust may damage the glass
on the top surface of the touch panel.
When not operating
≥Be sure to keep the front panel with the removable face plate case (included) when it has been detached
from the main unit.
≥Take care not to drop the front panel when it has been detached from the main unit. Also take care not to
bump the top surface of the touch panel into anything. If you do so, you may break the glass on the top sur-
face of the touch panel.
≥Do not allow the top surface of the touch panel to be caught by your fingernails or any hard objects. If you
do so, you may damage or break the glass on the top surface of the touch panel.
When cleaning (➡page 46)

❐You can operate this unit by pressing buttons on the main unit and the remote control unit, and touch pan-
els on the main unit.
≥Some operations can be activated by pressing buttons only on main unit or remote control unit.
Those cases are described in the instructions.
Example: Press [OPEN] on the main unit.
≥These instructions describe buttons that are concerned with operations as follows.
Example: Press [VOL "]or [VOL #]/["]or [#].
E
N
G
L
I
S
H
4
CQ-DF802W 19
(Display)
E
N
G
L
I
S
H
3
CQ-DF802W
18

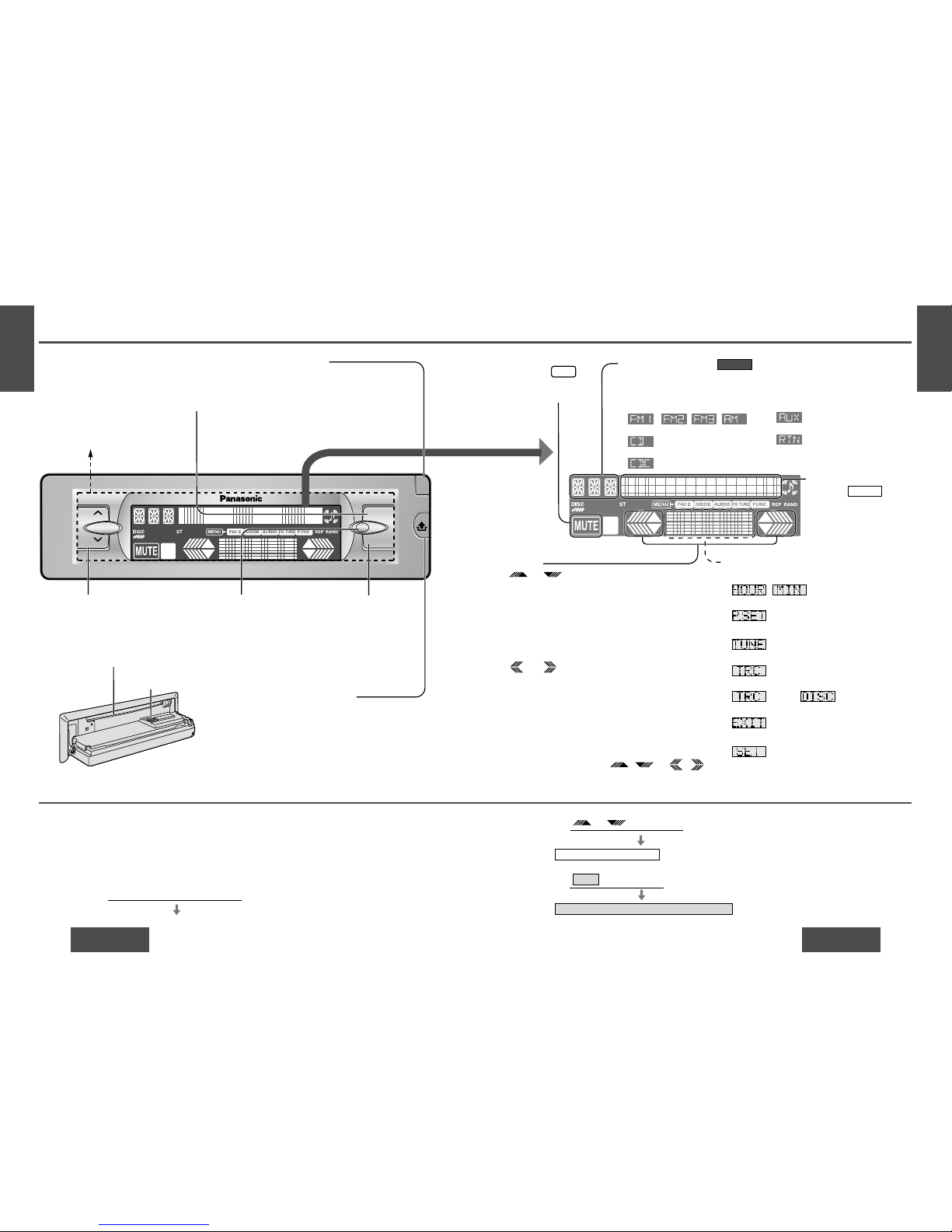

Name of Controls Functions (Main Unit and Touch Panel)
Example: Press /["]or [#].
Example: Press /[MENU]/[DISP].
EXIT
[buttons on the main unit]/[remote control unit]
/[remote control unit]
(➡above.)
cursor on the touch panel
or
/[buttons on main unit]/[remote control unit]
(➡above.)
Spectrum Analyzer display on the touch panel
["] [#] VOL (Volume)
≥Adjusts the sound volume.
(➡page 21)
[MENU]
≥Enters the menu setting
mode.
≥Returns to the regular
mode during menu setting.
[BAND] (APM/;/1)
(Auto Preset Memory/Pause)
≥Selects a band. (➡page 22)
≥Pause CD playing.
(➡page 25)
≥Sets the auto preset memory
(APM) mode. (➡page 23)
[OPEN]
≥Opens the front panel.
(➡page 21)
['](Release)
≥Releases the front panel.
(➡page 52)
MUTE
(Indicates . )
≥Lowers the volume.
(➡page 21)
Dot display
(Indicates .)
≥Changes the display.
(➡pages 22, 25, 29)
≥Returns to the previous
display.
DISPLAY
Note:
≥Press the Spectrum Analyzer display to active the
cursor of the touch panel
on
VOL
CQ-DF802W
MENU
OPEN
BAND
APM/ ; / 1
MOSFET 50W X 4
Display (➡next page)
on
Source display (Indicates .)
•Switches off the power. (➡page 20)
(Press and hold.)
•Selects a source. (➡page 20)
≥Radio ()
≥CD player mode
≥CD changer control
SOURCE
Spectrum Analyzer (S·A) display (➡page 36)
≥Clock basics (➡page 21)
, (Minute)
≥Radio mode (➡page 22)
(Preset)
•Enters a preset memory mode. (➡page 23)
≥CD player mode (➡page 24)
(Track)
≥CD changer control (➡page 28)
(Track),
≥Menu setting mode
•Returns to the previous display.
•Determines an operation or item in menu set-
ting mode.
Cursors
(Hour/minute/preset/disc/menu/submenu)
≥Selects (vertically) or adjusts an operation or
item.
≥Adjusts the clock. (➡page 21)
≥Selects a preset memory. (➡page 23)
≥Selects disc. (➡page 28)
(Tune/track/setting)
≥Selects (horizontally) or adjusts an operation or
item.
≥Selects or searches frequency/track.
(➡pages 22, 25, 28)
or
or
Disc slot
≥Loading the disc. (➡page 24)
[<] (Eject)
≥Ejects the disc. (➡page 24)
MUTE
Touch panel
≥Switches on the power.
(➡page 20)
Remote control sensor
Note:
≥Operations can be performed no
matter which part of the touch
panel is pressed BUT ONLY
WHEN THE POWER IS ON.
§The brightness of the screen illustrations in this manual is different from the actual screen brightness.
≥AUX-IN setting
≥Menu setting mode
•Returns to the previous display in
menu setting mode.
or
.

E
N
G
L
I
S
H
6
CQ-DF802W 21
E
N
G
L
I
S
H
5
CQ-DF802W
20
General
Mute/Attenuation
ON: Press /[MUTE]. ( indicator lights.)
OFF: Press /[MUTE]again.
Note:
≥After turning off the ignition key, a security message is displayed, and the panel removable alarm that
reminds you to take the panel is activated. (When security function is set to on ➡page 38)
≥Operations can be performed no matter which part of the touch panel is pressed BUT ONLY WHEN
THE POWER IS ON.
Volume
[VOL "]: Up
[VOL #]: Down
Setting range: 0 to 40
ACCON
Open/Close the Front Panel
OPEN: Press [OPEN] on the front panel.
CLOSE: Raise the panel by hand.
: No sound.
Caution:
≥To avoid damaging the front panel, do not push
it down or place objects on it while it is open.
≥Do not pitch your finger or hand in the front
panel.
≥Do not insert foreign matter into the disc slot.
["] [#]
VOL (Volume)
[PWR]
(SOURCE)
[DISP]
(Display)
[MUTE]
["] [#]
(Hour/minute)
RANDOM SCAN REPEAT
Car Audio
PWR
DISP
NUMBER
123
456
789
0
DIM
BAND RET MENU
SET
SOURCE
FACE S •A
MUTE
VOL
RETURN
DIMMER
Power
Turn the key in the ignition until the accessory indicator lights.
∫ Power on
Press the touch panel on the main unit.
Press [PWR] (SOURCE) on the remote control unit.
∫ Power off
Press and hold on the main unit again for more than
1 second.
Press and hold [PWR] (SOURCE) on the remote control unit
again for more than 1 second.
SOURCE
1
Source
Press /(SOURCE) to change the source.
SOURCE
2
Note:
≥The sound level for each source is stored in
memory.
(There is one volume setting for AM radio
band, and one volume setting for FM radio
band.)
: Decrease the volume to 1/10.
Close
Clock Basics
The 12-hour system is used for the clock.
Initial Time
1Press /[DISP] (display).
2Press and hold /[DISP] (display) for
more than 2 seconds.
3Press /["] or [#].
4Press /[DISP] (display).
5Press /["] or [#].
6Press /[DISP] (display).
DISPLAY
DISPLAY
DISPLAY
DISPLAY
Note:
≥Press and hold /["] or [#]to
change numbers rapidly.
≥You can select the clock display during the unit
off. (➡page 38)
or
or
or
MUTE
on
MUTE
(Hours blink.)
(Hours set.)
(Minutes blink.)
(Minutes set.)
(End.)
Decreasing volume range depends on setting.
(➡page 38)
on
(Hour/minute)
(Volume)
(Power off)
VOL
MENU
OPEN
SOURCE DISPLAY
[VOL "] [VOL #]
[OPEN]
Touch panel (Power on)
BAND
APM/ ; / 1
MOSFET 50W X 4
ST
Radio
CD player
CD changer control
AUX-IN setting
(When a CD is in the player.)
(When a CD changer is
connected and magazine is in
the changer.) ( page 28)
(Clock display)
Time Reset
Press and hold /[DISP] (display) for more
than 2 seconds to activate the time setting mode to
reset the time. Then, repeat steps 3to 6.
DISPLAY
SOURCE
DISPLAY

E
N
G
L
I
S
H
8
CQ-DF802W 23
E
N
G
L
I
S
H
7
CQ-DF802W
22
Radio
Band
Press [BAND] to change the band.
2
Radio Mode
Press /[SOURCE] to change to
the radio mode.
SOURCE
1
Tuning
/[$]: Up
/[%]: Down
Press and hold /[%]or [$] for
more than 0.5 seconds, then release.
Seeking will start.
3
ST
Radio mode display
FM stereo indicator
or
Display Change
Press /[DISP] (display) to change the display.
DISPLAY
Radio mode display
(Default)
Clock display
One-Touch Selection of a Station
Up to 6 stations each can be saved in the FM1, FM2, FM3 and AM preset station memories.
Manual Preset
Memory
Manually save a station in
the preset memory.
Entering numbers directly on the remote control unit
1Select a band and frequency (step 1, 2and 3on the previous
page).
2Press and hold [1] to [6] for more than 2 seconds to memorize.
Auto Preset
Memory (APM)
Automatically save rela-
tively strong stations in
the preset memory.
1Select a band (steps 1and 2 on the
previous page).
2Press and hold [BAND] (APM) for
more than 2 seconds.
Note:
≥Existing saved stations are overwritten with new stations after following this procedure.
Preset Station
Calling
1Select a band (steps 1and 2on the previous page).
2Press the Spectrum Analyzer display to show (preset) .
3Press /["]or [#]to select the preset number for tuning
in the preset station.
(Press [1] to [6] on the remote control unit.)
P.SETTUNE
Note:
≥Frequency setting can be performed even after selecting a preset num-
ber.
1Select a band and frequency (steps 1, 2and 3on the previous
page).
2Press and hold the Spectrum Analyzer display for more than
2 seconds until the preset number blinks.
3Press /["]or [#]to select a preset number (1j6).
4Press and hold (preset) for more than 2 seconds to memo-
rize. P.SET
TUNE
Scanning:
≥The display blinks once, and a re-
ceiving station is saved in the
memory.
Preset number
≥The 6 strongest available stations will be automatically saved in the
memory under preset number 1to 6.
≥Once set, the preset stations are sequentially scanned for 5 seconds
each. (Scanning)
≥Press /["]or [#]for the broadcast you want to listen
to.
(Press [1] to [6] on the remote control unit.)
or
or
or
Band
(SOURCE)
[DISP]
(Display)
[%] [$]
(Tune)
["] [#]
(Preset station/
select)
[BAND]
(Auto preset
memory)
[1] to [6]
(Preset station)
RANDOM SCAN REPEAT
Car Audio
PWR
DISP
NUMBER
123
456
789
0
DIM
BAND RET MENU
SET
SOURCE
FACE S •A
MUTE
VOL
RETURN
DIMMER
Frequency
VOL
MENU
SOURCE DISPLAY P.SET
(Preset)
(Preset station/select)
(Tune)
BAND
APM/ ; / 1
MOSFET 50W X 4
TUNE
Caution:
≥To ensure safety, never attempt to preset sta-
tions while you are driving.
P.SET
Note:
≥:
Displays when not have any
menu settings. Radio and AUX-
IN mode do not have any menu
settings.
≥Press or to
change the cursor.
P.SETTUNE Spectrum Analyzer display
SOURCE
DISPLAY

E
N
G
L
I
S
H
10
CQ-DF802W 25
E
N
G
L
I
S
H
9
CQ-DF802W
24
CD Player
Note:
≥Loading a disc when the power is off allows the
power to be turned on.
Open the front panel.
Press [OPEN] on the front panel.
1
Insert the disc.
Playback will start automatically after the
unit recognized the loaded disc as an ordi-
nary music CD. (When a CD-R or CD-RW
which has CD-DA formatted data as the
same as an ordinary music CD is loaded,
this unit recognizes it as an ordinary music
CD.)
Close the front panel manually.
2
Disc Insert and Playback
Stop and Disc Eject
1Press [OPEN] on the front panel.
2Press [<] (eject) to stop CD play and eject the
disc.
Label side
(Eject)
<Close
CD player mode display
≥Do not insert a disc when “DISC”indi-
cator lights.
≥Lights when the disc is loaded/played.
Caution:
≥Only 12 cm CD, CD-DA data recorded CD-R and CD-RW discs are available for this unit.
≥This unit does not support CD text display.
≥This unit does not support MP3 disc playback.
≥Refer to page 47 about notes on CD-Rs/RWs.
≥To avoid damaging the front panel, do not push it down or place objects on it while it is open.
≥Do not use irregular shaped discs.
≥Do not use discs that have a seal or label attached.
≥Do not insert foreign matter into the disc slot.
≥The back side of the front panel becomes hot during use, but this is not an indication of any problem. Do
not touch anything here except [<] (eject).
≥The disc insertion slot and its vicinity become hot, but this is not an indication of any problem. Be care-
ful when inserting a disc or pressing [<] (eject).
Track Selection
/[$]: Advance to the next track.
/[%]: Back to the beginning of the current track.
Back to the previous track. (Press twice.)
Pause
Press [BAND] (;/1).
Press [BAND] (;/1) again to cancel.
Listening to a CD
Track Search
Press and hold.
/[$]: Fast forward
/[%]: Fast backward
Release to resume the regular play.
Direct Track Selection
Example: track number 10
1Press [„] (NUMBER).
2Press [1] [0].
3Press [SET] to set.
The corresponding track starts playing.
Display Change
Press /[DISP] (display) to change the dis-
play. DISPLAY
Track number/track
playing time (Default)
Clock display
CD Player Mode
(When a CD is in the player.)
Press /[SOURCE] to change to CD
player mode.
Playback starts automatically.
SOURCE
(SOURCE)
[DISP]
(Display)
[%] [$]
(Track)
[SET]
[BAND] (Pause)
[„]
(NUMBER) [0] to [9]
(Track number)
RANDOM SCAN REPEAT
Car Audio
PWR
DISP
NUMBER
123
456
789
0
DIM
BAND RET MENU
SET
SOURCE
FACE S •A
MUTE
VOL
RETURN
DIMMER
Note:
≥Press /[DISP] (display) or [„] (NUM-
BER) to return to the regular mode.
≥If a non-existent track number is input and en-
tered, the command is invalid and the display re-
turns to regular mode.
DISPLAY
Track playing time
Track number
(Track)
VOL
MENU
OPEN
SOURCE DISPLAY
[BAND] (;/1) (Pause)
[OPEN]
BAND
APM/ ; / 1
MOSFET 50W X 4
Note:
≥Ejecting the disc when the unit is in the CD player
mode allows the power to be turned off.
Only for the remote control unit
Repeat and random indicator
SOURCE
DISPLAY

E
N
G
L
I
S
H
12
CQ-DF802W 27
E
N
G
L
I
S
H
11
CQ-DF802W
26
CD Player (Continued)
Menu Setting on CD Player Mode
Random Play
Default: RAND OFF
Repeat Play
Default: REP OFF
Press /["]or [#]to change setting.
12 3Menu Submenu Setting
Scan Play
Default: Off
1Press /
[%]or [$]to select
“RANDOM”.
2Press /[SET] to set.
SET
or
1Press /
[%]or [$]to select
“REPEAT”.
2Press /[SET] to set.
SET
: All the available track plays in a random
sequence.
: Cancel
Press /["]or [#]to change setting.
: Repeat the current track.
: Cancel
Direct setting on the re-
mote control unit when the
menu is not displayed
Press [4] (RANDOM) to
change setting.
On: “RAND”lights.
Off:(Displayed for 2 seconds.)
Press [6] (REPEAT) to change
setting.
(When you press a button, the
screen on the left is displayed
for 2 seconds.)
Note:
≥Press /[MENU]/[MENU], [DISP] (display) to
return to the regular mode.
≥Press /[RET] (RETURN) to return to the previ-
ous display.
≥REP: Lights during repeat play.
RAND: Lights during random play.
RTN
EXIT
or
or
Only for the remote control unit
Press [5] (SCAN) to change setting.
On: The first 10 seconds of each track plays in sequence.
Off: Cancel
or
: Lights during menu play setting.
: Lights during CD player menu mode.
[%] [$]
(Menu/submenu)
["] [#]
(Setting)
[SET]
[MENU]
[4] (RANDOM)
[5] (SCAN)
[6] (REPEAT)
[DISP] (Display)
RANDOM SCAN REPEAT
Car Audio
PWR
DISP
NUMBER
123
456
789
0
DIM
BAND RET MENU
SET
SOURCE
FACE S •A
MUTE
VOL
RETURN
DIMMER
Blinks.
VOL
MENU
SET
[MENU]
BAND
APM/ ; / 1
MOSFET 50W X 4
VOL
MENU
SET
(Submenu)
BAND
APM/ ; / 1
BAND
APM/ ; / 1
1
2112
MOSFET 50W X 4
VOL
MENU
EXIT
MOSFET 50W X 4
[MENU]
RTN (Setting)
BAND
APM/ ; / 1
3Setting
1Press [MENU] during CD
playing to display “MODE”.
2Press /[SET] to set.
SET
1Menu 2Submenu
When the menu is not displayed
(Displayed for 2 seconds.)

Track Search
Press and hold.
/[$]: Fast forward
/[%]: Fast backward
Release to resume the regular play.
E
N
G
L
I
S
H
14
CQ-DF802W 29
E
N
G
L
I
S
H
13
CQ-DF802W
28
CD Changer Control
CD changer functions are designed for optional Panasonic CD changer unit.
Preparation:
≥Connect the CD changer, and load a magazine (disc).
Note:
≥Loading a magazine when the power is off allows the power to be turned on.
≥Ejecting the magazine when the unit is in the CD changer mode allows the power to be turned off.
≥This unit does not support CD-ROM, CD-R or CD-RW playback through the CD changer. Use the CD changer
to listen to normal music CD exclusively.
≥Pausing does not function in the CD changer mode.
CD Changer Mode
(When a CD changer is connected and a maga-
zine is in the changer.)
Press /[SOURCE] to
change to CD changer mode.
Playback starts automatically.
Note:
≥: Load a magazine with CDs.
≥: Magazine is ejected in the
CD changer mode.
SOURCE
1
Disc Selection
/["]: Next disc.
/[#]: Previous disc.
(SOURCE)
[DISP]
(Display)
[%] [$] (Track)
["] [#] (Disc)
[SET]
[„]
(NUMBER)
[0] to [9]
(Disc number)
RANDOM SCAN REPEAT
Car Audio
PWR
DISP
NUMBER
123
456
789
0
DIM
BAND RET MENU
SET
SOURCE
FACE S •A
MUTE
VOL
RETURN
DIMMER
CD changer mode display
2
≥Lights when the changer (magazine) is con-
nected.
≥Lights when the disc is played.
Track Selection
/[$]: Advance to the next track.
/[%]: Back to the beginning of the current track.
Back to the previous track. (Press twice.)
3
Direct Disc Selection
Example: disc number 10
1Press [„] (NUMBER).
2Press [1] [0].
3Press [SET] to set.
The first track of the corresponding disc starts
playing.
Display Change
Press /[DISP] (display) to change the dis-
play. DISPLAY
Disc/track number (Default)
Track playing time
Clock display
Note:
≥Press /[DISP] (display) or [„] (NUM-
BER) to return to the regular mode.
≥If a non-existent disc number is input and en-
tered, the command is invalid and the display re-
turns to regular mode.
DISPLAY
Note:
≥Press /[DISP] (display) to return to the
regular mode.
DISPLAY
Disc number Track number
DISC
(Track)
TRC
VOL
MENU
SOURCE DISPLAY
(Disc)
(Track)
BAND
APM/ ; / 1
MOSFET 50W X 4
≥Press or to change
the cursor. TRCDISC
Only for the remote control unit
Repeat and random indicator
SOURCE
DISPLAY

E
N
G
L
I
S
H
16
CQ-DF802W 31
E
N
G
L
I
S
H
15
CQ-DF802W
30
CD Changer Control (Continued)
Menu Setting on CD Changer Mode
Random Play
Default: RAND OFF
Scan Play
Default: Off
12Menu Submenu
Repeat Play
Default: REP OFF
1Press [MENU] during CD
changer playing to display
“MODE”.
2Press /[SET] to set.
SET 1Press /
[%]or [$]to select
“RANDOM”.
2Press /[SET] to set.
SET
or
Disc Random Play
Default: D-RND OFF
1Press /
[%]or [$]to select
“D-RANDOM”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“REPEAT”.
2Press /[SET] to set.
SET
Disc Scan Play
Default: Off
Disc Repeat Play
Default: D-REP OFF
1Press /
[%]or [$]to select
“D-REPEAT”.
2Press /[SET] to set.
SET
Press /["]or [#]to change setting.
3Setting
: All the available tracks on all discs
plays in a random sequence.
: Cancel
Press /["]or [#]to change setting.
: All the available tracks on the current
disc plays in a random sequence.
: Cancel
Press [5] (SCAN) to change set-
ting.
Press /["]or [#]to change setting.
: Repeat the current track.
: Cancel
Press /["]or [#]to change setting.
: Repeat the current disc.
: Cancel
Press and hold [5] (SCAN) for
more than 2 seconds to change
setting.
Direct setting on the remote con-
trol unit when the menu is not
displayed
Press [4] (RANDOM) to change setting.
On: “RAND”lights.
Off:(Displayed for 2 seconds.)
Press and hold [4] (RANDOM) for
more than 2 seconds to change setting.
On: “RAND”blinks.
Off:(Displayed for 2 seconds.)
Press [6] (REPEAT) to change setting.
(When you press a button, the
screen on the left is displayed for
2 seconds.)
Press and hold [6] (REPEAT) for more
than 2 seconds to change setting.
(When you press a button, the
screen on the left is displayed for
2 seconds.)
Note:
≥Press /[MENU]/[MENU], [DISP] (display) to
return to the regular mode.
≥Press /[RET] (RETURN) to return to the previ-
ous display.
≥REP: Lights during repeat play.
Blinks during disc repeat play.
RAND: Lights during random play.
Blinks during disc random play.
RTN
EXIT
or
or
or
Only for the remote control unit
or
or
or
or
: Lights during menu play setting.
: Lights during CD changer menu mode.
On: The first 10 seconds of each track on all
discs plays in sequence.
Off: Cancel
On: The first 10 seconds of the first track of all
the discs plays in sequence.
Off: Cancel
Blinks.
Blinks.
[%] [$]
(Menu/
submenu)
["] [#]
(Setting)
[SET]
[MENU]
[4] (RANDOM)
[5] (SCAN)
[6] (REPEAT)
[DISP]
(Display)
RANDOM SCAN REPEAT
Car Audio
PWR
DISP
NUMBER
123
456
789
0
DIM
BAND RET MENU
SET
SOURCE
FACE S •A
MUTE
VOL
RETURN
DIMMER
VOL
MENU
SET (Submenu)
VOL
MENU
SET
MOSFET 50W X 4
[MENU]
BAND
APM/ ; / 1
BAND
APM/ ; / 1
1
2112
MOSFET 50W X 4
VOL
MENU
EXIT
MOSFET 50W X 4
[MENU]
RTN (Setting)
BAND
APM/ ; / 1
1Menu 2Submenu 3Setting
When the menu is not displayed
(Displayed for 2 seconds.)
(Displayed for 2 seconds.)

E
N
G
L
I
S
H
18
CQ-DF802W 33
E
N
G
L
I
S
H
17
CQ-DF802W
32
Front Panel Settings [FACE]
Front Panel Brightness
The brightness of the screen can be ad-
justed to the desired level so that it will fit
in with the equipment inside the car and
the front panel buttons.
Default: OPEN
Setting range: OPEN, HALF, CLOSE
Color Change
You can change the color of the [VOL "
#] [MENU] [BAND] buttons.
Default: 7COLOR
Variety: 5 kinds, LEVEL, 7COLOR
12Menu Submenu
1Press [MENU].
2Press /
[%]or [$]to select
“FACE”.
3Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“SHUTTER”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“COLOR”.
2Press /[SET] to set.
SET
Press /["]or [#]to change setting.
3Setting
Press /["]or [#]to change setting.
Press /["]or [#]to change setting.
Audio and Sound Settings [AUDIO]
S·HDB (Super High
Definition Bass)
Especially for rock music, the bass-sound
will be more powerful.
Default: S·HDB OFF
Setting range: S·HDB OFF, BOOM, TIGHT
12Menu Submenu
1Press [MENU].
2Press /
[%]or [$]to select
“AUDIO”.
3Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“S·HDB”.
2Press /[SET] to set.
SET
: Lights during menu play setting.
: Lights during FACE mode.
: Lights during AUDIO mode.
or
or
or
or
or
3Setting
or
: The bass sounds of the speakers are strongly
emphasized. “(”lights.
: The bass sounds of the speakers are moder-
ately emphasized. “(”lights.
(The sounds of the subwoofer can be heard
clearly.)
: S·HDB is non-active.
Direct setting on the re-
mote control unit when the
menu is not displayed
Press (S·HDB) to change
setting.
(When you press a button,
the screen on the left is dis-
played for 2 seconds.)
or
or
Note:
≥Press /[MENU]/[MENU], [DISP] (display) to
return to the regular mode.
≥Press /[RET] (RETURN) to return to the previ-
ous display.
RTN
EXIT
: 5 kinds (below),
white and yellow
: Changes according
to the volume level.
: Red
: Purple
: Blue
: Aqua blue
: Green
Direct setting on the re-
mote control unit when the
menu is not displayed
Press and hold [FACE] for
more than 2 seconds to
change setting.
(When you press a button,
the screen on the left is dis-
played for 2 seconds.)
Press [FACE] to change set-
ting.
(When you press a button,
the screen on the left is dis-
played for 2 seconds.)
[\ ]
VOL
MENU
MOSFET 50W X 4
SET (Submenu)
VOL
MENU
SET
MOSFET 50W X 4
[MENU]
(Menu)
BAND
APM/ ; / 1
BAND
APM/ ; / 1
112
1
223
MOSFET 50W X 4
VOL
MENU
EXIT
MOSFET 50W X 4
[MENU]
RTN (Setting)
BAND
APM/ ; / 1
1Menu 2Submenu 3Setting
: Bright (brighter than “HALF”)
: The entire front panel darkens and the illuminated
colors inside the panel change in appearance.
: Bright
The brightness of the entire front
panel changes.
(See page 36 for information on changing
the brightness of just the display area.)
on
VOL
MENU
OPEN
BAND
APM/ ; / 1
MOSFET 50W X 4
on
VOL
MENU
OPEN
BAND
APM/ ; / 1

E
N
G
L
I
S
H
20
CQ-DF802W 35
E
N
G
L
I
S
H
19
CQ-DF802W
34
Audio and Sound Settings [AUDIO] (Continued)
Bass and Treble
You can adjust the bass and treble sound.
Default: BAS (Bass) 0 dB
TRE (Treble) 0 dB
Setting range: j12 dB to i12 dB
(by 2 dB)
Balance and Fader
You can adjust the sound balance among
the front, rear, right and left speakers.
Default: BAL (Balance) CNT (Center)
FAD (Fader) CNT (Center)
Setting range: 15 levels each
Subwoofer Level
You can change the subwoofer volume level.
Default: 0 dB
Setting range:j∞(subwoofer mute),
j6 dB to i6 dB (by 2 dB)
Subwoofer Low Pass Filter
Select the upper limit frequency of the
sound from subwoofer.
Default: 120 Hz
Setting range: 120 Hz/80 Hz
12Menu Submenu
1Press [MENU].
2Press /
[%]or [$]to select
“AUDIO”.
3Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“BASS”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“TREBLE”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“BALANCE”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“FADER”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“SUB-W LEV”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“SUB-W FRQ”.
2Press /[SET] to set.
SET
3Setting
Press /["]or [#]to adjust the level.
/["]: Increase the bass.
/[#]: Decrease the bass.
Press /["]or [#]to adjust the level.
/["]: Increase the treble.
/[#]: Decrease the treble.
Press /["]or [#]to adjust the level.
/["]: Right enhanced.
/[#]: Left enhanced.
Press /["]or [#]to adjust the level.
/["]: Front enhanced.
/[#]: Rear enhanced.
Press /["]or [#]to adjust the level.
/["]: Increase the level.
/[#]: Decrease the level.
Press /["]or [#]to change the setting 120 Hz
or 80 Hz.
or
or
or
or
or
or
or
or
or
or
or
or
or
Note:
≥Press /[MENU]/[MENU], [DISP] (display) to
return to the regular mode.
≥Press /[RET] (RETURN) to return to the previ-
ous display.
RTN
EXIT
: Lights during menu play setting.
: Lights during AUDIO mode.
[%] [$]
(Menu/submenu)
["] [#]
(Setting)
[SET]
[MENU]
[DISP] (Display)
RANDOM SCAN REPEAT
Car Audio
PWR
DISP
NUMBER
123
456
789
0
DIM
BAND RET MENU
SET
SOURCE
FACE S •A
MUTE
VOL
RETURN
DIMMER
VOL
MENU
SET (Submenu)
VOL
MENU
SET
MOSFET 50W X 4
[MENU]
(Menu)
BAND
APM/ ; / 1
BAND
APM/ ; / 1
1
223211
MOSFET 50W X 4
VOL
MENU
EXIT
MOSFET 50W X 4
[MENU]
RTN (Setting)
BAND
APM/ ; / 1
1Menu 2Submenu 3Setting

E
N
G
L
I
S
H
22
CQ-DF802W 37
E
N
G
L
I
S
H
21
CQ-DF802W
36
Picture (Display) Settings [PICTURE]
Dimmer (display brightness
setting range)
The brightness of just
the display area of the
front panel changes.
Default: DIMMER 3
Setting range: DIMMER 1 to 3
Spectrum Analyzer (S·A)
Display Pattern
Default: KEY
Variety: KEY, PATTERN 1 to 5
12Menu Submenu
Contrast
Allows you to adjust the display contrasts
for better viewing.
Default: CONT 3
Setting range: CONT 1 to 5
1Press /
[%]or [$]to select
“DIMMER”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“S·A”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“CONTRAST”.
2Press /[SET] to set.
SET
1Press [MENU].
2Press /
[%]or [$]to select
“PICTURE”.
3Press /[SET] to set.
SET
Press /["]or [#]to change setting.
3Setting
Press /["]or [#]to change setting.
Press /["]or [#]to change setting.
Direct setting on the re-
mote control unit when the
menu is not displayed
Press [DIM] (DIMMER) to
change setting.
(When you press a button,
the screen on the left is dis-
played for 2 seconds.)
Press [S·A] to change setting.
(When you press a button,
the screen on the left is dis-
played for 2 seconds.)
or
or
or
or
or
or
or
: Bright
: Medium
: Dark
Note:
≥Press /[MENU]/[MENU], [DISP] (display) to
return to the regular mode.
≥Press /[RET] (RETURN) to return to the previ-
ous display.
≥Press Spectrum Analyzer display on S·A setting to
return to the previous display.
RTN
EXIT
: Lights during menu play setting.
: Lights during PICTURE mode.
[%] [$]
(Menu/submenu)
["] [#]
(Setting)
[SET]
[MENU]
[DISP] (Display)
[DIM] (DIMMER)
[S·A] (Spectrum Analyzer)
RANDOM SCAN REPEAT
Car Audio
PWR
DISP
NUMBER
123
456
789
0
DIM
BAND RET MENU
SET
SOURCE
FACE S •A
MUTE
VOL
RETURN
DIMMER
VOL
MENU
SET (Submenu)
VOL
MENU
SET
MOSFET 50W X 4
[MENU]
(Menu)
BAND
APM/ ; / 1
BAND
APM/ ; / 1
1
232 112
MOSFET 50W X 4
VOL
MENU
EXIT
MOSFET 50W X 4
[MENU]
RTN
BAND
APM/ ; / 1
(Setting)
1Menu 2Submenu 3Setting
Level up
Level down
: S·A off (regular
display)
: S·A 1
: S·A 2
: S·A 3
: S·A 4
: S·A 5
(See page 32 for information on changing
the brightness of the entire front panel.)
on
VOL
MENU
OPEN
BAND
APM/ ; / 1
MOSFET 50W X 4
on
VOL
MENU
OPEN
BAND
APM/ ; / 1

E
N
G
L
I
S
H
24
CQ-DF802W 39
E
N
G
L
I
S
H
23
CQ-DF802W
38

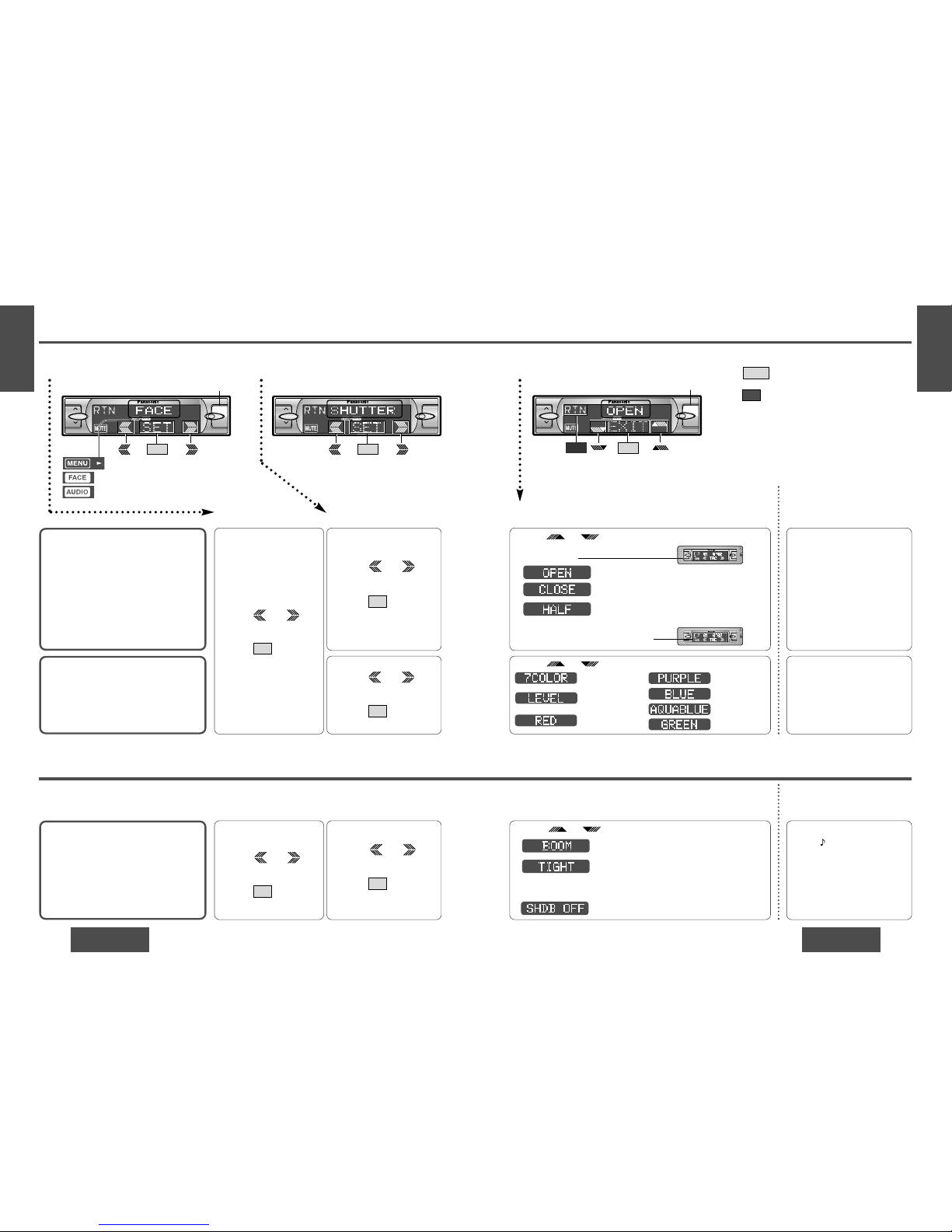

Function Settings [FUNCTION]
Mute/Attenuation
You can select how much to lower the
volume when /[MUTE] is pressed.
Default: KEY: MUTE
Setting range: KEY: MUTE, KEY: ATT
12Menu Submenu
Button Operation Sound
Enable or disable the beep or button op-
eration.
Default: BEEP ON
Security Function
The security indicator (LED) blinks when
the removable face plate is removed from
the unit.
Default: SLED ON
Display Setting
You can select display pattern on the unit
off.
Default: BLACK
Setting range: DEMO, CLOCK, BLACK
1Press /
[%]or [$]to select
“MUTE/ATT”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select
“BEEP SET”.
2Press /[SET] to set.
SET
1Press /
[%]or [$]to select “SE-
CURITY”.
2Press /[SET] to set.
SET
1Press [MENU].
2Press /
[%]or [$]to select
“FUNCTION”.
3Press /[SET] to set.
SET
Press /["]or [#]to change setting.
3Setting
Press /["]or [#]to change setting.
Press /["]or [#]to change setting.
1Press /
[%]or [$]to select “OFF
DISP”.
2Press /[SET] to set.
SET
Press /["]or [#]to change setting.
: No sound.
: Decrease the volume to 1/10. (Attenuation)
: Operation sound (beep) is on.
: Operation sound (beep) is off.
: Security function is active.
: Security function is non-active.
: Black display
: Demonstration display
: Clock display is on.
Security function
When the key in the ignition is turned OFF.
≥Security message will be active.
≥The panel removable alarm will be active.
When the removable face plate is removed.
≥The security indicator blinks. (➡page 53)
or
or
or
or
or
or
or
or
or
Note:
≥Press /[MENU]/[MENU], [DISP] (display) to
return to the regular mode.
≥Press /[RET] (RETURN) to return to the previ-
ous display.
RTN
EXIT
: Lights during menu play setting.
: Lights during FUNCTION mode.
[%] [$]
(Menu/submenu)
["] [#]
(Setting)
[SET]
[MENU]
[DISP] (Display)
RANDOM SCAN REPEAT
Car Audio
PWR
DISP
NUMBER
123
456
789
0
DIM
BAND RTN MENU
SET
SOURCE
FACE S •A
MUTE
VOL
RETURN
DIMMER
VOL
MENU
SET (Submenu)
VOL
MENU
SET
MOSFET 50W X 4
[MENU]
(Menu)
BAND
APM/ ; / 1
BAND
APM/ ; / 1
1
223 211
MOSFET 50W X 4
VOL
MENU
EXIT
MOSFET 50W X 4
[MENU]
RTN (Setting)
BAND
APM/ ; / 1
1Menu 2Submenu 3Setting
MUTE
Direct setting on the remote
control unit on the unit off
Press [DISP] (display) to change
setting on the unit off.
