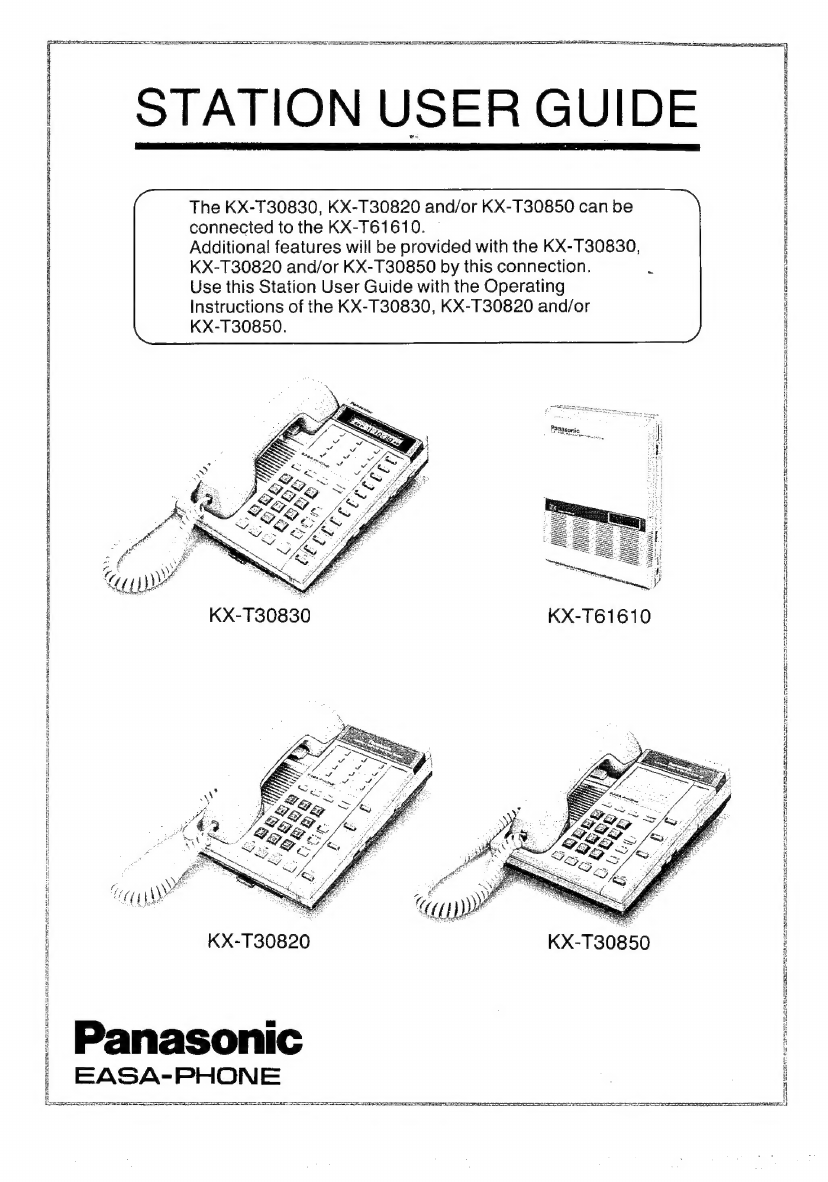

| STATION USER GUIDE
The KX-T30830, KX-T30820 and/or KX-T30850 can be
connected to the KX-T61610.
Additional features will be provided with the KX-T30830,
KX-T30820 and/or KX-T30850 by this connection. cs
i Use this Station User Guide with the Operating
i Instructions of the KX-T30830, KX-T30820 and/or
i KX-T30850.
oC ARES SESH SESCTER BET NC BOER
teas erecaroamecainic team ae enr ne
| |
i
fi e
:
i
‘ i
i
H i
|
ay
j
i
|
:
KX-T30820 KX-T30850
i
i i
=
_ Panasonic :
|
EASA-PHONE
ee
Seer
en
he
er
Oe
rete
ee
baie
‘
‘

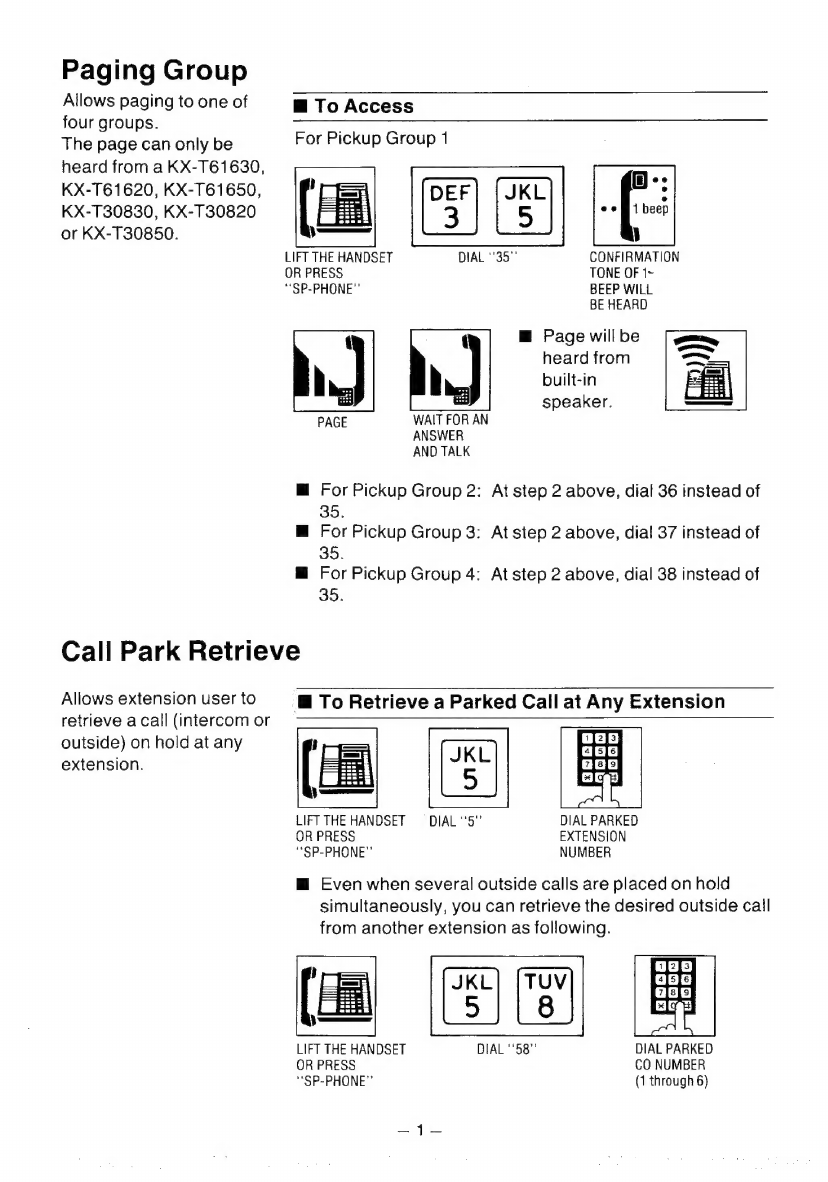

Paging Group
Allows paging to one of @ To Access
four groups.
The page can only be For Pickup Group 1
heard from a KX-T61630,
KX-T61620, KX-T61650,
KX-T30830, KX-T30820
or KX-T30850.
LIFT THE HANDSET DIAL "35" CONFIRMATION
OR PRESS TONE OF 1~
“SP-PHONE”’ BEEP WILL
BE HEARD
{ rr @ Page will be
heard from
Nas he built-in
speaker.
PAGE WAIT FOR AN
ANSWER
AND TALK
@ For Pickup Group 2: At step 2 above, dial 36 instead of
35.
M@ For Pickup Group 3: At step 2 above, dial 37 instead of
35.
@ For Pickup Group 4: At step 2 above, dial 38 instead of
35.
Call Park Retrieve
Allows extension userto —« @_ To Retrieve a Parked Call at Any Extension
retrieve a call (intercom or
outside) on hold at any
extension.
LIFT THE HANDSET ~— DIAL “'5”” DIAL PARKED
OR PRESS EXTENSION
““SP-PHONE” NUMBER
mM Even when several outside calls are placed on hold
simultaneously, you can retrieve the desired outside call
from another extension as following.
LIFT THE HANDSET DIAL ‘'58"’ DIAL PARKED
OR PRESS CO NUMBER
‘“SP-PHONE”’ (1 through 6)

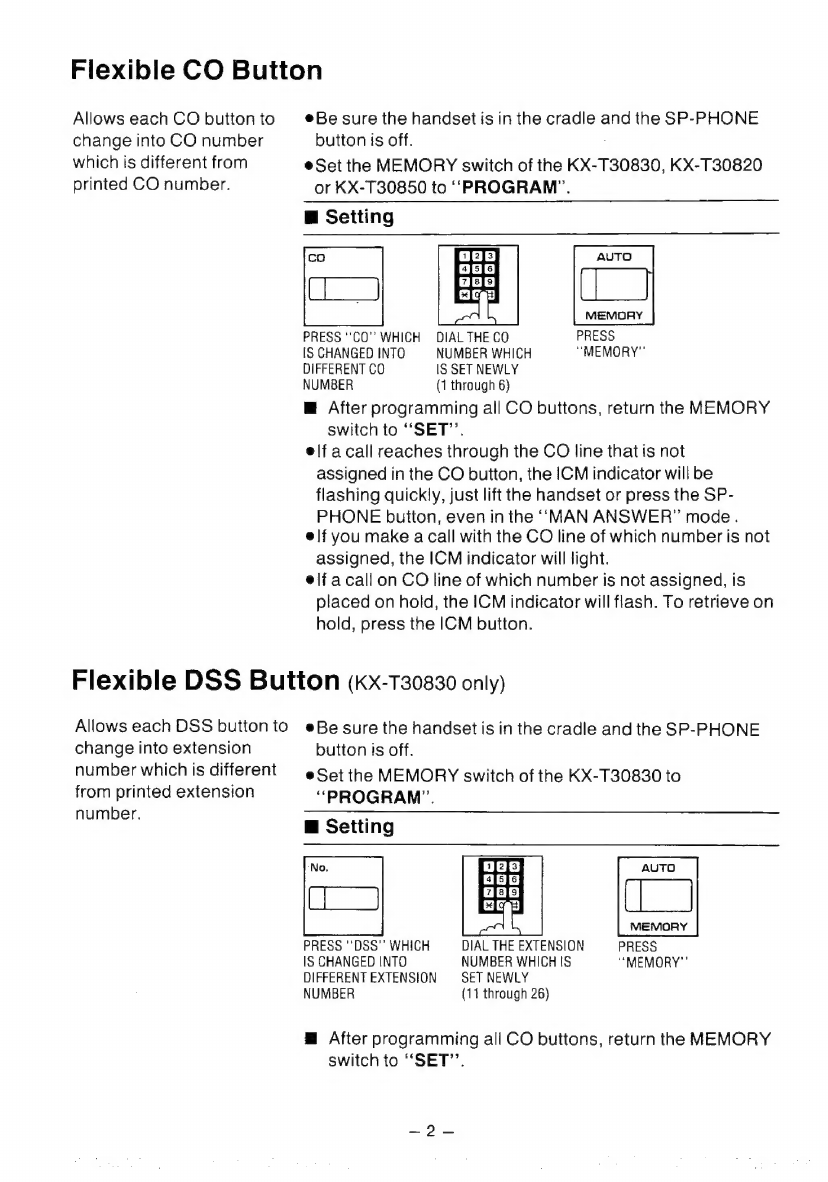

Flexible CO Button
Allows each CO buttonto e@Besure the handset is in the cradle and the SP-PHONE
change into CO number button is off.
which is different from eSet the MEMORY switch of the KX-T30830, KX-T30820
printed CO number. or KX-T30850 to ‘PROGRAM’.
@ Setting
co AUTO
MEMORY
PRESS ''CO” WHICH DIAL THE CO PRESS
IS CHANGED INTO NUMBER WHICH “MEMORY”
DIFFERENT CO IS SET NEWLY
NUMBER (1 through 6)
@ After programming all CO buttons, return the MEMORY
switch to “SET”.
elf a call reaches through the CO line that is not
assigned in the CO button, the ICM indicator will be
flashing quickly, just lift the handset or press the SP-
PHONE button, even in the ““MAN ANSWER” mode.
@|f you make a call with the CO line of which number is not
assigned, the ICM indicator will light.
@|f a call on CO line of which number is not assigned, is
placed on hold, the ICM indicator will flash. To retrieve on
hold, press the ICM button.
Flexible DSS Button (kx-T30830 only)
Allows
each
DSS
buttonto
Be
sure
the
handset
is
in
the
cradle
and
the
SP-PHONE
change
into
extension
button
is
off.
number whichis different Set the MEMORY switch of the KX-T30830 to
from printed extension “PROGRAM”.
number. :
@ Setting
AUTO
MEMORY
PRESS "DSS" WHICH DIAL THE EXTENSION PRESS
IS CHANGED INTO NUMBER WHICH IS “MEMORY”?
DIFFERENT EXTENSION SET NEWLY
NUMBER (11 through 26)
@ After programming all CO buttons, return the MEMORY
switch to ““SET’’.

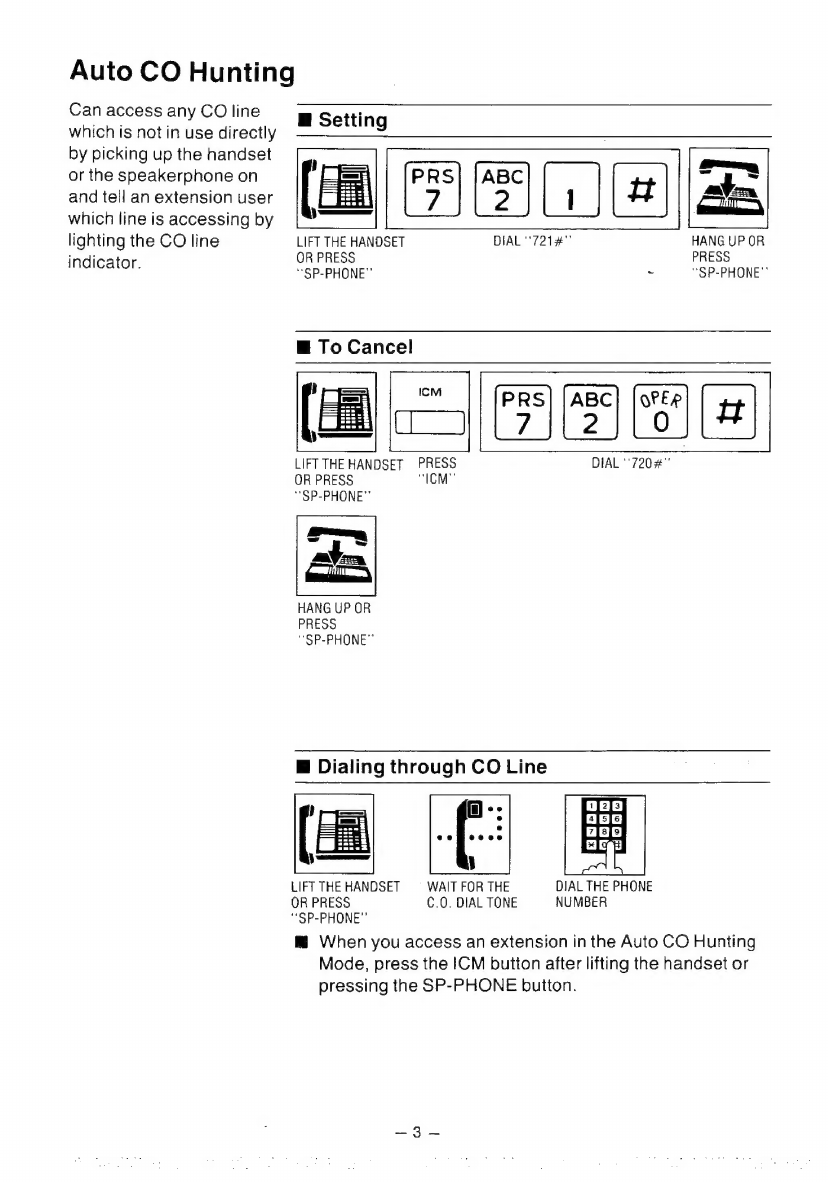

Auto CO Hunting
Can access any CO line
which is not in use directly
by picking up the handset
or the speakerphone on
and tell an extension user
which line is accessing by
lighting the CO line
indicator.
# Setting
FACILI!
LIFT THE HANDSET DIAL “7214” HANG UP OR
OR PRESS PRESS
"SP-PHONE”’ ~ “SP-PHONE"
@ To Cancel
= "oO! a]
LIFT THE HANDSET PRESS DIAL *720#"'
OR PRESS "ICM"
“SP-PHONE”
HANG UP OR
PRESS
“SP-PHONE™’
@ Dialing through CO Line
LIFT THE HANDSET = WAIT FOR THE DIAL THE PHONE
OR PRESS C.0. DIAL TONE NUMBER
“SP-PHONE”’
M When you access an extension in the Auto CO Hunting
Mode, press the ICM button after lifting the handset or
pressing the SP-PHONE button.

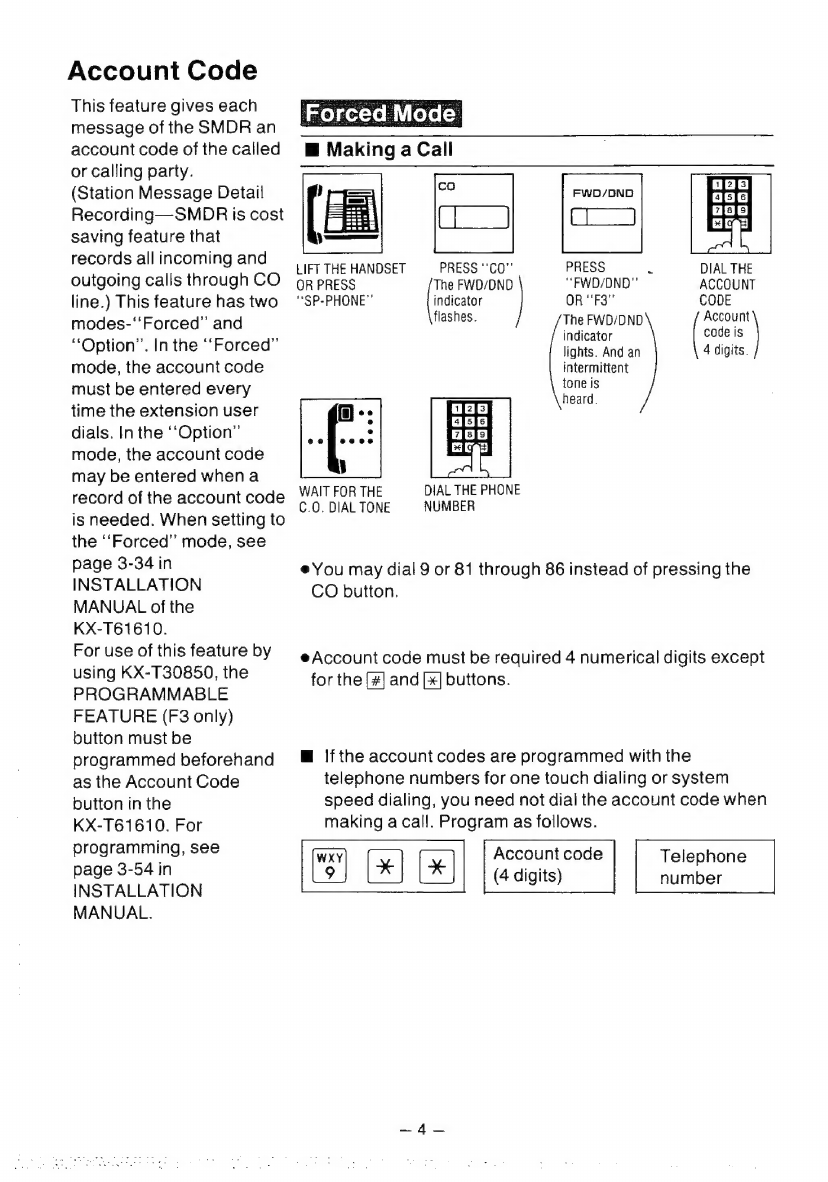

Account Code
This feature gives each
message of the SMDR an
account code of the called
or calling party.
(Station Message Detail
Recording—SMDR is cost
saving feature that
records all incoming and
outgoing calls through CO
line.) This feature has two
modes-‘‘Forced” and
“Option”. In the “Forced”
mode, the account code
must be entered every
time the extension user
dials. In the “Option”
mode, the account code
may be entered when a
record of the account code
is needed. When setting to
the ‘‘Forced” mode, see
page 3-34 in
INSTALLATION
MANUAL of the
KX-T61610.
For use of this feature by
using KX-T30850, the
PROGRAMMABLE
FEATURE (F3 only)
button must be
programmed beforehand
as the Account Code
button in the
KX-T61610. For
programming, see
page 3-54 in
INSTALLATION
MANUAL.
Forced Mode
@ Making a Call
ad FWD/DND
LIFT THE HANDSET PRESS *'CO” PRESS DIAL THE
OR PRESS The FWO/DND “FWD/DND”’ ACCOUNT
“SP-PHONE”’ indicator OR ‘'F3"' CODE
flashes. The FWD/DND Account
indicator ( code is
lights. And an 4 digits.
intermittent
tone is
heard.
DIAL THE PHONE
NUMBER
WAIT FOR THE
C.0. DIAL TONE
e You may dial 9 or 81 through 86 instead of pressing the
CO button.
e Account code must be required 4 numerical digits except
for the [#] and [x] buttons.
@ Ifthe account codes are programmed with the
telephone numbers for one touch dialing or system
speed dialing, you need not dial the account code when
making a call. Program as follows.
Account code Telephone
*|
[*
(4
digits)
number

Printed in Japan

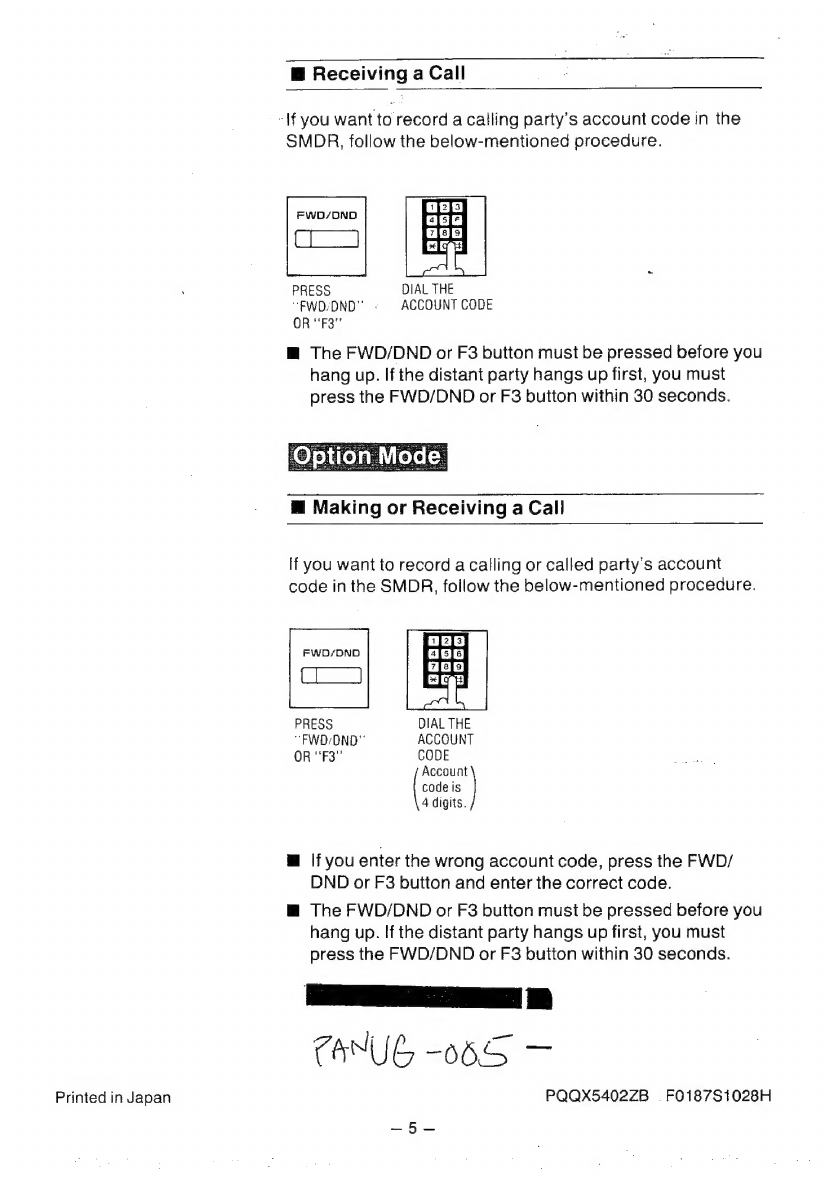

@ Receiving a Call
‘{f you want to record a calling party’s account code in the
SMDR, follow the below-mentioned procedure.
FWD/OND
PRESS DIAL THE
“FWO/DND" » ACCOUNT CODE
OR ‘“*F3”
m The FWD/DND or F3 button must be pressed before you
hang up. If the distant party hangs up first, you must
press the FWD/DND or F3 button within 30 seconds.
@ Making or Receiving a Cali
If you want to record a calling or called party’s account
code in the SMDR, follow the below-mentioned procedure.
FWD/DND
{TJ
PRESS DIAL THE
“FWD/DND" ACCOUNT
OR ''F3" CODE
Account
code is
(‘ ee
@ lf you enter the wrong account code, press the FWD/
DND or F3 button and enter the correct code.
m@ The FWD/DND or F3 button must be pressed before you
hang up. If the distant party hangs up first, you must
press the FWD/DND or F3 button within 30 seconds.
ew
TANUG -06S —
PQQX5402ZB F0187S1028H

a
VANUG-ol7
=
Panasonic
Company
Division
of
Matsushita
Electric
Corporation
of
America
One
Panasonic
Way,
Secaucus,
New
Jersey
07094
Panasonic
Sales
Company
(‘‘PSC’”’),
Division
of
Matsushita
Electric
of
Puerto
Rico,
Inc.
San
Gabriel
Industrial
Park,
65th
Infantry
Avenue,
KM
9.5,
Carolina,
P.R.
00630
Printed
in
United
Kingdom
PQQX5291YA
F1086S1099H

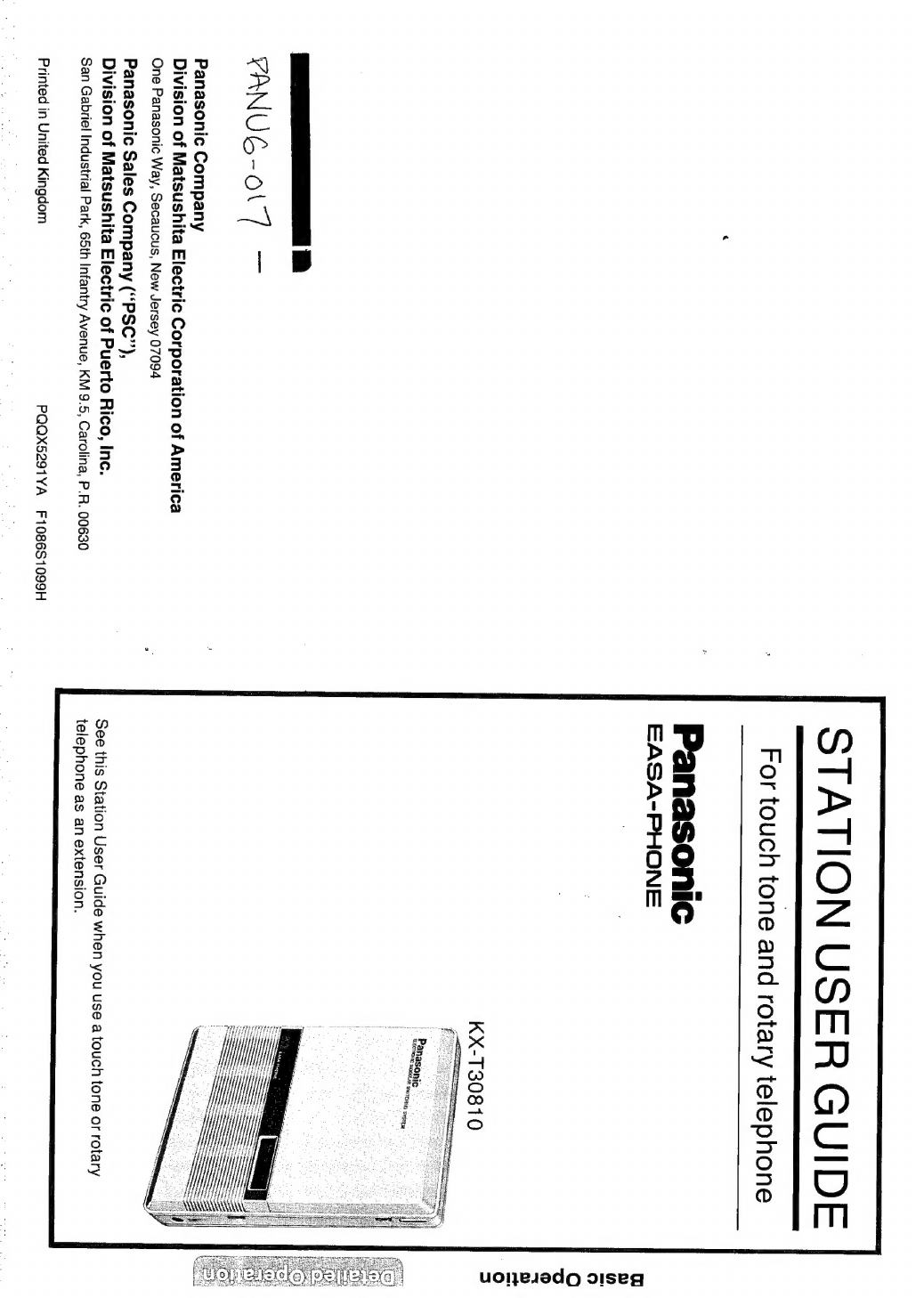

STATION
